Antec HCG750 750W High Current Gamer Gold Series Power Supply / High Current Gamer / 120 mm FDB Fan / PhaseWave Design / 140mm Depth Power Supply / HCG-750M GB + FREE DELIVERY !
|
|
|

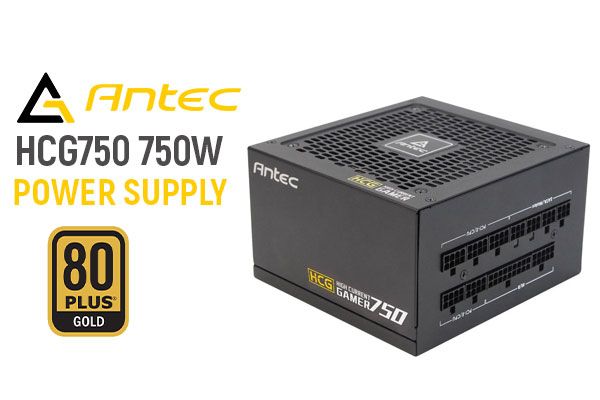

Antec HCG750 750W Power Supply
High Current Gamer
Gold Series
750W
The latest generation of High Current Gamer Gold power supplies offer unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment.
If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.
High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave™ Design - synchronous rectification based on a DC-DC topology.
A server-class full-bridge LLC design.
120mm
FDB FAN
The whisper-quiet, fluid-dynamic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.
FullY Modular Cable
Management System
Input / Output
& Efficiency Chart
FEATURES
- Guaranteed 750W of Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 120mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V - Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket - For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Compact size 140mm depth power supply is the best choice for compact ATX chassis
SPECIFICATIONS
| Model |
HCG750 Gold |
| Type |
ATX 12V 2.4 |
| Modular |
Fully Modular |
| Dimension (W x L x H) |
140(L)*150(W)*86(H) mm |
| Warranty |
10 years |
| Input Voltage |
100-240 VAC ±10% |
| Input Current |
10A-5A |
| Input Frequency Range |
50Hz-60Hz |
| PFC |
Active PFC (>0.9 typical) |
| Power Good Signal |
100-500ms |
| Efficiency |
92% Typically |
| Protection |
OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
| Output Capacity |
750W |
| Operation Temperature |
0~40°C |
| Regulatory |
cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC |
| Fan |
120mm FDB Fan |
| Certifications |
80 Plus Gold |
| Connector |
1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V |
| 4 x 8(6+2) Pin PCI-E |
| 8 x SATA |
| 3 x Molex |
| 1 x FDD |
| Net Weight |
2.11Kg |
| Gross Weight |
3.42Kg |
| UPC# |
0-761345-11641-1 HCG750 Gold |
| 0-761345-11639-8 HCG750 Gold AU |
| 0-761345-11638-1 HCG750 Gold EC |
| 0-761345-11637-4 HCG750 Gold GB |
| 0-761345-11636-7 HCG750 Gold JP |
