ASUS ROG Maximus XI Hero (Wi-Fi) COD Edition Intel Motherboard / Intel Z390 Chipset / Supports 8th And 9th Generation Processors / AMD Crossfire Technology / 802.11AC Wireless LAN / 4x Dimm Slots / 2x M.2 NVMe Socket / 2x USB 3.1 (Gen 1) / 3x USB 3.1 (Gen 2) / 1x HDMI 1.4 / 1x USB 3.1 Gen 2 Type-C / 8-Chanel HD Audio + FREE DELIVERY ! [+] GET FREE Ulta-Fast 512GB SSD [+] GET McAfee Internet Security Worth $79.99 For FREE
|
|
|

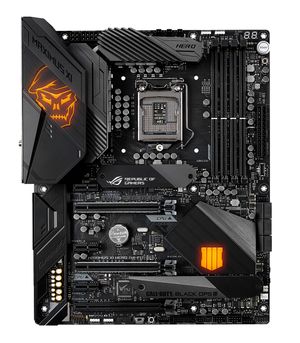

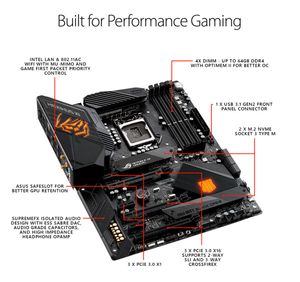

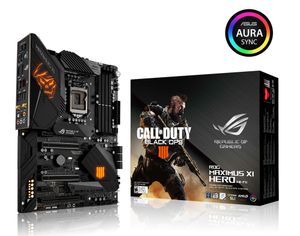

ASUS ROG Maximus XI Hero (Wi-Fi) CE Intel Motherboard
- LGA1151 socket for 9th/8th -gen Intel® Core™ desktop processors
- Synchronized RGB lighting technology works with a vast portfolio of Aura Sync-capable PC gear and includes support for addressable light strips and Phillip Hue
- Perfected cooling with dedicated water header zones, M.2 heatsink and various fan control
- Gaming connectivity: Intel Gigabit Ethernet , LANGaurd, dual M.2, USB 3.1 Gen 2, Wi-Fi with MU-MI-MO 802.11
- 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles trailor-made for your rig
5-WAY OPTIMIZATION
We've loaded the ROG Maximus XI Hero with simple, flexible tools that let you tweak almost every system aspect. Enjoy intelligent automated tuning with 5-Way Optimization technology, or dive deep into the revered ROG UEFI BIOS to take full manual control. Hero also makes short work of fine-tuning everything from audio to storage, so it's easy to get every part of your system up to speed.
OPTIMEM II
Our OptiMem II tech carefully maps memory signal pathways across different PCB layers to reduce vias and also adds shielding zones that significantly reduce crosstalk. And to further enhance overclocking headroom for fully stacked memory configurations, we've employed a highly customized T-Topology layout that delivers time-aligned signaling.

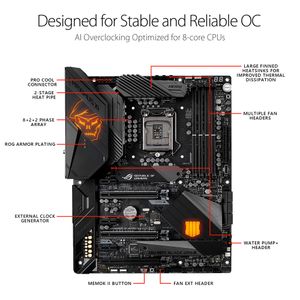

BUILT FOR OVERCLOCKING
By default, all of Coffee Lake's major bus frequencies are derived from the same reference clock, limiting the control and flexibility needed to harness the full overclocking potential of the platform. The ROG Maximus XI Hero features a dedicated onboard clock generator that supplies dynamic reference clocks to the CPU cores and major subdomains, giving you the freedom to coax every MHz of headroom from the system.
COOLER BY DESIGN
The ROG Maximus XI Hero features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS. Each header can be set to monitor and react to three user-configurable thermal sensors, for workload based cooling. All easily managed by Fan Xpert 4 or UEFI.

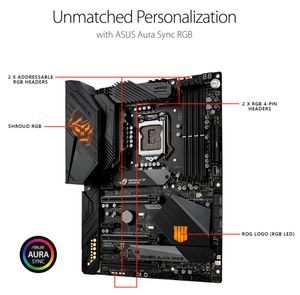

PERSONALIZED FOR YOU
With Aura Sync to unleash synchronized effects that extend from motherboard to a vast ecosystem of compatible components, the ROG Maximus XI Hero is primed for endless personalization.
SUPREMEFX
Utilizing the S1220 codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.
|
SPECIFICATIONS:
|
|
CPU
|
Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
|
|
Chipset
|
Intel® Z390
|
|
Memory
|
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.) /3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.) /2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
|
|
Graphic
|
Integrated Graphics Processor- Intel® UHD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
|
|
Multi-GPU Support
|
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX™ Technology
|
|
Expansion Slots
|
Intel® Z390 Chipset
2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
1 x PCIe 3.0 x16 (x4 mode) *1
3 x PCIe 3.0 x1
|
|
Storage
|
Intel® Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
|
|
LAN
|
Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology
|
|
Wireless Data Network
|
Intel® Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160
|
|
Bluetooth
|
Bluetooth® 5.0
|
|
Audio
|
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
|
|
USB Ports
|
Intel® Z390 Chipset :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, +red, 1 x Type-C+3 x Type-A)
Intel® Z390 Chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, +blue, 2 x Type-A)
Intel® Z390 Chipset :
6 x USB 2.0 port(s) (2 at back panel, +black, 4 at mid-board)
Intel® Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
|
|
ROG Exclusive Features
|
ReTry Button
Start Button
Reset Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
- OptiMOS™ MOSFET
Mem TweakIt
Extreme Tweaker
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
|
|
Special Features
|
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK! II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
- Reset Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
|
|

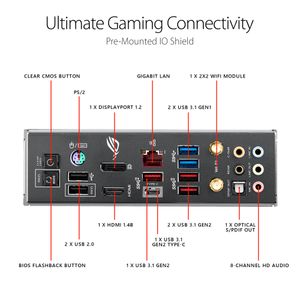

Back I/O Ports
|
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 1 x Type-C+3 x Type-A
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
|
|
Internal I/O Ports
|
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x H_AMP fan connector
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x Reset button(s)
1 x ReTry button
1 x System panel connector
1 x EXT_Fan header
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
|
