ASUS TUF GAMING B550M-PLUS AMD Ryzen micro ATX Motherboard / 3rd Gen AMD Ryzen Processors / AMD Socket AM4 / AMD B550 Chipset / Supports 2 x M.2 Slots and 4 x SATA 6Gb/s Ports / USB 3.2 Gen 2 Type-A / 1 x USB Type-C / Aura Sync RGB Lighting / 1 x DisplayPort 1.2 / 1 x HDMI 2.1 / 90MB14A0-M0EAY0 + FREE DELIVERY !
|
|
|

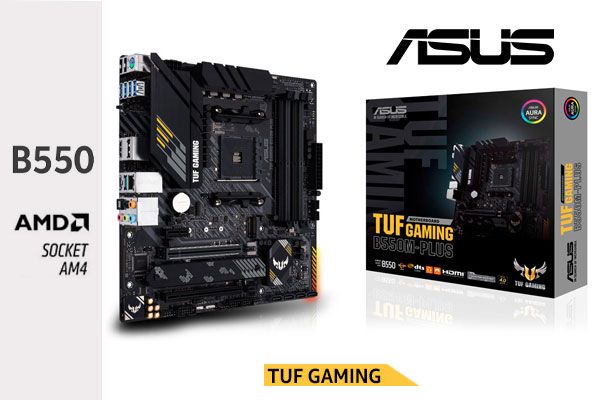

ASUS TUF GAMING B550M-PLUS AMD Ryzen Motherboard
TUF Gaming B550M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus is the perfect foundation for your next high-core-count battle rig.
VRM HEATSINK
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
THERMAL PAD
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
M.2 HEATSINK
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
TUF Gaming B550M-Plus features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or via the UEFI.
TUF Gaming B550 series motherboards support PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
SPECIFICATION
| Model Name |
ASUS TUF GAMING B550M-PLUS AMD Ryzen Motherboar |
| CPU |
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Chipset |
AMD B550 |
| Memory |
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C) /4400(O.C) /4266(O.C.) /4133(O.C.) /4000(O.C.) /3866(O.C.) /3733(O.C.) /3600(O.C.) /3466(O.C.) /3333(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz Un-buffered Memory *
|
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *1
1 x PCIe 3.0 x1 *1 |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10 |
| Ethernet |
Realtek RTL8125B 2.5Gb Ethernet
TUF LANGuard |
| USB |
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A) |
| Audio |
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Rear audio USB Type-C® port
- Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover |
| Back Panel I/O Ports |
PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (2.5G) port(s)
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s
1 x BIOS FlashBack™ Button(s) |
| Internal I/O Connectors |
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x 4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s) |
