A 10GbE network card adds a high-bandwidth wired link for compatible workstations, servers, switches and network storage.
Choose 10GBASE-T RJ45 or SFP+ for the existing network, then verify PCIe bandwidth, driver support, cabling, transceiver, switch and cooling requirements.

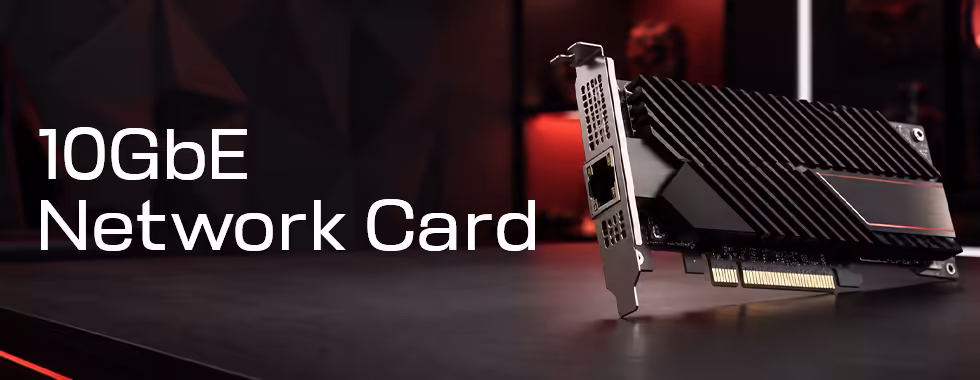

10GbE Network Cards for Fast LAN and Storage Links (1)
10GBASE-T uses twisted-pair copper and familiar RJ45 ports, while SFP+ uses approved direct-attach cables or optical modules. The two interfaces need matching switch hardware.
The adapter requires enough active PCIe lanes and a slot that remains electrically wide enough. Motherboard lane sharing can reduce another device or disable a connector.
Intel X550 guidance supports Cat6 to shorter 10GbE distances and Cat6A to 100 metres. Existing cable quality, termination and interference still affect link negotiation.
Both ends must support 10GbE for a 10Gbps link, with some copper adapters able to fall back to 5, 2.5 or 1GbE. Check supported rates on every port.
10GBASE-T controllers can run warm and need chassis airflow. Confirm current operating-system drivers, firmware and low-profile bracket requirements before installation.
