Antec Signature 1000W 80 PLUS Titanium Power Supply / FDB 135MM Silent Fan / Zero RPM Mode / 100% Top-Grade Japanese Capacitors / Phasewave Design / Full Modular Cable Management / 0-761345-11712-8 + FREE DELIVERY !
|
|
|

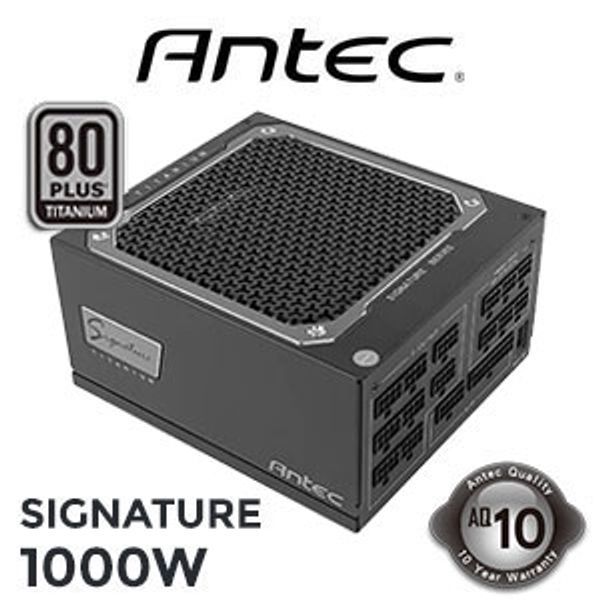

Antec Signature 1000W Titanium Power Supply
Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Titanium-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
PhaseWavet Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.
Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Specifications
| Model |
X9000A505-18 |
| Type |
ATX |
| Modular |
Fully |
| Dimension (W x L x H) |
150 x 170 x 86mm |
| Warranty |
10 years |
| Input Voltage |
100-240 |
| Input Current |
13A ~ 6.5A |
| Input Frequency Range |
47Hz ~ 63Hz |
| PFC |
APFC
PFC at half / full load:
>0.95 at AC 110v 60Hz(typical)
>0.90 at AC 230v 50Hz(typical) |
| Power Good Signal |
100 ~ 500mS |
| Efficiency |
At 20% / 50% / 100% load AC 115V internal,
the power efficiency should be at least 90% / 92% / 89%. |
| Protection |
OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity |
1000W |
| Operation Temperature |
0 ~ 40°C |
| Regulatory |
CB, CE, FCC, BSMI, TUV, cTUVus, 3C, RCM |
| Fan |
135 x 135 x 25(mm) FDB Silent Fan |
| Certifications |
80 Plus Titanum |
| Connector |
1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
16 x SATA
5 x Molex
1 x FDD |
| UPC# |
0-761345-11712-8 |
| Net Weight |
2.11 Kgs |
| Gross Weight |
3.93 Kgs |
