Antec Vortex View 360 AIO Liquid CPU Cooler - Black / 5" 1280x720 IPS Display / 360-Degree Rotating Ball Joint / 9th Gen Asetek Pump / 400W TDP / 3x 120mm PWM FDB Fans / RGB Backglow / Intel LGA 1851 1700 + AMD AM5 AM4 / 0-761345-40064-0
3 Years Local Warranty
Model No : Antec 0-761345-40064-0
Price Inc. Vat
R 1,999
Save R 200
ListR 2,199
1999Change Quantity:
In Stock with Evetech

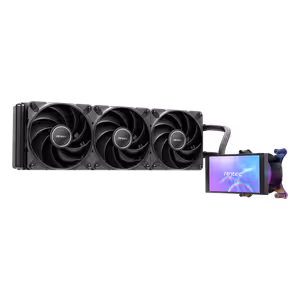

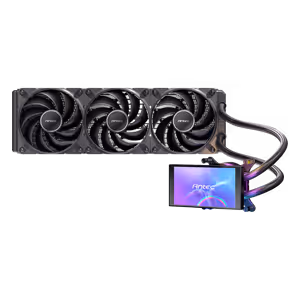

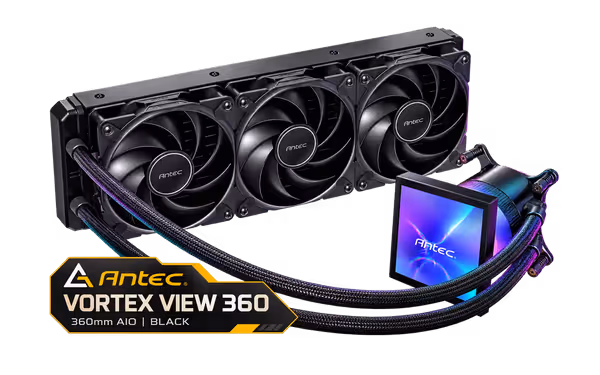

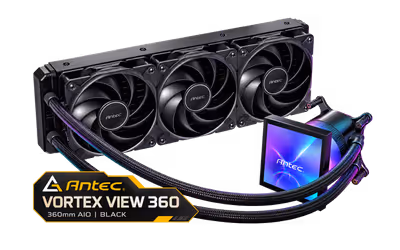

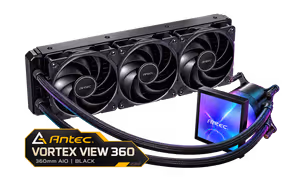

Antec Vortex View 360 AIO Liquid Cooler - Black
A 5-Inch Screen On A 360mm AIO Cooler

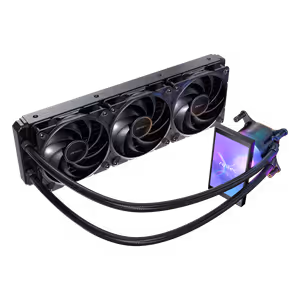

The Antec Vortex View 360 is a 360mm AIO liquid CPU cooler with a 5-inch 1280x720 IPS display on a ball joint that rotates a full 360 degrees. It is built on Asetek's 9th Gen platform, rated by Antec for up to 400W TDP, with three 120mm FDB PWM fans at 400-2000RPM. iUnity 2.0 sets the screen, the RGB backglow and the fan and pump curves.
A 5-Inch Screen On A 360mm AIO Cooler
The Antec Vortex View 360 is a 360mm AIO liquid CPU cooler with a 5-inch 1280x720 IPS display on a ball joint that rotates a full 360 degrees. It is built on Asetek's 9th Gen platform, rated by Antec for up to 400W TDP, with three 120mm FDB PWM fans at 400-2000RPM. iUnity 2.0 sets the screen, the RGB backglow and the fan and pump curves.

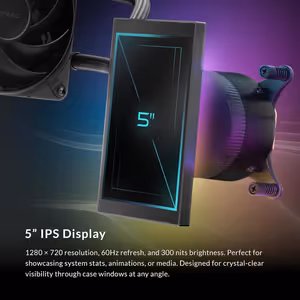

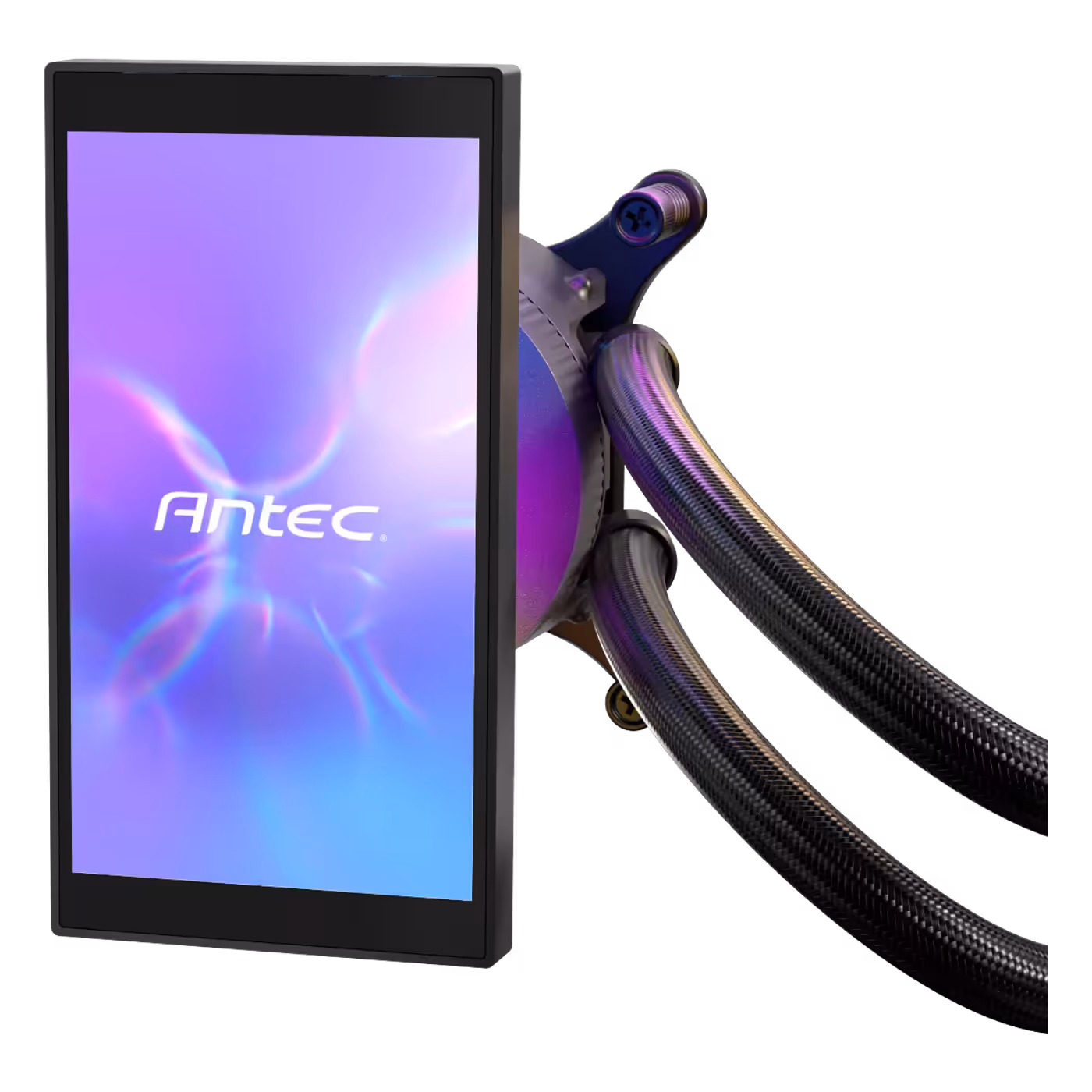

A 1280x720 IPS Display On The Pump Head

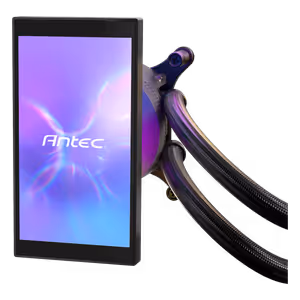

The display runs at 60Hz and 300 nits, bright enough to read through a case window. It shows system stats, animations or media, set in Antec iUnity 2.0. The render shows the screen standing upright beside the pump block, with the hoses curving away behind it.
A 1280x720 IPS Display On The Pump Head
The display runs at 60Hz and 300 nits, bright enough to read through a case window. It shows system stats, animations or media, set in Antec iUnity 2.0. The render shows the screen standing upright beside the pump block, with the hoses curving away behind it.

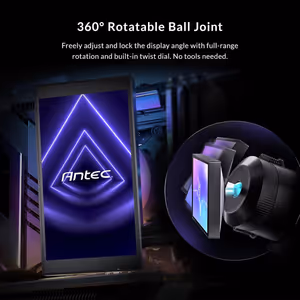

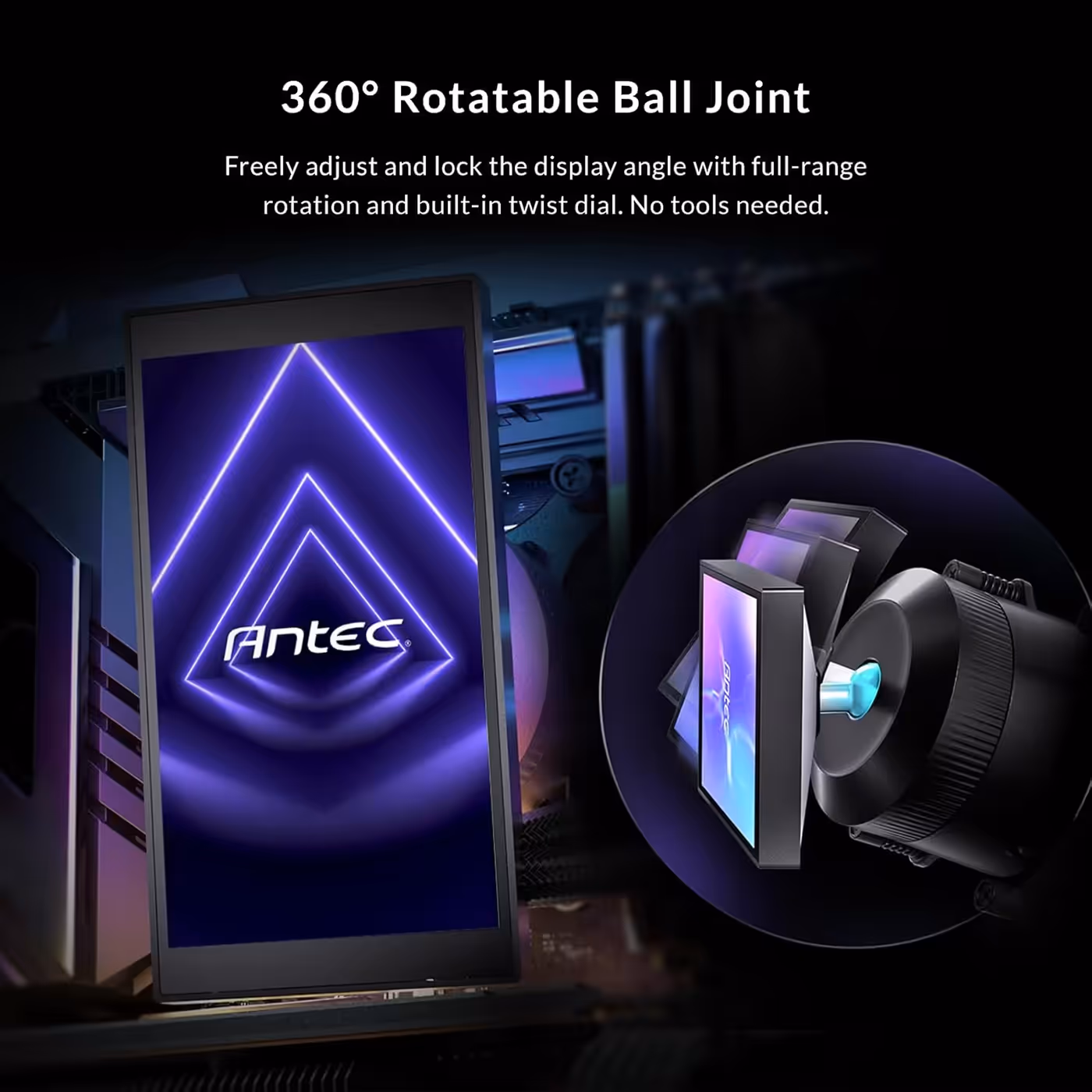

A Twist Dial Locks The Screen At Any Angle
The ball joint turns the screen a full 360 degrees, and the built-in twist dial locks it in place with no tools needed. However the pump head ends up mounted, the screen can be set upright and facing the glass.
A Twist Dial Locks The Screen At Any Angle
The ball joint turns the screen a full 360 degrees, and the built-in twist dial locks it in place with no tools needed. However the pump head ends up mounted, the screen can be set upright and facing the glass.

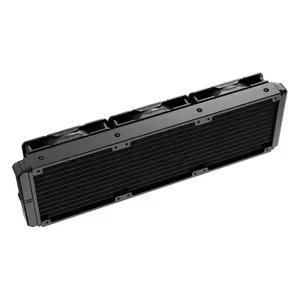

9th Gen Asetek Pump Rated For 400W TDP

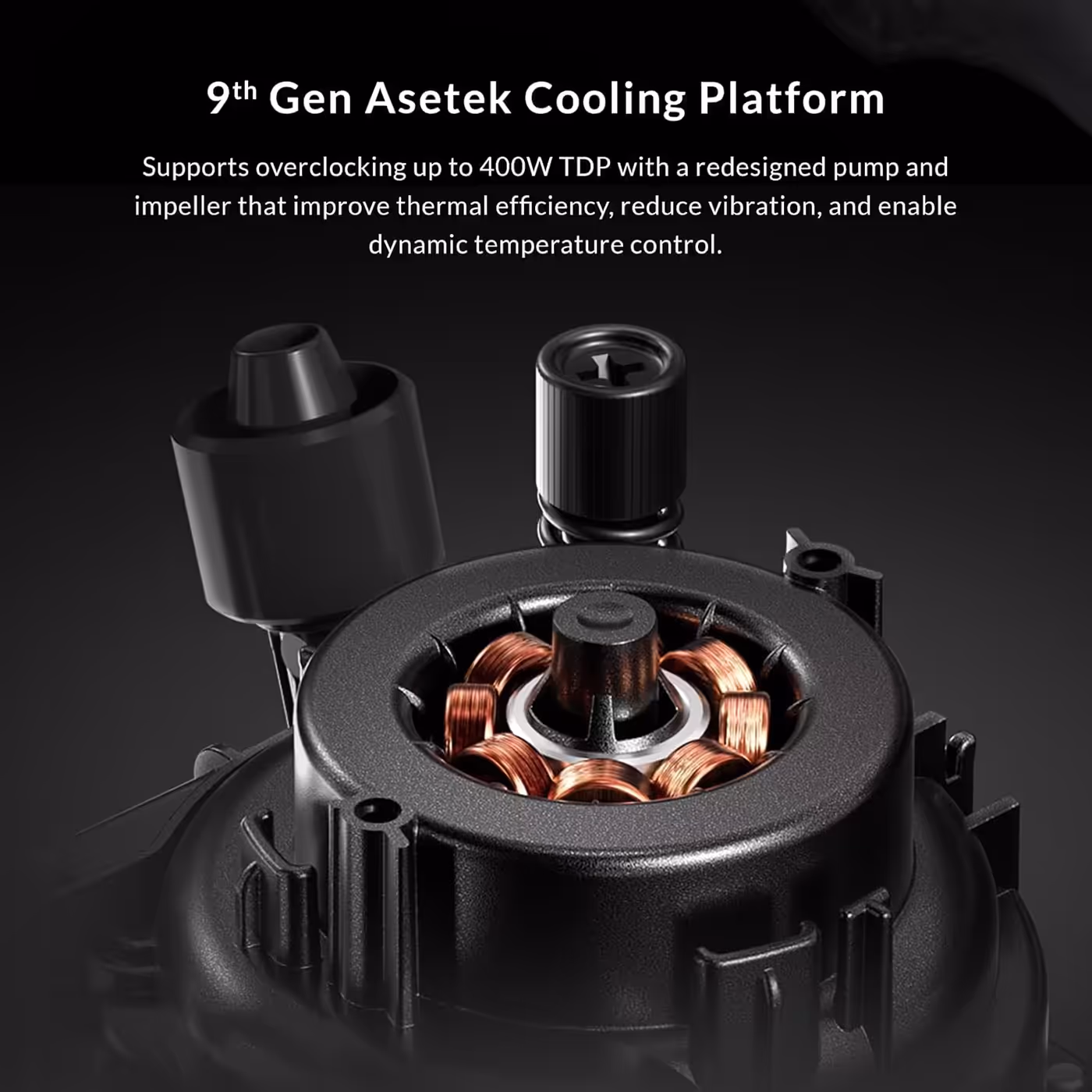

The pump and impeller are redesigned on Asetek's 9th Gen platform, rated by Antec for overclocked CPUs up to 400W TDP. The pump head is rated at 27dBA or less with a 50,000-hour lifespan, and the radiator is a 394 x 120 x 27mm aluminium unit.
9th Gen Asetek Pump Rated For 400W TDP
The pump and impeller are redesigned on Asetek's 9th Gen platform, rated by Antec for overclocked CPUs up to 400W TDP. The pump head is rated at 27dBA or less with a 50,000-hour lifespan, and the radiator is a 394 x 120 x 27mm aluminium unit.
Three 120mm FDB Fans At 400-2000RPM

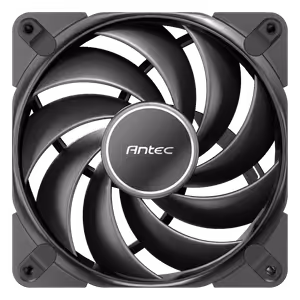

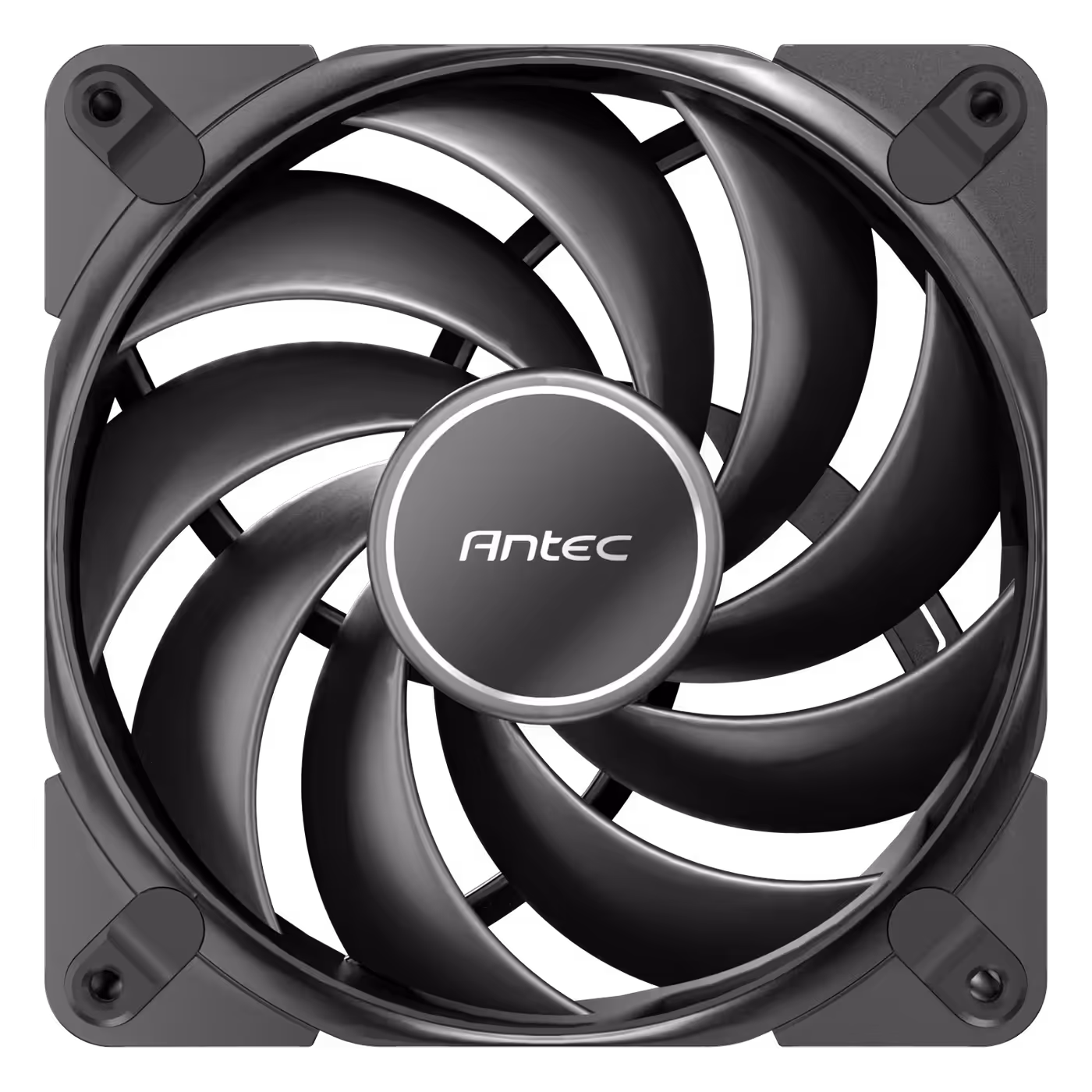

Each fan is 120 x 120 x 25mm with a fluid-dynamic bearing, moving up to 59.23CFM with 2.46mmH2O at 28.6dBA or less. Speed runs from about 400 to 2000RPM on a 4-pin PWM connector. The fans have no LEDs, so the lighting comes from the pump head.
Three 120mm FDB Fans At 400-2000RPM
Each fan is 120 x 120 x 25mm with a fluid-dynamic bearing, moving up to 59.23CFM with 2.46mmH2O at 28.6dBA or less. Speed runs from about 400 to 2000RPM on a 4-pin PWM connector. The fans have no LEDs, so the lighting comes from the pump head.

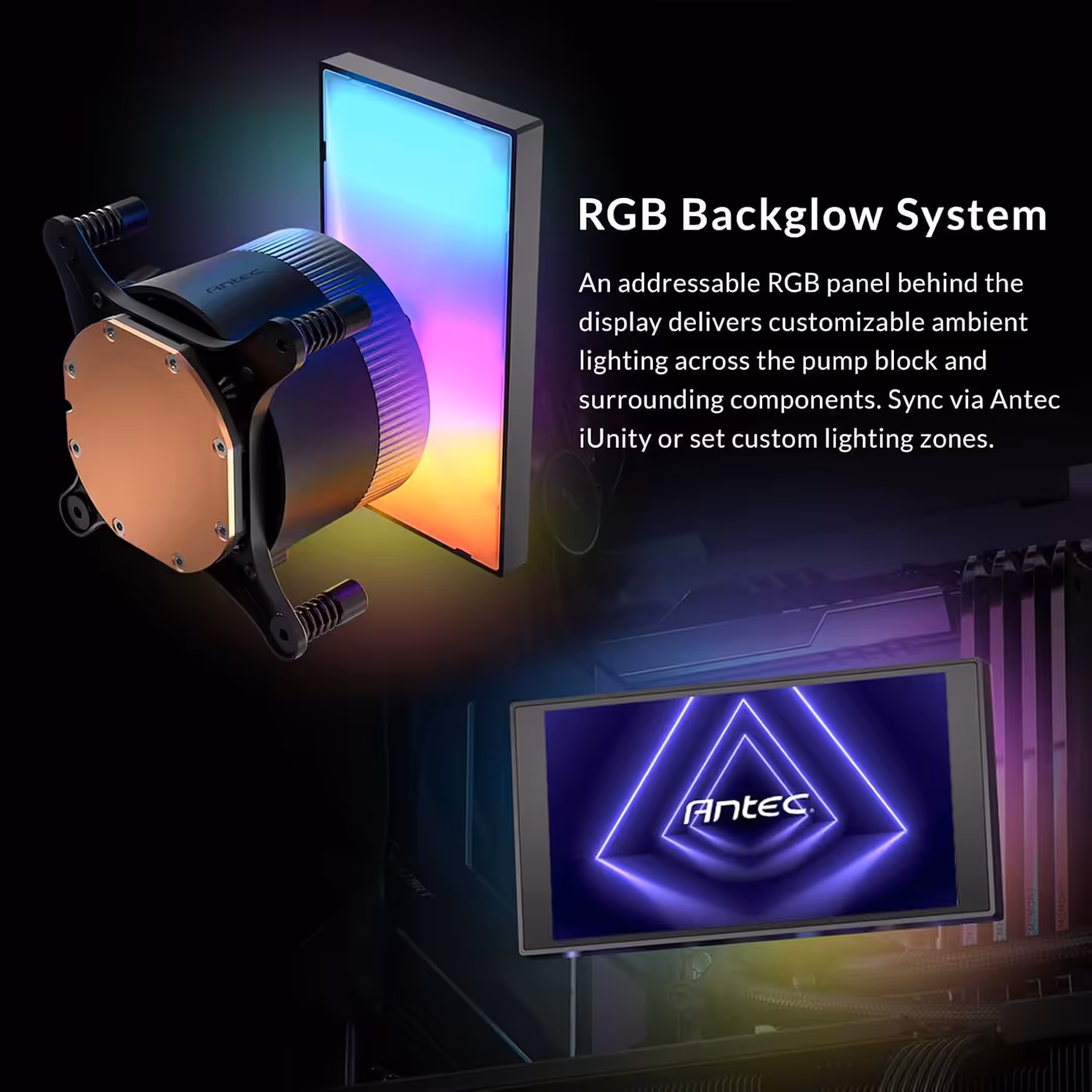

RGB Backglow Behind The Display

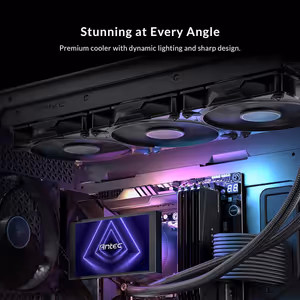

An addressable RGB panel behind the display lights the pump block and the parts around it. Per-zone lighting is set in iUnity 2.0, the same app that controls what the screen shows and how the fans and pump curve with temperature. The fans themselves carry no LEDs, so the backglow is the only lighting on the cooler.
RGB Backglow Behind The Display
An addressable RGB panel behind the display lights the pump block and the parts around it. Per-zone lighting is set in iUnity 2.0, the same app that controls what the screen shows and how the fans and pump curve with temperature. The fans themselves carry no LEDs, so the backglow is the only lighting on the cooler.

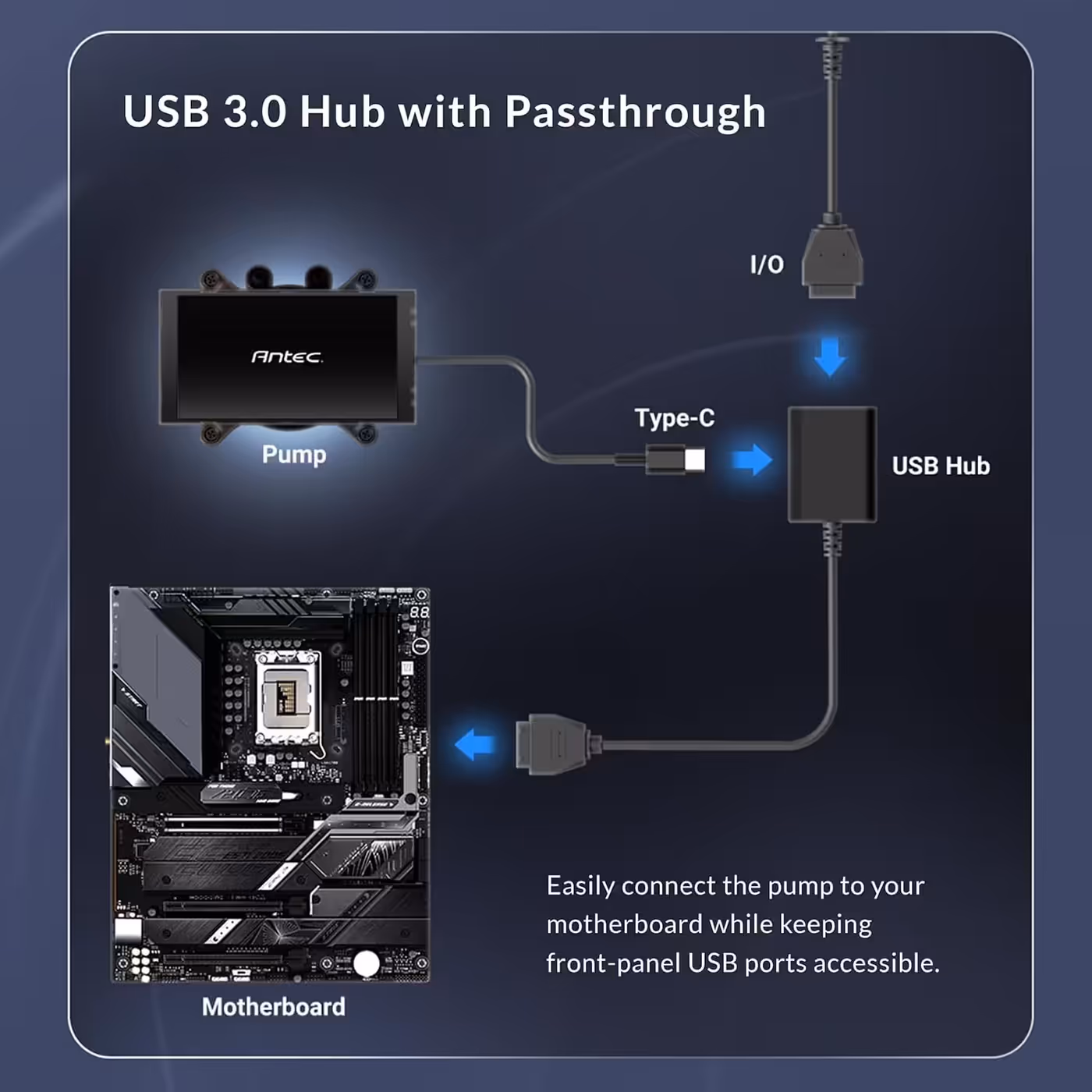

USB 3.0 Hub Keeps Front Ports Working

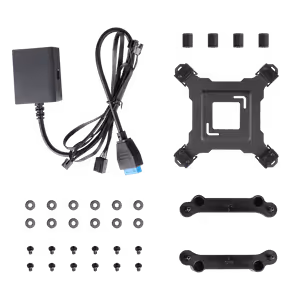

The pump connects to the motherboard's USB 3.0 header through Antec's hub, which passes the header through. The front-panel USB ports in the case keep working, so the screen does not cost a header. The pump itself uses a 4-pin PWM connector for speed control.
USB 3.0 Hub Keeps Front Ports Working
The pump connects to the motherboard's USB 3.0 header through Antec's hub, which passes the header through. The front-panel USB ports in the case keep working, so the screen does not cost a header. The pump itself uses a 4-pin PWM connector for speed control.

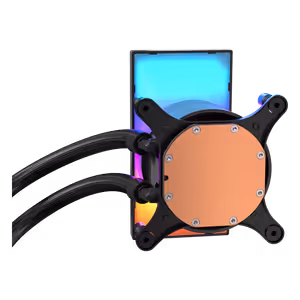

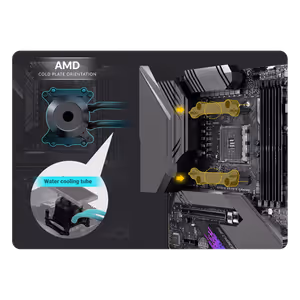

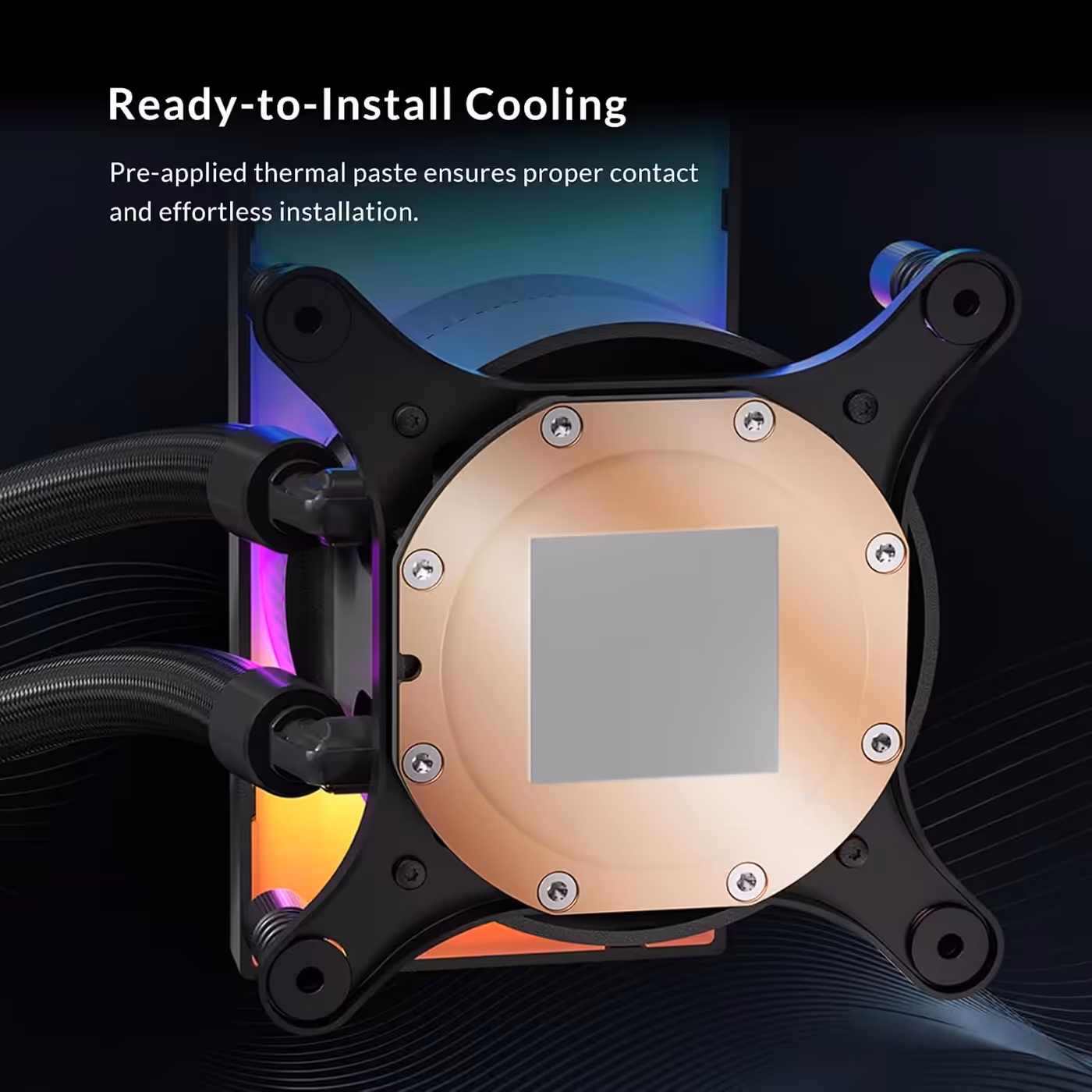

Pre-Applied Paste And Socket Support

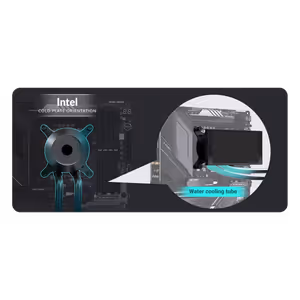

The cold plate ships with thermal paste already on it. Antec advises 6 o'clock orientation on Intel and 3 o'clock on AMD, so the pump head sits the right way round once mounted. The cooler fits Intel LGA 1851, 1700, 1200 and 115X and AMD AM5 and AM4.
Pre-Applied Paste And Socket Support
The cold plate ships with thermal paste already on it. Antec advises 6 o'clock orientation on Intel and 3 o'clock on AMD, so the pump head sits the right way round once mounted. The cooler fits Intel LGA 1851, 1700, 1200 and 115X and AMD AM5 and AM4.
FAQ
Frequently Asked Questions
Everything you need to know about this product
Antec rates it for overclocked CPUs up to 400W TDP. It runs on Asetek's 9th Gen platform with a redesigned pump and impeller and a 394mm-long 360mm radiator.
Antec's spec table rates the pump head at 27dBA or less and each fan at 28.6dBA or less at 2000RPM. The FDB fans idle down to around 400RPM under PWM control.
The 5" 1280x720 IPS panel runs at 60Hz and 300 nits and shows system stats, animations or media, set in Antec iUnity 2.0. The ball joint turns it a full 360 degrees so it sits upright in any mounting.
Yes. iUnity 2.0 adjusts the fan and pump curves, and both the pump and the three fans use 4-pin PWM connectors. The fans run from about 400 to 2000RPM.
Intel LGA 1851, 1700, 1200 and 115X, and AMD AM5 and AM4. Antec advises mounting the cold plate at 6 o'clock on Intel and 3 o'clock on AMD.
The pump connects to the motherboard's USB 3.0 header through Antec's hub, which passes the header through so your case's front-panel USB ports keep working.
No. The Vortex 360 ARGB has ARGB fans, a spiral pump head and a 280W TDP rating. The Vortex View 360 adds the rotating 5" screen, moves to Asetek's 9th Gen platform for 400W TDP and uses plain FDB fans with the RGB on a backglow panel.
If you want a large live display on your CPU cooler without giving up cooling headroom, it pairs a 5" screen you can turn to face the glass with a 400W TDP Asetek pump and a 360mm radiator.
