ASUS RX 9070 XT + B850-E Bundle / ASUS TUF Gaming Radeon RX 9070 XT 16GB GDDR6 OC Edition Graphics Card - PCIe 5.0, RGB Lighting, Overclocked, HDMI, 3 DP, 2670MHz Clock / ASUS ROG STIX B850-E WIFI Motherboard - ATX, AM5, 16+2+2 Stages, Core Flex, DDR5, AI OC, AI Networking, 5G LAN, PCIe 5.0, USB4®, 5x M.2 / TUF-RX9070XT-ROG-STRIX-B850-E

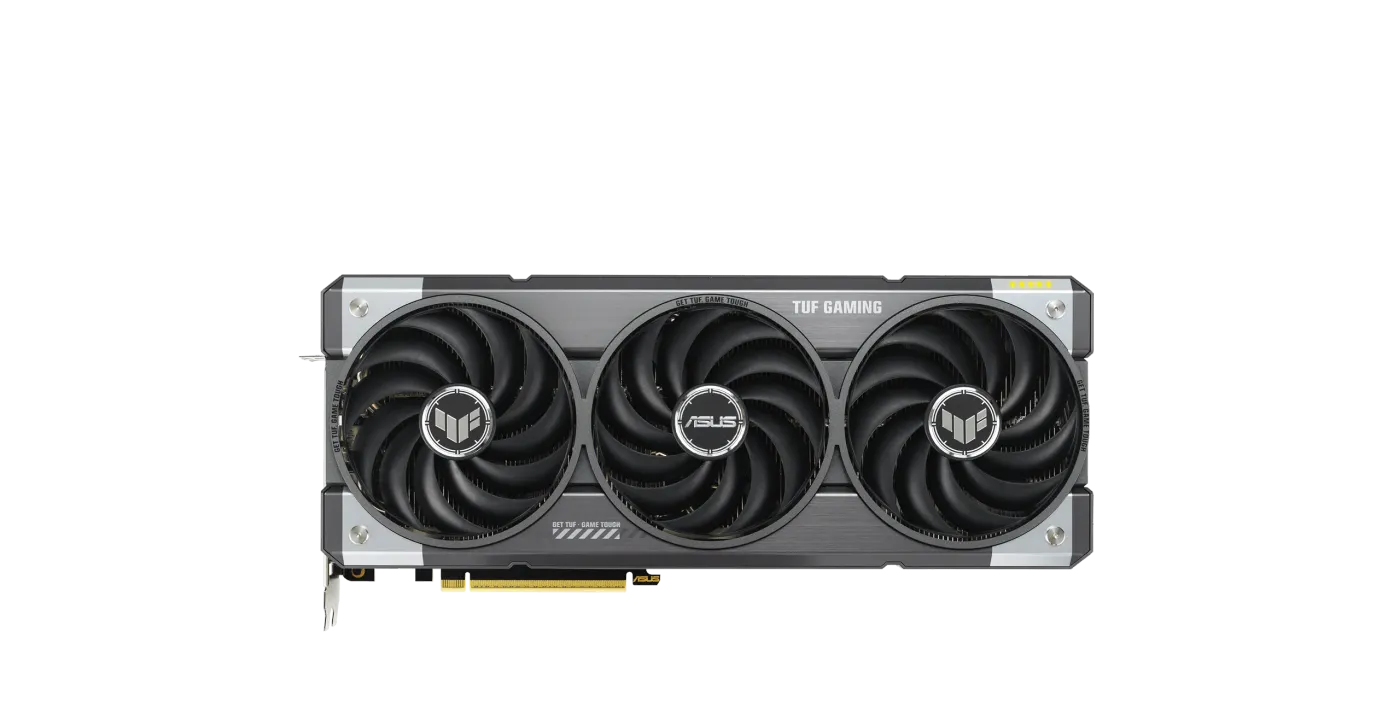

ASUS TUF Gaming Radeon™ RX 9070 XT is powered by the AMD RDNA™ 4 Architecture and engineered to consistently deliver frames at 4K resolution and beyond, while featuring rugged reinforcements for long-term durability.

Axial‑Tech fans are designed to move significantly more air than conventional designs, providing up to 31% more airflow compared with standard fans.

A vented metal exoskeleton implements a 3.125‑slot form factor to increase heat dissipation and support the card’s thermal performance.

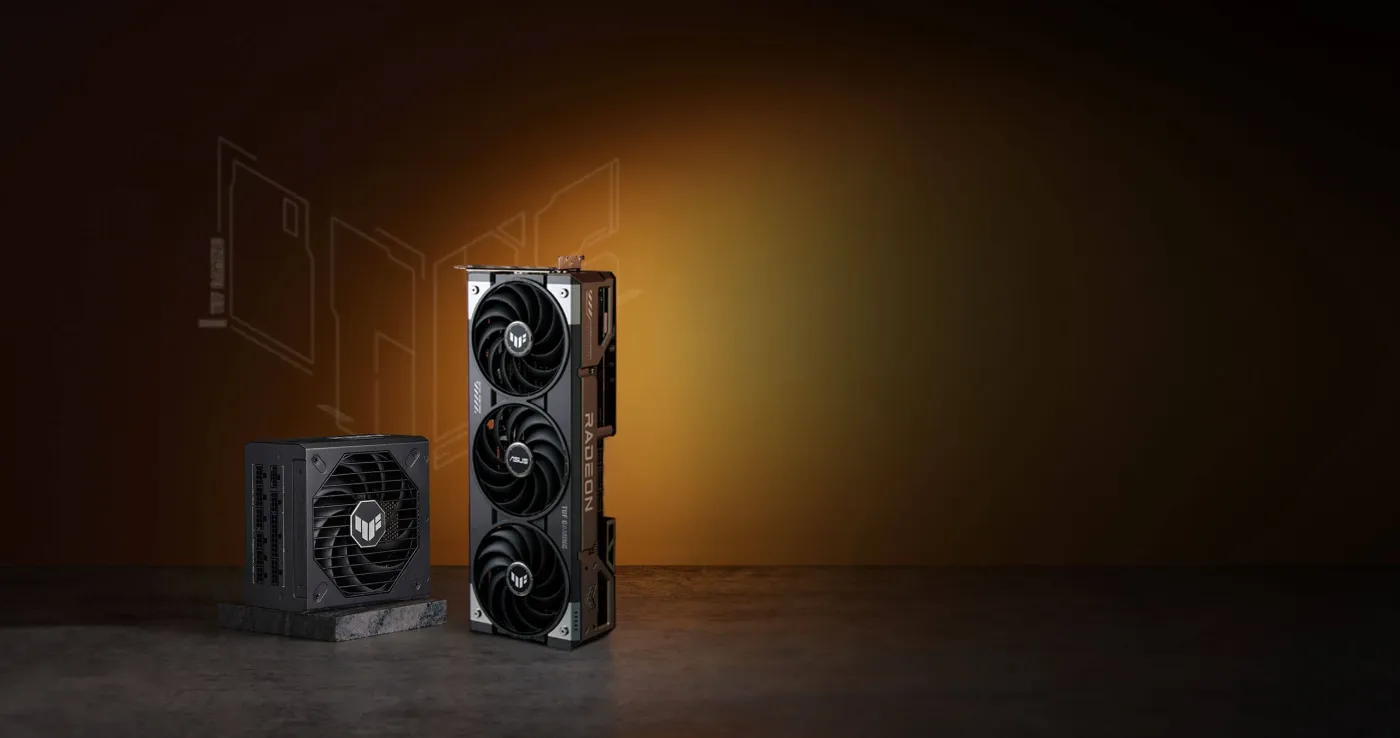

ASUS recommends the TUF Gaming Gold Series PSUs as the ideal companion for TUF Gaming Radeon™ RX 9000 Series graphics cards, offering durable construction and dependable power delivery built with high-quality components and military‑grade capacitors.

A premium phase‑change GPU thermal pad melts to fill gaps between the GPU and thermal module, improving thermal conductivity and heat dissipation to help maintain performance and extend graphics card longevity under heavy loads.

A protective conformal coating surrounds the circuit board to help guard against short‑circuits caused by moisture, dust, or debris, increasing the board’s resistance to environmental hazards.

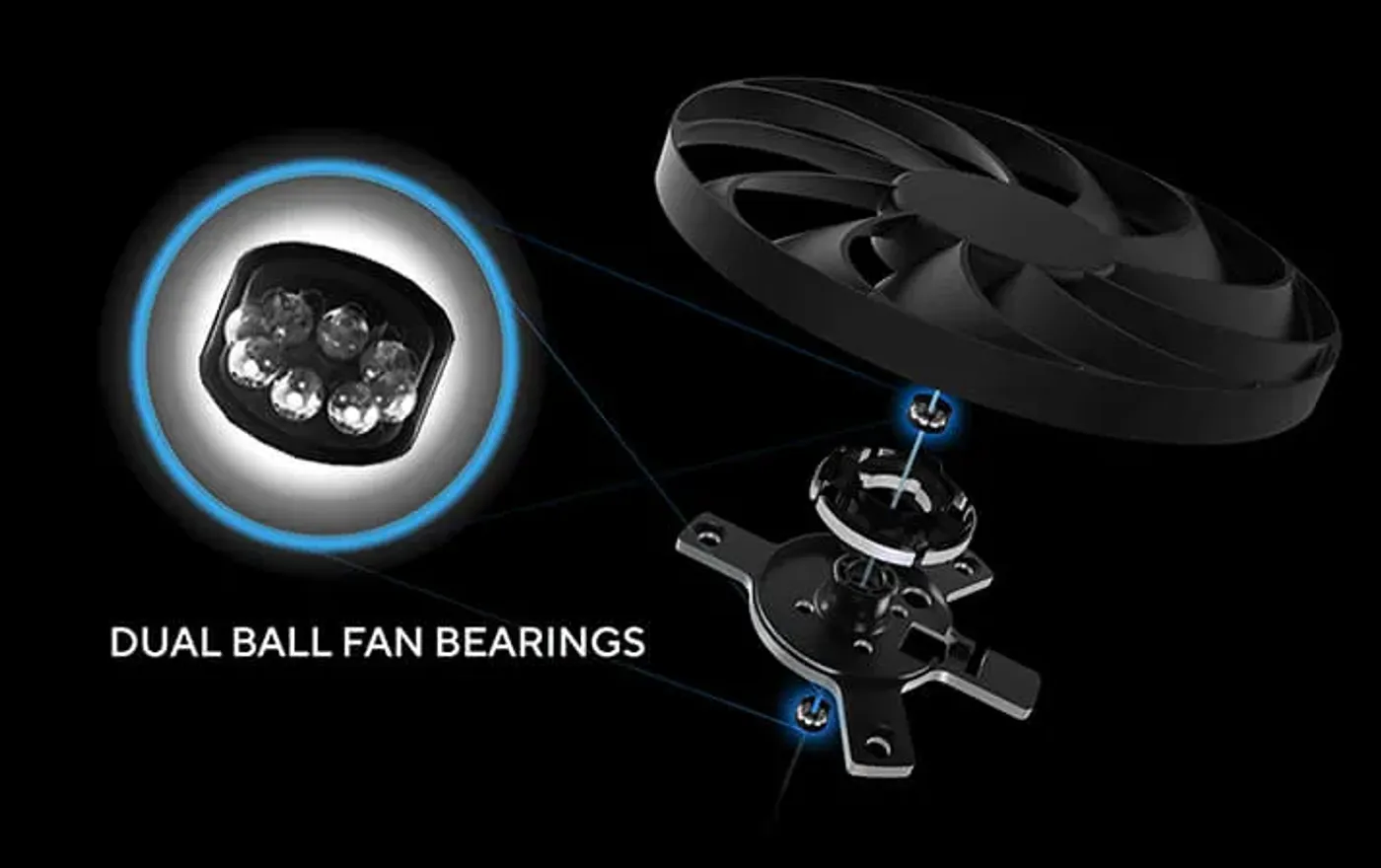

Dual‑ball bearings provide a lifespan of up to 80,000 hours — roughly double that of sleeve bearings and exceeding fluid dynamic bearings — contributing to quieter, longer‑lasting cooling performance.

ASUS MaxContact manufacturing increases the surface area of the GPU heat spreader by 5% compared to traditional designs, which can improve temperatures by up to 2°C when combined with an extensive heatsink array and powerful Axial‑tech fans.

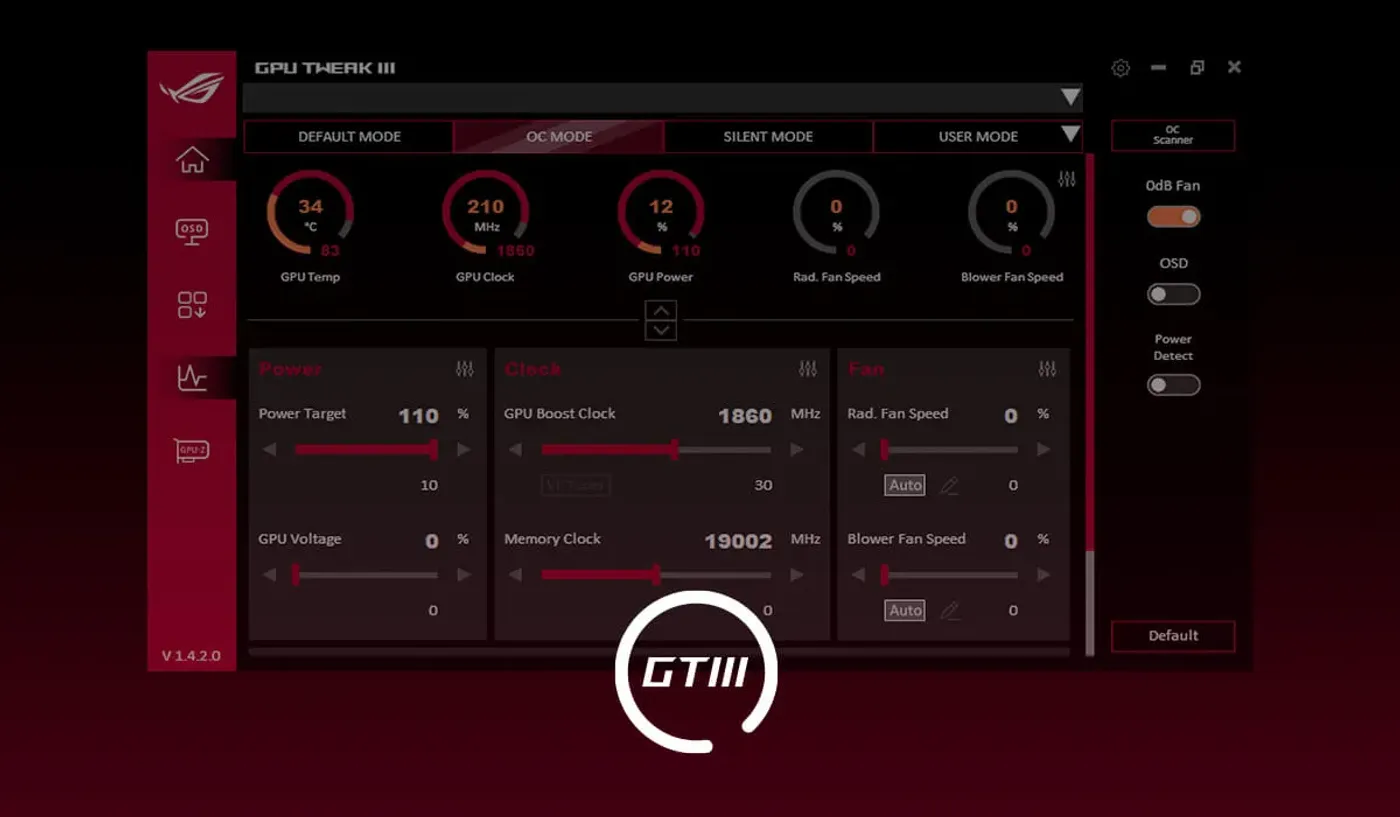

ASUS GPU Tweak III is an enhanced tuning utility with a redesigned dashboard, an updated Voltage‑Frequency tuner for easier overclocking, and features such as 0dB fan technology, automatic profile swapping, a customizable on‑screen display, and logging capabilities.

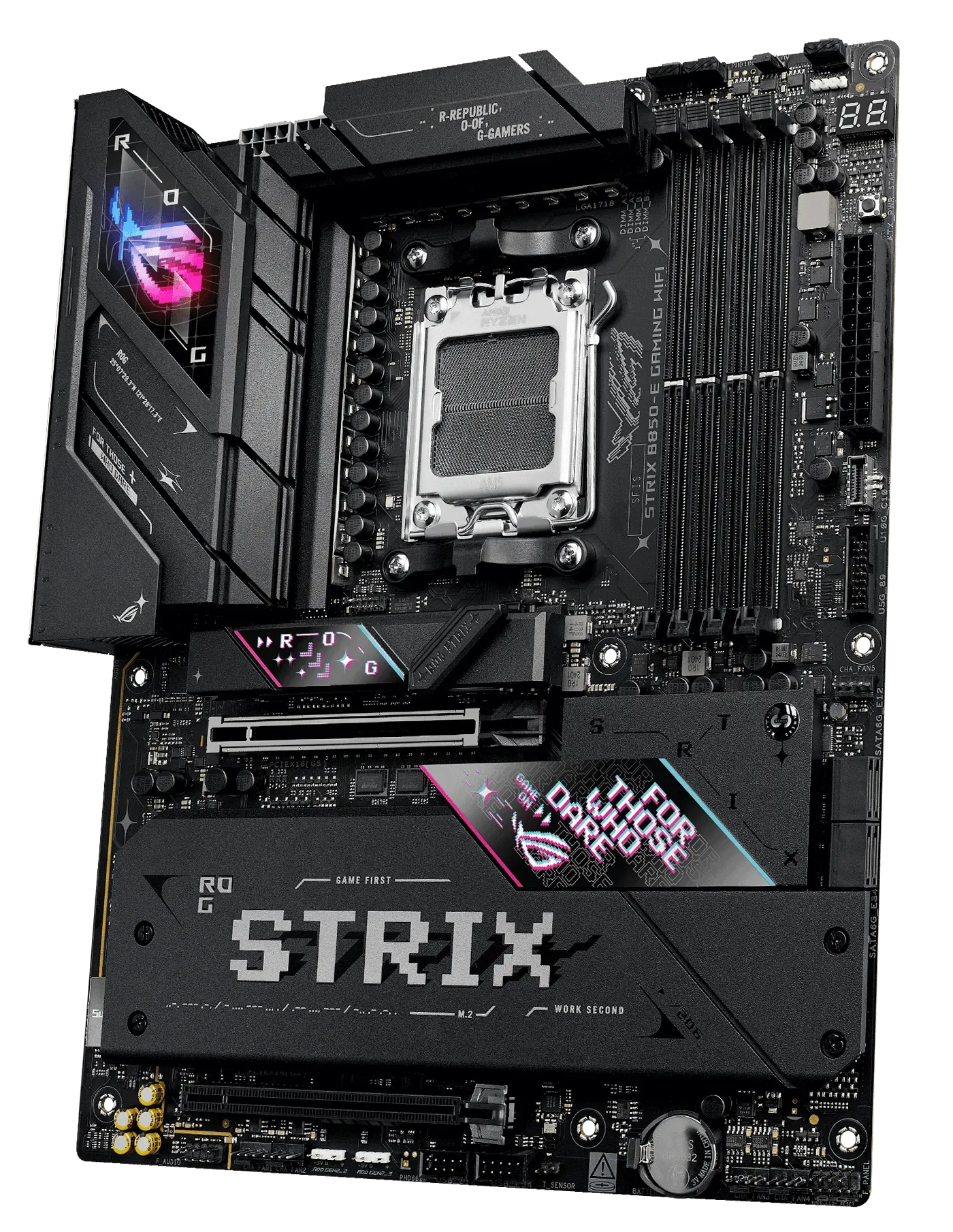

The ROG Strix B850-E Gaming WiFi is engineered to leverage AMD Ryzen™ 9000 Series processors. It includes PCIe® 5.0 support, AI Overclocking, AI Networking II, and AEMP to simplify setup while maximizing performance. One USB4® Type-C port plus WiFi 7 and Realtek 5Gb Ethernet provide high-end connectivity, and robust heatsinks help keep M.2 drives cool under heavy workloads. The board is positioned for demanding gaming, professional, and advanced AI PC applications.

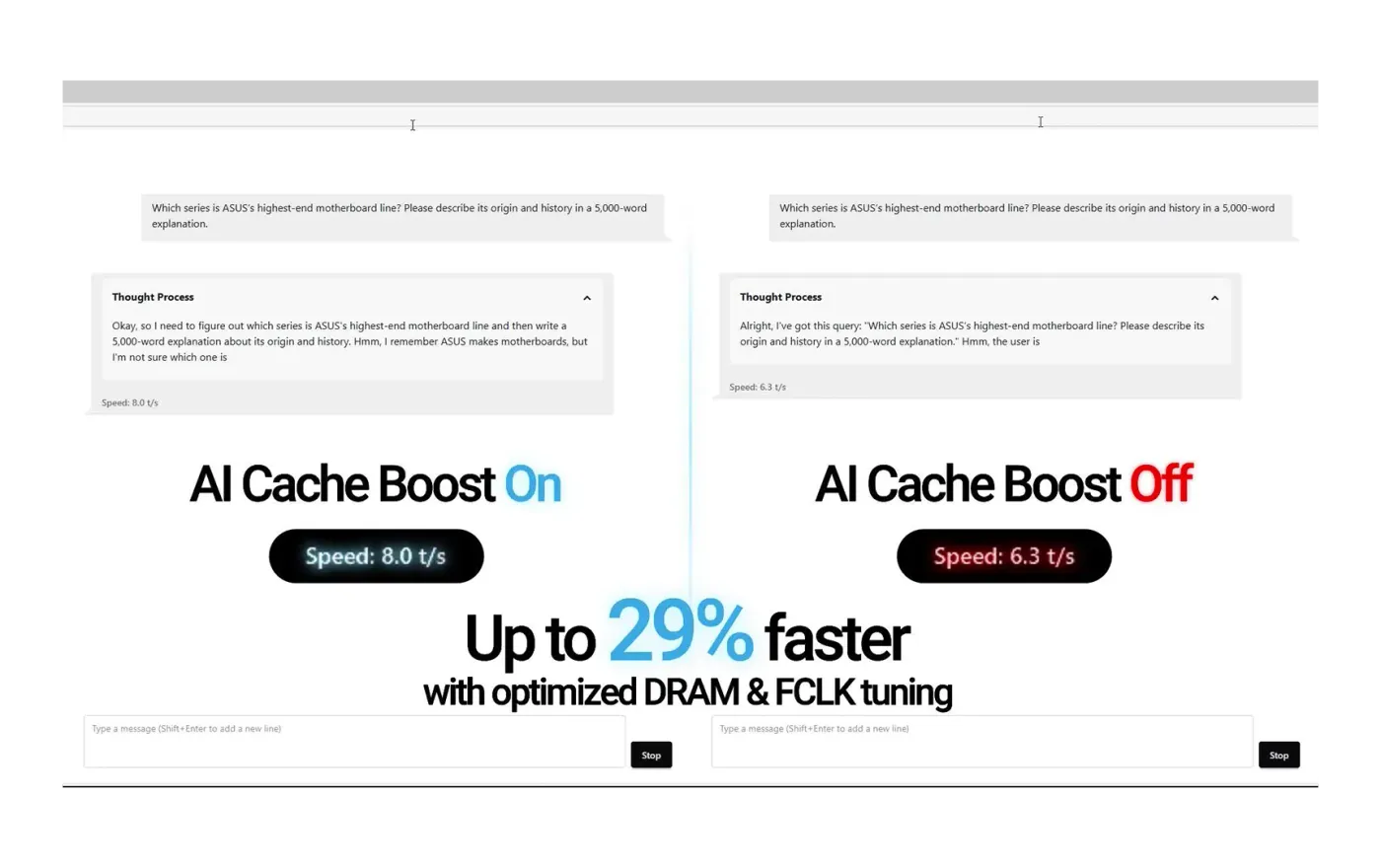

AI Cache Boost is a BIOS setting that optimizes CPU cache and memory pathways to accelerate local large language model (LLM) workloads. Exclusive to ASUS AMD 800 and 600 series motherboards using Ryzen™ 9000 Series CPUs, enabling this feature can deliver up to 29% faster local LLM performance when paired with high-speed memory tuning.

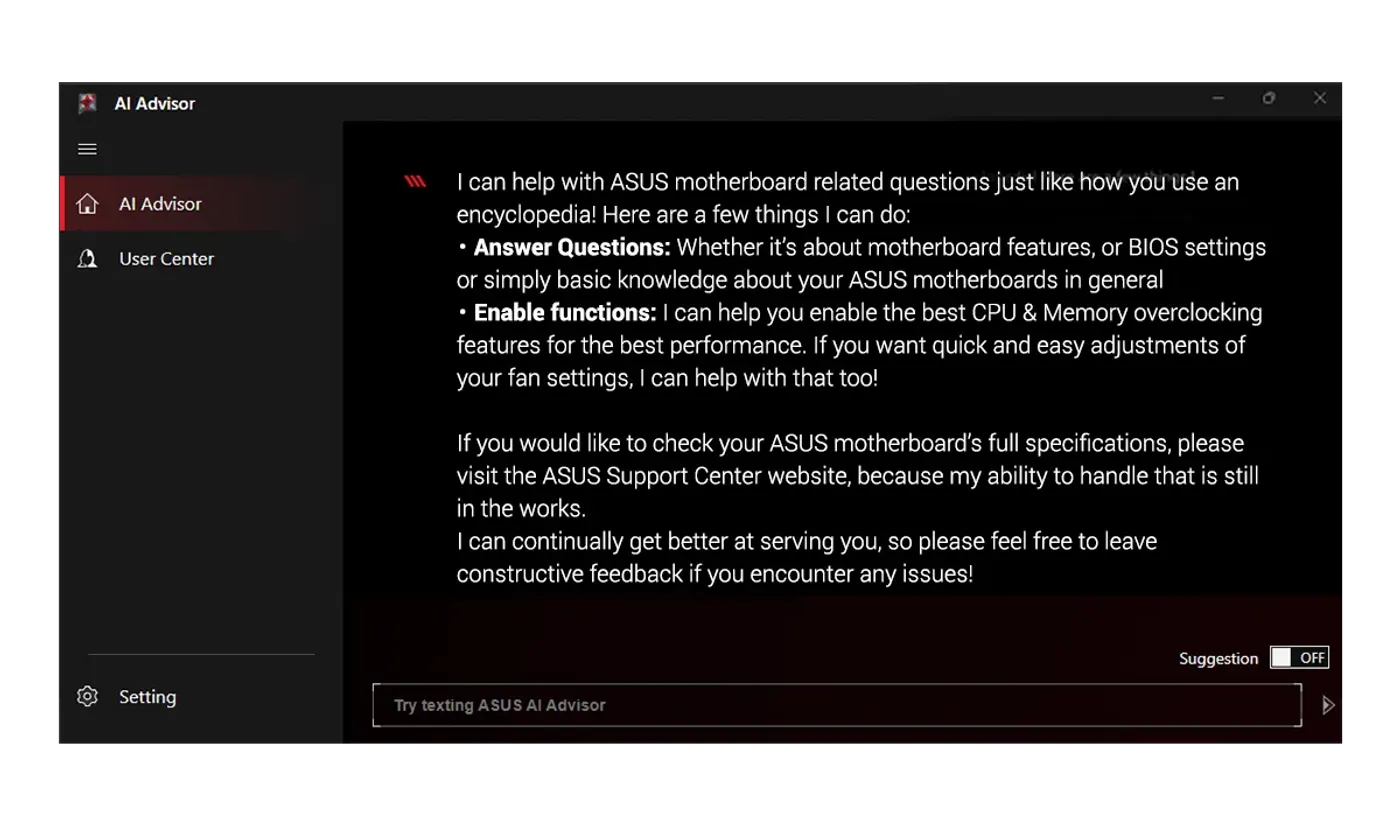

ASUS AI Advisor uses natural-language input to help users explore motherboard functionality and advanced features. It provides straightforward explanations for one-click optimizations (for example, fan tuning) and offers guidance useful to both beginners and experienced PC builders; availability and functionality may vary by region and platform.

Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors and includes Dual ProCool Power Connectors. The board uses a 16(90A)+2(90A)+2(80A) power-stage design, supports DDR5 8000+ MT/s (OC) across 4 DIMM slots in dual-channel mode, and provides rich expansion: 1 x PCIe 5.0 x16 SafeSlot (CPU), 1 x PCIe 4.0 x16 Slot (x4) [Chipset], plus five M.2 slots (1 x M.2 22110 PCIe 5.0 x4; 2 x M.2 2280 PCIe 5.0 x4; 2 x M.2 2280 PCIe 4.0 x4).

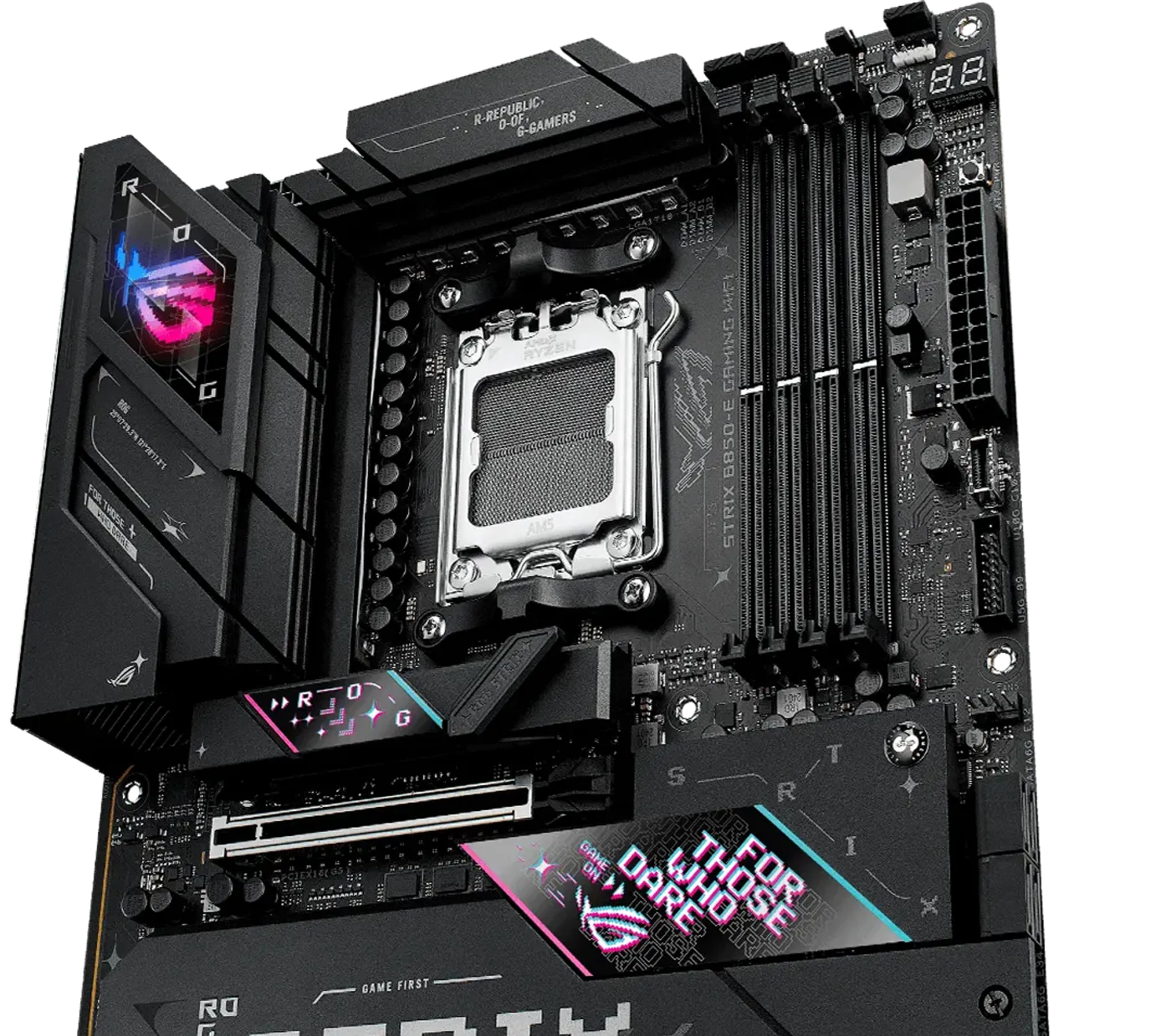

The VRM employs a 16+2+2 power-stage configuration with the following breakdown: 16 VCORE (90A), 2 SoC (90A), and 2 MISC (80A). Complementary features include Dual ProCool connectors, an eight-layer PCB to improve heat dissipation, alloy chokes, and durable capacitors to enhance stability and overclocking headroom.

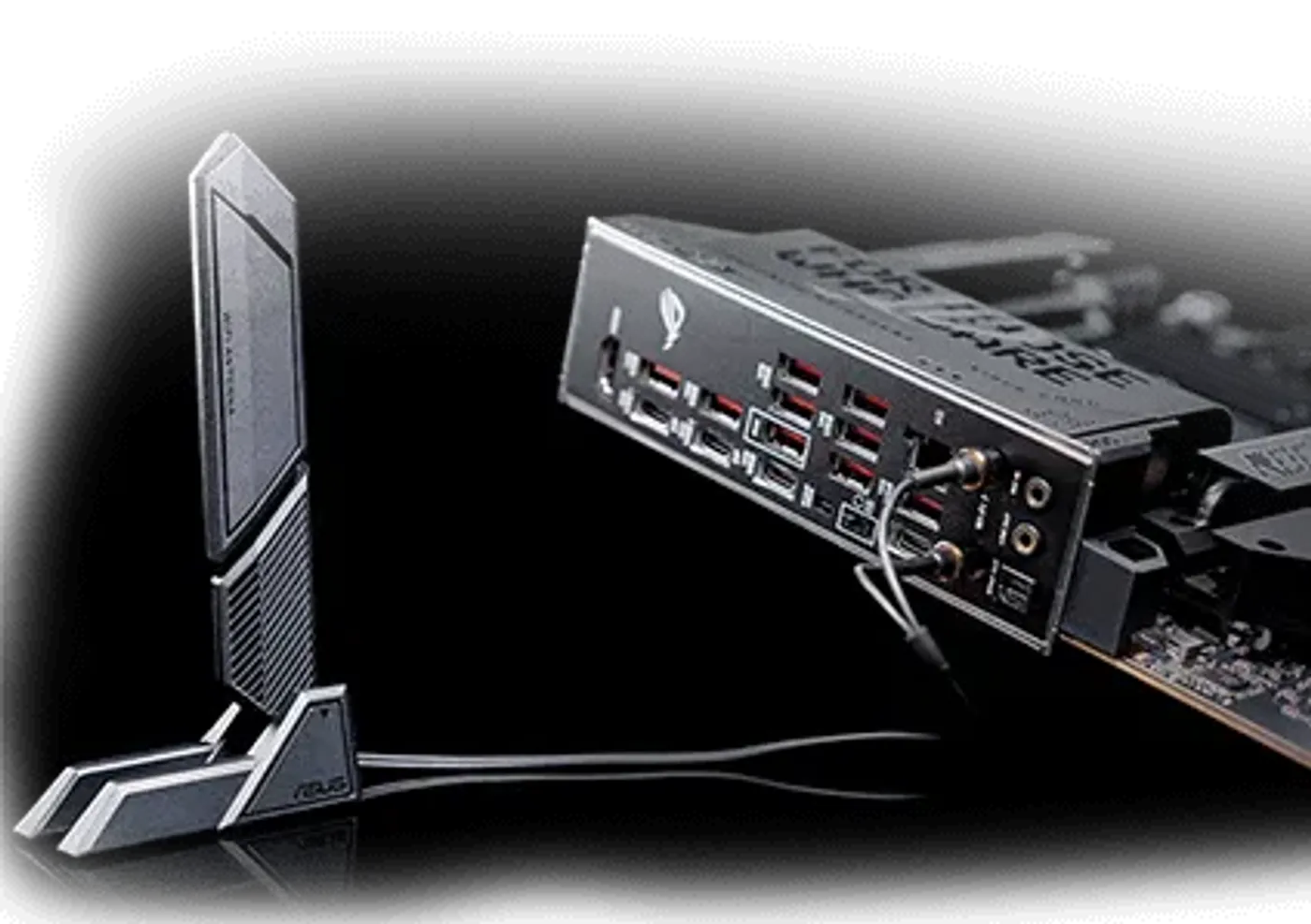

The platform supports WiFi 7 features including 320 MHz channels, operation across the 6 GHz bands, and 4096 QAM. It also includes onboard Realtek 5Gb Ethernet for low-latency networking and improved throughput.

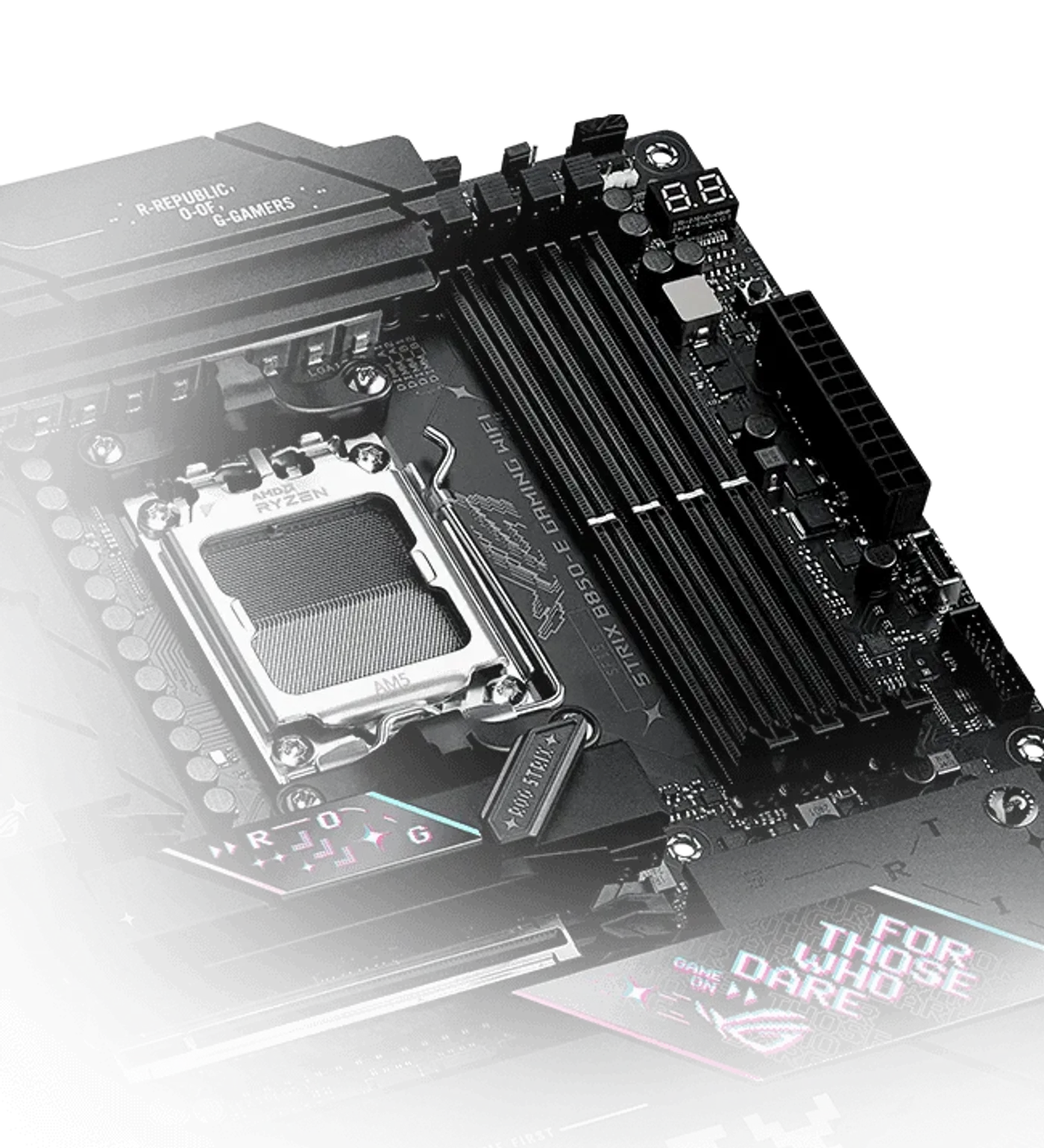

The Strix B850-E is optimized for enthusiast DDR5 kits and supports DDR5 8000+ MT/s (OC). Memory features include 4 x DIMM in dual-channel mode, Max. 256GB capacity, and ASUS Enhanced Memory Profile (AEMP) for PMIC-restricted modules to present optimized frequency, timing and voltage profiles.

Audio on the Strix B850-E includes SupremeFX with the ALC4080 codec plus the Savitech SV3H712 amplifier. The implementation offers impedance sensing, 120 dB SNR stereo playback output, 110 dB SNR recording input, SupremeFX shielding, and also supports DOLBY ATMOS® for an immersive audio experience.
