CUDY BE3600 2.5G WiFi 7 Access Point / Wi-Fi 7 Dual-Band Up to 3600Mbps / Broadcom 2GHz Quad-Core Processor / 2.5GbE PoE In, GbE PoE Out / 200 Devices 120m² Coverage / Multi-VPN WireGuard and OpenVPN / Cudy App Cloud and Local Management / AP3600

The Cudy BE3600 is a wall or ceiling-mounted access point that brings Wi-Fi 7 to a site without replacing the router behind it. Dual-band throughput reaches 3600Mbps in total, split as 2882Mbps on 5GHz and 688Mbps on 2.4GHz, each carried over two spatial streams. It is rated to hold around 200 connected devices across roughly 120 square metres of floor area.

A 2.0GHz quad-core processor with 512MB of DDR3L memory and 128MB of NAND storage handles routing, encryption and client management, which is what keeps throughput steady when dozens of devices are active at once. A hardware watchdog restarts the system if firmware ever hangs, so a wall-mounted unit does not need someone on a ladder to reset it.

Four internal antennas, rated 5.5dBi on 5GHz and 5.4dBi on 2.4GHz, spread the signal evenly instead of aiming it in one direction. In open space the unit reaches up to 220 metres. Indoors, expect it to serve through two wooden walls under 10cm thick, or one concrete wall under 20cm, and let that guide where you mount it.

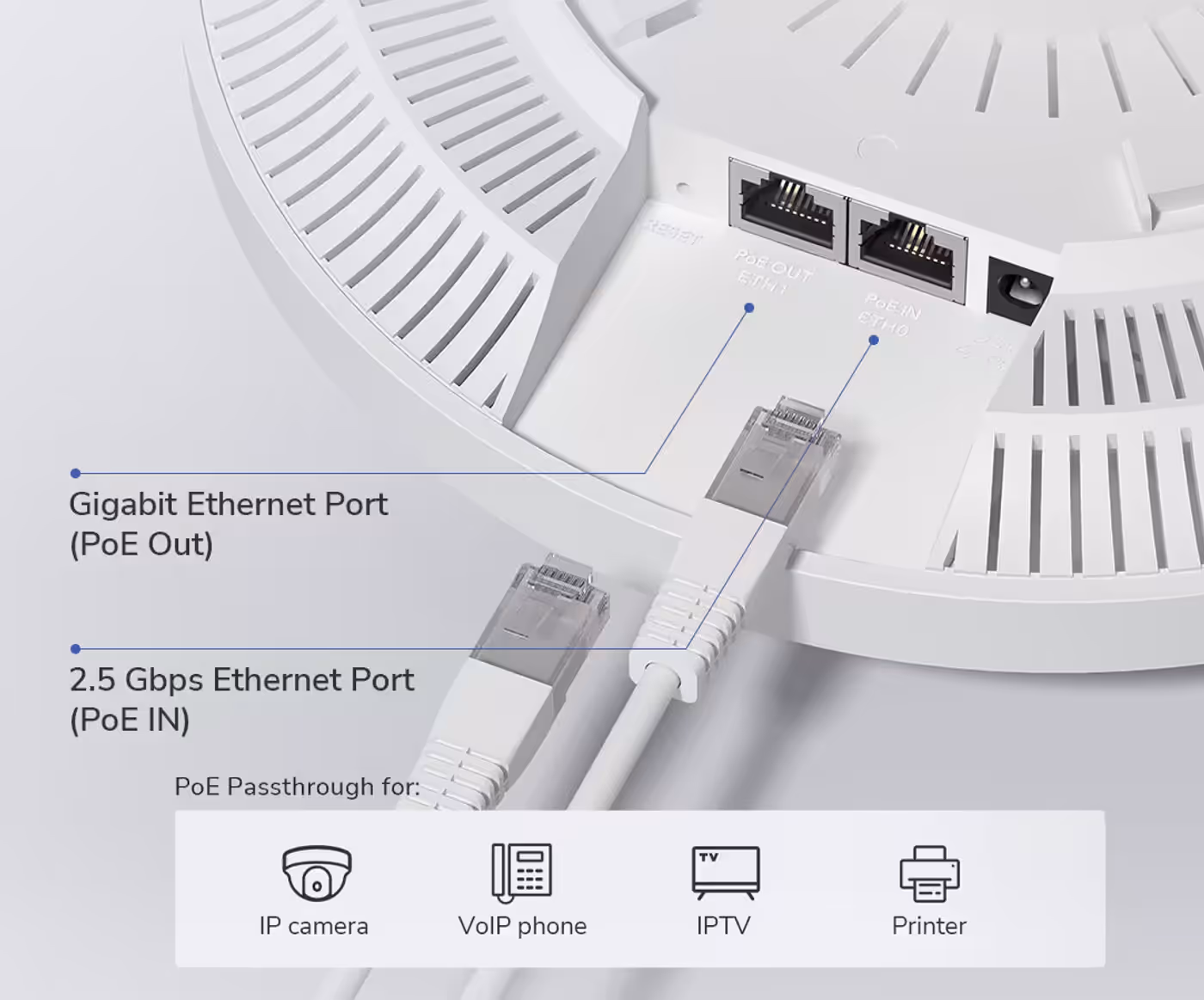

Maximize your network potential using a shielded 2.5G Ethernet interface, which provides rapid, reliable, and noise-immune connectivity for smooth streaming across multiple devices. Additionally, the integrated Gigabit Ethernet port includes PoE Out functionality to conveniently supply power to linked hardware.

Multi-VPN support covers both WireGuard and OpenVPN directly on the access point, so remote traffic can be tunnelled without adding a separate appliance to the rack. WireGuard suits low-overhead always-on links, while OpenVPN remains the practical choice where an existing corporate endpoint expects it. Either runs alongside normal wireless service.

Setup and day-to-day changes run through the Cudy App, which reaches the unit over the local network or through the cloud when you are off site. That covers SSIDs, passwords, client lists and firmware updates without needing a laptop on the premises. Maximum draw is 10W, and the unit is rated to run between 0 and 40 degrees Celsius.

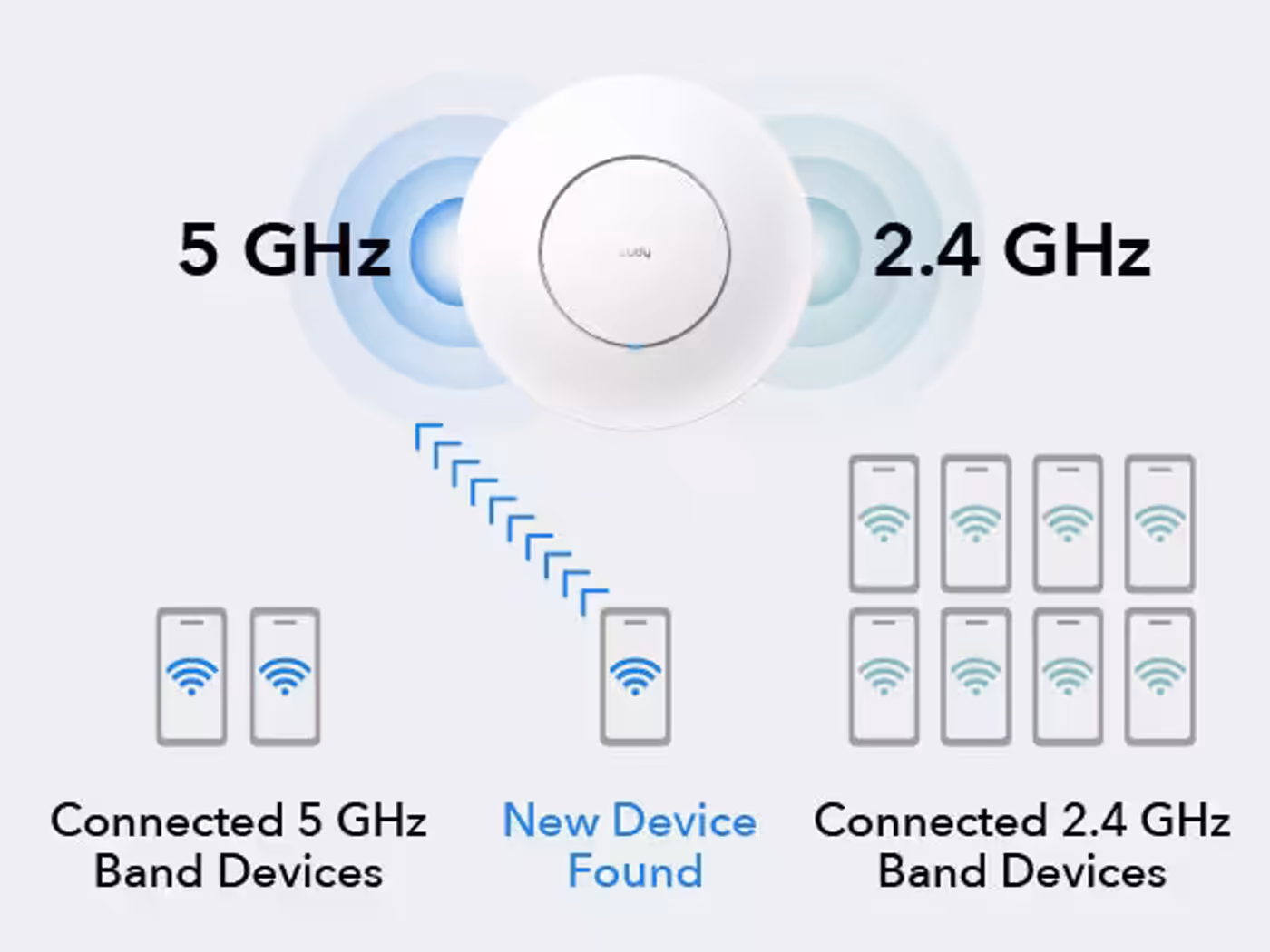

Improve overall system efficiency by automatically directing connected devices to less crowded wireless bands.

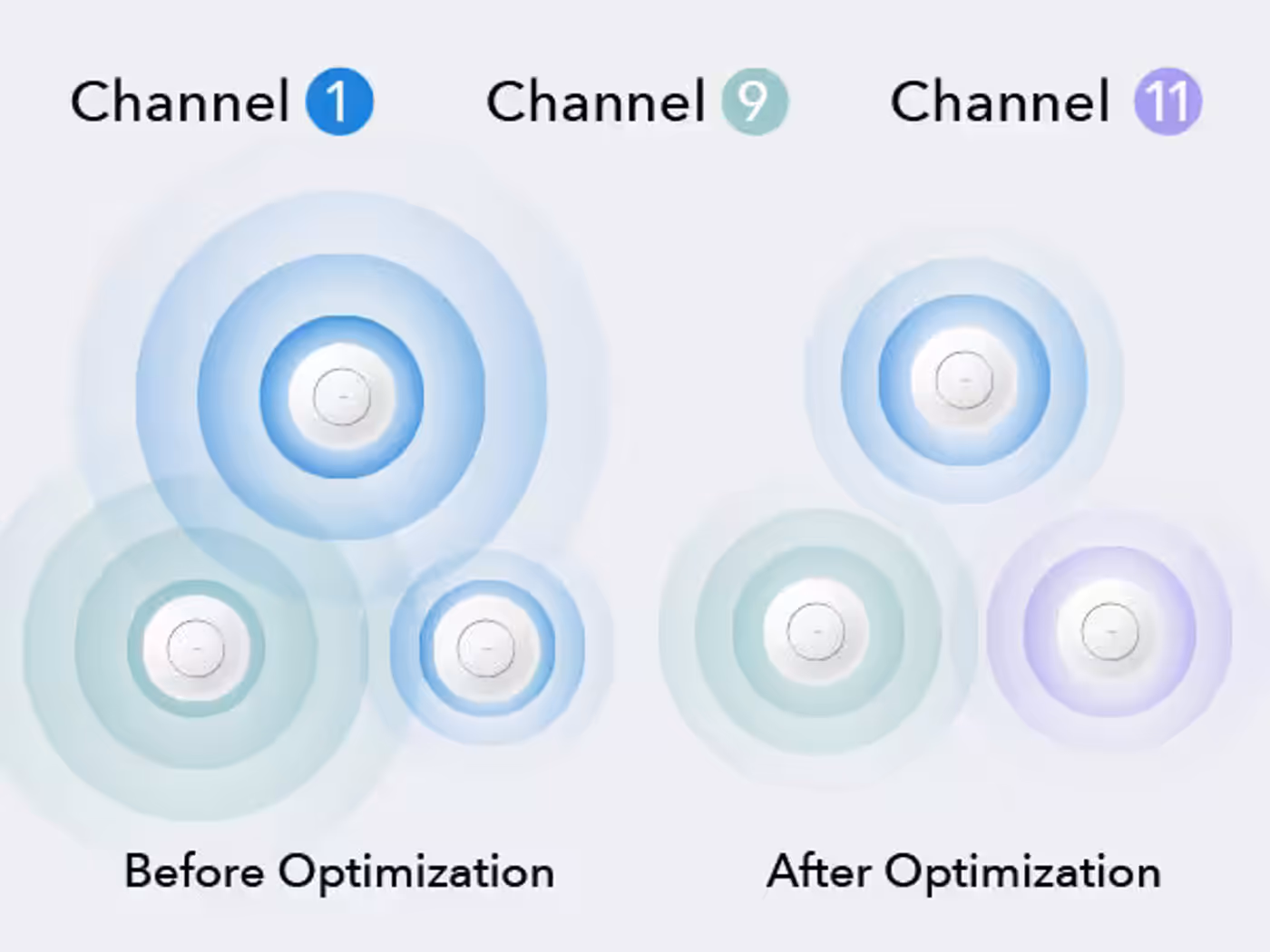

Ensure a stable connection by proactively avoiding signal interference caused by neighboring access points.

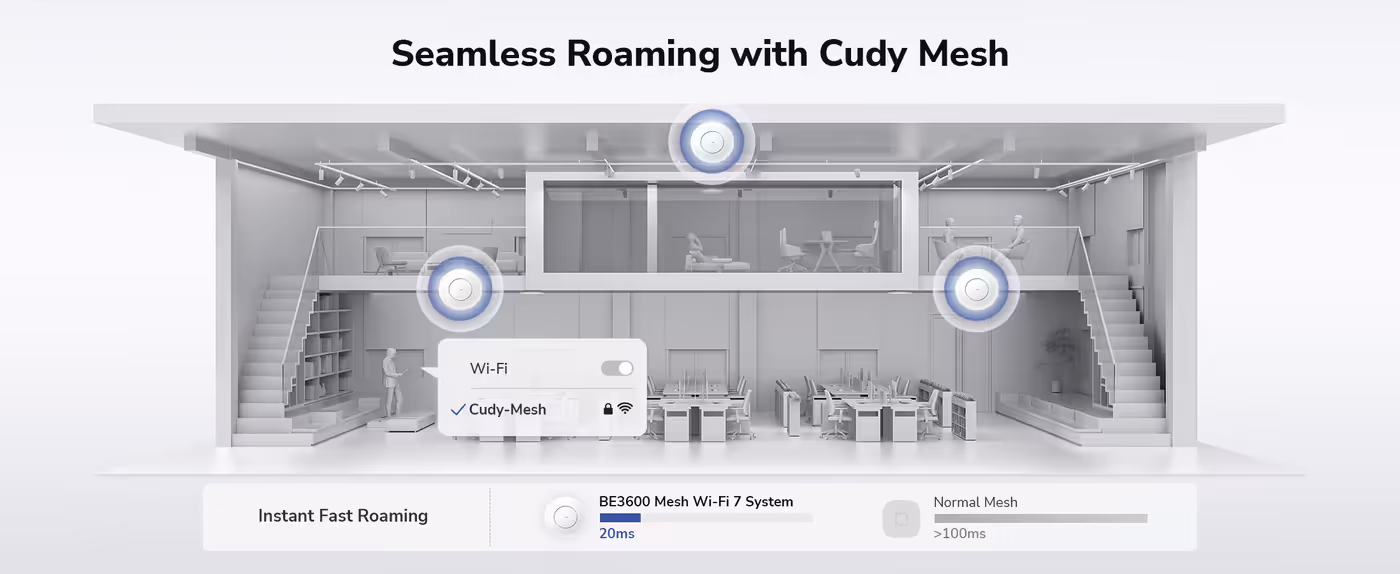

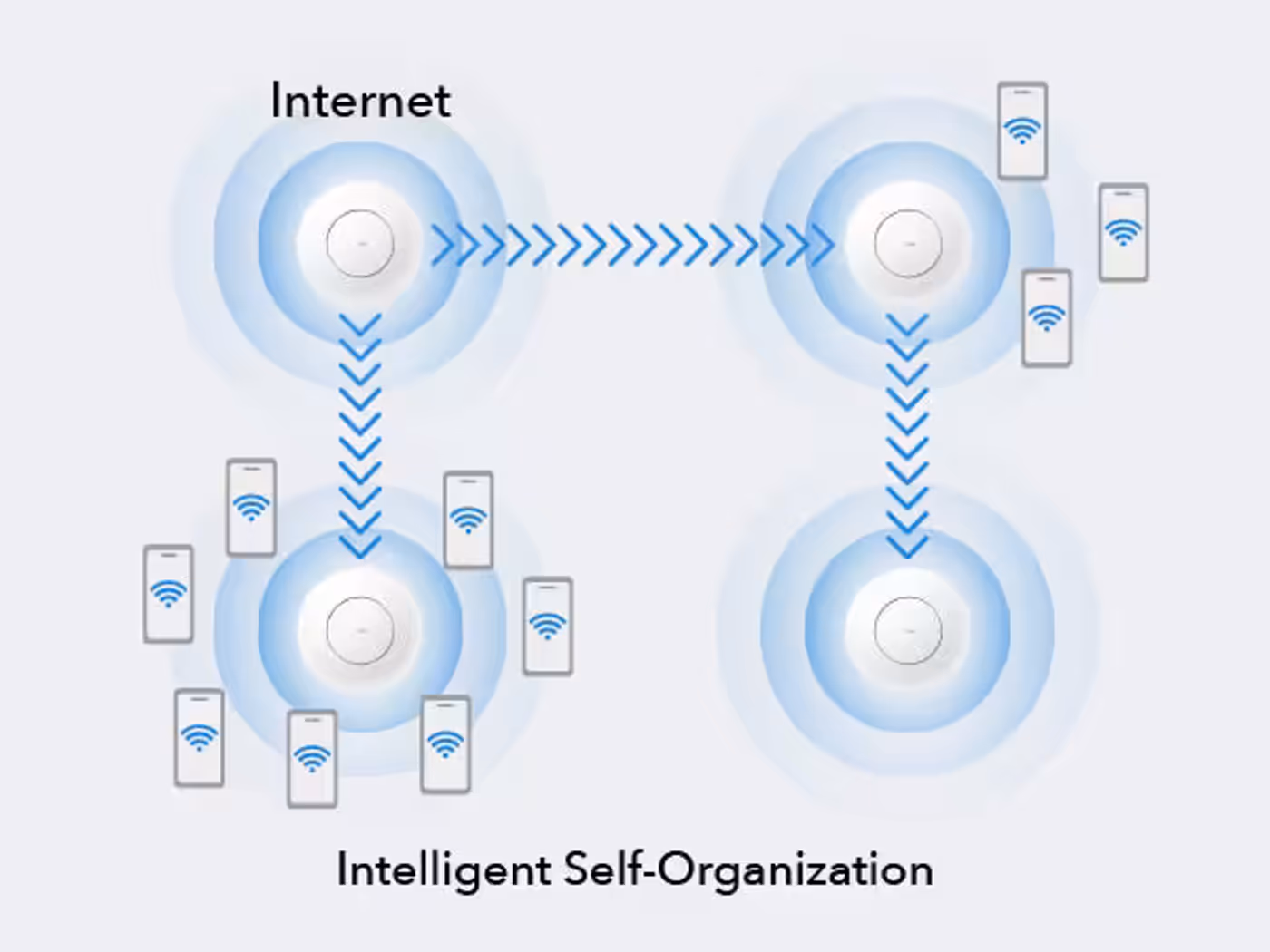

The system intelligently identifies and utilizes the most efficient, uncongested paths to establish the mesh backhaul.

Utilizing OpenWiFi standards, this access point provides a highly customizable and inclusive infrastructure for your network.

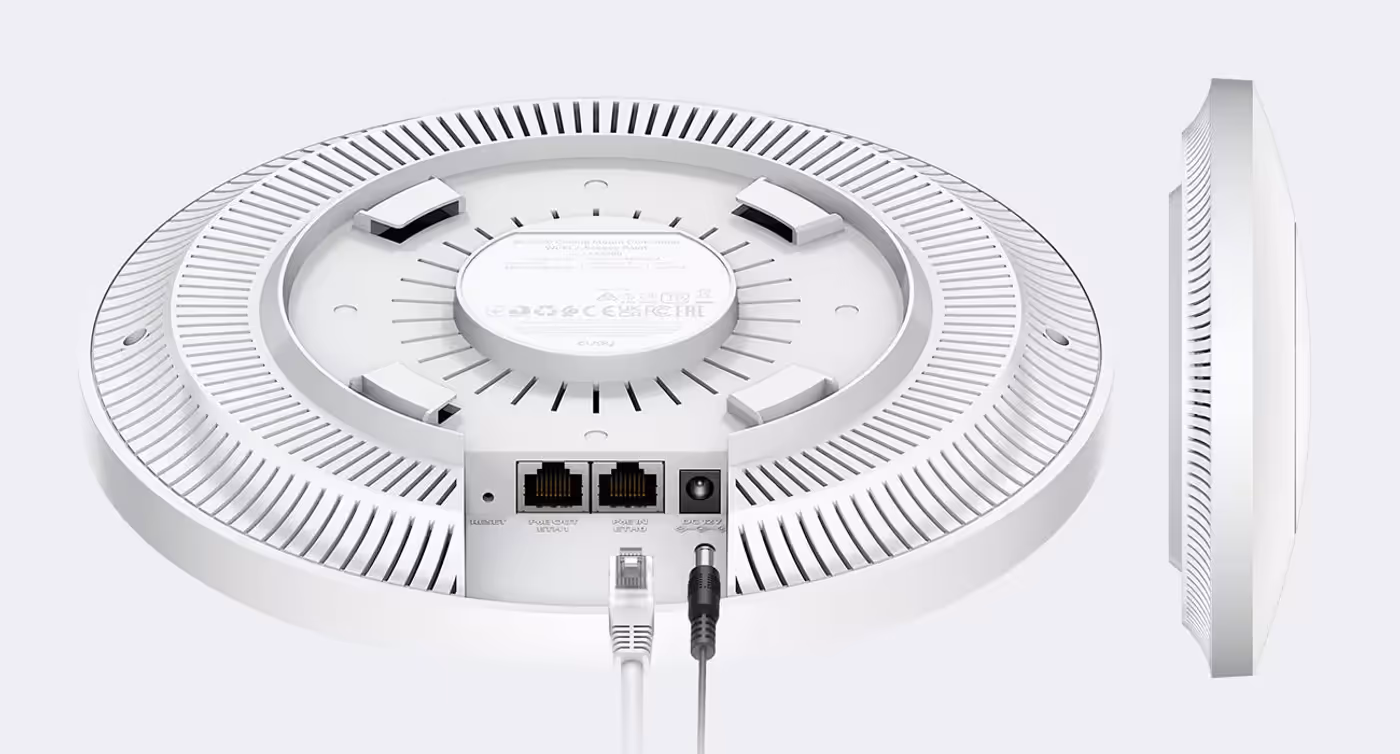

Supports multiple power input methods including 12V DC, 802.3at/af, and 48-57V Passive PoE. Please note that a DC power adapter is not included with your purchase.

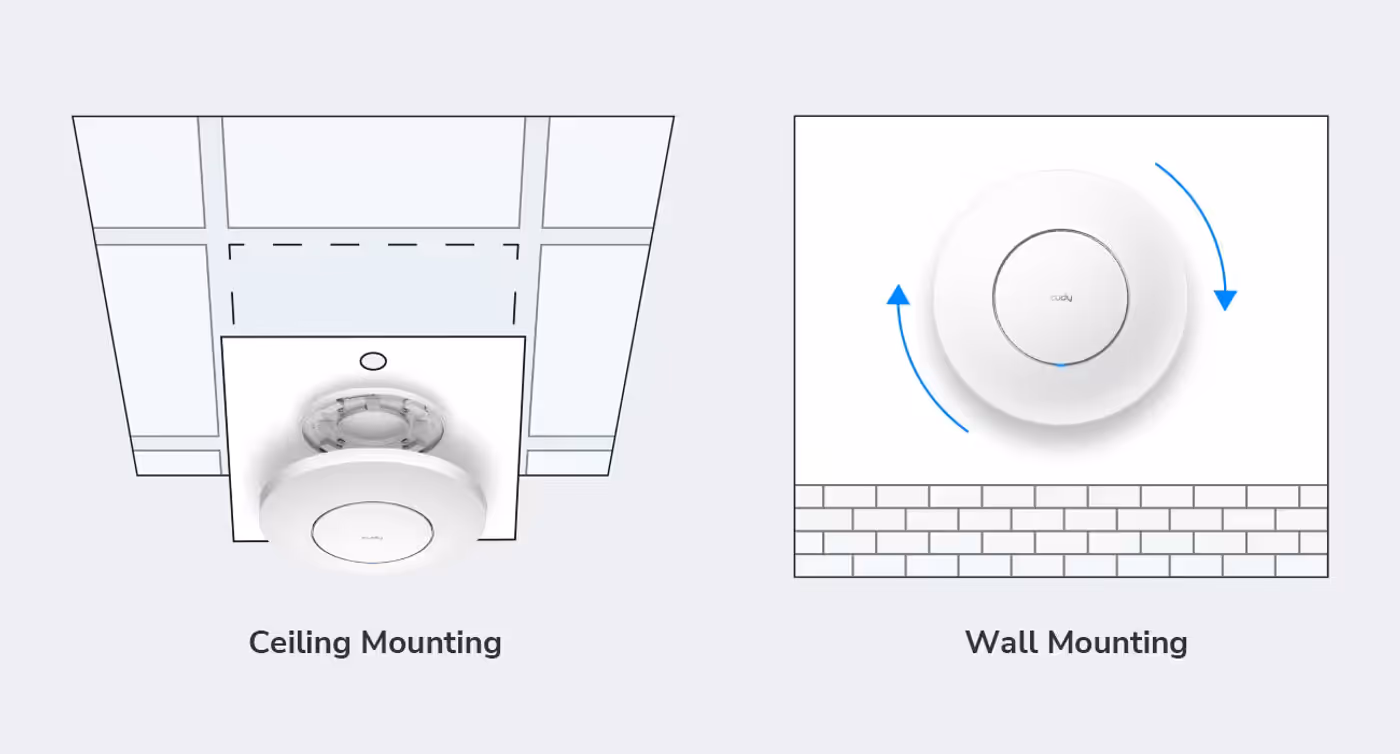

The unit supports both ceiling and wall mounting, with all necessary installation hardware provided in the box.

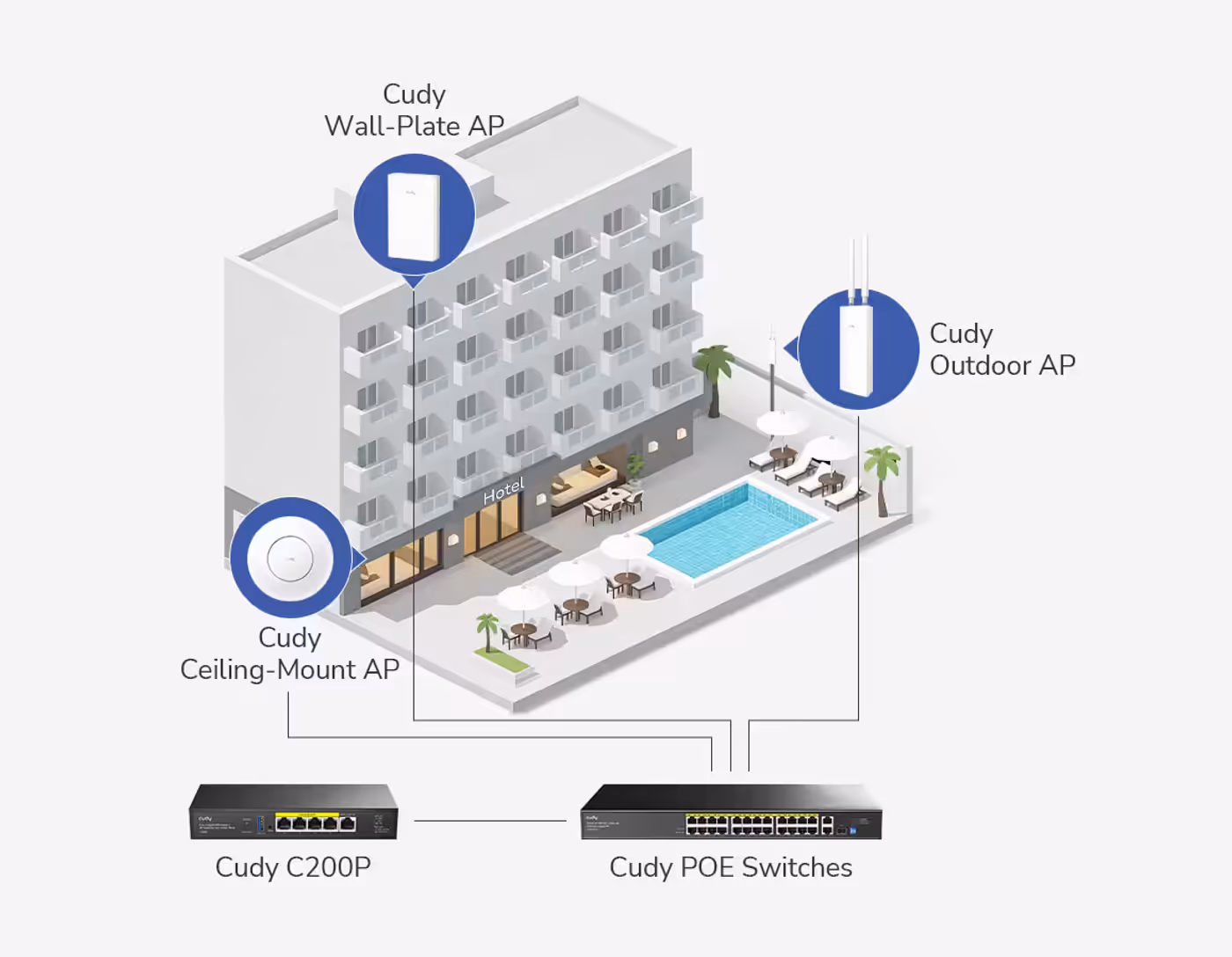

Utilize the Cudy AP Controller (Model: C200P) to oversee up to 200 access points, simplifying batch updates and configuration through one centralized dashboard.
