Will the DeepCool CH690 DIGITAL-WH support mini-ITX, micro-ATX, and ATX?

Yes. The DeepCool CH690 DIGITAL-WH is designed to support mini-ITX, micro-ATX, and ATX motherboard form factors. This makes it a flexible choice for different build sizes. You can plan your setup without switching cases when changing platforms.

What radiator size does the DeepCool CH690 DIGITAL-WH support?

It supports up to a 420mm radiator. The case is built with 420mm radiator support in mind, which is helpful for liquid cooling plans. This lets you design a cooling layout that fits your performance goals. Always confirm radiator dimensions before purchase for the best fit.

Does the DeepCool CH690 DIGITAL-WH include USB 3.0 and Type-C?

Yes. The DeepCool CH690 DIGITAL-WH features USB 3.0 and Type-C connectivity. This provides faster data transfer and convenient front access for compatible devices. It is ideal for frequent plugging in during builds or upgrades.

Is the DeepCool CH690 DIGITAL-WH designed with a semi-glass panel?

Yes. The case includes a semi-glass panel design to showcase your components. It gives your build a clean, modern look while still offering a more open view than solid panels. Choose it if you want visible interior styling.

Does this case offer DIY rear mesh and fan bracket support?

Yes. The DeepCool CH690 DIGITAL-WH is designed to support DIY rear mesh and fan bracket options. This gives you more flexibility to customize rear exhaust or airflow strategies. It is a good fit for users who want to mod their cooling layout.

Is there a light strip slot on the DeepCool CH690 DIGITAL-WH?

Yes. The case includes an integrated light strip slot for adding lighting accents. That makes it easier to customize the look of your build. If you plan a themed setup, this can help you get the exact style you want.

What kind of PC builds is the DeepCool CH690 DIGITAL-WH best for?

It is well suited for users planning a versatile build across mini-ITX, micro-ATX, and ATX sizes. It is also a strong option if you want liquid cooling support up to 420mm. With USB 3.0 Type-C and a light strip slot, it fits modern everyday and custom mod builds. It’s a practical choice for both performance-focused and style-focused setups.

DeepCool CH690 Digital White PC Case USB 3.0 Type-C

CH690 DIGITAL WH Overview

The CH690 DIGITAL WH blends visual refinement with practical customization, featuring a semi-glass panel that highlights internal hardware. Users seeking stronger airflow can swap the rear semi-glass section for a mesh panel paired with a fan bracket, improving horizontal ventilation. A built-in light-strip slot also allows for personalized illumination, making it easy to create an immersive gaming aesthetic without sacrificing case functionality.

CH690 DIGITAL WH Overview

The CH690 DIGITAL WH blends visual refinement with practical customization, featuring a semi-glass panel that highlights internal hardware. Users seeking stronger airflow can swap the rear semi-glass section for a mesh panel paired with a fan bracket, improving horizontal ventilation. A built-in light-strip slot also allows for personalized illumination, making it easy to create an immersive gaming aesthetic without sacrificing case functionality.

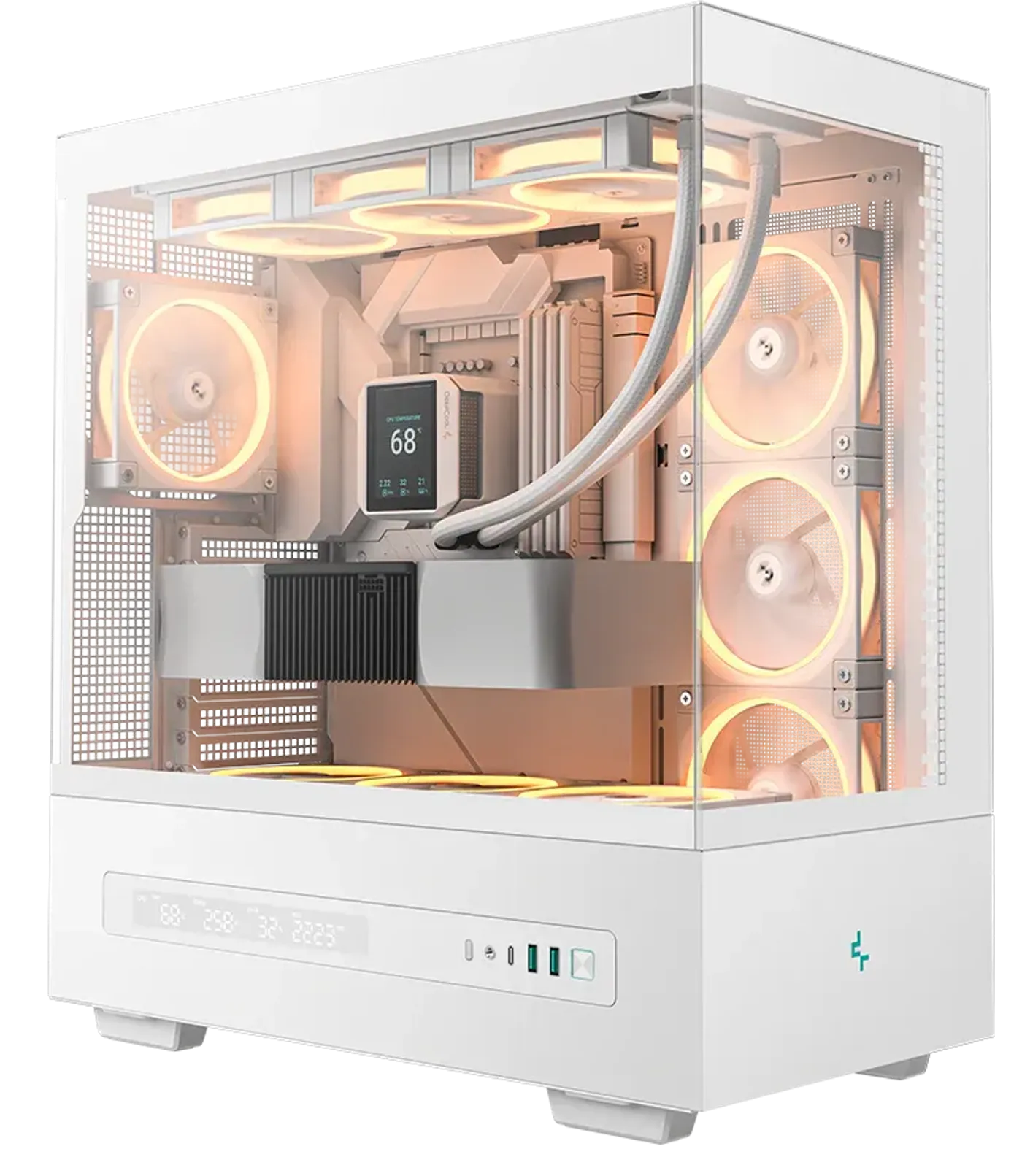

Interior view of CH690 DIGITAL WH showing customizable panel and lighting options

Customizable Design With Enhanced Functionality

Designed with adaptability and appearance in mind, the CH690 DIGITAL WH includes a semi-glass panel that offers a wide view of installed components. Users can modify the rear panel with a mesh option and fan bracket to increase airflow across the system. The integrated lighting-strip slot makes it easy to personalize the interior ambiance, bringing together style and utility for a more engaging setup.

Customizable Design With Enhanced Functionality

Designed with adaptability and appearance in mind, the CH690 DIGITAL WH includes a semi-glass panel that offers a wide view of installed components. Users can modify the rear panel with a mesh option and fan bracket to increase airflow across the system. The integrated lighting-strip slot makes it easy to personalize the interior ambiance, bringing together style and utility for a more engaging setup.

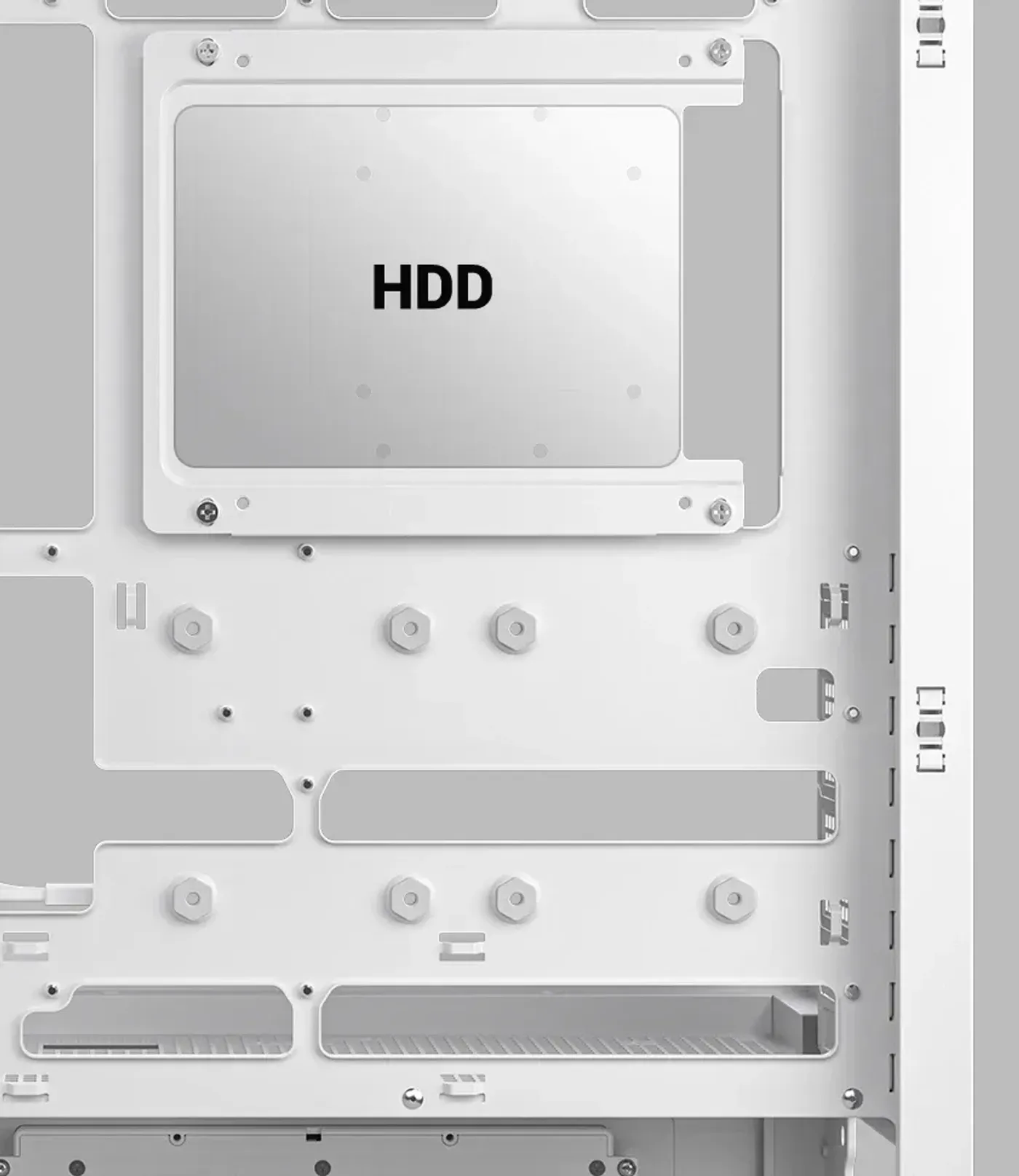

CH690 DIGITAL WH internal layout showing GPU PSU and expansion slot support

Component Compatibility and Spacious Layout

Built to support a wide variety of hardware, the CH690 DIGITAL WH can house a 180mm power supply and graphics cards up to 450mm in length. The case includes eight removable expansion slots for flexible configurations, along with storage support for one 3.5-inch drive and two 2.5-inch drives. This versatile layout makes the chassis suitable for gaming rigs or professional workstations that require ample internal space.

Component Compatibility and Spacious Layout

Built to support a wide variety of hardware, the CH690 DIGITAL WH can house a 180mm power supply and graphics cards up to 450mm in length. The case includes eight removable expansion slots for flexible configurations, along with storage support for one 3.5-inch drive and two 2.5-inch drives. This versatile layout makes the chassis suitable for gaming rigs or professional workstations that require ample internal space.

Digital monitoring screen showing CPU GPU and PSU system statistics in real time

Real-Time Digital System Monitoring

The CH690 DIGITAL WH integrates an advanced digital monitoring display that shows live system statistics. With selectable modes for CPU, GPU, and PSU, users can view temperature readings in Celsius or Fahrenheit, monitor power usage, observe frequency data, and check system load. CPU mode adds fan-speed tracking, while PSU mode reveals additional power-related information. This intuitive display transforms the case into a high-tech dashboard that keeps performance insights easily accessible.

Real-Time Digital System Monitoring

The CH690 DIGITAL WH integrates an advanced digital monitoring display that shows live system statistics. With selectable modes for CPU, GPU, and PSU, users can view temperature readings in Celsius or Fahrenheit, monitor power usage, observe frequency data, and check system load. CPU mode adds fan-speed tracking, while PSU mode reveals additional power-related information. This intuitive display transforms the case into a high-tech dashboard that keeps performance insights easily accessible.

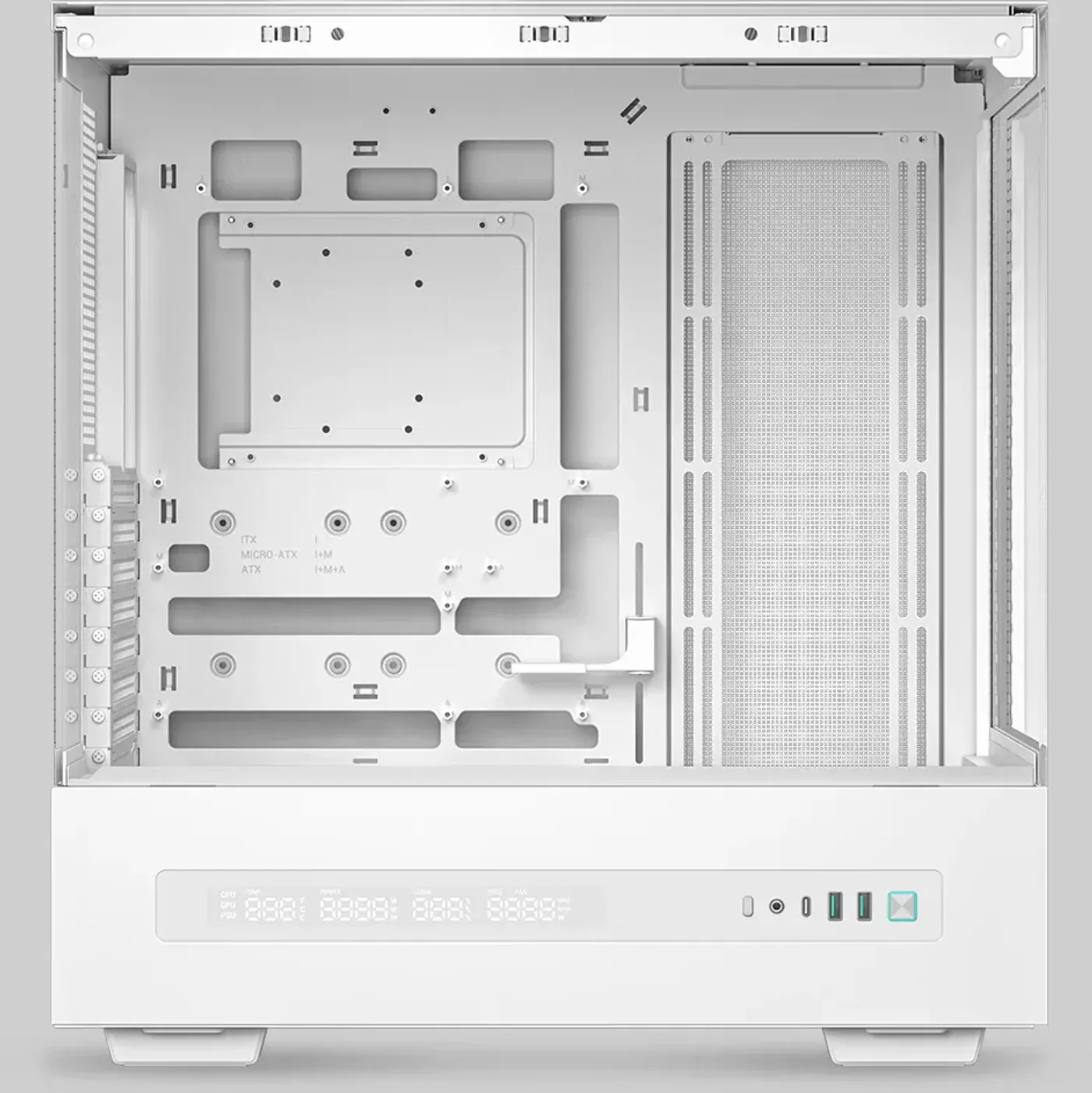

Cooling configuration diagram showing radiator and fan placement in CH690 DIGITAL WH

Cooling Versatility and Airflow Options

Engineered for flexible cooling setups, the CH690 DIGITAL WH uses a mesh-designed PSU shroud to support vertical airflow. Radiator compatibility includes up to 420mm on the top, 280mm on the side, and 360mm inside the PSU shroud. It also accommodates multiple fan layouts, allowing three 120mm or 140mm fans on the top, side, and PSU shroud, plus a 140mm rear fan. The case also supports CPU coolers up to 182mm tall, ensuring strong thermal performance for demanding builds.

Cooling Versatility and Airflow Options

Engineered for flexible cooling setups, the CH690 DIGITAL WH uses a mesh-designed PSU shroud to support vertical airflow. Radiator compatibility includes up to 420mm on the top, 280mm on the side, and 360mm inside the PSU shroud. It also accommodates multiple fan layouts, allowing three 120mm or 140mm fans on the top, side, and PSU shroud, plus a 140mm rear fan. The case also supports CPU coolers up to 182mm tall, ensuring strong thermal performance for demanding builds.

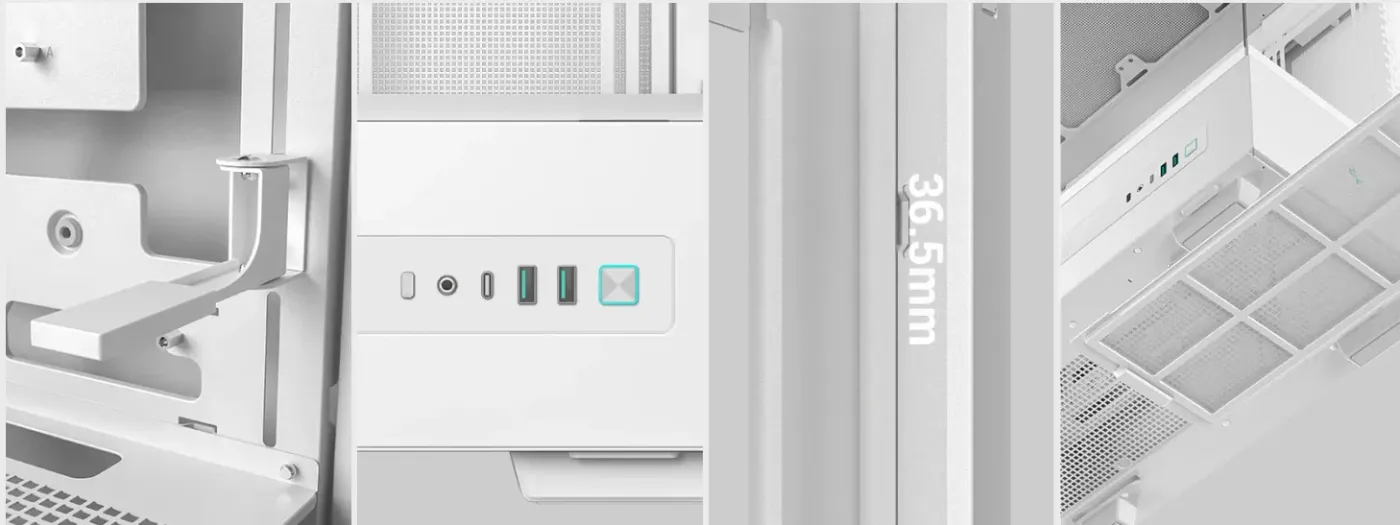

Convenient access features including GPU support and front IO panel of CH690 DIGITAL WH

Convenient Access and Hardware Protection

The CH690 DIGITAL WH emphasizes usability and long-term durability, equipped with an adjustable GPU holder that prevents sagging and protects the motherboard from strain. Front I/O connectivity includes dual USB 3.0 ports, a USB Type-C port, and an audio jack for quick device access. The case also supports rear-connector motherboards with a 36.5mm cable-management depth, while the bottom magnetic dust filter ensures easy cleaning and reliable dust prevention.

Convenient Access and Hardware Protection

The CH690 DIGITAL WH emphasizes usability and long-term durability, equipped with an adjustable GPU holder that prevents sagging and protects the motherboard from strain. Front I/O connectivity includes dual USB 3.0 ports, a USB Type-C port, and an audio jack for quick device access. The case also supports rear-connector motherboards with a 36.5mm cable-management depth, while the bottom magnetic dust filter ensures easy cleaning and reliable dust prevention.
