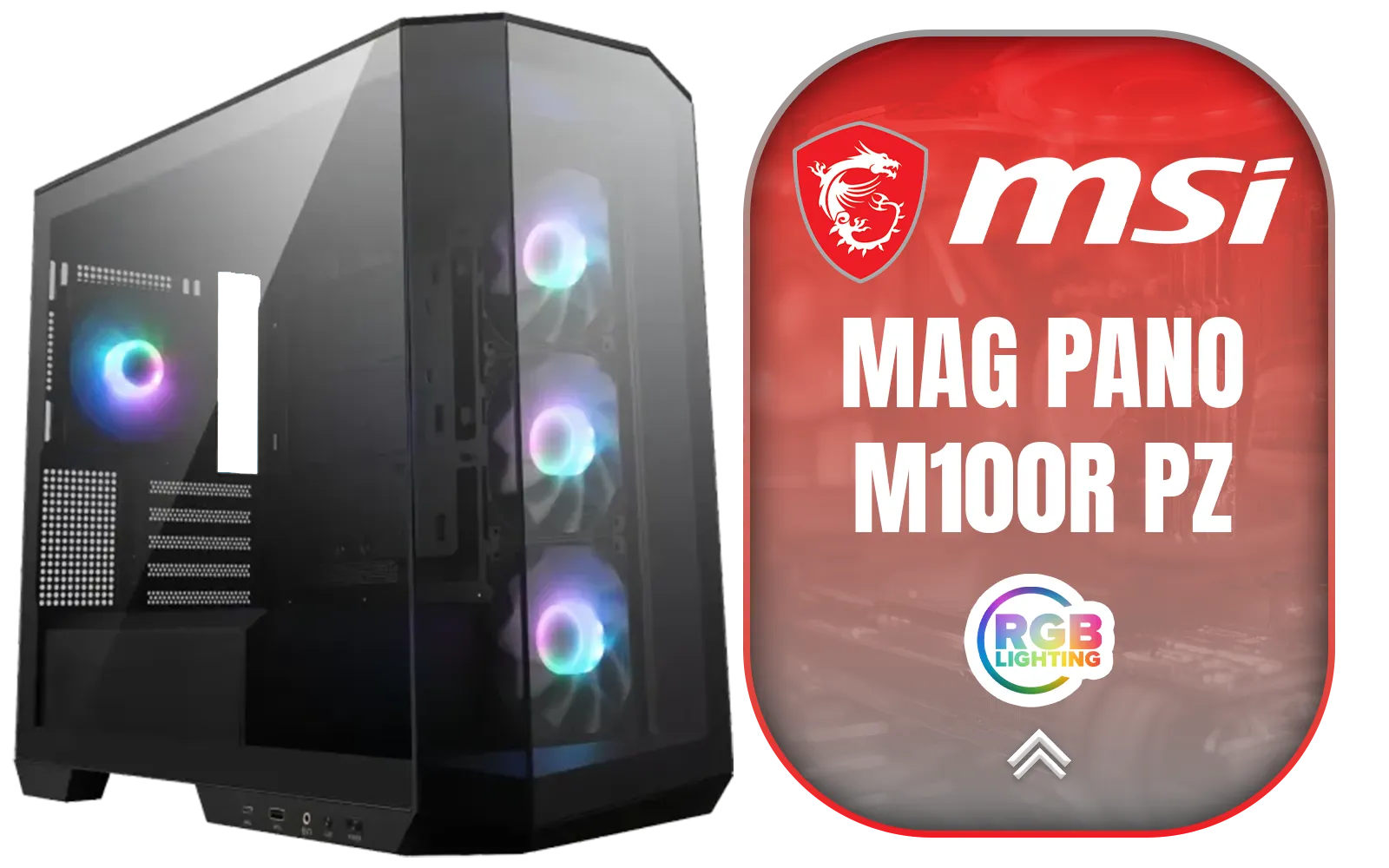

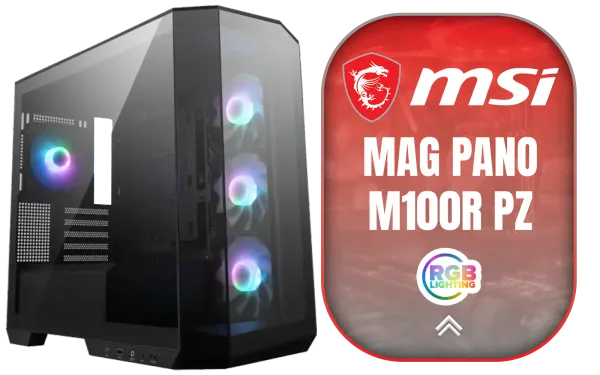

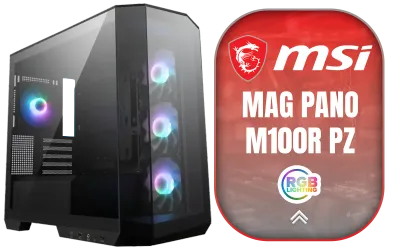

[OPEN BOX] MSI MAG PANO M100R PZ CASE - Black / Supports Micro-ATX & ITX Motherboards / 270° Panoramic Display / 4x Pre-Installed Fans / 175mm Maximum CPU Cooler Height / 390mm Maximum GPU Length / OB-306-7G24R16-HH9 / OB-306-7G24R16-HH9

The MSI MAG PANO M100R PZ is a black Micro-ATX case with a 270-degree panoramic tempered glass front that shows the build from almost any angle. It takes Micro-ATX and ITX motherboards, ships with four pre-installed high-performance fans, and clears CPU coolers up to 175mm tall and graphics cards up to 390mm long. That combination puts full-size components inside a compact form factor, whether the build is a gaming rig or a workstation.

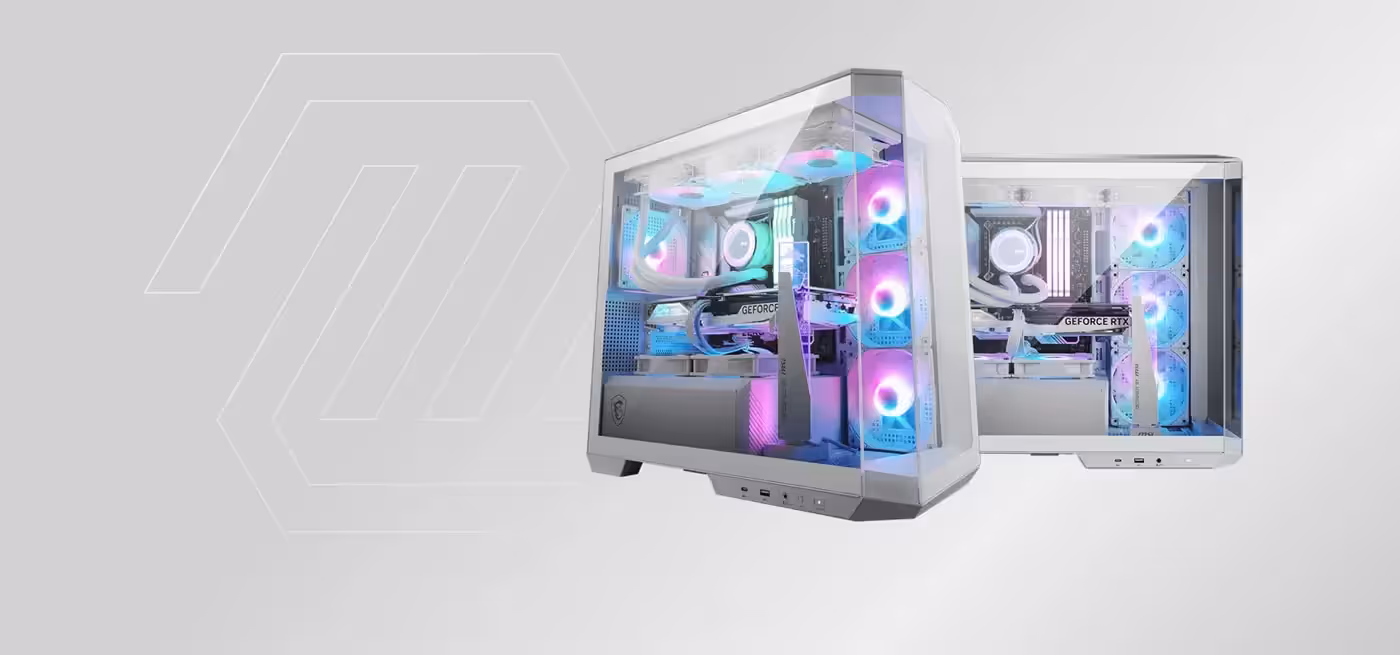

The MAG PANO M100R Series wraps a 270-degree panoramic tempered glass display around the components so ARGB lighting reads from the front and the side at once. The design supports back-connect motherboards to keep the interior clean, adds a reverse-blade fan on the side, and includes a 1-to-4 ARGB-PWM control board to cut down on cable clutter.

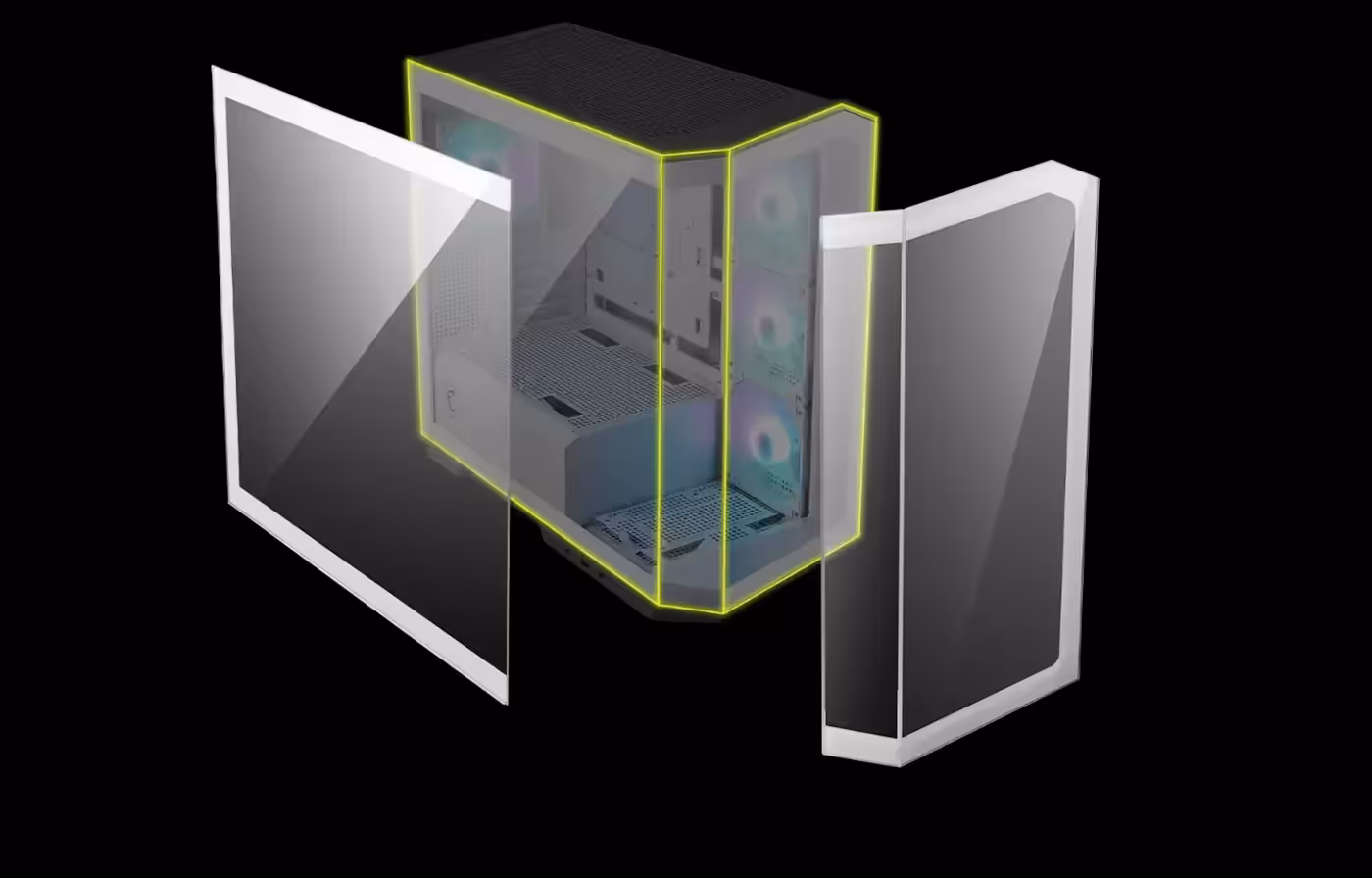

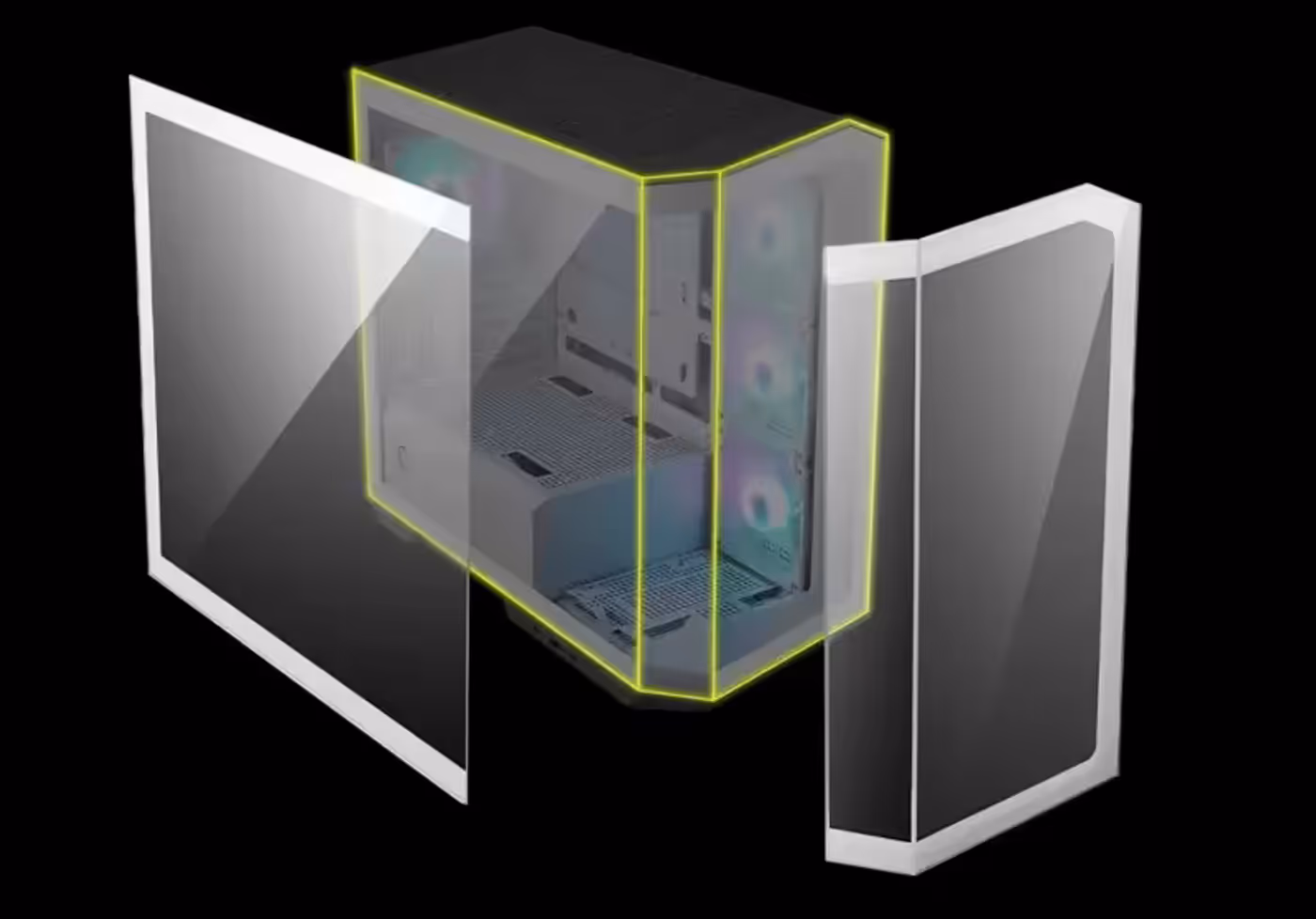

The 270-degree tempered glass panel carries around the corner without a metal post interrupting it, so the internal hardware and its lighting are visible in one continuous view. Corner pillars are the usual thing that cuts a glass case in half visually, and removing that join is the point of the panoramic design.

Because the glass runs across the front and continues down one side, the MAG PANO M100R PZ suits a desk position where the case sits beside the monitor rather than under the desk. Graphics card lighting, cooler lighting and cabling all stay on show from a seated angle.

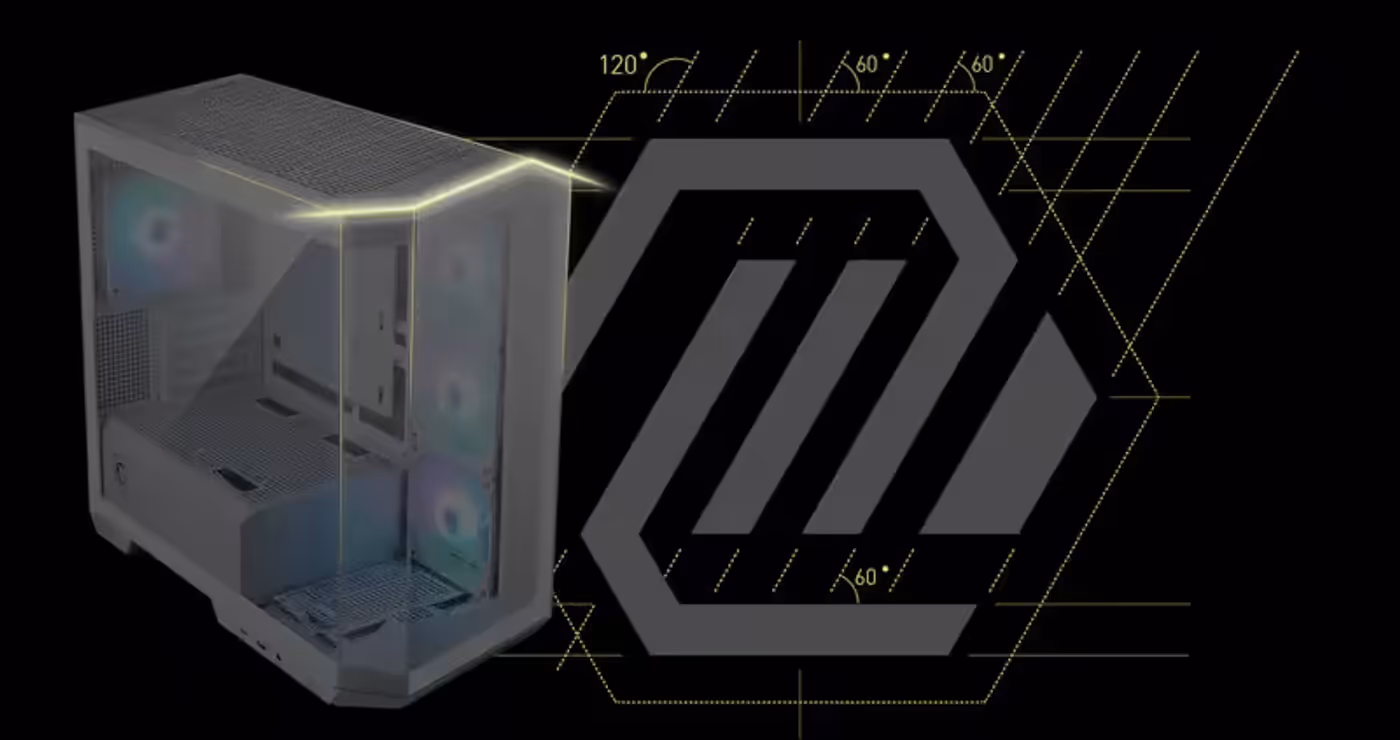

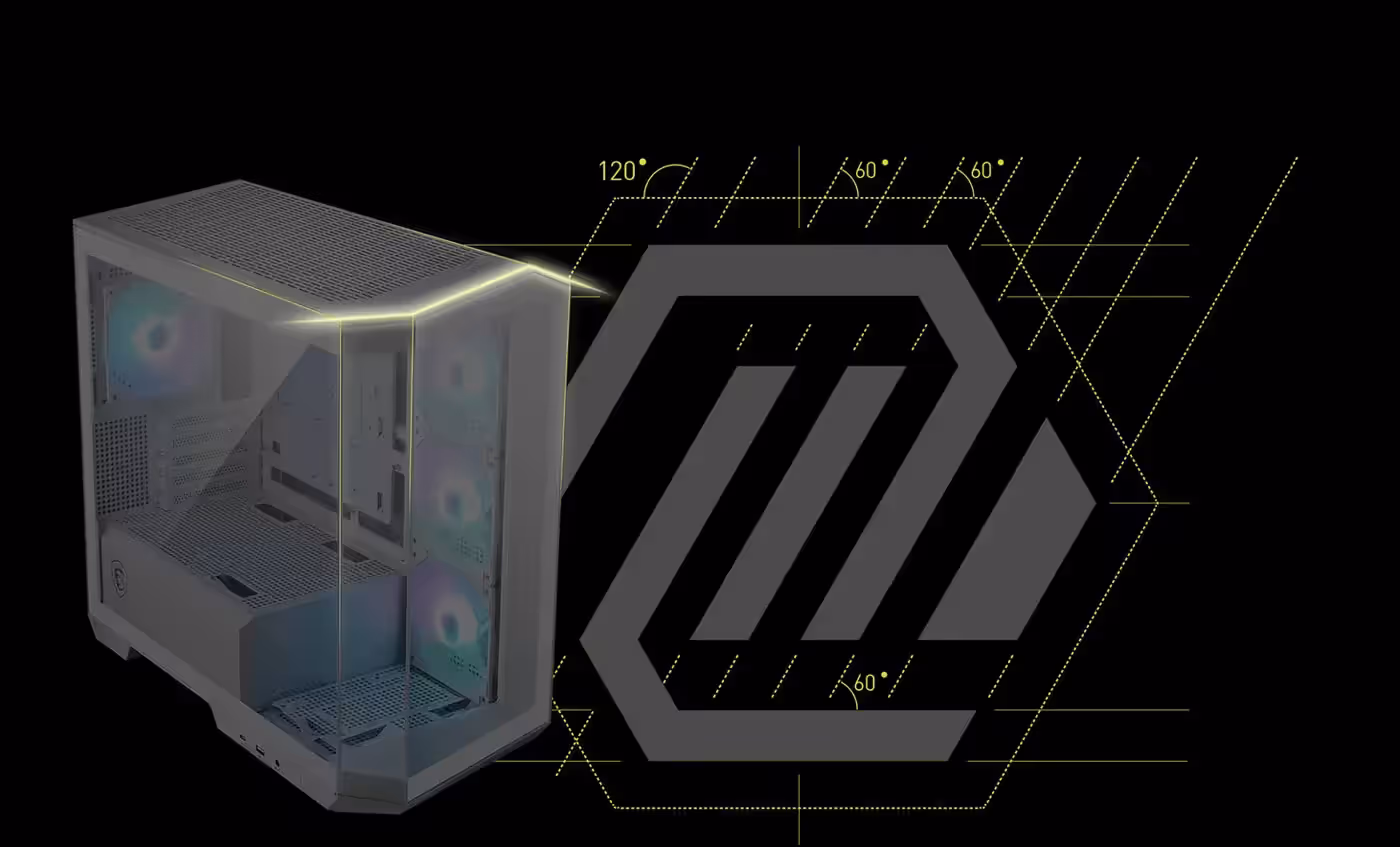

The chassis takes its styling from the MSI MAG logo, with MAG brand symbol lines worked into the visual appearance of the case. It gives the PANO M100R PZ a recognisable identity within the MAG series rather than a generic black box shape, which matters when the build is meant to be seen.

The PANO M100R PZ is finished in black across the chassis, which keeps the metalwork receding behind the glass and leaves the components as the visible part of the build. It is the MAG series look aimed at gaming and high-performance systems where the hardware itself is the feature.

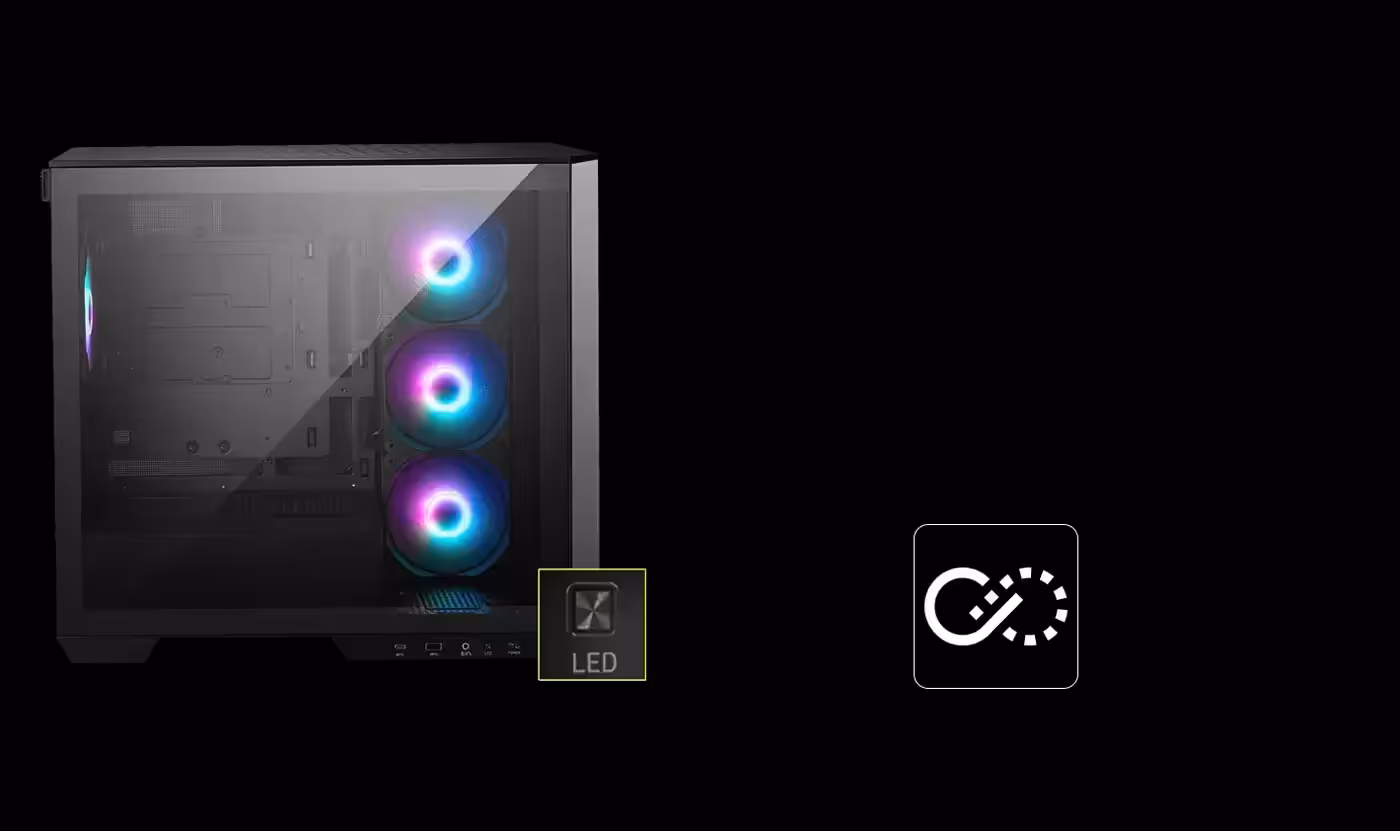

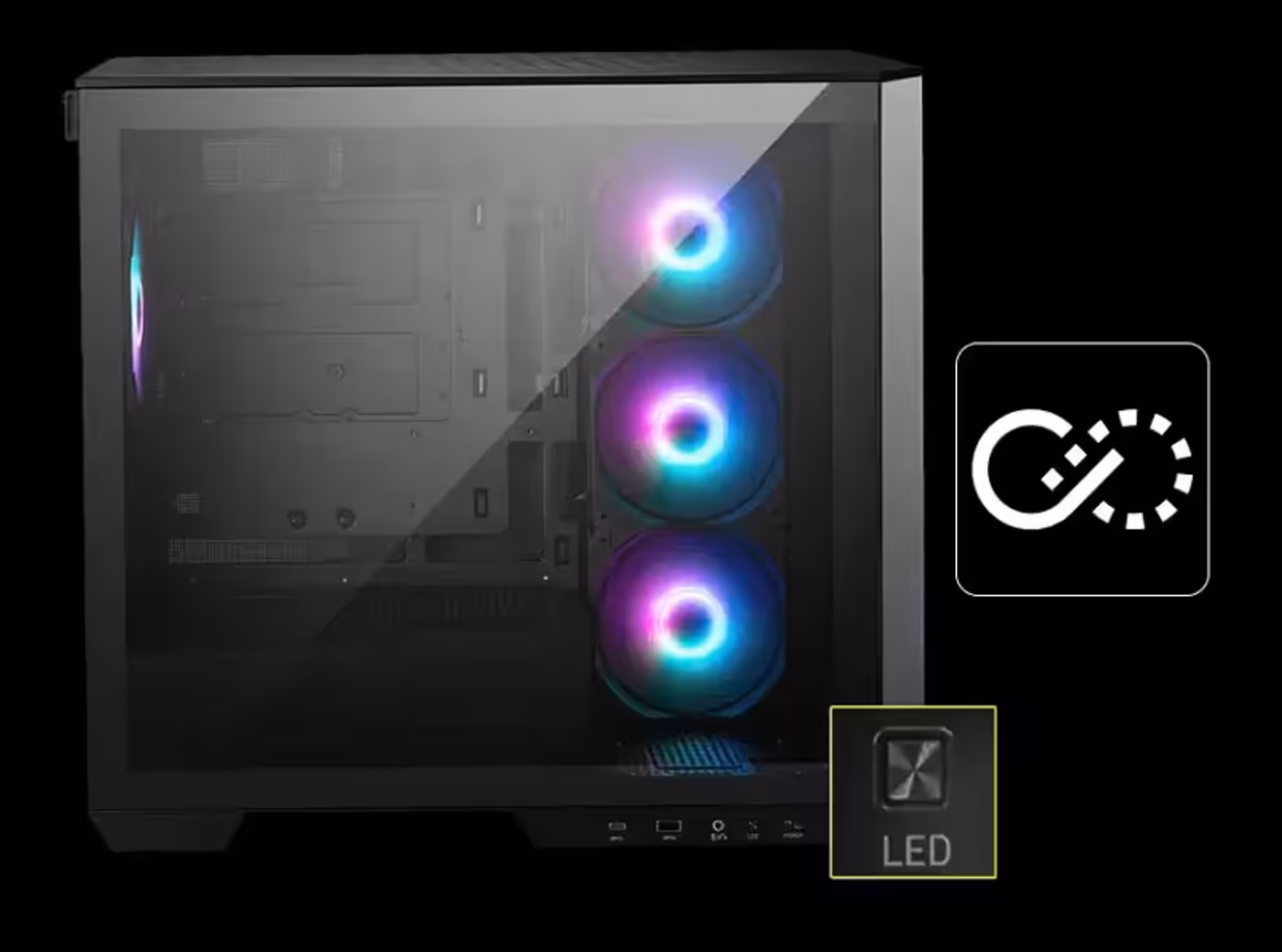

An Insta-Light Loop control button manages lighting effects and fan speeds on the case directly. Profiles change at the press of the button, so the RGB setup can be adjusted without opening software or reaching into the chassis.

The same Insta-Light Loop control handles fan speeds alongside the lighting effects, so cooling and appearance are set from one place. Dropping the fans down for quiet desktop work and lifting them again for a long gaming session takes a button press rather than a BIOS trip.

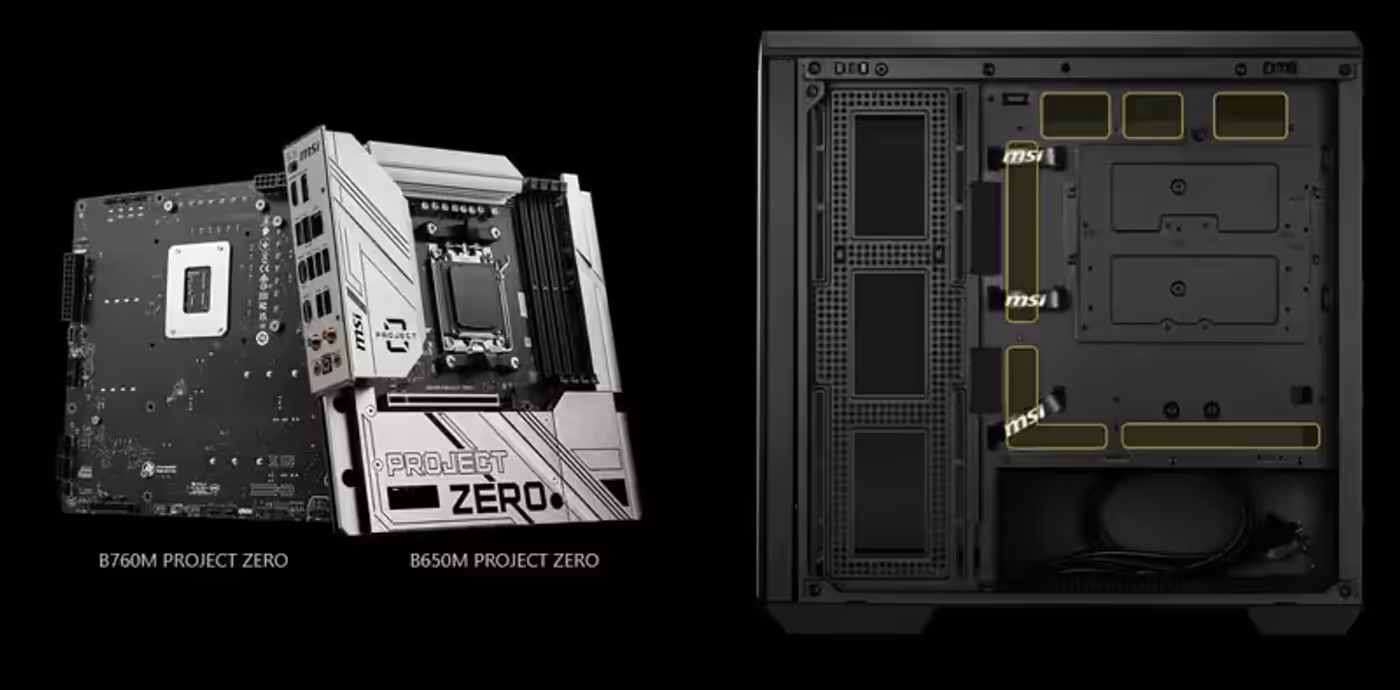

The MAG PANO M100R PZ supports Micro-ATX back-connect motherboards, which move the connectors to the rear of the board and simplify both installation and cable management. The result is a minimalist build where the visible side of the motherboard has almost nothing plugged into it.

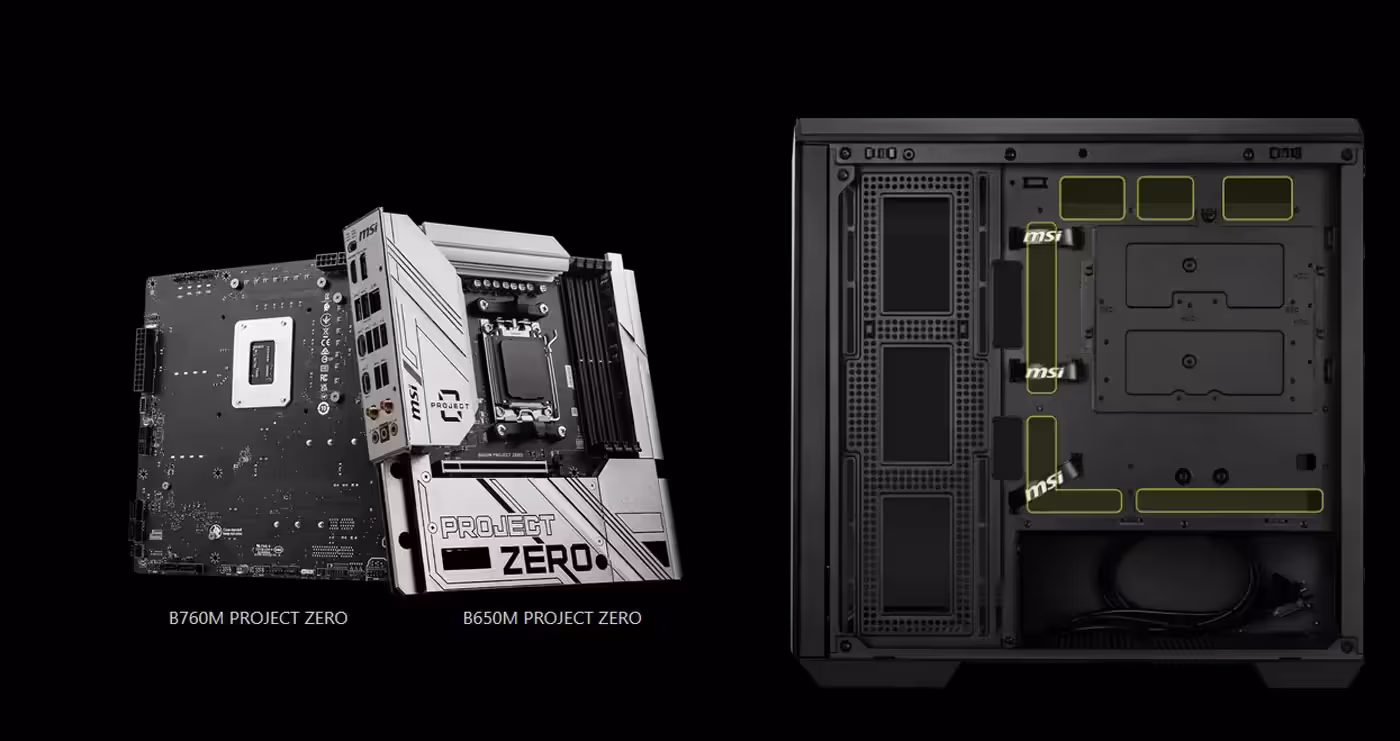

With cables routed out of sight, the interior on show through the panoramic panel stays clean and manageable. That is the practical payoff of the back-connect layout in a case whose whole front and side are glass, where every stray cable is on display.

Four high-performance fans come pre-installed in the MAG PANO M100R PZ, including a reverse-blade fan on the side of the chassis. Airflow is set up before the build starts, so a Micro-ATX system with a large graphics card is cooled without buying extra fans separately.

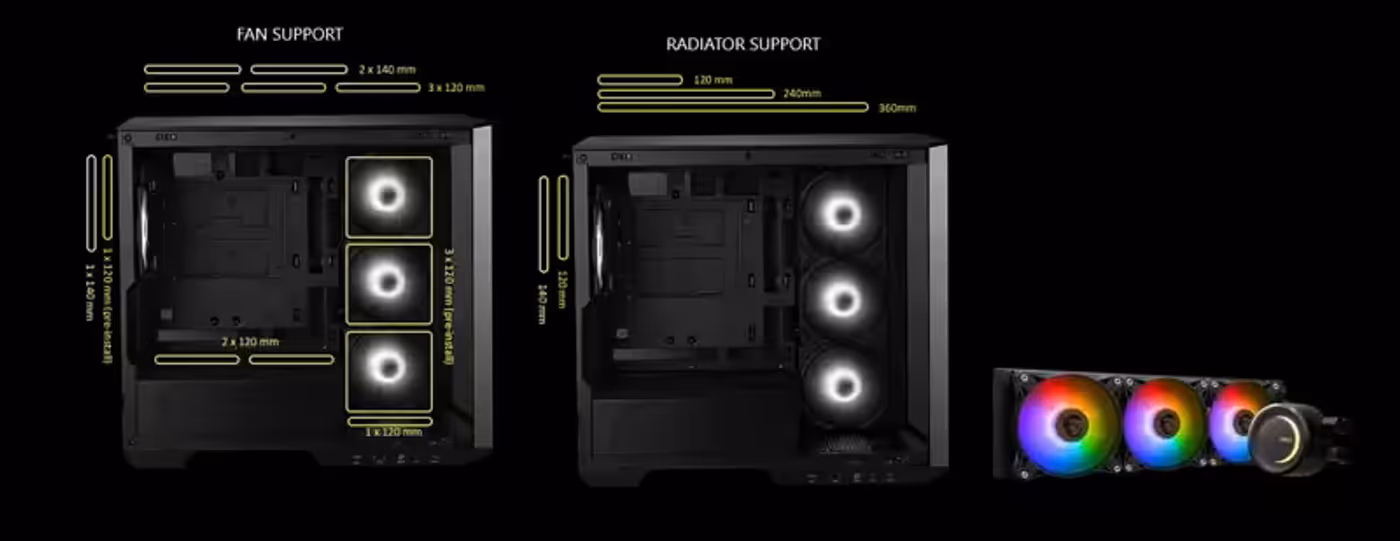

Component clearance runs to CPU coolers up to 175mm tall and graphics cards up to 390mm long. Those are tower-cooler and full-length GPU numbers, so the parts list does not have to be trimmed to low-profile alternatives to fit a Micro-ATX chassis.

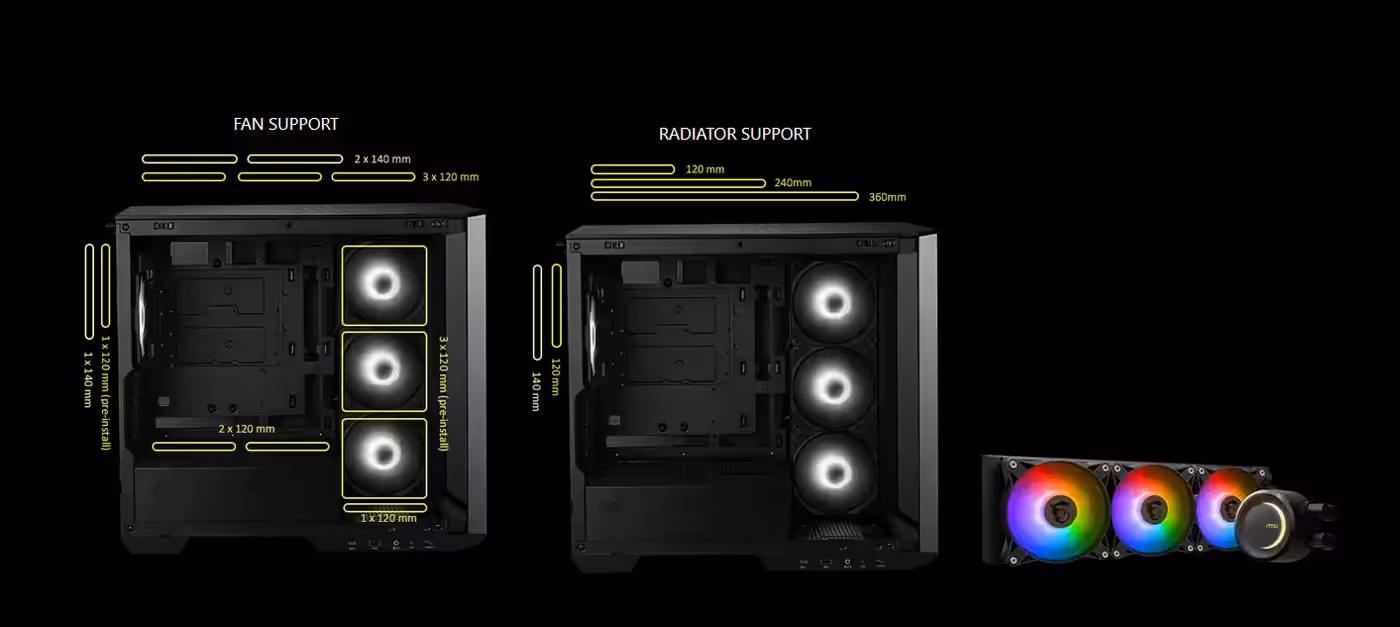

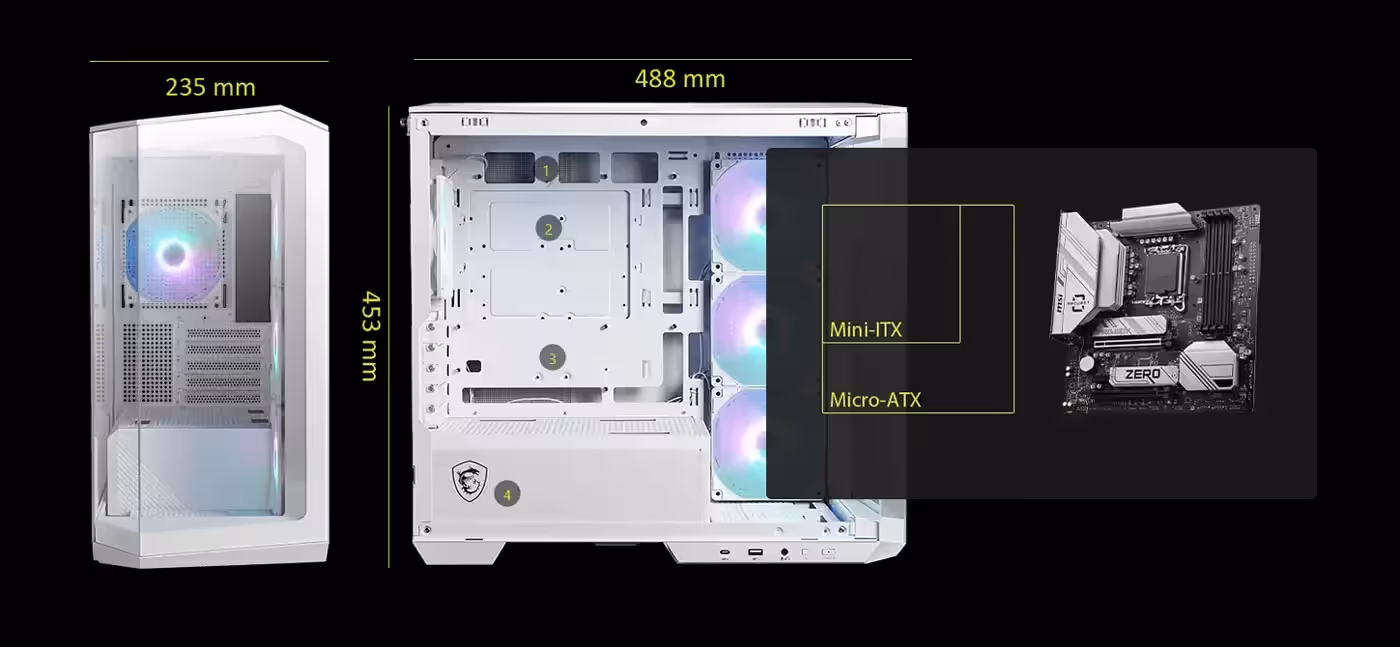

The PANO M100R PZ is built around smart space utilisation, taking Micro-ATX and ITX motherboards while still accepting large coolers and cards. That makes it workable for a compact workstation on a shallow desk as well as a gaming build that needs the full airflow path.

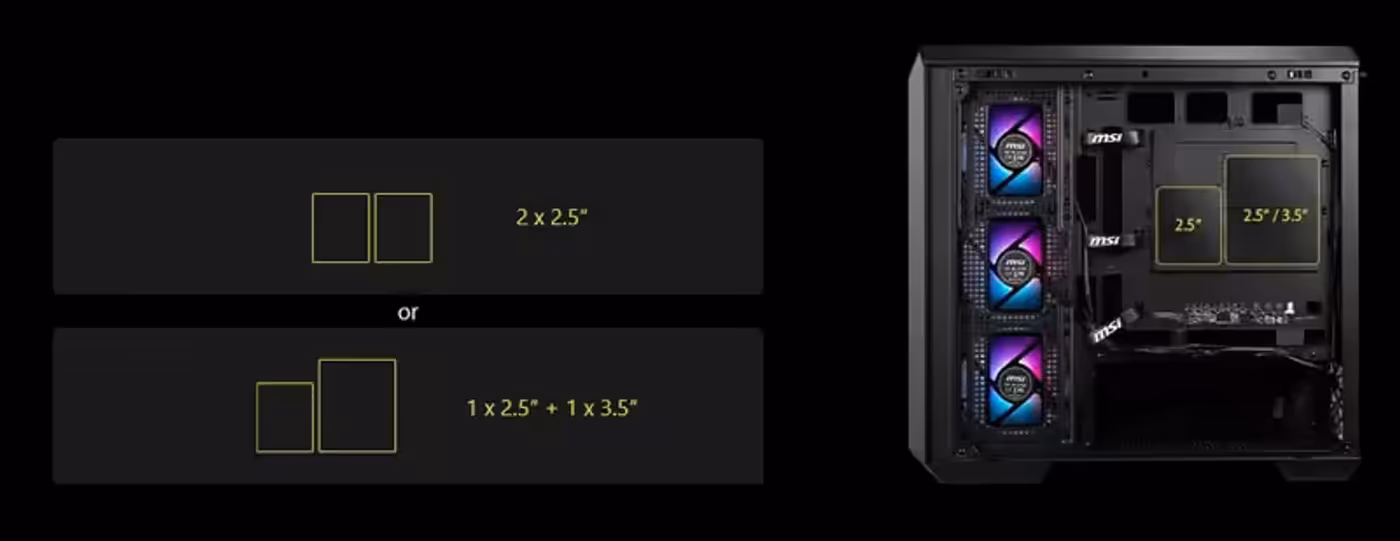

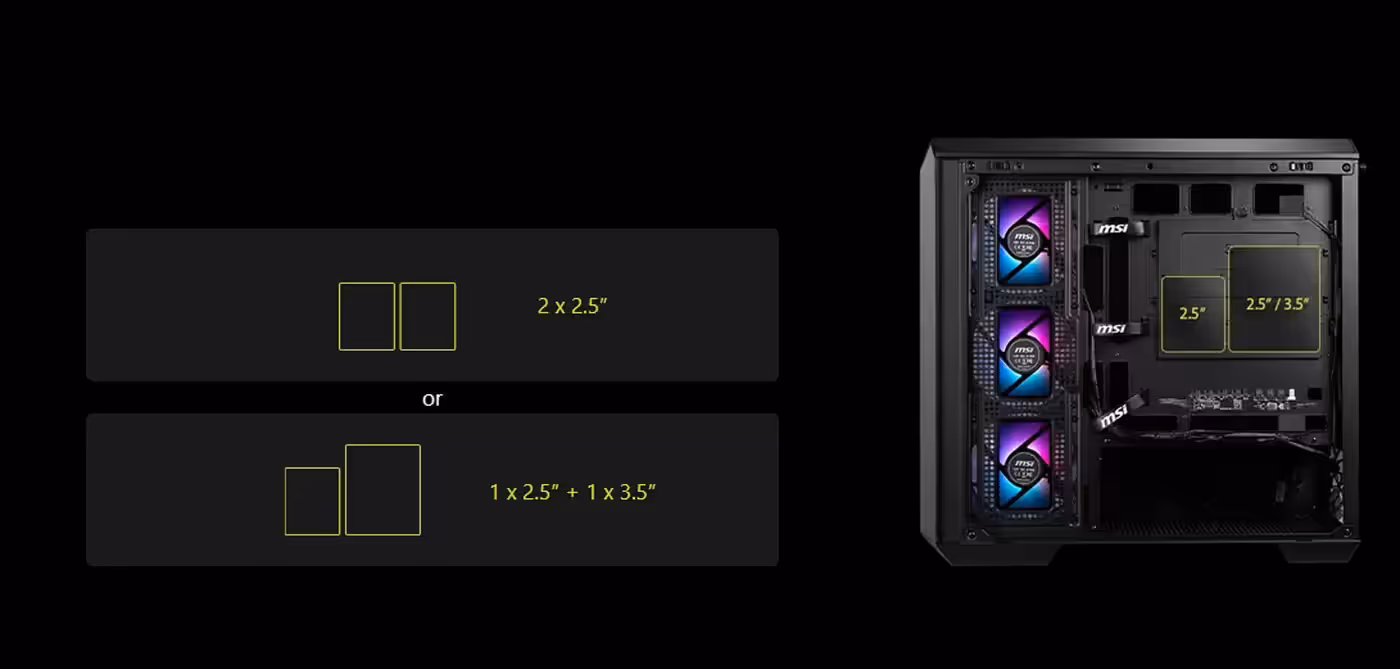

Storage support covers 1 x 2.5-inch SSD plus 1 x 2.5-inch or 3.5-inch combo drive bay. The combo bay is what lets the second slot take either another SSD or a mechanical hard drive, depending on whether the build needs speed or capacity in that position.

Because the second bay accepts a 3.5-inch drive, a fast 2.5-inch SSD can sit alongside a high-capacity mechanical disk for media and archives. Both mount away from the glass side, so the storage does not interrupt the panoramic view of the motherboard and cooler.

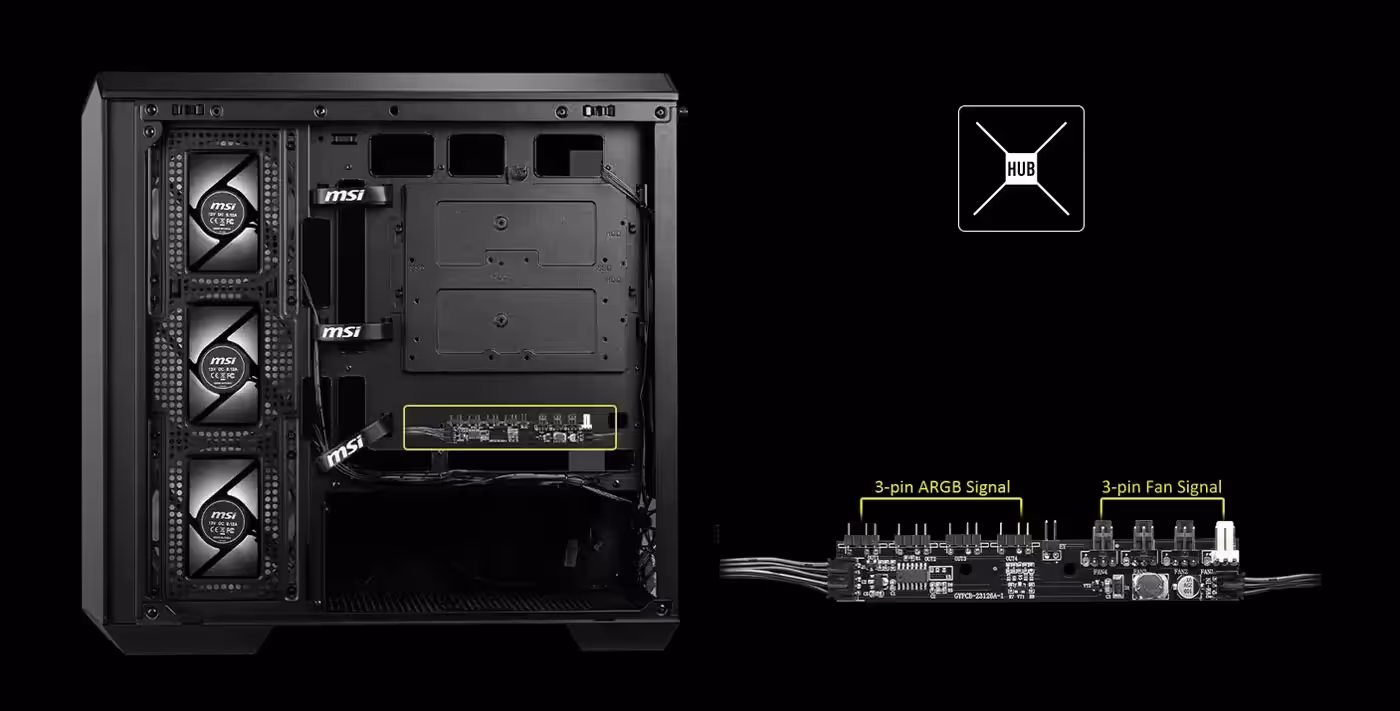

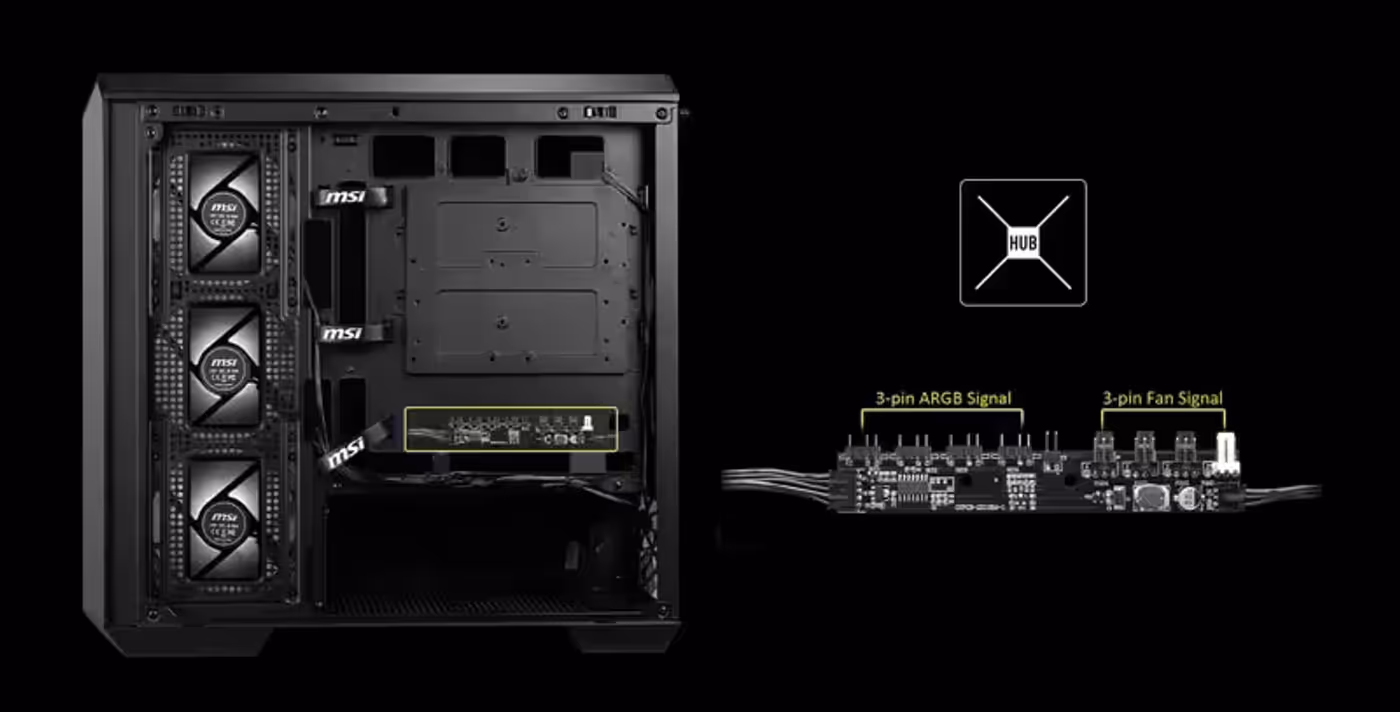

An integrated 1-to-4 control board manages ARGB lighting effects and fan speeds from a single point. Lighting and cooling are then customised at the push of a button instead of each device being addressed on its own.

The ARGB-PWM board takes a single connection and fans it out to four devices, which is why the case ships with four fans already wired. Fewer runs back to the motherboard means fewer cables crossing the interior in a chassis where the interior is fully visible.

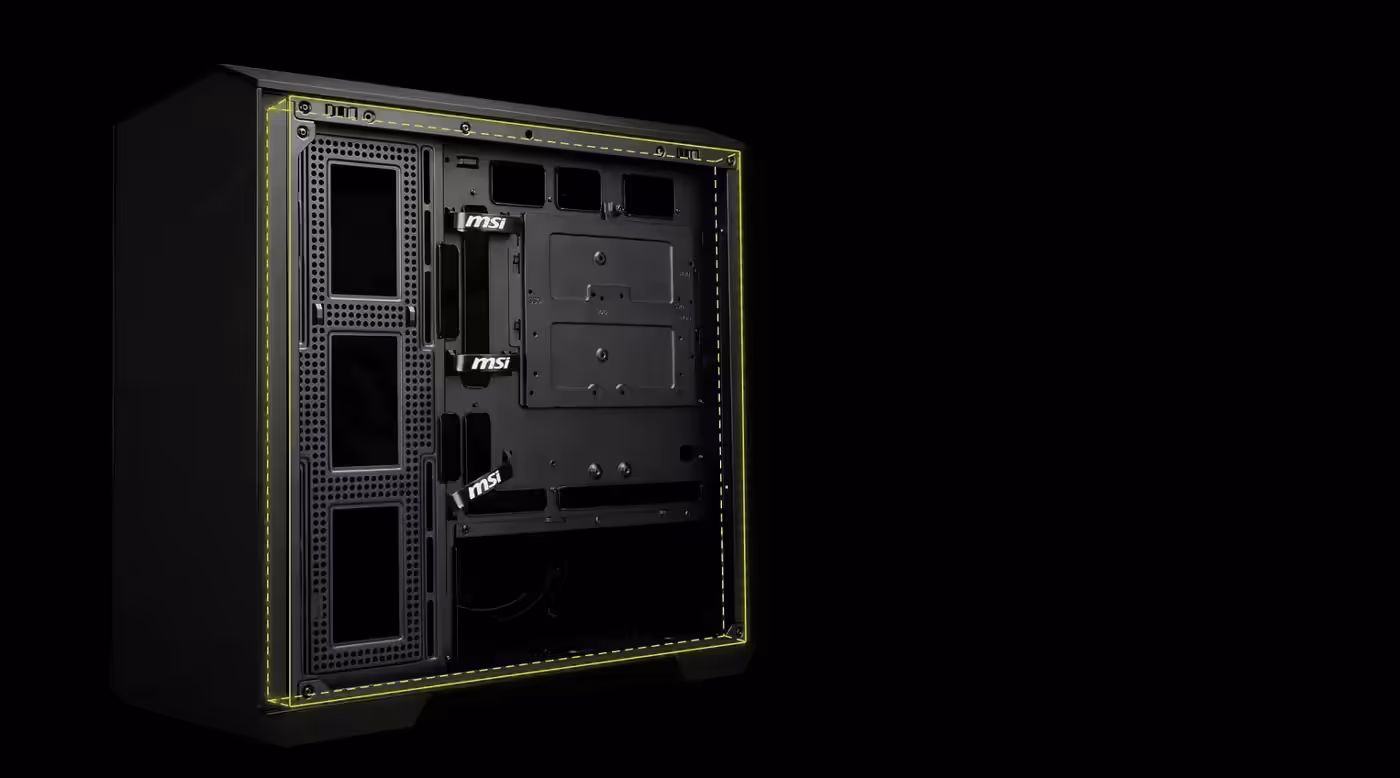

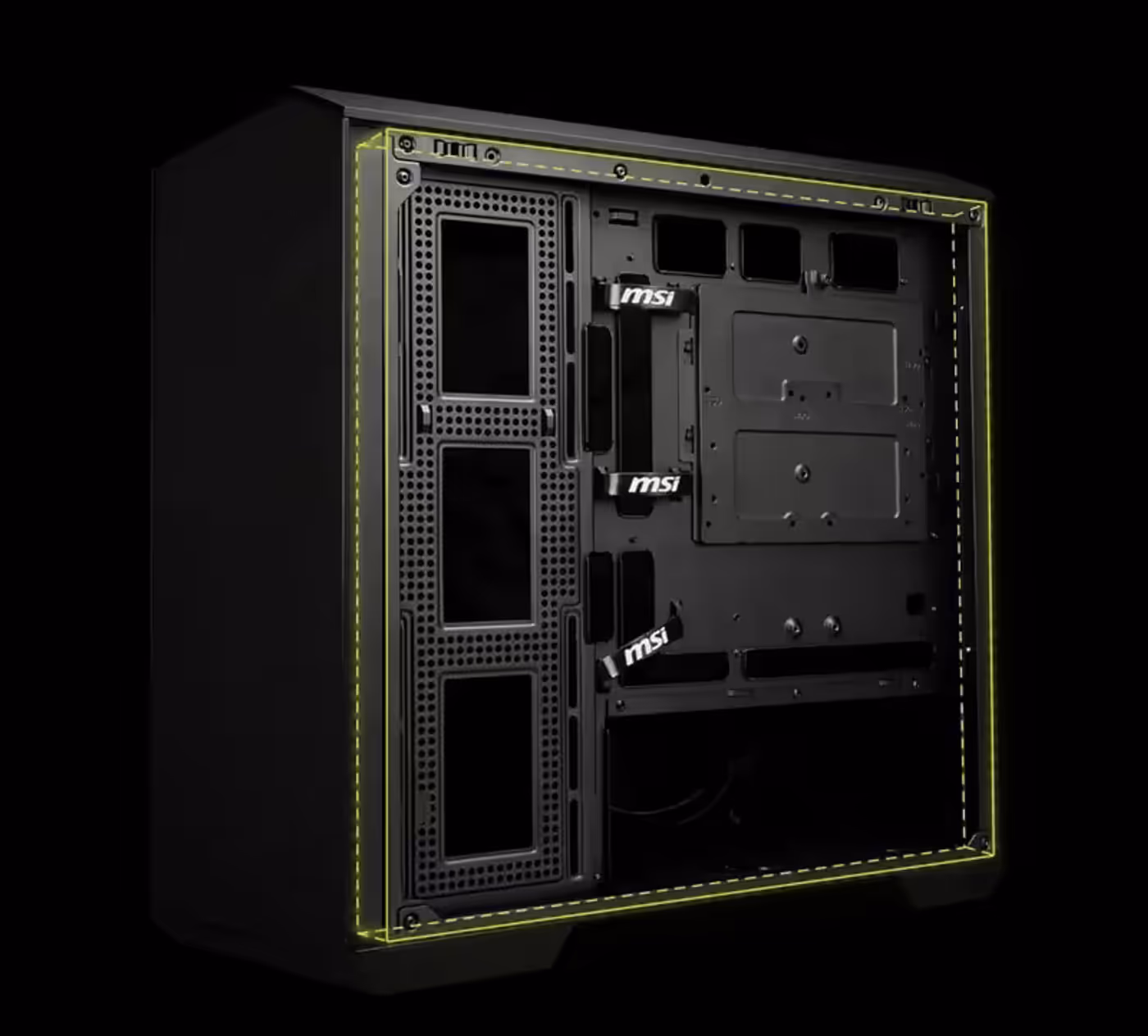

There is 33mm of cable routing space in the MAG PANO M100R PZ, with cable Velcro strips pre-installed to hold bundles in place. That depth is what allows thick 24-pin and PCIe cables to be tucked away flat rather than forcing the rear panel out of shape.

The pre-installed Velcro strips hold cables without cutting ties every time a component changes, so upgrades stay quick. Combined with the routing space behind the tray, the build stays tidy on the side that is on show and organised on the side that is not.

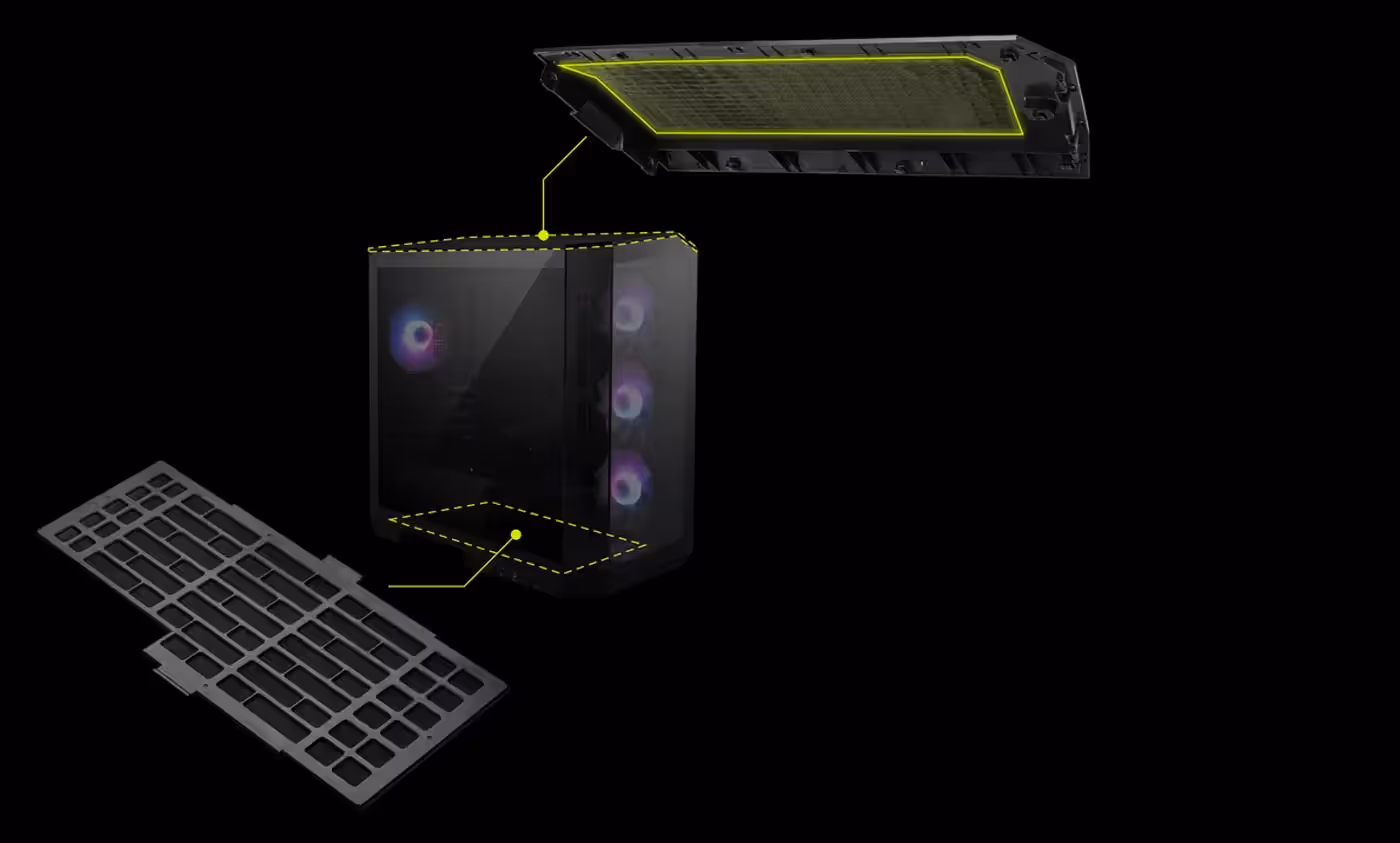

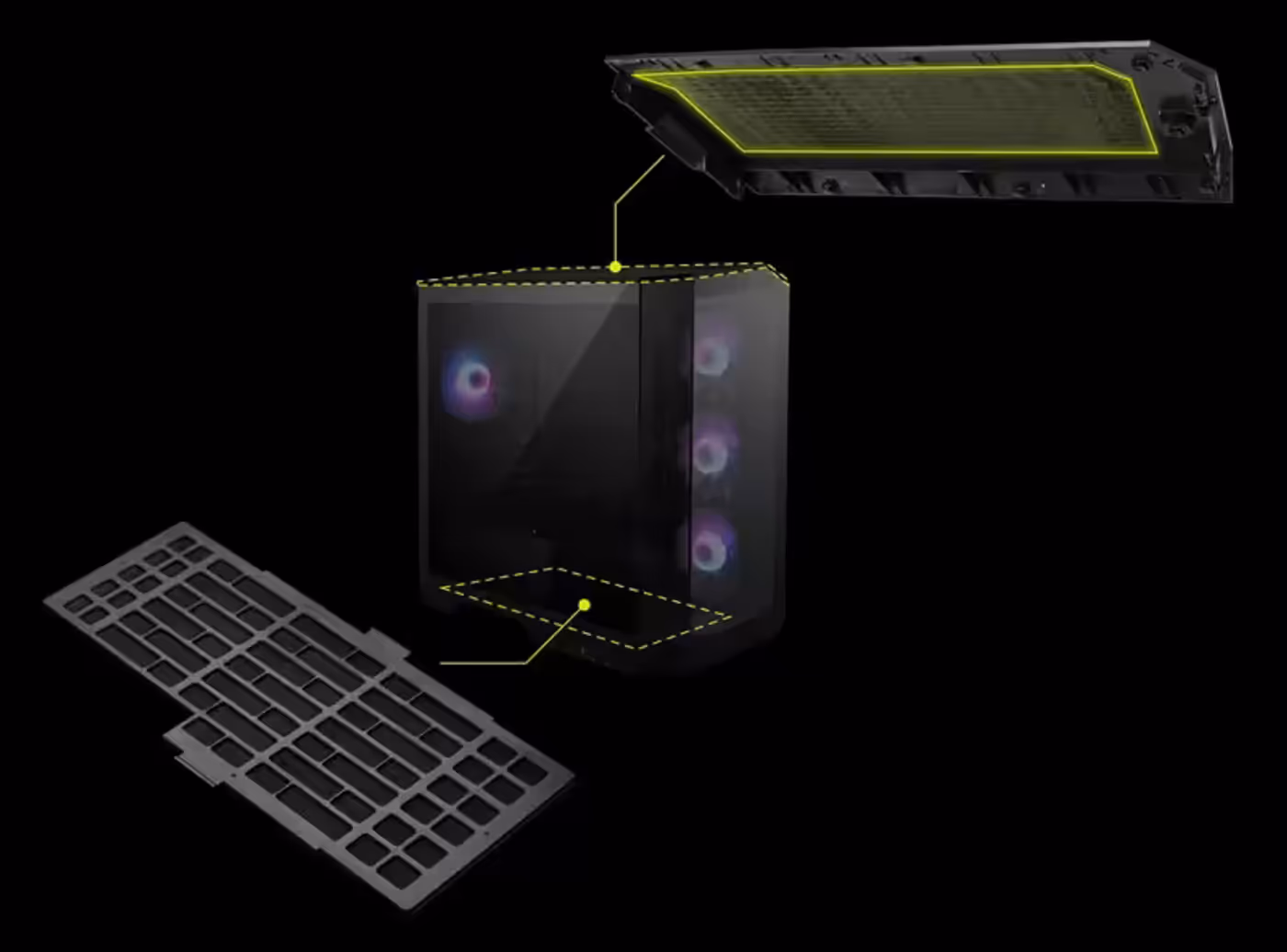

Removable dust filters cover the top and bottom of the MAG PANO M100R PZ to stop dust being drawn into the chassis. Those are the two intake and exhaust faces on a case of this layout, which is where filtering does the most work.

Both filters come away from the chassis for cleaning, so the maintenance job is a rinse rather than a strip-down of the build. Keeping them clear also keeps airflow to the four pre-installed fans consistent over time.

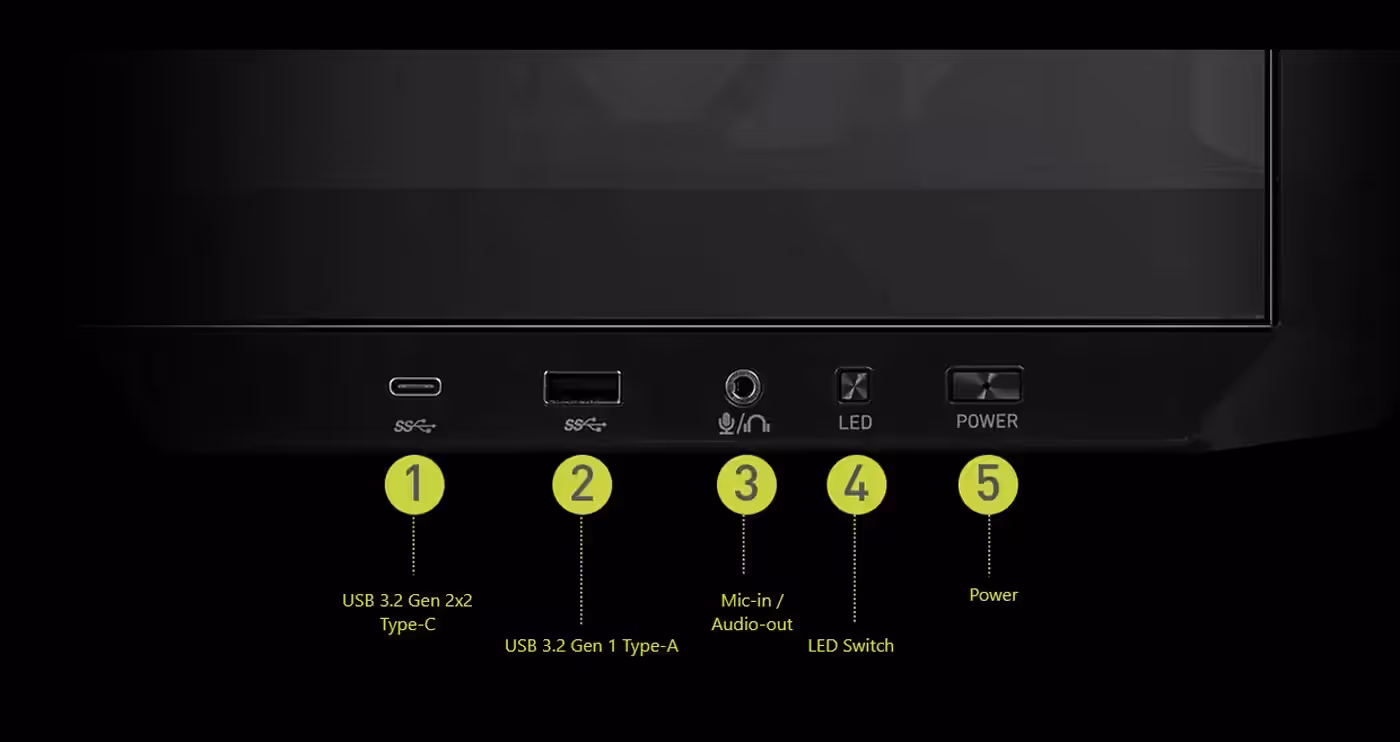

The MAG PANO M100R PZ carries a user-friendly front I/O panel, so connections are made from the outside of the chassis rather than reaching past the panoramic glass. Together with the Insta-Light Loop button for lighting and fan profiles, the controls you use daily stay on the outside of the case.
