Xigmatek Alphard Pro Arctic Mid Tower Gaming Case / Supports Motherboards up to E-ATX / 6″ Multi Display LCD Panel / Windows 10 & 11 Multi-Display Support / Magnetic Front-or-Side Mounting / Top & Bottom Dust Filters / 6 x Pre-Installed ARGB Fans Included / EN48234 + FREE DELIVERY !
1 Year Local Warranty
Model No : Xigmatek EN48234
Price Inc. Vat
R 1,799
Save R 200.00
ListR 1,999
1799Free Delivery
Qty:
In Stock with Evetech
Xigmatek Alphard Pro Arctic Gaming Case - Mid Tower
Alphard Pro Arctic: Mid Tower With a Built-In Screen

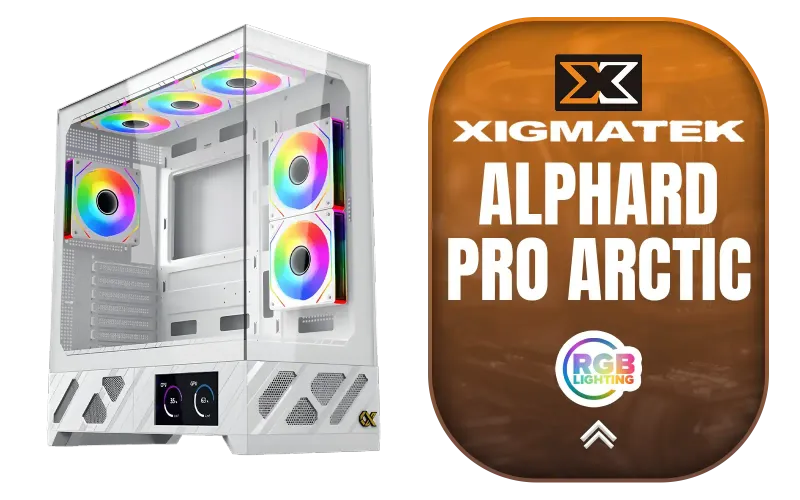

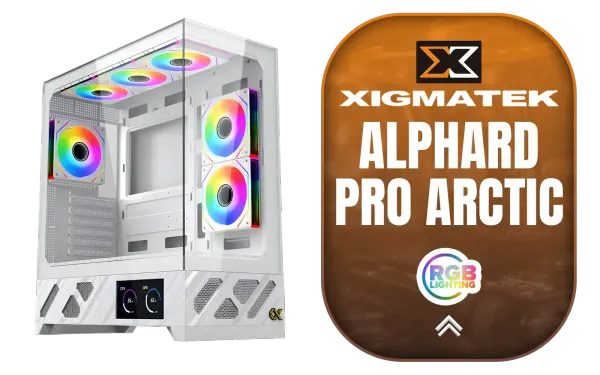

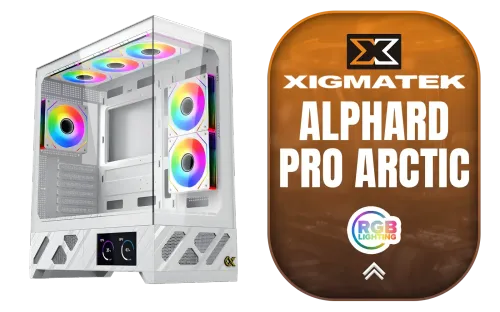

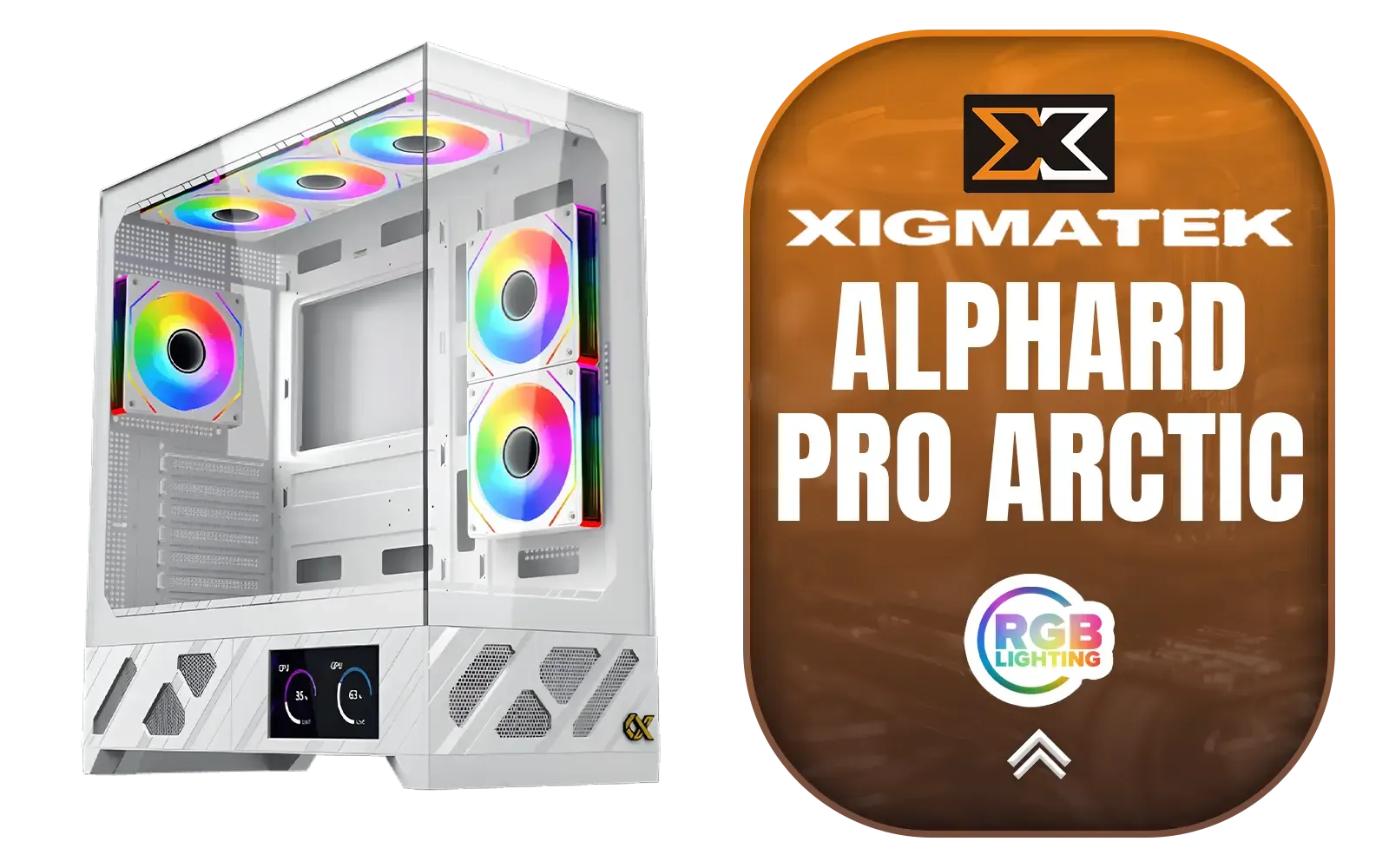

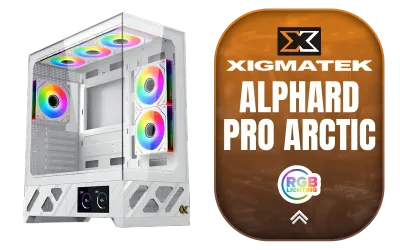

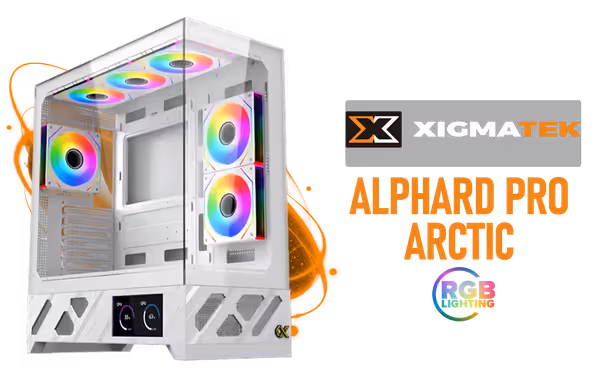

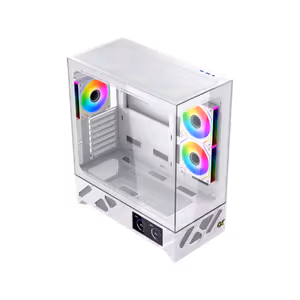

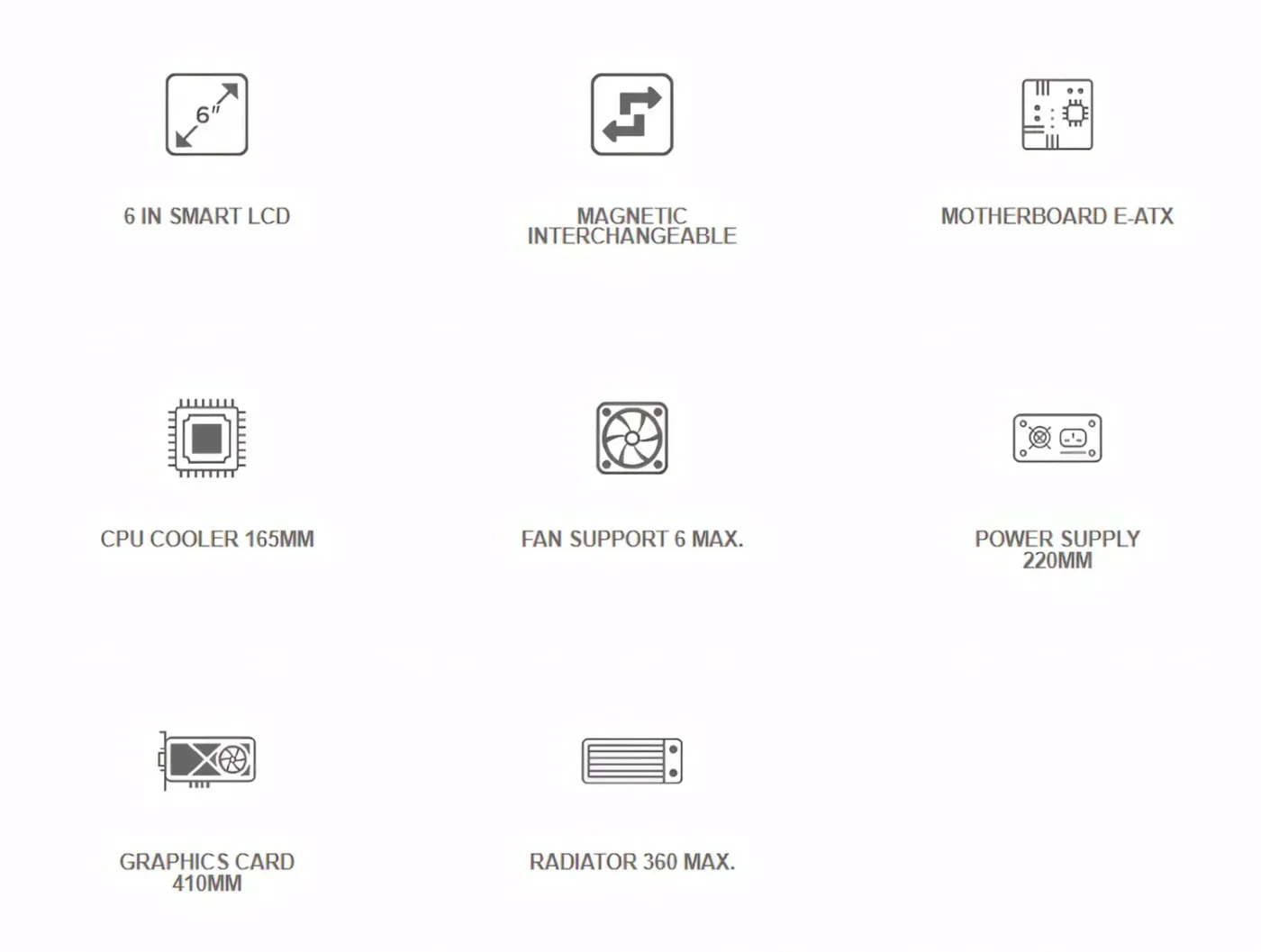

The Alphard Pro Arctic is a white steel mid tower measuring 435 x 215 x 495 mm, taking motherboards from Mini-ITX and M-ATX through ATX and up to E-ATX. What sets it apart at this size is the 6-inch multi-display LCD panel built into the chassis itself. Six ARGB fans come installed from the factory, and there are seven standard expansion slots behind a top-mounted I/O cluster.
Alphard Pro Arctic: Mid Tower With a Built-In Screen
The Alphard Pro Arctic is a white steel mid tower measuring 435 x 215 x 495 mm, taking motherboards from Mini-ITX and M-ATX through ATX and up to E-ATX. What sets it apart at this size is the 6-inch multi-display LCD panel built into the chassis itself. Six ARGB fans come installed from the factory, and there are seven standard expansion slots behind a top-mounted I/O cluster.

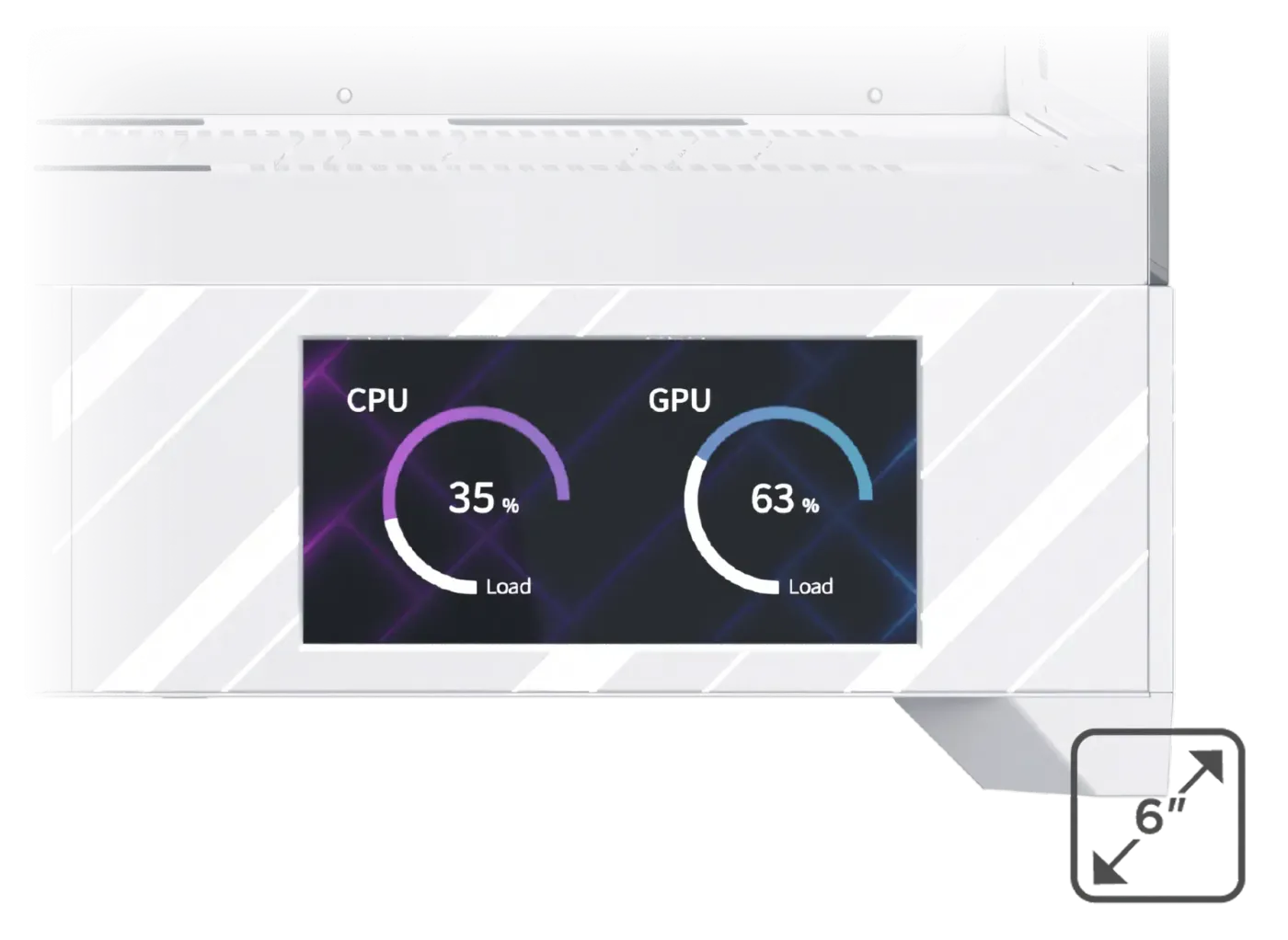

Integrated 6-Inch Multi-Display LCD Panel
This product features a built-in 6-inch Multi Display LCD Panel, which functions as a secondary monitor. This is a key component of the system’s visual capabilities.
Integrated 6-Inch Multi-Display LCD Panel
This product features a built-in 6-inch Multi Display LCD Panel, which functions as a secondary monitor. This is a key component of the system’s visual capabilities.

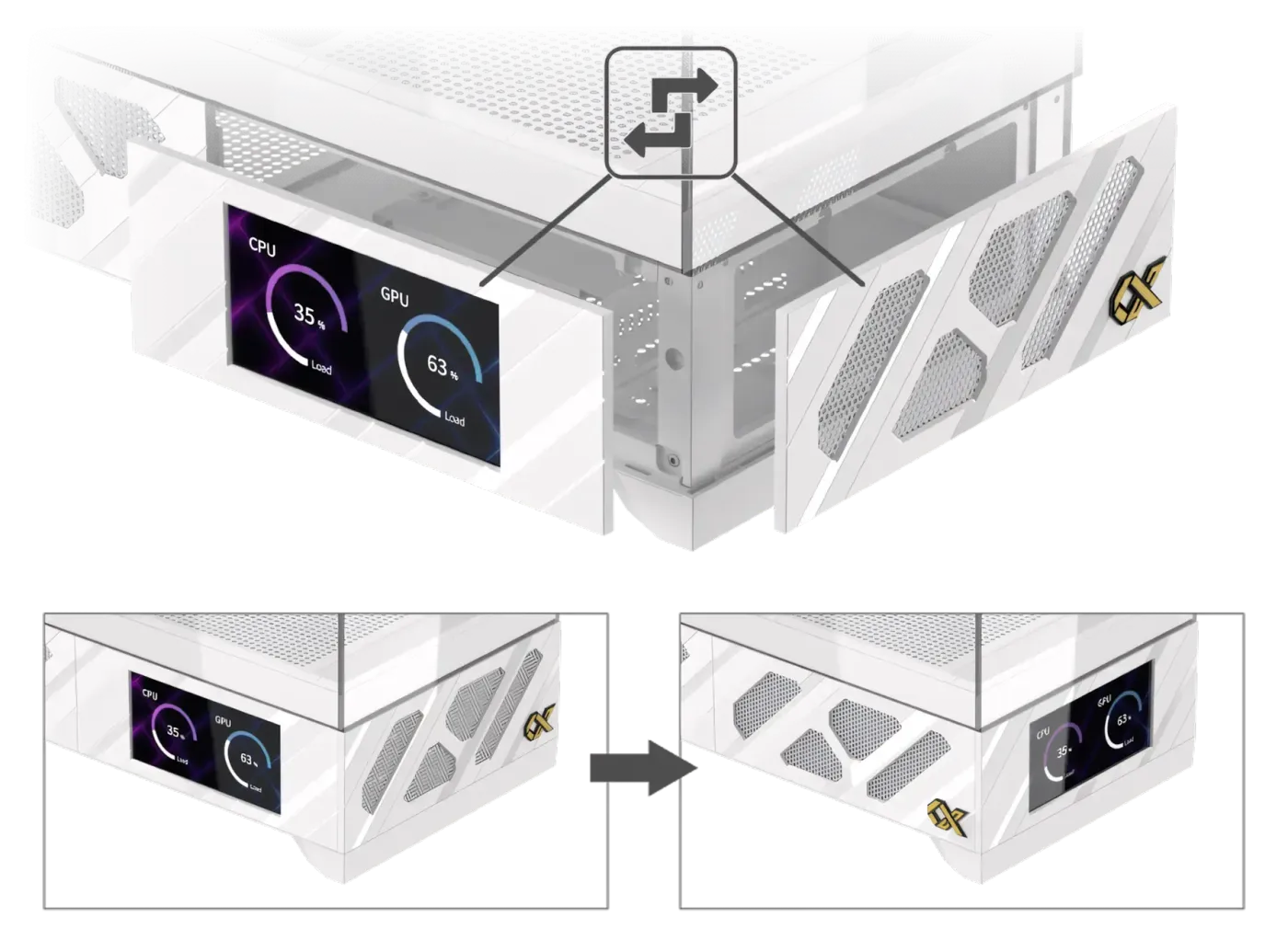

Magnetic Interchangeable Display Position
The display panel features a magnetic design allowing for interchangeable placement on either the front or the side of the unit, offering flexibility in orientation.
Magnetic Interchangeable Display Position
The display panel features a magnetic design allowing for interchangeable placement on either the front or the side of the unit, offering flexibility in orientation.

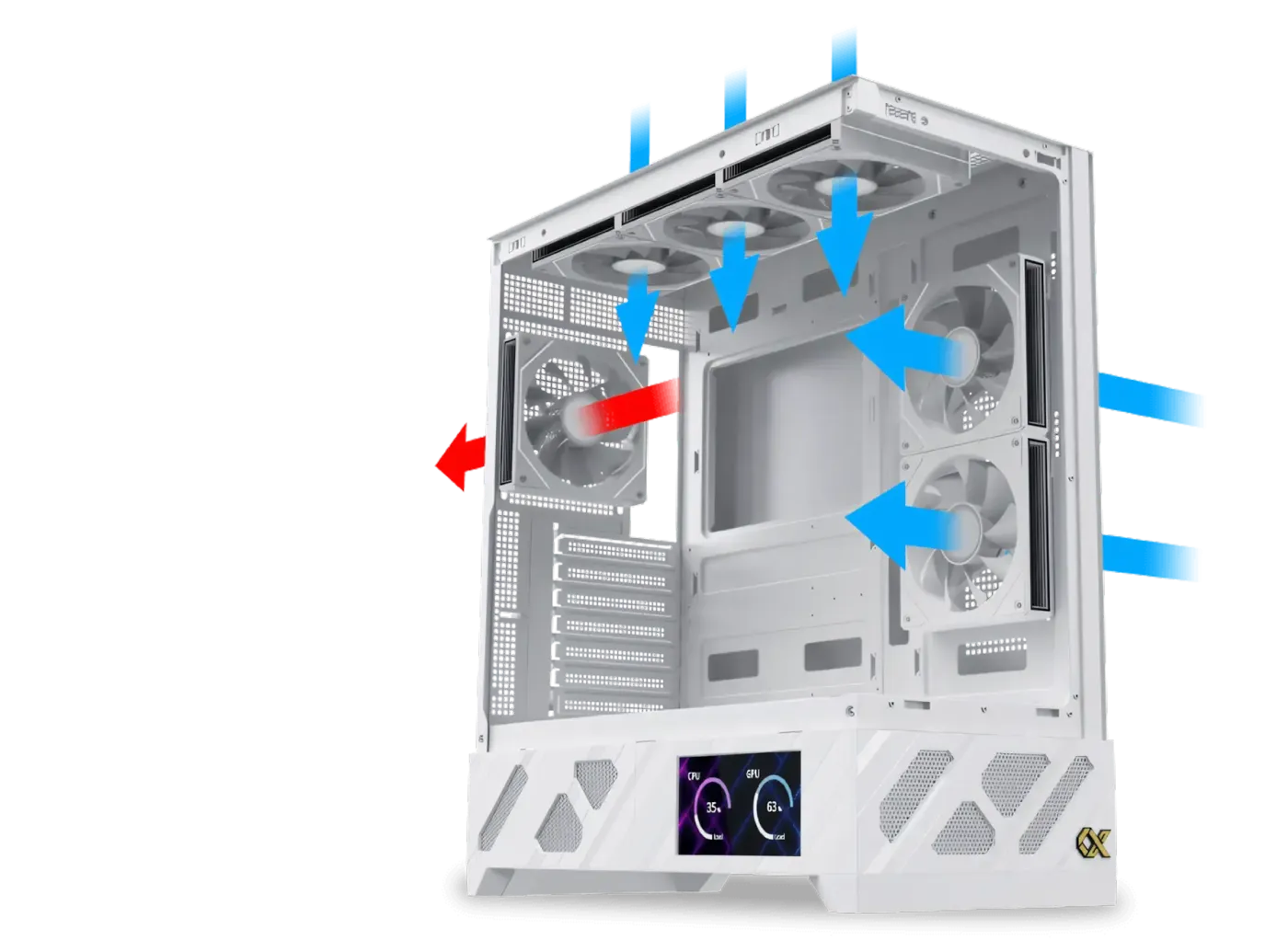

Superior Airflow and Ventilation Design
This product is engineered with a superior airflow and ventilation design to ensure optimal thermal performance and component longevity.
Superior Airflow and Ventilation Design
This product is engineered with a superior airflow and ventilation design to ensure optimal thermal performance and component longevity.

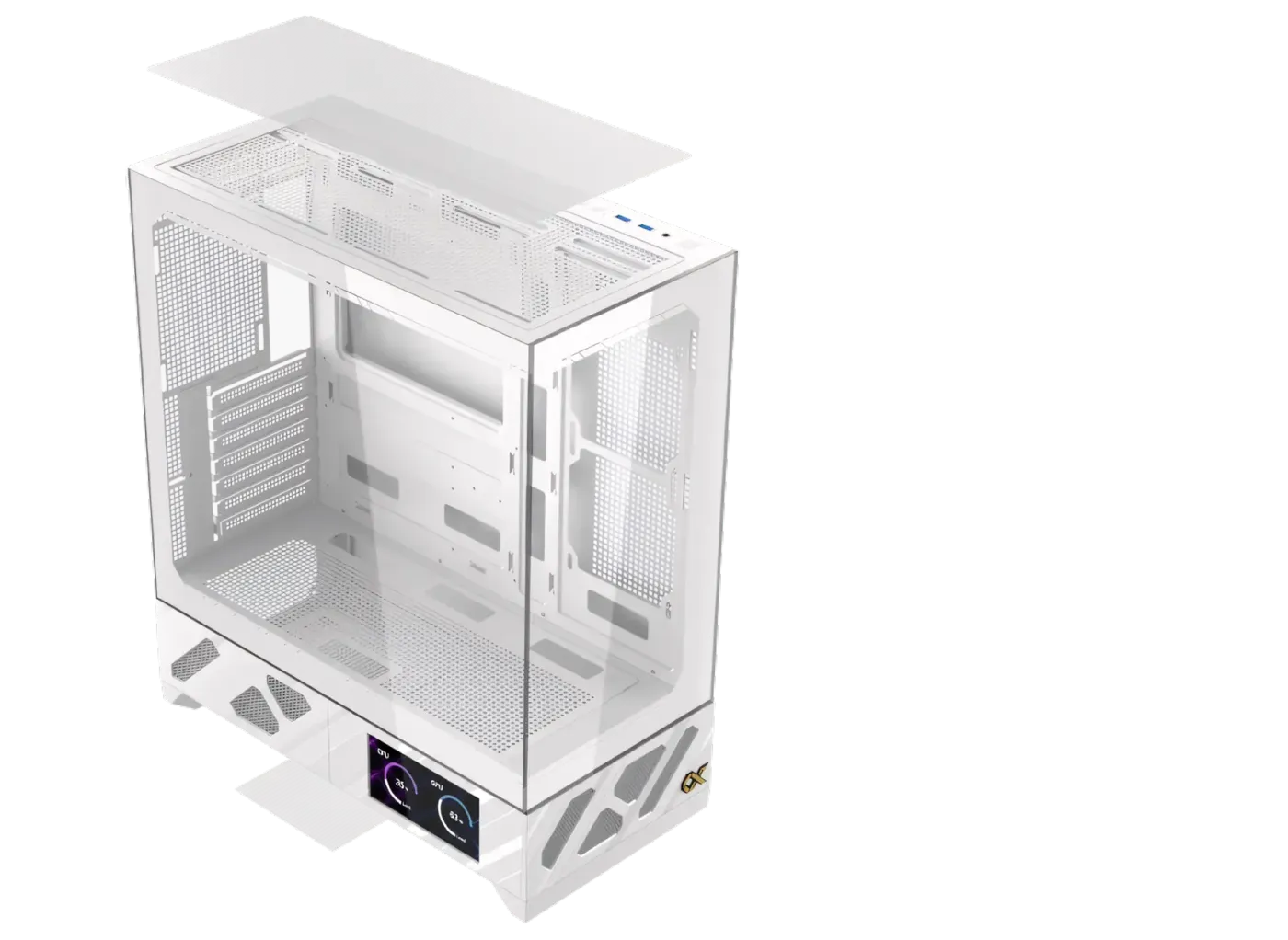

Top and Bottom Dust Filter System
The design includes dust filters positioned at both the top and the bottom of the unit. These filters help maintain system cleanliness and protect internal components from dust accumulation.
Top and Bottom Dust Filter System
The design includes dust filters positioned at both the top and the bottom of the unit. These filters help maintain system cleanliness and protect internal components from dust accumulation.

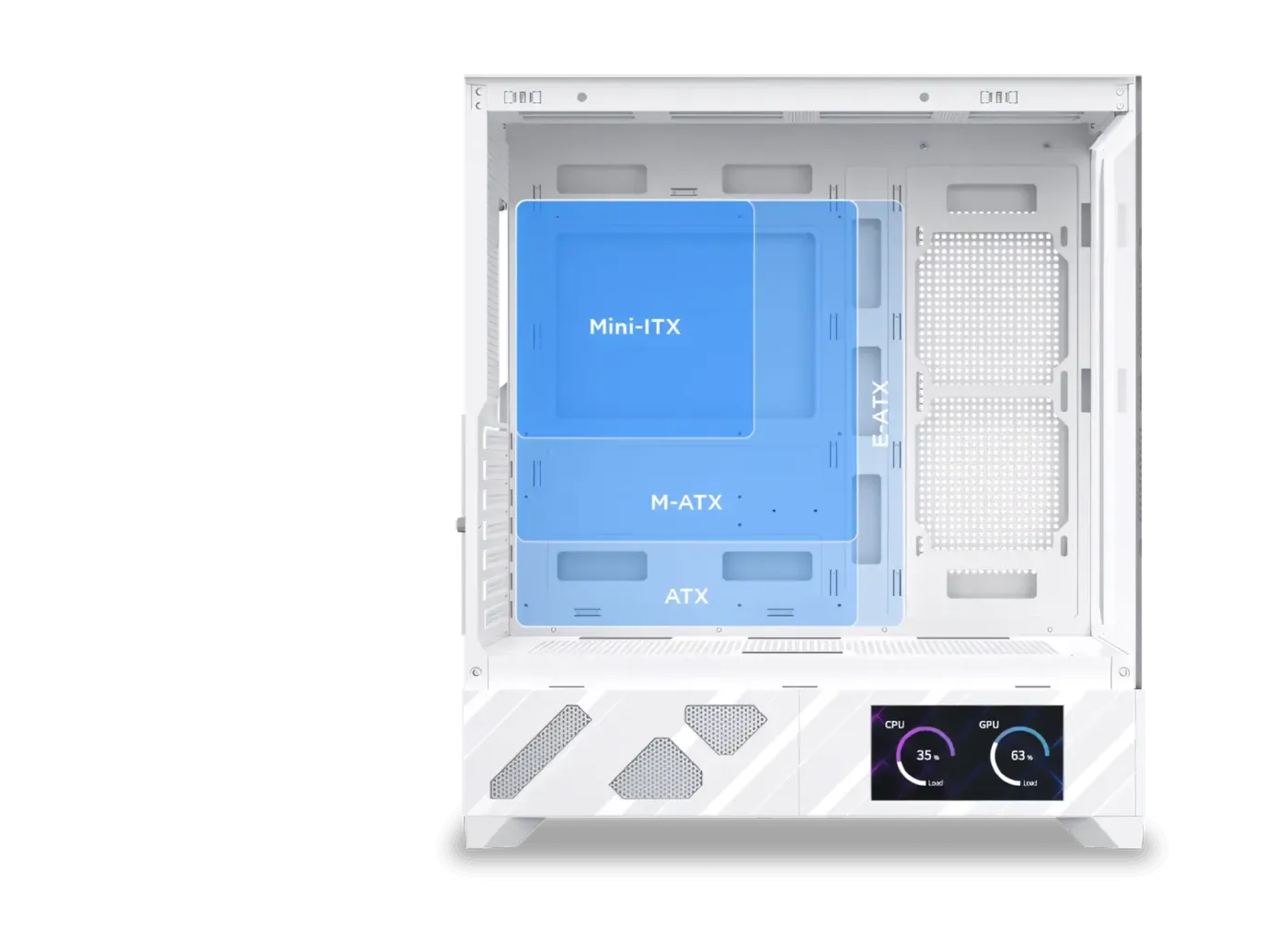

Wide Motherboard Compatibility Support
This chassis offers extensive support for various motherboard sizes. It is compatible with E-ATX (up to 272mm wide if a side fan is installed), standard ATX, Micro-ATX (M-ATX), and Mini-ITX form factors.
Wide Motherboard Compatibility Support
This chassis offers extensive support for various motherboard sizes. It is compatible with E-ATX (up to 272mm wide if a side fan is installed), standard ATX, Micro-ATX (M-ATX), and Mini-ITX form factors.

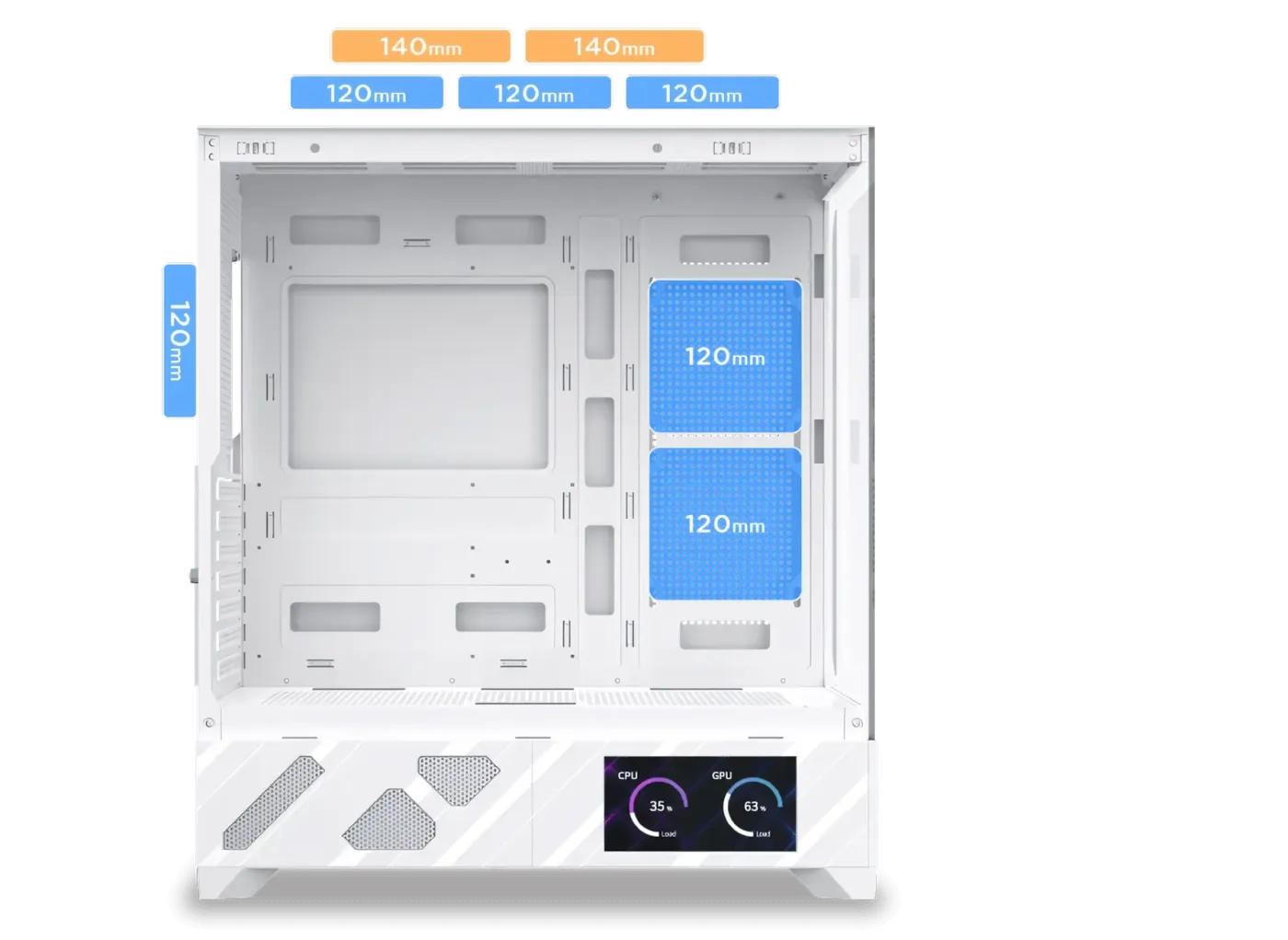

Extensive Fan Installation Options
The case supports multiple fan configurations for superior cooling: up to three 120mm fans or two 140mm fans on the Top, two 120mm fans on the Side (with a limitation for E-ATX Wide motherboards up to 272mm), and a single 120mm fan at the Rear.
Extensive Fan Installation Options
The case supports multiple fan configurations for superior cooling: up to three 120mm fans or two 140mm fans on the Top, two 120mm fans on the Side (with a limitation for E-ATX Wide motherboards up to 272mm), and a single 120mm fan at the Rear.

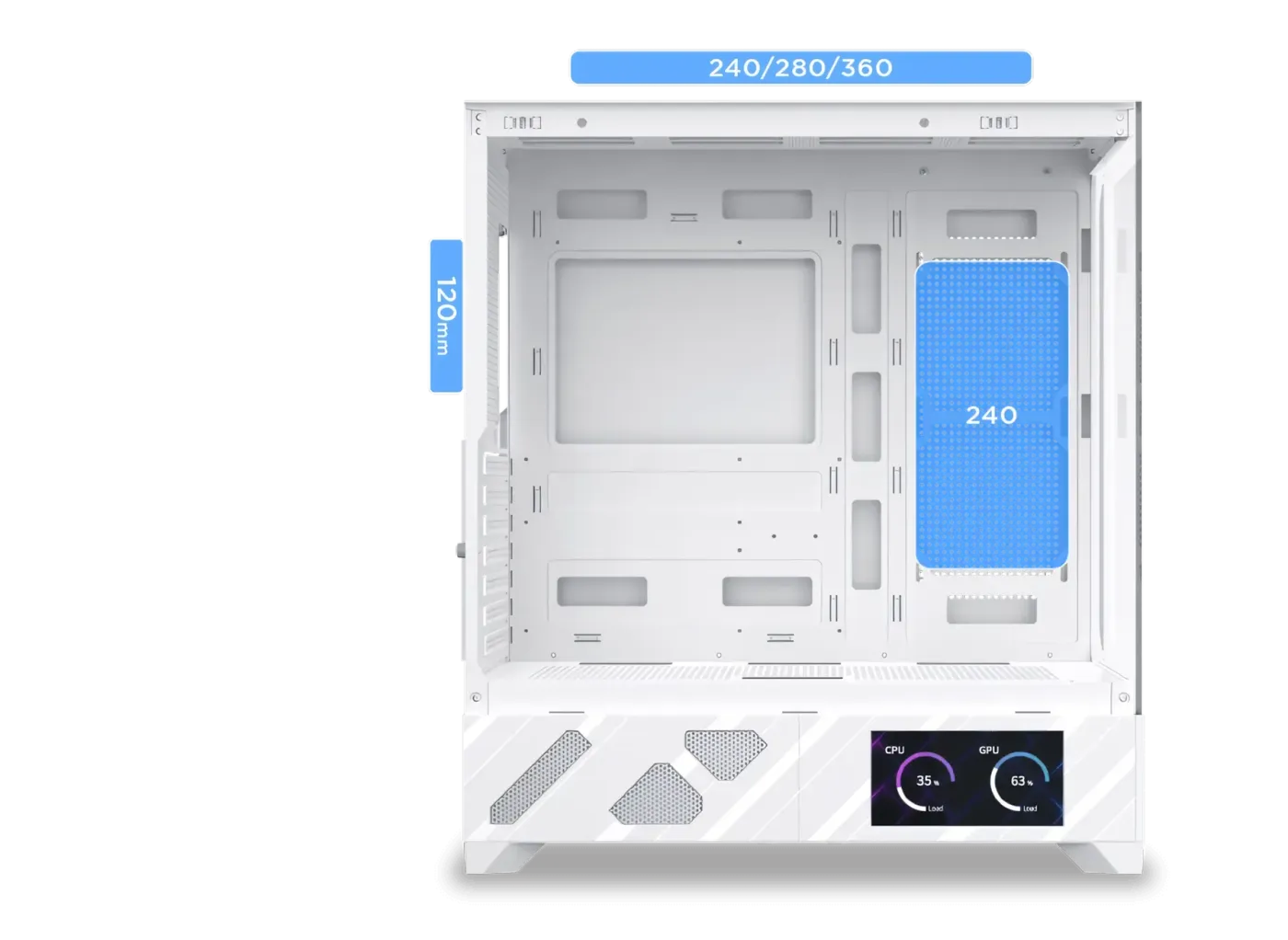

Liquid Cooling Radiator Compatibility
The chassis is designed to accommodate various liquid cooling radiators. It supports 240mm, 280mm, or 360mm radiators at the Top. The Side supports a 240mm radiator (with limitations: E-ATX Wide ≤ 272mm and GPU Length ≤ 280mm). A single 120mm radiator can be mounted at the Rear.
Liquid Cooling Radiator Compatibility
The chassis is designed to accommodate various liquid cooling radiators. It supports 240mm, 280mm, or 360mm radiators at the Top. The Side supports a 240mm radiator (with limitations: E-ATX Wide ≤ 272mm and GPU Length ≤ 280mm). A single 120mm radiator can be mounted at the Rear.

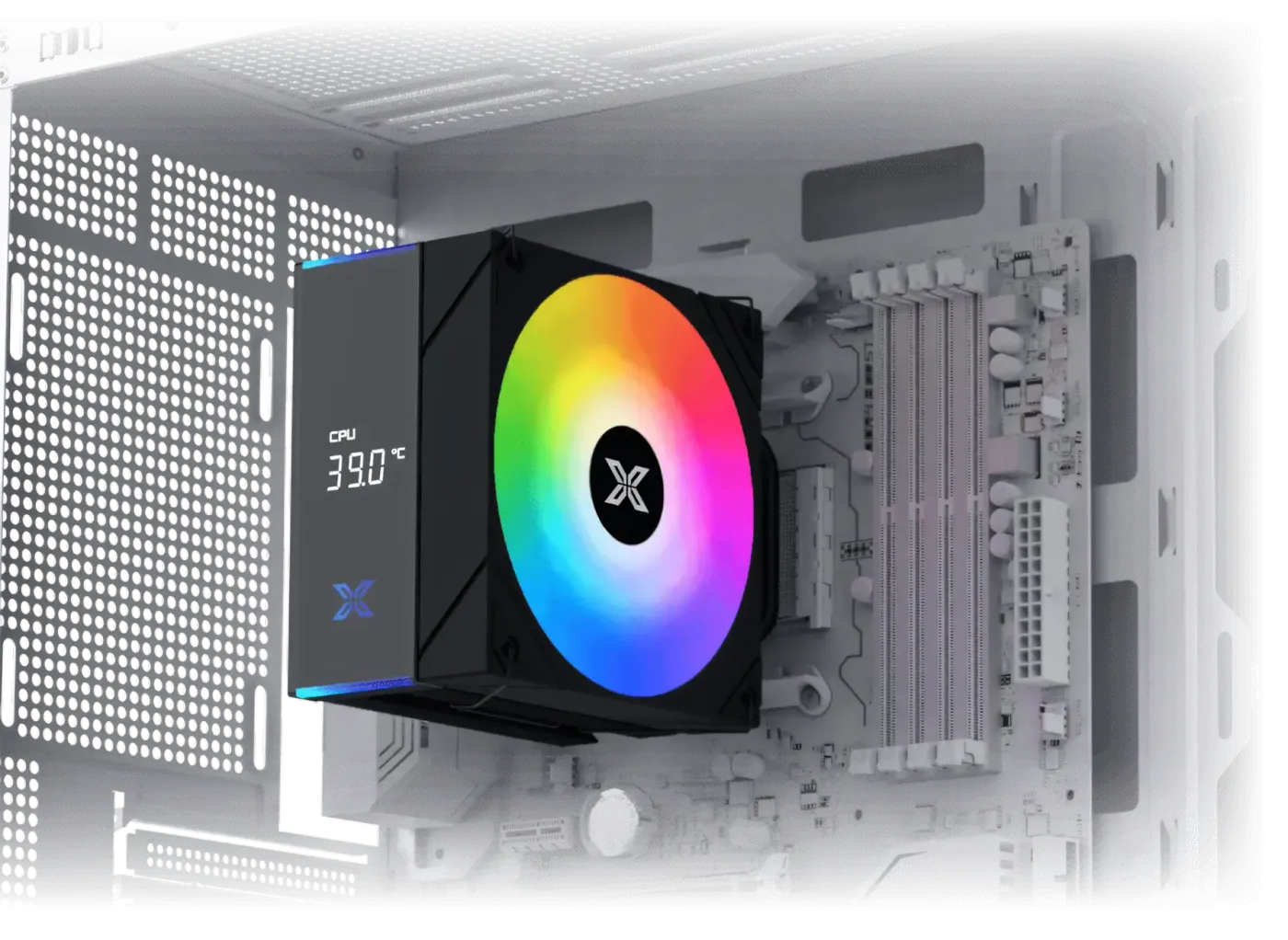

Generous CPU Cooler Clearance
The case provides ample space for large air coolers, allowing for CPU Cooler Clearance up to 165mm. This specification ensures compatibility with most high-performance tower-style CPU cooling solutions.
Generous CPU Cooler Clearance
The case provides ample space for large air coolers, allowing for CPU Cooler Clearance up to 165mm. This specification ensures compatibility with most high-performance tower-style CPU cooling solutions.

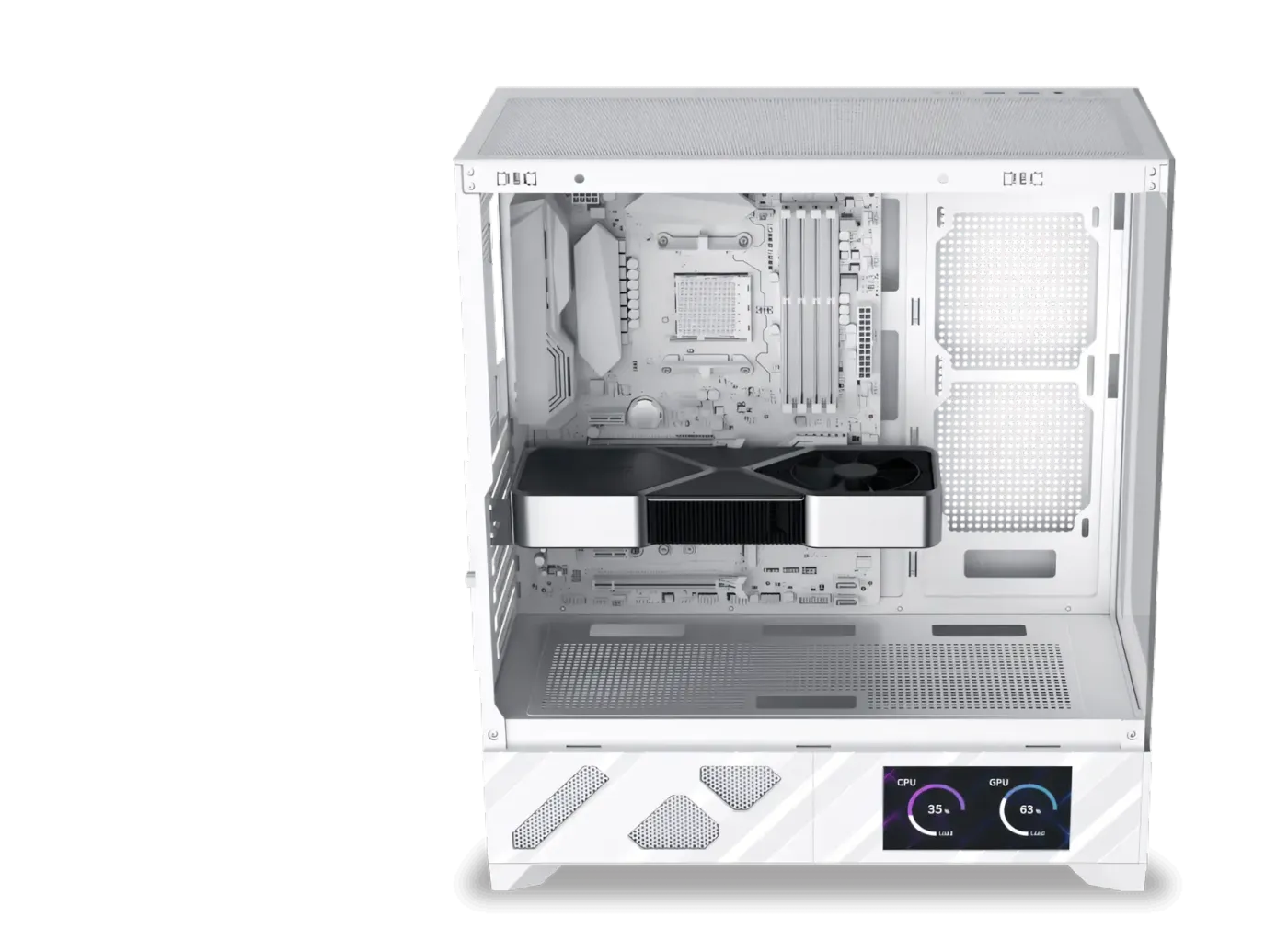

GPU Length Limitations and Flexibility
There are specific limitations on Graphics Processing Unit (GPU) length depending on the cooling setup. The maximum supported GPU length is 280mm when a side fan is installed, but this clearance increases significantly to 410mm if the side fan installation is omitted.
GPU Length Limitations and Flexibility
There are specific limitations on Graphics Processing Unit (GPU) length depending on the cooling setup. The maximum supported GPU length is 280mm when a side fan is installed, but this clearance increases significantly to 410mm if the side fan installation is omitted.

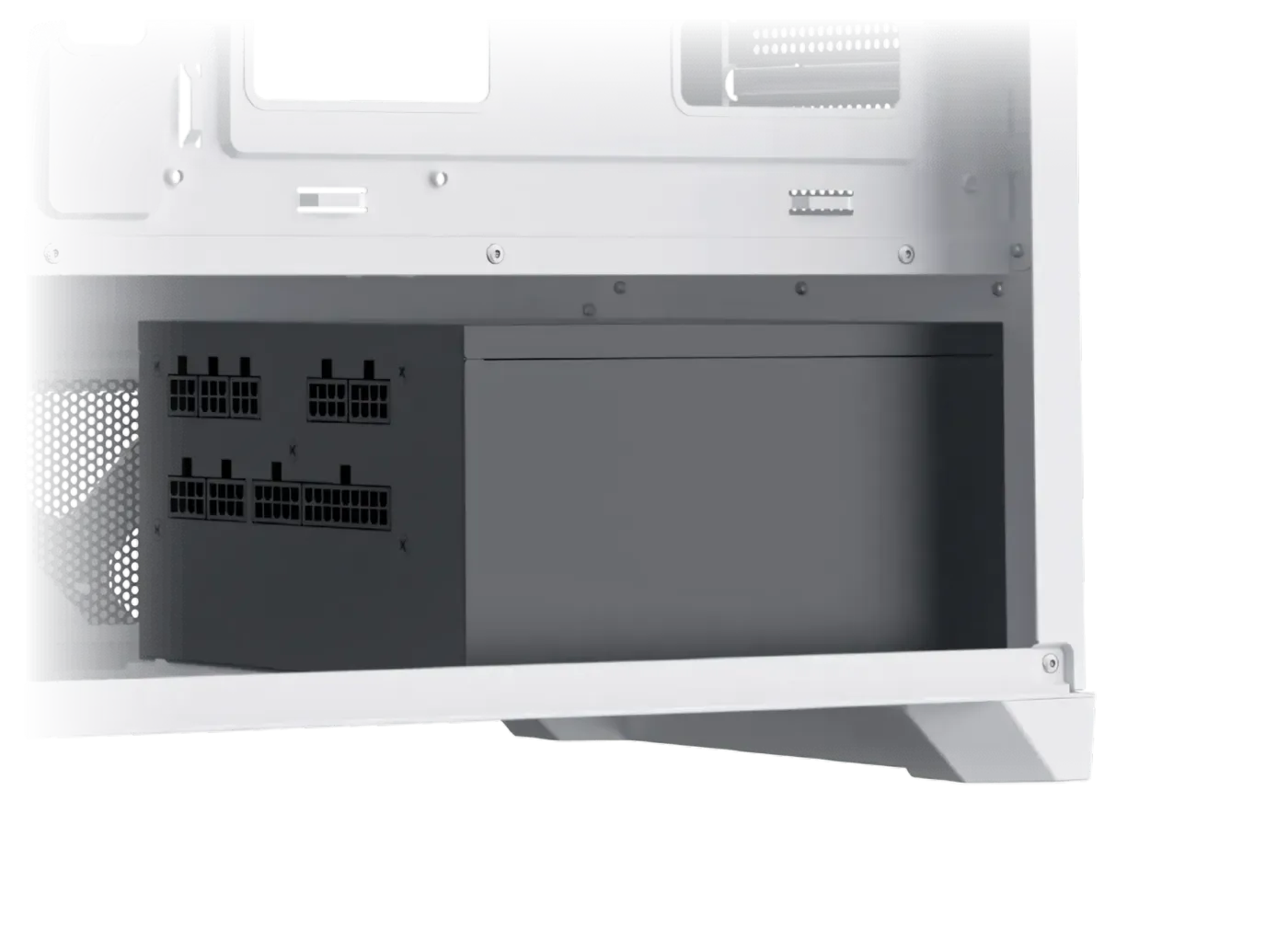

Power Supply Unit Clearance
The case accommodates standard-sized Power Supply Units (PSUs), with a maximum limitation of 220mm in length. This clearance ensures compatibility with a broad range of high-wattage power supplies.
Power Supply Unit Clearance
The case accommodates standard-sized Power Supply Units (PSUs), with a maximum limitation of 220mm in length. This clearance ensures compatibility with a broad range of high-wattage power supplies.

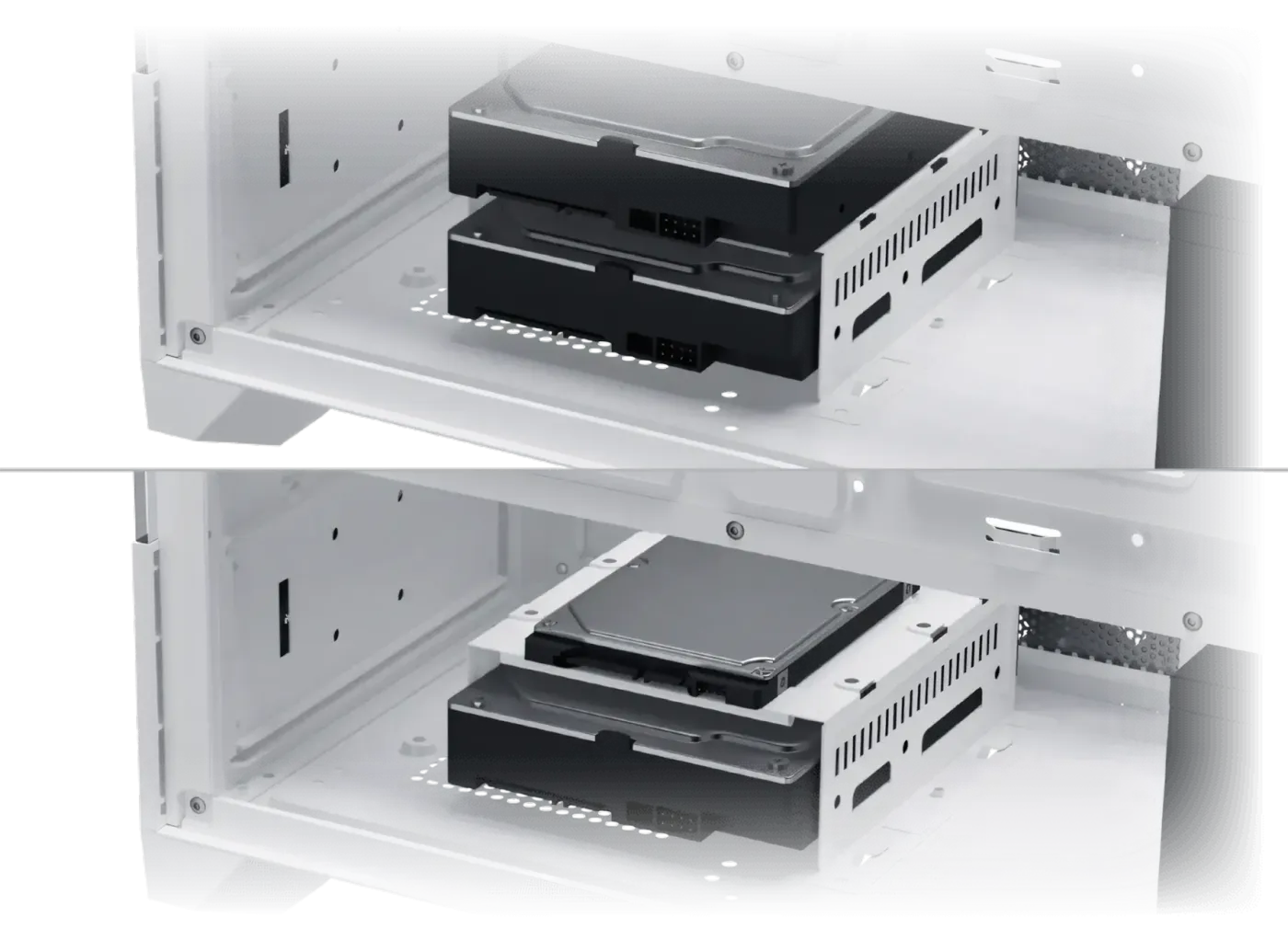

Versatile Drive Support and Storage Options
The chassis offers flexible internal storage options, featuring two specific drive cages. The top HDD Cage supports a single 2.5" and 3.5" combo drive, while the bottom HDD Cage supports a dedicated 3.5" drive, allowing for mixed storage configurations.
Versatile Drive Support and Storage Options
The chassis offers flexible internal storage options, featuring two specific drive cages. The top HDD Cage supports a single 2.5" and 3.5" combo drive, while the bottom HDD Cage supports a dedicated 3.5" drive, allowing for mixed storage configurations.

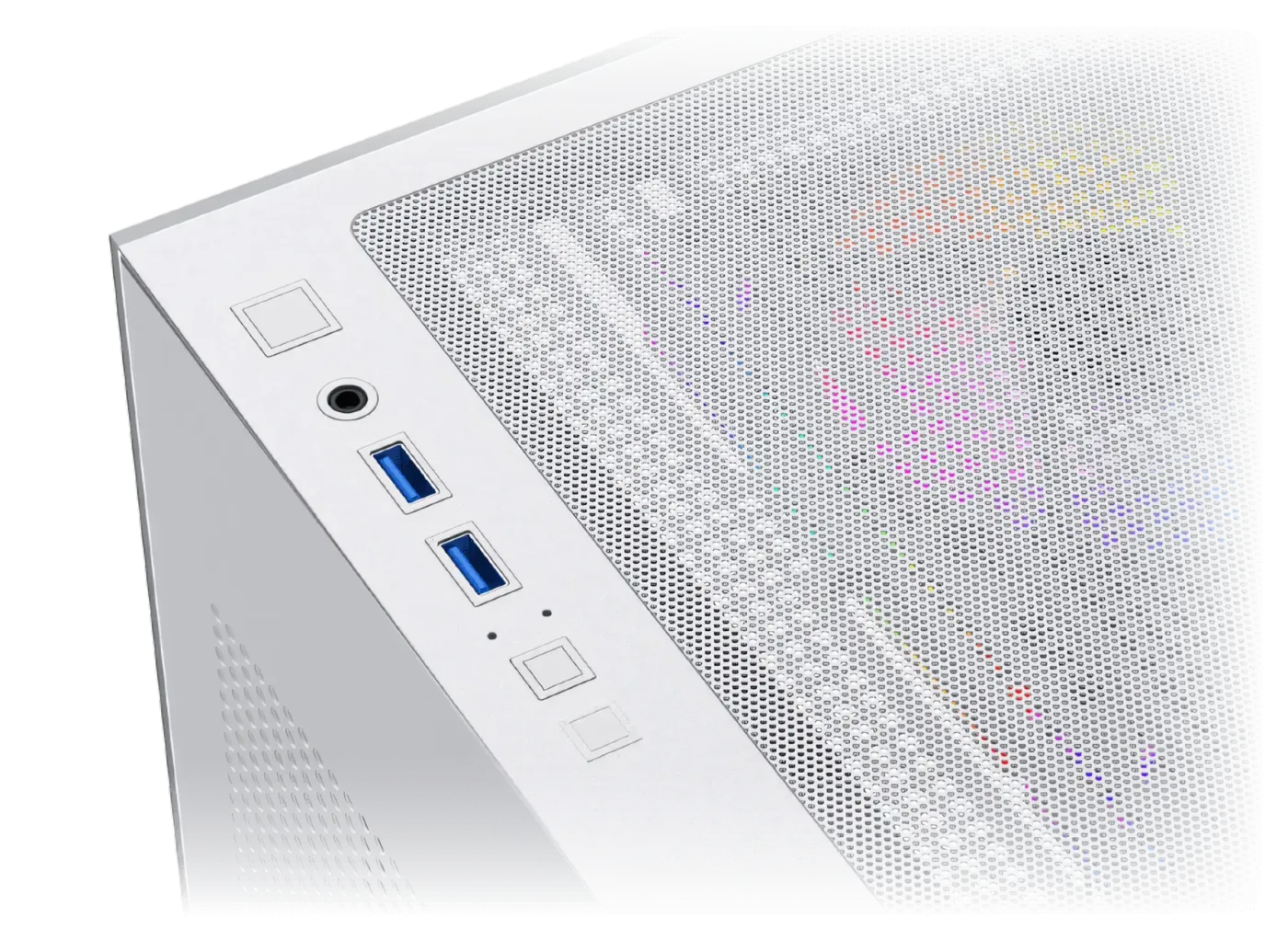

Convenient Top-Mounted I/O Ports
The case features readily accessible Top Mount I/O Ports for easy connectivity. These ports include the Power Button, HD Audio Jack, two USB 3.0 ports, a Reset Button, and an LED Switch for lighting control.
Convenient Top-Mounted I/O Ports
The case features readily accessible Top Mount I/O Ports for easy connectivity. These ports include the Power Button, HD Audio Jack, two USB 3.0 ports, a Reset Button, and an LED Switch for lighting control.
FAQ
Frequently Asked Questions
Everything you need to know about this product
The product features a 6-inch Multi Display LCD Panel that functions as a secondary monitor. It supports Windows 10 and 11 in Duplicate or Extend Mode and connects via both HDMI and USB power cables.
Yes, the display panel and magnetic panels are interchangeable, allowing placement on either the front or side for customized appearance and airflow.
The chassis features advanced airflow and ventilation design for optimal thermal management, with magnetic dust filters located at the top and bottom for easy maintenance.
The case supports E-ATX (up to 272mm with side cooling), ATX, M-ATX, and Mini-ITX motherboards. Side fans or radiators may restrict GPU length to 280mm.
The Top supports 3×120mm or 2×140mm fans, the Side supports 2×120mm fans, and the Rear supports 1×120mm fan. Radiators up to 360mm fit on the Top, 240mm on the Side, and 120mm on the Rear, with specific constraints when using side cooling.
The case supports CPU air coolers up to 165mm tall, GPUs up to 410mm (280mm if a side fan is installed), and PSUs up to 220mm in length.
The Top HDD Cage supports one 2.5″ or 3.5″ drive, while the Bottom HDD Cage holds one 3.5″ drive. Mixed configurations, such as one 3.5″ and one 2.5″ drive, or two 2.5″ drives, are supported.
The top I/O panel includes a Power Button, Reset Button, LED Switch, two USB 3.0 ports, and an HD Audio Jack for essential control and connectivity.
They can be managed via the included control box and remote, or synchronized with a compatible motherboard using the MB Sync ARGB Cable. LED modes can also be switched via the Reset/LED Cable.
The ARGB/PWM control box supports up to 40W on the 5V rail and 36W on the 12V rail. Fan speed feedback requires connection to the designated FG PWM Red Socket on the control box.
