Antec Vision 120R ARGB Reverse Fans 3-Pack - Black / 120mm Reverse Blade / Infinity Mirror ARGB / 4-Pin PWM 800-1500RPM / 37.2CFM Airflow / 27.5dBA / Hydraulic Bearing / Daisy-Chain / 0-761345-40061-9
1 Year Local Warranty
Model No : Antec 0-761345-40061-9
Price Inc. Vat
R 399
Save R 100
ListR 499
399Change Quantity:
In Stock with Evetech

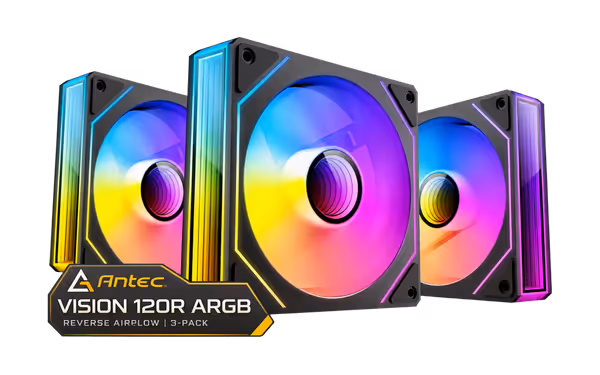

Antec Vision 120R ARGB Reverse Fans 3-Pack - Black
Reverse-Blade ARGB Fans For Side And Bottom Intake
The Antec Vision 120R ARGB 3-Pack is three 120mm reverse-blade fans made for side and bottom intake, where the lit front should face the glass. They run 800-1500RPM on 4-pin PWM for up to 37.2CFM at 27.5dBA, with an infinity mirror hub, a linear ARGB frame and a hydraulic bearing rated for 30,000 hours.
Reverse-Blade ARGB Fans For Side And Bottom Intake
The Antec Vision 120R ARGB 3-Pack is three 120mm reverse-blade fans made for side and bottom intake, where the lit front should face the glass. They run 800-1500RPM on 4-pin PWM for up to 37.2CFM at 27.5dBA, with an infinity mirror hub, a linear ARGB frame and a hydraulic bearing rated for 30,000 hours.

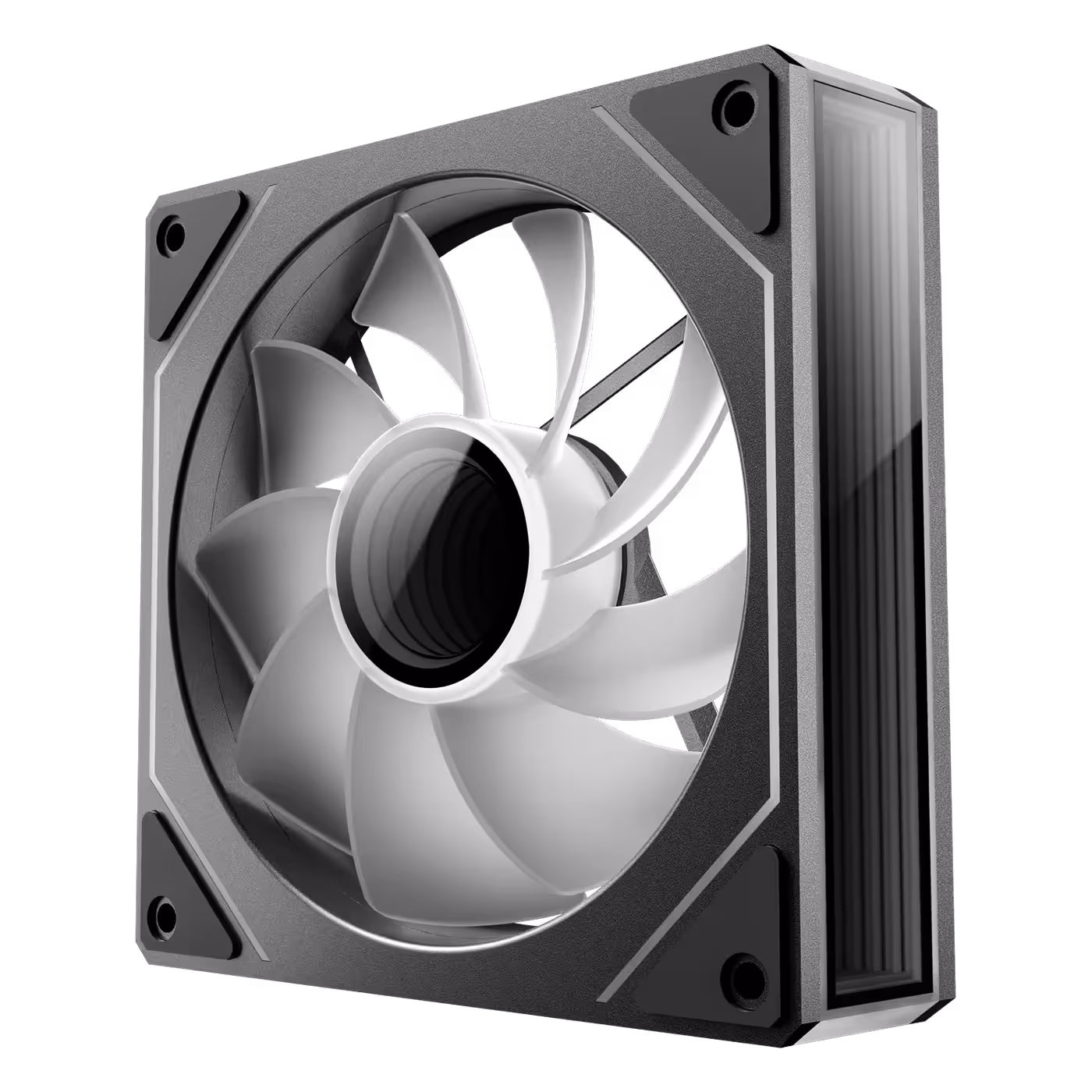

Reverse Blades Pull Air In From The Back
On a reverse-blade fan, air enters through the back of the frame and leaves in the direction of the blades. This view shows the blade side with the lit frame edge on the right. Used as a side or bottom intake, the lit front is the face that points at the glass.
Reverse Blades Pull Air In From The Back
On a reverse-blade fan, air enters through the back of the frame and leaves in the direction of the blades. This view shows the blade side with the lit frame edge on the right. Used as a side or bottom intake, the lit front is the face that points at the glass.

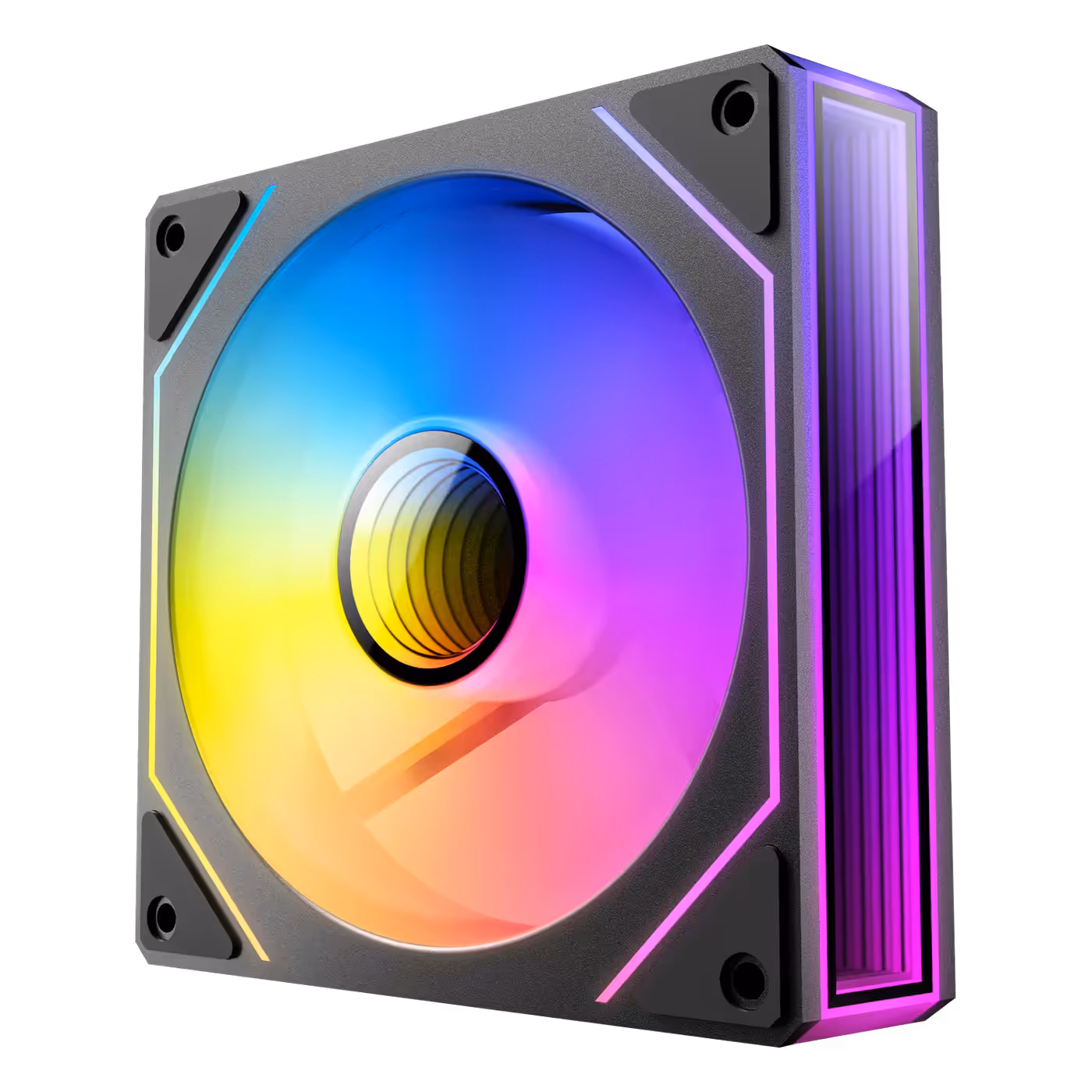

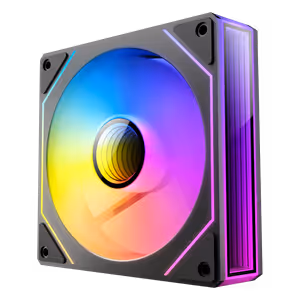

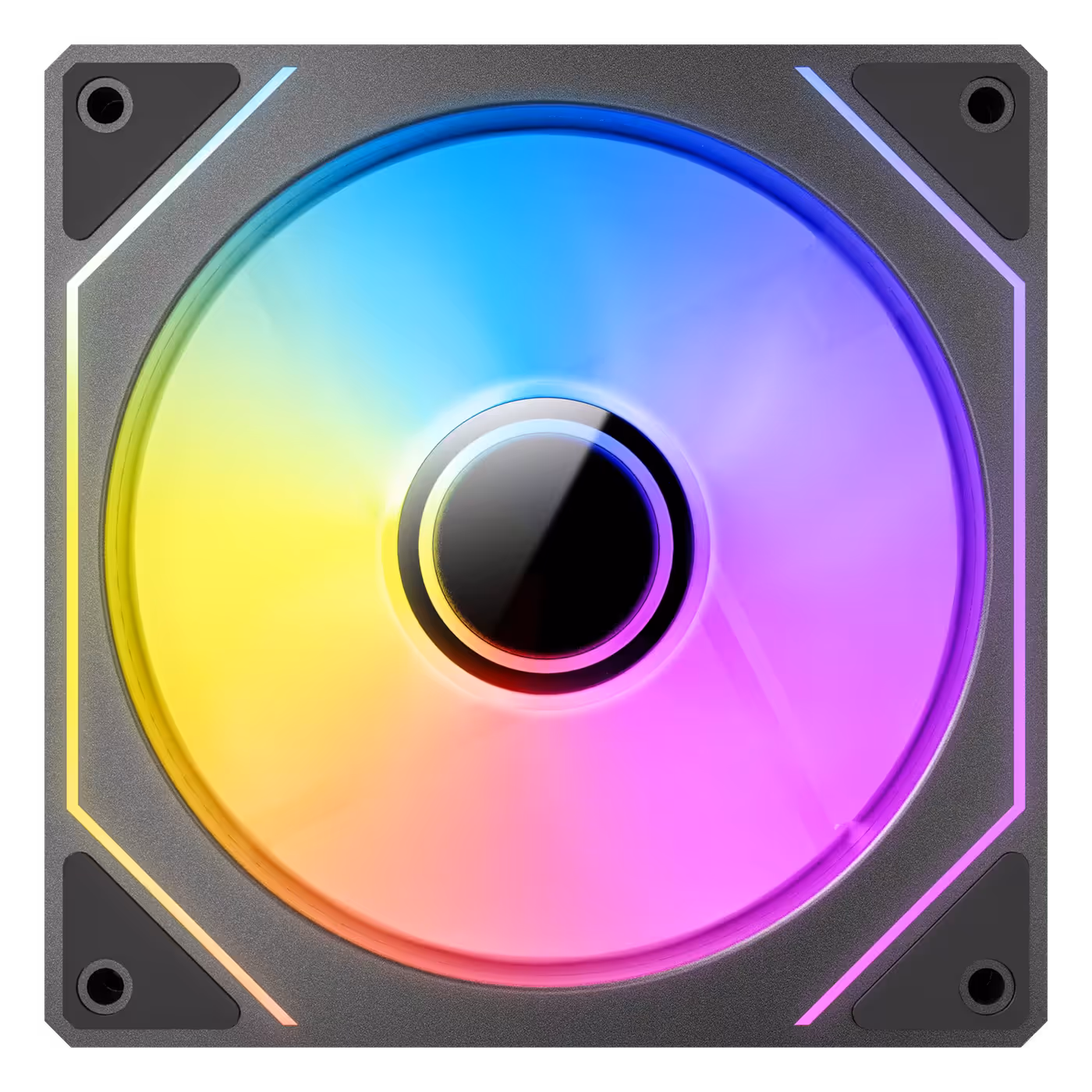

The Lit Face Stays In View
A standard fan mounted as a side or bottom intake would show its back to the panel. The 120R keeps the infinity mirror hub and the linear ARGB frame on the visible side, with colour running down the edge of the frame as well as across the blades.
The Lit Face Stays In View
A standard fan mounted as a side or bottom intake would show its back to the panel. The 120R keeps the infinity mirror hub and the linear ARGB frame on the visible side, with colour running down the edge of the frame as well as across the blades.

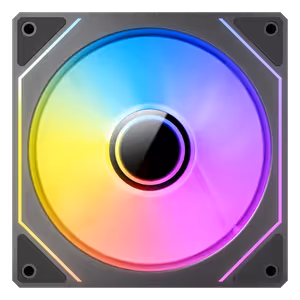

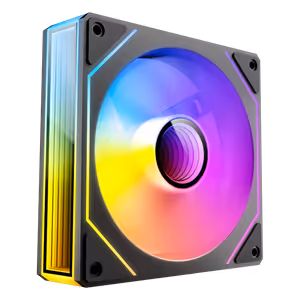

Infinity Mirror Hub With 6 LEDs At The Centre
The hub is an infinity mirror with 6 LEDs at the centre of each fan. The effect is a deep ring of colour that repeats inward, framed by the rainbow sweep across the blades. The same hub design is used on the standard Vision 120, so a mixed set of fans in one case looks matched.
Infinity Mirror Hub With 6 LEDs At The Centre
The hub is an infinity mirror with 6 LEDs at the centre of each fan. The effect is a deep ring of colour that repeats inward, framed by the rainbow sweep across the blades. The same hub design is used on the standard Vision 120, so a mixed set of fans in one case looks matched.

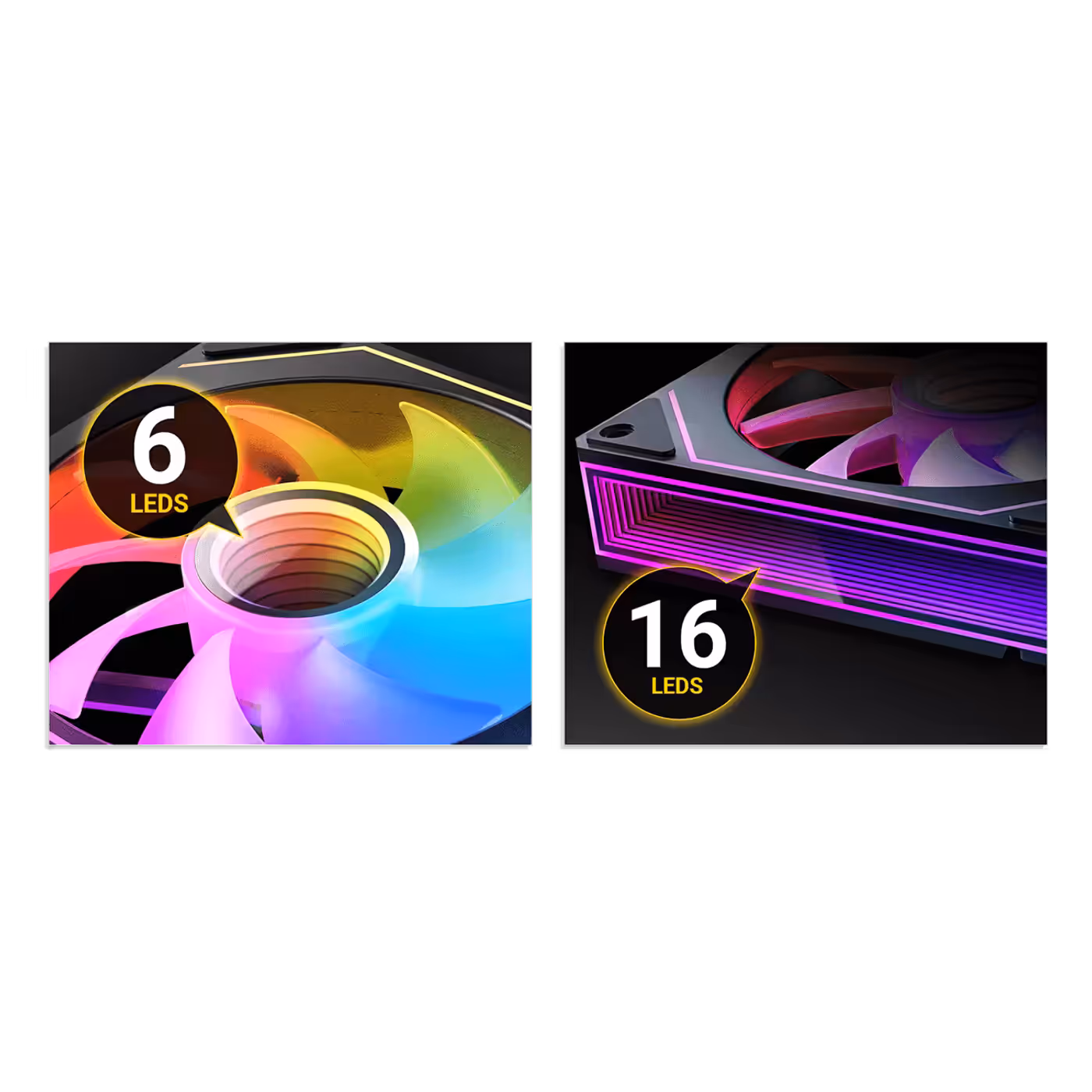

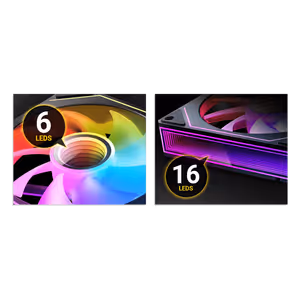

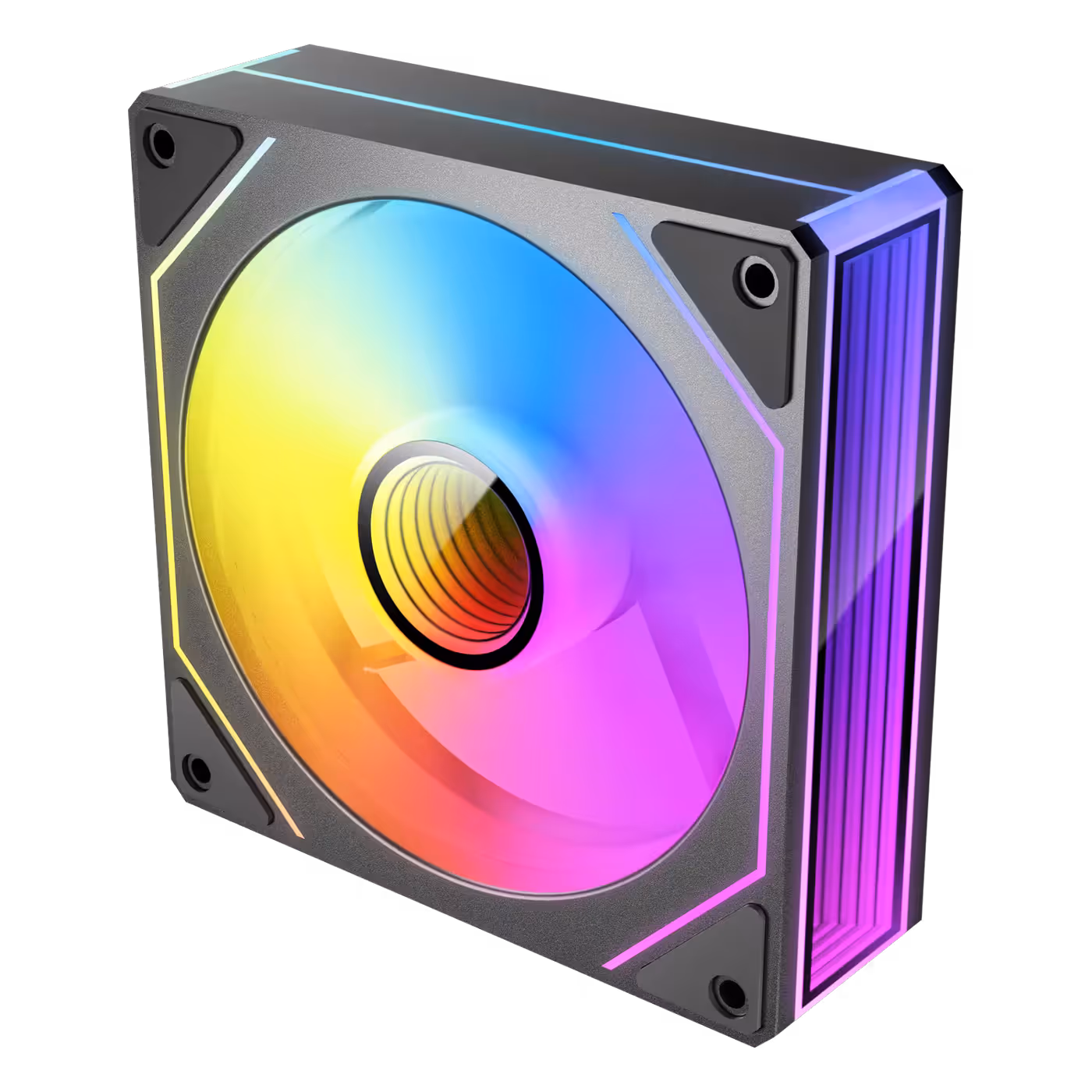

Side Strips With 16 LEDs On Each Fan Side
Each side of every frame has 16 LEDs, in addition to the 6 in the hub. The comparison shot puts the hub and a side strip next to each other, and the ARGB runs from a 3-pin 5V header, with a daisy-chain connection from one fan to the next.
Side Strips With 16 LEDs On Each Fan Side
Each side of every frame has 16 LEDs, in addition to the 6 in the hub. The comparison shot puts the hub and a side strip next to each other, and the ARGB runs from a 3-pin 5V header, with a daisy-chain connection from one fan to the next.
Quiet Running At 800-1500RPM
Antec rates the fan at 27.5dBA or below at the top speed of 1500RPM. A hydraulic bearing is rated for 30,000 hours at 25 deg C and 8 silicone anti-vibration pads per fan reduce vibration. Under PWM control the fans drop to 800RPM when the system is cool.
Quiet Running At 800-1500RPM
Antec rates the fan at 27.5dBA or below at the top speed of 1500RPM. A hydraulic bearing is rated for 30,000 hours at 25 deg C and 8 silicone anti-vibration pads per fan reduce vibration. Under PWM control the fans drop to 800RPM when the system is cool.

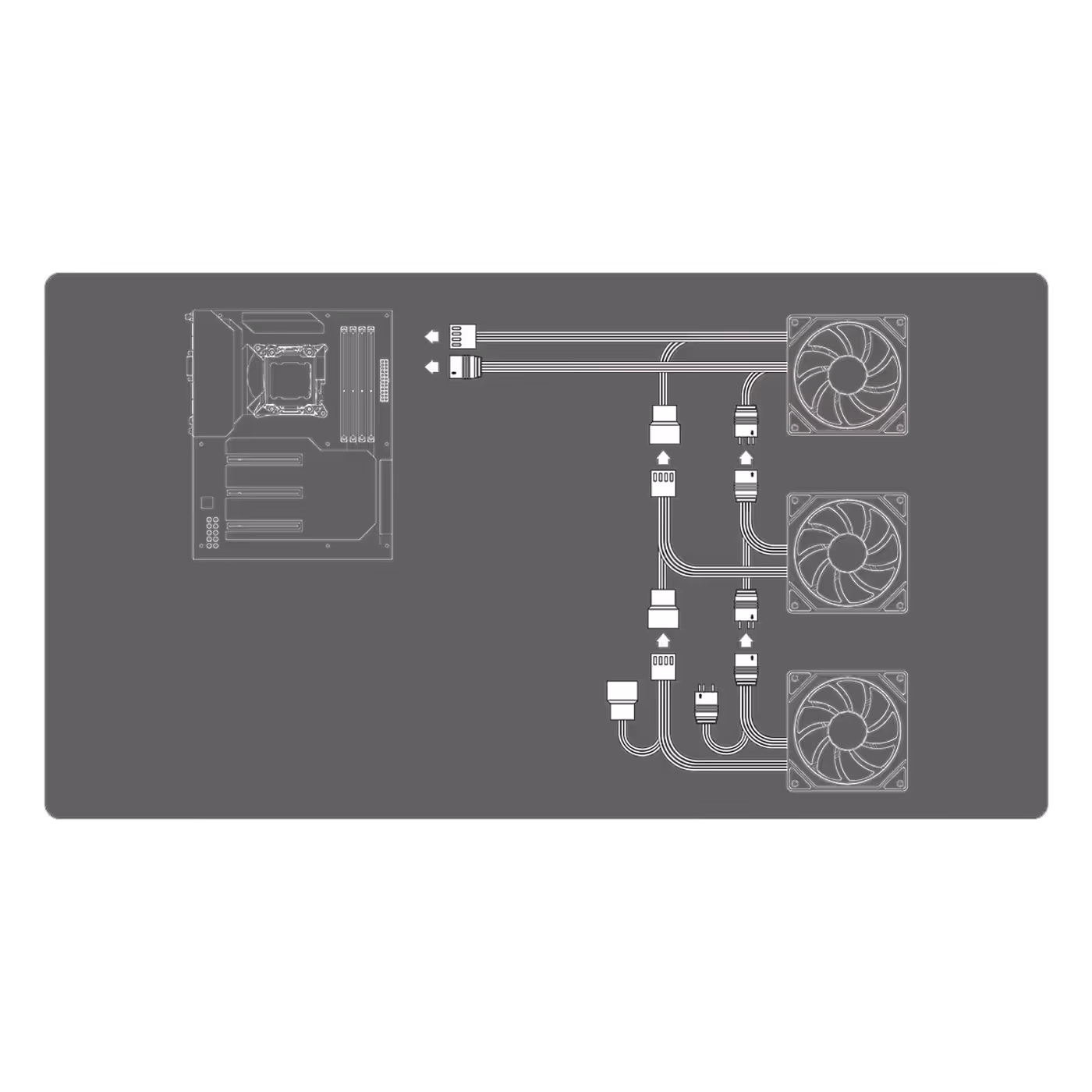

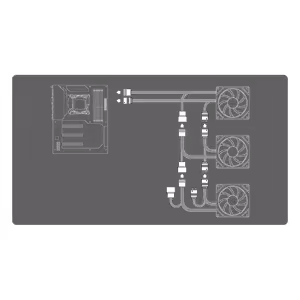

Three Fans On One Daisy-Chain
The three fans link in a daisy-chain from the motherboard. Each fan has a 4-pin PWM connector at DC 12V for speed control, and the lighting uses a 3-pin DC 5V ARGB connector. It does not work on a 4-pin 12V RGB header.
Three Fans On One Daisy-Chain
The three fans link in a daisy-chain from the motherboard. Each fan has a 4-pin PWM connector at DC 12V for speed control, and the lighting uses a 3-pin DC 5V ARGB connector. It does not work on a 4-pin 12V RGB header.
37.2CFM And 1.03mmH2O Per Fan
Each fan moves up to 37.2CFM with 1.03mmH2O of air pressure, in a 120 x 120 x 25mm frame. Pair them with standard Vision 120 fans at the front or top so every fan in the case shows its lit side.
37.2CFM And 1.03mmH2O Per Fan
Each fan moves up to 37.2CFM with 1.03mmH2O of air pressure, in a 120 x 120 x 25mm frame. Pair them with standard Vision 120 fans at the front or top so every fan in the case shows its lit side.
FAQ
Frequently Asked Questions
Everything you need to know about this product
A reverse-blade fan pulls air in through the back of the frame and pushes it out the blade side. Mounted as a side or bottom intake, the lit infinity mirror front faces the glass instead of the case wall.
Each fan moves up to 37.2CFM with 1.03mmH2O of air pressure at its top speed of 1500RPM.
Antec rates them at 27.5dBA at the maximum 1500RPM, with 8 silicone anti-vibration pads per fan. Under PWM control they drop to 800RPM when the system is cool.
Use them as side or bottom intakes behind a glass panel, where a standard fan would show its back. Pair them with standard Vision 120 fans at the front or top so every fan shows its lit side.
The Vision 120R uses reverse blades and runs 800-1500RPM for 37.2CFM. The Vision 120 is a standard-blade fan at 800-1800RPM for 44.5CFM. Both use the same infinity mirror ARGB lighting.
Yes, through a 3-pin 5V ARGB connector on a motherboard ARGB header. They do not work on a 4-pin 12V RGB header.
Three fans, each 120 x 120 x 25mm, for standard 120mm mounts.
If your case shows its side or bottom fans through glass, the 120R pack puts the lit side where you can see it and keeps noise to 27.5dBA.
