Asus Rog Crosshair VIII Impact X570 RYZEN Mini-DTX Motherboard / Support AMD AM4 socket for 2nd, and 3rd Gen Processors / Support up to 16 Processor Cores / SATA 6Gb/s and USB 3.2 Gen 2 / Aura Sync RGB Lighting / Supports PCIe GEN 4.0 / SupremeFX Audio / 90MB11Q0-M0EAY0 + FREE DELIVERY !
|
|
|

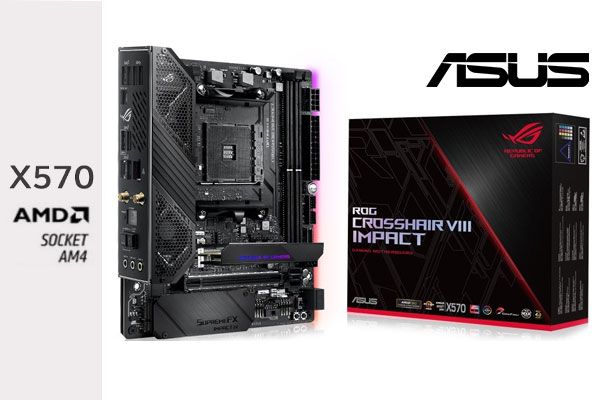

Asus Rog Crosshair VIII Impact X570 RYZEN Motherboard
Crosshair VIII IMPACT
The ROG Crosshair VIII series heralds the arrival of Impact, the compact motherboard with colossal potential. Primped and primed for latest 3rd Gen AMD Ryzen CPUs, Crosshair VIII Impact's Mini-DTX frame packs loads of ATX-grade features, including advanced power delivery and cooling, dual M.2, next-gen Wi-Fi 6 (802.11ax) and onboard SupremeFX audio. It's the perfect choice for a small-form-factor gaming rig ready to rival full-size builds.
COMPACT DESIGN
Impact's unusual Mini-DTX form factor is a deliberate choice. Many Mini-ITX cases ship with enough space for a dual-slot graphics card, meaning there's typically unused space below the bottom PCIe® slot – space that could be utilized to mount more components or enable additional features, allowing ROG engineers to squeeze in features while still fitting a large proportion of mini-ITX PC cases.
OPTIMAL PERFORMANCE
ROG Crosshair VIII Impact is equipped with an optimized power design and comprehensive cooling to exploit prodigious might of the latest AMD Ryzen processors without performance-zapping thermal throttling. It also packs innovations to double up on memory and push frequencies to the max
POWER DESIGN
The monstrous compute power of multi-core processors necessitates a power circuit that rapidly responds to massive current swings. Featuring an array of 10 strategically paired power stages, the Impact's VRM is geared for any workload and all operating conditions.
8-PIN PROCOOL II POWER CONNECTORS
The latest ProCool II power connector offers higher endurance and longer lifespan by lowering impedance to prevent hotspots and connector failure. The new design includes upgrades to metal amour and solid pins for better dissipation.
OPTIMIZATION
ROG gives you powerful tools that make optimizing your system fast and easy. For those who relish fine-grained control, the UEFI BIOS has a wealth of advanced options organized into intuitive categories that provide the ability to tweak every aspect of your system.
EZ Tuning Wizard
Streamline your RAID configuration for faster data retrieval and backups.
Intuitive graphical fan control
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
View SATA port details for easy device recognition.
Fast Clock Adjustment
Use mouse controls to change the time and date.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
CONNECTIVITY
ROG Crosshair VIII Impact offers advanced connectivity to ensure seamless gaming experiences. This includes Intel Ethernet and the latest Wi-Fi 6 (802.11ax). It also has the two M.2 slots integrated into the SO-DIMM module, plus the same SupremeFX audio codec you'll find on ATX ROG boards.
ASUS NODE
ASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.
PERSONALIZATION
ROG provides a range of intuitive software that enables easy control of your advanced gaming hardware and ensures seamless component compatibility. From RGB lighting, networking and audio to storage optimization and more, ROG gives you the power to personalize your system just the way you want.
Specifications
| CPU |
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset |
AMD X570 |
| Memory |
3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)
/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000
(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture |
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode) |
| Storage |
3rd Gen AMD Ryzen™ Processors :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280
(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices,BR> support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10 |
| LAN |
Intel® I211-AT
ASUS LAN Guard
ROG GameFirst Technology |
| Audio |
ROG SupremeFX 8-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports |
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 2 port(s)
3rd Gen AMD RyzenTM Processors :
2 x USB 3.2 Gen 1 port(s)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
2 x USB 2.0 port(s) |
| ROG Exclusive Features |
Extreme Engine Digi+ :
- Infineon TDA21472 Power Stage
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Sonic Studio III + Sonic Studio Virtual Mixer
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Radar III |
| Special Features |
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- USB BIOS FlashBack™
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- ASUS NODE: hardware control interface
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- Clear CMOS Button
- Reset Button
- Start Button
- ReTry button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM |
| Back I/O Ports |
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
1 x Q-Code LED
1 x Reset Button
3 x LED-illuminated audio jacks
2 x USB 3.2 Gen 1 (up to 5Gbps) ports
6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
Anti-surge LAN (RJ45) |
| Internal I/O Ports |
Internal I/O Ports
1 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
2 x Radiator Fan Headers
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
|
| Accessories |
User's manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
2 x M.2 screw kit (short screw and mount)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Panel cable
1 x ROG coaster(s)
1 x ROG Thank you card
1 x ROG SO-DIMM.2 with heatsinks
1 x 2-in-1 Rubber pad |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability |
WOL, PXE |
| Operating System |
Windows® 10 64-bit
ASUS Utilities
EZ Update
Anti-virus software (OEM version) |
| Form Factor |
Mini-DTX Form Factor
8 inch x 6.7 inch ( 20.3 cm x 17 cm ) |
