Will this motherboard work with Ryzen AM5 CPUs?

Yes. The ASUS ROG Crosshair X870E APEX uses the AM5 socket for compatibility with AM5-series Ryzen processors. It supports DDR5 memory and is built to handle high-core-count CPUs for gaming and content creation.

Does the Crosshair X870E APEX support DDR5 memory?

Yes. This motherboard is DDR5 compatible to deliver higher memory bandwidth and lower latency. DDR5 support enables improved performance for gaming, streaming, and professional workloads.

Can I install multiple NVMe drives on this board?

Yes. The board includes three M.2 slots for NVMe storage, allowing high-capacity, high-speed SSD configurations. This supports fast load times for games and large project files.

Does this model include wireless and wired high-speed networking?

Yes. The Crosshair X870E APEX integrates Wi‑Fi 7 for next-gen wireless and a 5G LAN port for ultra-fast wired networking. These options offer low-latency online gaming and fast transfers.

Is PCIe 5.0 supported for new GPUs and SSDs?

Yes. The motherboard supports PCIe 5.0, enabling compatibility with next-generation GPUs and storage devices for increased bandwidth and future-proof expansion.

Is this motherboard suitable for extreme overclocking?

Yes. With an 18+2+2 power stage design and AI OC features, the Crosshair X870E APEX is engineered for stable voltage delivery and automated overclocking optimizations. It targets enthusiasts seeking high, reliable performance.

Does the board provide modern USB connectivity like USB4?

Yes. The specification includes USB4 and USB Type‑C connectivity to support high-speed data transfer and modern peripherals. This simplifies connections for docks, displays, and external storage.

Who should buy the ASUS ROG Crosshair X870E APEX?

This board is aimed at gamers, creators, and overclockers who need top-tier performance, advanced connectivity, and future-proof expandability. If you want an AM5 platform with DDR5, PCIe 5.0, Wi‑Fi 7, and robust power delivery, this is a strong choice.

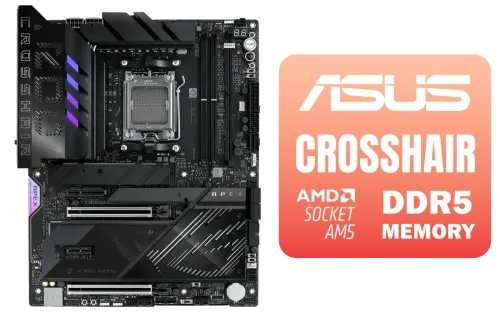

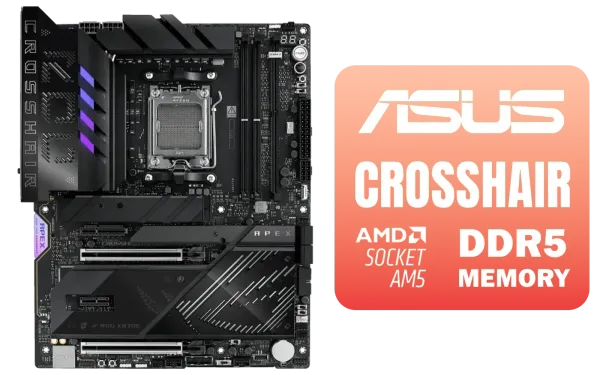

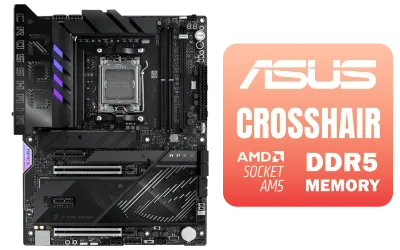

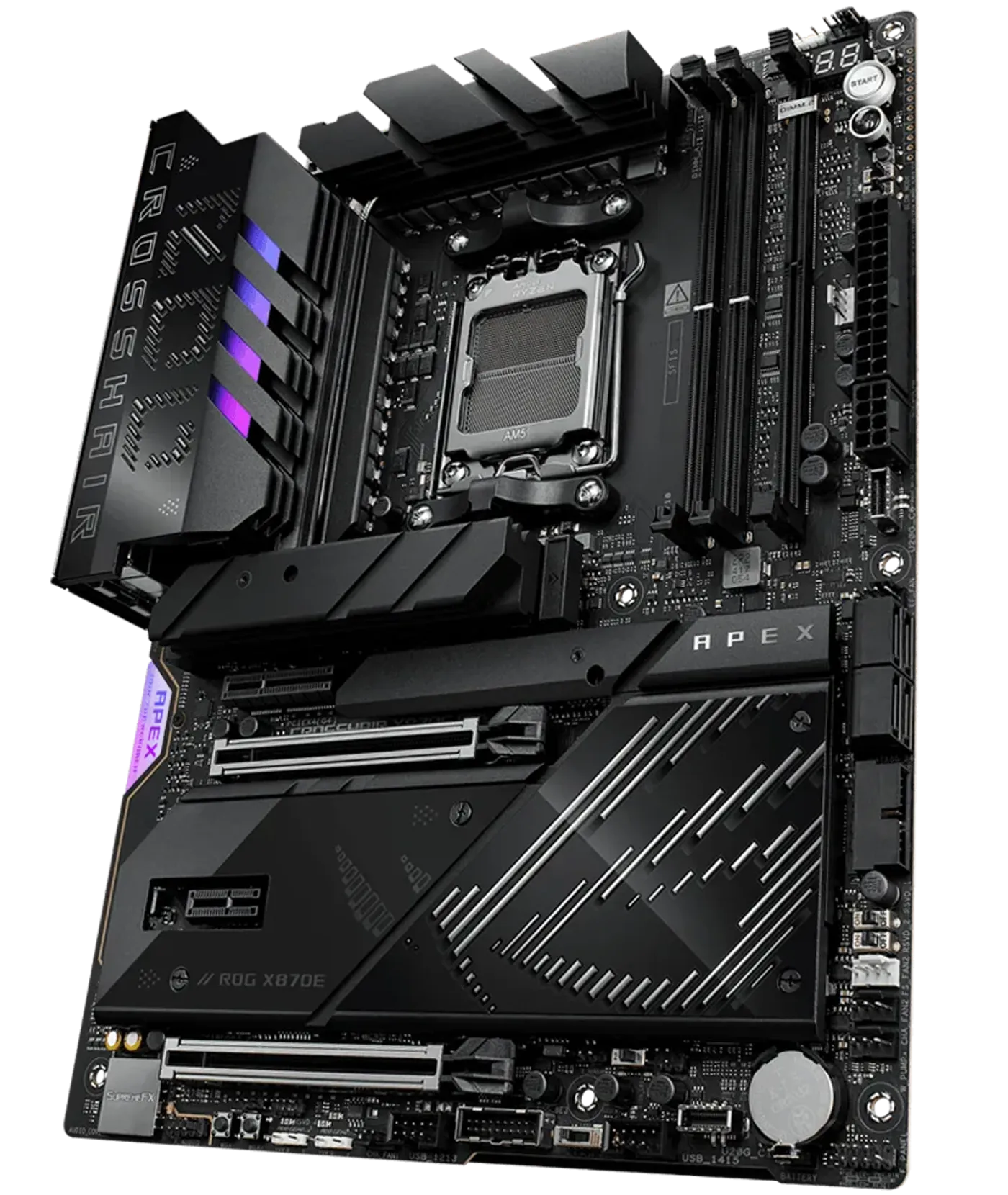

ASUS ROG Crosshair X870E APEX AM5 DDR5 ATX Motherboard

ROG Crosshair X870E APEX

The AI PC‑ready ROG Crosshair X870E Apex is engineered for extreme overclocking with advanced BIOS controls and the ROG Memory Fan Kit. Beyond record-setting tuning, it supports modern graphics cards and high‑speed storage to serve AMD Ryzen™ performance‑focused builders.

ROG Crosshair X870E APEX

The AI PC‑ready ROG Crosshair X870E Apex is engineered for extreme overclocking with advanced BIOS controls and the ROG Memory Fan Kit. Beyond record-setting tuning, it supports modern graphics cards and high‑speed storage to serve AMD Ryzen™ performance‑focused builders.

Extreme Power & Expansion

Robust power and comprehensive expansion define this platform: 18(110A)+2(110A)+2(80A) POWER STAGES, DUAL PROCOOL II power connectors, and multiple expansion options including 2 x PCIe 5.0 x16 Slots, 1 x PCIe 4.0 x4 Slot, and 1 x PCIe 3.0 x1 Slot. The board uses an AMD AM5 SOCKET supporting AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and offers DDR5 across 2 x DIMM (Max. 128 GB, Dual Channel) plus 5 X M.2 SLOTS (3 x M.2 2280 PCIe 5.0 x4; 2 x M.2 22110 PCIe 4.0 x4 via ROG DIMM.2 Card).

Extreme Power & Expansion

Robust power and comprehensive expansion define this platform: 18(110A)+2(110A)+2(80A) POWER STAGES, DUAL PROCOOL II power connectors, and multiple expansion options including 2 x PCIe 5.0 x16 Slots, 1 x PCIe 4.0 x4 Slot, and 1 x PCIe 3.0 x1 Slot. The board uses an AMD AM5 SOCKET supporting AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and offers DDR5 across 2 x DIMM (Max. 128 GB, Dual Channel) plus 5 X M.2 SLOTS (3 x M.2 2280 PCIe 5.0 x4; 2 x M.2 22110 PCIe 4.0 x4 via ROG DIMM.2 Card).

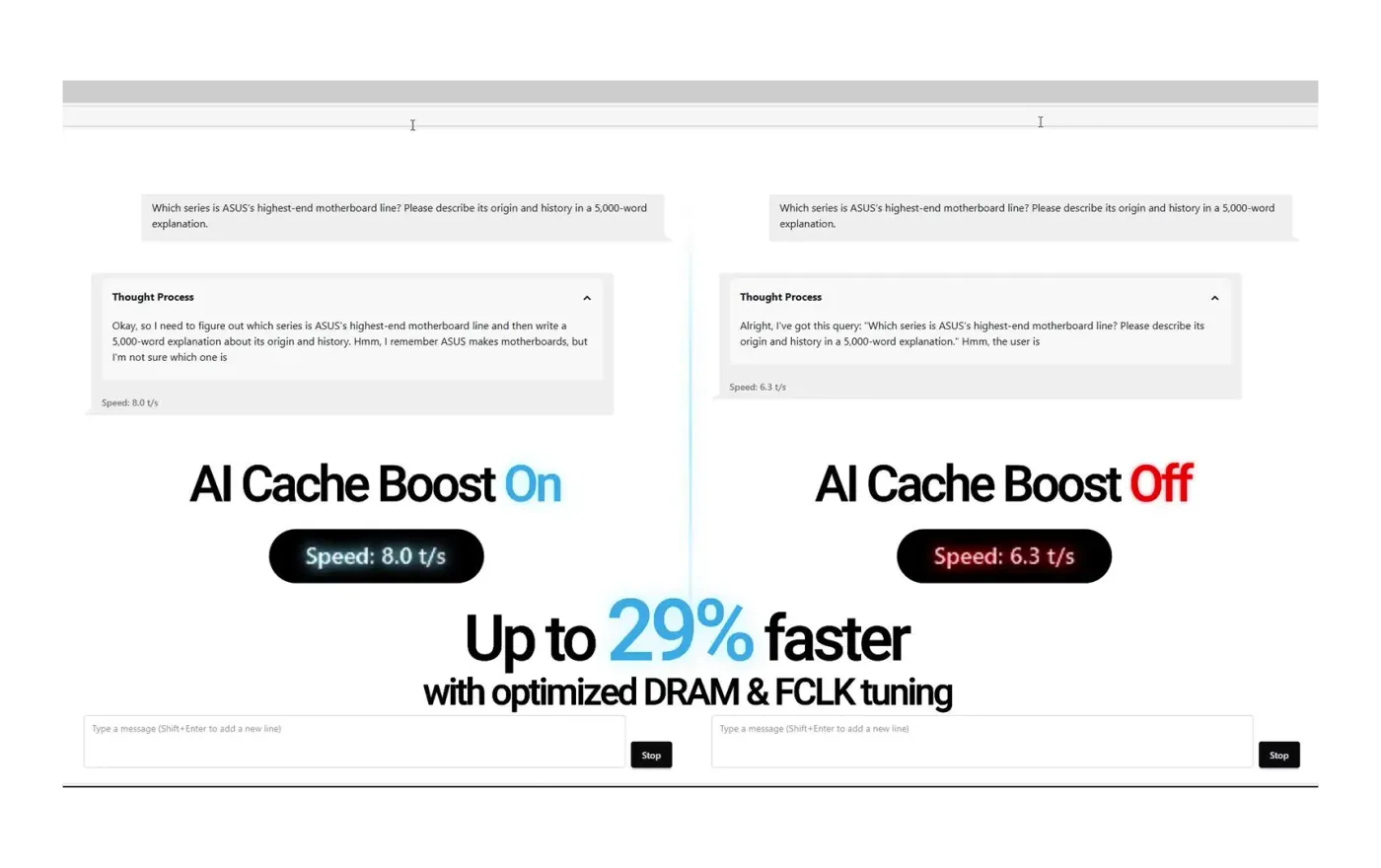

AI Cache Boost

AI Cache Boost is a BIOS setting exclusive to ASUS AMD 800 and 600 series motherboards using Ryzen™ 9000 Series CPUs. It optimizes CPU cache and memory pathways to accelerate local large language model (LLM) workflows, delivering up to 29% faster local LLM performance with high‑speed memory tuning.

AI Cache Boost

AI Cache Boost is a BIOS setting exclusive to ASUS AMD 800 and 600 series motherboards using Ryzen™ 9000 Series CPUs. It optimizes CPU cache and memory pathways to accelerate local large language model (LLM) workflows, delivering up to 29% faster local LLM performance with high‑speed memory tuning.

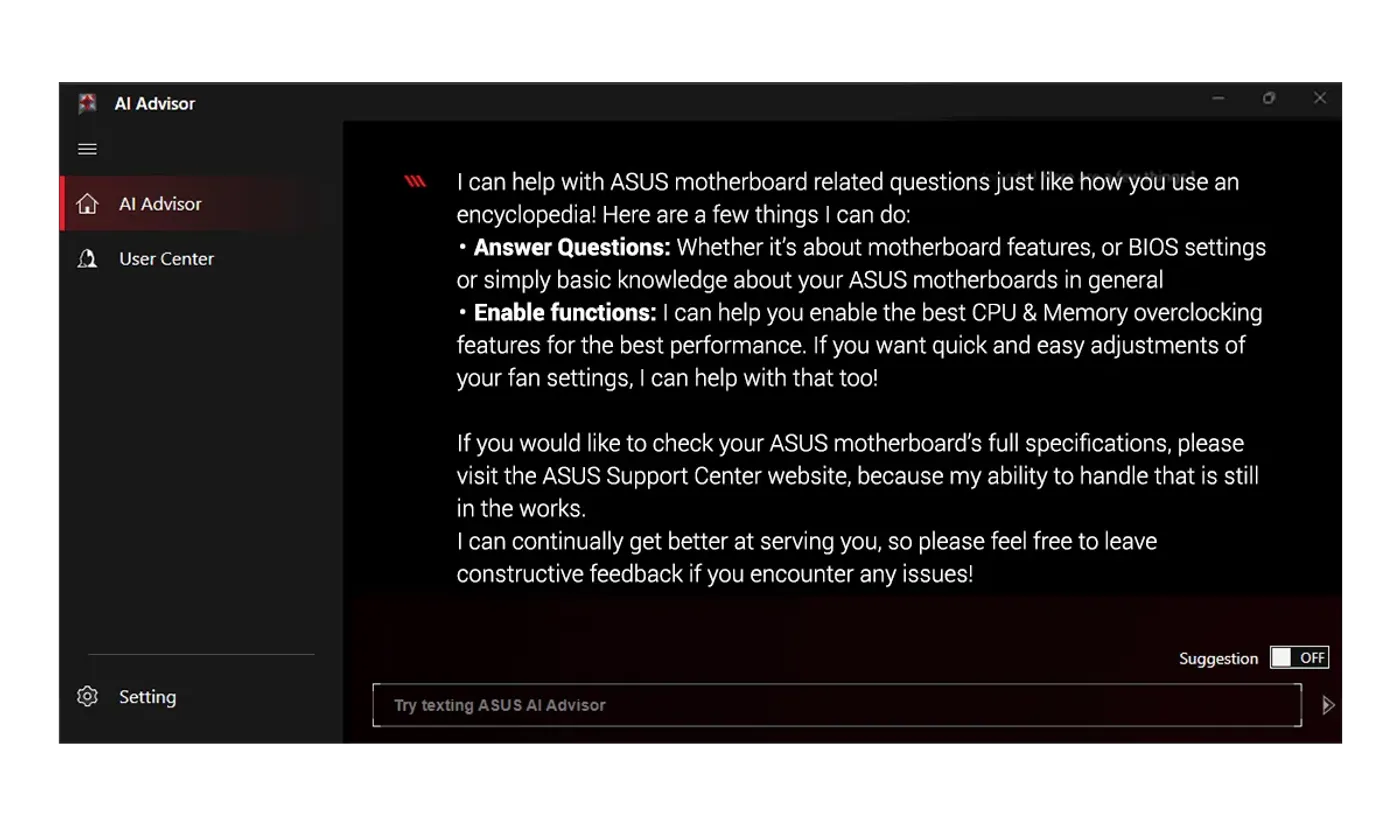

ASUS AI Advisor

ASUS AI Advisor uses natural‑language understanding to help users explore motherboard features and functionality. It provides straightforward explanations for one‑click optimizations like AI Overclocking and fan tuning, though availability may vary by region.

ASUS AI Advisor

ASUS AI Advisor uses natural‑language understanding to help users explore motherboard features and functionality. It provides straightforward explanations for one‑click optimizations like AI Overclocking and fan tuning, though availability may vary by region.

The ROG Crosshair X870E Apex lets you overclock memory up to 8600+ MT/s.

DDR5 Domination

Improved signal routing lets enthusiast DDR5 kits be driven beyond the 9 GT/s mark on the ROG Crosshair X870E Apex. With AMD EXPO support and the ROG Memory Fan Kit, memory overclocking can reach 9000+ MT/s under the right tuning conditions.

DDR5 Domination

Improved signal routing lets enthusiast DDR5 kits be driven beyond the 9 GT/s mark on the ROG Crosshair X870E Apex. With AMD EXPO support and the ROG Memory Fan Kit, memory overclocking can reach 9000+ MT/s under the right tuning conditions.

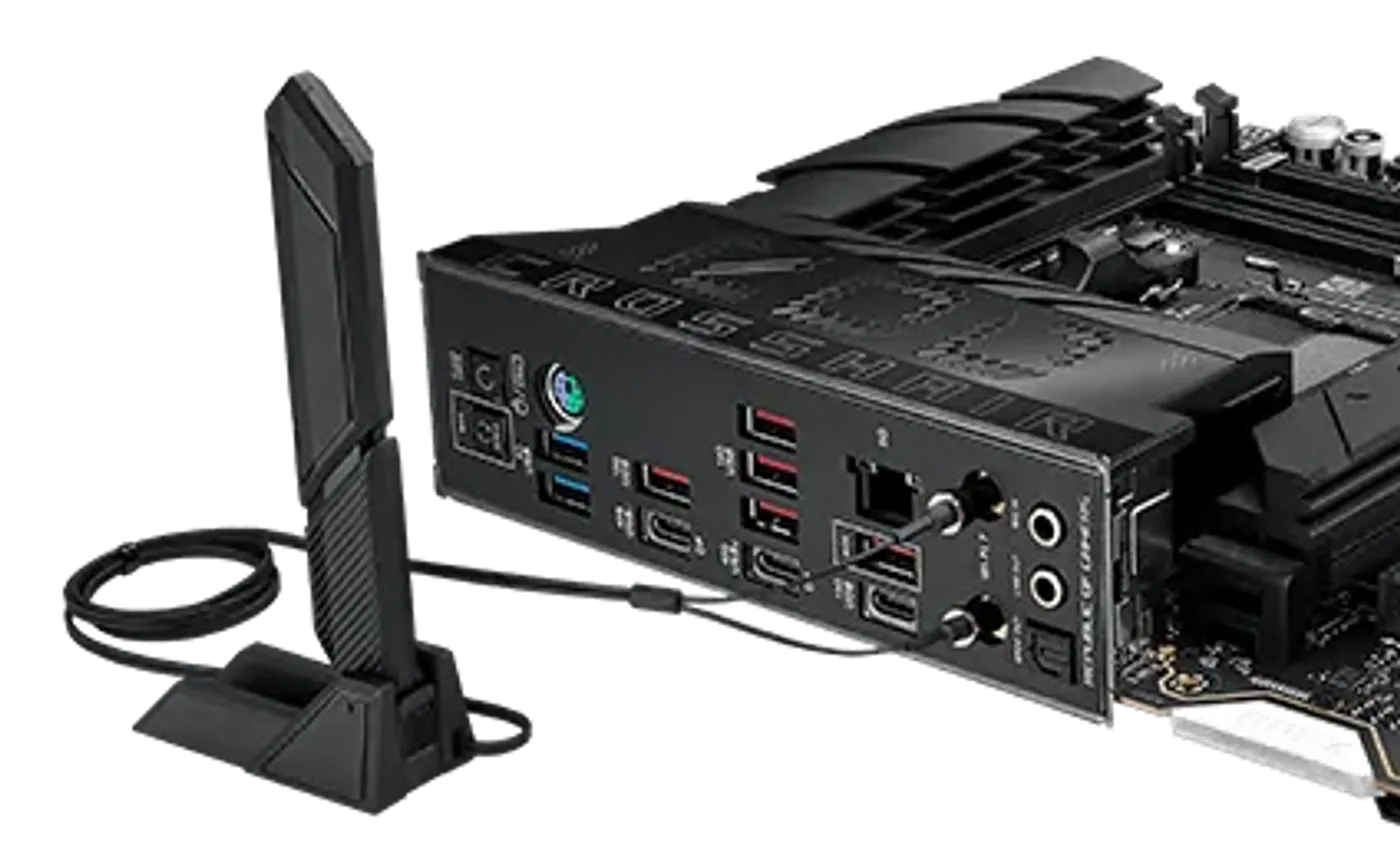

ROG Crosshair X870E Apex with ASUS WiFi Q-Antenna

WiFi 7 Networking

The platform embraces WiFi 7 capabilities, including 320 MHz channels on the 6GHz band, 4096 QAM and quoted speeds up to 4.8X faster than standard WiFi 6. Onboard networking also includes a Realtek 5 Gbps Ethernet option for low‑latency wired performance.

WiFi 7 Networking

The platform embraces WiFi 7 capabilities, including 320 MHz channels on the 6GHz band, 4096 QAM and quoted speeds up to 4.8X faster than standard WiFi 6. Onboard networking also includes a Realtek 5 Gbps Ethernet option for low‑latency wired performance.

Motherboard showing PCIe 5.0 M.2 slots and expansion layout

PCIe 5.0 M.2 & Expansion

Storage and graphics throughput are maximized with three onboard PCIe 5.0 M.2 slots capable of blistering 16 GB/s speeds, while both x16 expansion slots support PCIe 5.0 with throughput up to 64 GB/s for compatible devices. Expansion is protected with SafeSlot retention brackets and the PCIe Slot Q‑Release Slim for easier maintenance.

PCIe 5.0 M.2 & Expansion

Storage and graphics throughput are maximized with three onboard PCIe 5.0 M.2 slots capable of blistering 16 GB/s speeds, while both x16 expansion slots support PCIe 5.0 with throughput up to 64 GB/s for compatible devices. Expansion is protected with SafeSlot retention brackets and the PCIe Slot Q‑Release Slim for easier maintenance.
