What pump does the ROG Ryujin III 360 ARGB Extreme use?

It is driven by the Asetek Emma Gen8 V2 pump, paired with upgraded magnetic ROG ARGB fans.

Which CPU sockets does the Ryujin III 360 Extreme support?

Supported sockets are Intel LGA 1851, 1700, 1200 and 115X, plus AMD AM5 and AM4.

What does the embedded VRM fan do?

The larger embedded axial-tech VRM fan improves airflow around the motherboard and cut VRM temperatures from 98.85 degrees Celsius to 62.85 degrees in ASUS testing, a reduction of up to 36 degrees.

What are the fan specifications on this cooler?

The ROG ARGB fans run from 0 to 2800 RPM with 5.15 mmH2O of static pressure, 89.73 CFM of airflow and 36 dB(A) of noise.

Why are the fans thicker than usual?

The fans have been thickened to 30mm to raise performance while still fitting standard cases, and the blade count rose from seven to nine in a three-section layout.

How does the magnetic daisy-chain fan design work?

A magnetic daisy-chain connector passes control signals and power between the fans, so only one cable runs from all three fans to the system.

What screen is on the pump head?

A 3.5-inch full-colour IPS LCD runs at 480p with a 60Hz refresh rate and 24-bit colour depth.

How much cooler does the Extreme run than the standard Ryujin III 360 ARGB?

The adjustable bracket, new pump design and upgraded fans reduce CPU temperatures by up to 7.5% compared with the standard ROG Ryujin III 360 ARGB.

How long is the tubing on the Ryujin III 360?

The ROG Ryujin III series uses 400mm of tubing for flexible routing across a range of chassis.

Which processors is this cooler tuned for?

It is built to maximise thermal performance on AMD AM5 Ryzen 9000 Series and Intel Core Ultra processors, with tuning specifically for the heat characteristics of Core Ultra Series 2.

What colour is the Ryujin III 360 ARGB Extreme?

The cooler is finished in black across the pump head, fans and radiator.

ASUS ROG RYUJIN III 360 ARGB AIO Liquid Cooler

Q: What can the LCD display show?

The display shows live clock frequencies, voltages, temperatures, fan speeds and water flow, or plays custom GIFs and animations.

ROG Ryujin III 360 ARGB Extreme Overview

Experience exceptional cooling with the ROG Ryujin III 360 ARGB Extreme, featuring Asetek Emma Gen8 V2 pump and upgraded magnetic ROG ARGB fans to maximize the thermal performance of AMD AM5 9000 Series and Intel® Core™ Ultra Processors. This all-in-one cooler also includes an embedded VRM fan for more stable operation during heavy workloads and an upgraded LCD with 480p resolution and 60Hz refresh rate.

ROG Ryujin III 360 ARGB Extreme Overview

Experience exceptional cooling with the ROG Ryujin III 360 ARGB Extreme, featuring Asetek Emma Gen8 V2 pump and upgraded magnetic ROG ARGB fans to maximize the thermal performance of AMD AM5 9000 Series and Intel® Core™ Ultra Processors. This all-in-one cooler also includes an embedded VRM fan for more stable operation during heavy workloads and an upgraded LCD with 480p resolution and 60Hz refresh rate.

Exploded diagram showing Asetek Emma Gen8 V2 pump and cooler components

Exploded Diagram of Key Components

The exploded view highlights the cooler's main components, including the Asetek Emma Gen8 V2 pump, the 3.5” Full Color LCD, the cold plate, retention kit and the embedded VRM fan — showing how the system's parts integrate to deliver cooling performance.

Exploded Diagram of Key Components

The exploded view highlights the cooler's main components, including the Asetek Emma Gen8 V2 pump, the 3.5” Full Color LCD, the cold plate, retention kit and the embedded VRM fan — showing how the system's parts integrate to deliver cooling performance.

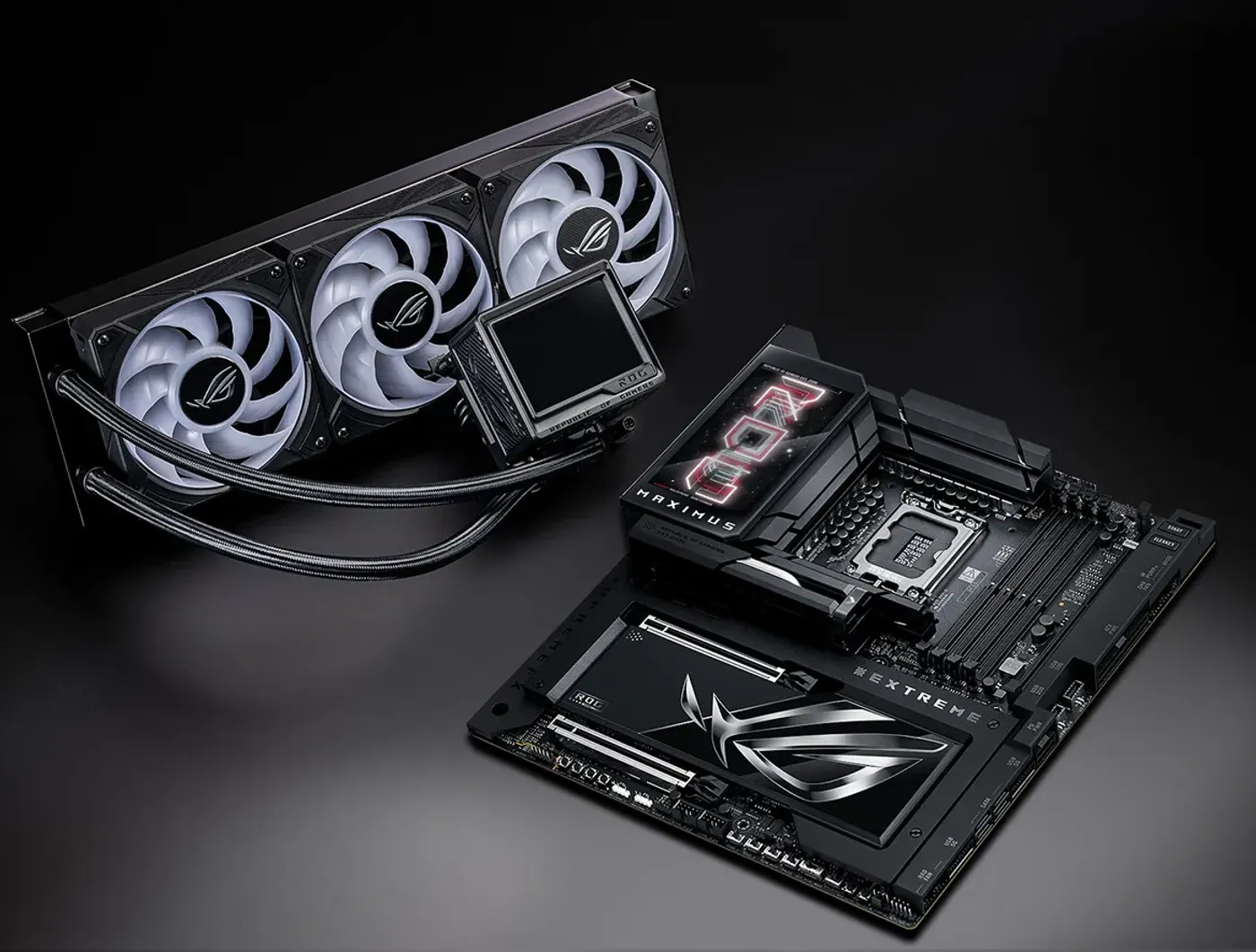

ROG Ryujin III 360 ARGB Extreme and ROG Maximus Z890 Extreme placed on the desk.

Intel Processor Thermal Optimization

The ROG Ryujin III 360 ARGB Extreme is tuned for the heat characteristics of Intel® Core™ Ultra processors (Series 2). Its adjustable bracket, a new pump design and upgraded ROG fans can reduce CPU temperatures by up to 7.5% compared to the standard ROG Ryujin III 360 ARGB.

Intel Processor Thermal Optimization

The ROG Ryujin III 360 ARGB Extreme is tuned for the heat characteristics of Intel® Core™ Ultra processors (Series 2). Its adjustable bracket, a new pump design and upgraded ROG fans can reduce CPU temperatures by up to 7.5% compared to the standard ROG Ryujin III 360 ARGB.

High-Performance ROG ARGB Fans

Upgraded ROG ARGB fans deliver balanced high airflow and static pressure with noise optimization. Key specifications include 0-2800 RPM fan speed, 5.15 mmH2O air pressure, 89.73 CFM airflow and 36 dB(A) noise; the fans have also been thickened to 30 mm to increase performance while preserving case compatibility. The fan blades use a three-section layout and blade count increased from seven to nine to boost airflow and cooling efficiency.

High-Performance ROG ARGB Fans

Upgraded ROG ARGB fans deliver balanced high airflow and static pressure with noise optimization. Key specifications include 0-2800 RPM fan speed, 5.15 mmH2O air pressure, 89.73 CFM airflow and 36 dB(A) noise; the fans have also been thickened to 30 mm to increase performance while preserving case compatibility. The fan blades use a three-section layout and blade count increased from seven to nine to boost airflow and cooling efficiency.

Magnetic Daisy-Chainable Fan Design

The customizable ARGB fans use a magnetic daisy-chain connector that transmits control signals and power between fans. This design means only one cable is needed for all three fans, simplifying installation and cable management.

Magnetic Daisy-Chainable Fan Design

The customizable ARGB fans use a magnetic daisy-chain connector that transmits control signals and power between fans. This design means only one cable is needed for all three fans, simplifying installation and cable management.

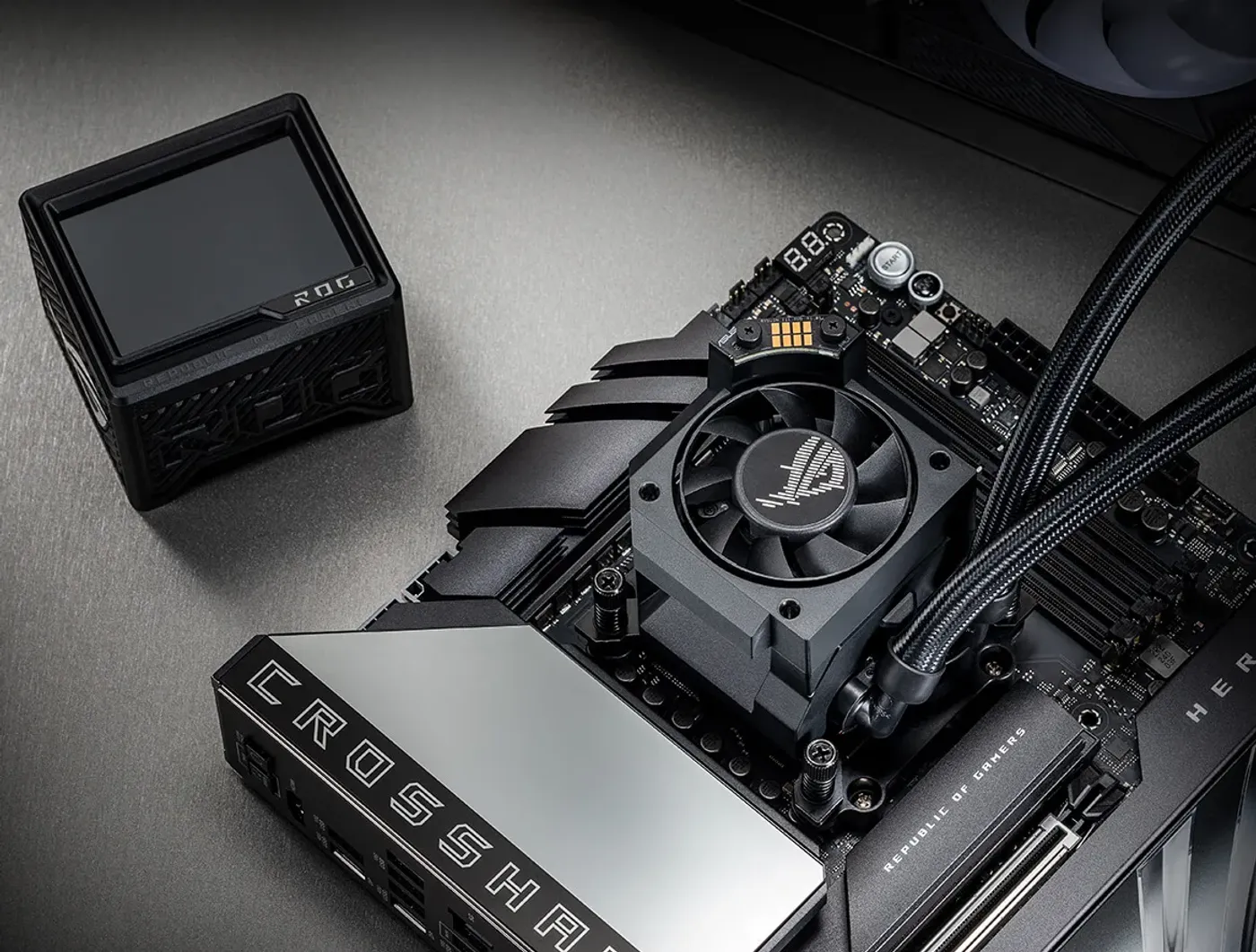

ROG Ryujin III 360 ARGB Extreme installed on the ROG Crosshair X870E Hero, with the Fan Vent opened to reveal the VRM Fan.

Embedded VRM Fan and Thermal Results

A larger embedded axial-tech VRM fan improves airflow and can reduce motherboard VRM temperatures by up to 36 Celsius. In a VRM test, temperatures measured 62.85℃ with the embedded fan ON versus 98.85℃ with the embedded fan OFF, demonstrating the fan's cooling impact.

Embedded VRM Fan and Thermal Results

A larger embedded axial-tech VRM fan improves airflow and can reduce motherboard VRM temperatures by up to 36 Celsius. In a VRM test, temperatures measured 62.85℃ with the embedded fan ON versus 98.85℃ with the embedded fan OFF, demonstrating the fan's cooling impact.

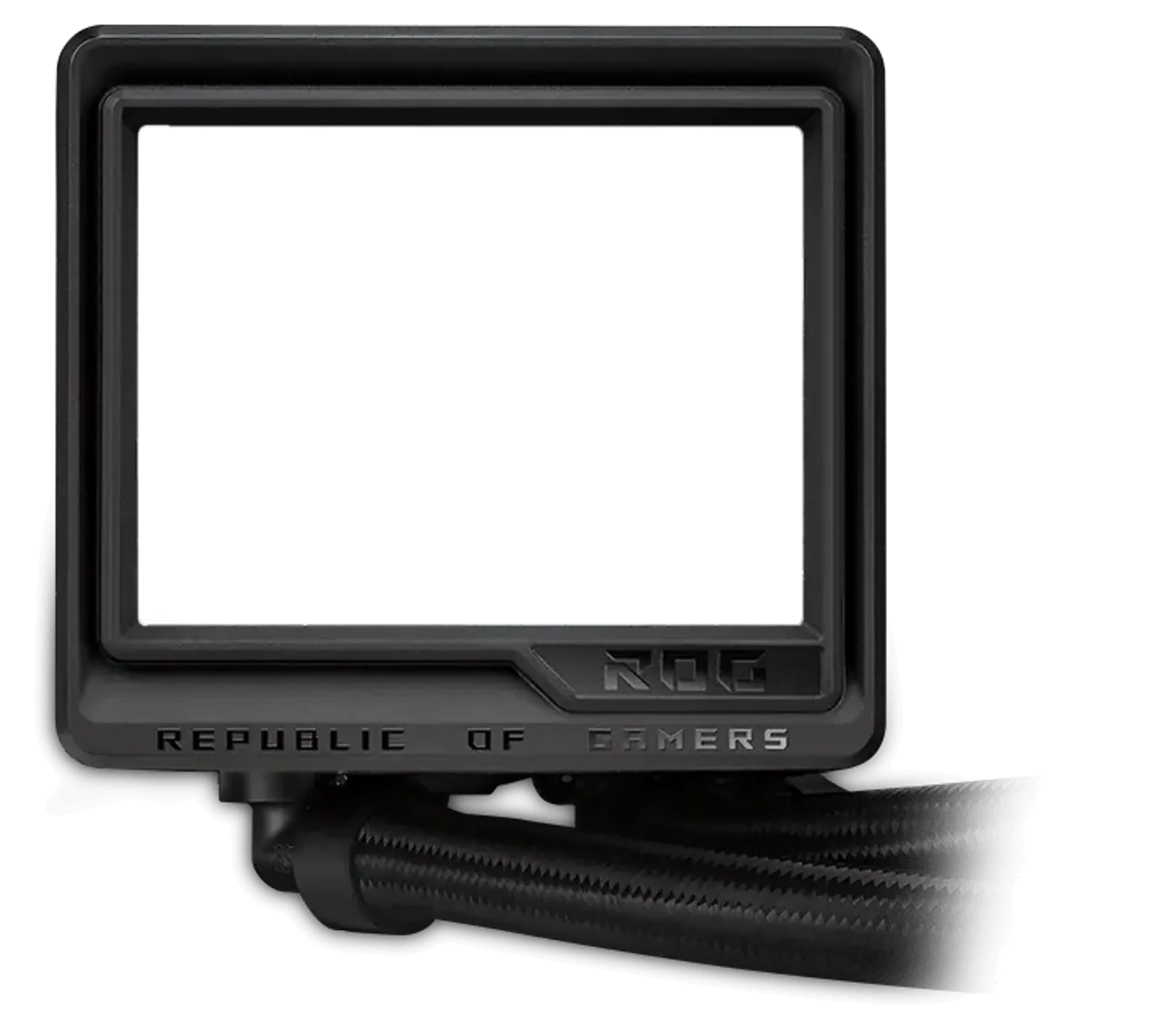

Full-Color 3.5” LCD With System Monitoring

The vivid 3.5-inch IPS LCD offers 480p resolution, a 60Hz refresh rate and 24bit full color depth. The display can show live monitoring of clock frequencies, voltages, temperatures, fan speeds and water flow, or display custom GIFs and animations.

Full-Color 3.5” LCD With System Monitoring

The vivid 3.5-inch IPS LCD offers 480p resolution, a 60Hz refresh rate and 24bit full color depth. The display can show live monitoring of clock frequencies, voltages, temperatures, fan speeds and water flow, or display custom GIFs and animations.

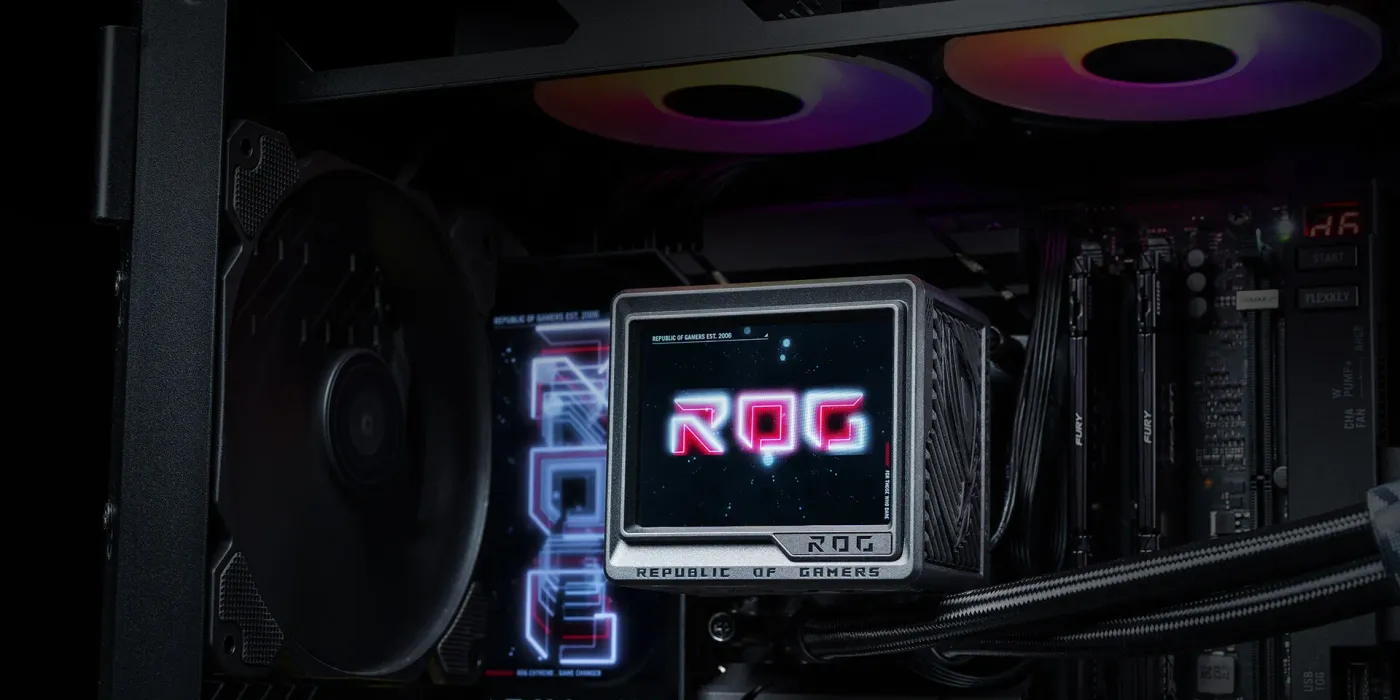

Close-up of the ROG Ryujin III 360 ARGB Extreme in a PC build

Extensive Compatibility and Tubing Length

The ROG Ryujin III series uses 400 mm of tubing and supports a wide range of Intel® and AMD motherboard platforms for flexible builds. Supported CPU sockets include Intel: LGA 1851, 1700, 1200, 115X and AMD: AM5, AM4.

Extensive Compatibility and Tubing Length

The ROG Ryujin III series uses 400 mm of tubing and supports a wide range of Intel® and AMD motherboard platforms for flexible builds. Supported CPU sockets include Intel: LGA 1851, 1700, 1200, 115X and AMD: AM5, AM4.
