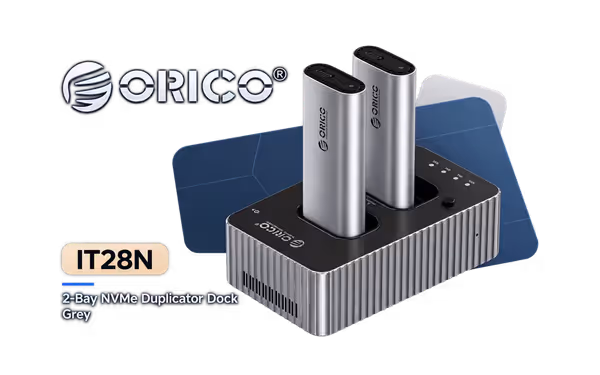

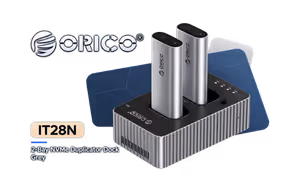

Try the new builderORICO IT28N 2-Bay M.2 NVMe SSD Duplicator Dock
The ORICO IT28N is a two-bay M.2 NVMe SSD dock and duplicator with a USB4 interface rated at 40Gbps, compatible with Thunderbolt 4. Hold the START button for five seconds and it clones the source drive to the target drive with no computer attached, with four lights showing progress. It takes M-Key NVMe SSDs from 2230 to 2280, up to 16TB in total, and each drive sits in its own aluminium heatsink.
The ORICO IT28N is a two-bay M.2 NVMe SSD dock and duplicator with a USB4 interface rated at 40Gbps, compatible with Thunderbolt 4. Hold the START button for five seconds and it clones the source drive to the target drive with no computer attached, with four lights showing progress. It takes M-Key NVMe SSDs from 2230 to 2280, up to 16TB in total, and each drive sits in its own aluminium heatsink.

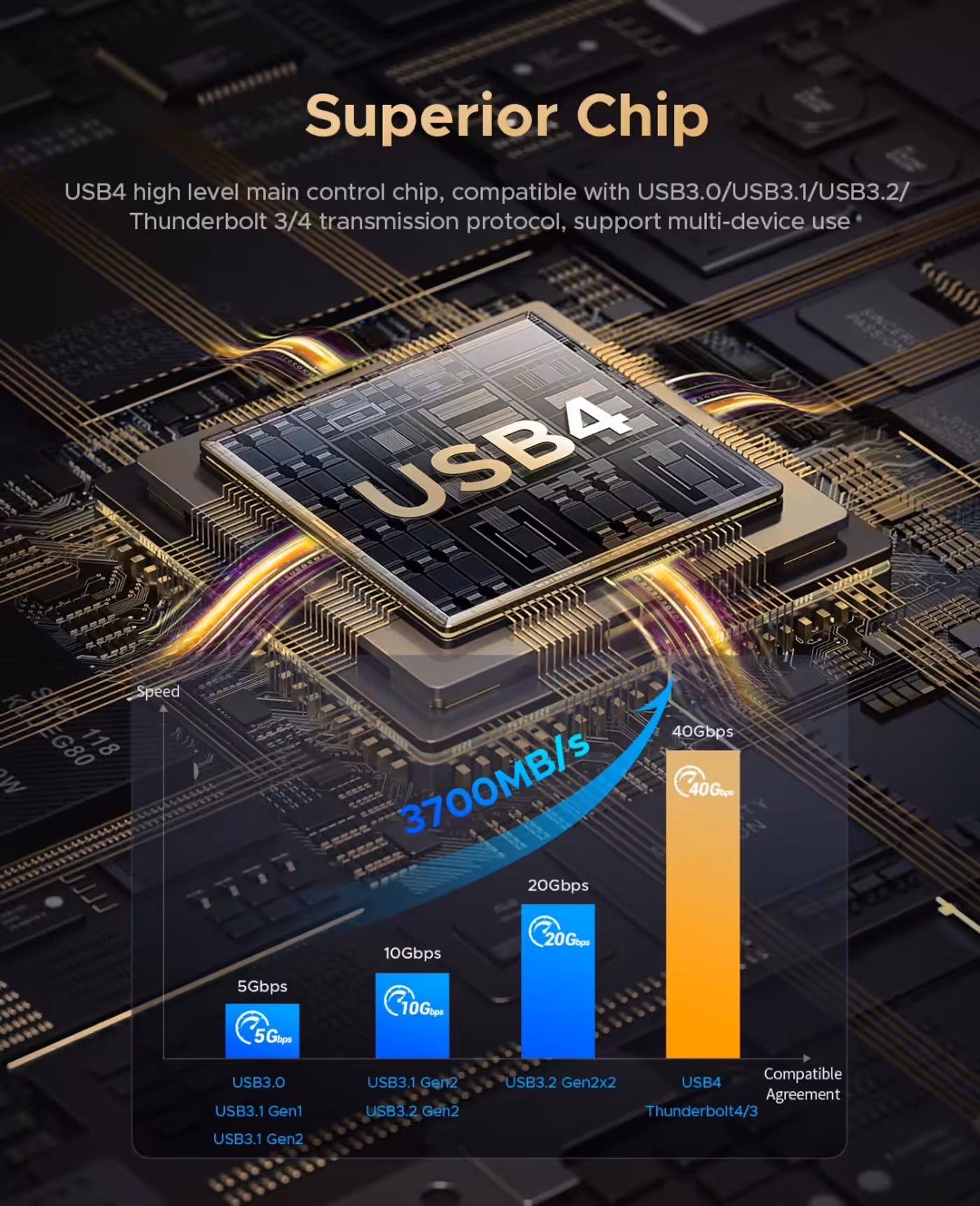

The IT28N uses a USB4 interface rated at 40Gbps and works with Thunderbolt 4 ports. ORICO measured up to 3300MB/s read and 3000MB/s write on a Thunderbolt 4 laptop, and the two drives share that bandwidth when both are in use.
The IT28N uses a USB4 interface rated at 40Gbps and works with Thunderbolt 4 ports. ORICO measured up to 3300MB/s read and 3000MB/s write on a Thunderbolt 4 laptop, and the two drives share that bandwidth when both are in use.

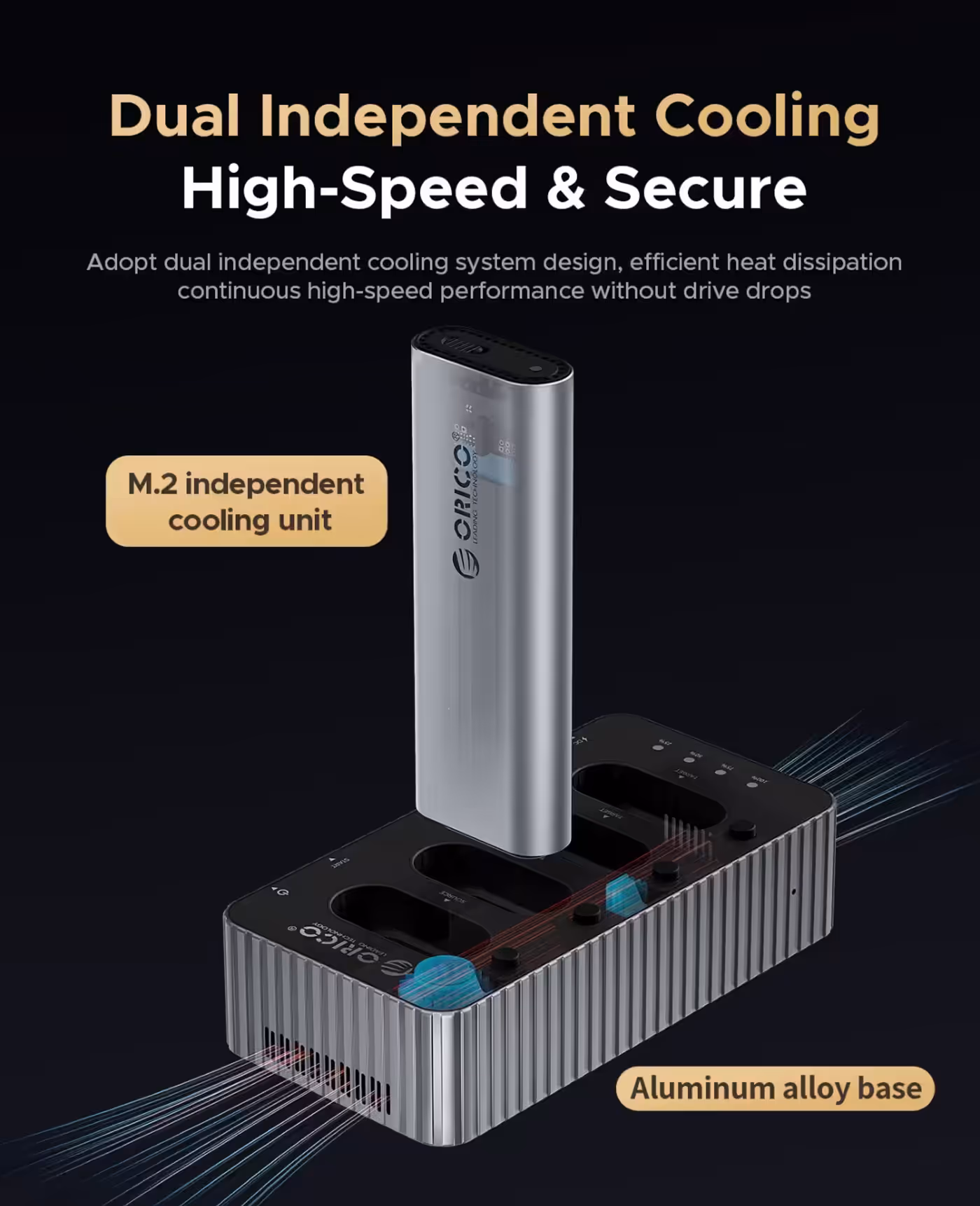

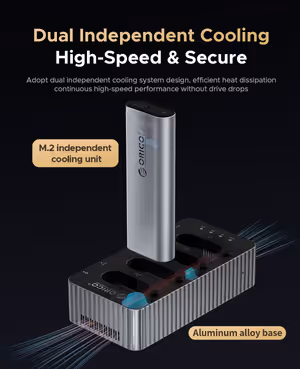

Each M.2 drive sits in its own aluminium heatsink module with a thermal pad, and a built-in fan moves air through the aluminium base, which helps during long clone jobs.
Each M.2 drive sits in its own aluminium heatsink module with a thermal pad, and a built-in fan moves air through the aluminium base, which helps during long clone jobs.

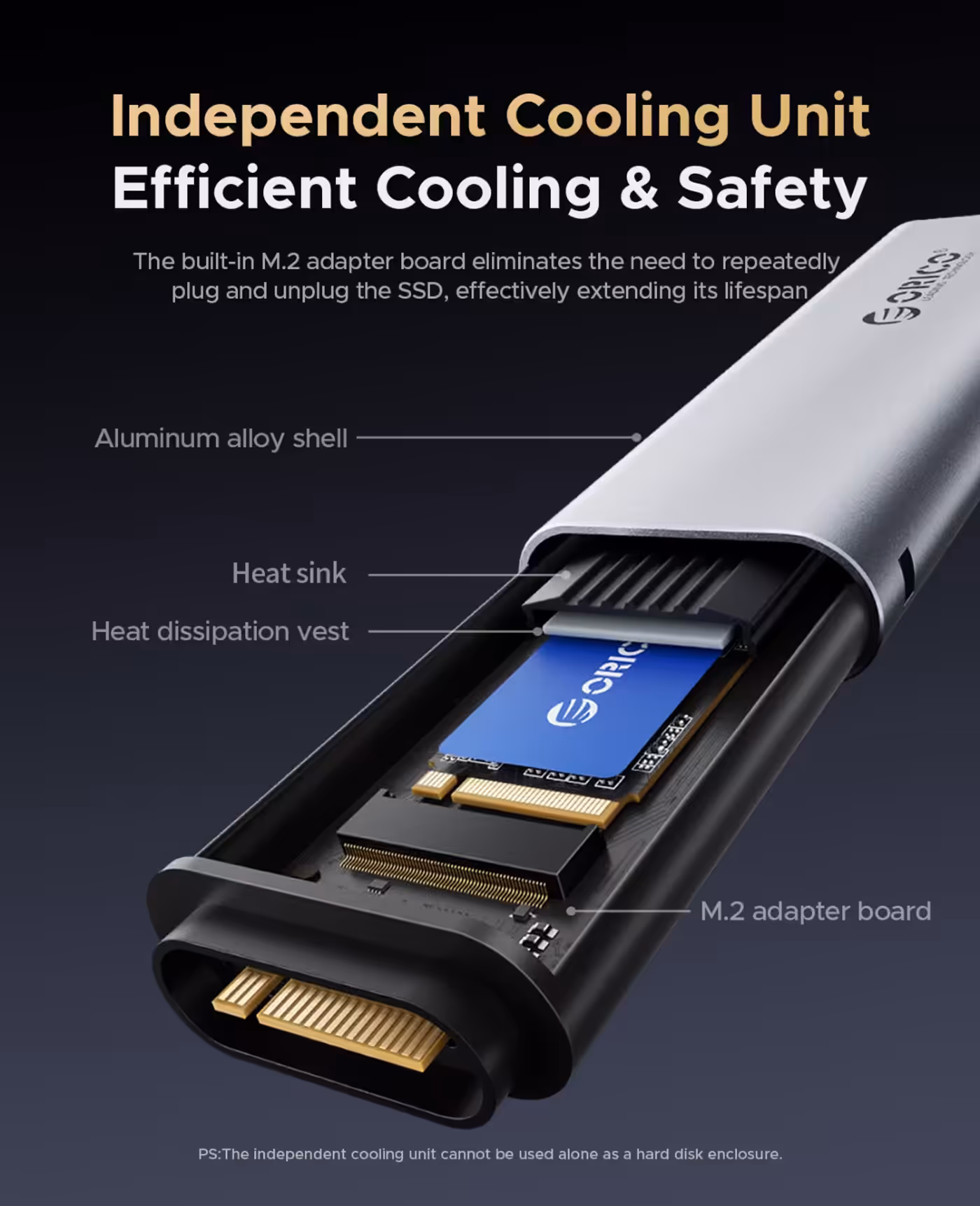

The removable module holds the SSD on an M.2 adapter board inside an aluminium shell, with a heat-dissipation vest between the drive and the case. The SSD stays on its adapter board, so it is not plugged in and out of a bare M.2 slot every time.
The removable module holds the SSD on an M.2 adapter board inside an aluminium shell, with a heat-dissipation vest between the drive and the case. The SSD stays on its adapter board, so it is not plugged in and out of a bare M.2 slot every time.

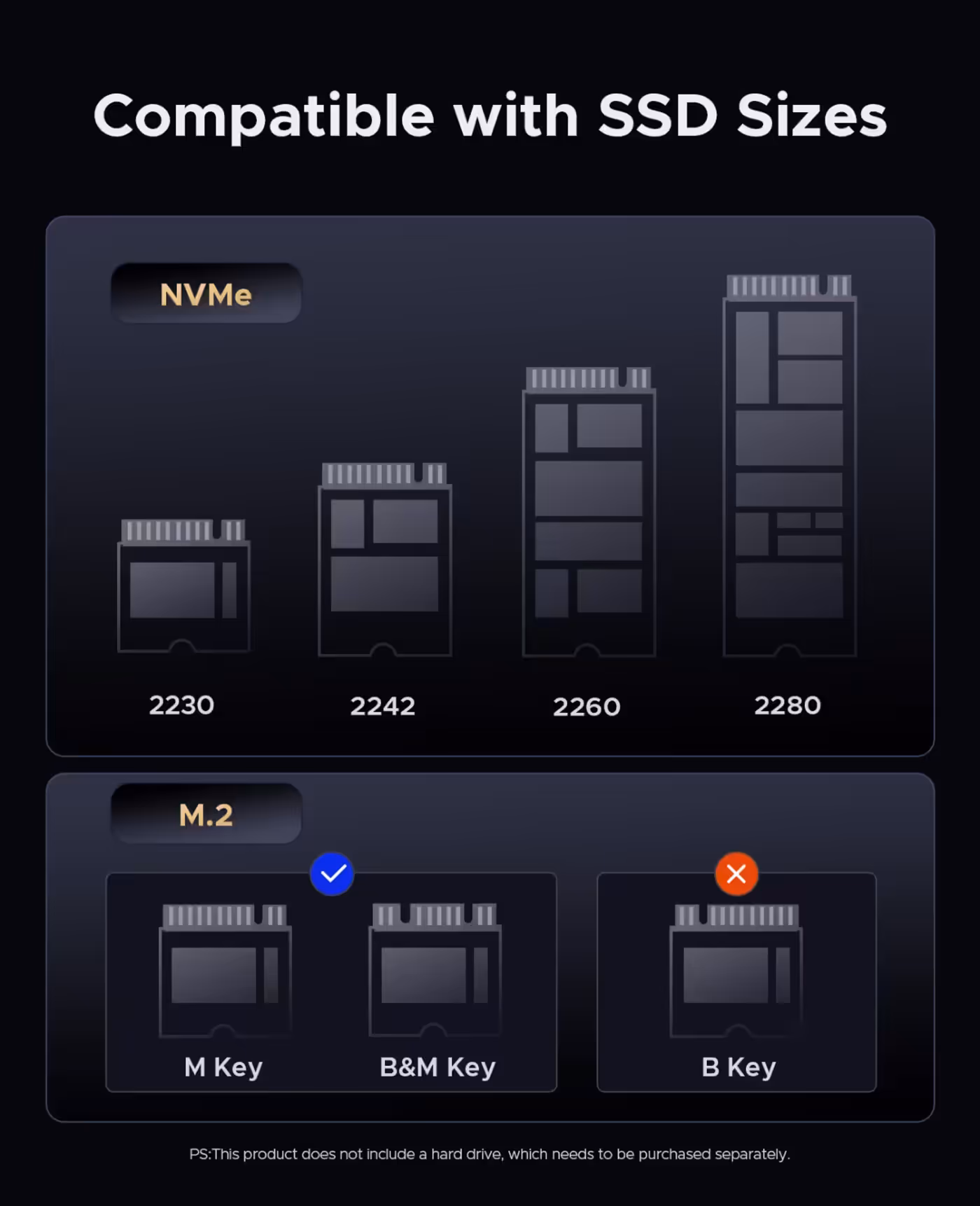

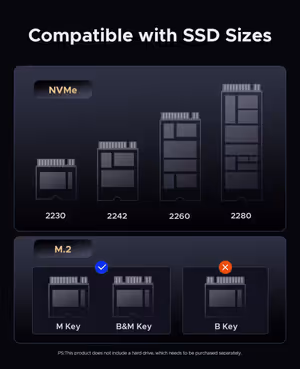

Both bays take M-Key NVMe SSDs in 2230, 2242, 2260 and 2280 lengths. B-Key and B+M-Key SATA drives are not supported, and ORICO rates the dock for 16TB in total, 8TB per bay.
Both bays take M-Key NVMe SSDs in 2230, 2242, 2260 and 2280 lengths. B-Key and B+M-Key SATA drives are not supported, and ORICO rates the dock for 16TB in total, 8TB per bay.

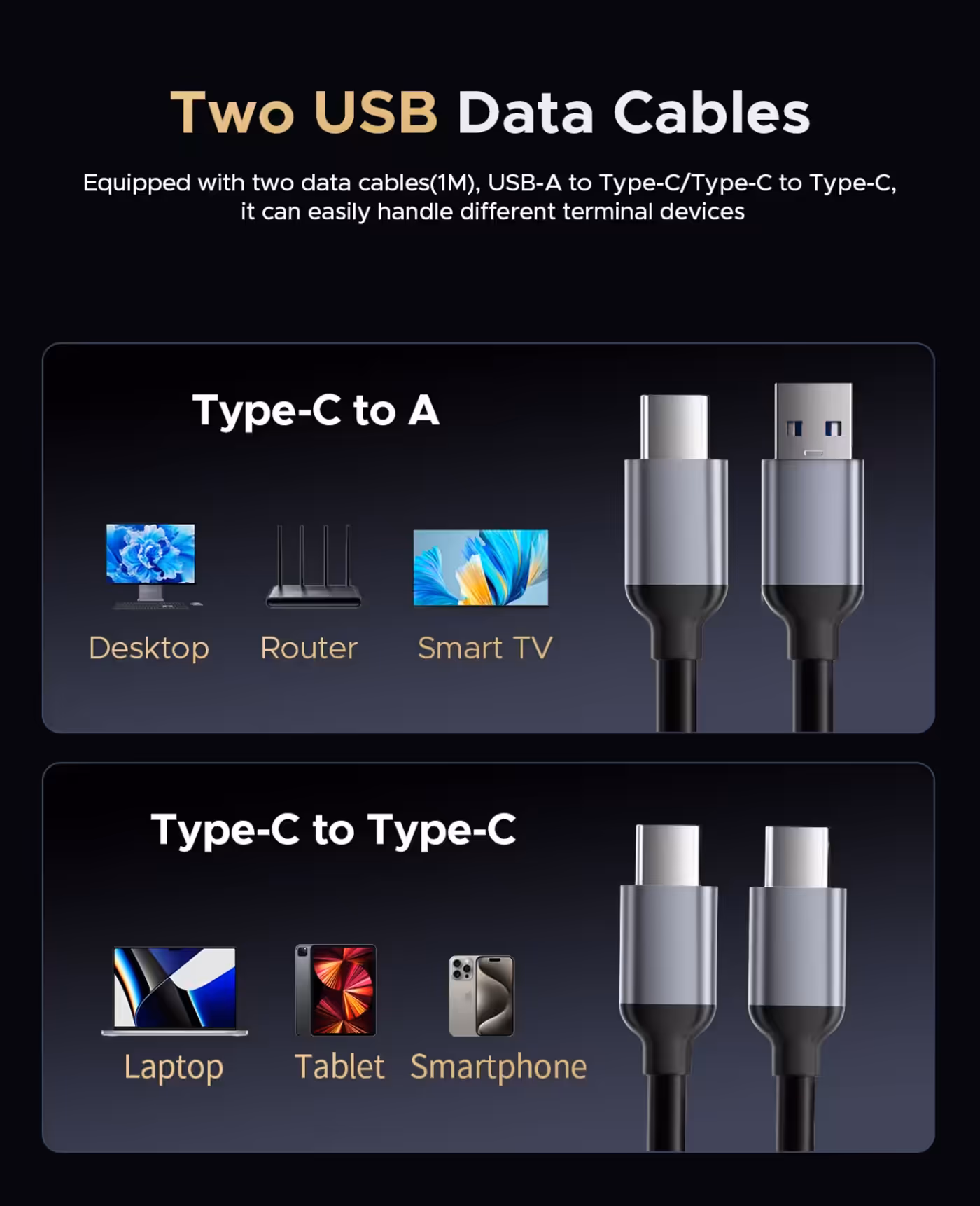

ORICO supplies two 1m data cables, USB-C to USB-C and USB-A to USB-C, so the dock connects to laptops, desktops, routers and other devices with either port type.
ORICO supplies two 1m data cables, USB-C to USB-C and USB-A to USB-C, so the dock connects to laptops, desktops, routers and other devices with either port type.
The IT28N is plug and play on Windows, macOS, Linux and Android, with no driver to install before the drives show up.
The IT28N is plug and play on Windows, macOS, Linux and Android, with no driver to install before the drives show up.

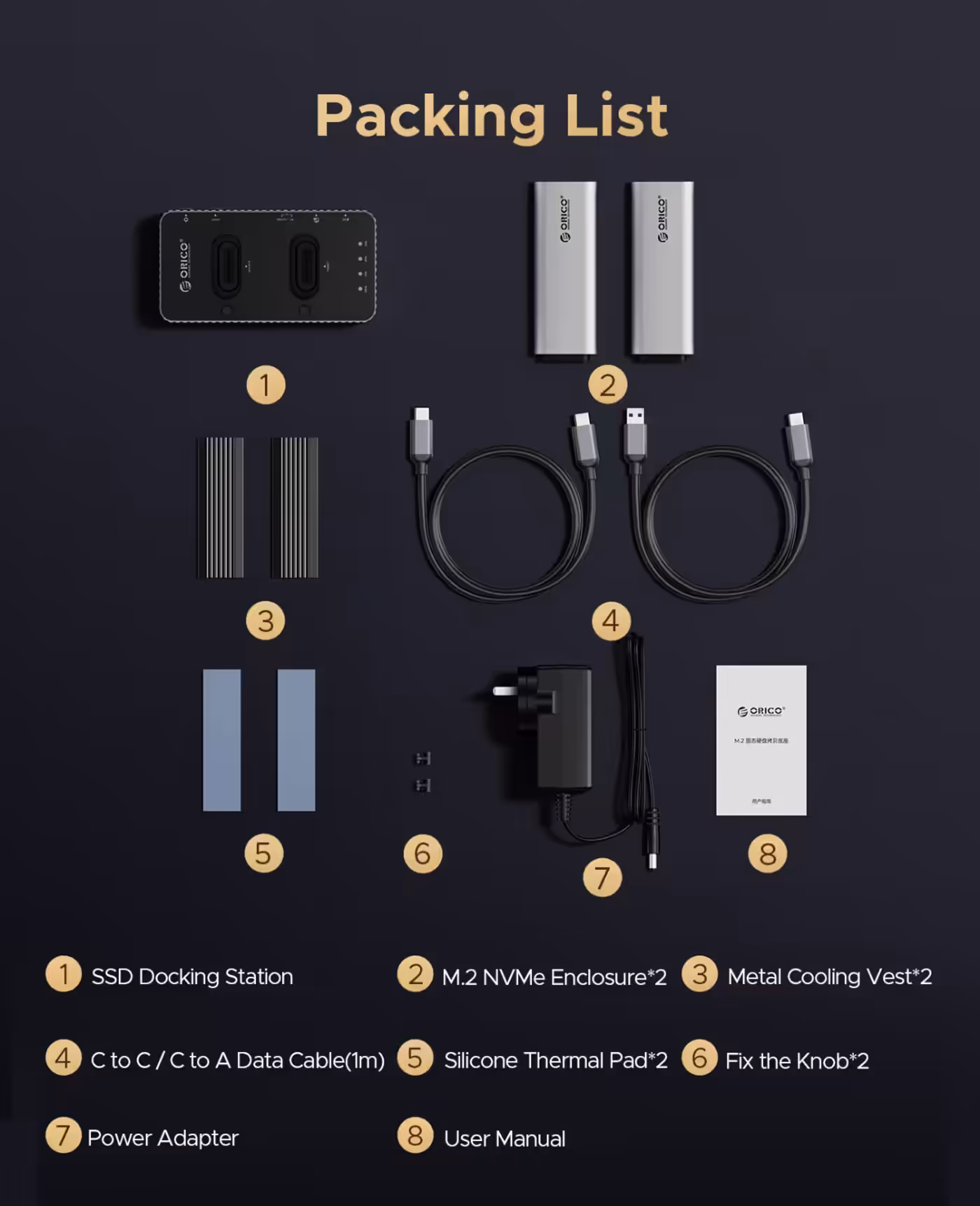

ORICO lists the docking station, two M.2 NVMe enclosures with metal cooling vests and silicone thermal pads, the USB cables, the 12V power adapter and a user manual. SSDs are not included.
ORICO lists the docking station, two M.2 NVMe enclosures with metal cooling vests and silicone thermal pads, the USB cables, the 12V power adapter and a user manual. SSDs are not included.
Everything you need to know about this product
Yes. Put the source SSD in the Source slot and the target in the Target slot, set the switch to CLONE and hold START for five seconds. Four lights show 25, 50, 75 and 100 percent, and the target must be larger than the source.
The USB4 interface is rated at 40Gbps, and ORICO measured up to 3300MB/s read and 3000MB/s write on a Thunderbolt 4 laptop. That speed needs a USB4 or Thunderbolt 4 port, and the two drives share the bandwidth when both are in use.
No. It takes M-Key NVMe SSDs only, in 2230, 2242, 2260 and 2280 lengths. B-Key and B+M-Key SATA drives are not supported.
ORICO rates it for 16TB in total, 8TB per bay. SSDs are not included.
Yes. ORICO lists Windows, macOS, Linux and Android, and it is compatible with Thunderbolt 4 ports.
Yes. ORICO lists a 12V 2A power input, which also runs the offline clone with no computer attached.
If you clone or move NVMe SSDs often, it copies a drive with one button and transfers at USB4 speed when it is plugged into a computer.
