Xigmatek Aqua 7 Mid Tower Gaming Case / Supports Motherboards up to E-ATX / 2 Tempered Glass Panel Design / Optimized Airflow with Angled Front-Right Fans / Top Nylon Mesh Anti-Dust Filter / CPU Cooler Clearance up to 165mm / Vertical GPU Bracket Included / PSU Length up to 180mm / 8 x Pre-Installed ARGB Fans Included / EN49026 + FREE DELIVERY !
1 Year Local Warranty
Model No : Xigmatek EN49026
Price Inc. Vat
R 1,899
Save R 300
ListR 2,199
1899Free Delivery
Out of Stock

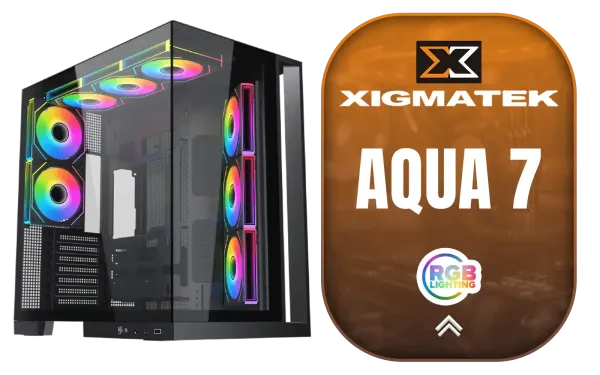

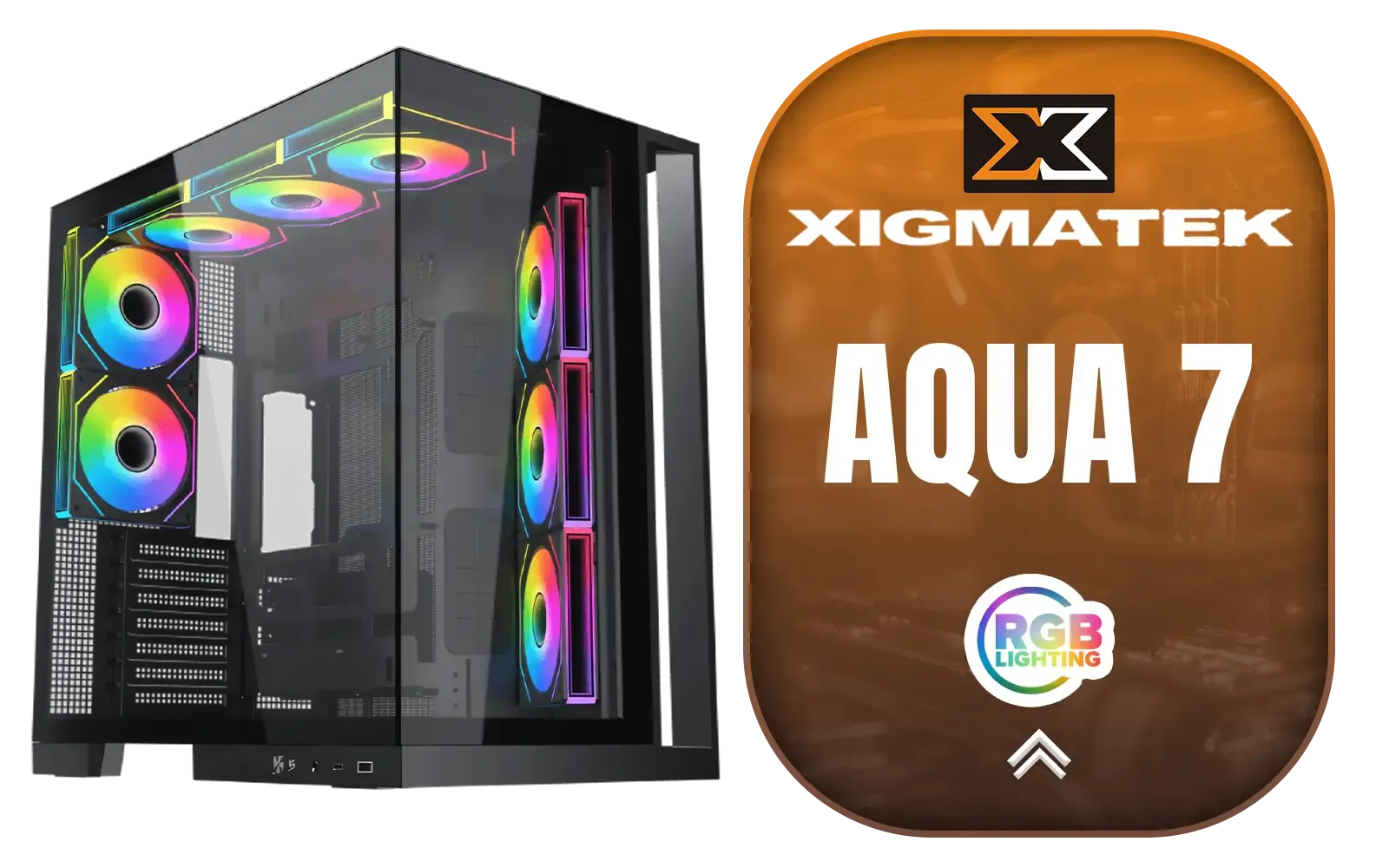

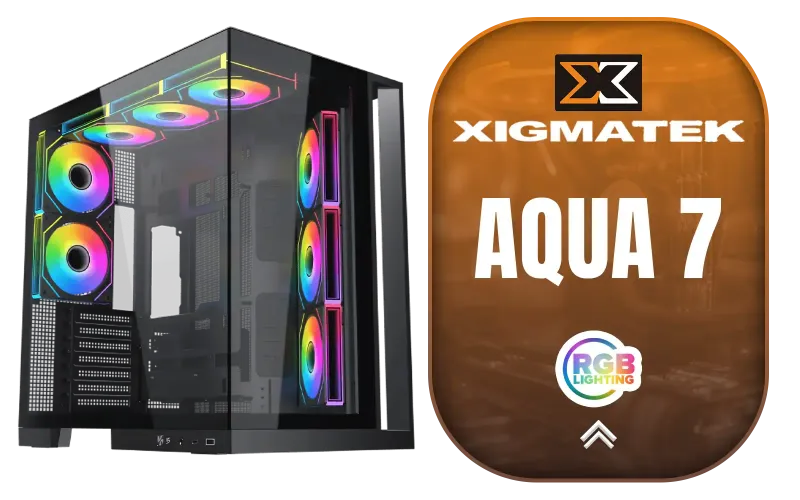

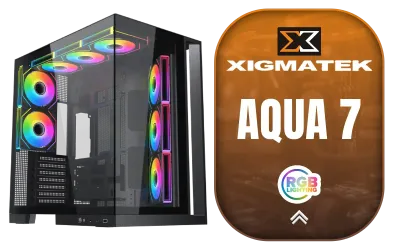

Xigmatek Aqua 7 Mid-Tower Gaming Case w/ 8 ARGB Fans
Aqua 7: Dual-Glass E-ATX Mid Tower Case
The Xigmatek Aqua 7 is a steel mid tower measuring 448 x 290 x 467 mm, taking motherboards from Mini-ITX up to E-ATX and showing the result through tempered glass on two faces. It arrives with eight ARGB fans already installed, so the chassis is cooled and lit from the first boot rather than after a separate purchase. Seven standard expansion slots and a PS2 ATX power supply bay sit inside.
Aqua 7: Dual-Glass E-ATX Mid Tower Case
The Xigmatek Aqua 7 is a steel mid tower measuring 448 x 290 x 467 mm, taking motherboards from Mini-ITX up to E-ATX and showing the result through tempered glass on two faces. It arrives with eight ARGB fans already installed, so the chassis is cooled and lit from the first boot rather than after a separate purchase. Seven standard expansion slots and a PS2 ATX power supply bay sit inside.
Dual Tempered Glass Panel Structure
This product features a striking design incorporating two separate tempered glass panels. This dual panel setup offers a premium aesthetic and an excellent view of the internal components.
Dual Tempered Glass Panel Structure
This product features a striking design incorporating two separate tempered glass panels. This dual panel setup offers a premium aesthetic and an excellent view of the internal components.
Strategically Optimized Cooling Layout
The internal layout is designed for optimized airflow, featuring Angled Front-Right Fans. This strategic positioning, combined with the airflow-optimized layout, helps maintain low temperatures and ensures stable, consistent performance.
Strategically Optimized Cooling Layout
The internal layout is designed for optimized airflow, featuring Angled Front-Right Fans. This strategic positioning, combined with the airflow-optimized layout, helps maintain low temperatures and ensures stable, consistent performance.
Premium Nylon Mesh Dust Filtration
A top dust filter is included, featuring a Nylon Mesh Anti Dust Filter material. This filter is designed with a metal mesh-like appearance and texture, offering both effective particle filtration and a sleek look.
Premium Nylon Mesh Dust Filtration
A top dust filter is included, featuring a Nylon Mesh Anti Dust Filter material. This filter is designed with a metal mesh-like appearance and texture, offering both effective particle filtration and a sleek look.
Wide-Ranging Motherboard Compatibility
This chassis offers extensive compatibility across major motherboard form factors, including Mini-ITX, M-ATX, and standard ATX. It also supports E-ATX motherboards with a width limit of 285mm (E-ATX ≤ 285mm). Both ATX and M-ATX formats support the specialized Back Plug design.
Wide-Ranging Motherboard Compatibility
This chassis offers extensive compatibility across major motherboard form factors, including Mini-ITX, M-ATX, and standard ATX. It also supports E-ATX motherboards with a width limit of 285mm (E-ATX ≤ 285mm). Both ATX and M-ATX formats support the specialized Back Plug design.
Compatibility for Rear-Connect Motherboards
The chassis specifically supports motherboards that utilize the 'Back Plug' design in both the ATX and M-ATX form factors. This feature promotes superior cable management by routing connectors to the rear.
Compatibility for Rear-Connect Motherboards
The chassis specifically supports motherboards that utilize the 'Back Plug' design in both the ATX and M-ATX form factors. This feature promotes superior cable management by routing connectors to the rear.
Comprehensive System Fan Mounting
The case provides extensive support for cooling fans: the Top panel accommodates three 120mm fans or two 140mm fans; the Side and Bottom positions each support three 120mm fans; and the Rear position supports two 120mm fans.
Comprehensive System Fan Mounting
The case provides extensive support for cooling fans: the Top panel accommodates three 120mm fans or two 140mm fans; the Side and Bottom positions each support three 120mm fans; and the Rear position supports two 120mm fans.
Flexible Liquid Cooling Radiator Options
The chassis provides wide-ranging liquid cooling support, allowing for radiator sizes up to 360mm on the Top, Side, and Bottom mounting points. Specifically, the Top supports 240mm, 280mm, or 360mm radiators, while the Side and Bottom support 240mm or 360mm. The Rear is compatible with a 120mm radiator.
Flexible Liquid Cooling Radiator Options
The chassis provides wide-ranging liquid cooling support, allowing for radiator sizes up to 360mm on the Top, Side, and Bottom mounting points. Specifically, the Top supports 240mm, 280mm, or 360mm radiators, while the Side and Bottom support 240mm or 360mm. The Rear is compatible with a 120mm radiator.
Maximum CPU Air Cooler Height
The internal dimensions provide generous clearance for CPU air coolers, supporting heights of up to 165mm. This allows users to integrate most standard tower coolers.
Maximum CPU Air Cooler Height
The internal dimensions provide generous clearance for CPU air coolers, supporting heights of up to 165mm. This allows users to integrate most standard tower coolers.
Conditional Graphics Card Length Support
The maximum supported Graphics Card (GPU) length depends on the cooling configuration: the clearance is 360mm when a Side Liquid Cooler is installed, but increases significantly to 410mm if the side liquid cooler is omitted.
Conditional Graphics Card Length Support
The maximum supported Graphics Card (GPU) length depends on the cooling configuration: the clearance is 360mm when a Side Liquid Cooler is installed, but increases significantly to 410mm if the side liquid cooler is omitted.
Vertical Graphics Card Mounting Support
The chassis is engineered to support vertical installation of the GPU, which allows the card to be showcased. A necessary Vertical GPU Bracket is included with the case to facilitate this specialized mounting orientation.
Vertical Graphics Card Mounting Support
The chassis is engineered to support vertical installation of the GPU, which allows the card to be showcased. A necessary Vertical GPU Bracket is included with the case to facilitate this specialized mounting orientation.
Power Supply Unit Maximum Clearance
The chassis is designed to accommodate a Power Supply Unit (PSU) with a maximum length limitation of 180mm. This specification should be checked for compatibility when selecting a power supply.
Power Supply Unit Maximum Clearance
The chassis is designed to accommodate a Power Supply Unit (PSU) with a maximum length limitation of 180mm. This specification should be checked for compatibility when selecting a power supply.
Convenient Storage Mounting with Flip Cover
A convenient flip cover system is implemented for the SSD/HDD mounting area. This design allows for fast and simple access to the storage drives, aiding in quick component swaps and cable management.
Convenient Storage Mounting with Flip Cover
A convenient flip cover system is implemented for the SSD/HDD mounting area. This design allows for fast and simple access to the storage drives, aiding in quick component swaps and cable management.
Compact Drive Configuration Options
The chassis supports flexible storage options, allowing for a combination of one 3.5″ drive and one 2.5″ drive, or a maximum configuration of two 2.5″ drives.
Compact Drive Configuration Options
The chassis supports flexible storage options, allowing for a combination of one 3.5″ drive and one 2.5″ drive, or a maximum configuration of two 2.5″ drives.
Dedicated HDD Cage Capacity
The dedicated HDD Cage within the chassis supports a capacity of up to two 3.5″ Combo drives (3.5″ Combo x2). This configuration is optimized for maximizing hard drive storage.
Dedicated HDD Cage Capacity
The dedicated HDD Cage within the chassis supports a capacity of up to two 3.5″ Combo drives (3.5″ Combo x2). This configuration is optimized for maximizing hard drive storage.
Convenient Front Panel Connectivity
The front I/O panel provides essential controls and connectivity, including the Power Button and Reset Button. It features an HD Audio Jack, one USB-C port (USB-C x1), and one USB 3.0 port (USB 3.0 x1).
Convenient Front Panel Connectivity
The front I/O panel provides essential controls and connectivity, including the Power Button and Reset Button. It features an HD Audio Jack, one USB-C port (USB-C x1), and one USB 3.0 port (USB 3.0 x1).
Integrated ARGB and PWM Control System
The cooling and lighting features are managed by an included ARGB and PWM Control Box, along with a Remote Control. The controller unit has precise power limits: the 5V rail supports a Total 40W maximum, and the 12V rail supports a Total 36W maximum. Users are strongly cautioned against overpowering the controller box, as this poses a risk of damage.
Integrated ARGB and PWM Control System
The cooling and lighting features are managed by an included ARGB and PWM Control Box, along with a Remote Control. The controller unit has precise power limits: the 5V rail supports a Total 40W maximum, and the 12V rail supports a Total 36W maximum. Users are strongly cautioned against overpowering the controller box, as this poses a risk of damage.
FAQ
Frequently Asked Questions
Everything you need to know about this product
This chassis features a striking design incorporating two separate tempered glass panels, which provides a premium aesthetic and clear visibility of the system's internal components.
Airflow is optimized through a strategic layout featuring Angled Front-Right Fans. This design helps the system maintain low operating temperatures, ensuring stable and consistent performance.
The top dust filter uses a Nylon Mesh Anti Dust Filter material. This filter is styled with a metal mesh-like appearance and texture, providing effective particle filtration and a premium look.
The case supports Mini-ITX, M-ATX, ATX, and E-ATX motherboards (E-ATX up to 285mm). Additionally, both ATX and M-ATX sizes support the specialized Back Plug motherboard design.
Yes, the chassis is fully compatible with motherboards featuring the Back Plug design in the ATX and M-ATX form factors.
The largest supported fan size is 140mm. These can be mounted on the Top panel, which accommodates two 140mm fans or three 120mm fans.
The Bottom panel of the chassis supports large liquid cooling radiators in either 240mm or 360mm sizes, providing flexible cooling potential.
Yes, a 360mm radiator can be mounted in three separate internal locations: the Top, the Side, and the Bottom mounting points, offering high-end cooling versatility.
The maximum height clearance for CPU air coolers is 165mm. This specification ensures compatibility with most standard, high-performance tower coolers currently available.
The maximum supported GPU length is conditional: it is 360mm when utilizing a Side Liquid Cooler, and significantly increases to 410mm if the side liquid cooler is omitted from the build.
Yes, the chassis includes the necessary Vertical GPU Bracket to secure the card in this showcase orientation, as the case is engineered to support vertical installation.
The internal bay has a maximum length limitation of 180mm for the Power Supply Unit (PSU). Users should verify their chosen PSU fits within this clearance before purchasing.
The case uses an SSD/HDD Mounting Flip Cover system. This design is intended for fast and simple access to the storage drives, which greatly aids in component swaps and cable management.
The case offers flexibility for graphics cards, allowing horizontal mounting with up to 410mm clearance (without a side cooler) and dedicated support for vertical installation, including the required Vertical GPU Bracket.
The front I/O panel provides essential controls like the Power Button and Reset Button. For connectivity, it includes one USB-C port, one USB 3.0 port, and an HD Audio Jack.
The dedicated HDD Cage is designed for maximizing hard drive storage and can support a capacity of up to two 3.5″ Combo drives.
Yes, the ARGB and PWM Control Box has strict power limits: the 5V rail supports a Total 40W maximum, and the 12V rail supports a Total 36W maximum. Overpowering the box is strictly cautioned against due to potential damage.
The lighting (ARGB) and fan speeds (PWM) are managed using the included ARGB and PWM Control Box and a dedicated Remote Control for customization.
The case supports flexible configurations including one 3.5″ drive and one 2.5″ drive, or users can opt for a maximum of two 2.5″ drives.
