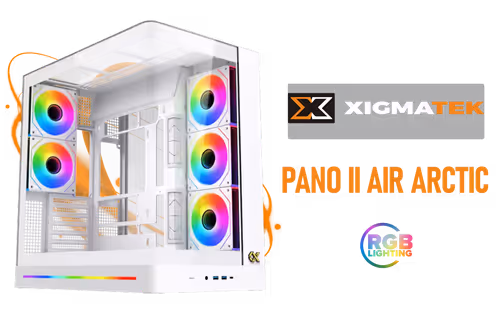

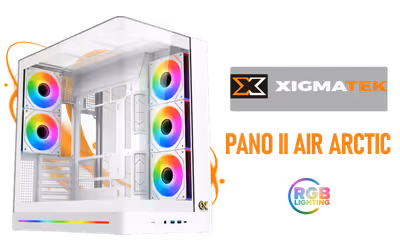

Xigmatek Pano II Air Arctic Mid Tower Gaming Case / Supports Motherboards up to E-ATX / Single-Piece Curved Tempered Glass Chassis / Superior Airflow and Ventilation Design / CPU Cooler Clearance up to 165mm / GPU Length up to 400mm / Adjustable GPU Support Bracket / 8 x Pre-Installed ARGB Fans Included / LCD Display Panel Not Included / EN48524

The Pano II Air Arctic puts the airflow-led Pano II layout into a white steel chassis measuring 447 x 285 x 466 mm, with room for anything from a Mini-ITX board to a 285 mm E-ATX one. Eight ARGB fans are installed at the factory, spread across the top, side, bottom and rear mounts. Seven standard expansion slots and a PS2 ATX power supply bay finish the frame.

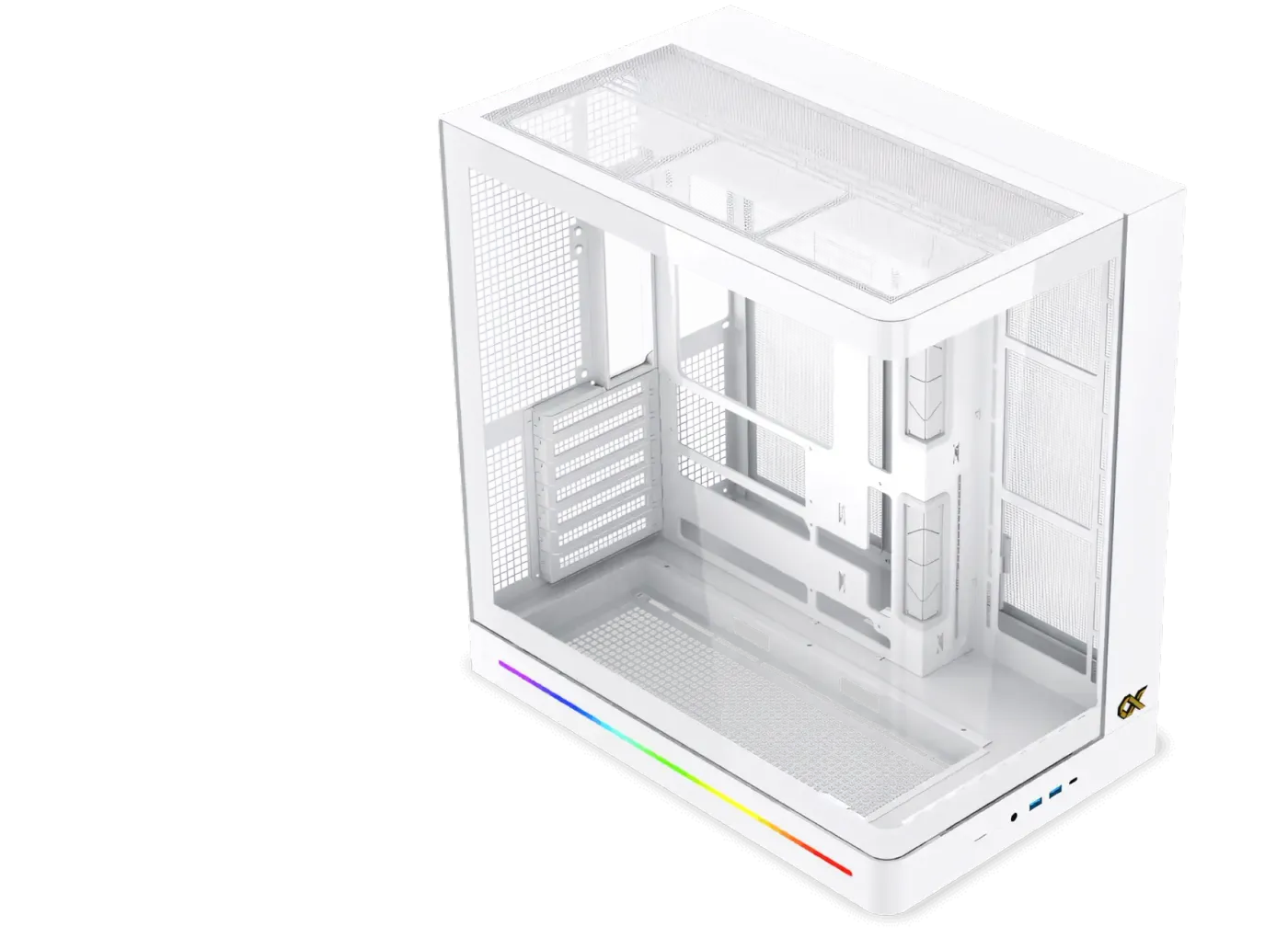

The chassis design incorporates a visually striking single-piece curved tempered glass panel. This provides an expansive, unobstructed view of the entire internal system, allowing users to showcase their components clearly.

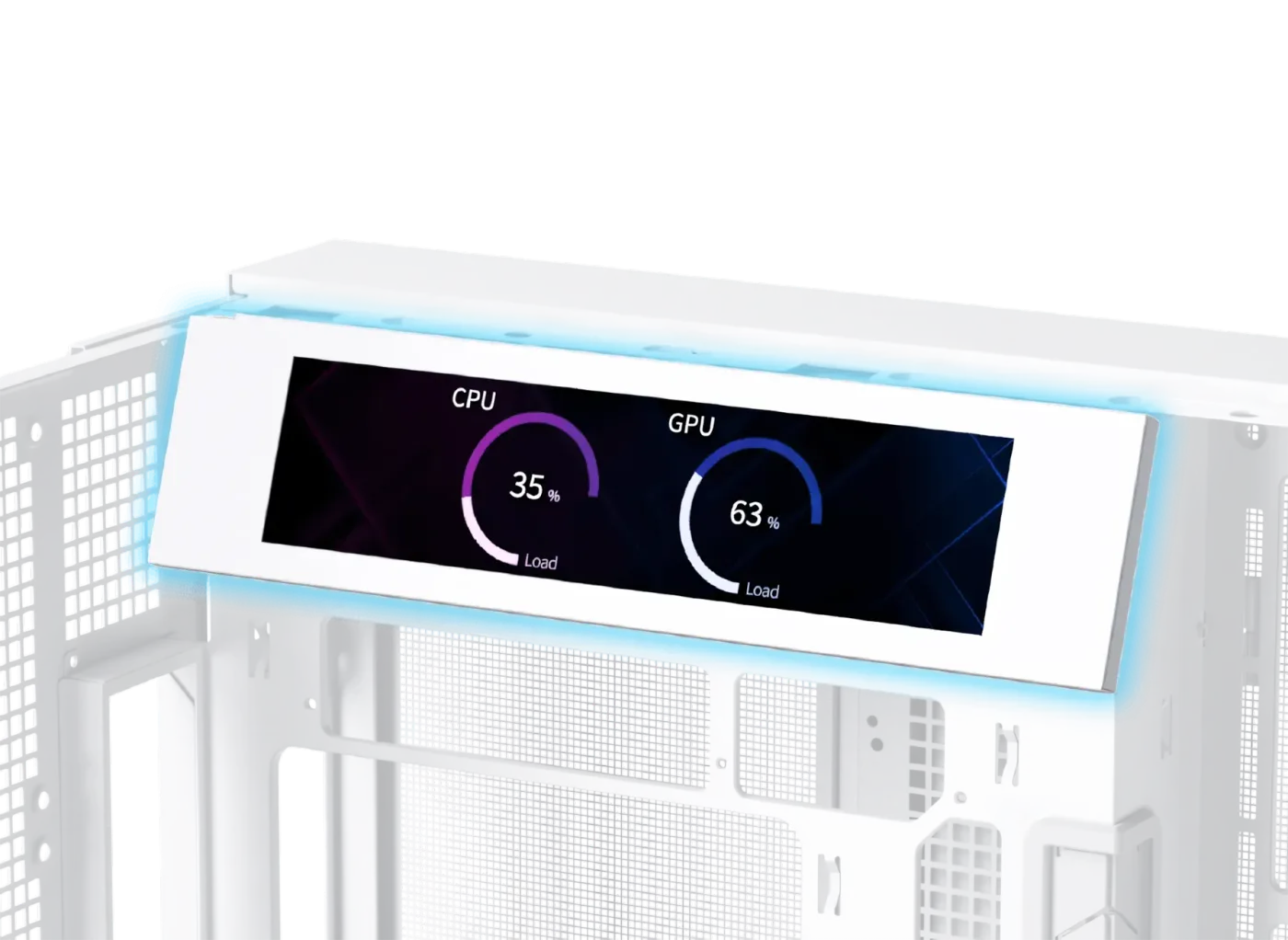

This product features a 9-inch multi-display LCD panel intended for use as a secondary monitor. It supports a Full HD+ Resolution (1920×462) and is compatible with Windows 10 and 11, allowing for Duplicate or Extend display Modes. It requires both HDMI and USB Power Cables for functionality. Note: The monitor itself is not included with the chassis.

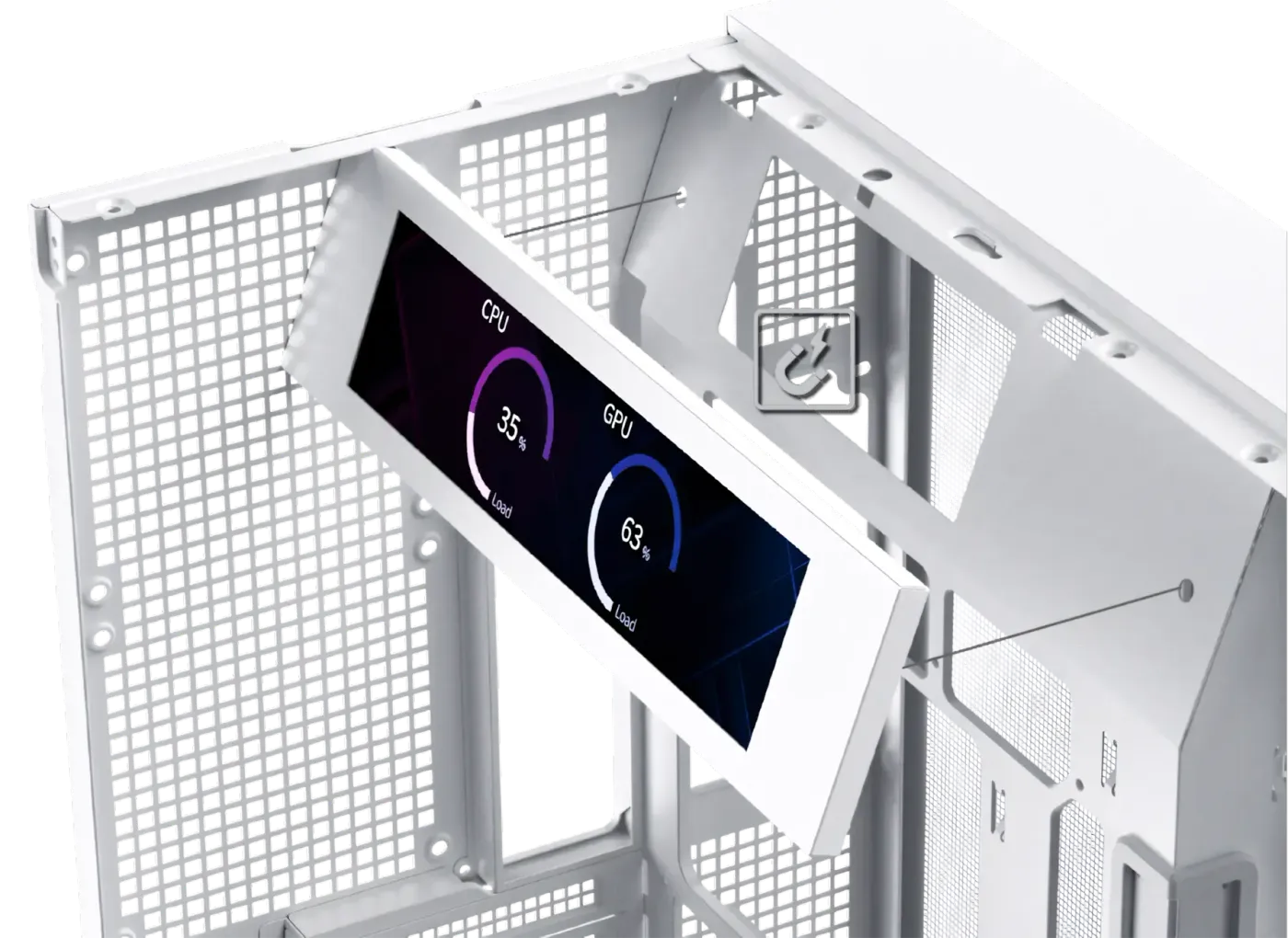

The secondary monitor employs a magnetic design for mounting, ensuring a simple and secure installation process. This feature allows the user to easily position or remove the display as needed.

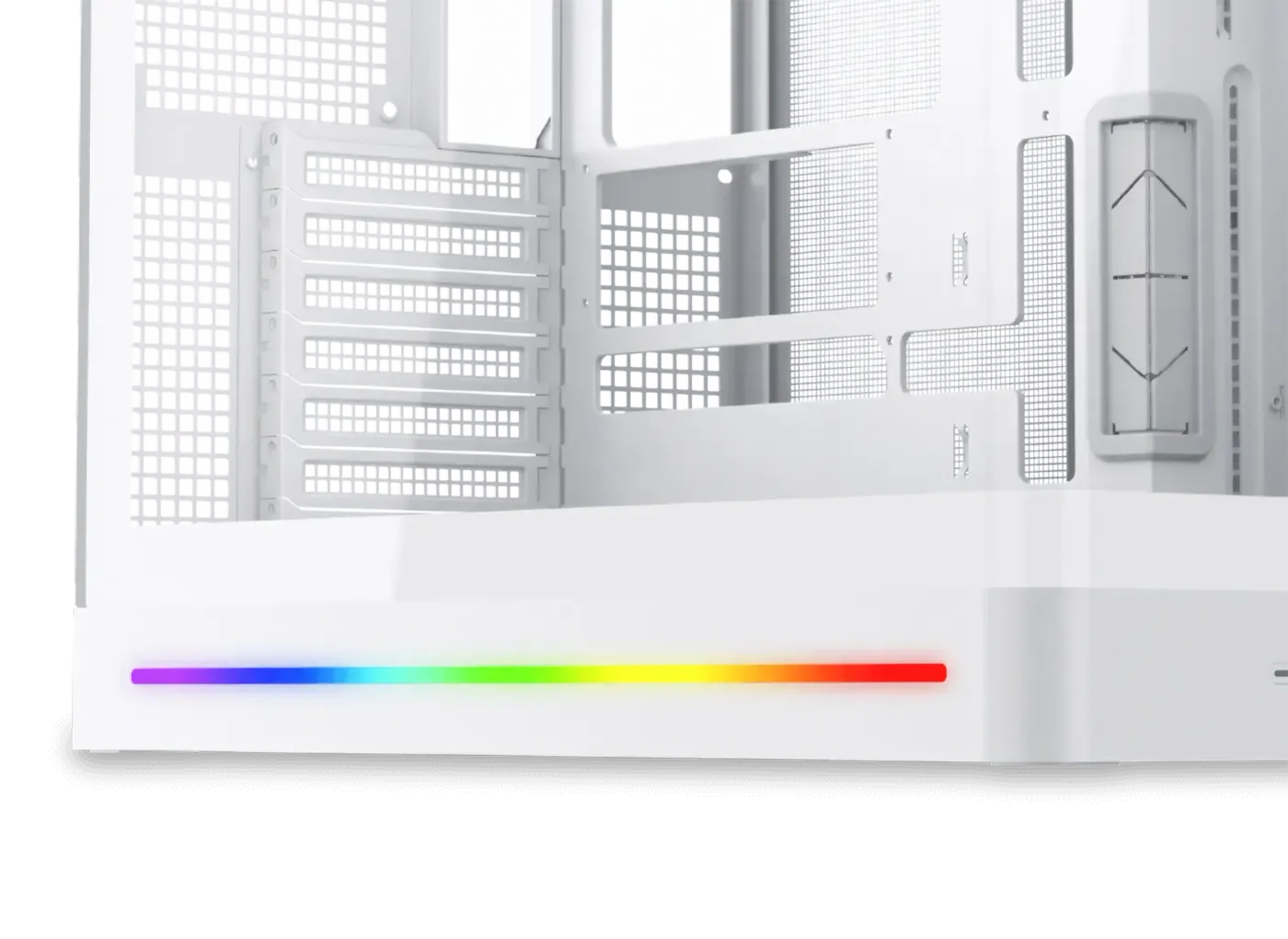

The chassis features a dynamic visual design enhanced by integrated ARGB LED lighting. This lighting system allows for customizable illumination to match the user's setup or aesthetic preferences.

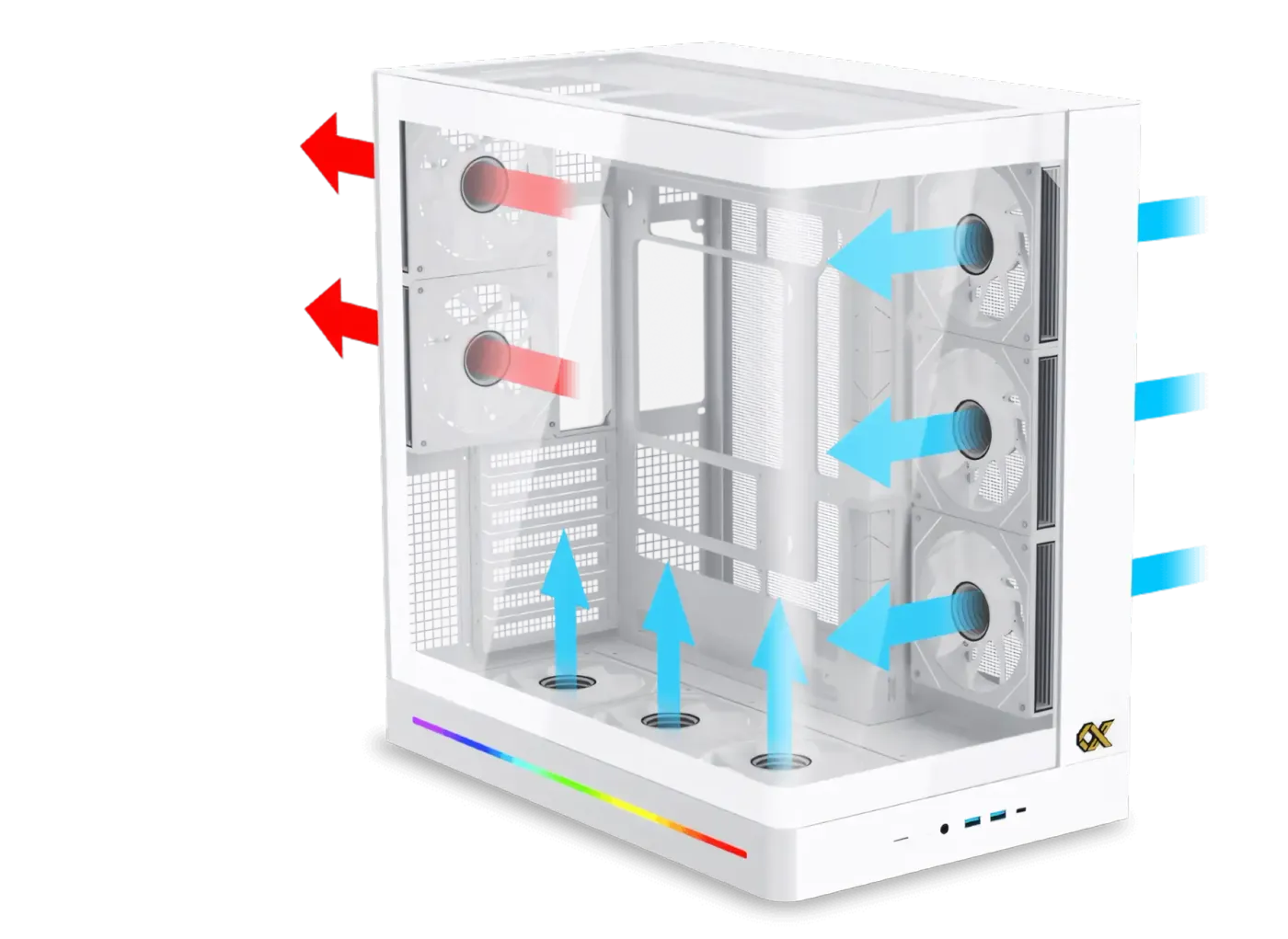

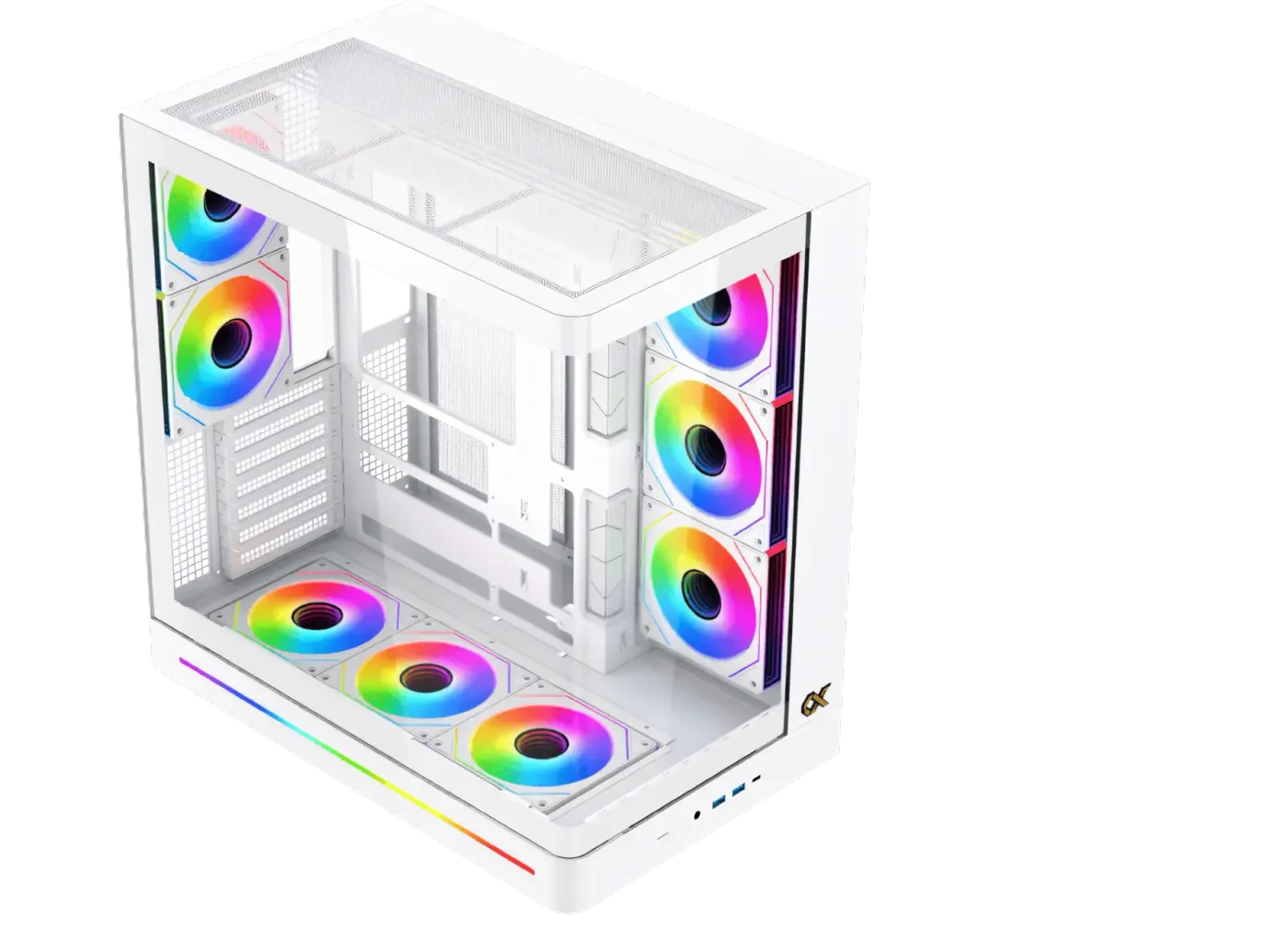

Featuring advanced airflow and ventilation architecture, this chassis maximizes cooling efficiency by directing airflow precisely where it's needed, ensuring stable performance and longevity for high-end components.

Engineered for maximized airflow efficiency, this case enhances cooling performance by optimizing air circulation, keeping your components consistently cool under heavy workloads.

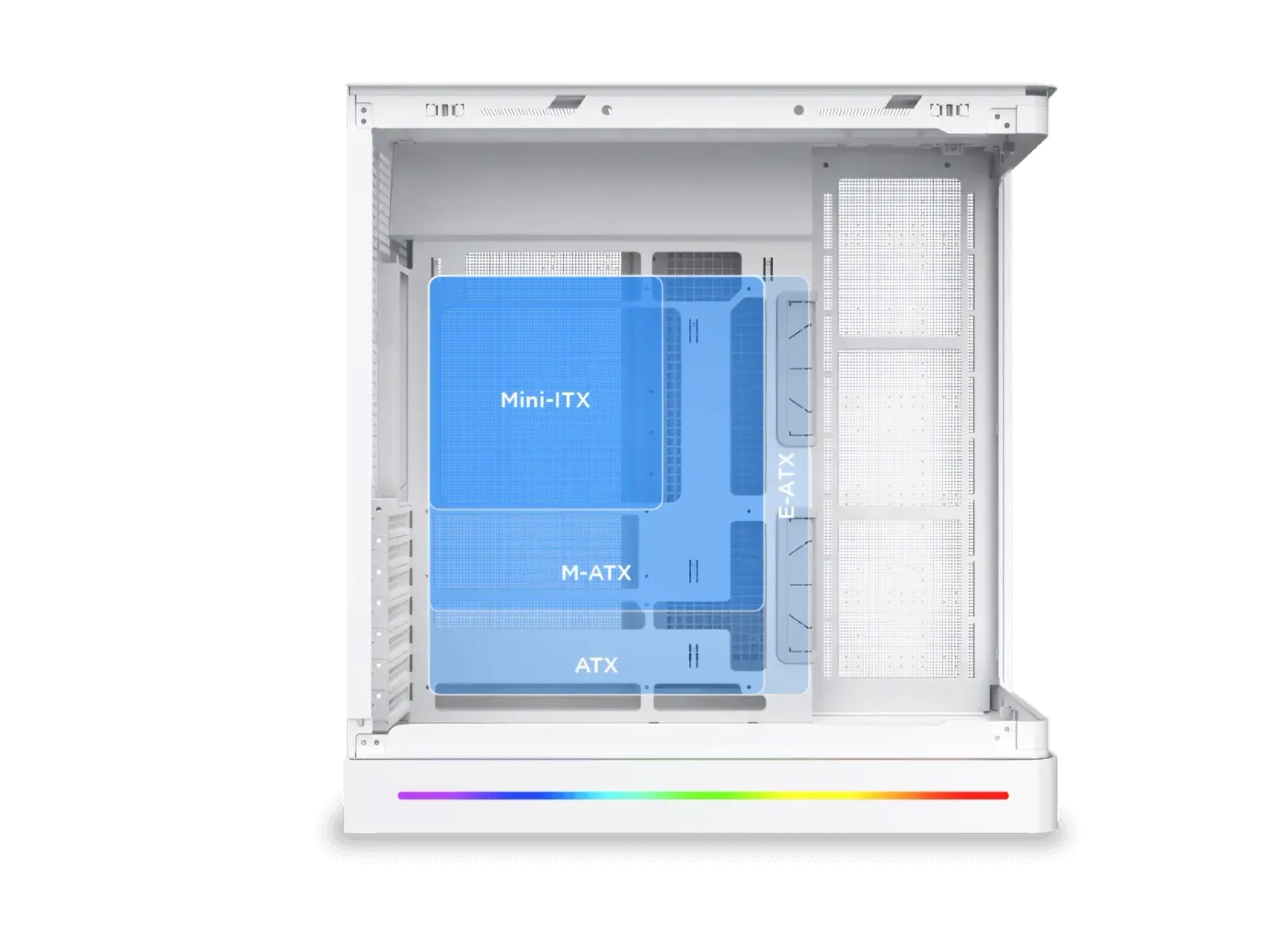

This case offers extensive support for various motherboard form factors, including E-ATX (up to 285mm), standard ATX, M-ATX, and ITX. Both the ATX and M-ATX formats feature support for the innovative Back Plug design.

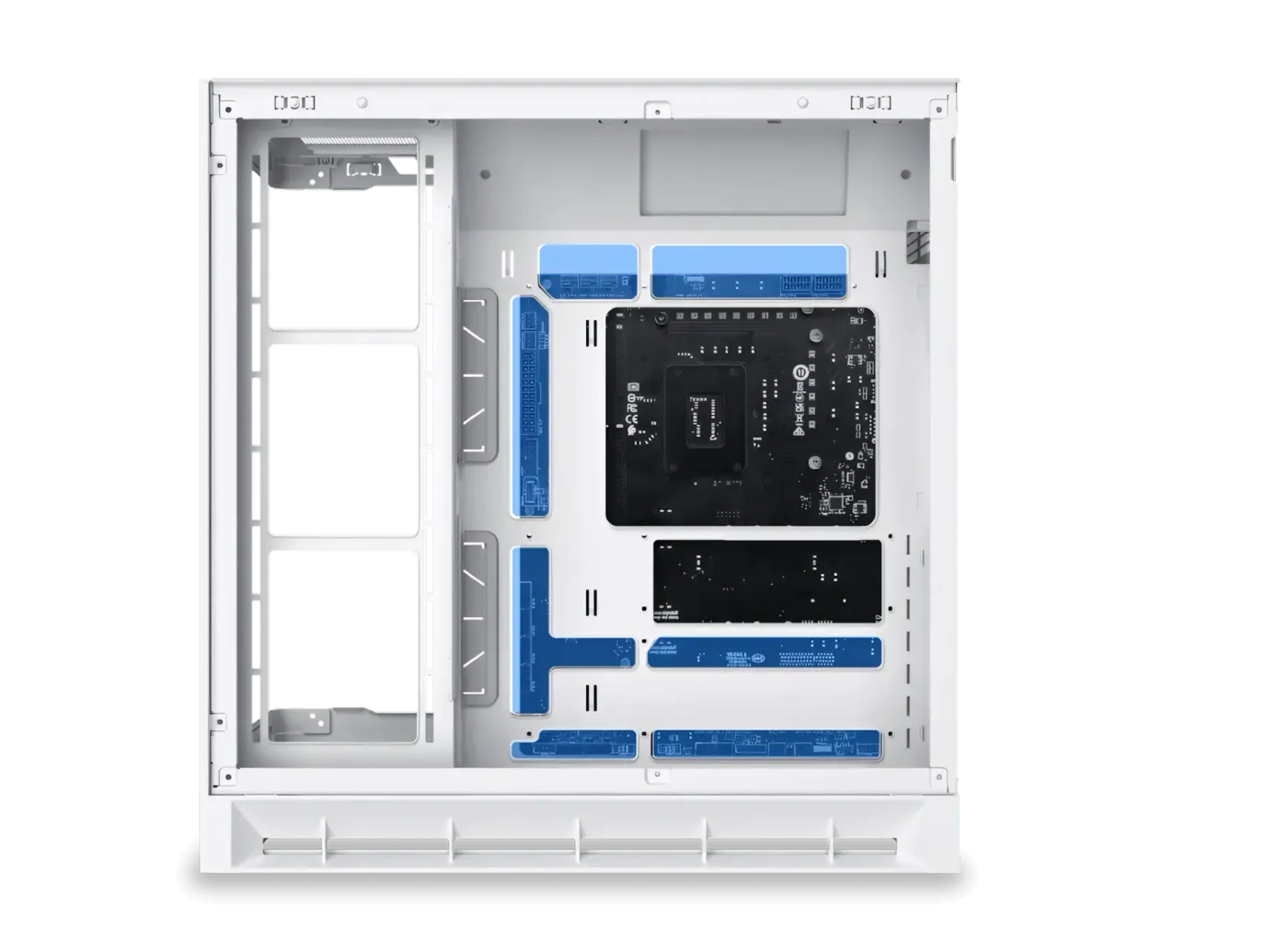

This chassis provides specific compatibility for Back Plug Motherboards in both the ATX and M-ATX form factors, facilitating cleaner cable management and streamlined system building.

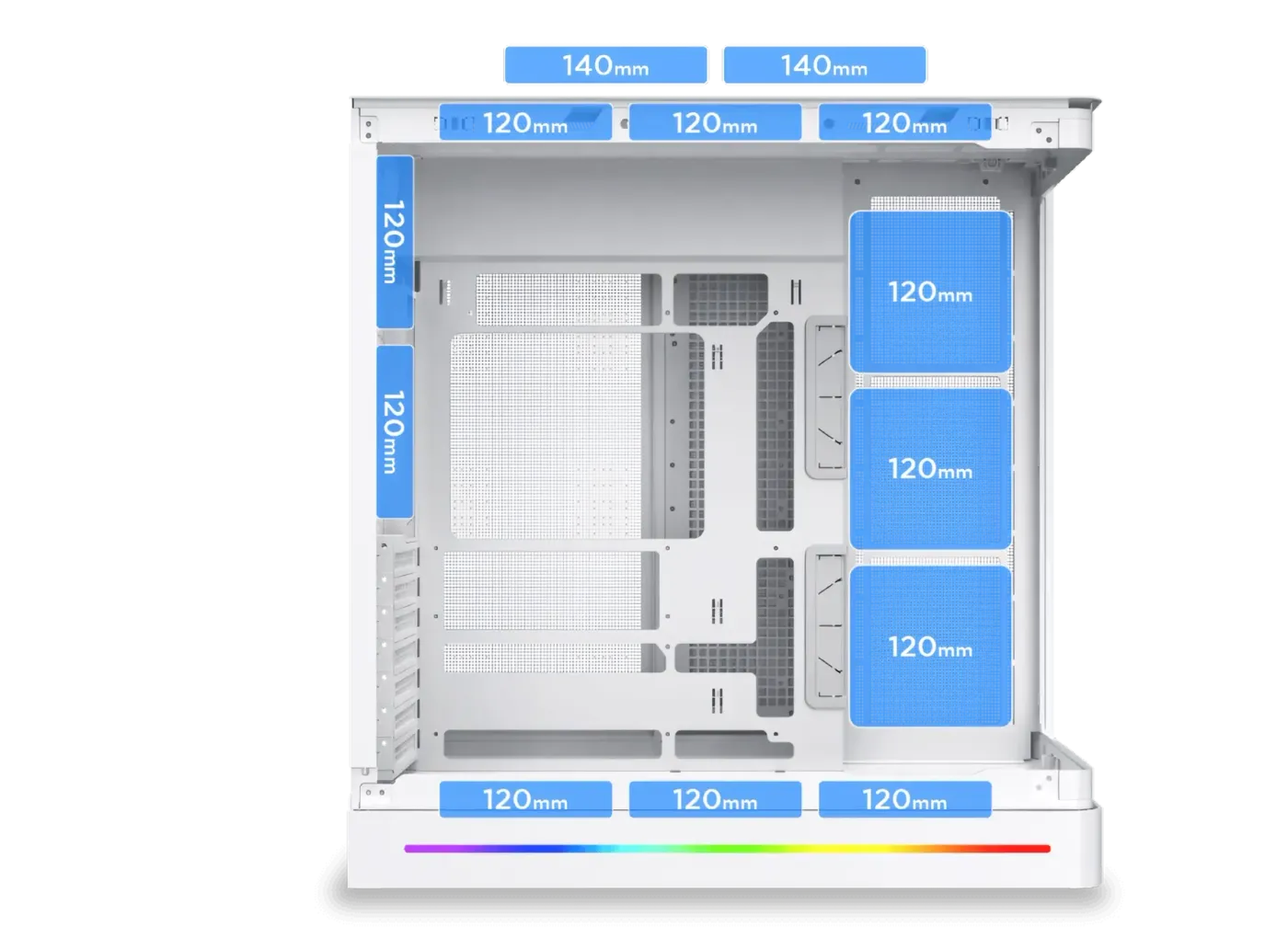

The chassis offers extensive fan mounting locations: the Top supports three 120mm fans or two 140mm fans; the Side supports three 120mm fans; the Bottom supports three 120mm fans; and the Rear supports two 120mm fans.

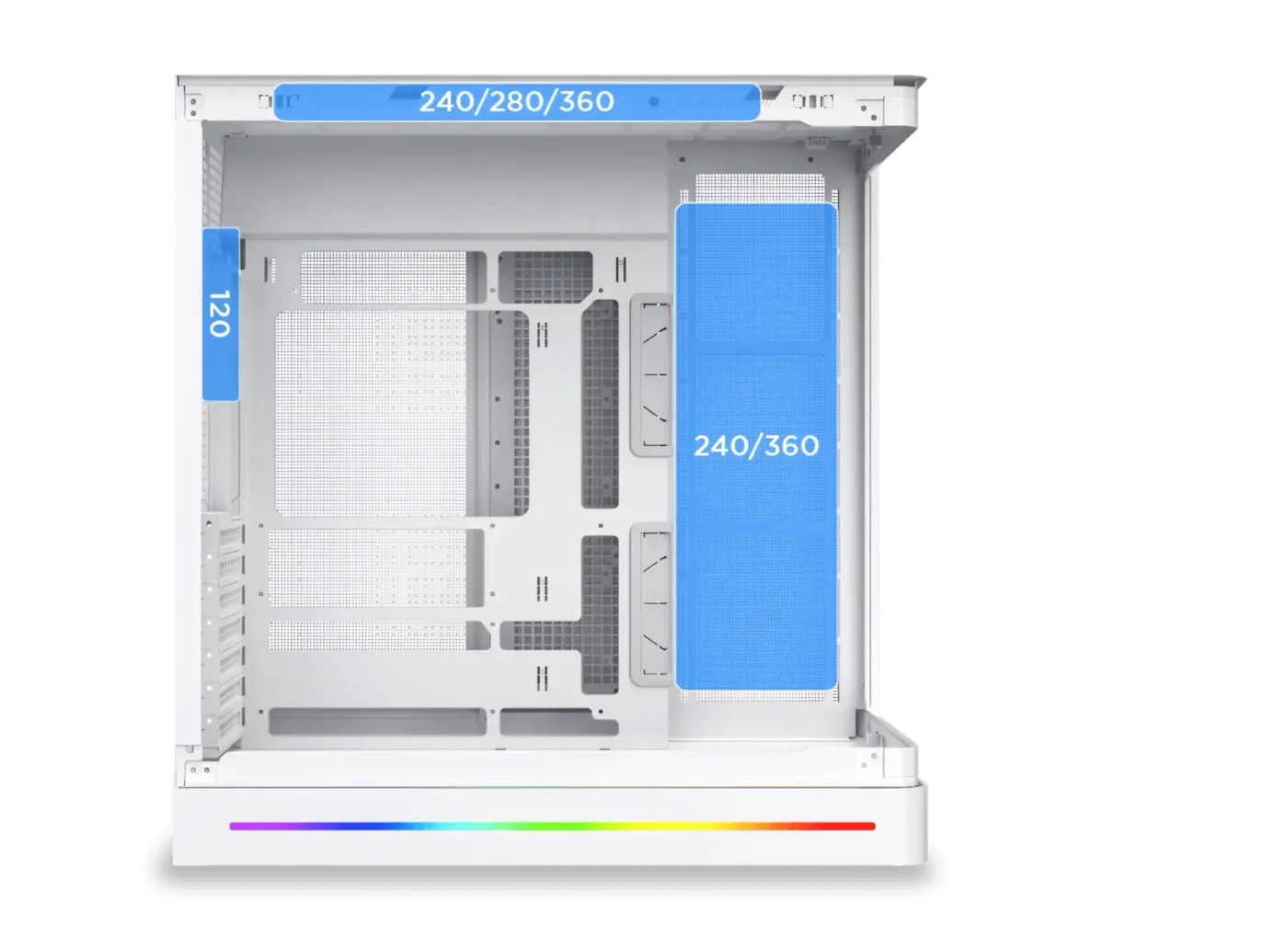

The case offers flexible support for liquid cooling solutions: the Top mounting position is compatible with radiators measuring 240mm, 280mm, or 360mm. The Side position supports 240mm or 360mm radiators, while the Rear can accommodate a 120mm radiator.

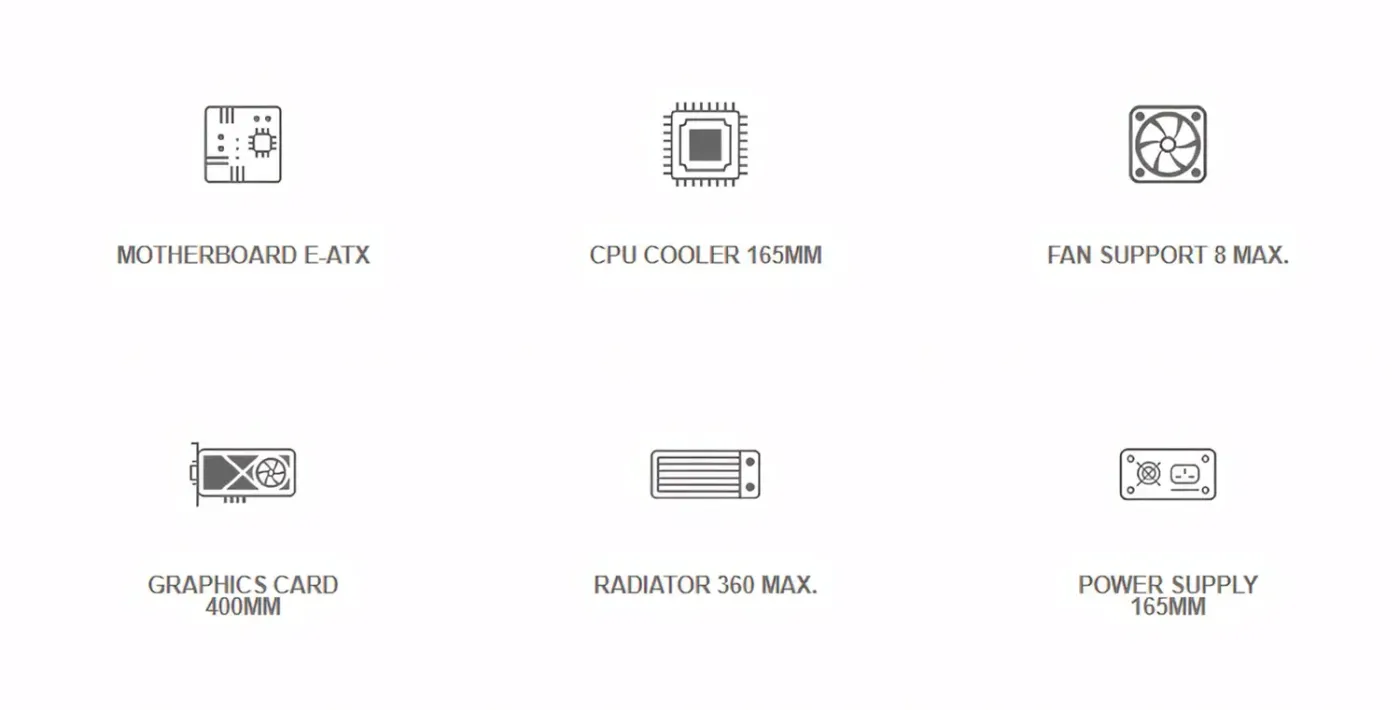

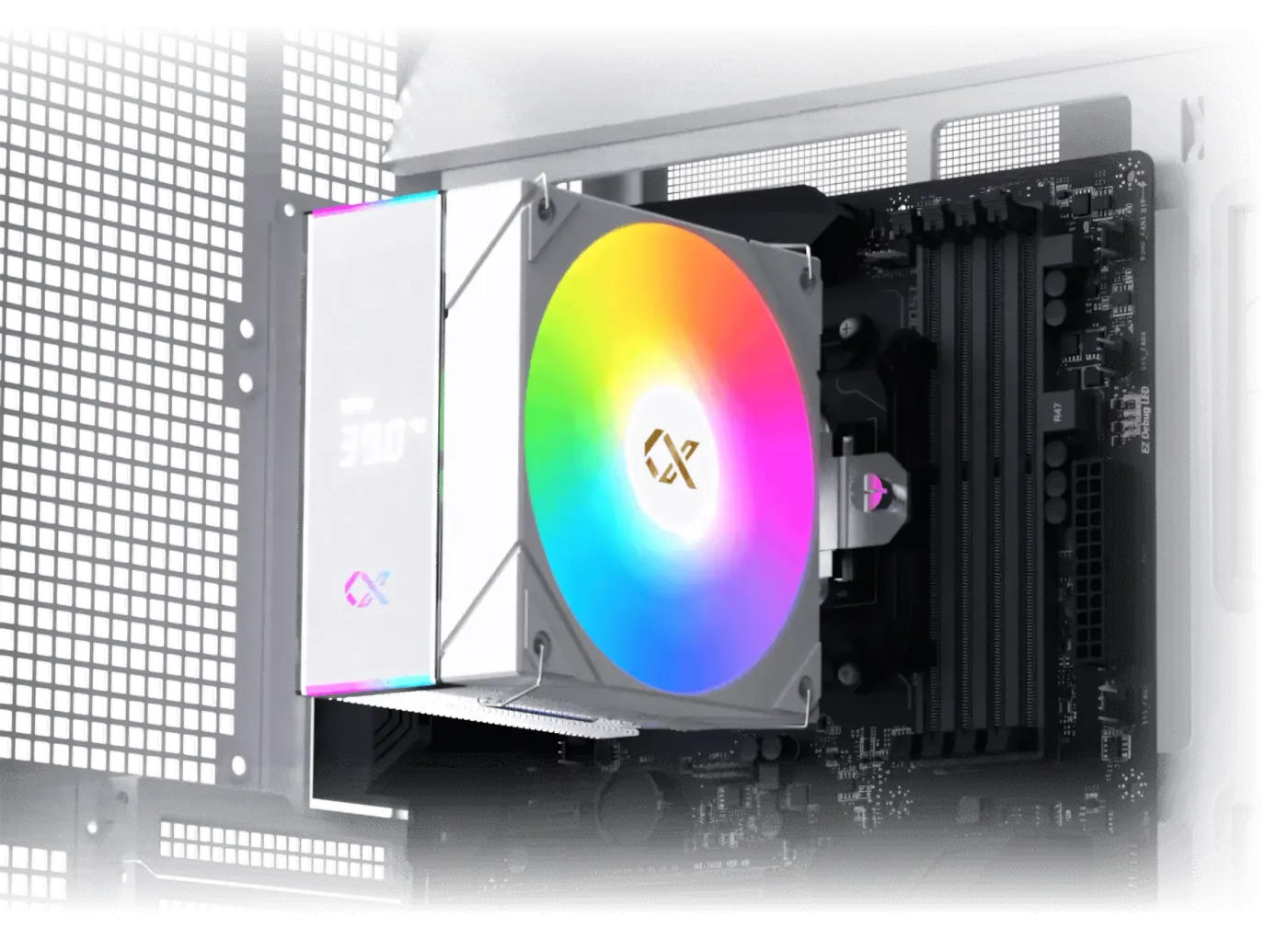

The chassis provides generous internal space, allowing for CPU air coolers with a maximum height clearance of 165mm. This ensures compatibility with many larger, high-performance cooling towers.

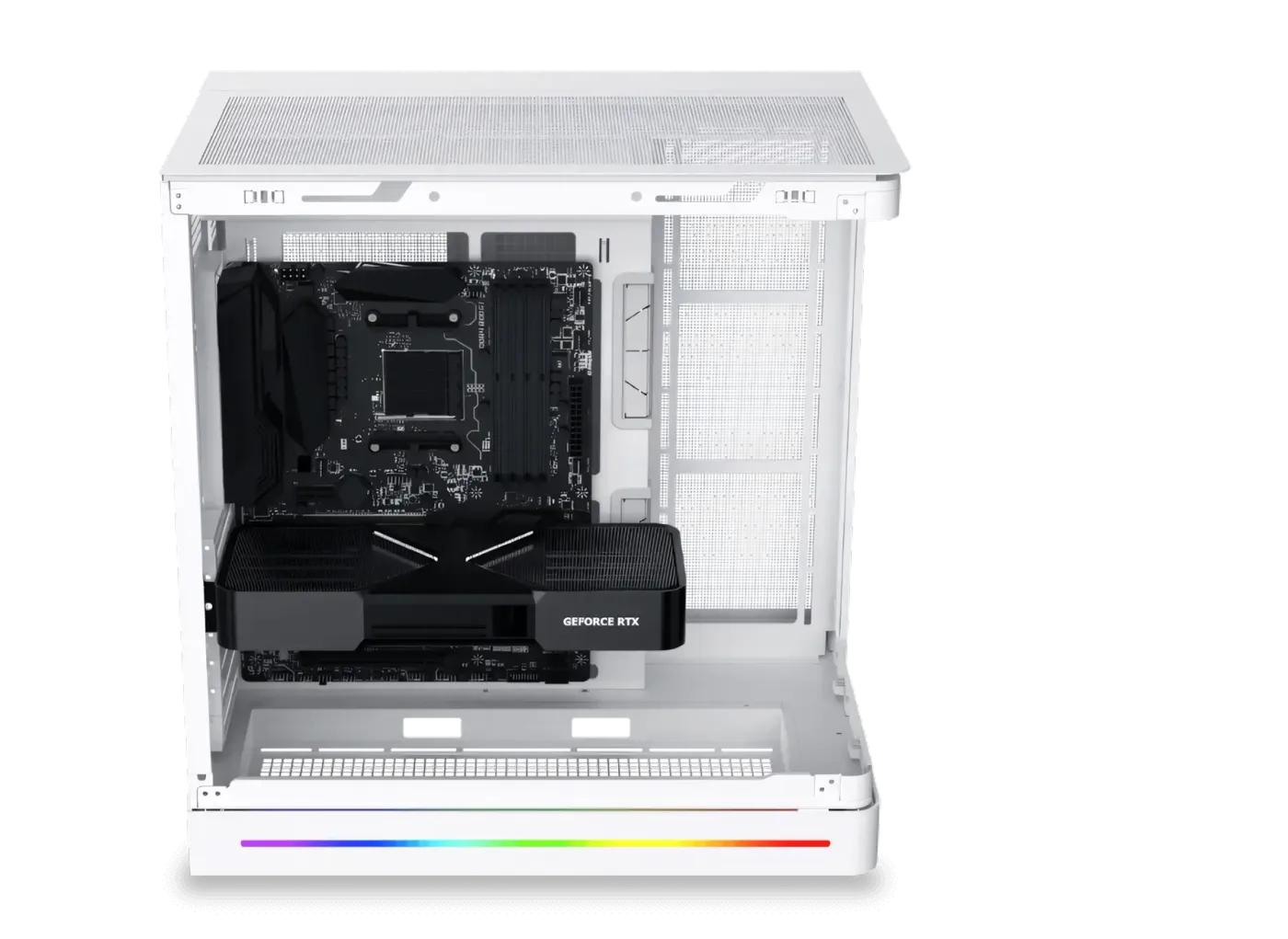

The internal space allows for graphics cards up to 400mm in length. Builders have the flexibility to install the GPU in either a standard Horizontal orientation or a display-focused Vertical orientation.

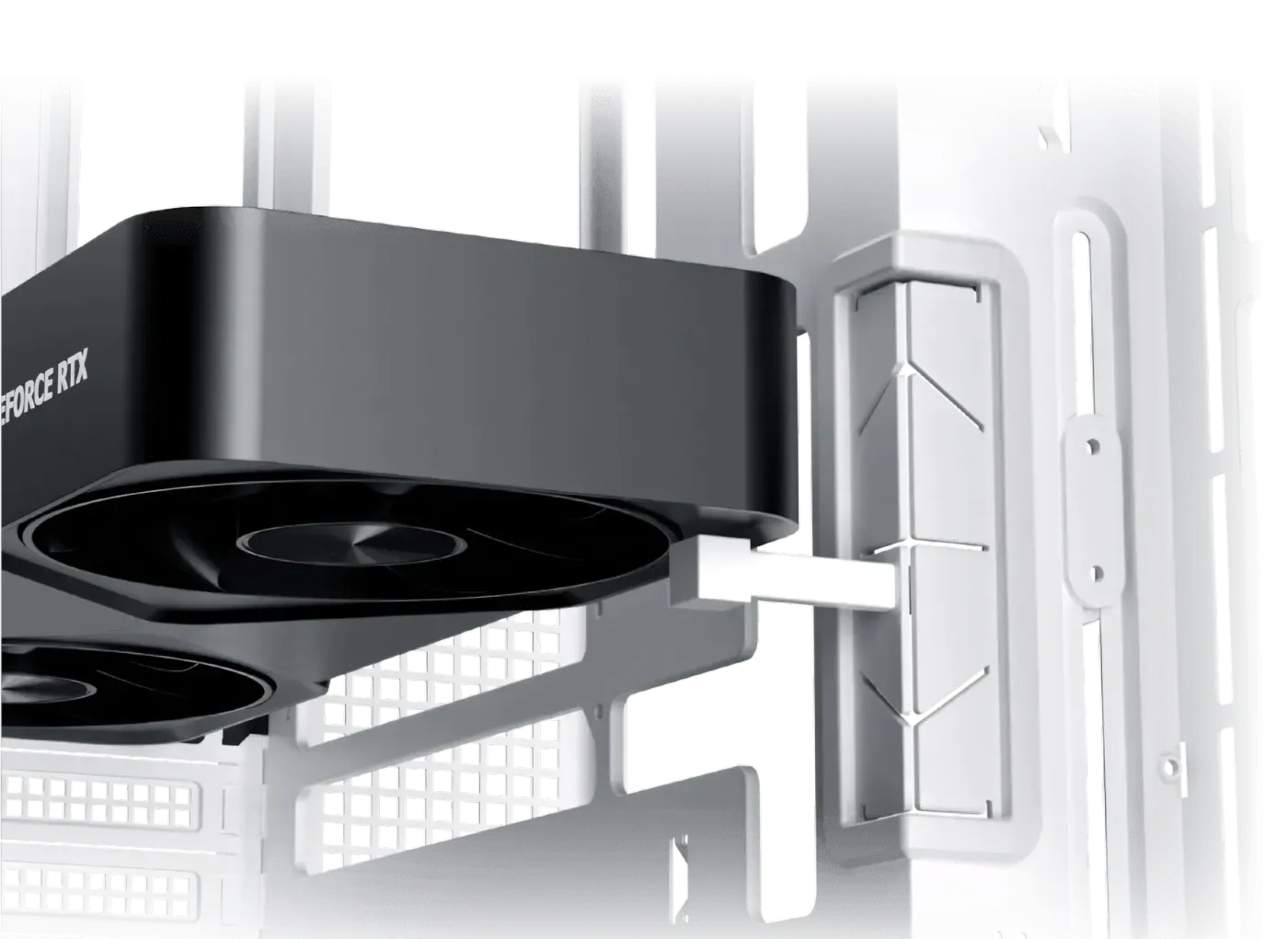

The chassis includes an adjustable GPU support bracket designed to prevent graphics card sag. This crucial feature provides stability and long-term protection for larger, heavier graphics cards.

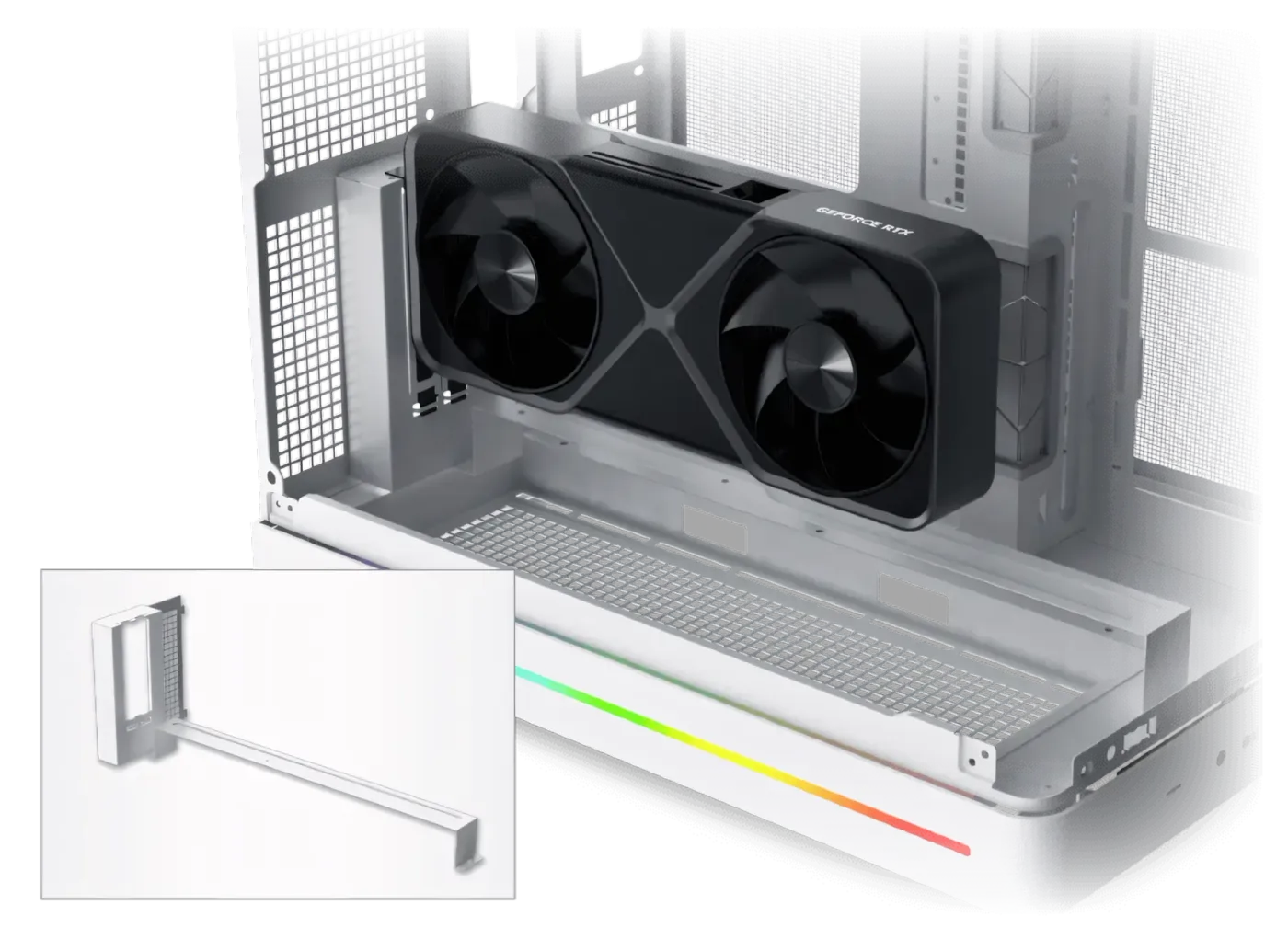

The chassis fully supports vertical installation of the Graphics Processing Unit (GPU). To facilitate this, a specialized vertical GPU bracket is included with the case, enhancing aesthetic display.

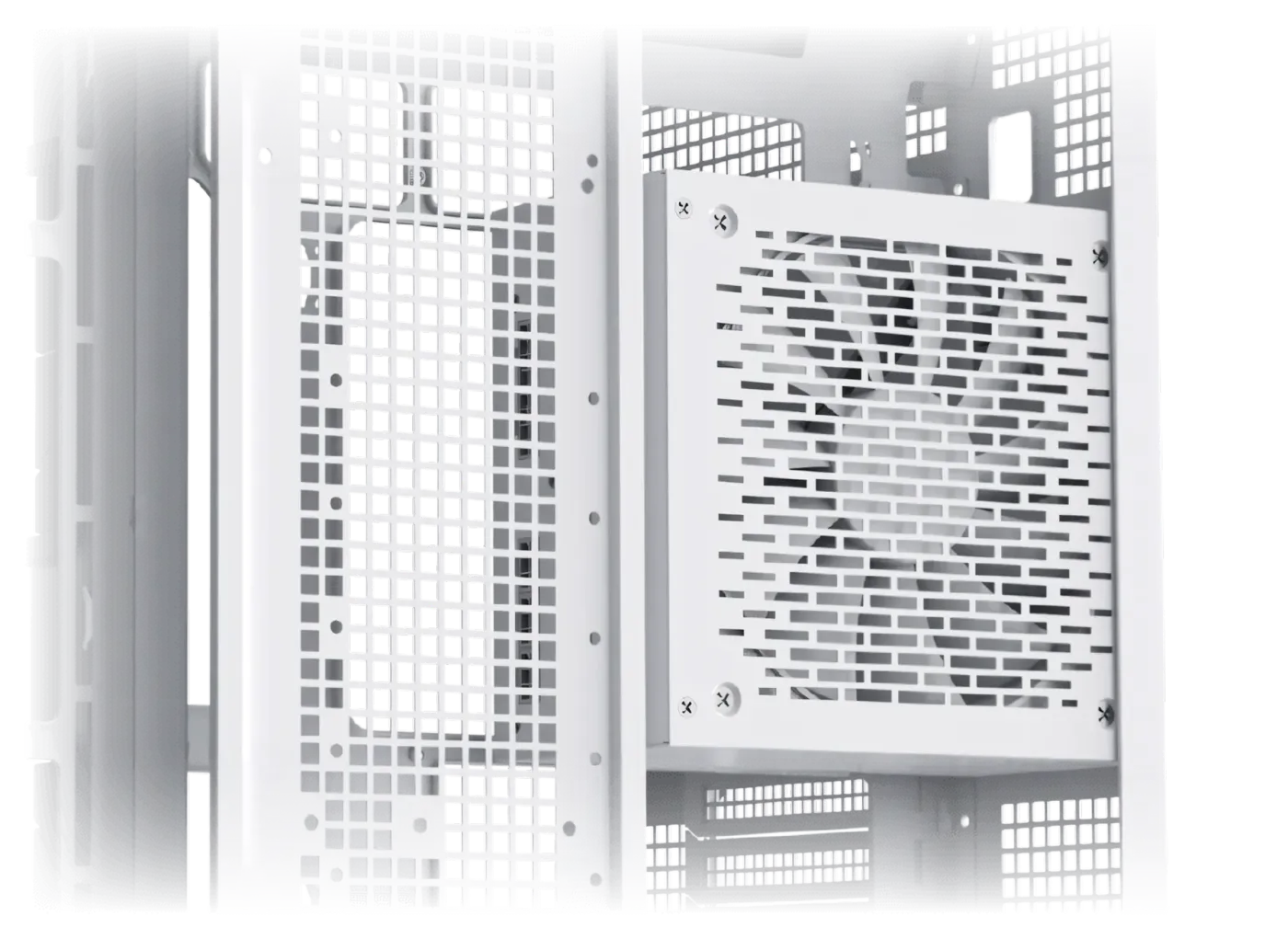

The Power Supply Unit (PSU) installation area has a length limitation, supporting units up to a maximum size of 165mm. This crucial specification should be considered when purchasing a compatible PSU.

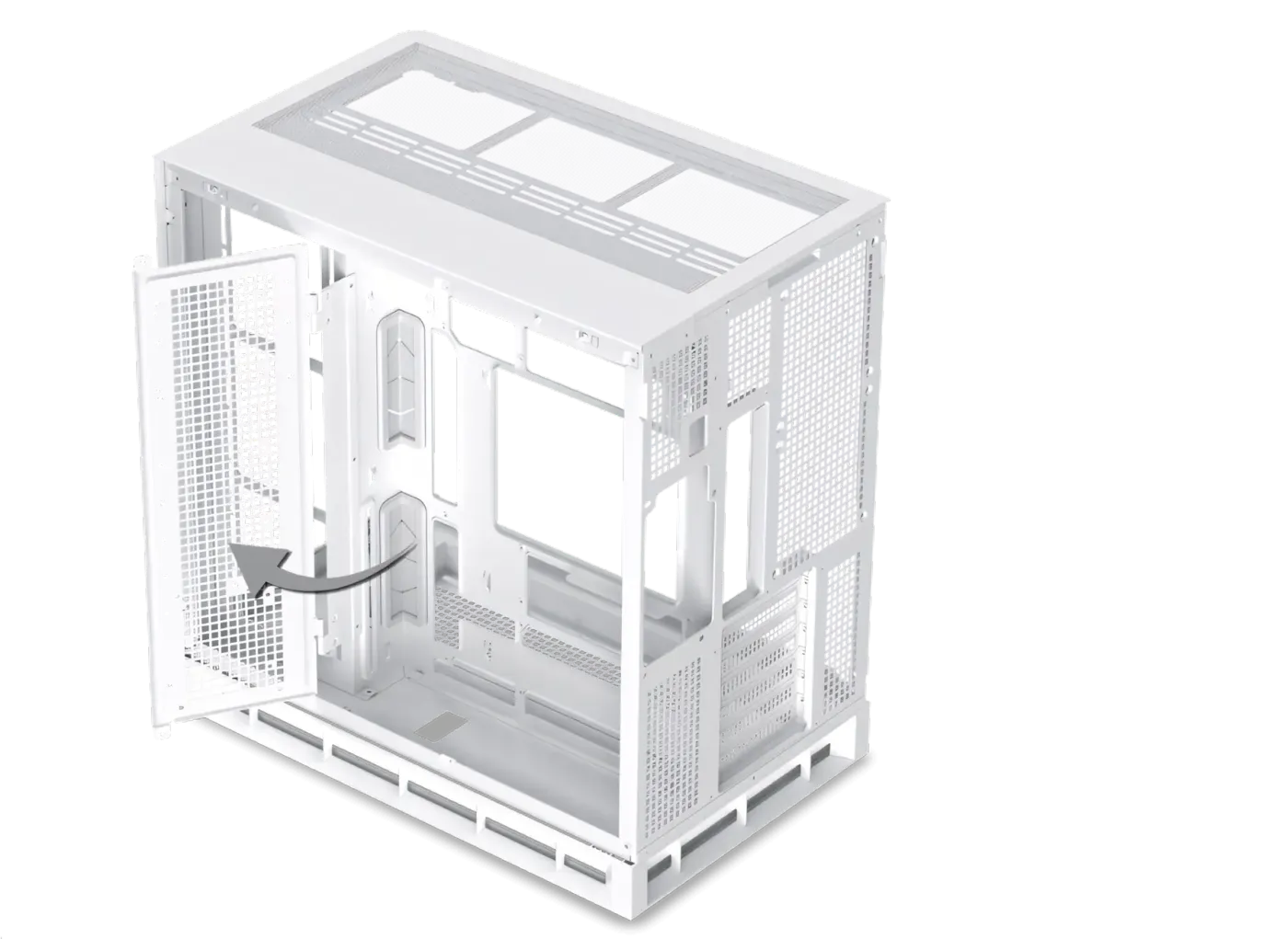

The design incorporates a convenient flip cover mechanism for easy access to the SSD/HDD mounting locations. This simplifies the installation and replacement of storage drives while keeping the rear cable management area tidy.

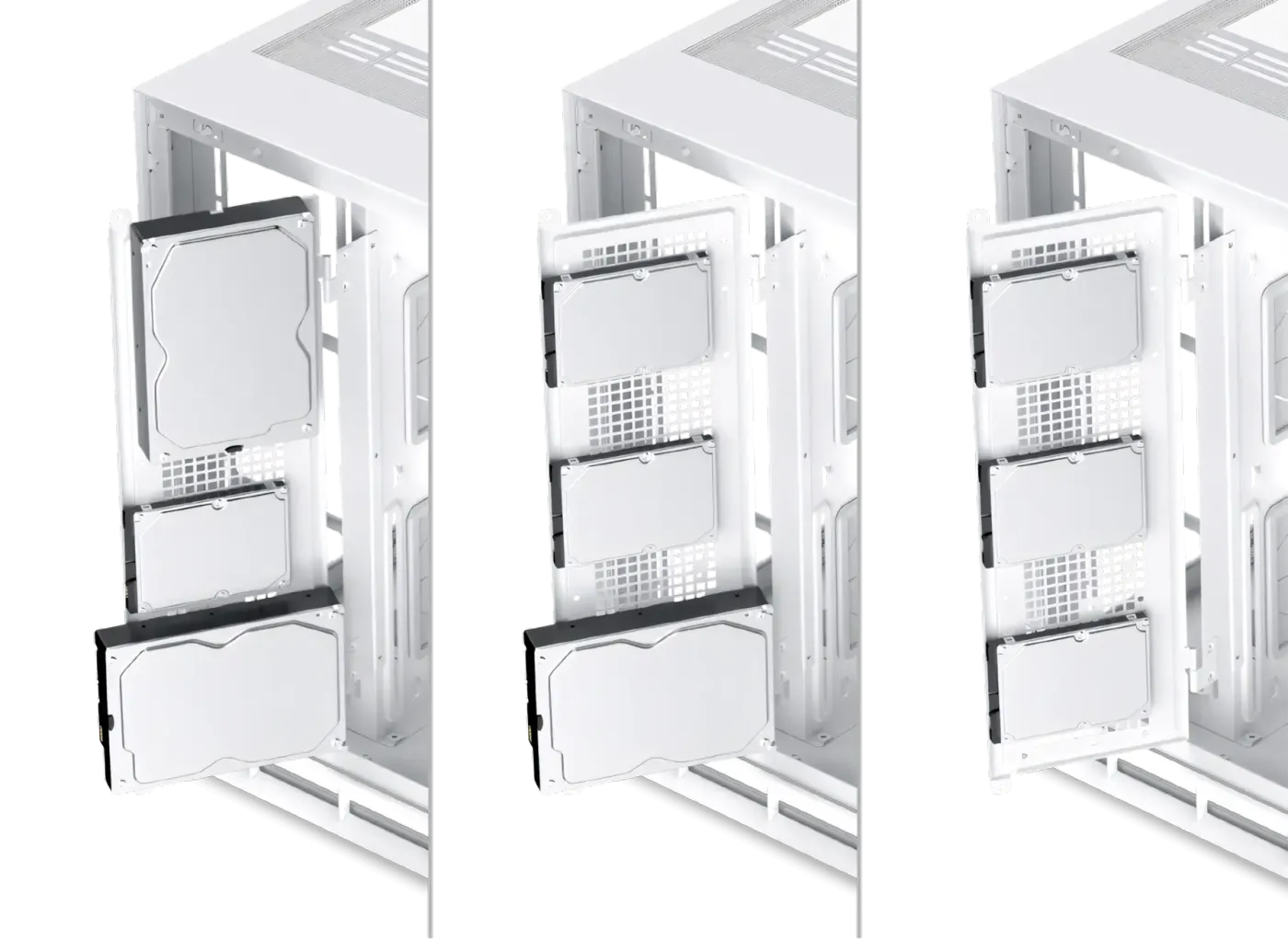

The chassis supports various flexible storage configurations, allowing for a combination of 3.5″ and 2.5″ drives. Supported layouts include: two 3.5″ drives and one 2.5″ drive, one 3.5″ drive and two 2.5″ drives, or a maximum of three 2.5″ drives.

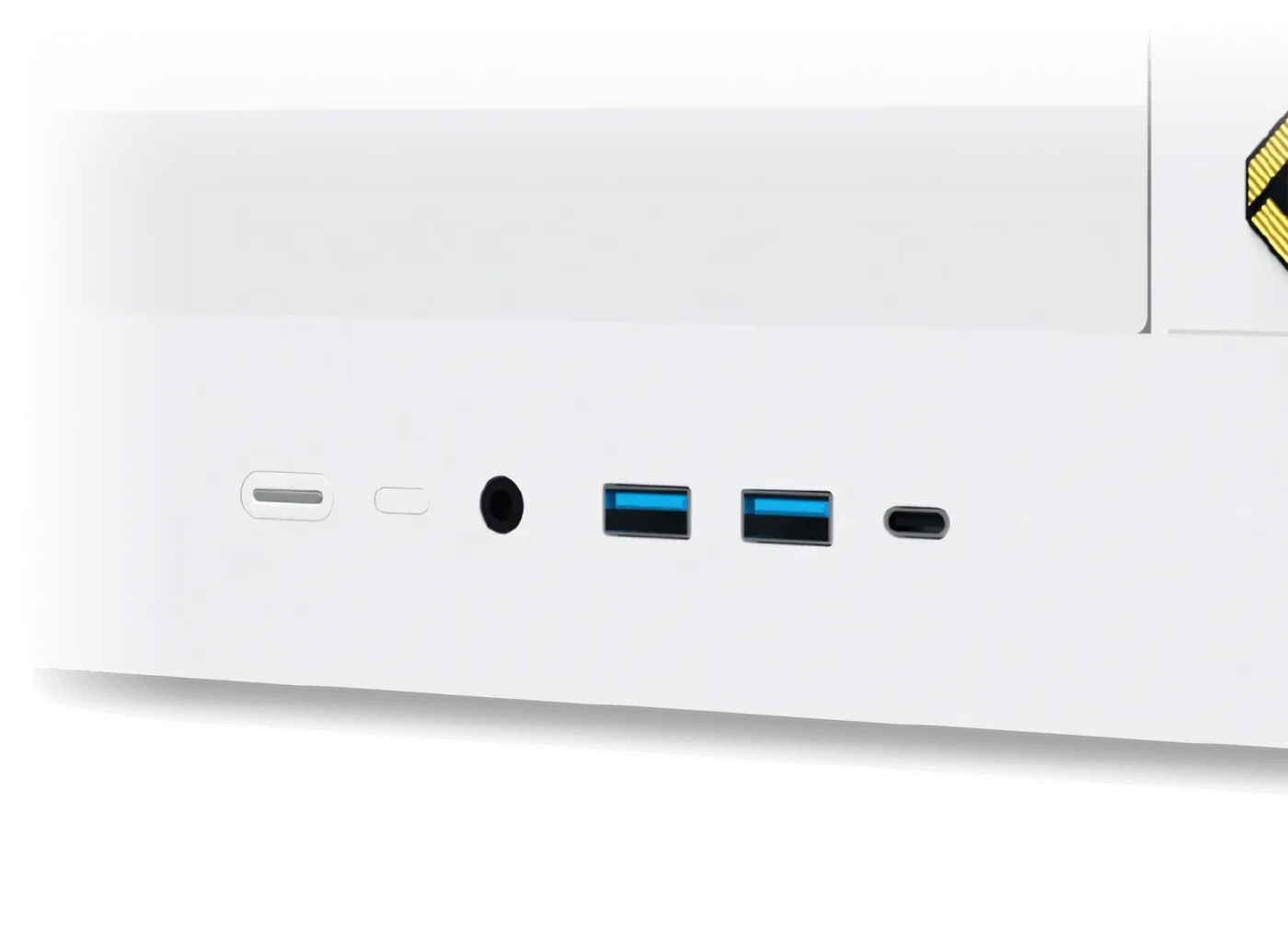

The front I/O panel offers essential connectivity and control, including a Power Button, a Reset Button, and an HD Audio Jack. For data transfer, it provides two USB 3.0 ports and a single USB-C port.

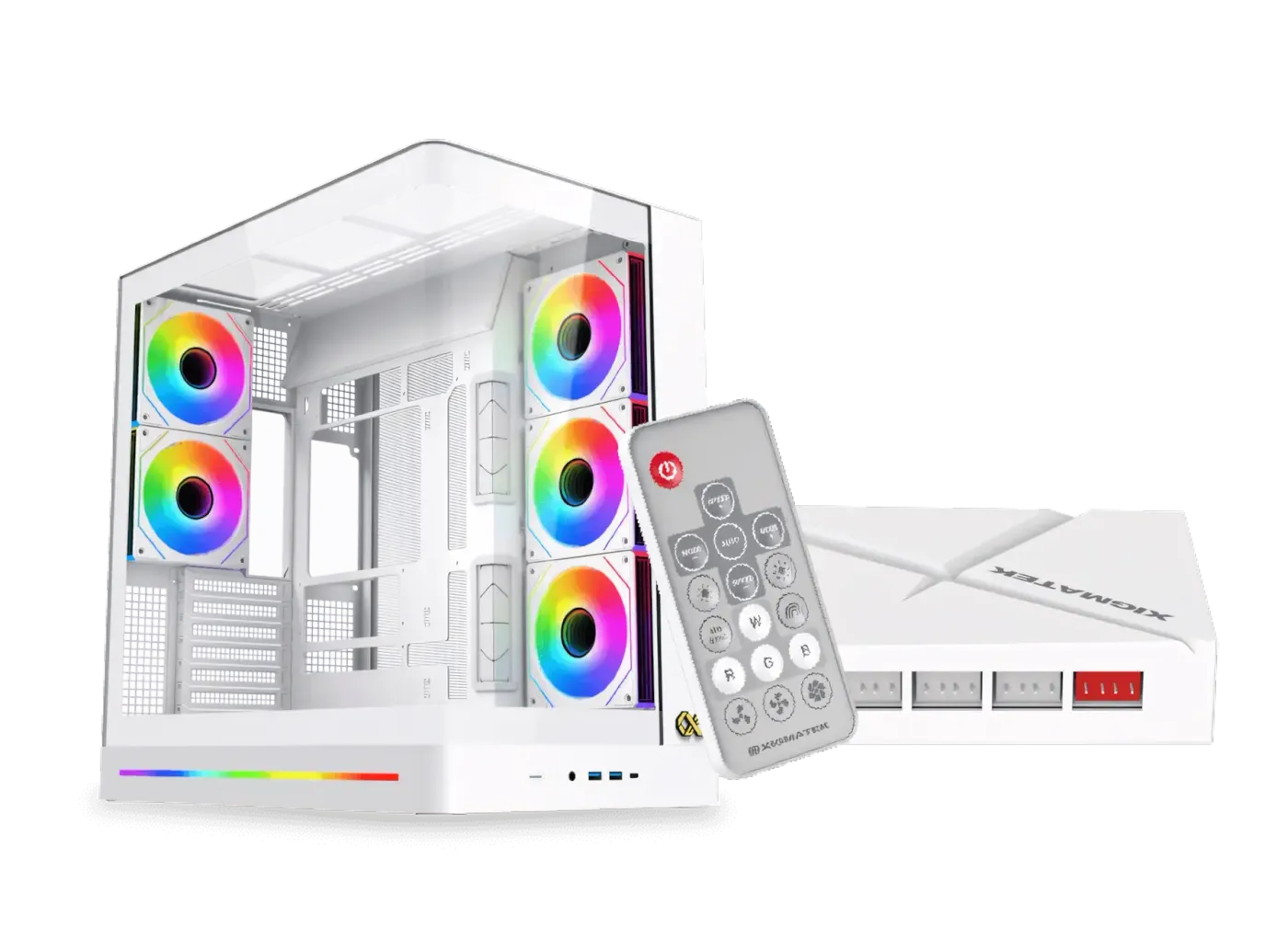

An ARGB and PWM Control Box is included with a Remote Control for managing lighting and fan speeds. The unit has specific power limitations: 5V rail supports a Total 40W maximum, and the 12V rail supports a Total 36W maximum. Users are cautioned strictly against overpowering the control box due to potential damage.
