Xigmatek Pano II Arctic Mid Tower Gaming Case / Supports Motherboards up to E-ATX / Single-Piece Curved Tempered Glass Chassis / Optimized Airflow Design / CPU Cooler Clearance up to 165mm / GPU Length up to 400mm / Adjustable GPU Support Bracket / 8 x Pre-Installed ARGB Fans Included / LCD Display Panel Not Included / EN48425 + FREE DELIVERY !
1 Year Local Warranty
Model No : Xigmatek EN48425
Price Inc. Vat
R 2,999
Save R 300.00
ListR 3,299
2999Free Delivery
Qty:
In Stock with Evetech
Xigmatek Pano II Arctic Gaming Case w/ 8 ARGB Fans

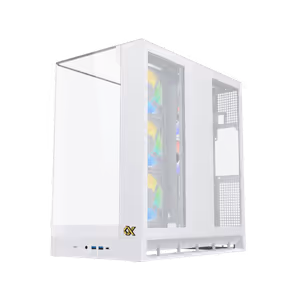

Pano II Arctic: White E-ATX Mid Tower Chassis
The Pano II Arctic is the white finish of Xigmatek's steel mid tower, measuring 447 x 285 x 466 mm and taking motherboards from Mini-ITX through to a 285 mm E-ATX board. It comes with eight ARGB fans already mounted, so cooling and lighting are in place before the first component goes in. Seven standard expansion slots and a PS2 ATX power supply bay complete the internal layout.
Pano II Arctic: White E-ATX Mid Tower Chassis
The Pano II Arctic is the white finish of Xigmatek's steel mid tower, measuring 447 x 285 x 466 mm and taking motherboards from Mini-ITX through to a 285 mm E-ATX board. It comes with eight ARGB fans already mounted, so cooling and lighting are in place before the first component goes in. Seven standard expansion slots and a PS2 ATX power supply bay complete the internal layout.

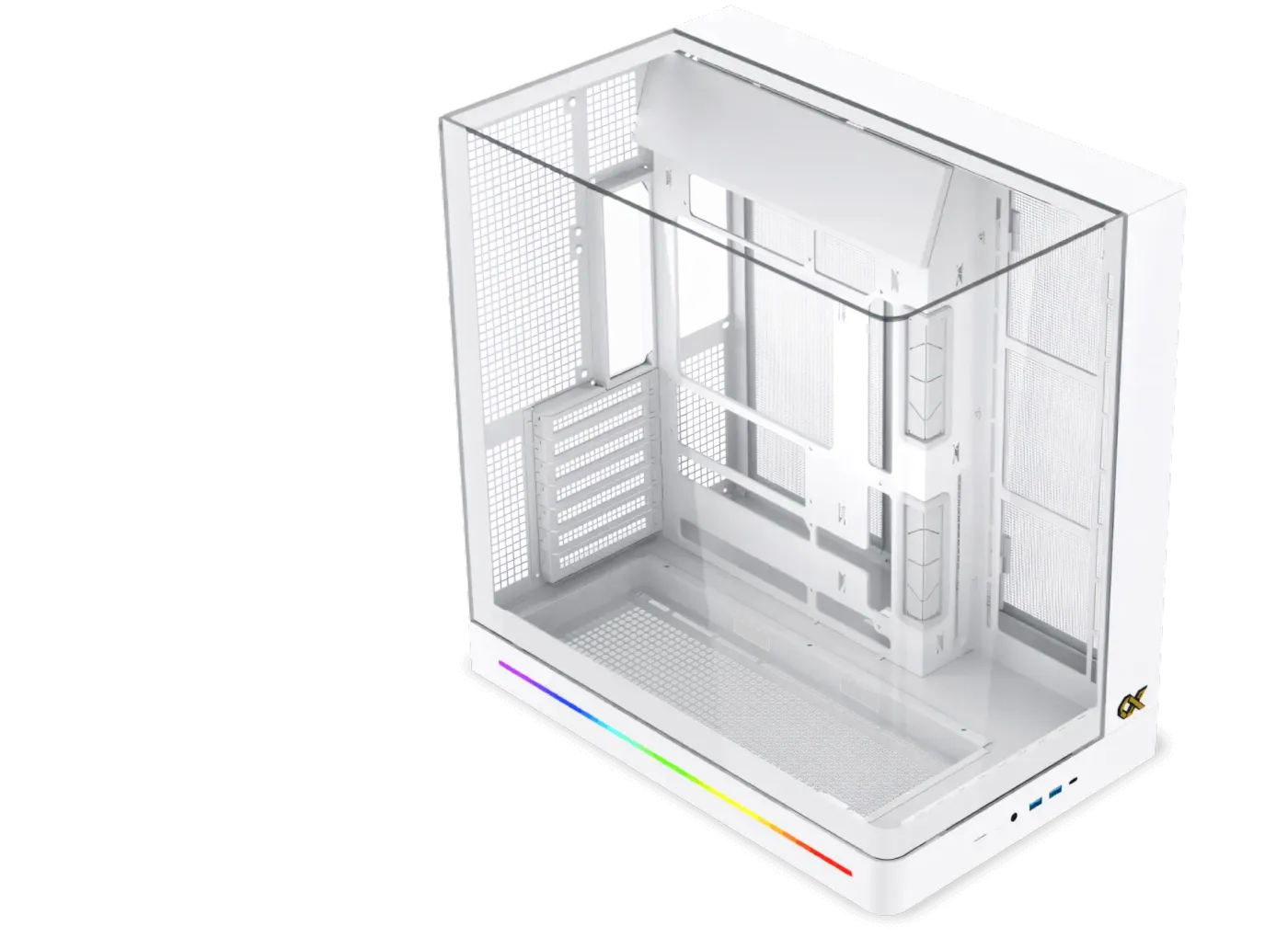

Seamless Single-Piece Curved Tempered Glass Panel
This design features a stunning single-piece curved tempered glass panel, providing an uninterrupted, expansive view of your internal components for a premium aesthetic.
Seamless Single-Piece Curved Tempered Glass Panel
This design features a stunning single-piece curved tempered glass panel, providing an uninterrupted, expansive view of your internal components for a premium aesthetic.

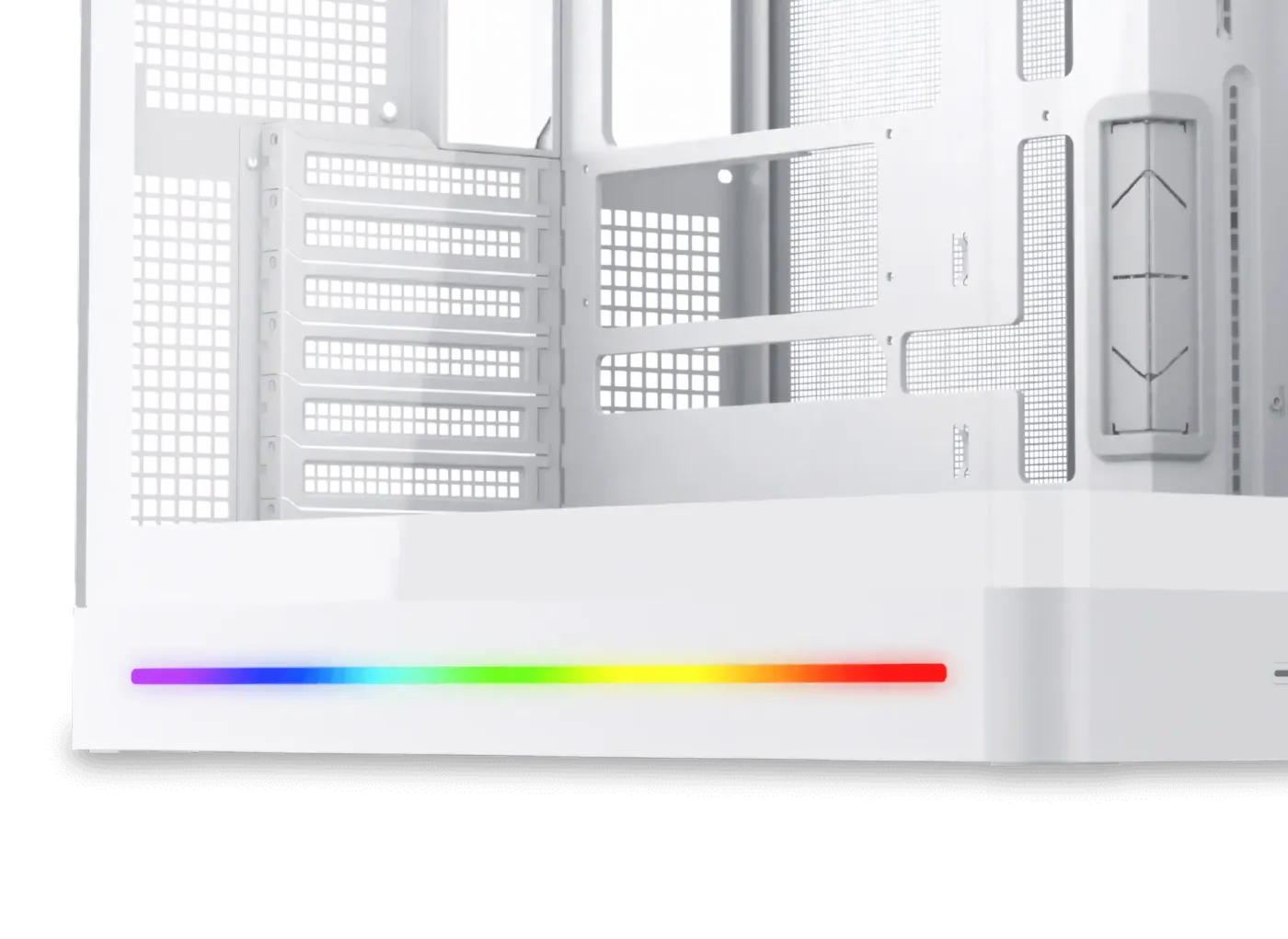

Dynamic Aesthetics with Addressable RGB Lighting
The chassis is engineered with a dynamic visual design that prominently features ARGB LED Lighting. This addressable RGB system allows for a wide range of customizable colors and lighting effects, enhancing the overall aesthetic of the system build.
Dynamic Aesthetics with Addressable RGB Lighting
The chassis is engineered with a dynamic visual design that prominently features ARGB LED Lighting. This addressable RGB system allows for a wide range of customizable colors and lighting effects, enhancing the overall aesthetic of the system build.

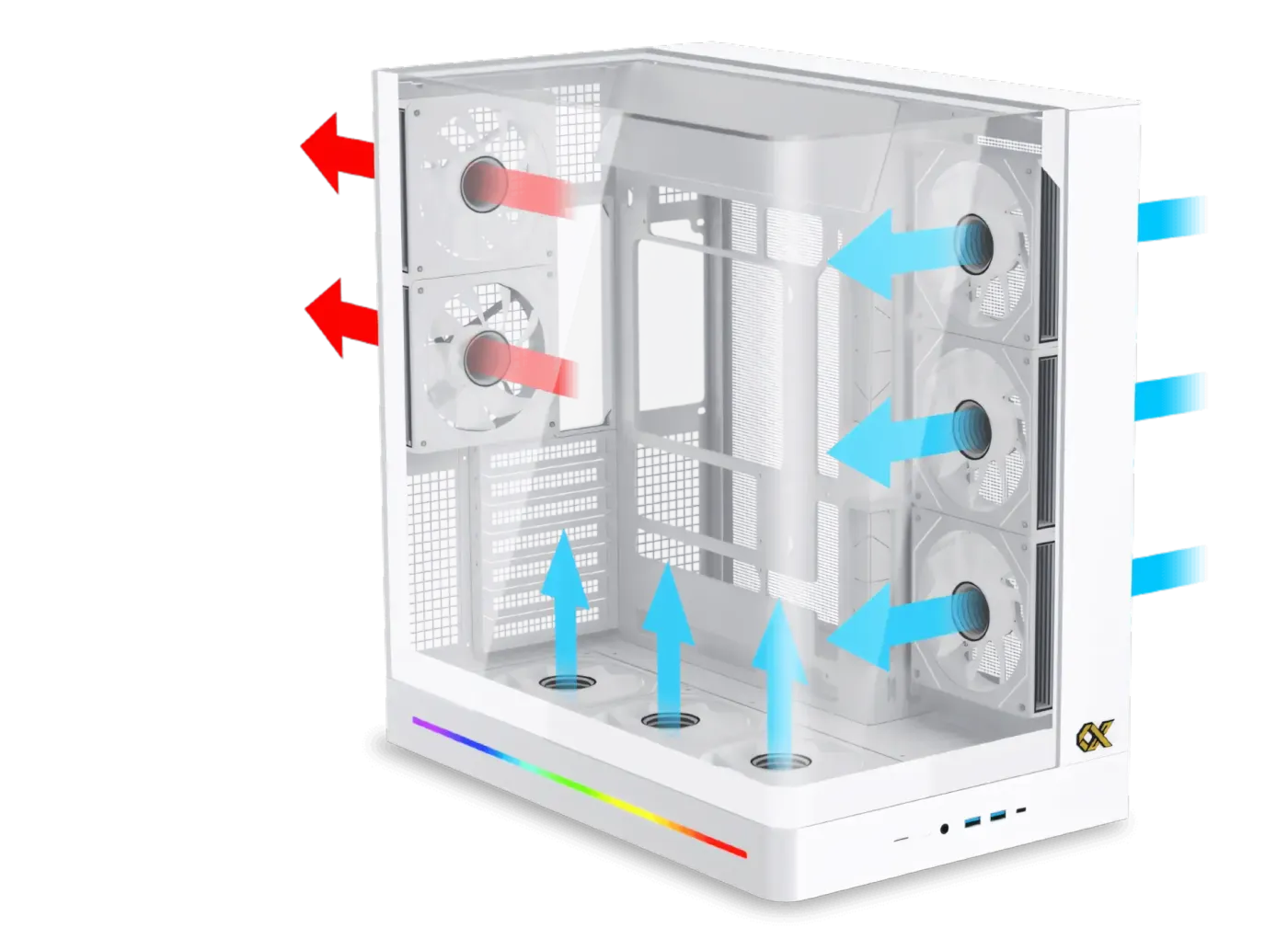

Optimized Airflow and High-Efficiency Ventilation
The case is engineered with a superior airflow system and dedicated ventilation design. This architecture maximizes cooling potential, ensuring efficient thermal dissipation to maintain optimal performance for all internal components.
Optimized Airflow and High-Efficiency Ventilation
The case is engineered with a superior airflow system and dedicated ventilation design. This architecture maximizes cooling potential, ensuring efficient thermal dissipation to maintain optimal performance for all internal components.

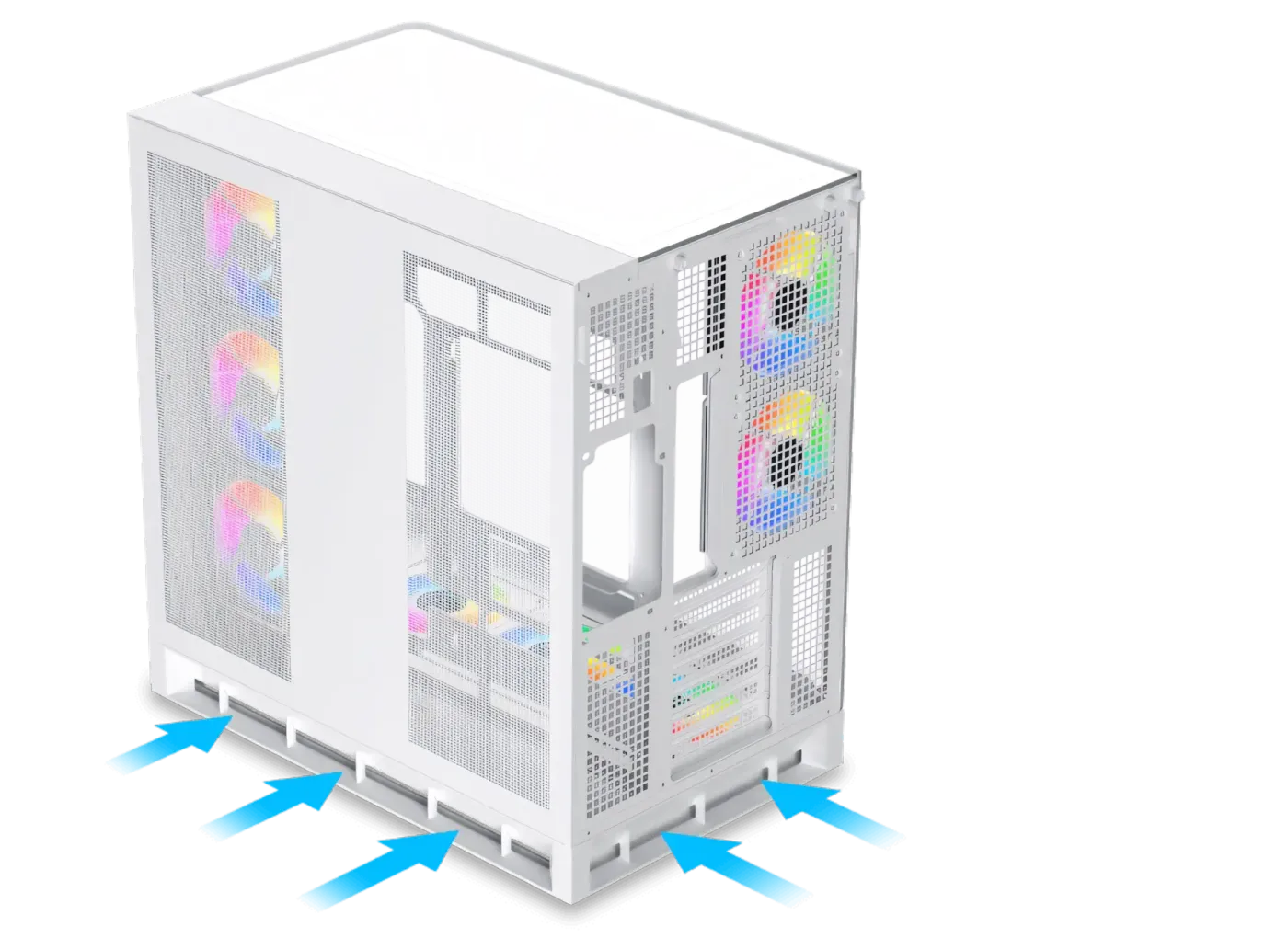

Enhancing Airflow Design
The internal structure is engineered for optimized airflow paths, ensuring cool air is efficiently directed to heat-sensitive components. This design contributes directly to overall system stability and performance under load.
Enhancing Airflow Design
The internal structure is engineered for optimized airflow paths, ensuring cool air is efficiently directed to heat-sensitive components. This design contributes directly to overall system stability and performance under load.

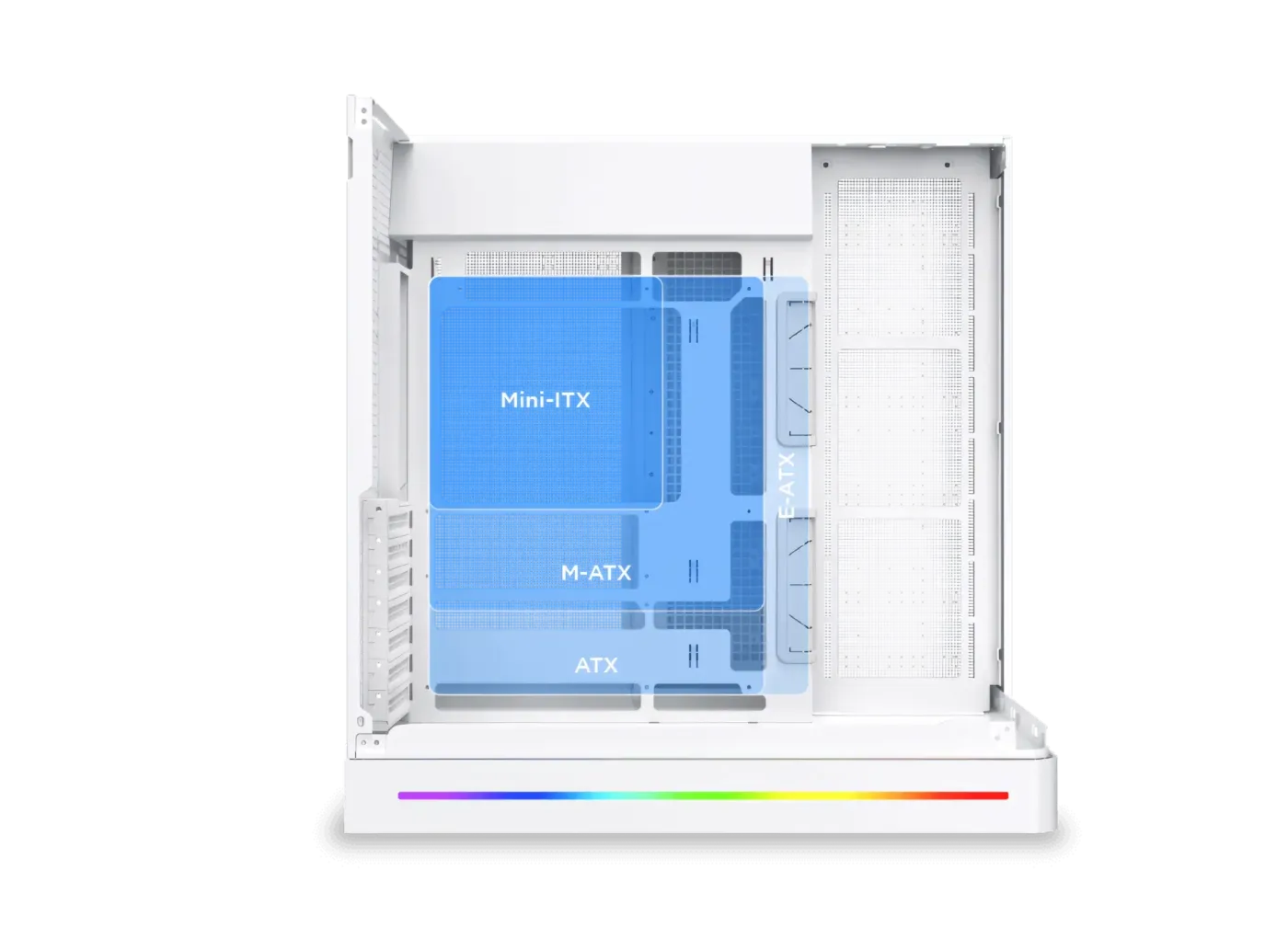

Extensive Motherboard Size Compatibility
The chassis provides extensive compatibility for various motherboard formats, including E-ATX (up to 285mm), standard ATX, Micro-ATX (M-ATX), and Mini-ITX (ITX). Notably, both ATX and M-ATX formats are supported with the convenient 'Back Plug' feature.
Extensive Motherboard Size Compatibility
The chassis provides extensive compatibility for various motherboard formats, including E-ATX (up to 285mm), standard ATX, Micro-ATX (M-ATX), and Mini-ITX (ITX). Notably, both ATX and M-ATX formats are supported with the convenient 'Back Plug' feature.

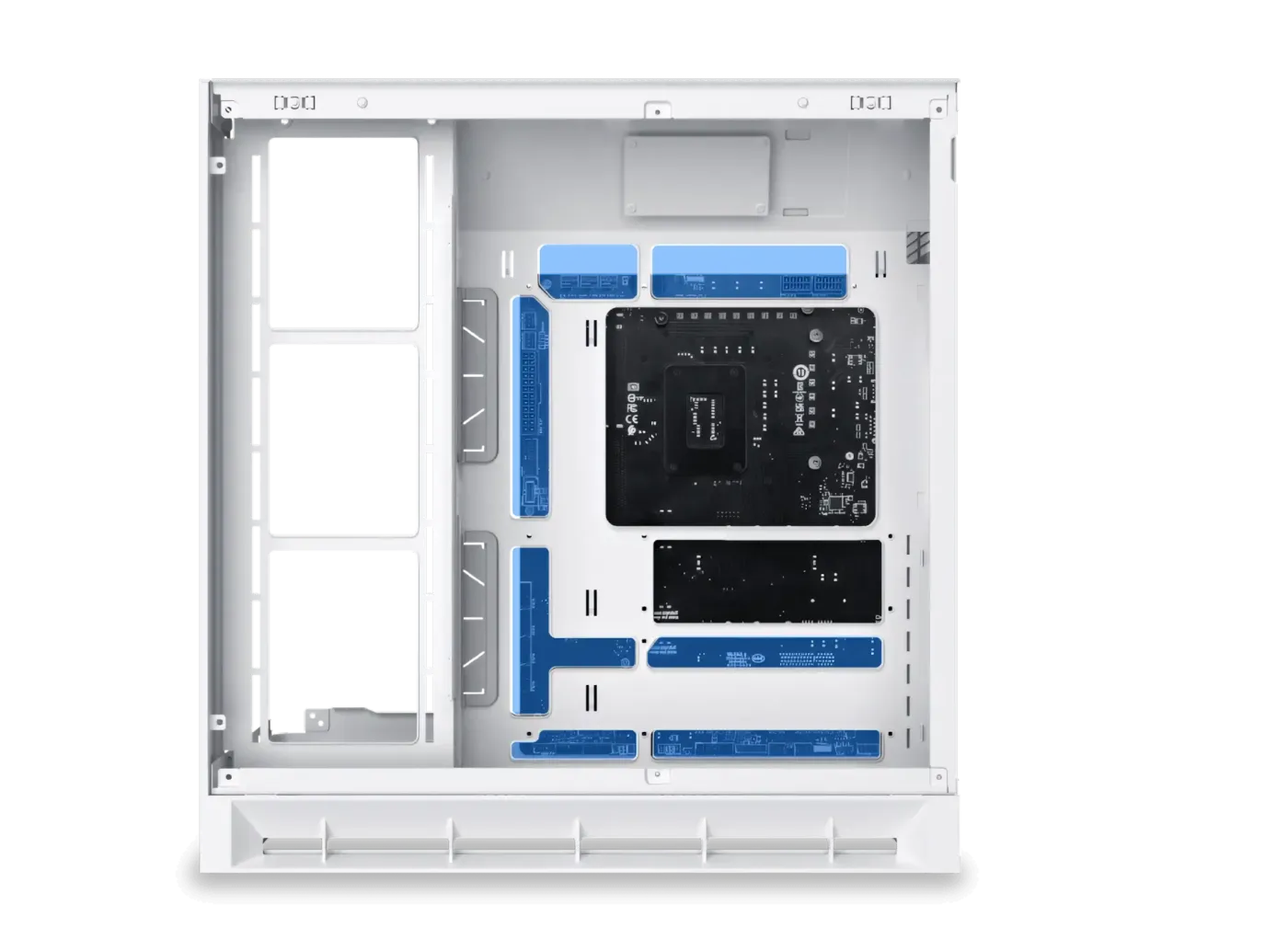

Dedicated Support for Back Plug Motherboards
This chassis is specifically designed to accommodate ATX and Micro-ATX (M-ATX) motherboards that feature a 'Back Plug' connector layout. This design choice streamlines cable routing, simplifying the building process and enhancing the visual appeal inside the case.
Dedicated Support for Back Plug Motherboards
This chassis is specifically designed to accommodate ATX and Micro-ATX (M-ATX) motherboards that feature a 'Back Plug' connector layout. This design choice streamlines cable routing, simplifying the building process and enhancing the visual appeal inside the case.

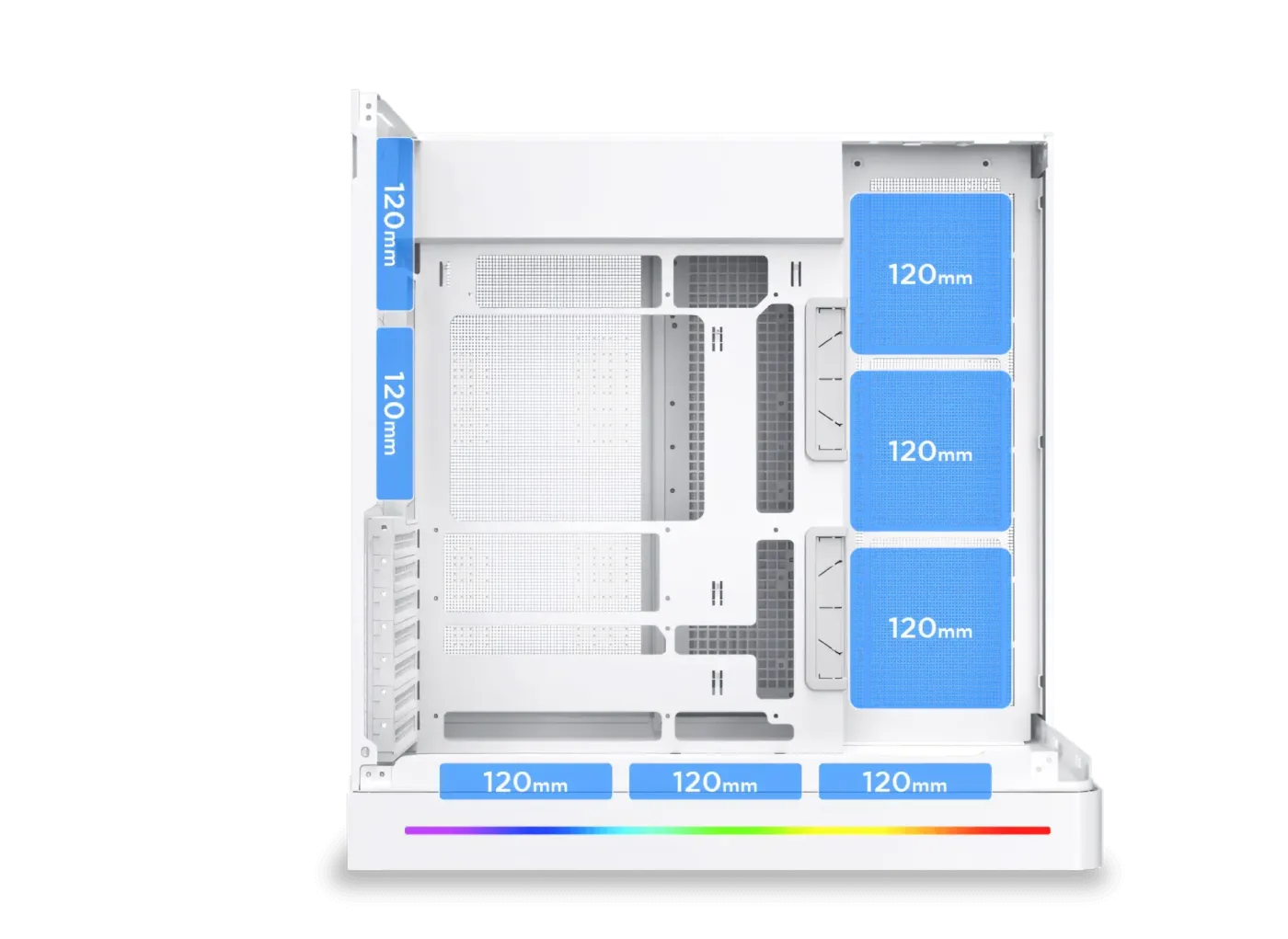

Extensive 120mm Cooling Fan Support
The chassis offers robust fan mounting options to ensure maximum airflow. It supports three 120mm fans on the side panel, three 120mm fans along the bottom, and two 120mm fans in the rear position.
Extensive 120mm Cooling Fan Support
The chassis offers robust fan mounting options to ensure maximum airflow. It supports three 120mm fans on the side panel, three 120mm fans along the bottom, and two 120mm fans in the rear position.

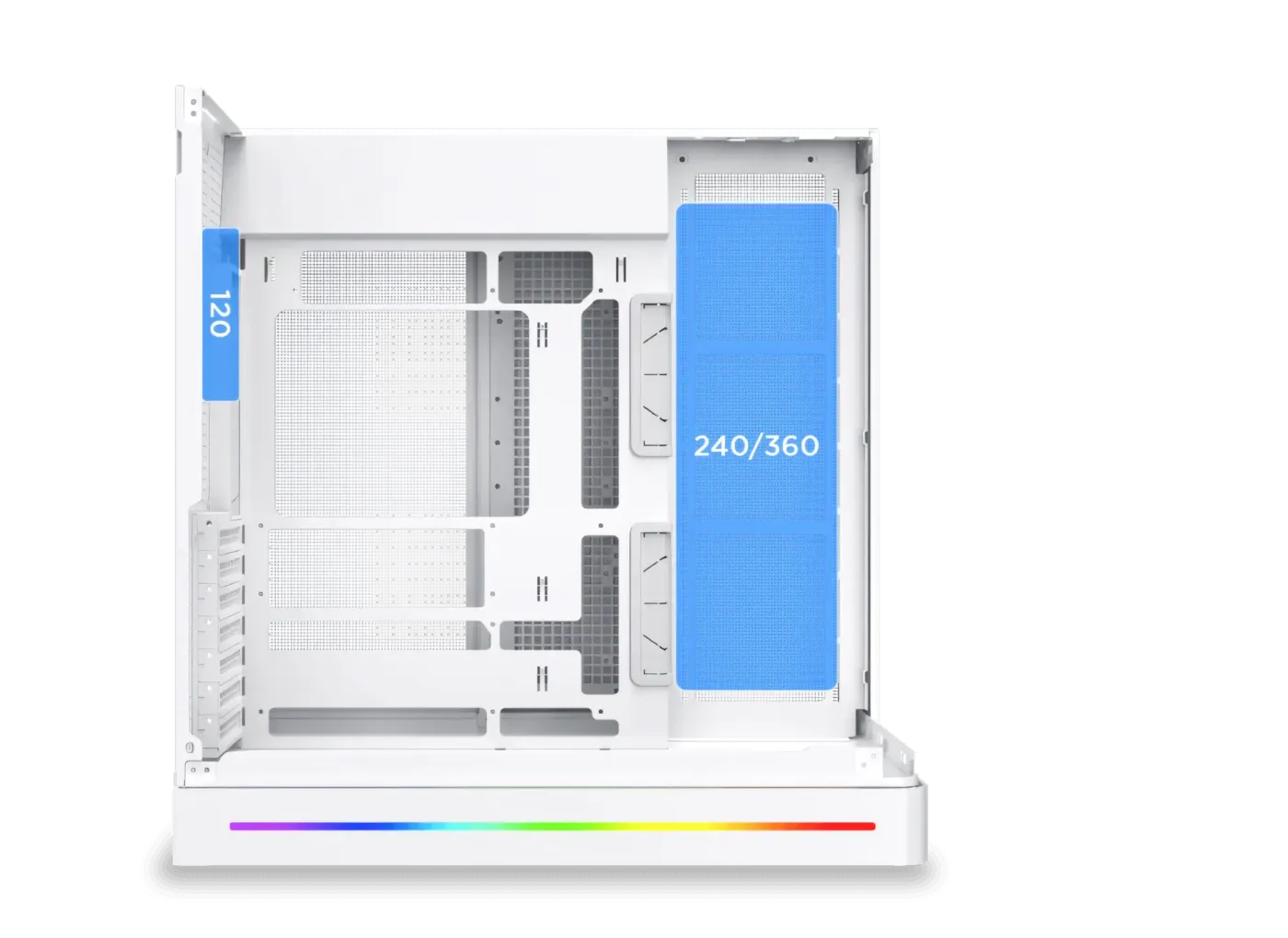

Liquid Cooling Radiator Compatibility
The case provides versatile liquid cooling support. Radiators can be mounted on the side panel, supporting sizes up to 240mm or 360mm. Additionally, the rear panel accommodates a 120mm radiator.
Liquid Cooling Radiator Compatibility
The case provides versatile liquid cooling support. Radiators can be mounted on the side panel, supporting sizes up to 240mm or 360mm. Additionally, the rear panel accommodates a 120mm radiator.

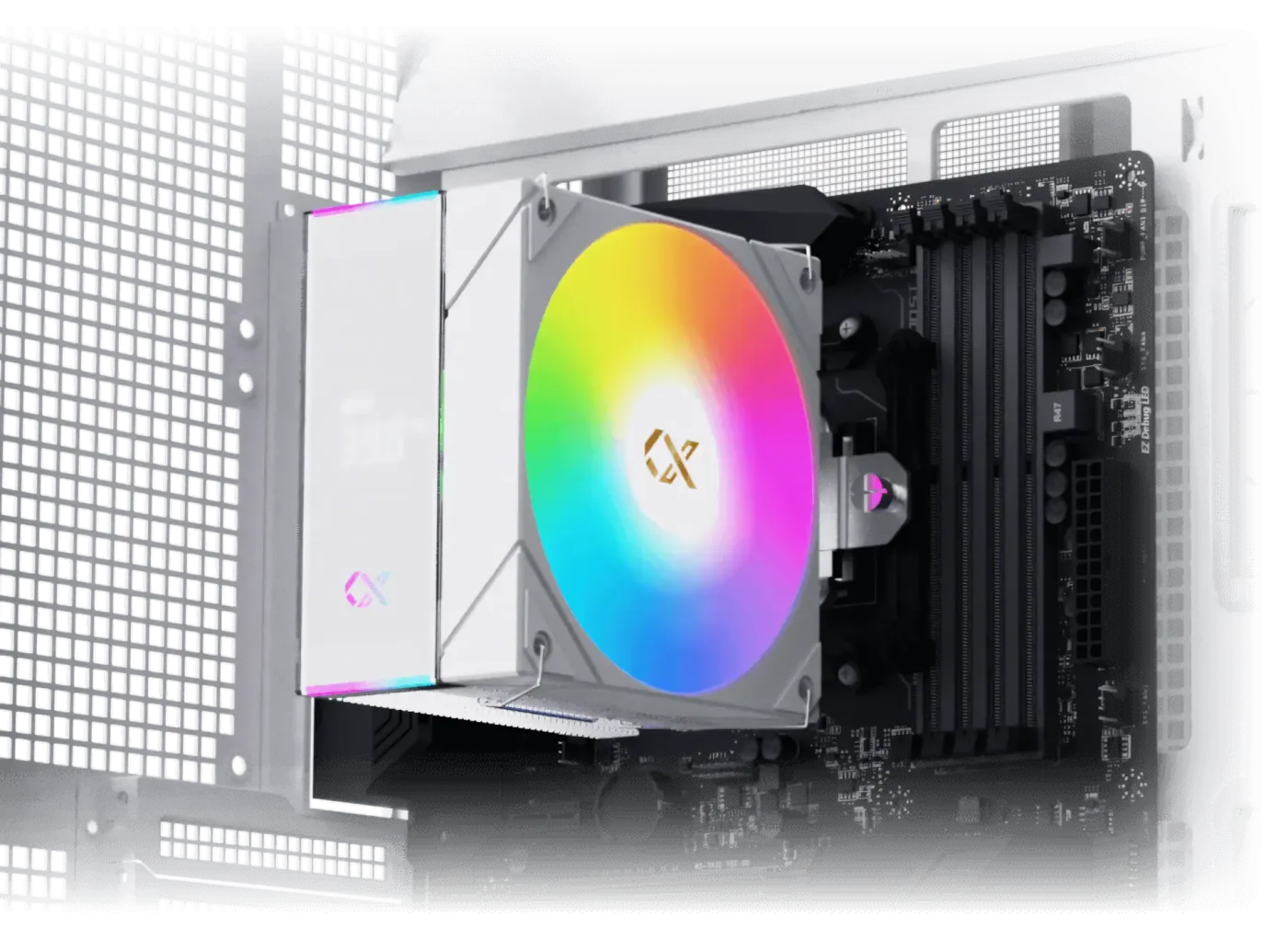

Generous CPU Air Cooler Clearance
The internal layout offers generous space for air cooling solutions, providing CPU cooler clearance for units measuring up to 165mm in height.
Generous CPU Air Cooler Clearance
The internal layout offers generous space for air cooling solutions, providing CPU cooler clearance for units measuring up to 165mm in height.

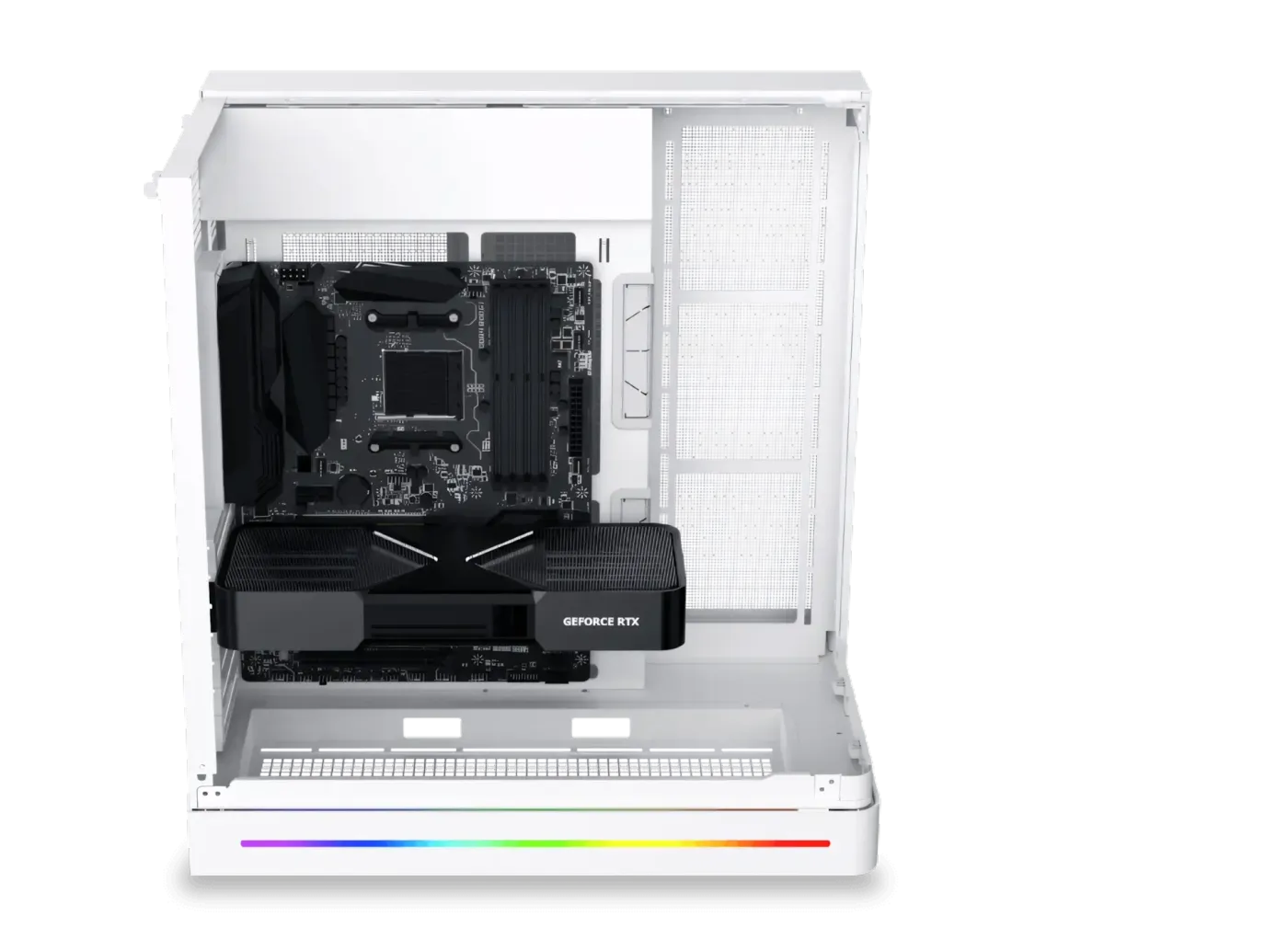

Maximized GPU Length and Flexible Orientation
The chassis supports graphics cards up to 400mm in length, offering ample space for high-end components. Builders can choose between horizontal or vertical GPU installation to best suit their aesthetic and cooling needs.
Maximized GPU Length and Flexible Orientation
The chassis supports graphics cards up to 400mm in length, offering ample space for high-end components. Builders can choose between horizontal or vertical GPU installation to best suit their aesthetic and cooling needs.

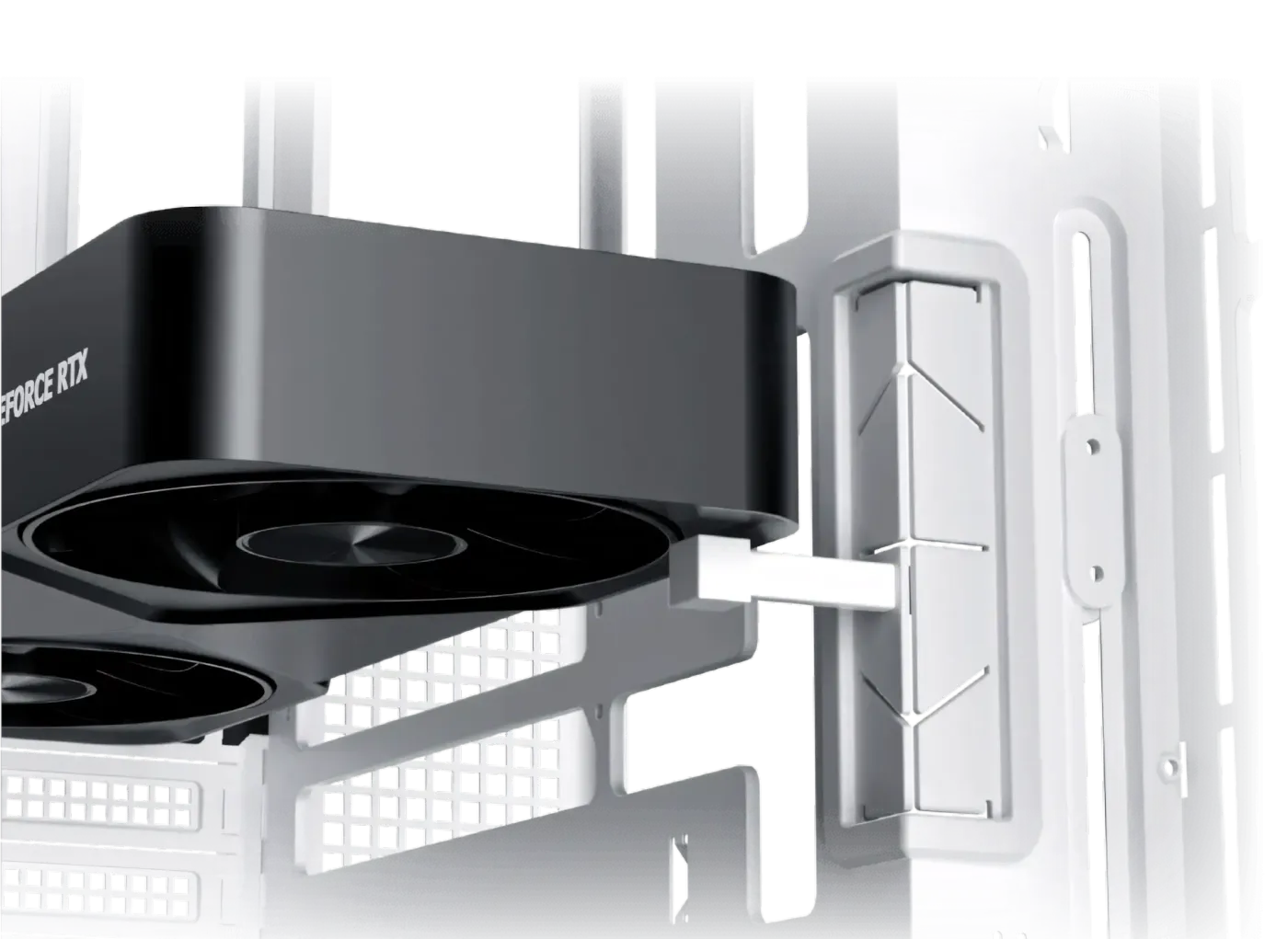

Integrated Adjustable Graphics Card Support
An adjustable GPU support bracket is integrated into the chassis design. This feature prevents heavy graphics cards from sagging over time, ensuring long-term component stability and alignment.
Integrated Adjustable Graphics Card Support
An adjustable GPU support bracket is integrated into the chassis design. This feature prevents heavy graphics cards from sagging over time, ensuring long-term component stability and alignment.

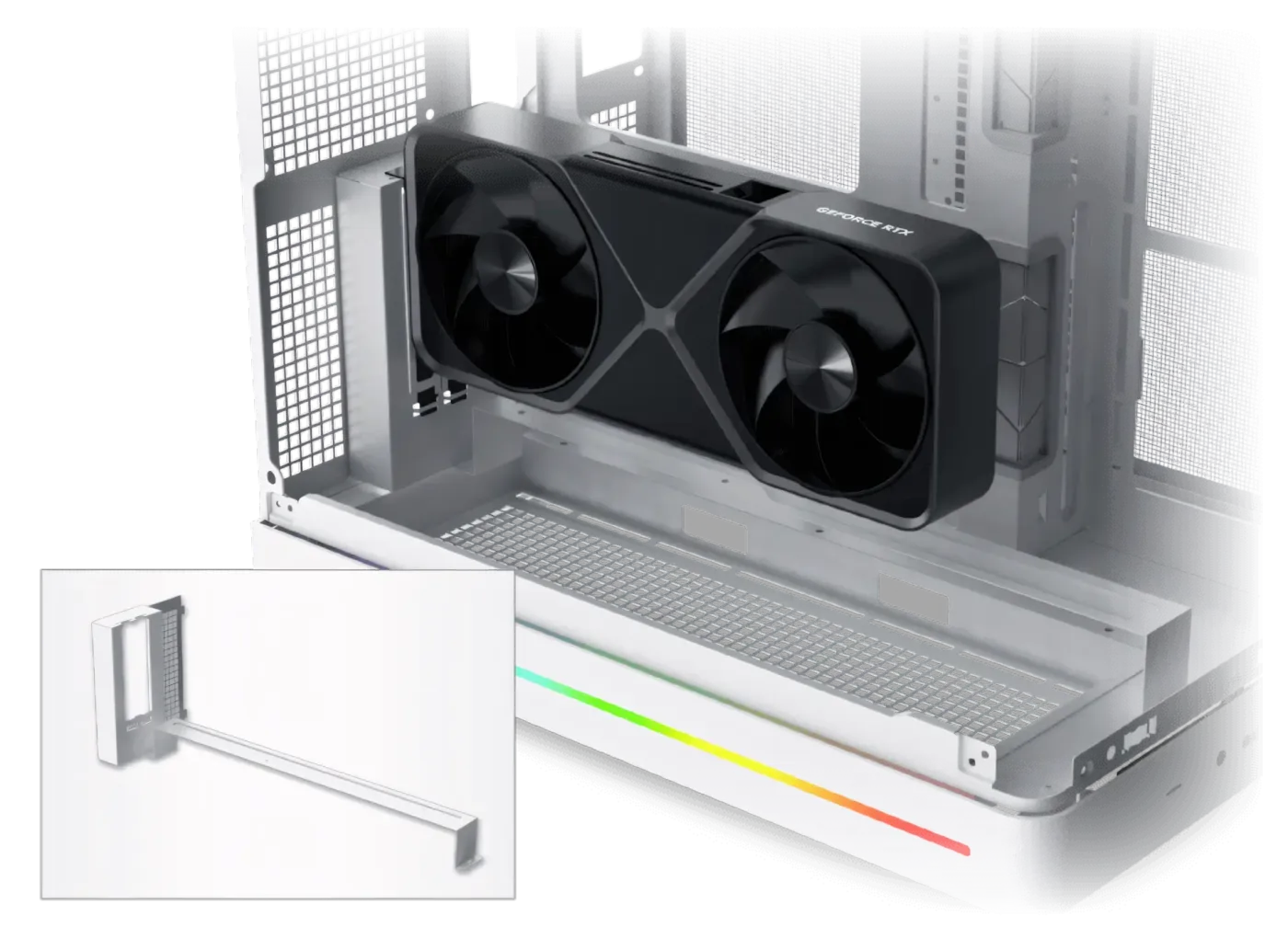

Vertical GPU Mounting with Included Bracket
The chassis specifically supports vertical graphics card installation for an optimized visual presentation. A dedicated vertical GPU bracket is included to facilitate this mounting orientation, maximizing component display.
Vertical GPU Mounting with Included Bracket
The chassis specifically supports vertical graphics card installation for an optimized visual presentation. A dedicated vertical GPU bracket is included to facilitate this mounting orientation, maximizing component display.

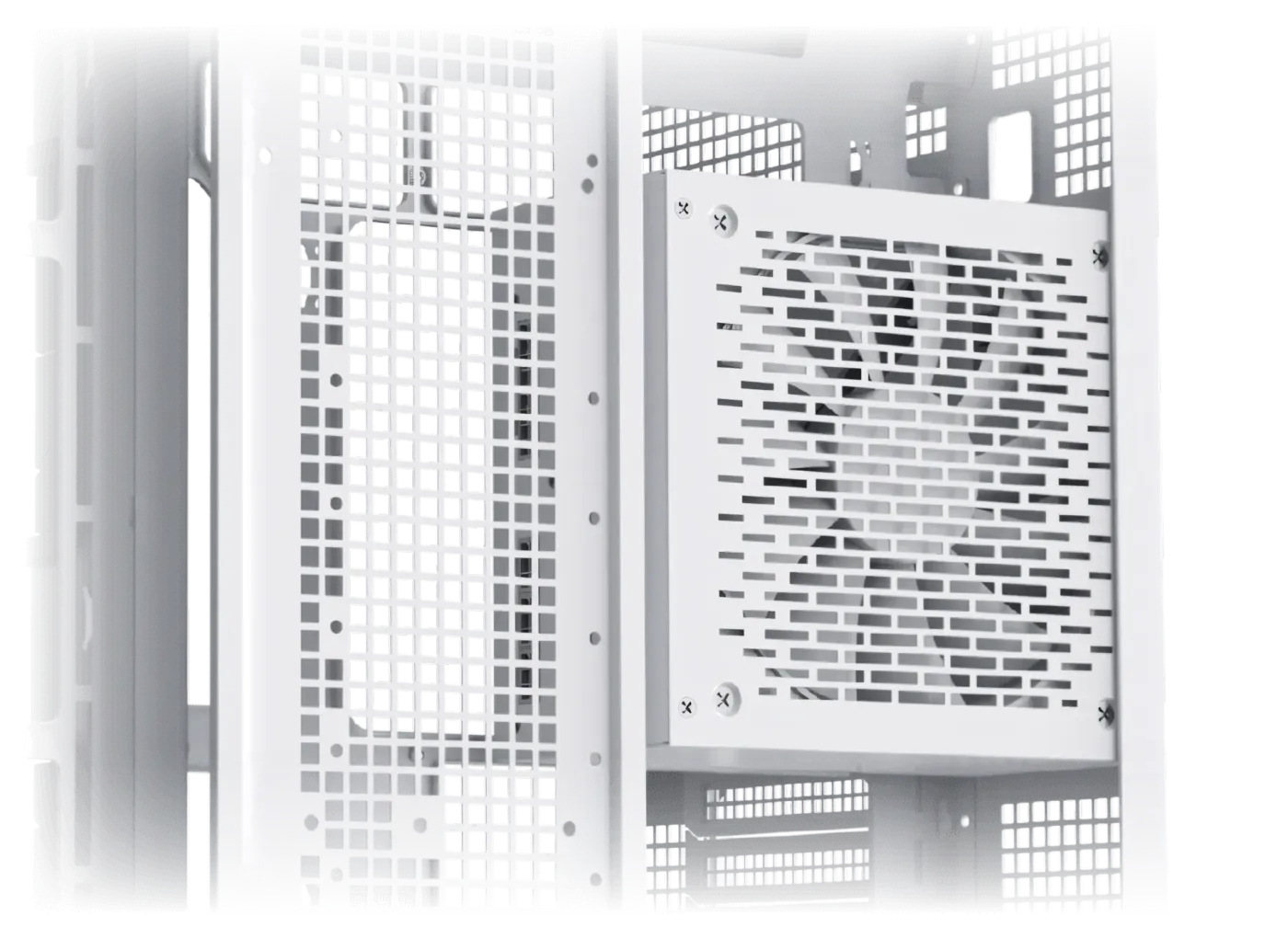

Power Supply Unit (PSU) Clearance
The chassis is engineered to accommodate standard Power Supply Units (PSUs) with a maximum length limitation of up to 165mm, ensuring compatibility with compact yet powerful power options.
Power Supply Unit (PSU) Clearance
The chassis is engineered to accommodate standard Power Supply Units (PSUs) with a maximum length limitation of up to 165mm, ensuring compatibility with compact yet powerful power options.

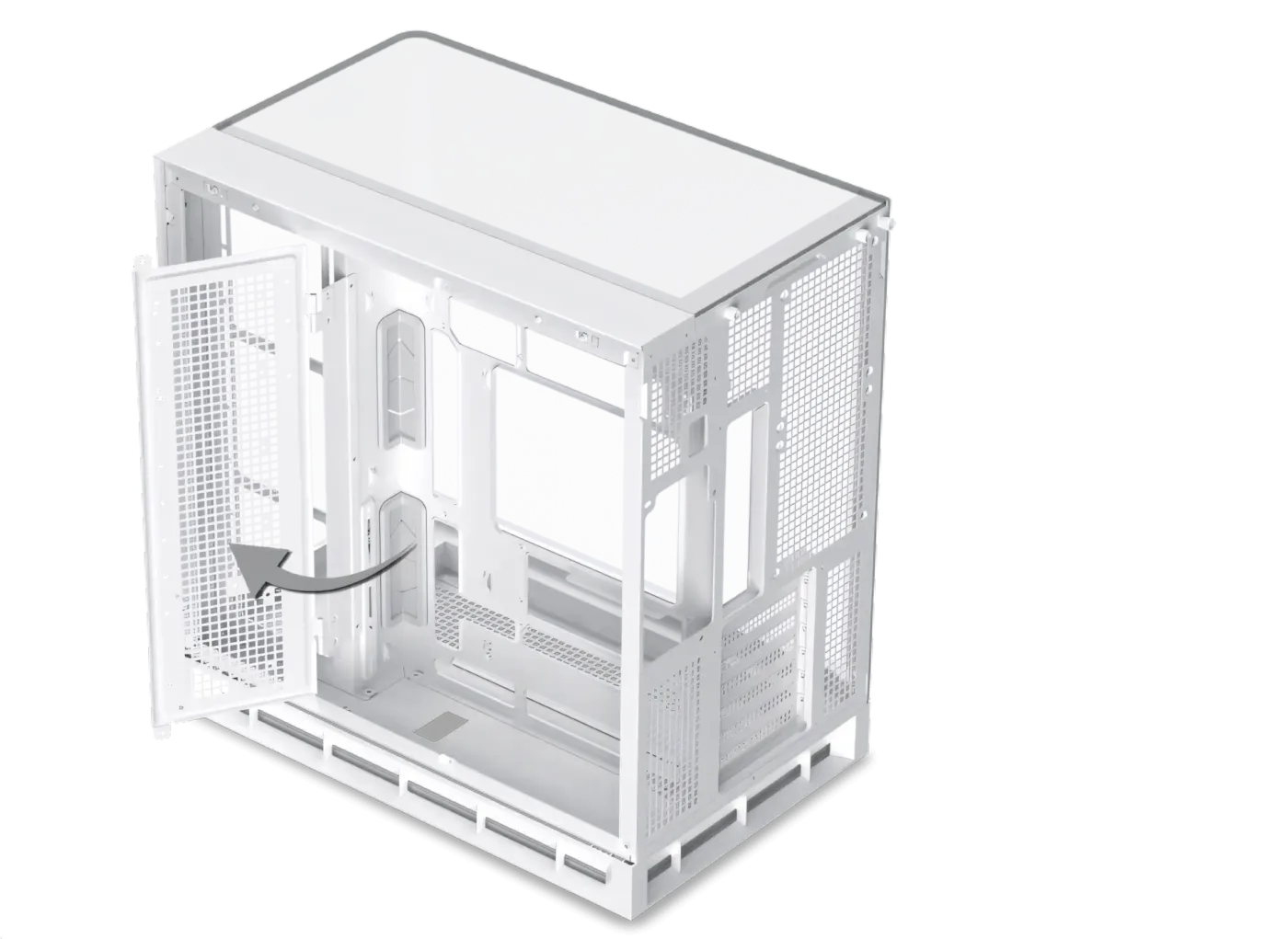

Convenient Storage Mounting with Flip Cover
The chassis features a specialized flip cover design for easier SSD and HDD mounting access. This convenient mechanism simplifies the installation and maintenance of your storage drives.
Convenient Storage Mounting with Flip Cover
The chassis features a specialized flip cover design for easier SSD and HDD mounting access. This convenient mechanism simplifies the installation and maintenance of your storage drives.

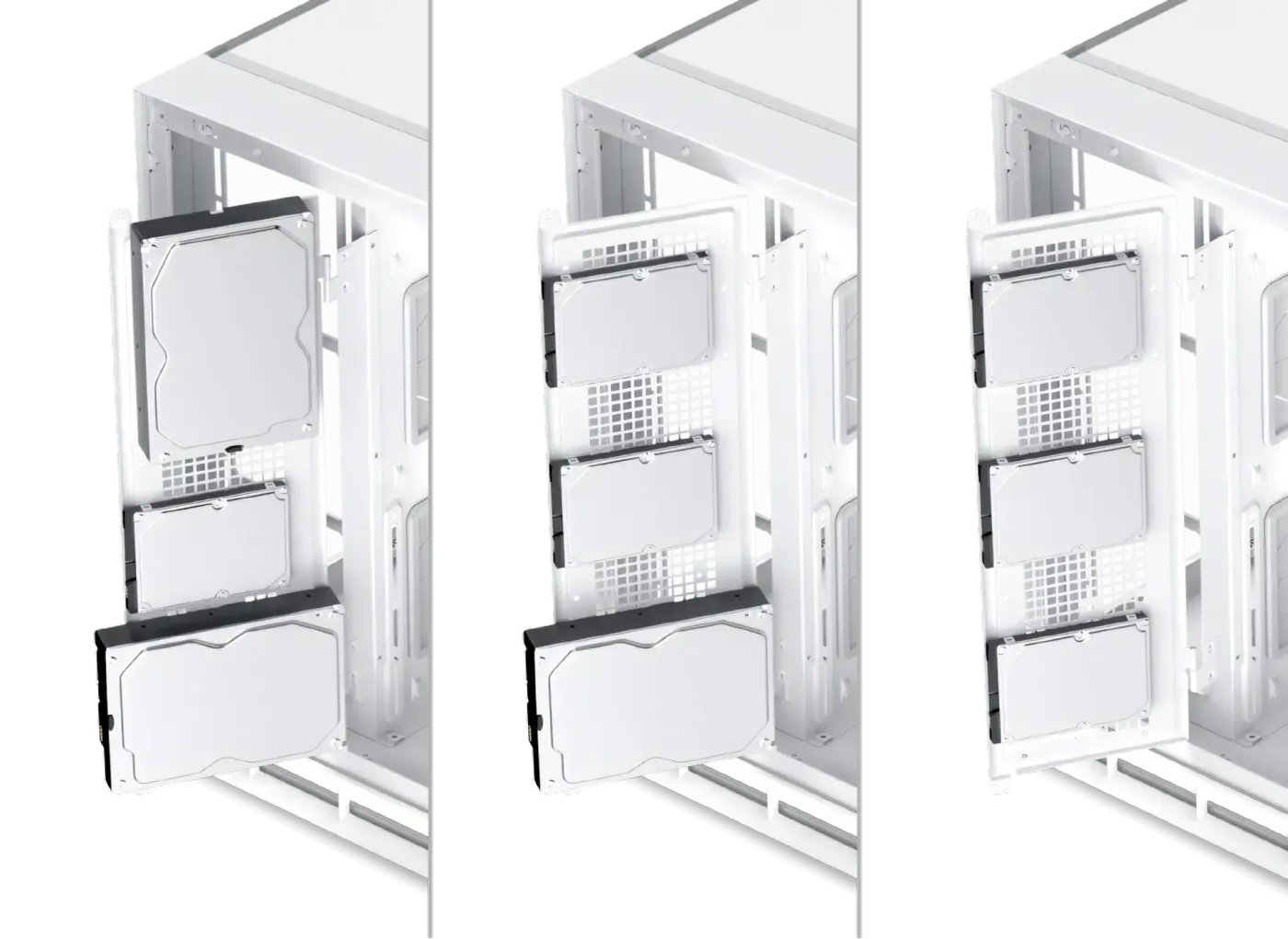

Flexible 3.5-inch and 2.5-inch Drive Support
The chassis offers flexible storage configurations supporting both 3.5-inch and 2.5-inch drives. Options include a maximum of two 3.5-inch drives and one 2.5-inch drive, one 3.5-inch drive and two 2.5-inch drives, or up to three 2.5-inch drives exclusively.
Flexible 3.5-inch and 2.5-inch Drive Support
The chassis offers flexible storage configurations supporting both 3.5-inch and 2.5-inch drives. Options include a maximum of two 3.5-inch drives and one 2.5-inch drive, one 3.5-inch drive and two 2.5-inch drives, or up to three 2.5-inch drives exclusively.

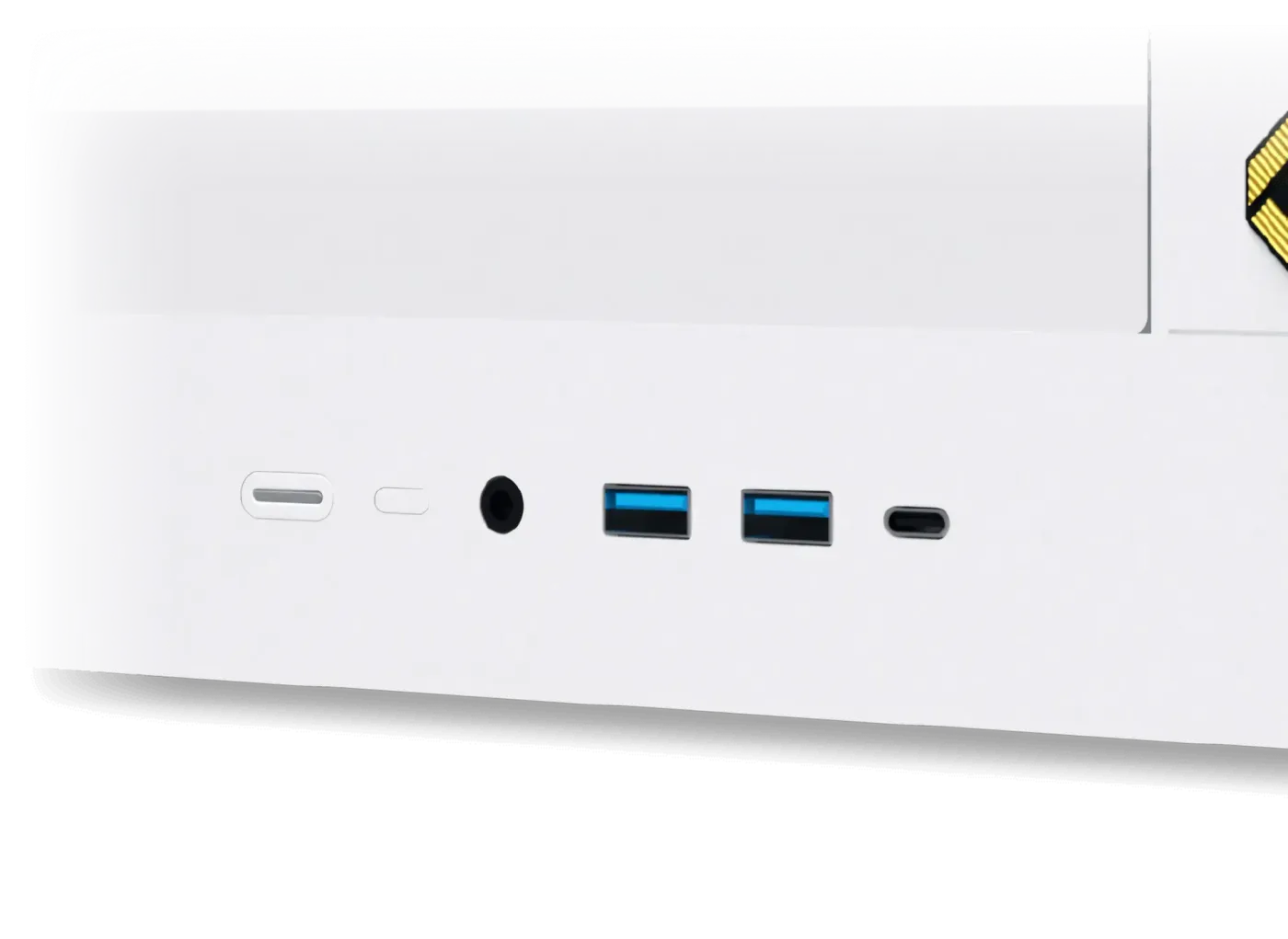

Convenient Front Panel I/O Connectivity
The front I/O panel provides essential connectivity and control, including the Power Button, Reset Button, and an HD Audio Jack. Data transfer options feature two USB 3.0 ports and one modern USB-C port for high-speed device connection.
Convenient Front Panel I/O Connectivity
The front I/O panel provides essential connectivity and control, including the Power Button, Reset Button, and an HD Audio Jack. Data transfer options feature two USB 3.0 ports and one modern USB-C port for high-speed device connection.

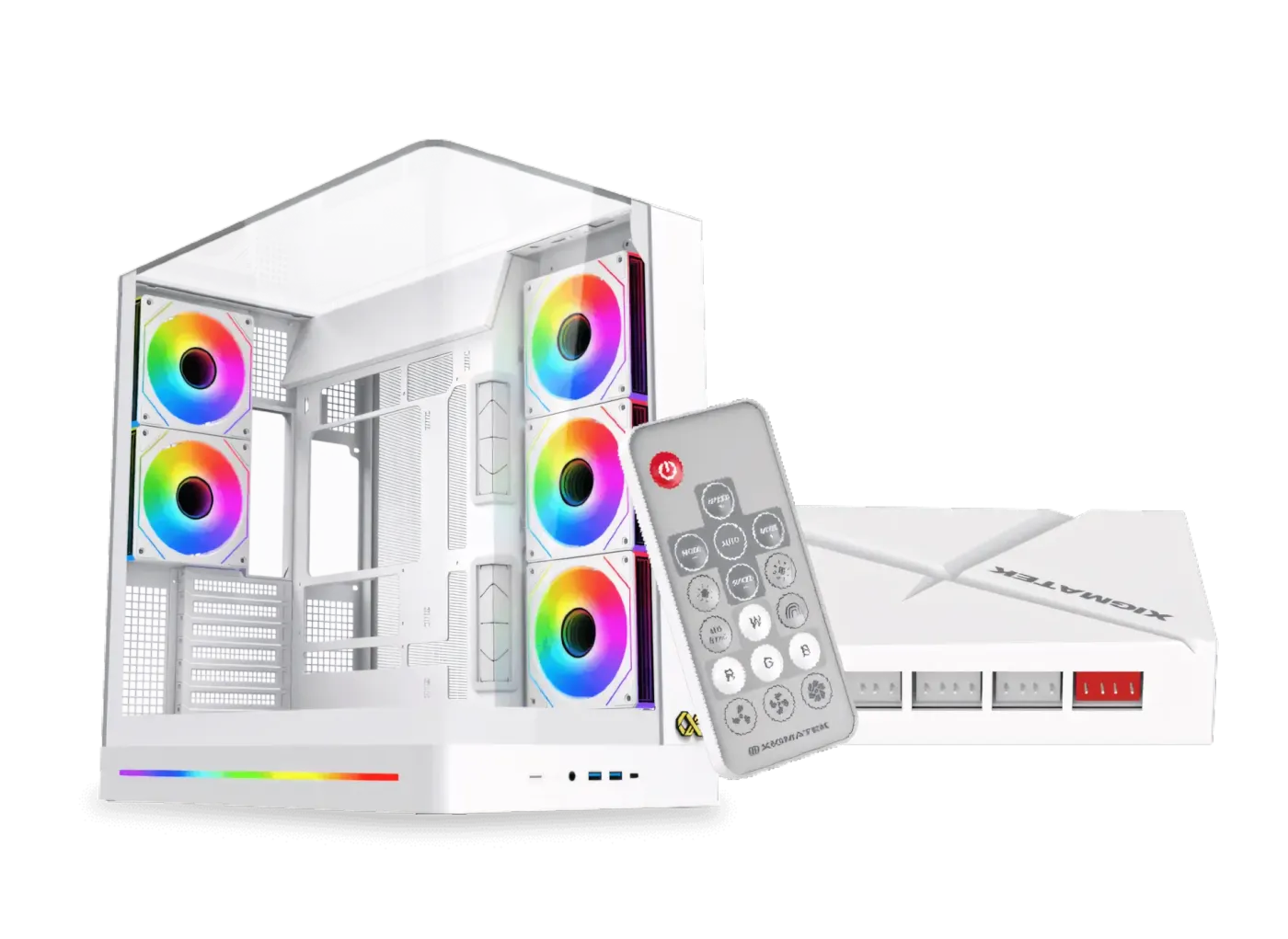

Integrated ARGB and PWM Remote Control System
The system includes an ARGB & PWM Control Box and a Remote Control for managing lighting and fan speeds. The control box is rated for a 5V maximum total of 40W and a 12V maximum total of 36W. *Caution: Users must not over-power the ARGB & PWM Control Box, as doing so is dangerous and may cause damage.*
Integrated ARGB and PWM Remote Control System
The system includes an ARGB & PWM Control Box and a Remote Control for managing lighting and fan speeds. The control box is rated for a 5V maximum total of 40W and a 12V maximum total of 36W. *Caution: Users must not over-power the ARGB & PWM Control Box, as doing so is dangerous and may cause damage.*
FAQ
Frequently Asked Questions
Everything you need to know about this product
The chassis features a single-piece curved tempered glass panel that provides a wide and seamless view of internal components. This aesthetic is enhanced with ARGB LED lighting for a striking build appearance.
The chassis is prepared to accommodate a 9-inch Multi Display LCD Panel with Full HD+ resolution (1920x462). It connects via HDMI and USB power cables, uses a magnetic mounting mechanism, and supports Windows 10 & 11 display modes. Note: the panel is not included.
The case supports E-ATX (up to 285mm), ATX, Micro-ATX, and Mini-ITX motherboards. It also supports the 'Back Plug' feature on ATX and Micro-ATX boards for easier cable management.
The chassis offers optimized airflow and superior ventilation. It supports up to eight 120mm fans (three side, three bottom, two rear) and liquid cooling radiators up to 360mm on the side and 120mm on the rear, ensuring efficient thermal management.
The chassis supports horizontal and vertical GPU installation with an included vertical GPU bracket and an adjustable GPU support bracket. Maximum GPU length supported is 400mm, and the brackets help prevent sag.
The case supports standard ATX Power Supply Units (PSUs) with a maximum length of 165mm.
The case supports flexible storage options: 2×3.5" + 1×2.5", 1×3.5" + 2×2.5", or up to 3×2.5" drives. Installation is simplified via a flip-cover mounting mechanism for SSDs and HDDs.
The front I/O includes two USB 3.0 ports, one USB-C port, an HD Audio jack, and Power and Reset buttons for easy access.
Fan speeds are managed via PWM, with RPM feedback supported. ARGB lighting and fan modes can be controlled using the included remote or synced to a compatible motherboard through the ARGB control box.
The ARGB & PWM control box has a maximum power limit of 40W for 5V connections and 36W for 12V connections. It draws power via a SATA cable from the PSU.
