Antec DP502 FLUX Tempered Glass Mid-Tower Gaming Case / 5 x 120 mm Fans Included / Powerful Cooling Solution / PSU Support: Up To 205 mm / 4 mm Tempered Glass Side Panel / 0-761345-80050-1
|
|
|

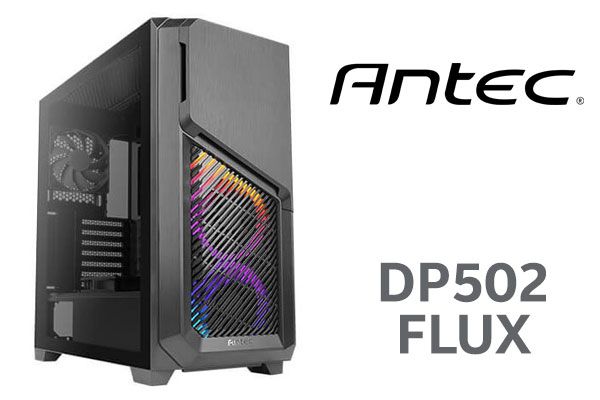

Antec DP502 FLUX Mid-Tower Gaming Case
DP502 FLUX
The Ultimate Thermal Performance for Gaming Cases
The DP502 FLUX mid-tower gaming case is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation.
Why the New Cooling Solution?
When Intel and AMD announced their latest CPUs, they all deliver remarkable performance upgrades and better productivity, it also means the functional requirement of PC equipment needs to be taken to the next level, especially the thermal performance.
To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform.
F-LUX Platform - Antec's Original Cooling Solution
What is the F-LUX Platform? The definition of FLUX is Flow Luxury.The F-LUX Platform is a new industry-leading and highly efficient design by Antec featuring an advanced case structure for excellent airflow and 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance.
F-LUX Platform - Antec's Original Cooling Solution
5 x 120 mm fans included
Motherboard Support: ATX , Micro-ATX, Mini-ITX
3.5” removable HDDs / 2.5” SSDs (Compatible): 3/2
Max CPU Cooler Height: 175 mm (Supports high-end CPU cooler, e.g. Noctua NH-U12A)
Max PSU Length: 205 mm
2.5” SSDs: 3
5.25” ODD: 1 (The ODD bracket can be removed for radiator installation or other configurations.)
Max CPU Cooler Height: 175 mm (Supports high-end CPU cooler, e.g. Noctua NH-U12A)
Sufficient Space for Cable Management
Color Your System by Built-in LED Controller
You only need the LED mode button to control all the addressable LEDs. Or you can sync it with the motherboard to enjoy more custom light effects.
4 MM TEMPERED GLASS SIDE PANEL
Tool-free thumbscrew design at the rear of the tempered glass side panel, which gives you quick access to the interior, and enhances the solidity.
ULTIMATE THERMAL PERFORMANCE
Supports up to 9 fans
SPECIFICATIONS
| Case Specification |
| Dimensions |
467 x 220 x 486 mm (DxWxH) |
| Form Factor |
Mid Tower |
| Materials |
Steel + Plastic |
| Mainboard Support |
ATX, Micro-ATX, ITX |
| Front Access & Controls |
Power, LED Control Button, 2 x USB3.0, HD-AUDIO |
| Side Panel |
4 mm Tempered Glass Side Panel |
|
| Expansion & Drive Bays |
| Expansion Slots |
7 |
| 5.25" |
1 |
| 3.5"/2.5" (convertible) |
3 / 2 |
| 2.5" |
3 |
|
| Fan Support |
| Front |
3 x 120mm/2 x 140mm |
| Top |
3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket)
2 x 120mm / 2 x 140mm (w/o ODD but with ODD bracket)
2 x 120mm / 1 x 140mm(When ODD is installed) |
| Power Supply Shroud |
2 x 120mm |
| Rear |
1 x 120mm |
|
Included Fan(s)
|
3 x 120mm ARGB fans in front
1 x 120mm fan (Reverse Fan) on PSU shroud
& 1 x 120mm fan in rear |
|
| Radiator Support |
| Front |
120/240/280/360mm (≤ 55mm thickness when fans are installed outside of front panel)
(≤ 30mm thickness when fans are installed inside of front panel)
[Max Radiator Length ≤ 405mm] |
| Top |
240/280/360mm (w/o ODD and w/o ODD bracket)
240/280mm (w/o ODD but with ODD bracket)
120mm(When ODD is installed)
[Max Radiator Length ≤ 405mm] |
| Rear |
120 mm |
|
| Clearance |
| Max GPU Length |
≤ 405 mm |
| Max CPU Height |
≤ 175 mm |
| PSU Support |
≤ 205 mm |
|
| Miscellaneous |
| Dust Filter |
Front / Top / Bottom / Right Hand Side |
| UPC# |
0-761345-80050-1 |
| Net Weight |
7.38 Kgs |
| Gross Weight |
8.51 Kgs |
|
