Antec Skeleton Matrix 360 ARGB AIO Liquid CPU Cooler - Black / 360mm Radiator / Single-Frame 360mm PWM ARGB Fan / 2800RPM 8-Pole Pump / Copper Base Plate / IIR-EPDM Tubing / Intel LGA 1851 1700 + AMD AM5 AM4 / 0-761345-40090-9
3 Years Local Warranty
Model No : Antec 0-761345-40090-9
Price Inc. Vat
R 1,199
Save R 200
ListR 1,399
1199Change Quantity:
In Stock with Evetech

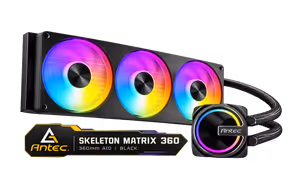

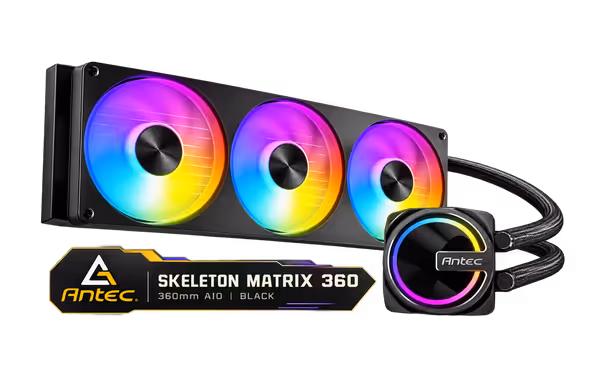

Antec Skeleton Matrix 360 ARGB Liquid Cooler - Black
One 360mm Fan Frame, One Open Pump Head

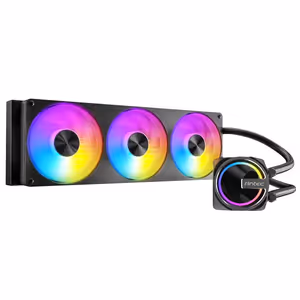

The Antec Skeleton Matrix 360 ARGB Black is a 360mm AIO liquid CPU cooler with an open-frame ARGB pump head and one 360mm fan frame that mounts to the radiator as a single piece. An 8-pole pump runs at 2800RPM over a copper base plate, the PWM fan reaches 2400RPM and up to 74.23CFM, and IIR-EPDM tubing limits coolant loss. It fits Intel LGA 1851 and 1700 and AMD AM5 and AM4.
One 360mm Fan Frame, One Open Pump Head
The Antec Skeleton Matrix 360 ARGB Black is a 360mm AIO liquid CPU cooler with an open-frame ARGB pump head and one 360mm fan frame that mounts to the radiator as a single piece. An 8-pole pump runs at 2800RPM over a copper base plate, the PWM fan reaches 2400RPM and up to 74.23CFM, and IIR-EPDM tubing limits coolant loss. It fits Intel LGA 1851 and 1700 and AMD AM5 and AM4.

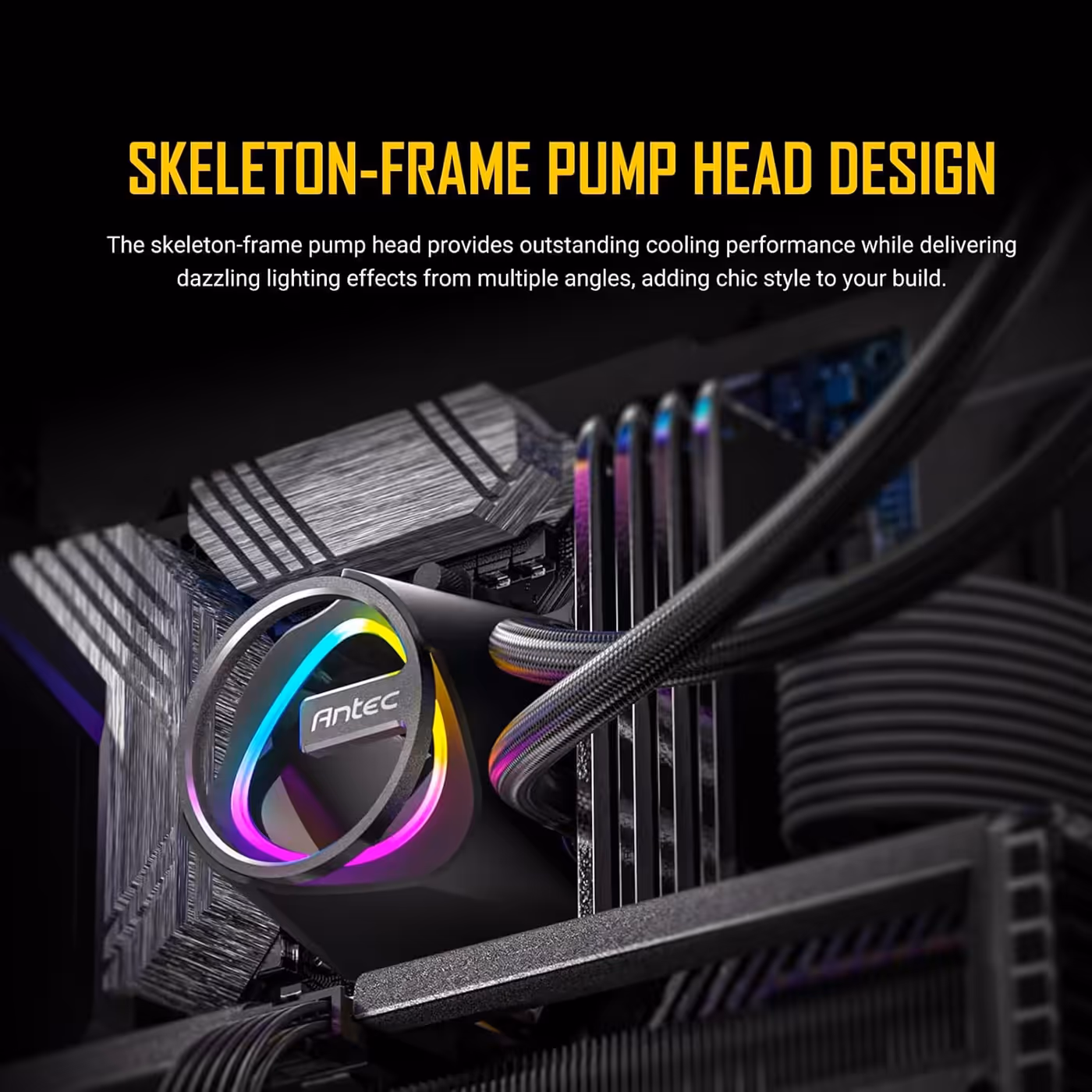

Skeleton Pump Head Shows Light From The Side
The skeleton-frame pump head is an open ring of ARGB lighting around the Antec logo, so its glow reads from several angles through a glass side panel. The head measures 67.5mm across and 66mm deep, so allow for that footprint beside the CPU socket.
Skeleton Pump Head Shows Light From The Side
The skeleton-frame pump head is an open ring of ARGB lighting around the Antec logo, so its glow reads from several angles through a glass side panel. The head measures 67.5mm across and 66mm deep, so allow for that footprint beside the CPU socket.

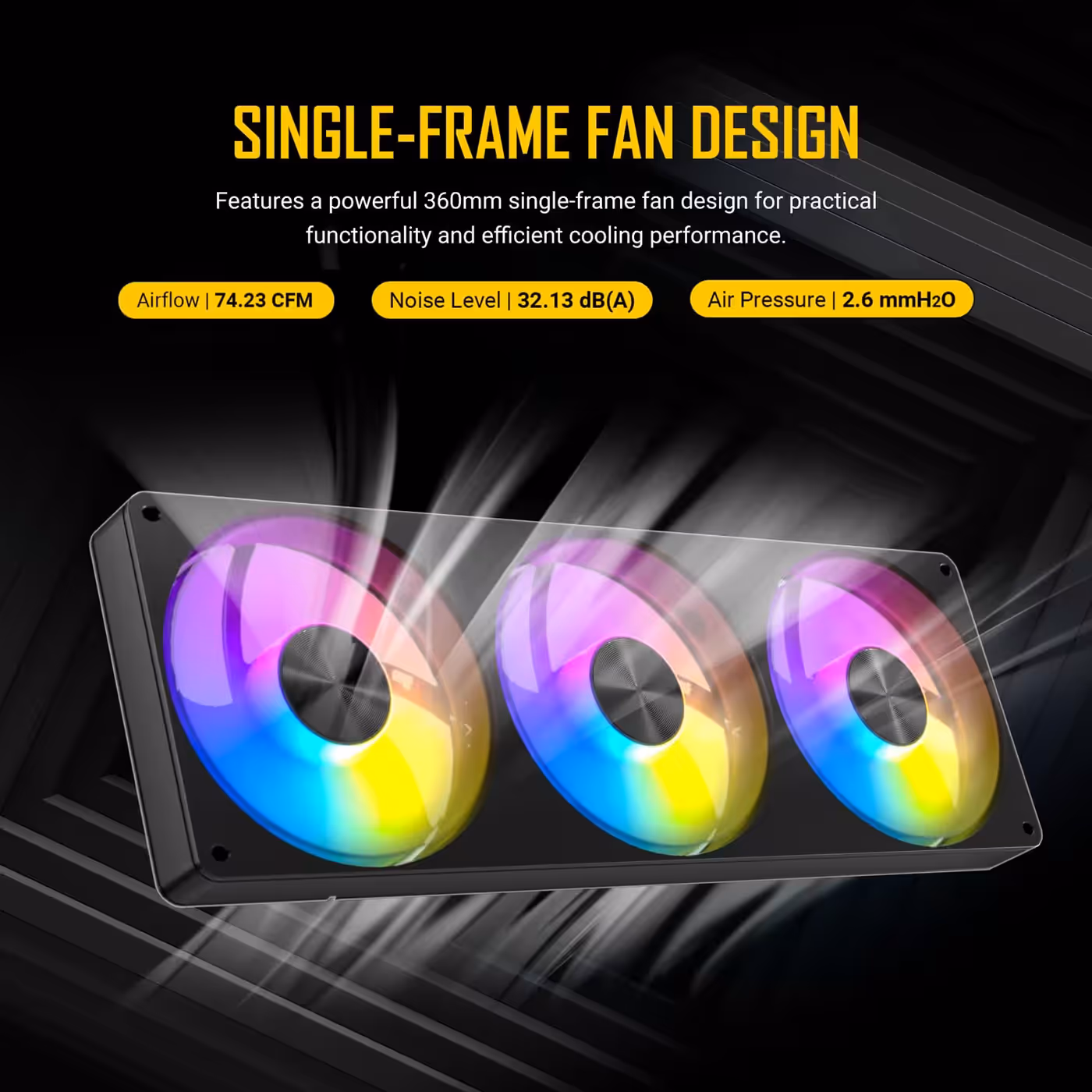

Three Fan Rotors In A Single Frame
A single 360mm frame holds all three rotors and mounts to the radiator as one piece, which is quicker to fit than three loose fans. It runs PWM from 800 to 2400RPM with up to 74.23CFM of airflow and 2.6mmH2O of air pressure, at 32.13dBA or less at full speed.
Three Fan Rotors In A Single Frame
A single 360mm frame holds all three rotors and mounts to the radiator as one piece, which is quicker to fit than three loose fans. It runs PWM from 800 to 2400RPM with up to 74.23CFM of airflow and 2.6mmH2O of air pressure, at 32.13dBA or less at full speed.

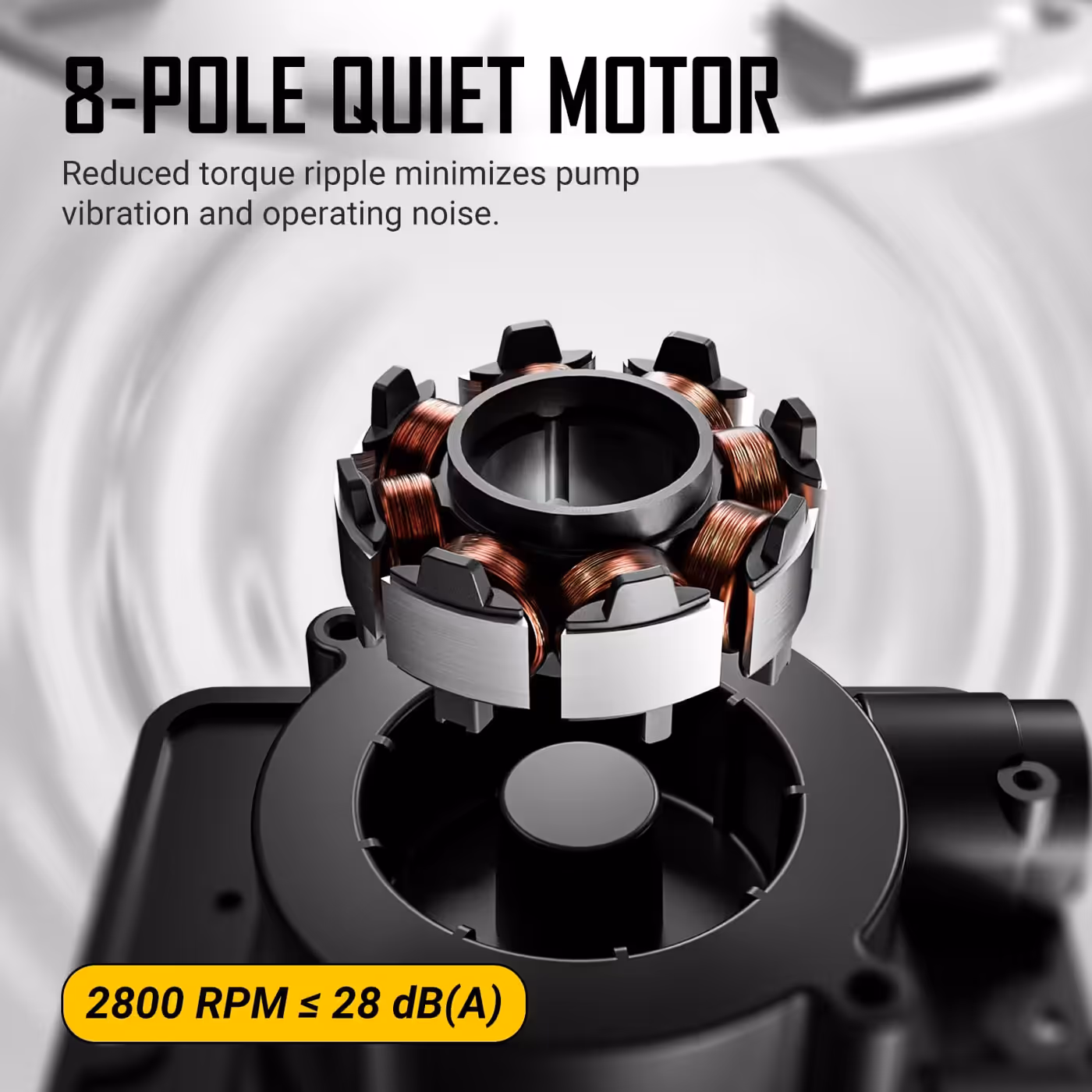

An 8-Pole Motor Cuts Pump Vibration

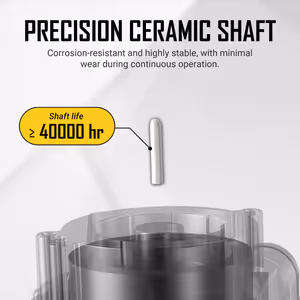

Lower torque ripple from the 8-pole motor reduces pump vibration and operating noise. Antec rates the pump at 2800RPM and 28dBA or less, with a flow rate of at least 1300mL/min and a 40,000-hour lifespan on a precision ceramic shaft.
An 8-Pole Motor Cuts Pump Vibration
Lower torque ripple from the 8-pole motor reduces pump vibration and operating noise. Antec rates the pump at 2800RPM and 28dBA or less, with a flow rate of at least 1300mL/min and a 40,000-hour lifespan on a precision ceramic shaft.

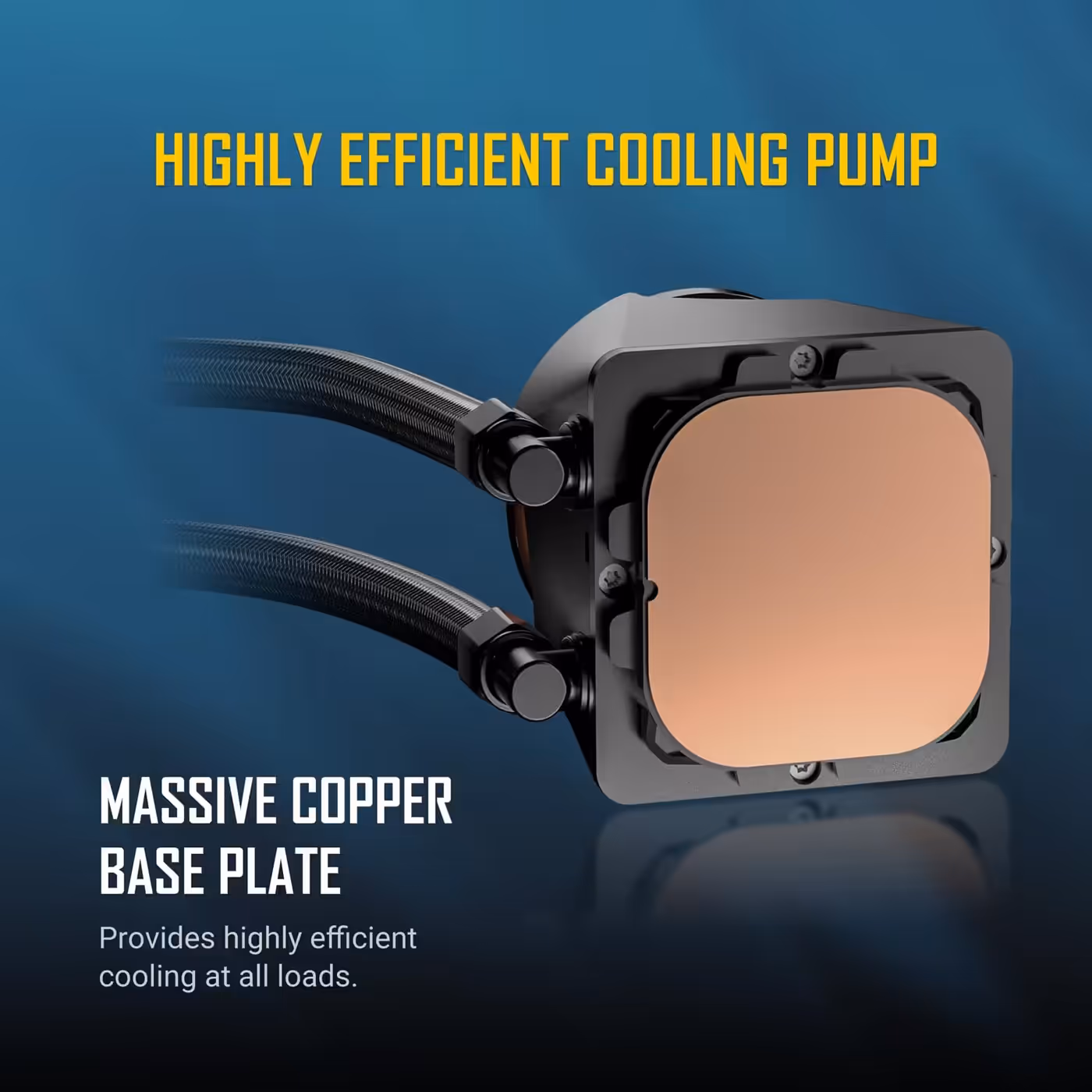

A Copper Base Plate Pulls Heat Off The CPU
A large copper base plate sits on the CPU and draws heat off at all loads, passing it to the coolant the pump circulates to the radiator. The pump uses a 4-pin connector, with a separate 3-pin lead for its lighting.
A Copper Base Plate Pulls Heat Off The CPU
A large copper base plate sits on the CPU and draws heat off at all loads, passing it to the coolant the pump circulates to the radiator. The pump uses a 4-pin connector, with a separate 3-pin lead for its lighting.

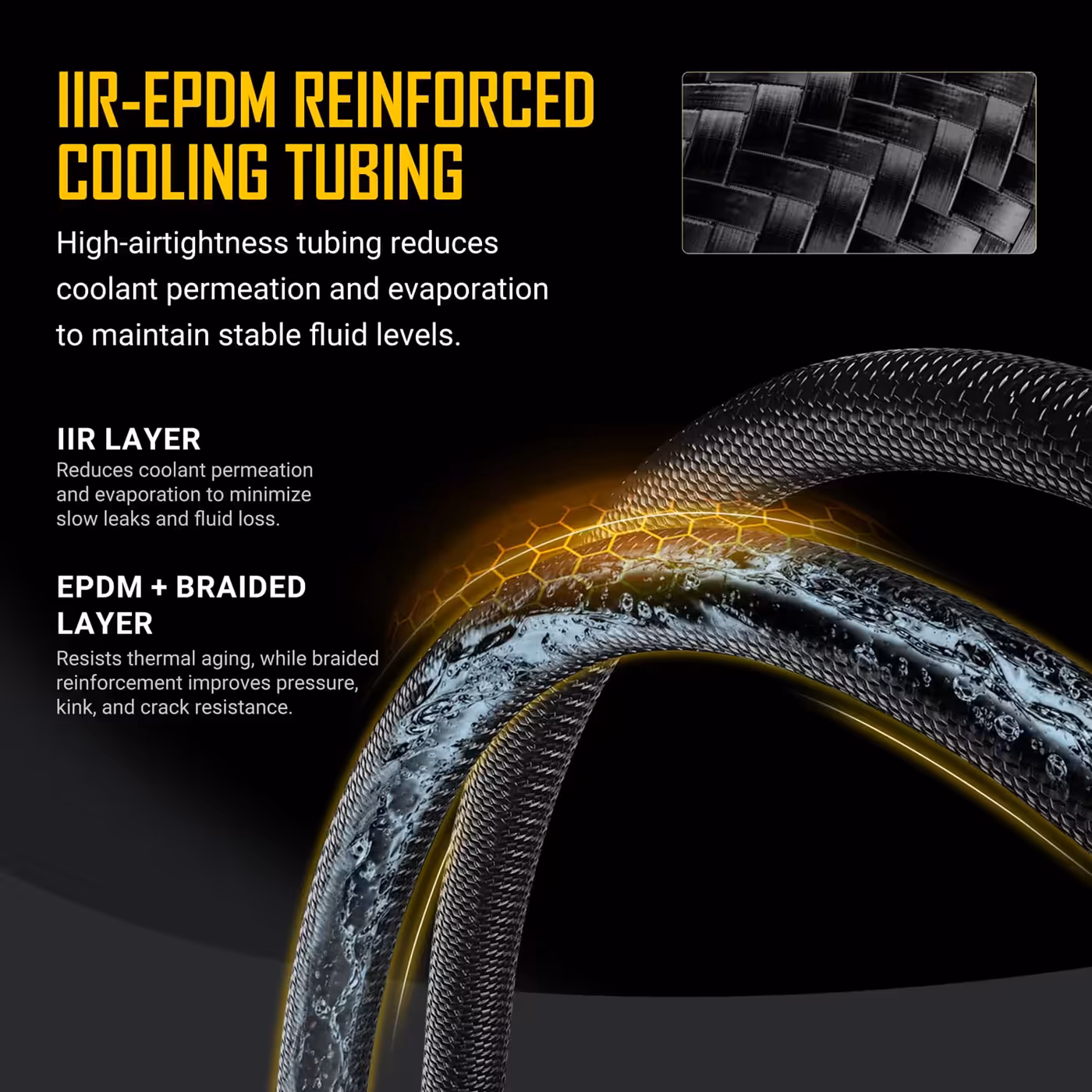

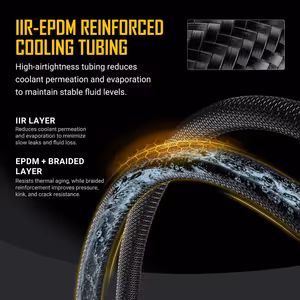

IIR-EPDM Tubing Keeps Coolant Levels Stable
The reinforced tubing is high in airtightness, which reduces coolant permeation and evaporation so the fluid level stays stable over time. It is a sealed loop, so there is no refilling to do, and the pump is rated for 40,000 hours.
IIR-EPDM Tubing Keeps Coolant Levels Stable
The reinforced tubing is high in airtightness, which reduces coolant permeation and evaporation so the fluid level stays stable over time. It is a sealed loop, so there is no refilling to do, and the pump is rated for 40,000 hours.

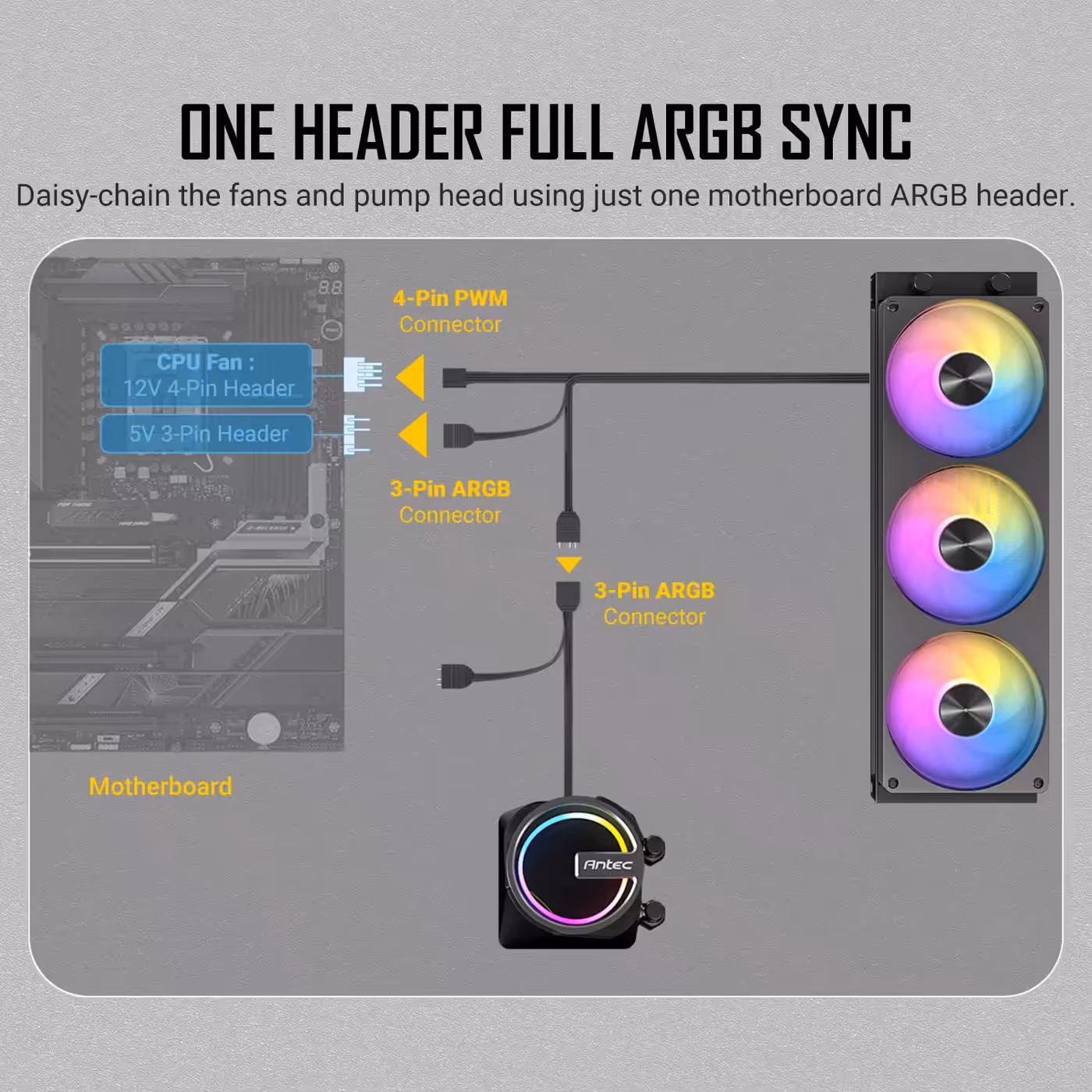

One ARGB Header Lights Fan And Pump
The fan and pump head daisy-chain to a single 5V 3-pin ARGB header on the motherboard. The fan's 4-pin PWM plug goes to the CPU fan header, so the board sets the speed by CPU temperature, and the pump has its own 4-pin connector.
One ARGB Header Lights Fan And Pump
The fan and pump head daisy-chain to a single 5V 3-pin ARGB header on the motherboard. The fan's 4-pin PWM plug goes to the CPU fan header, so the board sets the speed by CPU temperature, and the pump has its own 4-pin connector.

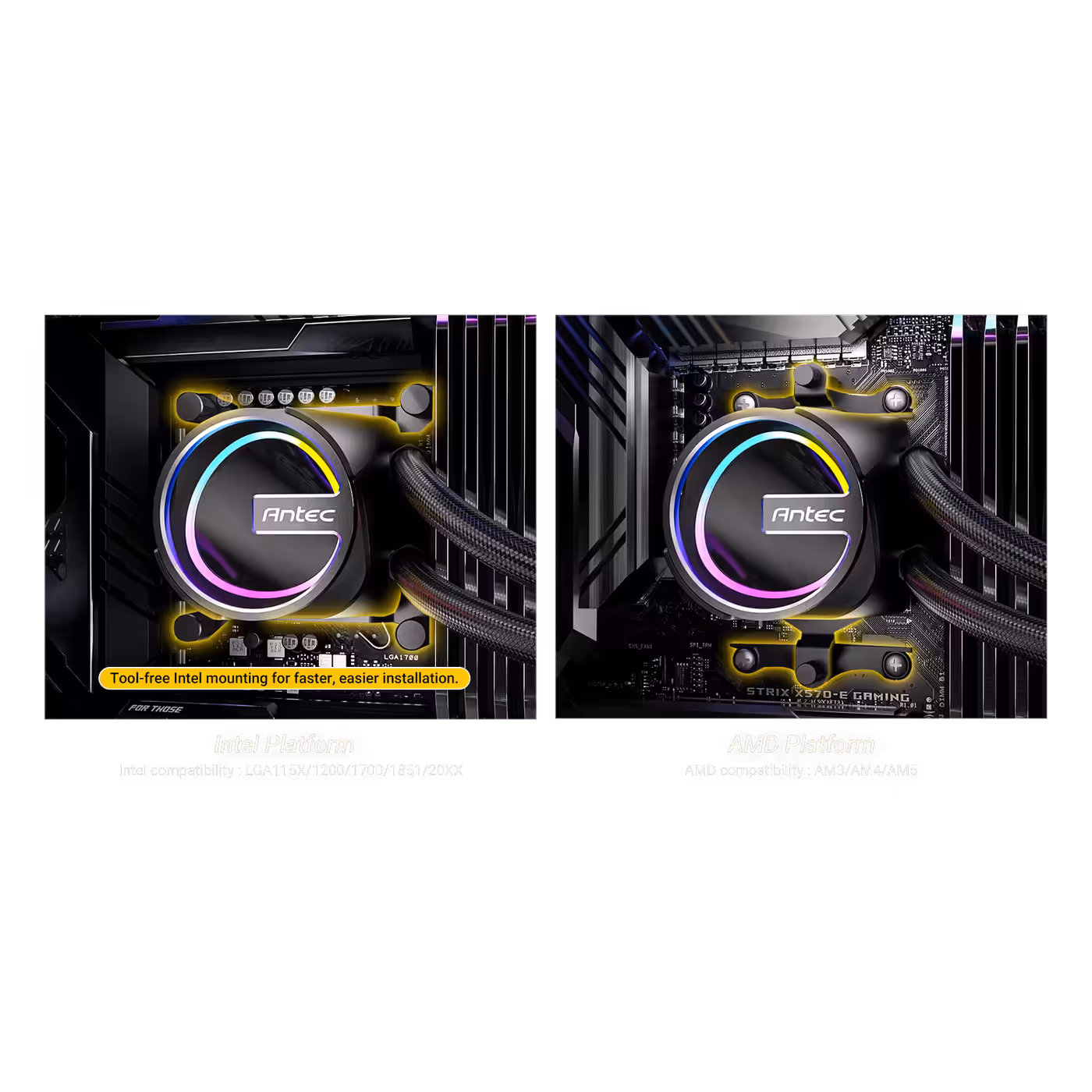

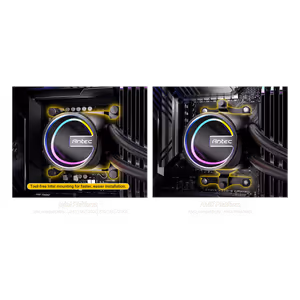

Tool-Free Intel Mounting And Wide Sockets
Antec's Intel mounting installs without tools for a faster build. Supported sockets are Intel LGA 1851, 1700, 1200, 115X and 20XX, and AMD AM5, AM4 and AM3. Your case needs a 360mm radiator mount, with about 52mm of depth for the radiator plus the fan frame.
Tool-Free Intel Mounting And Wide Sockets
Antec's Intel mounting installs without tools for a faster build. Supported sockets are Intel LGA 1851, 1700, 1200, 115X and 20XX, and AMD AM5, AM4 and AM3. Your case needs a 360mm radiator mount, with about 52mm of depth for the radiator plus the fan frame.
FAQ
Frequently Asked Questions
Everything you need to know about this product
Antec does not publish a TDP figure for it. What it does state: a 397mm-long 360mm radiator, a 2800RPM pump moving at least 1300mL/min over a copper base, and fans that reach 2400RPM and 74.23CFM.
Antec rates the pump at 28dBA or less and the fan at 32.13dBA or less at full speed. Under PWM control the fans drop to around 800RPM at light load, so it is far quieter than the full-speed figure at idle.
The fan uses a 4-pin PWM connector, so the motherboard sets it between 800 and 2400RPM by CPU temperature. The pump has its own 4-pin connector and is rated at 2800RPM.
It is a sealed loop. Antec uses IIR-EPDM reinforced tubing to cut coolant permeation and evaporation, and an 8-pole pump on a precision ceramic shaft rated for 40,000 hours.
Intel LGA 1851, 1700, 1200, 115X and 20XX, and AMD AM5, AM4 and AM3. Antec's Intel mounting is tool-free.
The Skeleton 360 ARGB uses three separate 120mm fans at up to 2000RPM. The Skeleton Matrix 360 puts the fans in one 360mm frame that mounts as a single piece and runs up to 2400RPM for 74.23CFM.
Your case needs a 360mm radiator mount. The radiator is 397 x 120 x 27mm and the fan frame adds 25mm, so allow about 52mm of depth for radiator plus fans.
If you want a full 360mm AIO with a show-piece pump head and a one-piece fan frame that is quicker to fit and wire than three loose fans, it covers both with one ARGB cable.
