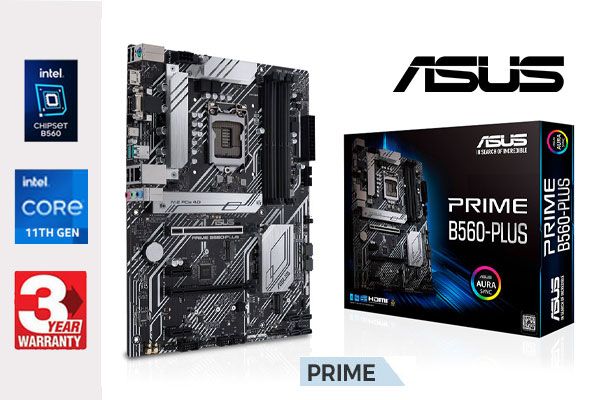

Try the new builderASUS PRIME B560-PLUS Intel Motherboard
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B560-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Cool to the Core
Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.
ASUS OptiMem benefits:
ASUS OptiMem
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
SPECIFICATION
| Model Name | PRIME B560-PLUS |
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | B560 |
| Memory | Max Memory Size:128GB 4600/4400/4266/4000/3733/3600/3466/3333/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) ASUS OptiMem * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively. * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4 *Graphics specifications may vary between CPU types. ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. ***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot* - Intel® 11th processors support PCIe 4.0 x16 - Intel®10th processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 11th Gen Processors - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports |
| Ethernet | ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| USB | Rear USB:Total 7 ports 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C®) 4 x USB 2.0 ports Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio CODEC* Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
| Back Panel I/O Ports | 1 x DP port 1 x HDMI port 1 x D-Sub port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port 1 x Intel® I219-V 1Gb Ethernet port 4 x USB 2.0 ports (4 x Type-A) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) |
| Intrernal I/O Connectors | Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x SPI TPM header (14-1 pin) 1 x M.2 slot (key E) 1 x Thunderbolt 4 header |
| Special Features | ASUS 5X PROTECTION III - ASUS DIGI+VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design: - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box Headers AURA SYNC - AURA RGB headers - Addressable Gen 2 RGB headers |
| Software Features | ASUS Exclusive Software: Armoury Crate - AURA Creator -AURA Sync AI Suite 3 -Performance And Power Saving Utility Turbo EVO Digi+ VRM EPU Fan Xpert 2+ - EZ update ASUS CPU-Z DAEMON Tools Norton Anti-virus software(Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package 1 x IO Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Supporting DVD Documentation 1 x User's manual |
| Operating System | Windows® 11 ready Windows® 10 64bit |
| Form Factor | ATX 30.5cm x 23.4cm |
