ASUS PROART X870E-CREATOR WIFI AMD Ryzen™ AI DDR5 PCIe 5.0 ATX Creator Motherboard – X870E, Wi-Fi 7, Dual 10G LAN, USB-C, Thunderbolt™ 4 Ready / 90MB1IG0-M0EAY0 + FREE DELIVERY !

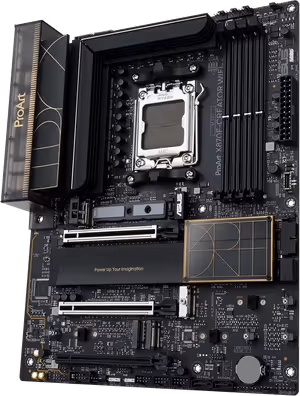

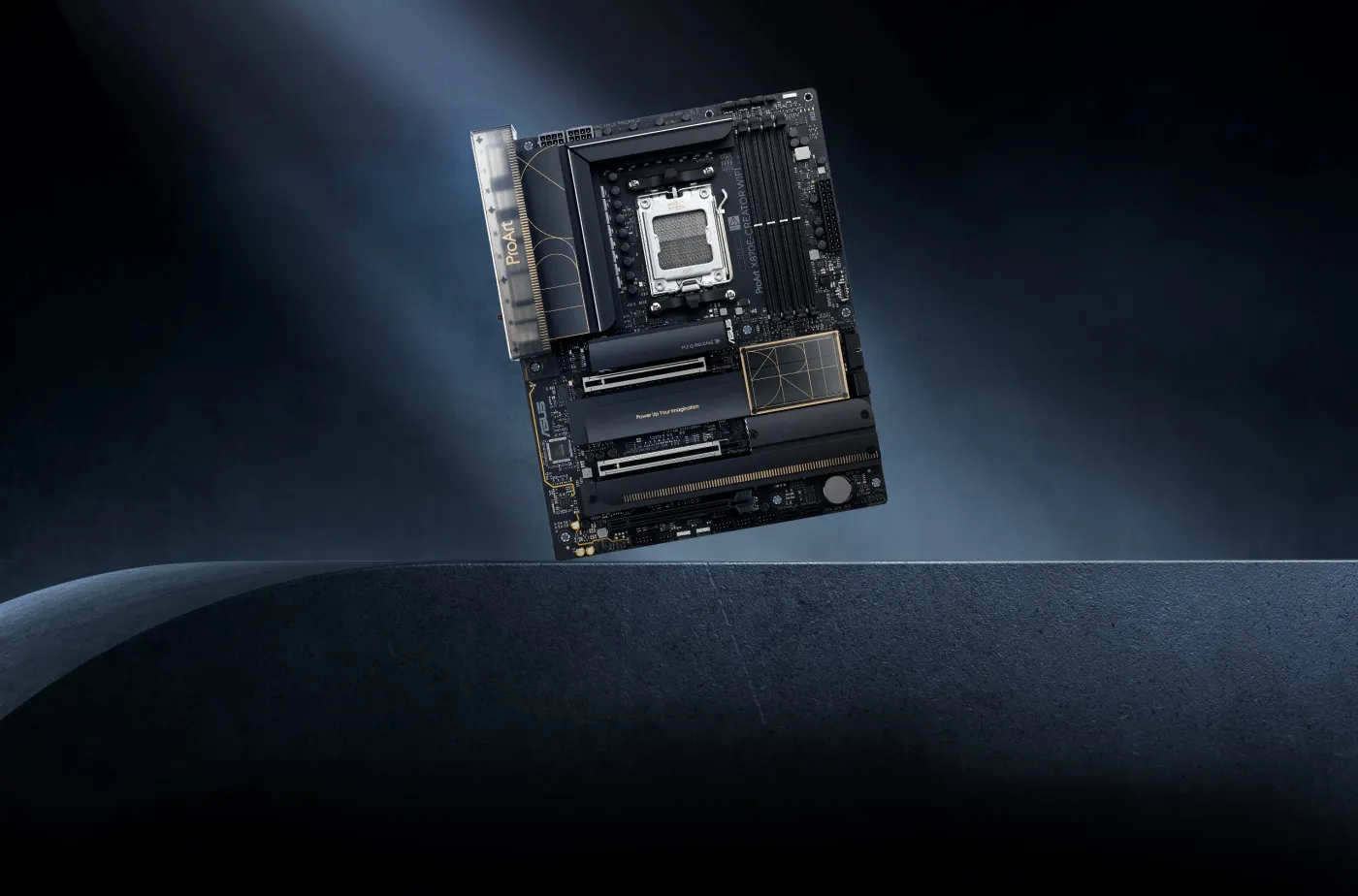

The ProArt X870E-Creator WiFi is engineered for creators and supports AMD Ryzen™ 9000, 8000 and 7000 Series processors. It features 16+2+2 team power stages, DDR5 memory slots, PCIe® 5.0, and high-speed connectivity including dual USB4® ports, 10G and 2.5G Ethernet, plus WiFi 7. The board’s aesthetic combines layered black tones with metallic gold accents and a translucent I/O cover that reveals the premium rear connectors.

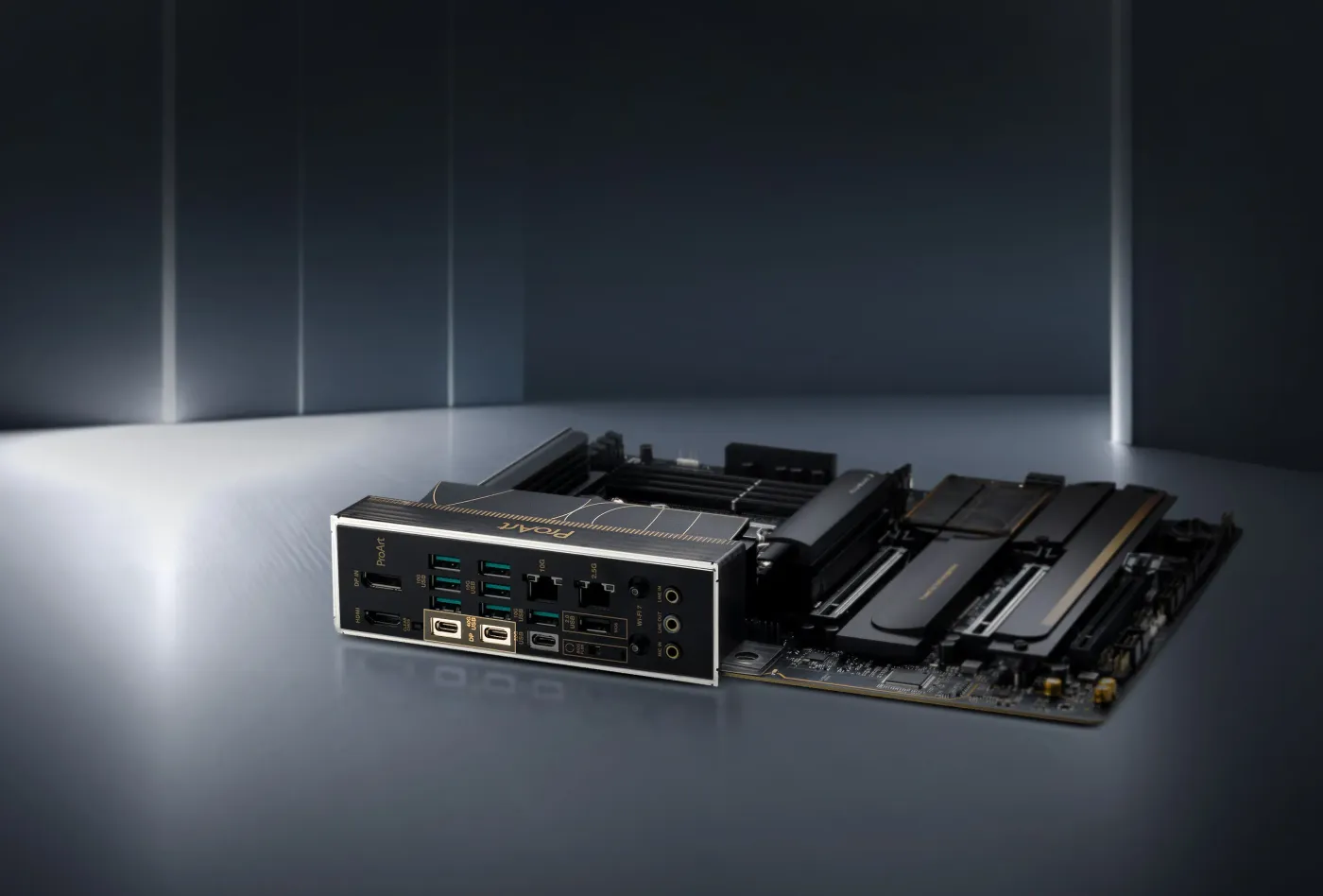

Provides two USB4 ports that enable up to 40 Gbps bi-directional transfers and support high-resolution displays. By using the onboard DisplayPort™ In port with a discrete graphics card, you can route video through a USB4 port to drive one 8K or two 4K color-accurate monitors.

Rear I/O and onboard headers include: DisplayPort™ input port for USB4®; an HDMI® 2.1 port (4K @ 60 Hz); 7 x USB 10Gbps ports; 2 x USB4® ports with DisplayPort™ 1.4 (8K @ 60 Hz); 1 x USB 20Gbps Type-C® port; 10 Gb & 2.5 Gb Ethernet; BIOS FlashBack™; 1 x USB 20Gbps Type-C® front-panel connector with 30-watt PD, QC 4+; 1 x USB 5Gbps front-panel header; WiFi 7; 3 x audio jacks; 4 x SATA 6 Gb/s; 3 x USB 2.0 headers; and 3 x Aura addressable Gen 2 RGB headers.

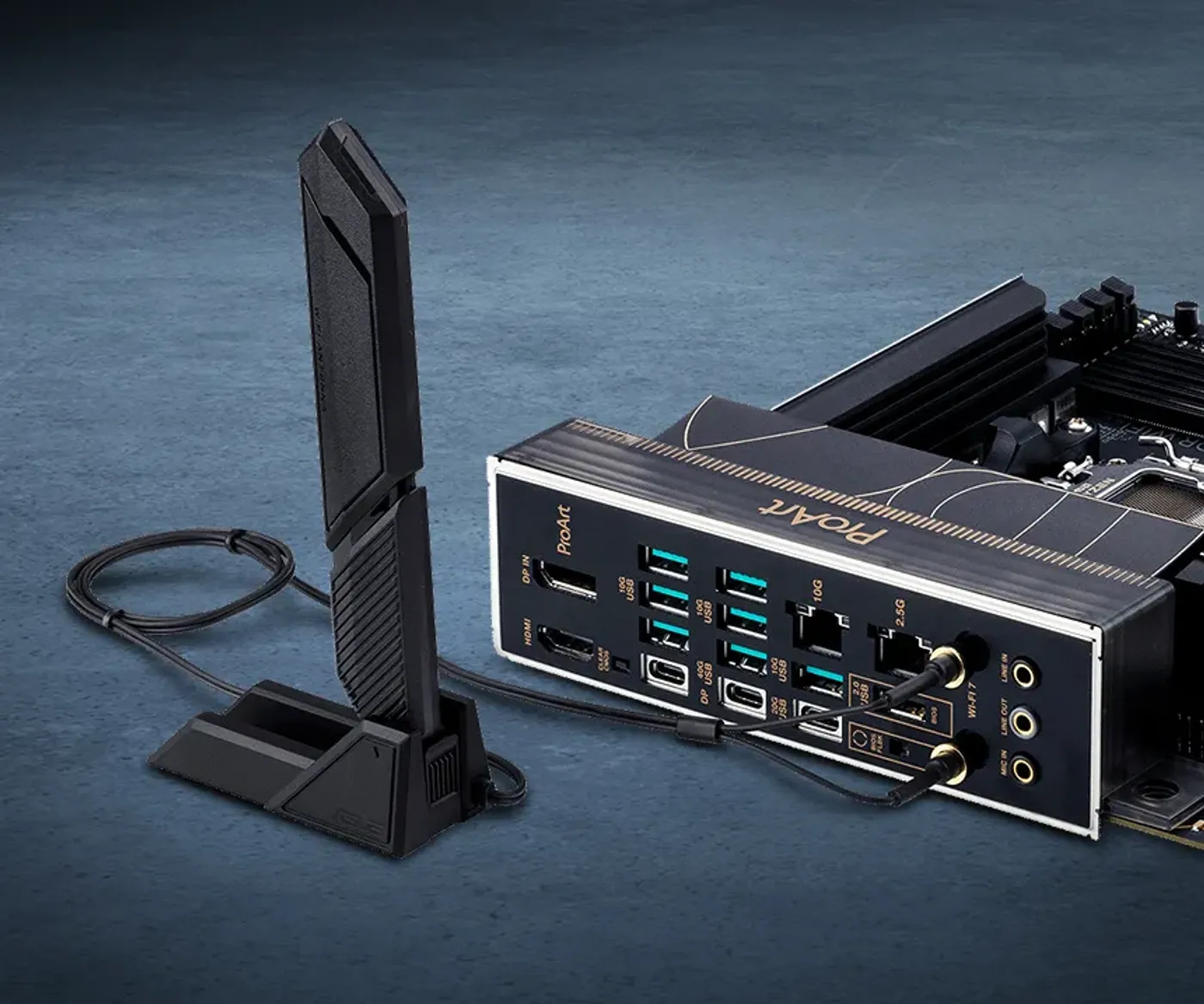

Dual Ethernet ports offer simultaneous 10 Gb and 2.5 Gb connectivity for fast local transfers and streaming, while onboard WiFi 7 provides significantly higher throughput and lower latency. WiFi 7 uses technologies such as 320 MHz channels and 4K QAM plus Multi-Link Operation (MLO) to improve speed and stability, and the ASUS WiFi Q-Antenna supports the 2.4, 5 and 6 GHz bands via dual transceivers.

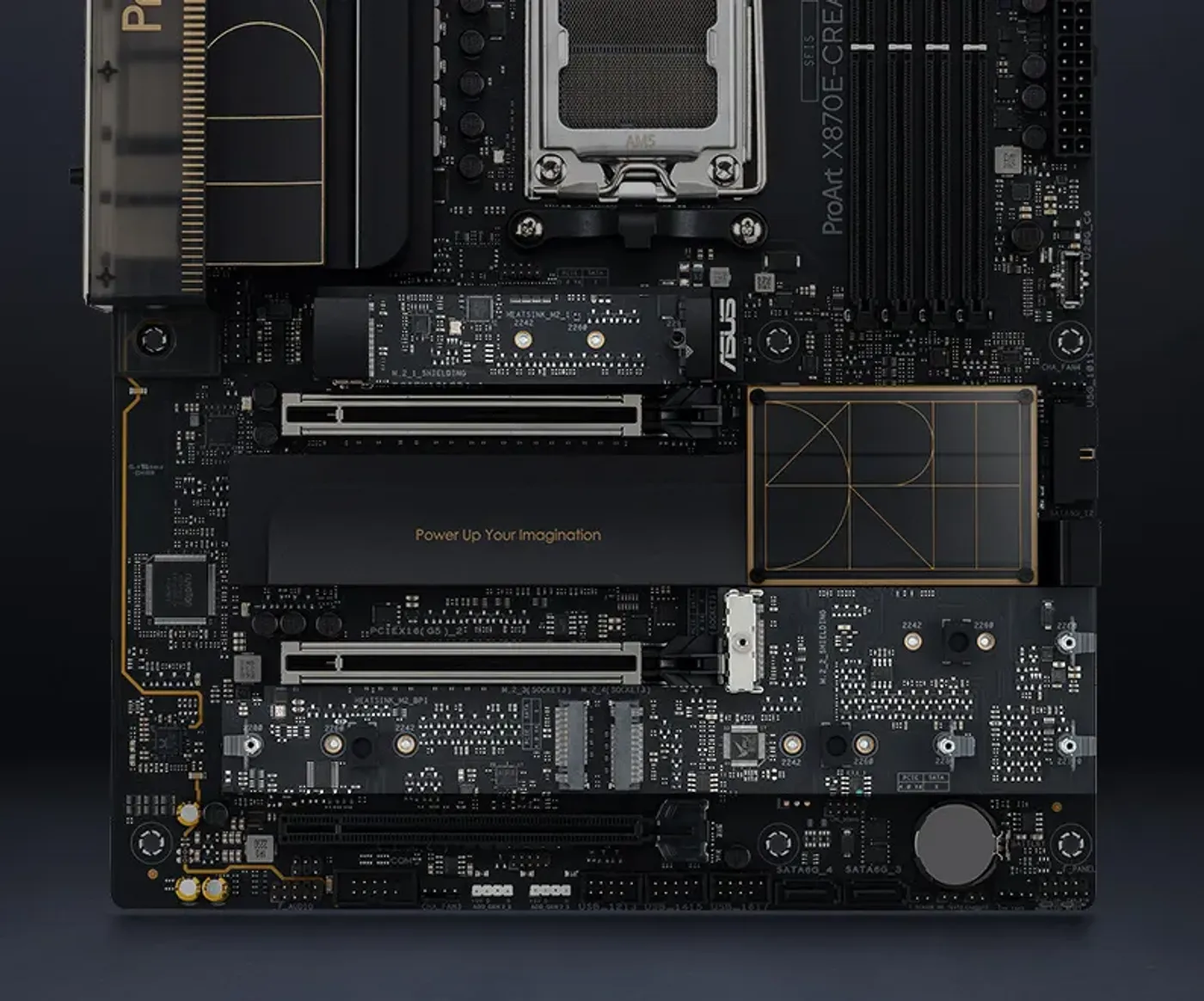

The ProArt X870E-Creator WiFi embraces PCIe 5.0 for both graphics and storage. It includes two PCIe 5.0 M.2 slots that can deliver data rates of up to 128 Gbps* and supports NVMe RAID across the M.2 slots, with a total of four onboard M.2 slots highlighted on the board.

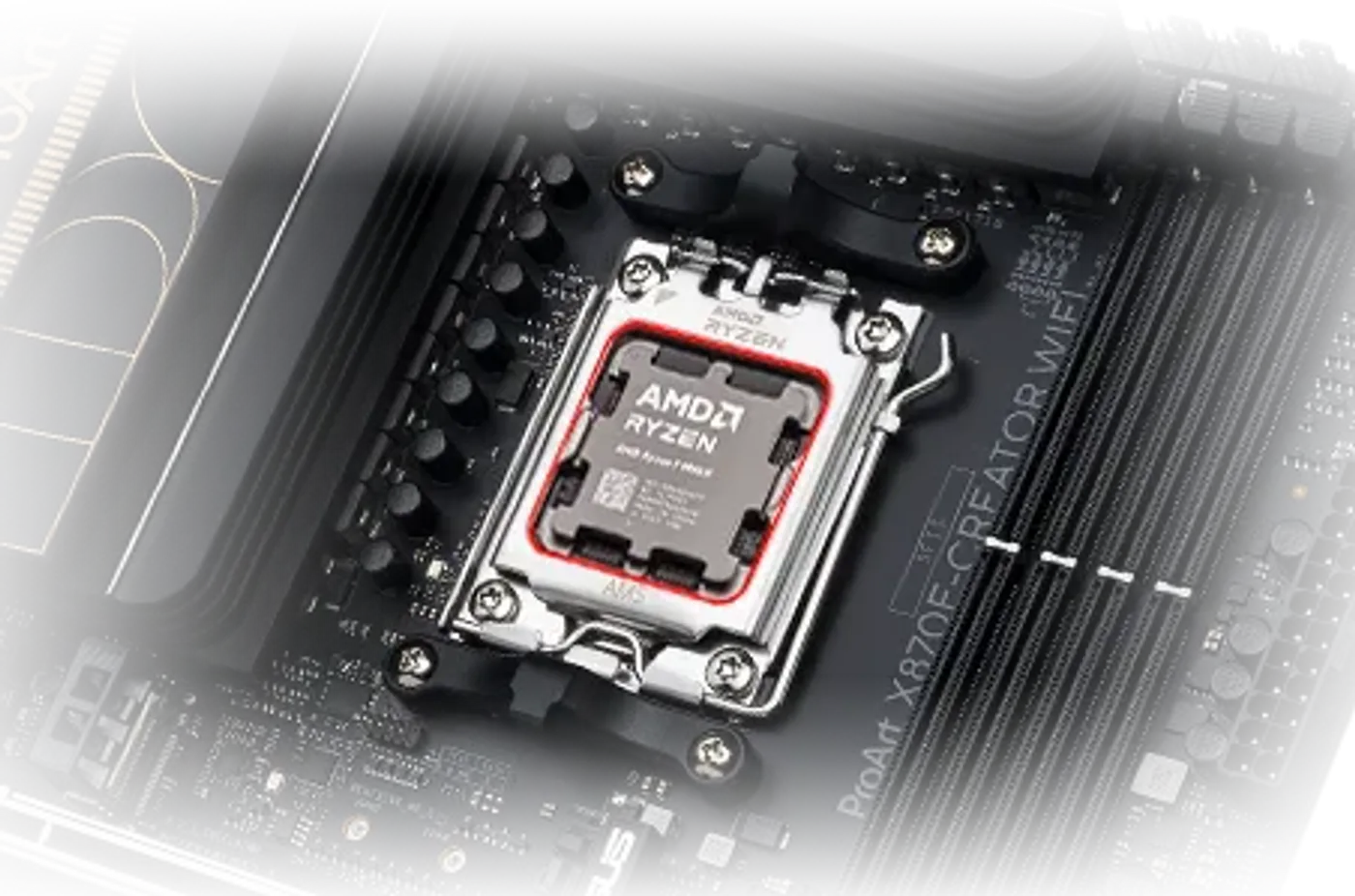

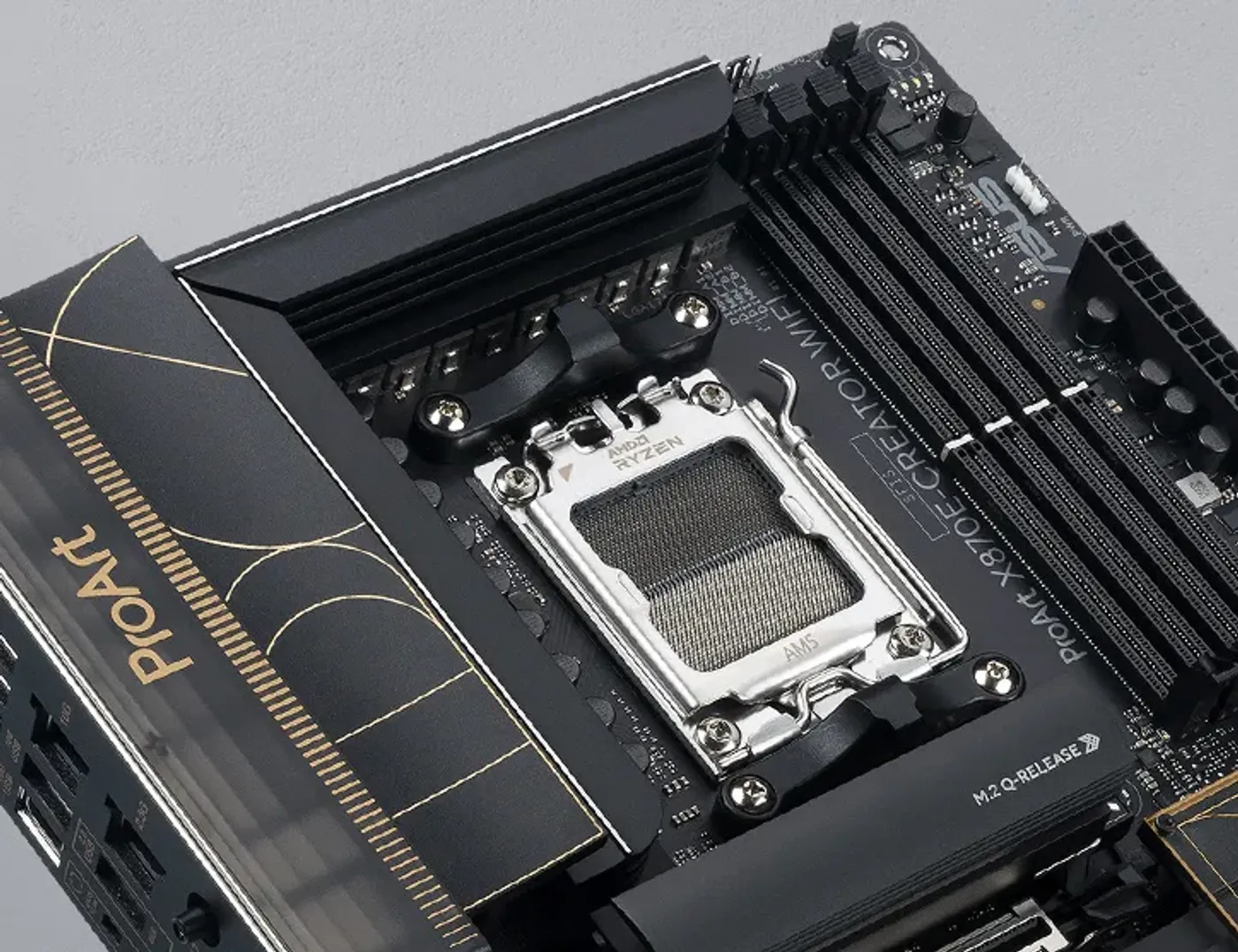

Designed for high-core-count CPUs, the board uses 16(80A)+2(80A)+2 power stages that integrate MOSFETs and drivers into packages rated for up to 80 amps each, ensuring stable and efficient power delivery. The design also includes an eight-layer PCB for improved heat dissipation, ProCool II connectors, superior chokes and capacitors, and Digi+ VRM control for smooth CPU power.

The platform integrates multiple AI-driven utilities including AI Overclocking, AI Cooling II, AI Networking II and AI Advisor. AI Overclocking predicts optimal CPU and cooling settings to maximize performance, while AI Cooling II dynamically adjusts fan speeds; availability of ASUS AI Advisor may vary by region.

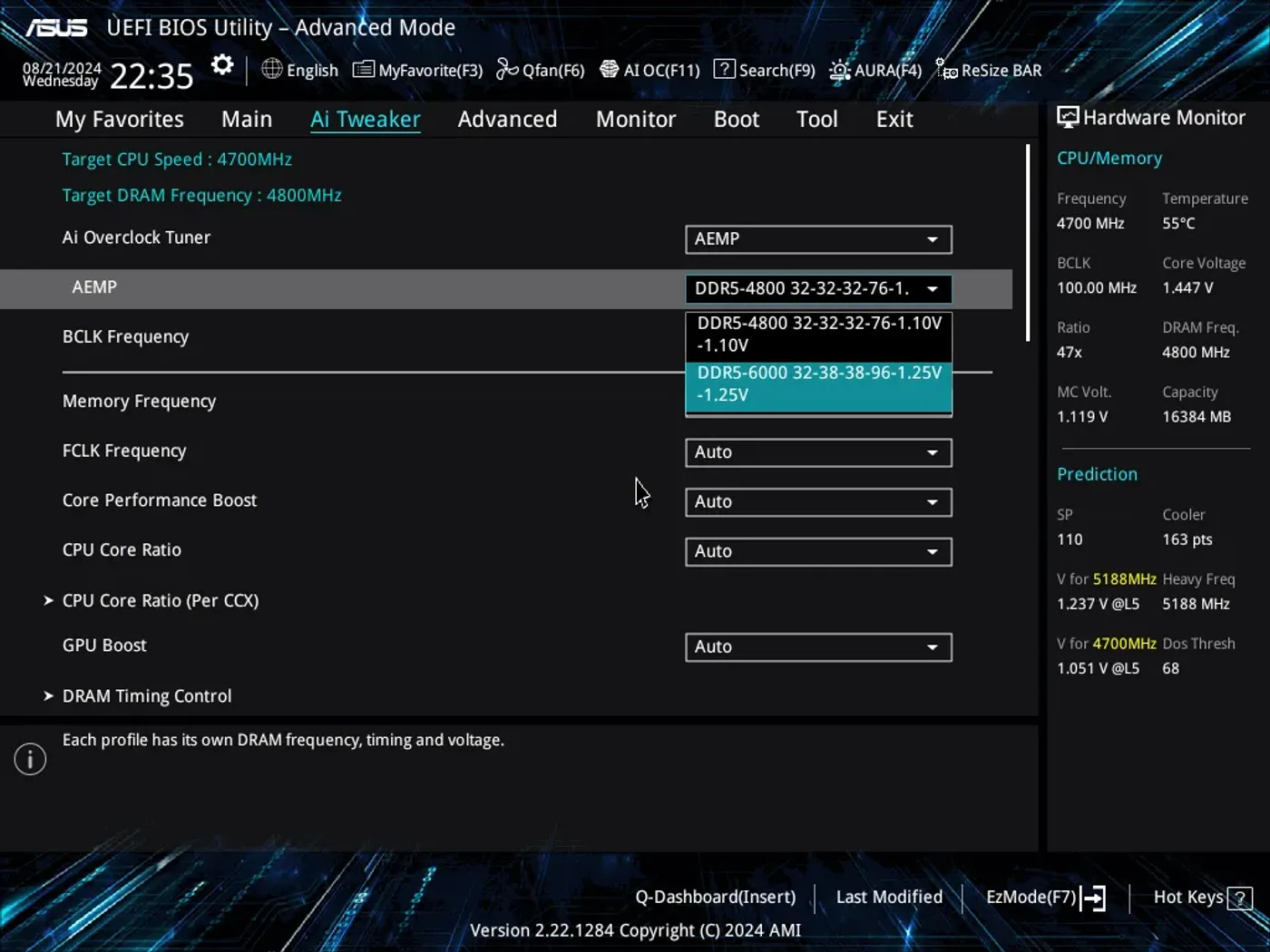

Memory support includes four DDR5 DIMM slots with extensive overclocking capabilities and broad AMD EXtended Profiles for Overclocking (EXPO) compatibility. ASUS Enhanced Memory Profile (AEMP) automatically detects PMIC-restricted memory chips and offers optimized frequency, timing and voltage profiles for easier memory tuning.
