Will this motherboard work with AM5 CPUs?

Yes. The ASUS TUF Gaming X870-PLUS is specified as an AM5 socket motherboard. It supports AMD AM5 processors and is built to pair with current AM5 CPUs, delivering stable power and platform compatibility for AM5 builds.

Does the board support DDR5 memory?

Yes. DDR5 support is specified for this motherboard. You can install DDR5 modules to take advantage of higher memory bandwidth and future-proof performance for gaming and multitasking.

How many M.2 drives can I install?

You can install up to four M.2 drives. The motherboard includes four M.2 slots for high-speed NVMe storage to expand capacity and accelerate load times.

Is PCIe 5.0 supported for next-gen GPUs and SSDs?

PCIe 5.0 readiness is listed for this model. The X870-PLUS is prepared for PCIe 5.0 devices, providing headroom for next-generation GPUs and storage as compatible components become available.

Does this board include modern high-speed I/O like USB4?

Yes. The specification lists USB4 40Gbps and USB Type-C 20Gbps connectivity, offering very high-speed peripheral and display support for compatible devices.

What networking features are included?

The motherboard includes built-in Wi‑Fi 7 and a 2.5Gb Ethernet LAN port. These options deliver faster wireless connectivity and higher wired throughput for low-latency online gaming and transfers.

Is the ASUS TUF Gaming X870-PLUS suitable for gaming and streaming?

Yes. With robust power delivery, DDR5 support, PCIe 5.0 readiness, multiple M.2 slots and fast networking, this motherboard is well suited for high-frame-rate gaming and streaming setups that demand reliability and expandability.

Will this motherboard handle heavy multitasking or content creation?

Yes. The strong power design, DDR5 memory support and multiple storage options make it capable of handling heavy multitasking and content workloads, enabling faster project builds and smoother editing workflows.

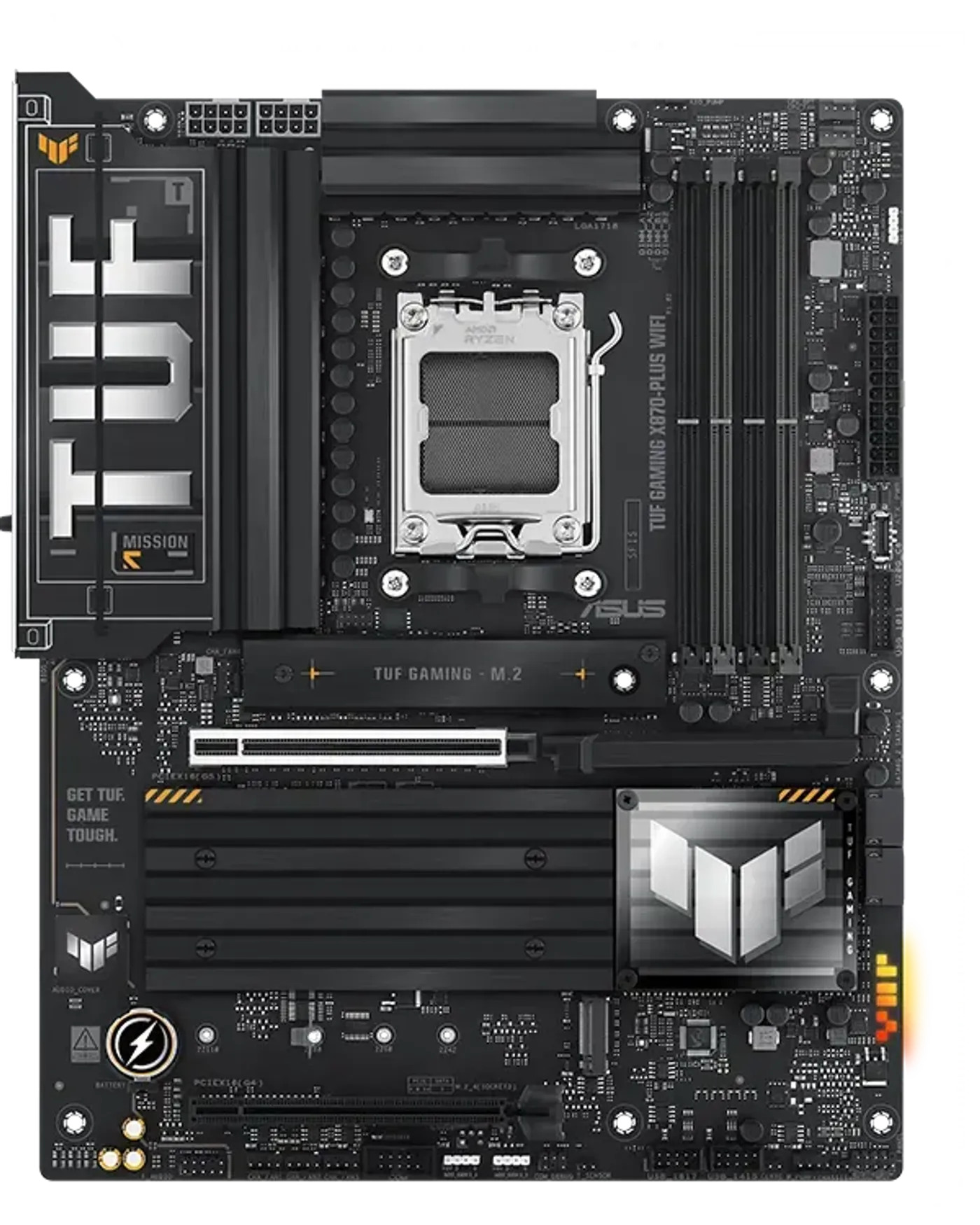

ASUS TUF Gaming X870-PLUS WiFi DDR5 ATX Motherboard

TUF GAMING X870-PLUS WIFI Overview

The TUF GAMING X870-PLUS WIFI consolidates the essential features of the latest AMD Ryzen™ processors into a platform built for long gaming sessions and demanding workloads. Engineered with military-grade components, an upgraded power solution and a thorough cooling design, this motherboard delivers stable performance and the connectivity required by advanced AI PC applications.

TUF GAMING X870-PLUS WIFI Overview

The TUF GAMING X870-PLUS WIFI consolidates the essential features of the latest AMD Ryzen™ processors into a platform built for long gaming sessions and demanding workloads. Engineered with military-grade components, an upgraded power solution and a thorough cooling design, this motherboard delivers stable performance and the connectivity required by advanced AI PC applications.

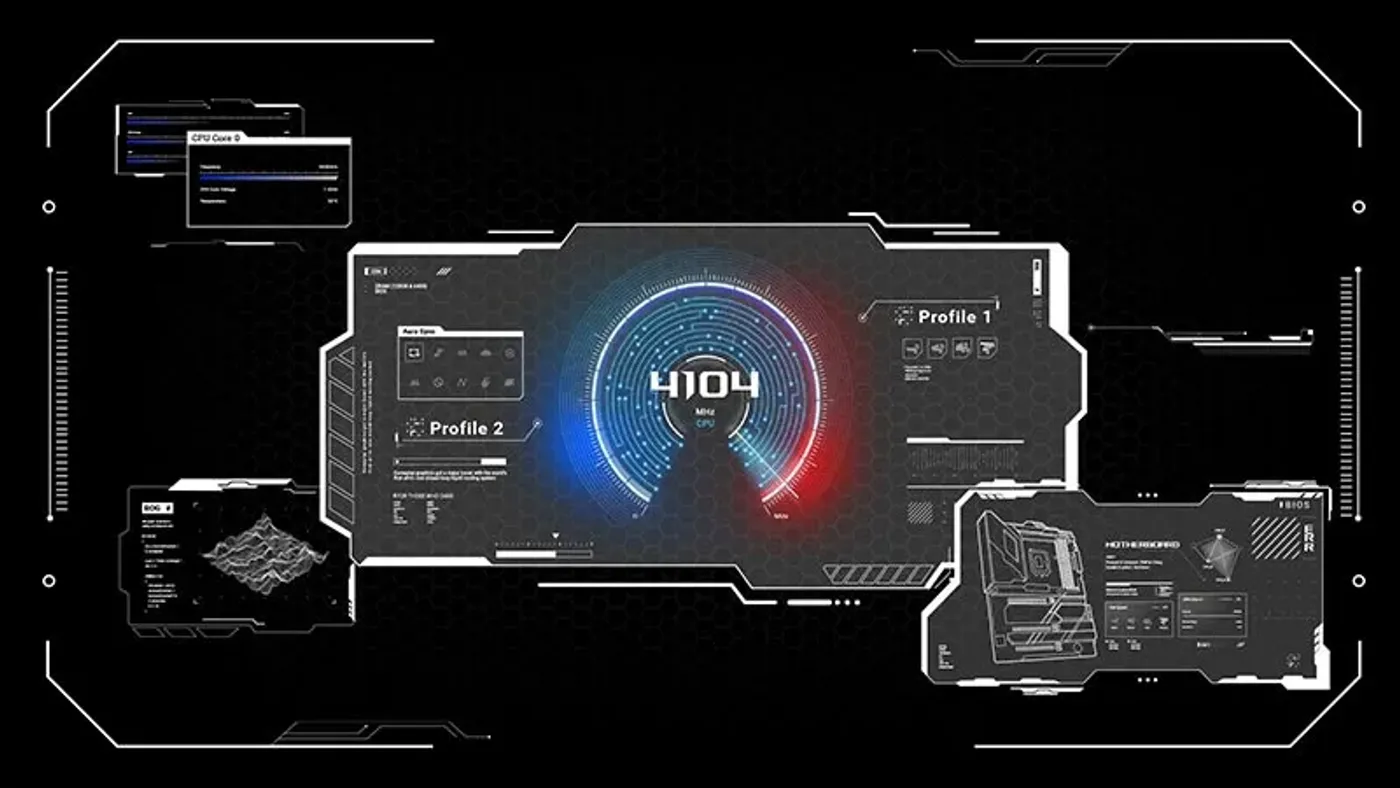

Comprehensive AI Solution

ASUS AI Solutions — including AI Overclocking, AI Cooling II and AI Networking II — deliver intelligent overclocking, automated thermal control and continuous bandwidth optimization. These features work together to simplify tuning, reduce noise through dynamic fan management, and help sustain ultrafast connectivity during real-time network activity.

Comprehensive AI Solution

ASUS AI Solutions — including AI Overclocking, AI Cooling II and AI Networking II — deliver intelligent overclocking, automated thermal control and continuous bandwidth optimization. These features work together to simplify tuning, reduce noise through dynamic fan management, and help sustain ultrafast connectivity during real-time network activity.

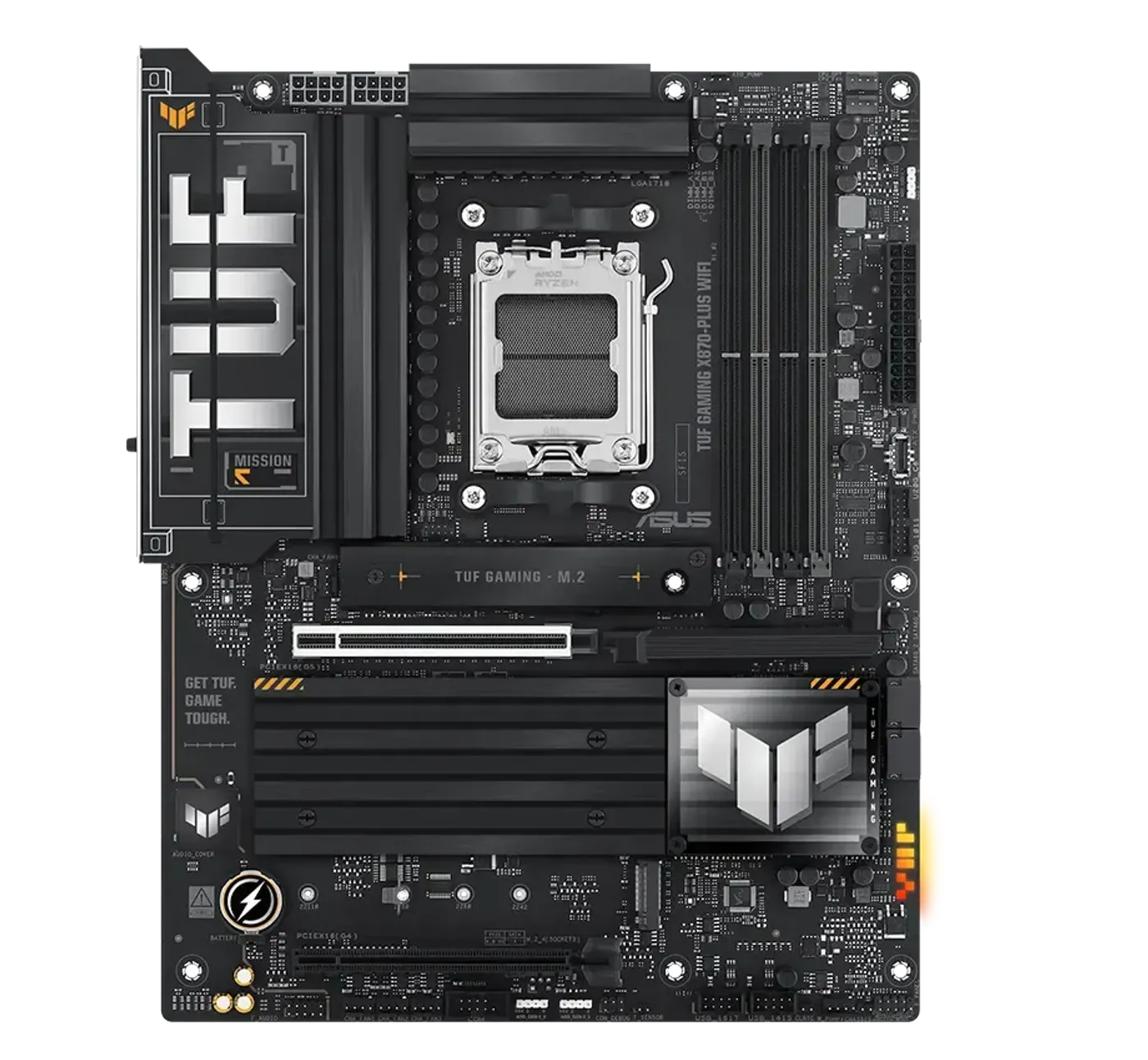

TUF Gaming motherboard front view, with Aura lighting

AM5 Socket and Expansion Slots

The platform includes an AM5 Socket for AMD Ryzen™ Desktop Processors and expansion options such as 1 x PCIe 5.0 x16 SafeSlot and 1 x PCIe 4.0 x16 Slot (max @x4). It also lists 16(80A)+2(80A)+1(80A) Power Stages, 4 x DIMM (DDR5, Dual Channel, AEMP) and 4 x M.2 Slots » 2 x M.2 2280 PCIe 5.0 x4 » 1 x M.2 2280 PCIe 4.0 x4 » 1 x M.2 2242/2260/2280/22110 PCIe 4.0 x4.

AM5 Socket and Expansion Slots

The platform includes an AM5 Socket for AMD Ryzen™ Desktop Processors and expansion options such as 1 x PCIe 5.0 x16 SafeSlot and 1 x PCIe 4.0 x16 Slot (max @x4). It also lists 16(80A)+2(80A)+1(80A) Power Stages, 4 x DIMM (DDR5, Dual Channel, AEMP) and 4 x M.2 Slots » 2 x M.2 2280 PCIe 5.0 x4 » 1 x M.2 2280 PCIe 4.0 x4 » 1 x M.2 2242/2260/2280/22110 PCIe 4.0 x4.

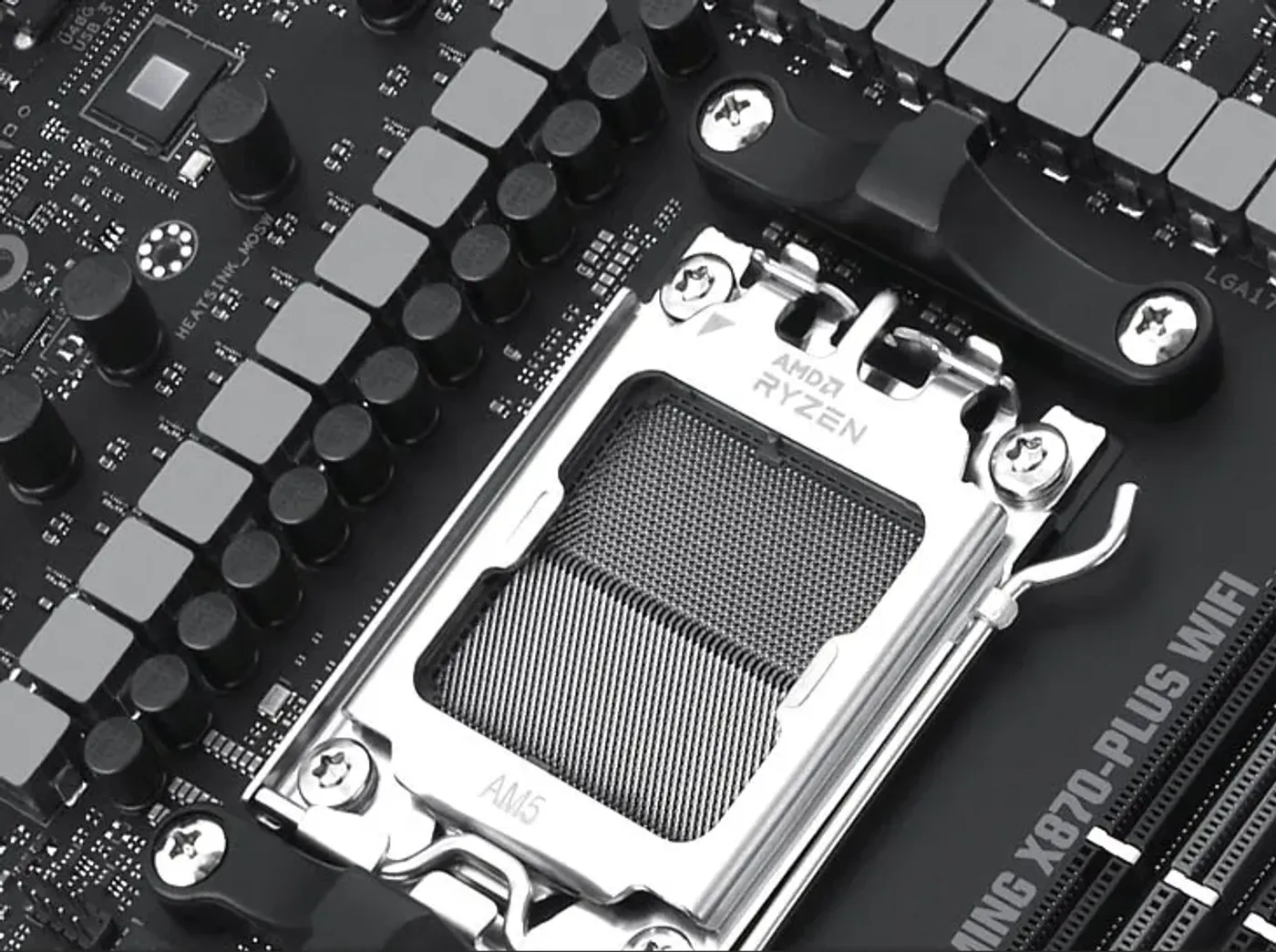

Premium Power Delivery Design

Stable and efficient power delivery is central to this board’s design. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each, ensuring reliable power, efficiency and performance for current and future AMD processors.

Premium Power Delivery Design

Stable and efficient power delivery is central to this board’s design. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each, ensuring reliable power, efficiency and performance for current and future AMD processors.

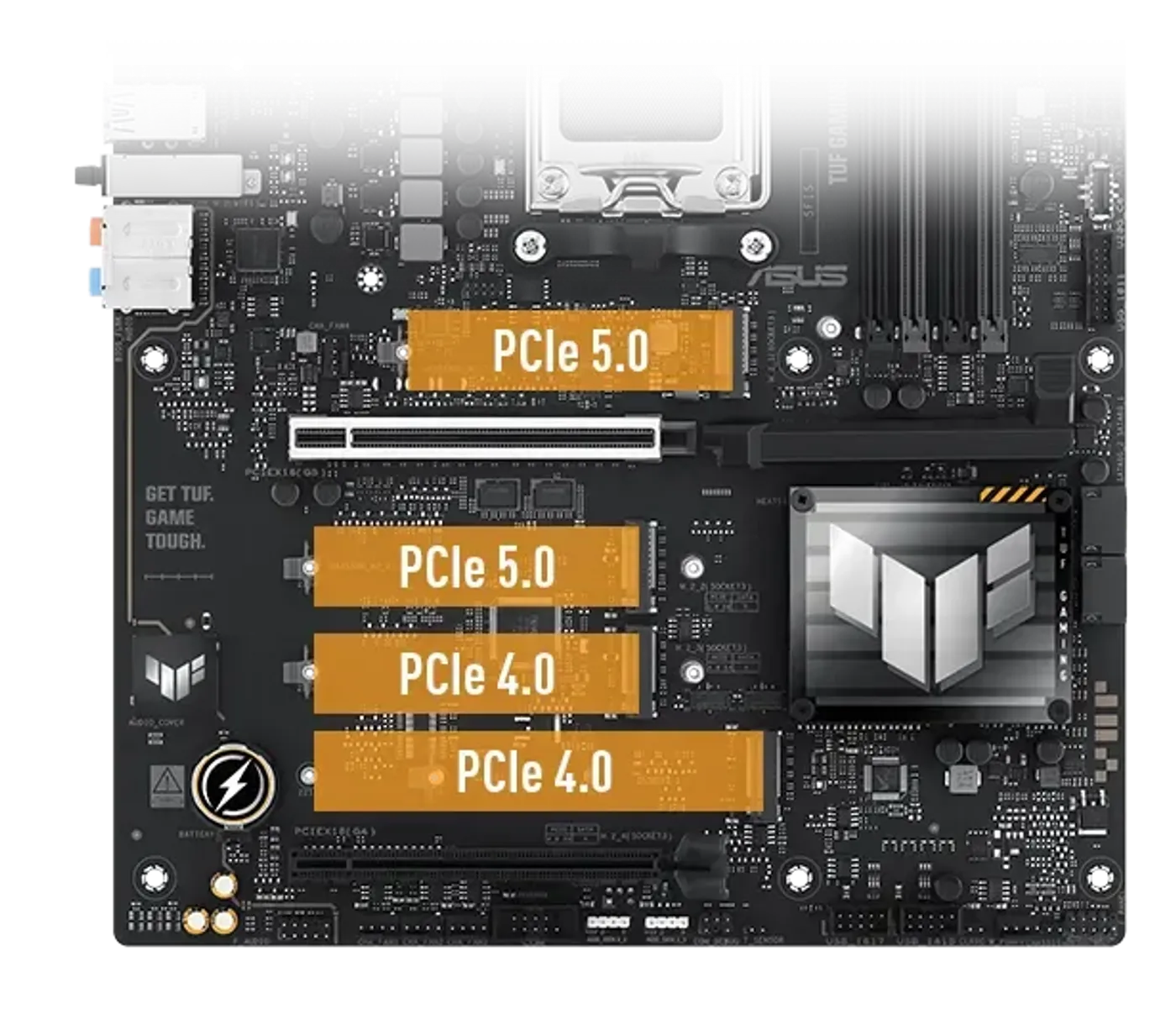

M.2 PCIe 5.0 High-Speed Storage

The motherboard supports two PCIe 5.0 M.2 slots to enable the fastest available M.2 transfers (up to 128 Gbps), and all M.2 slots support NVMe RAID configurations to leverage those speeds for demanding storage tasks.

M.2 PCIe 5.0 High-Speed Storage

The motherboard supports two PCIe 5.0 M.2 slots to enable the fastest available M.2 transfers (up to 128 Gbps), and all M.2 slots support NVMe RAID configurations to leverage those speeds for demanding storage tasks.

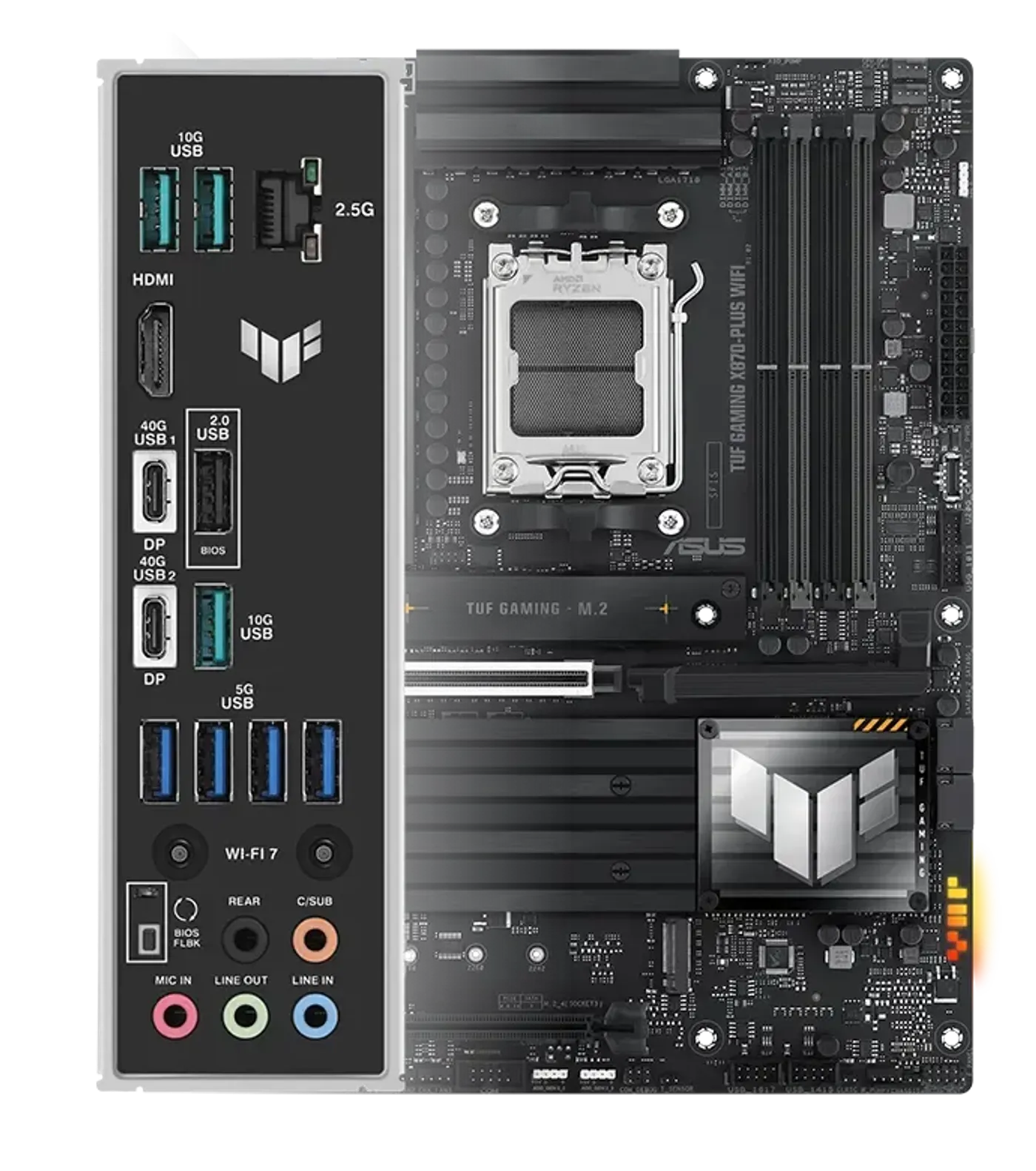

TUF Gaming motherboard front view, with Aura lighting, and I/O shield

Comprehensive High-Speed Connectivity

This motherboard provides broad connectivity with PCIe 5.0, USB4® 40Gbps and a front USB 20Gbps Type-C® connector that supports Fast Charge. The front Type-C connector implements Power Delivery (PD) 3.0 to supply up to 30W for quick charging, while the platform also embraces modern networking such as WiFi 7.

Comprehensive High-Speed Connectivity

This motherboard provides broad connectivity with PCIe 5.0, USB4® 40Gbps and a front USB 20Gbps Type-C® connector that supports Fast Charge. The front Type-C connector implements Power Delivery (PD) 3.0 to supply up to 30W for quick charging, while the platform also embraces modern networking such as WiFi 7.
