3 Years Local Warranty
Model No : ASUS 90MB15S0-M0EAY0
Price Inc. Vat
R 4,999
Save R 18,000
ListR 22,999
4999Limit 1 per customer
Out of Stock
Price Inc. Vat
R 4,999
Save R 18,000
ListR 22,999
4999Limit 1 per customer
Out of Stock
Trusted Partners
Please Note: Product images are for illustrative purposes only and may differ from the actual product.
Hand-pick every part with live stock, compatibility, and instant pricing.
Try the new builderHand-pick every part with live stock, compatibility, and instant pricing.

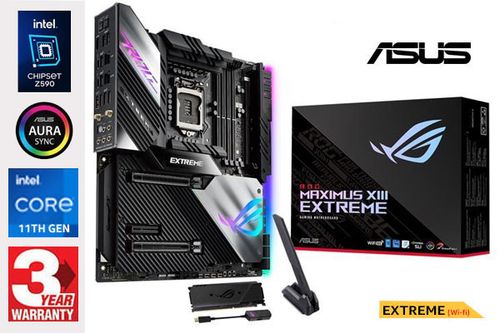

Try the new builderASUS ROG Maximus XIII Extreme Intel Motherboard
Intel® Z590 EATX motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt™ 4, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, PCIe® 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting
MAXIMUS XIII EXTREME
ROG Maximus XIII Extreme is fully armed for those wanting to push the latest 11th Gen Intel® Core™ to the very edges of the performance envelope. It features the latest hardware and software that work in unison to optimize your overclocking experience, as well as AI-enhancements and comprehensive cooling controls to give you total command over your build.
Extreme Power & Performance
* Specifications may vary, depending on CPU. Listed specifications are based on 11th Gen Intel® Core™ desktop processors.
Thermal Performance
Each VRM component serves a specific purpose. PWM controllers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That's why ROG Maximus XIII Extreme utilizes 20 power stages. The high-end power stages feature a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
COOLING
A high-end battle station needs robust cooling to deliver peak performance. ROG Maximus XIII Extreme employs an enlarged cooling array for the VRM and chipset, plus four M.2 sinks teamed with backplate blocks to wick heat away from critical components. That rugged foundation is backed by complimentary headers for fans, AIOs and liquid loops, paired with flexible control options that allow you to keep thermals in check at all times.
CONNECTIVITY
The latest connectivity solutions including WiFi 6E AX210, dual Intel® 2.5 Gb Ethernet, PCIe® 4.0 and two Thunderbolt™ USB Type-C® ports ensure supersmooth networking and blisteringly fast file transfers. And for enthusiasts looking for high-fidelity audio, the SupremeFX ALC4082 codec takes gaming immersion to a whole new level while also saving a PCIe slot.
Intel® Wi-Fi 6E (Gig+)
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
Dual Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming.
Level Up Performance
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Maximus XIII Extreme system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
SPECIFICATION
| Model Name | ROG Maximus XIII Extreme |
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list.
|
| Chipset | Intel® Z590 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4
5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/
|
| Graphics | 1 x HDMI™ 1.4 / 2.0*** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs * * Graphics specifications may vary between CPU types. ** Only Intel® 11th Core™ processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) Intel® 11th & 10th Gen Processors 2 x PCIe 4.0/3.0 x16 slot(s) - Intel® 11th Core™ processors support PCIe 4.0 x16 or x8/x8 mode(s) - Intel® 10th Core™ processors support PCIe 3.0 x16 or x8/x8 mode(s) 1 x PCIe 3.0 x4 slot* * PCIEx4 slot shares bandwidth with SATA6G_12 and PCIEx4 slot is default set at x2 mode. |
| Multi-GPU Support | NVIDIA 2-Way SLI® Technology*
*Support varies with different graphics cards |
| Storage |
Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 11th Core™ processors support PCIe 4.0 x4 mode |
| Ethernet | 1 x Marvell® 10Gb Ethernet |
| Wireless & Bluetooth | 2x2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2
|
| USB | 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) Front USB: Total 10 ports 1 x USB 3.2 Gen 2x2 connector(s) (suppport(s) USB Type-C® 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C® 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | ALC4082 Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover
|
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s) 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x HDMI™ port 1 x ASUS Wi-Fi Module 1 x Marvell® AQtion AQC113CS 10Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Intrernal I/O Connectors | 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen Gen 2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x V_LATCH switch 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
|
