ASUS ROG Strix B550-I Gaming AMD Ryzen Mini ITX Motherboard / 3rd Gen AMD Ryzen Processors / AMD Socket AM4 / AMD B550 Chipset / Supports 2 x M.2 slots and 4 x SATA 6Gb/s Ports / AI Networking / 1 x HDMI 2.1 / 1 x DisplayPort 1.4 / 90MB14L0-M0EAY0 + FREE DELIVERY !
|
|
|

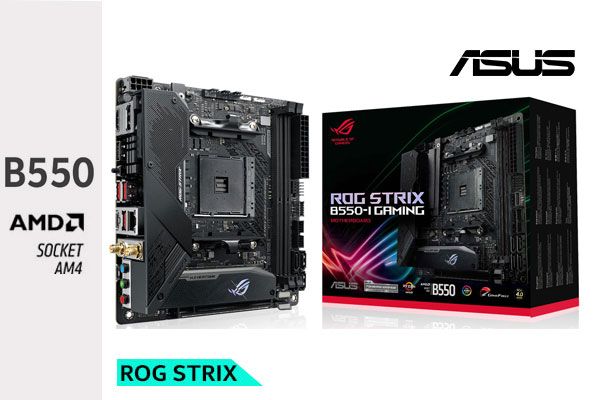

ASUS ROG Strix B550-I Gaming AMD Ryzen Motherboard
ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-I Gaming is ready to become your next compact gaming build.
Spec Overview
Built for Performance Gaming
Advance Your Gaming Immersion
ROG Strix B550-I Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-Ready
ROG Strix B550-I Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
WiFi 6 (802.11 ax)
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
All-round Performance
ROG Strix B550-I Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Cooler by Design
ROG Strix B550 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-I Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-I Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
BIOS FlashBack™
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present
SPECIFICATION
| Model Name |
ROG STRIX B550-I GAMING |
| CPU |
AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors |
| Chipset |
AMD B550 |
| Memory |
3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 128GB, DDR4 5100(O.C) /4800(O.C.) /4600(O.C) /4400(O.C) /4266(O.C.) /4133(O.C.) /4000(O.C.) /3866(O.C.) /3600(O.C.) /3466(O.C.) /3200 /3000 /2800 /2666 /2400 /2133 MHz Un-buffered Memory Dual Channel Memory Architecture
OptiMem II
ECC Memory (ECC mode) support varies by CPU.
|
| Expansion Slots |
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 |
| Wireless Data Network |
Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Storage |
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10 |
| Ethernet |
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard |
| USB |
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C® +3 x Type-A)
1 x USB 2.0 port(s)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 5 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s) |
| Audio |
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- SupremeFX Shielding™ Technology
- Rear audio USB Type-C® port
- Audio Shielding
- Premium Japanese audio capacitors
- Audio Cover |
| Back Panel I/O Ports |
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (1 x USB Type-C®+3 x Type-A)
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™ 1 for audio USB Type-C®)
1 x BIOS FlashBack™ Button(s)
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks |
| Internal I/O Connectors |
1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeC™ connector
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)br /> 1 x 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x VRM_HS_FAN Header
1 x Clear CMOS jumper(s) |
