GAMEMAX FN12A-S5-W 120mm ARGB Case Fan - White Frame / High-Performance Cooling Fan / PWM Intelligent Speed Control (800–1600 RPM) / Addressable RGB Lighting with Inner & Outer Effects / 5V 3-Pin ARGB + 4-Pin PWM Support / Aura Sync Compatible / Ultra-Quiet Operation (Max 30dBA) / 8× Shock-Absorbing Rubber Pads / Stable & Efficient Cooling Design / FN12A-S5-W

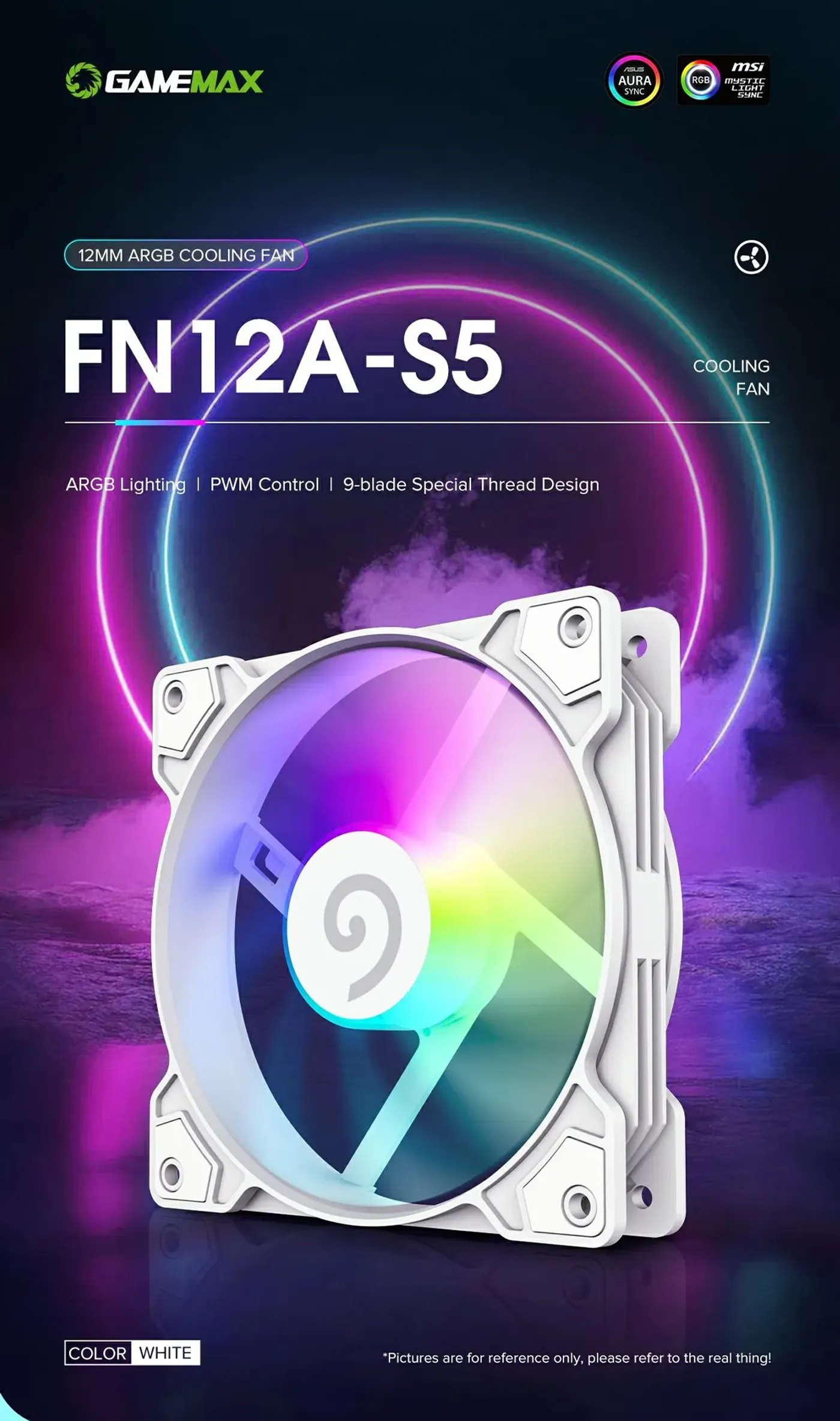

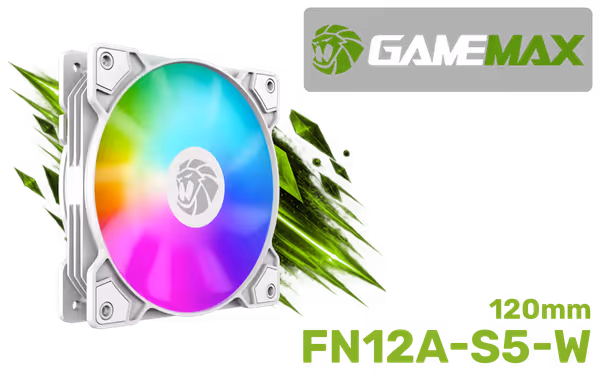

The GAMEMAX FN12A-S5-W is a 120 x 120 x 25mm case fan with a white frame and nine semi-transparent white blades. It fits the 120mm mounting points used across almost every chassis, radiator and cooler bracket, and the all-white finish means it disappears into a light-coloured build instead of interrupting it with a dark rectangle.

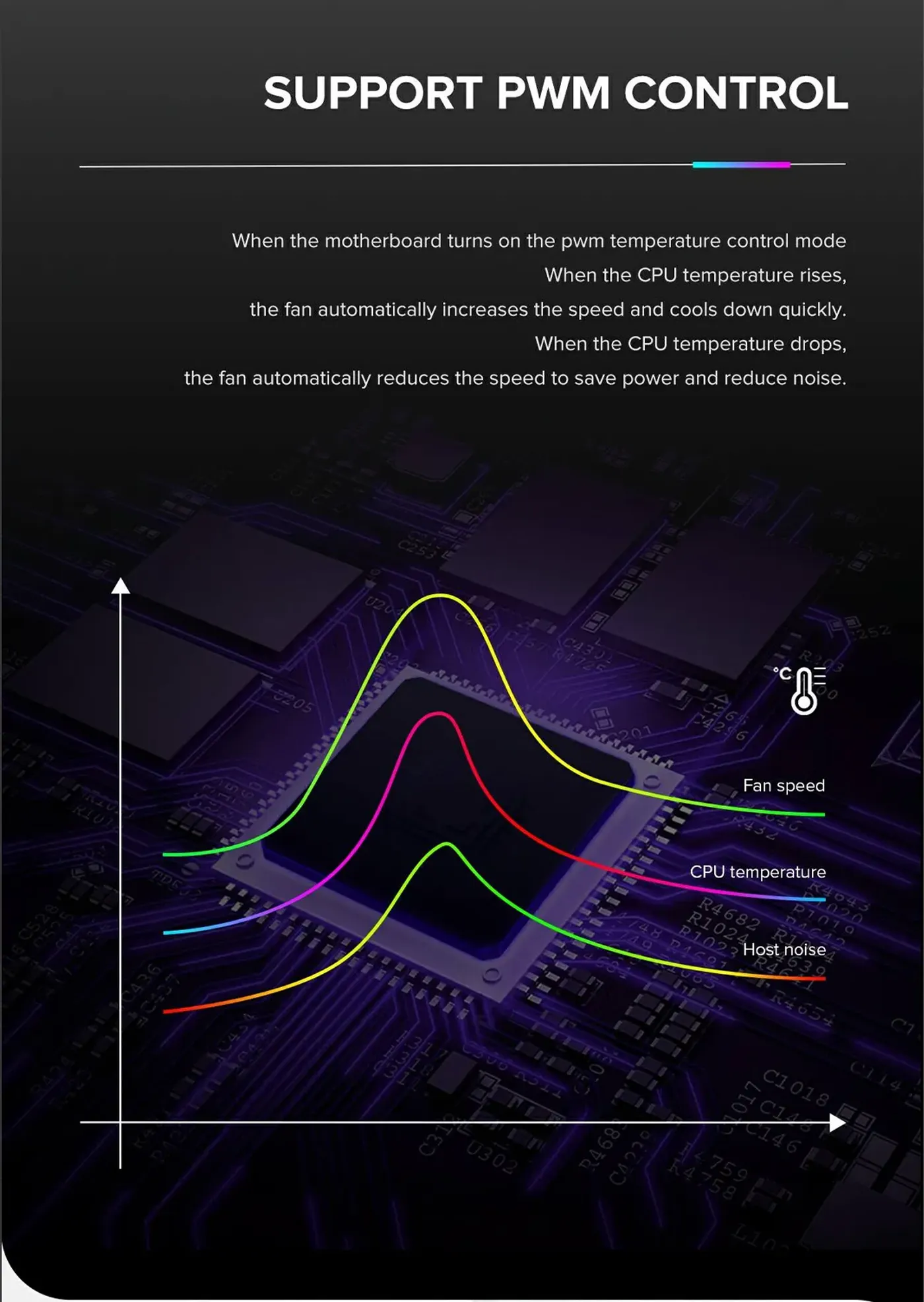

The 4-pin PWM connector lets the motherboard set fan speed anywhere between 800 and 1600 RPM within a 10 percent tolerance. Speed then follows a temperature curve instead of a fixed setting, so the fan stays near its floor during everyday desktop work and climbs only when the processor or graphics card actually needs the extra air.

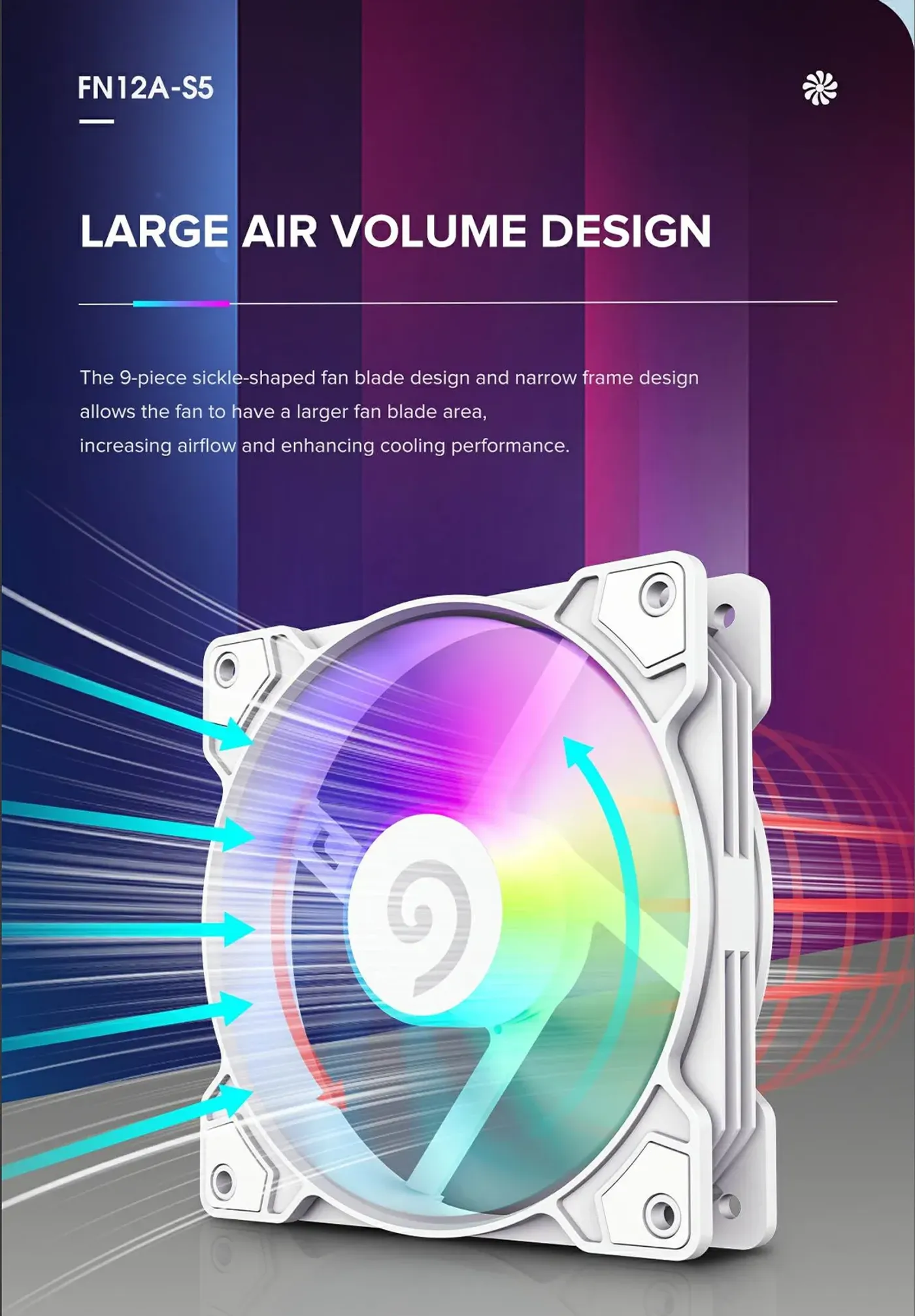

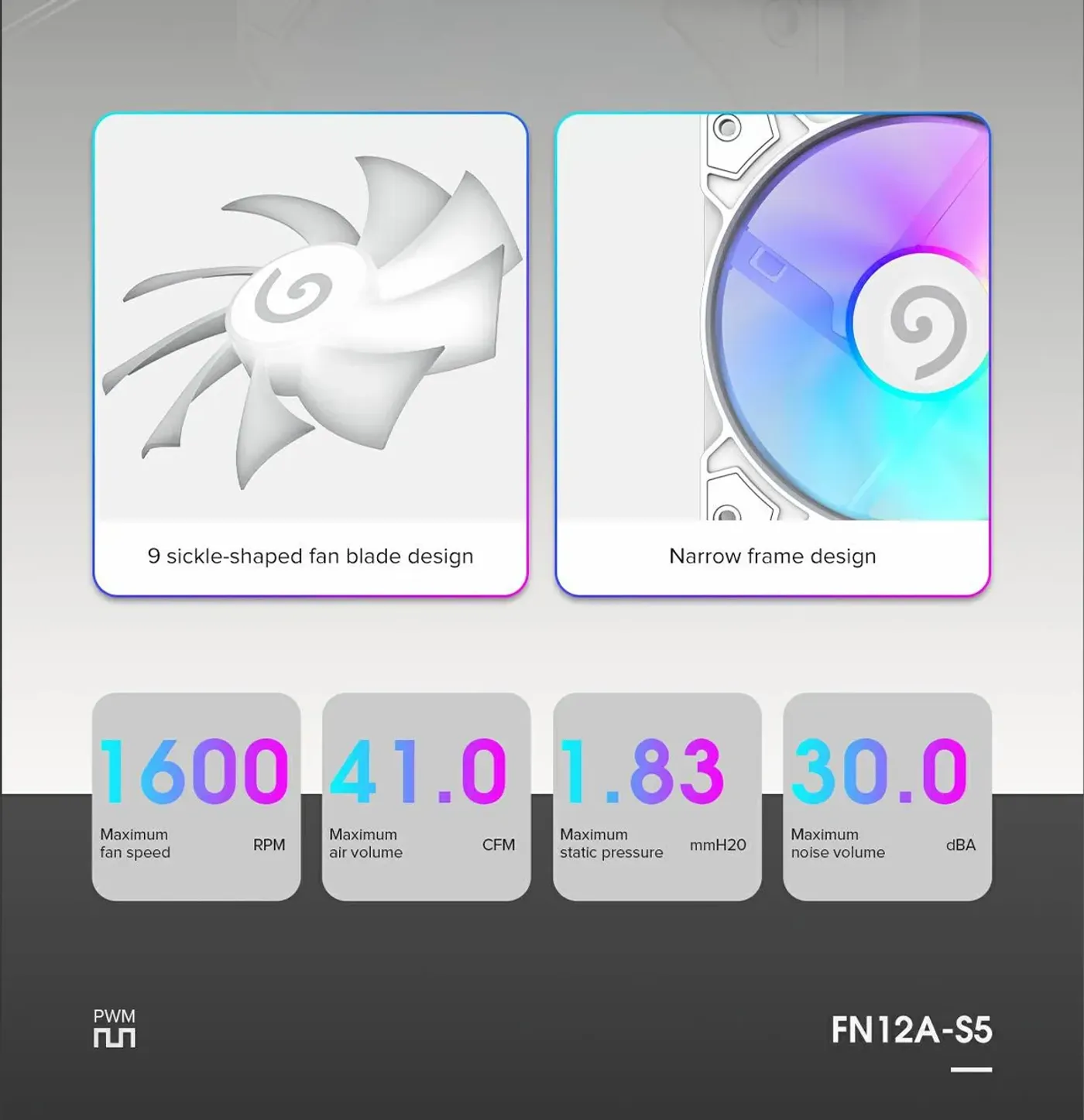

Maximum airflow is rated at 41 CFM with a 10 percent tolerance. That is the volume the fan exchanges each minute, and it is what stops warm air pooling around the graphics card and drive cage in a closed chassis. A matched intake and exhaust pair keeps that air travelling in one direction through the machine.

Maximum static air pressure is 1.83mmH2O, a healthy figure that lets the fan work against resistance rather than only in open air. Dust filters, mesh front panels and radiator fin stacks all push back against moving air, and static pressure is the specification that determines whether the rated airflow survives that obstruction.

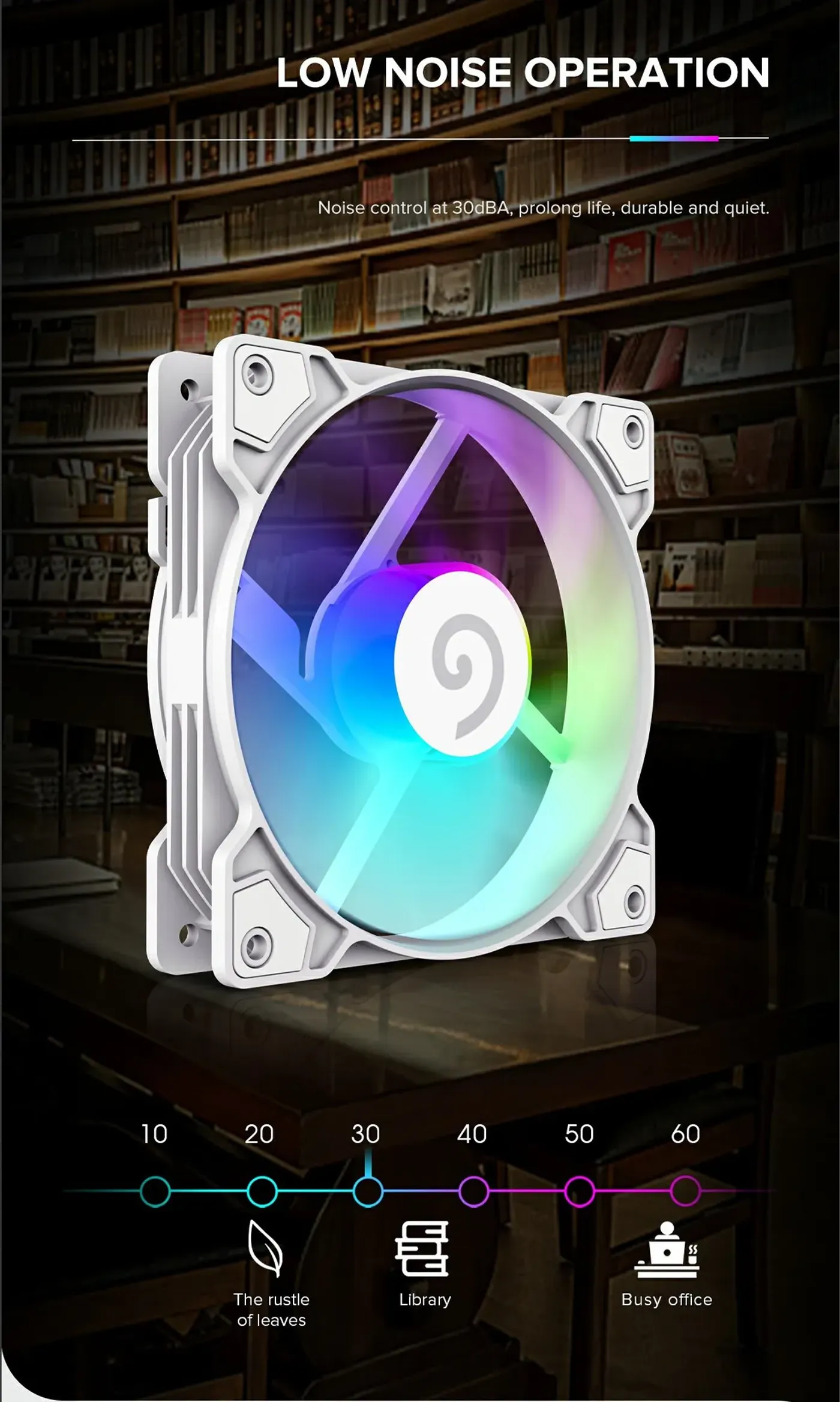

Noise is specified at a maximum of 30dB(A), and that ceiling applies only at the top of the speed range. Because PWM keeps the fan well below maximum for most of a working day, the practical noise level is lower still. In a build with four or five fans, a low per-fan ceiling is what keeps the whole machine unobtrusive.

Eight addressable LEDs are mounted in the centre of the fan and throw light outward through the semi-transparent blades. Because each diode is addressed individually, the fan can run a gradient or a moving effect rather than a single fixed colour, and the white blades diffuse it evenly instead of tinting it toward a darker shade.

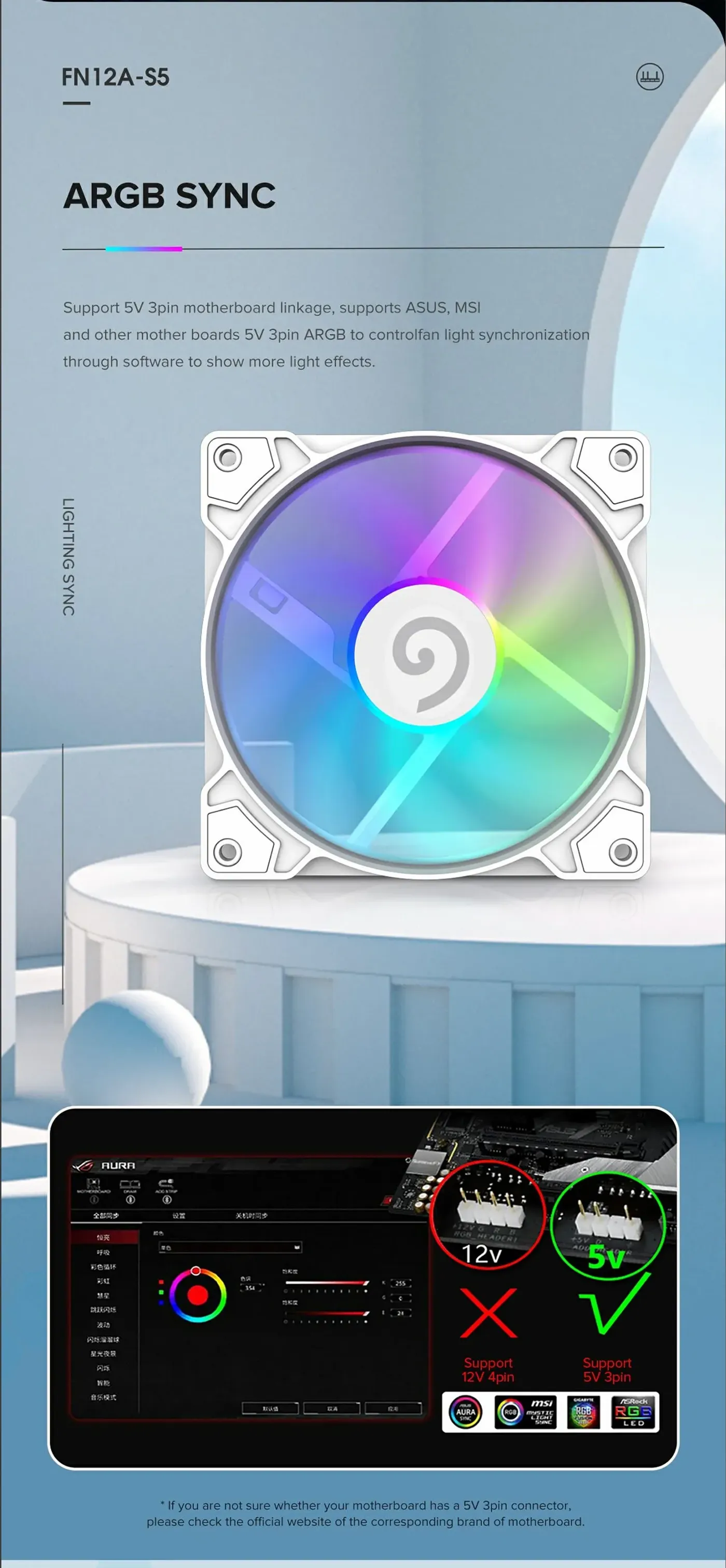

Lighting runs on the standard 5V 3-pin addressable header and is compatible with Aura Sync, so the fan joins the same profile as the rest of the build rather than running its own pattern. Control happens in your motherboard software, which means one change updates every synced component in the machine at the same time.

Eight shock-absorbing rubber pads sit between the frame and the panel it is bolted to. Most audible fan noise in a PC is not the airflow itself but motor vibration passing into a large steel panel that then acts as a sounding board. Separating the two removes that route and helps the mounting screws stay tight.

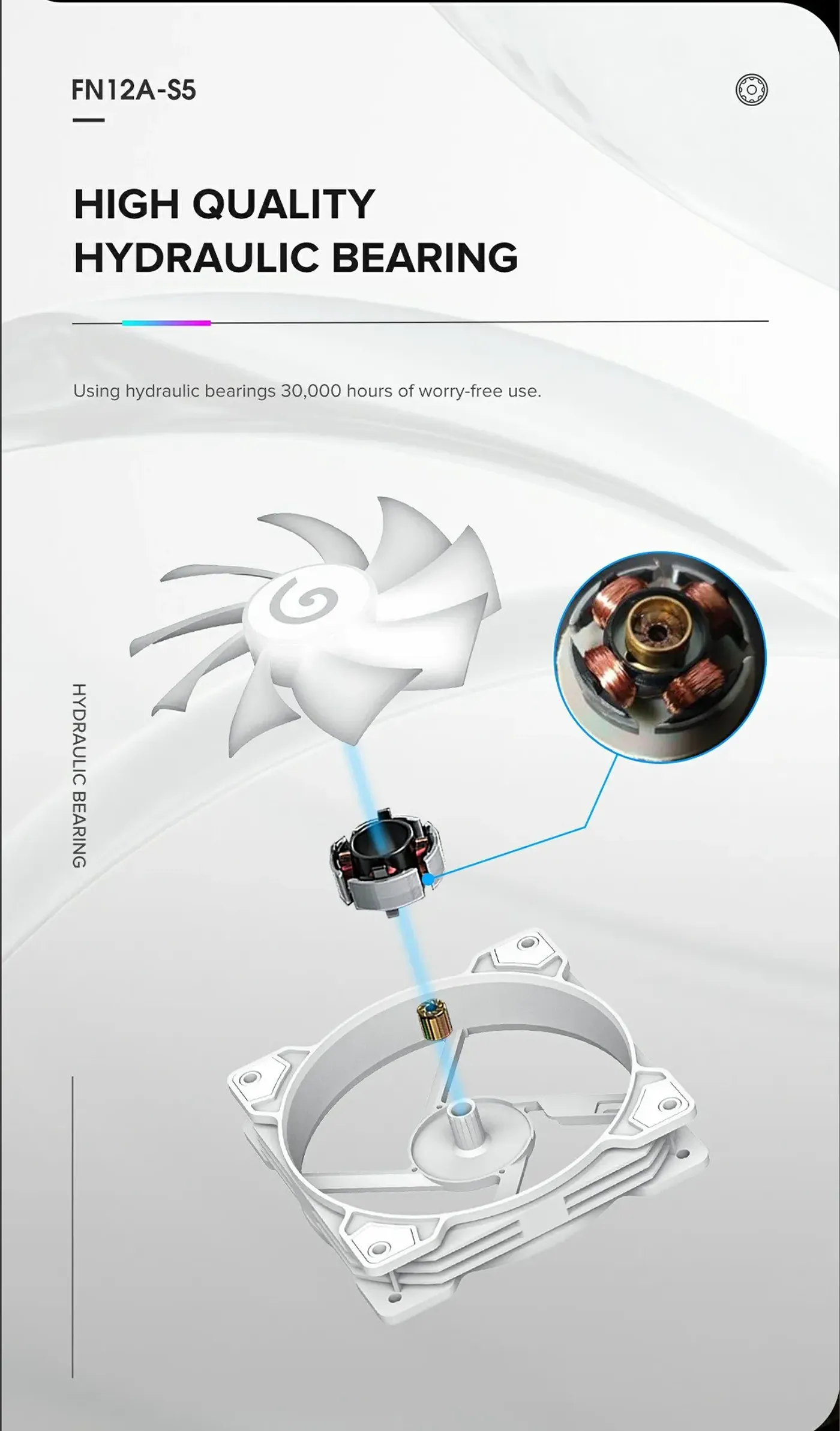

The rotor turns on a hydraulic bearing with a mean time between failures of 30,000 hours. A fluid film keeps the moving surfaces apart, so the bearing resists the dry rattle that simpler sleeve designs develop after long spells in a warm case. It also copes with horizontal mounting in a front intake position.

Rated voltage is 12V with an operating window from 5V to 13.8V, and the motor starts turning at 5V. Current is 0.15A rising to a 0.18A maximum, which is 1.8W of draw and a 2.16W peak. The low start voltage means the fan restarts reliably after a fan curve has taken it right down to its minimum.

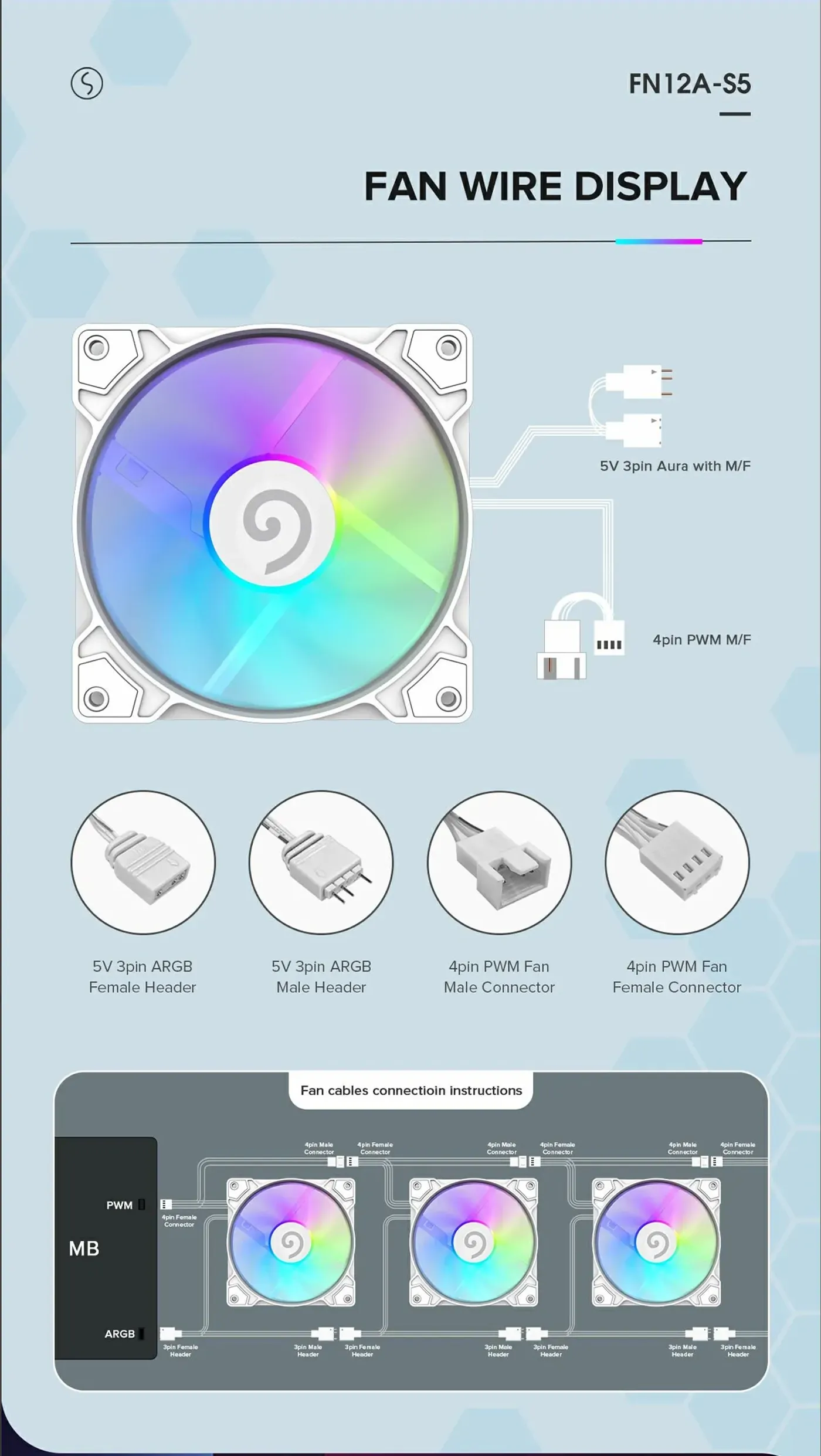

The fan carries a 4-pin PWM power lead and a 3-pin ARGB lead, each 500mm long and each fitted with male and female connectors. Half a metre reaches headers at the far corner of a full tower without an extension, and the paired ends let several fans be chained together rather than consuming one header apiece.

Mounting screws are included, so installation is four screws into any standard 120mm position followed by one PWM header and one addressable header connection. Everything after that is software: a fan curve set in the BIOS and a lighting profile chosen on the desktop, with no controller or extra hardware in the way.
