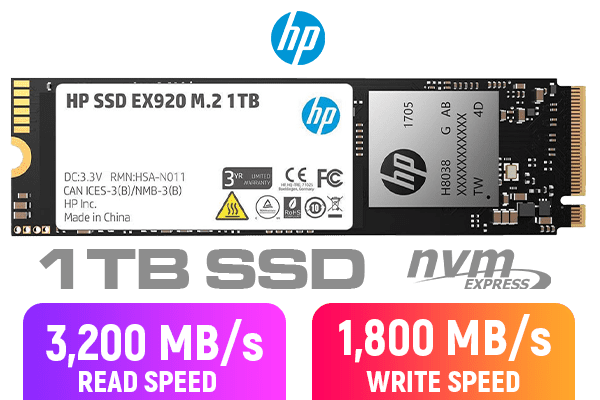

HP EX920 M.2 1TB PCl-e NVMe Internal SSD

Release the Potential with Marvelous Performance

The HP EX920 M.2 series is ideally suited for both high-end desktops and ultrathin notebooks which require mass storage in a very small footprint. It utilizes exclusive HP PCIe Controller and comes equipped with 2-channel DRAM Cache, delivering extremely high sequential read/write speeds of up to 3200/1800 MBps1, and random read/write speeds of up to 350K/350K2 IOPS. This means you can enjoy quicker application response, more responsive multitasking and smoother gaming experience – without any lag. Moreover, the HP EX920 features advanced 3D NAND Flash memory technology to yield more capacity, performance and endurance. Plus, it undergoes strict tests to ensure maximum durability, reliability and compatibility.

HP PCIe Controller Maximizes the Performance

EX920 features a HP controller with 8 flash memory channels that support PCIe3x4 and NVMe 1.3 standard. Maximize gaming notebook and high-end computer's performance, and increase responsiveness.

An Eminent SSD Equipped for Performance Pursuer

The read and write speeds of EX920 reach 3200MBps and 1800MBps 1 respectively. Faster speed, higher efficiency, and compatible with new platform of Intel and AMD to release the potential of CPU motherboard.

Dynamic Caching, Low Latency and Smooth Operation

EX920 is configured with 2-channel DRAM Cache to improve 4K random performance and reduce latency. EX920 supports NCQ full-speed command queues and TRIM instructions to provide continuous and fast response to notebooks and PCs.

3D Nand Flash, Break through Space Limitation

EX920 adopts 3D NAND Flash subject to rigorous HP quality tests, offering better storage density and reliability than general 2D Flash, and improving SSD performance and durability. Its capacity is up to 1TB, which guarantees easy storage for large media files and game. EX920 supports LDPC ECC, improving SSD durability and reliability to meet the expectation of workers with high demands.

A New Configuration for High-performance PC

With a size of 22x80x3.5mm (2280), EX920 M.2 SSD is a new storage solution with ultra-high performance. Compatible with new generation motherboard architecture, EX920 is applicable to high-end motherboards, notebooks and desktops with PCIe M.2 interface. EX920 also supports HP PC DST self-test, ensuring the durability in use. With the performance improved and capacity upgraded, the efficiency of operation and gameplay is also raised.

Specifications
Brand	HP
Series	EX920
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer
Form Factor	M.2 2280
Capacity	1TB
Memory Components	3D TLC
Interface	PCIe Gen 3 x4, NVMe 1.3
Max Sequential Read	Up to 3200 MBps
Max Sequential Write	Up to 1800 MBps
4KB Random Read	Up to 350,000 IOPS
4KB Random Write	Up to 250,000 IOPS
MTBF	2,000,000 hours
Features	High performance Low power Increased system responsiveness High reliability Small form-factor Minimum weight Enhanced ruggedness
Power Consumption (Idle)	0.73W
Power Consumption (Active)	6.23W
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Operating Humidity	5-95%
Max Shock Resistance	100G / 6 msec
Max Vibration Resistance	3.1 GRMS (2-500 Hz)
Height	3.80mm
Width	22.00mm
Weight	5.40g
Depth	80.00mm
