EZ M.2 INSTALLATION

MSI’s exclusive EZ M.2 CLIP II feature simplifies M.2 installations. Just insert the SSD card into its slot, press to secure it with the clip, and for removal, simply flick the clip outwards and slide it out. This tool-less experience makes installation efficient and user-friendly.

EZ M.2 CLIP II REMOVER

Introducing MSI’s EZ M.2 CLIP II Remover— engineered for optimal convenience, this tool allows for effortless switching or repositioning of the EZ M.2 CLIP II on your motherboard. This accessory simplifies detachment and reattachment processes with remarkable ease, included in the MSI motherboard accessory kit.

EZ GPU INSTALLATION

EZ PCIe RELEASE

Experience an effortless physical button release mechanism that allows for the swift removal of any PCIe card with just a single tap. Streamline your upgrades to new GPUs or compatible devices and enhance the entire installation experience.

EZ BUTTON

EZ ANTENNA

The MSI EZ Antenna makes the installation process effortless by simply attaching fasteners to the motherboard without the need for rotation.

EZ CONN-DESIGN

EZ Conn header (JAF_2)

MSI's EZ Conn header (JAF_2) simplifies the connection of MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). For users without these products, a 1 to 3 EZ Conn-Cable is provided, enabling connections for ARGB lights, system fans, and USB devices.

EZ IDENTIFY

EZ OVERCLOCKING

Overclocking, often complex, is made user-friendly with MSI Click BIOS X, which offers one-click overclock features for both the processor and memory, allowing users to seamlessly boost system performance without delving into intricate settings.

EZ OPTIMIZATION

Numerous features incorporate artificial intelligence into critical facets of your computing experience, enabling smarter, real-time optimizations. The MSI Center boasts a clean, minimal interface for customizing and managing PC settings. For instance, the AI Engine automatically adjusts settings based on your active applications, ensuring seamless performance.

POWER DESIGN

14+2+1 DRPS POWER DESIGN

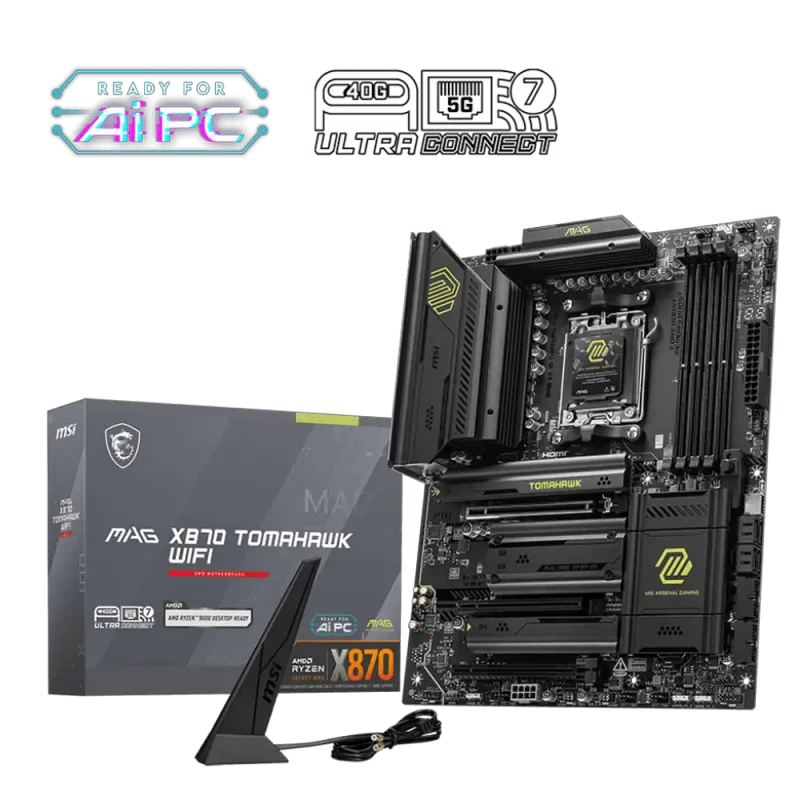

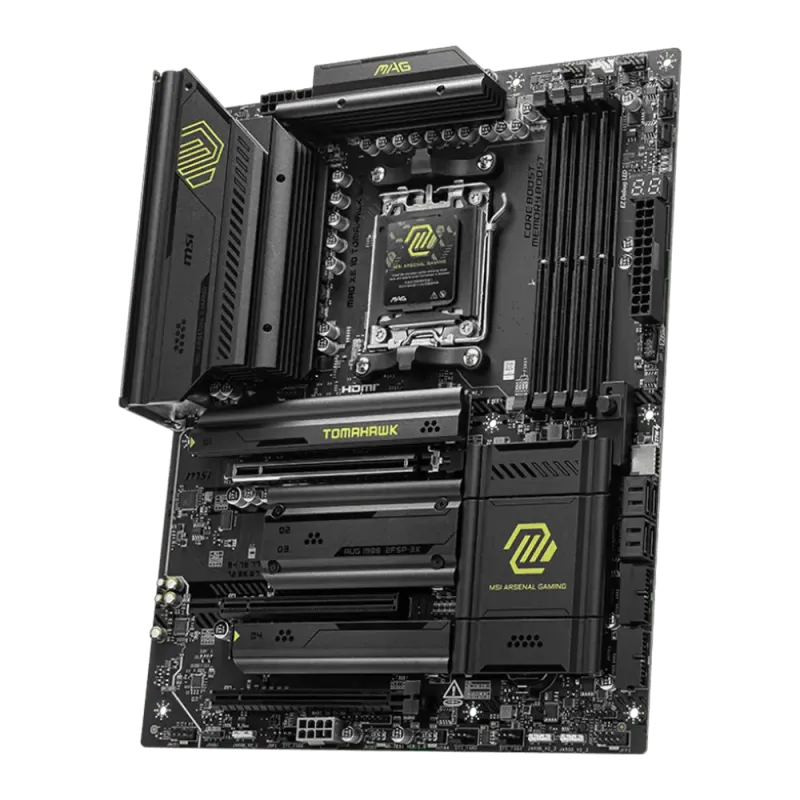

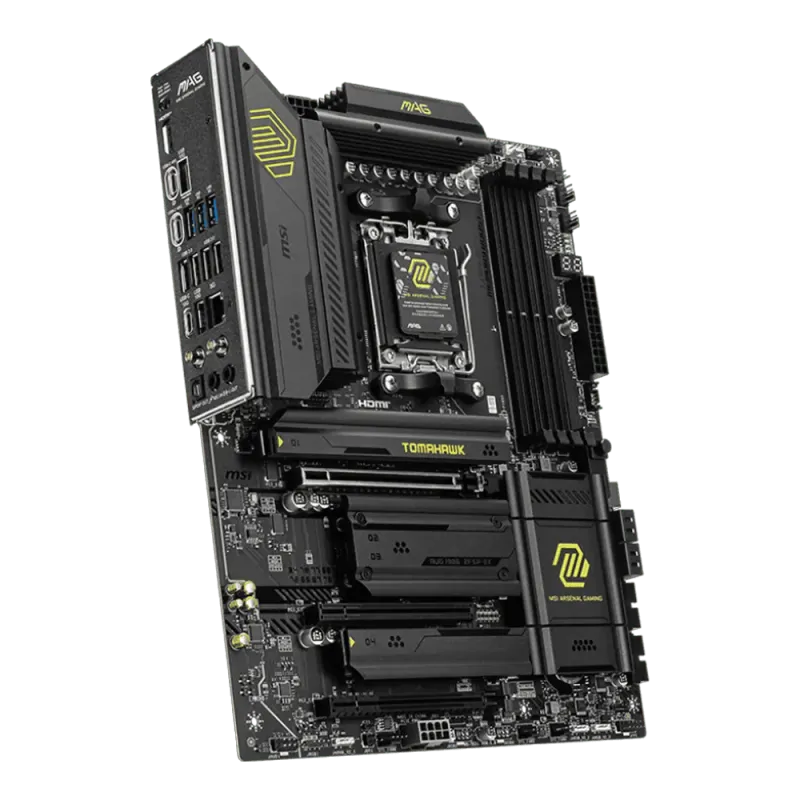

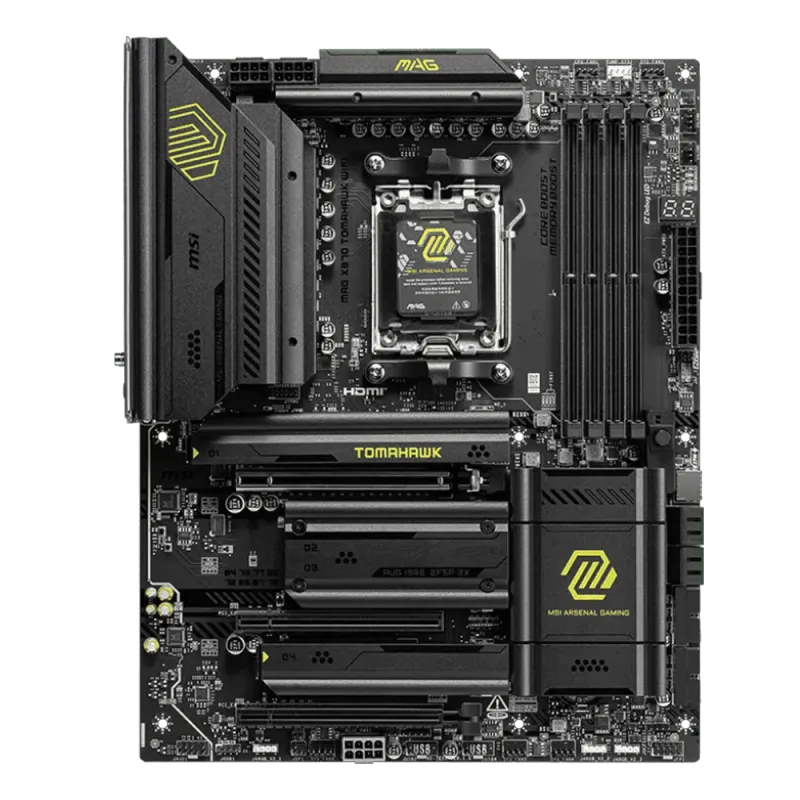

Achieve and sustain peak performance with flagship VRM design incorporating a total of 14+2+1 digital power phases. Utilizing dual power connectors and 80A Smart Power Stage, the MAG X870 TOMAHAWK WIFI is engineered for top-end processors.

PCB DESIGN

OPTIMIZED PCB SOLUTION

The PCB design has been optimized to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission.

EZ OC TUNING

PERFORMANCE PRESET

MSI's exclusive Performance Preset feature offers an intuitive method for performance enhancement by allowing you to set power limitations based on your preferences. There are two level settings: PBO Auto & PBO Enable.

PERFORMANCE SWITCH

The Performance Switch synergizes the advantages of AMD’s standard PBO (Precision Boost Overdrive) and MSI’s OC settings, delivering enhanced CPU performance across both single-core and multi-core scenarios for those daring to chase maximum performance.

PBO THERMAL POINT

MSI’s PBO Thermal profiles establish maximum CPU temperatures at 85°C, 75°C, and 65°C levels, ensuring stable performance while operating at lower voltage and temperatures, without sacrificing functionality.

CONFIG TDP

Config TDP offers ECO Mode (65W) alongside various TDP settings (PPT/TDC/EDC) designed for advanced users. With several profiles available in Click BIOS 5, Config TDP simplifies the process of managing TDP profiles without the need for manual adjustments.

MORE FOR PERFORMANCE

DDR5

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

Experience significant enhancements in DDR performance with advanced DDR5 memory technology. Coupled with dedicated SMT welding processes and MSI Memory Boost technology, the MAG X870 TOMAHAWK WIFI is positioned to deliver world-class memory performance.

HIGH-EFFICIENCY MODE

The High-Efficiency Mode is engineered to optimize memory performance by increasing bandwidth and minimizing latency. With support for four sets of RAM timing settings, it empowers users to identify the optimal configuration based on memory module quality.

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) protect against excessive voltage. Every MSI motherboard incorporates TVS technology; when voltage rises abnormally, it switches from a high-resistance state to a low-resistance state, diverting excessive voltage to ground, preventing potential circuit damage.

SOLID PIN DESIGN

The 4-pin, 8-pin, and 24-pin power connectors on MSI motherboards utilize a solid pin design. This innovation promotes more stable transmission of 12V power to the CPU, even under high current demands.

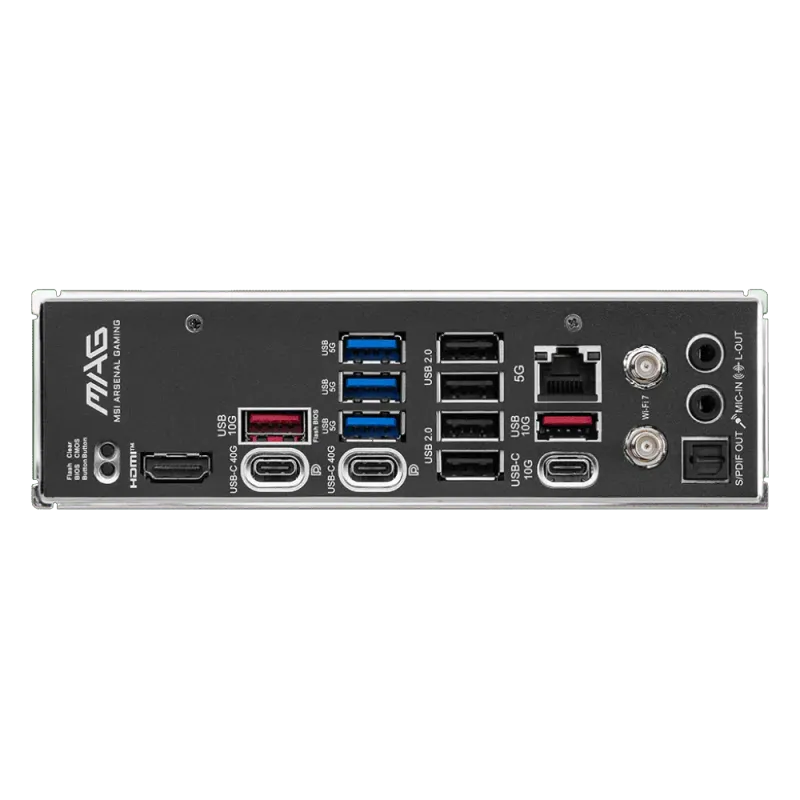

Anti-corrosive Stainless Steel IO Shield

Featuring an extra layer of sponge material and a corrosive-resistant IO Shield, MSI enhances static electricity protection while minimizing electromagnetic interference and noise effectively. Designed to be more durable than traditional IO shields.

* The image above serves as an illustrative reference. For detailed specifications, please refer to the specification pages.

Over Current Protection

MSI motherboards prioritize safety with embedded Overcurrent Protection (OCP) features that safeguard critical components such as USB ports, DDR memory, PWM IC, and CPU from excessive current risks. This proactive defense mechanism minimizes the likelihood of damage or malfunction caused by power surges, promoting long-term stability and reliability of your system. This commitment to robust hardware protection showcases MSI's dedication to producing durable and stable motherboards.

The Grounding Structure of Power Phases

The patented grounding design uniquely developed by MSI effectively suppresses electromagnetic interference (EMI) caused by power phases while facilitating efficient heat conduction to the copper plane, enhancing overall motherboard performance.

Cooling Overview

Combo Fan Header

The MSI Combo Fan Header functions as a configurable component that accommodates both pump and fan headers. This advanced header automatically detects whether connected devices are fans or pumps, with its distinctive gray color enhancing identification.

COOLING WIZARD

Cooling Wizard is a comprehensive cooling management solution across all MSI products. It guarantees exceptional cooling performance and noise reduction, with compatibility for PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal performance—all achievable with a single click.

FROZR AI COOLING

FROZR AI Cooling intelligently adjusts fan speeds targeting CPU and GPU temperatures. The AI system detects temperature changes and modifications, ensuring fans operate optimally for enhanced performance.

Intelligent Auto Detect Fan Technology

The MSI motherboard features an auto-detect fan header that seamlessly identifies fans operating in DC or PWM mode, optimizing fan speed and enhancing system acoustics. With advanced hysteresis logic, your fans will gradually increase speed, ensuring quiet performance under load.

Seamless Connection Experience

High-Bandwidth and Low-Latency Networking

MSI delivers a top-tier networking solution that guarantees exceptional data transfer speeds, perfect for advanced users.

Next-Generation Wi-Fi 7 Solution

Wi-Fi 7 represents the next significant advancement in wireless technology, offering remarkable enhancements to accommodate the increasing data demands and the proliferation of wireless devices.

*Compatible with Windows 11 only

Upgrade to Wi-Fi 7 Now

Data Transfer Rate Performance

Channel Width Optimization

Enhanced Modulation Techniques

Advanced Multi-Link Operation

Fast and Future-Ready Storage Solutions

The MSI MAG series motherboards support the latest storage technologies, allowing users to connect high-speed storage devices. Experience quicker game launches, faster level loads and gain the competitive edge.

Lightning Gen 5 PCI-E with Steel Armor II

Dedicated PCIe Supplemental Power Connector

The exclusive Supplemental PCIe Power connector delivers dedicated energy for high-performance GPUs used in gaming and AI applications, ensuring stable and efficient operation. Discover chassis compatibility options here.

Advanced USB4 Technology

MSI motherboards integrate cutting-edge USB4 technology, providing users with a range of enhanced performance and connectivity options.

Super Charger + for Fast Charging

Super Charger + technology enables rapid charging (PD 27W) through a dedicated front USB port for PD-compatible devices. In addition to better charging efficiency, it monitors power usage, voltage, and current for optimized performance.
