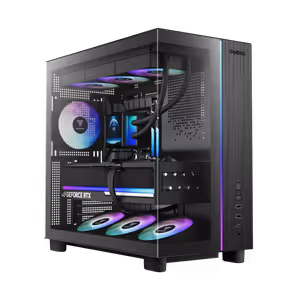

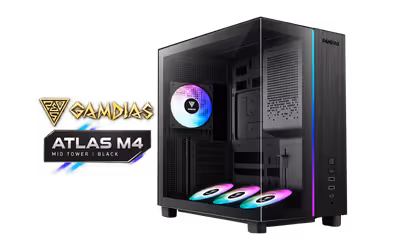

GAMDIAS ATLAS M4 Mid Tower Case - Black / ATX, Micro-ATX, Mini-ITX Support / Front + Side Tempered Glass / Adjustable-Angle Bottom Fans / Front-Mounted PSU / 425mm GPU Clearance / 360mm Top Radiator Support / 4x 120mm PWM ARGB Fans Included / ATLAS-M4
1 Year Local Warranty
Model No : GAMDIAS ATLAS-M4
Price Inc. Vat
R 1,599
Save R 200
ListR 1,799
1599Change Quantity:
In Stock with Evetech
GAMDIAS ATLAS M4 Mid Tower Case - Black | 4x ARGB Fans
Front-Mounted PSU And Tilting Bottom Fans

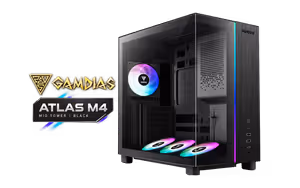

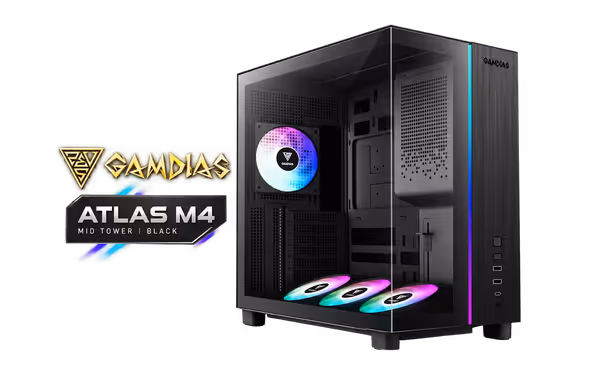

The GAMDIAS ATLAS M4 is a black mid tower case for ATX, Micro-ATX and Mini-ITX boards with tempered glass on the front and left side. Its power supply moves to the front of the case, out of the main view. Four NOTUS M1 120mm PWM ARGB fans come installed with an 8-port hub, three of them on a bottom bracket that tilts to six angles. Graphics cards up to 425mm and a 360mm top radiator fit.
Front-Mounted PSU And Tilting Bottom Fans
The GAMDIAS ATLAS M4 is a black mid tower case for ATX, Micro-ATX and Mini-ITX boards with tempered glass on the front and left side. Its power supply moves to the front of the case, out of the main view. Four NOTUS M1 120mm PWM ARGB fans come installed with an 8-port hub, three of them on a bottom bracket that tilts to six angles. Graphics cards up to 425mm and a 360mm top radiator fit.

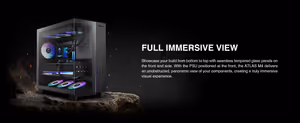

Glass On The Front And Left Side

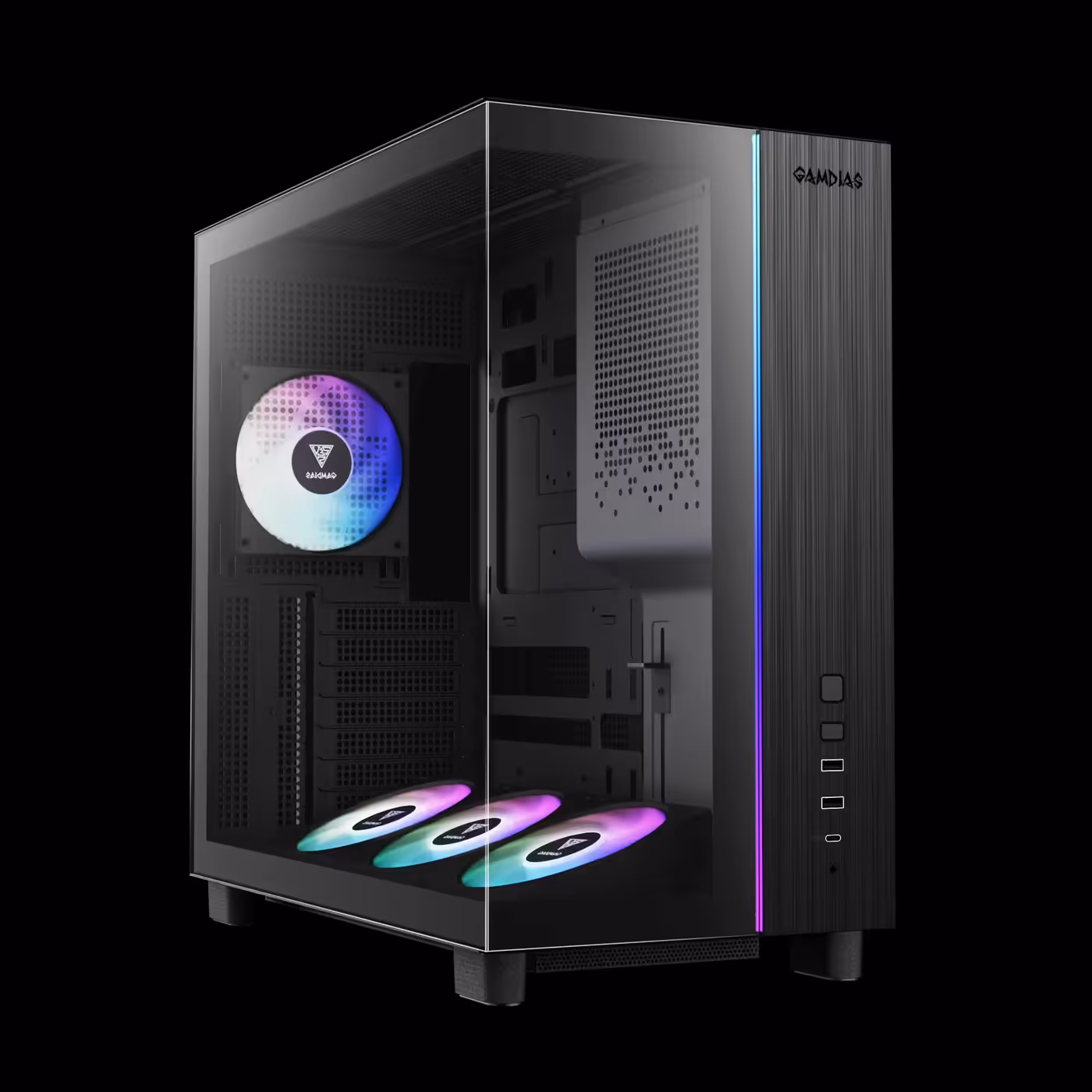

Two tempered glass panels, one on the front and one on the left, show the build from the bottom fans up to the top of the case. With the power supply moved to the front, the three bottom fans and the rear fan stay in clear view. Air rises past the hardware and leaves through the top and the rear.
Glass On The Front And Left Side
Two tempered glass panels, one on the front and one on the left, show the build from the bottom fans up to the top of the case. With the power supply moved to the front, the three bottom fans and the rear fan stay in clear view. Air rises past the hardware and leaves through the top and the rear.

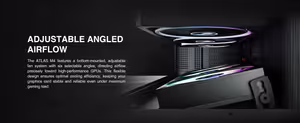

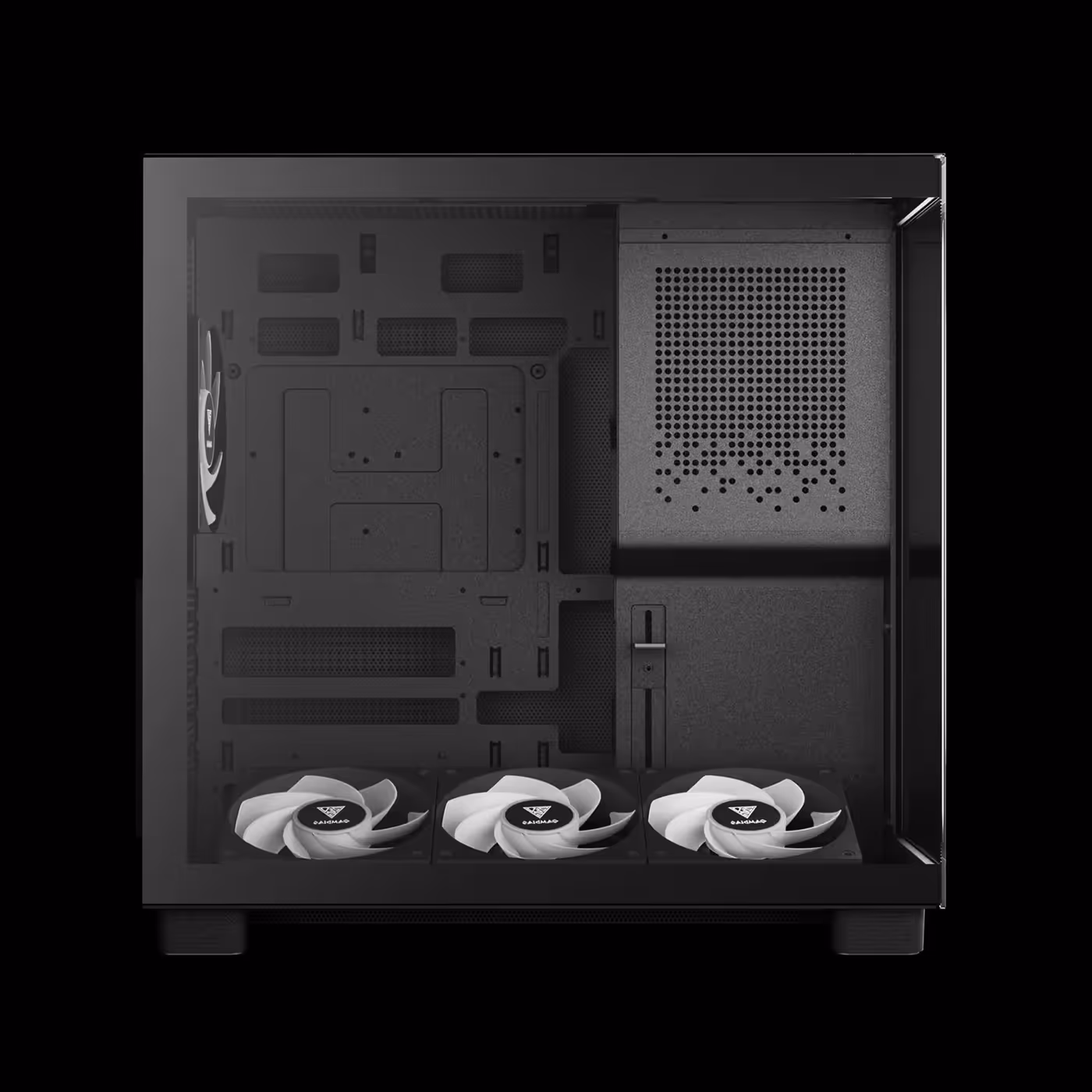

Bottom Fans Tilt To Six Angles
The three NOTUS M1 120mm PWM ARGB fans at the bottom sit on a bracket that tilts to six angles. Angling it points fresh air from the perforated bottom straight at the graphics card, rather than only straight up. The fourth NOTUS M1 fan sits at the rear, where the warm air leaves.
Bottom Fans Tilt To Six Angles
The three NOTUS M1 120mm PWM ARGB fans at the bottom sit on a bracket that tilts to six angles. Angling it points fresh air from the perforated bottom straight at the graphics card, rather than only straight up. The fourth NOTUS M1 fan sits at the rear, where the warm air leaves.

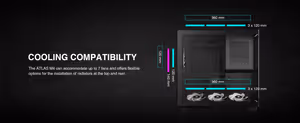

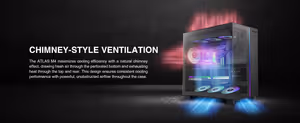

Chimney Airflow Out Through The Top

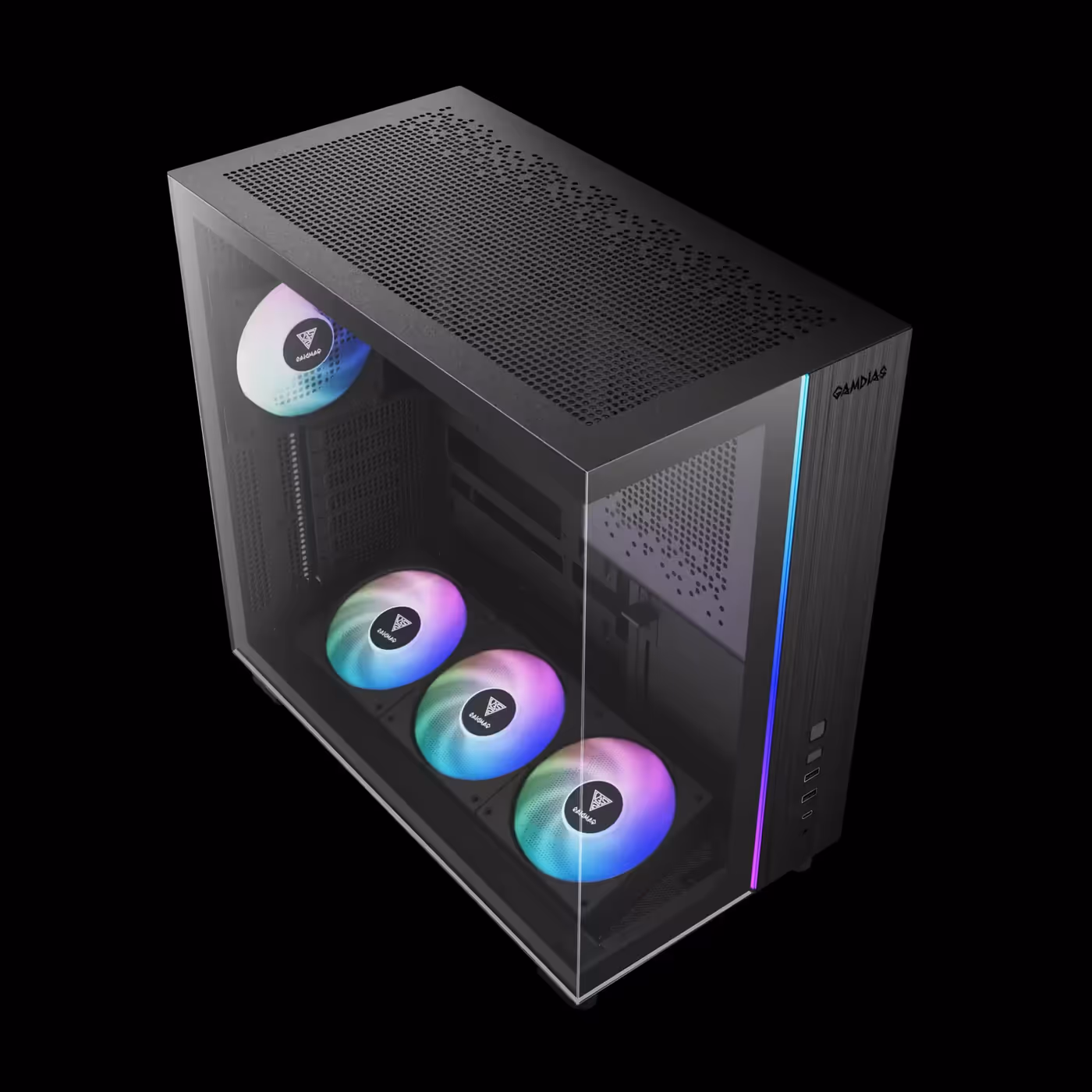

Fresh air enters through the perforated bottom and rises out through the perforated top and the rear, a chimney-style path. The top takes three 120mm fans or a 360mm radiator, and the rear takes a 120mm or 140mm fan or a 120mm radiator. In total the case holds up to 7 fans.
Chimney Airflow Out Through The Top
Fresh air enters through the perforated bottom and rises out through the perforated top and the rear, a chimney-style path. The top takes three 120mm fans or a 360mm radiator, and the rear takes a 120mm or 140mm fan or a 120mm radiator. In total the case holds up to 7 fans.

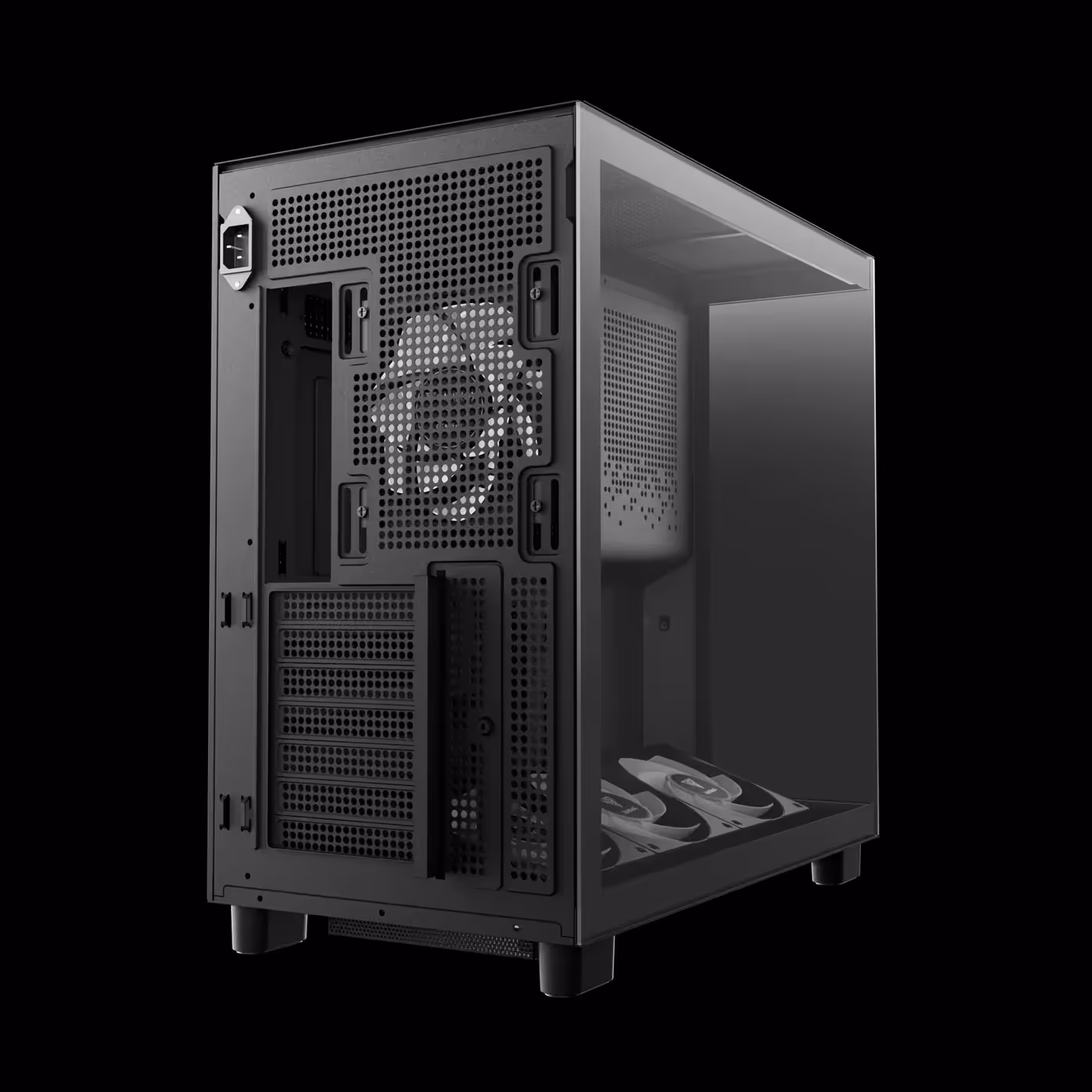

Mains Power Brought Round To The Rear
Because the power supply is front-mounted, an included extension cable carries mains power to the rear of the case, so the wall cable still plugs in at the back. The rear also holds the NOTUS M1 rear fan and 7 expansion slots, with the bottom fan bracket visible through the glass.
Mains Power Brought Round To The Rear
Because the power supply is front-mounted, an included extension cable carries mains power to the rear of the case, so the wall cable still plugs in at the back. The rear also holds the NOTUS M1 rear fan and 7 expansion slots, with the bottom fan bracket visible through the glass.

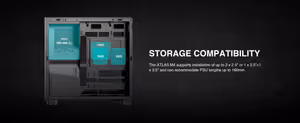

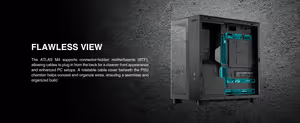

Front PSU Chamber And BTF Cable Cover

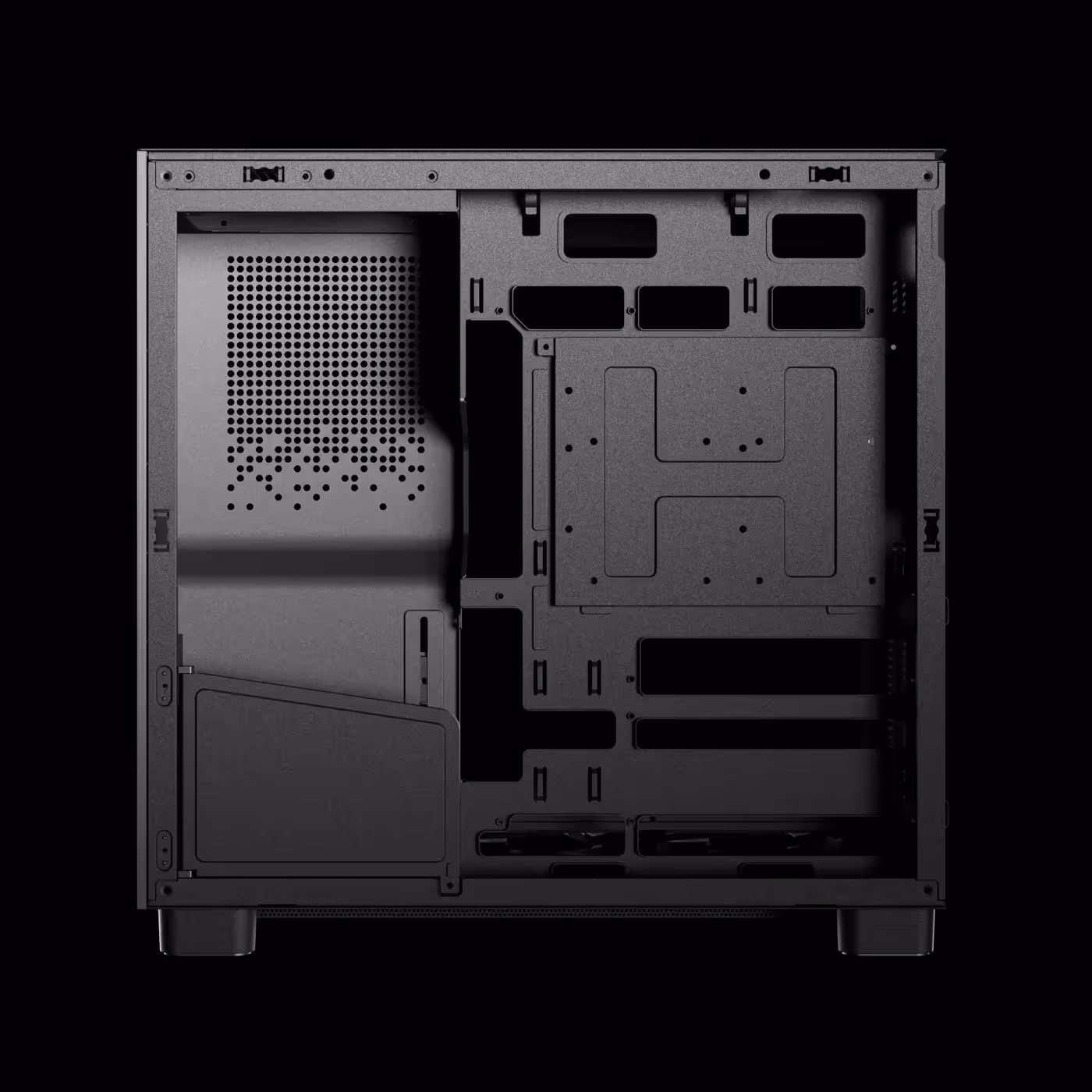

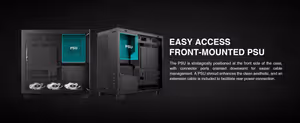

The front PSU chamber takes power supplies up to 160mm long. GAMDIAS notes that some units may not fit depending on which way the AC inlet faces, and it recommends a GAMDIAS PSU. The case supports BTF connector-hidden boards, with a rotatable cable cover under the PSU chamber, and takes one 3.5-inch and one 2.5-inch drive or two 2.5-inch drives.
Front PSU Chamber And BTF Cable Cover
The front PSU chamber takes power supplies up to 160mm long. GAMDIAS notes that some units may not fit depending on which way the AC inlet faces, and it recommends a GAMDIAS PSU. The case supports BTF connector-hidden boards, with a rotatable cable cover under the PSU chamber, and takes one 3.5-inch and one 2.5-inch drive or two 2.5-inch drives.

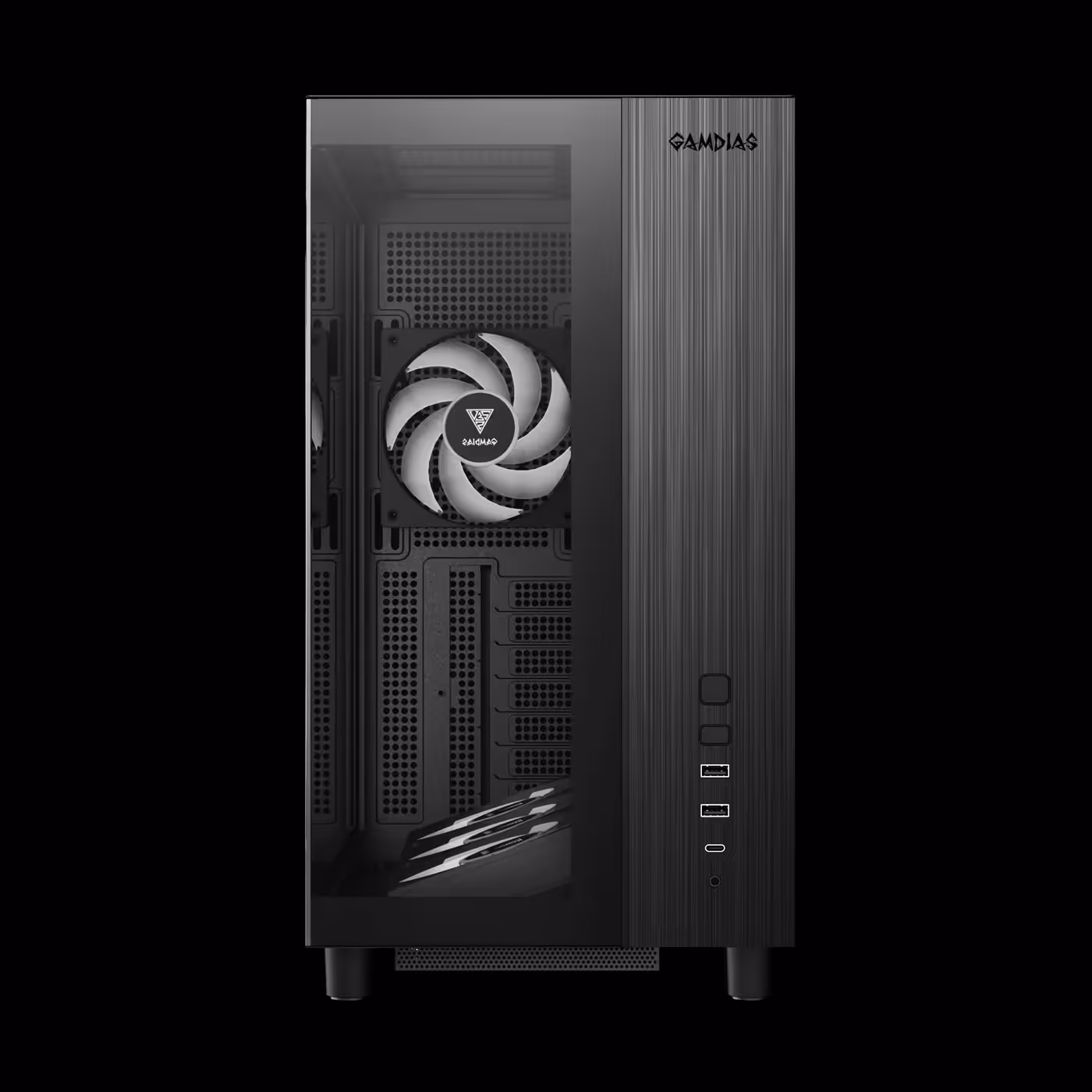

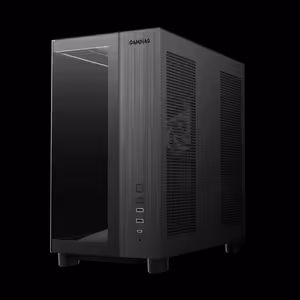

Type-C At 10Gbps On The Front I/O

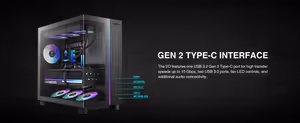

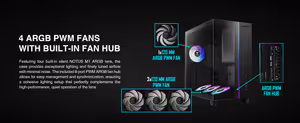

The front I/O has one USB 3.2 Gen 2 Type-C port at up to 10Gbps, two USB 3.0 ports, an HD audio jack and an LED control button. The lighting on all four fans syncs through a 5V 3-pin addressable header, and all four run from the included 8-port PWM ARGB hub.
Type-C At 10Gbps On The Front I/O
The front I/O has one USB 3.2 Gen 2 Type-C port at up to 10Gbps, two USB 3.0 ports, an HD audio jack and an LED control button. The lighting on all four fans syncs through a 5V 3-pin addressable header, and all four run from the included 8-port PWM ARGB hub.

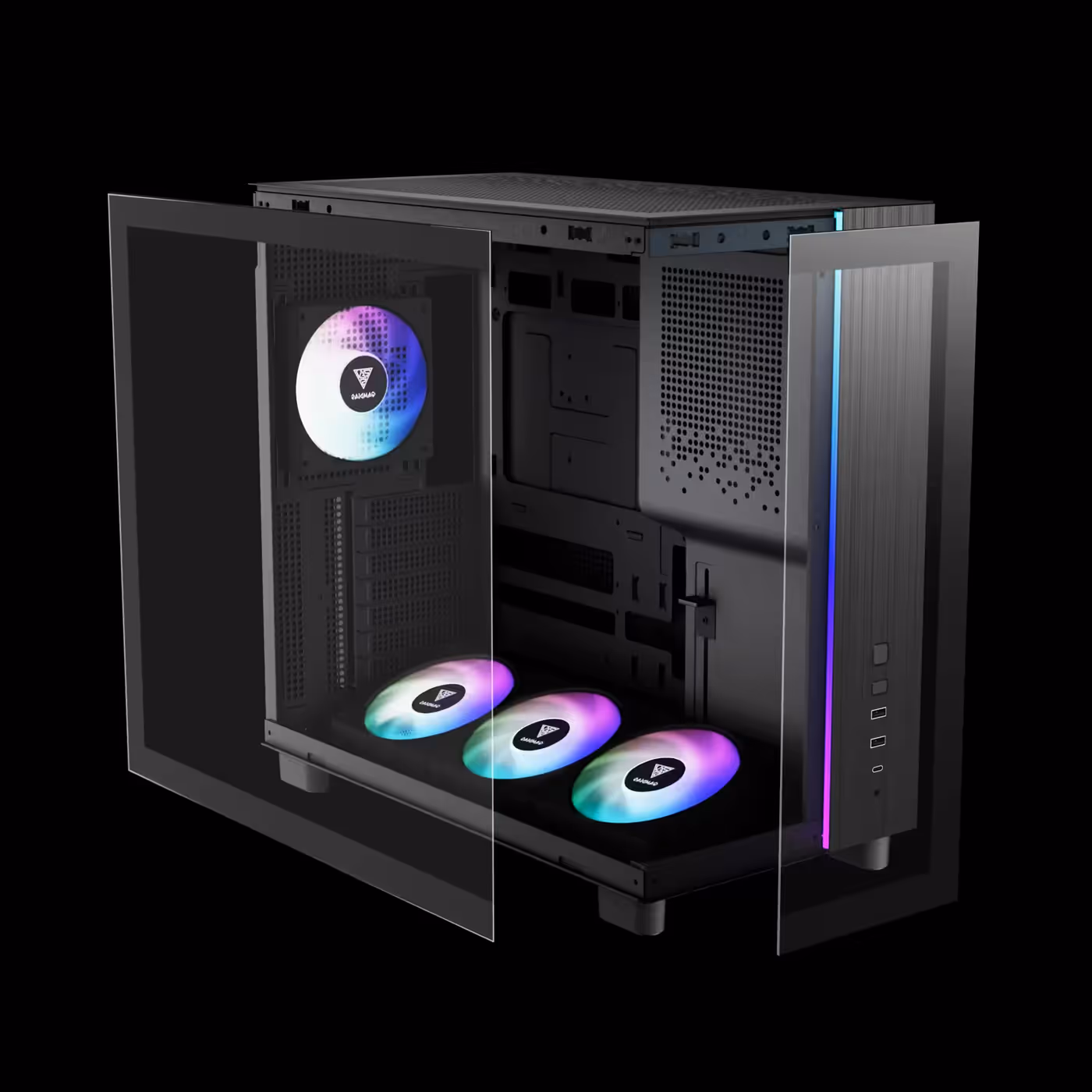

Room For 425mm Cards On An Anti-Sag Bracket

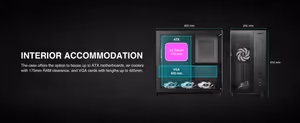

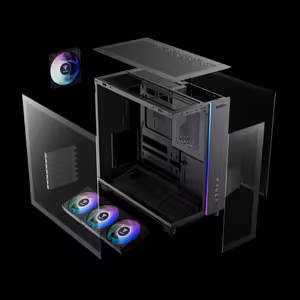

With the front and left glass panels taken off, the main chamber opens up for building. A pre-installed anti-sag bracket holds graphics cards up to 425mm long, and CPU air coolers up to 175mm tall fit. ATX, Micro-ATX and Mini-ITX boards all go in.
Room For 425mm Cards On An Anti-Sag Bracket
With the front and left glass panels taken off, the main chamber opens up for building. A pre-installed anti-sag bracket holds graphics cards up to 425mm long, and CPU air coolers up to 175mm tall fit. ATX, Micro-ATX and Mini-ITX boards all go in.
FAQ
Frequently Asked Questions
Everything you need to know about this product
Three 120mm NOTUS M1 PWM ARGB fans sit on a bottom bracket that tilts to six angles, so you can aim the airflow straight at the GPU. Air enters through the perforated bottom and exits at the top and rear.
Four 120mm NOTUS M1 PWM ARGB fans: three at the bottom and one at the rear, connected to an included 8-port PWM ARGB fan hub. The case holds up to 7 fans in total.
Yes, on top. GAMDIAS lists a 360mm radiator at the top and a 120mm radiator at the rear.
Graphics cards up to 425mm long fit, held up by the pre-installed anti-sag bracket. CPU air coolers up to 175mm tall fit as well.
PSUs up to 160mm long. GAMDIAS notes that some PSUs may not fit because of where their AC inlet faces, and recommends a GAMDIAS PSU; an extension cable brings mains power to the rear of the case.
Yes. It supports connector-hidden (BTF) motherboards as well as standard ATX, Micro-ATX and Mini-ITX boards.
One USB 3.2 Gen 2 Type-C port at up to 10Gbps, two USB 3.0 ports, an HD audio jack and an LED control button.
If you want your build on display, yes: glass covers the front and left side, the PSU is moved out of the way to the front, and four ARGB fans with a hub come installed.
