GAMDIAS ATLAS M5 CG Mid Tower Case - Black / ATX, Micro-ATX, Mini-ITX Support / L-Shaped Curved Tempered Glass / 3x 120mm NOTUS M1 PWM ARGB Fans Incl. / Integrated RGB Light Strips / 425mm GPU Clearance / 175mm CPU Cooler Clearance / 360mm Top Radiator Support / ATLAS-M5-CG
1 Year Local Warranty
Model No : GAMDIAS ATLAS-M5-CG
Price Inc. Vat
R 1,699
Save R 200
ListR 1,899
1699Change Quantity:
In Stock with Evetech
GAMDIAS ATLAS M5 CG Curved Glass Mid Tower Case - Black
One Curved Glass Panel, Three ARGB Fans

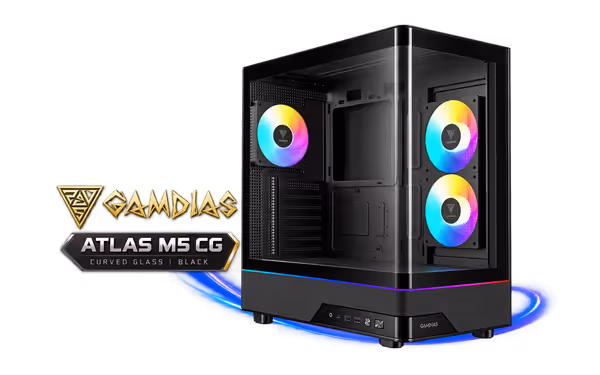

The GAMDIAS ATLAS M5 CG is a black mid tower case for ATX, Micro-ATX and Mini-ITX boards, wrapped in a single L-shaped curved tempered glass panel across the front and left side. Three NOTUS M1 120mm PWM ARGB fans come installed, two on the side and one at the rear, and integrated RGB light strips are built in. It fits graphics cards up to 425mm, CPU coolers up to 175mm and a 360mm radiator on top.
One Curved Glass Panel, Three ARGB Fans
The GAMDIAS ATLAS M5 CG is a black mid tower case for ATX, Micro-ATX and Mini-ITX boards, wrapped in a single L-shaped curved tempered glass panel across the front and left side. Three NOTUS M1 120mm PWM ARGB fans come installed, two on the side and one at the rear, and integrated RGB light strips are built in. It fits graphics cards up to 425mm, CPU coolers up to 175mm and a 360mm radiator on top.

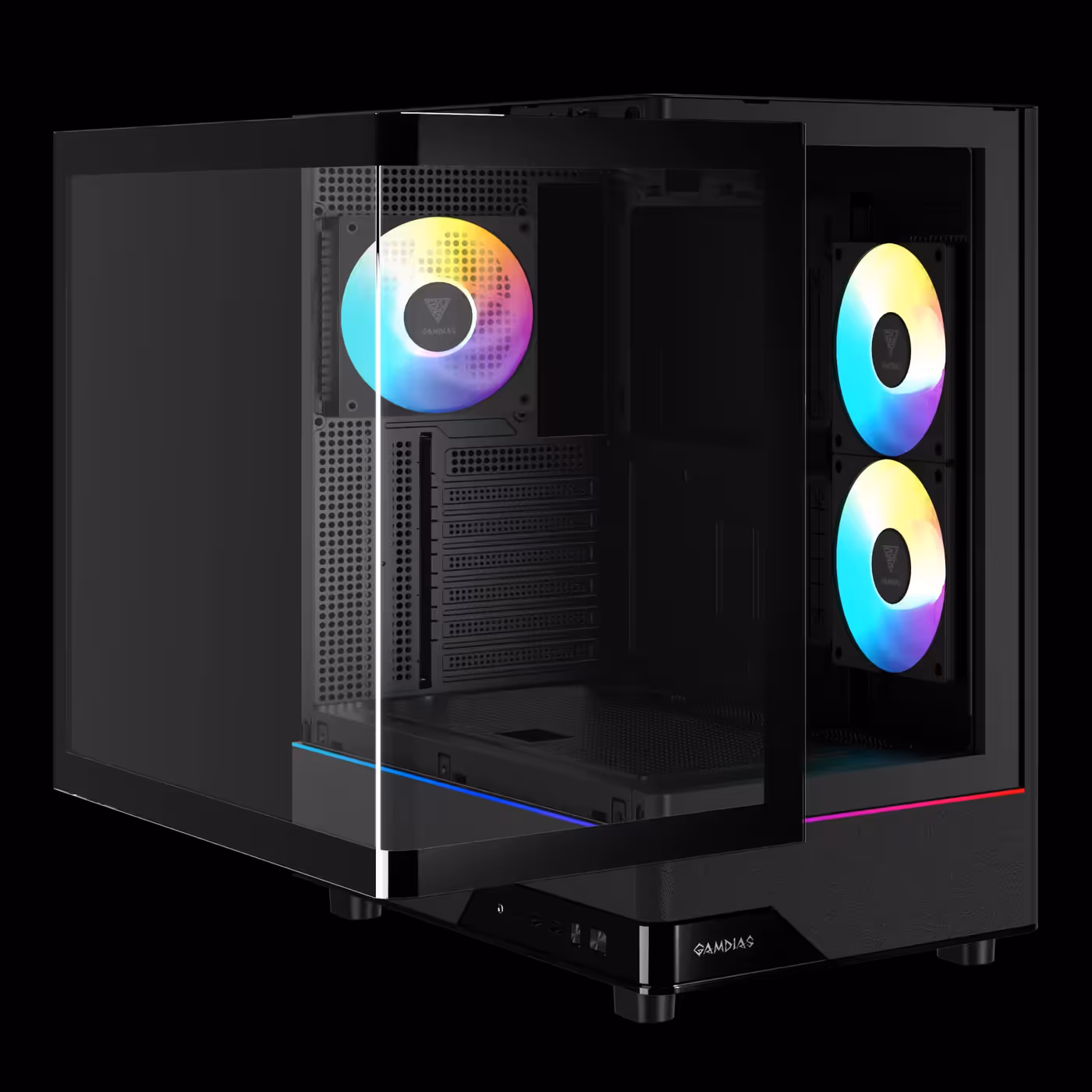

One Curved Panel Instead Of Two
The glass is one L-shaped piece that bends round the front corner, so there is no pillar where the front meets the left side. Pulled away from the frame here, it shows how a single panel covers both faces of the case at once and leaves the whole build in view.
One Curved Panel Instead Of Two
The glass is one L-shaped piece that bends round the front corner, so there is no pillar where the front meets the left side. Pulled away from the frame here, it shows how a single panel covers both faces of the case at once and leaves the whole build in view.

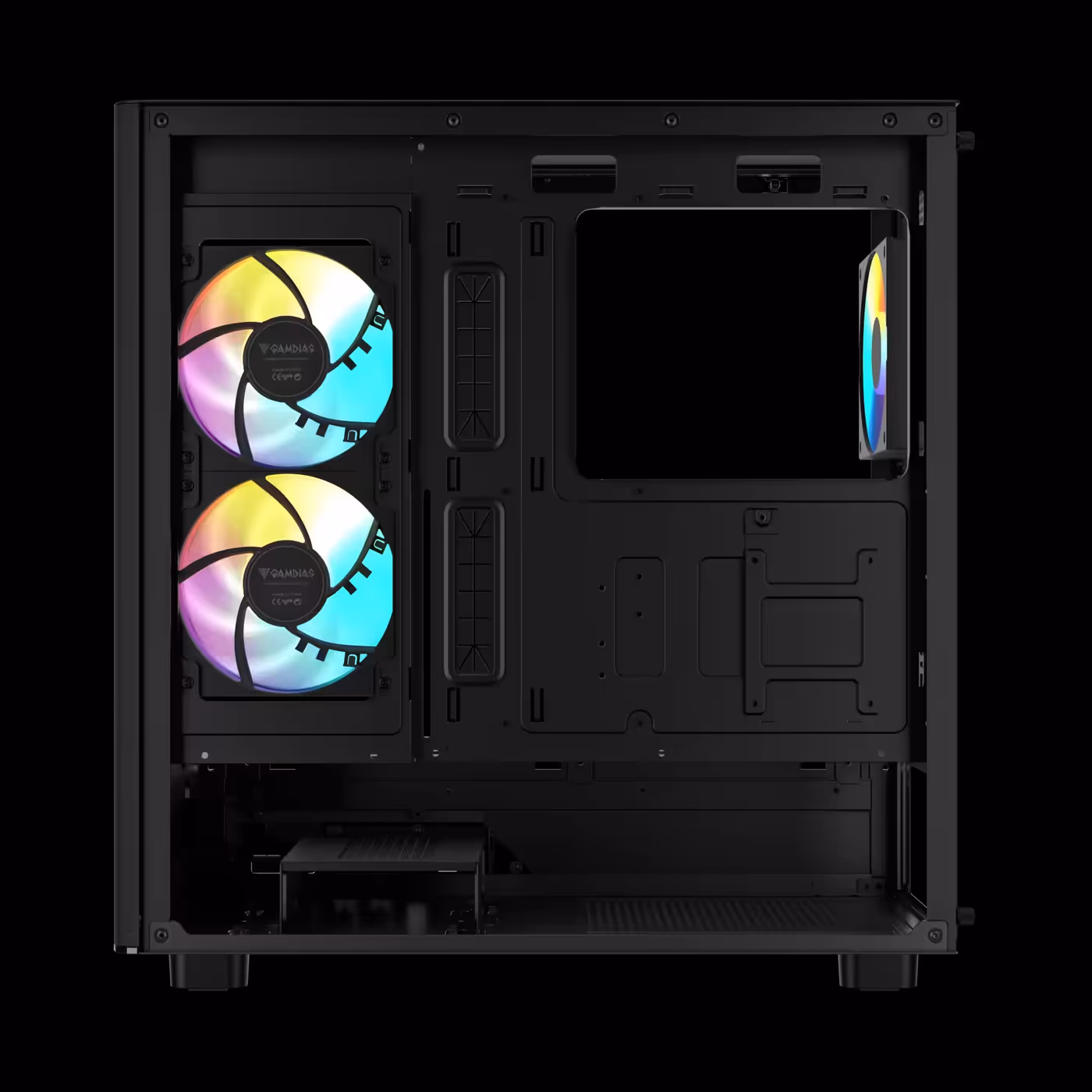

Two Side Fans Draw Air Through The Right Panel
With a glass front, the ATLAS M5 CG takes its fresh air from elsewhere. Two NOTUS M1 120mm PWM ARGB fans mount on the side and pull air in through the vents in the right side panel and the bottom. The PSU chamber is perforated, so air can pass through it too.
Two Side Fans Draw Air Through The Right Panel
With a glass front, the ATLAS M5 CG takes its fresh air from elsewhere. Two NOTUS M1 120mm PWM ARGB fans mount on the side and pull air in through the vents in the right side panel and the bottom. The PSU chamber is perforated, so air can pass through it too.

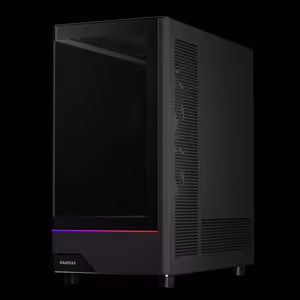

Vented Right Panel With Magnetic Filters

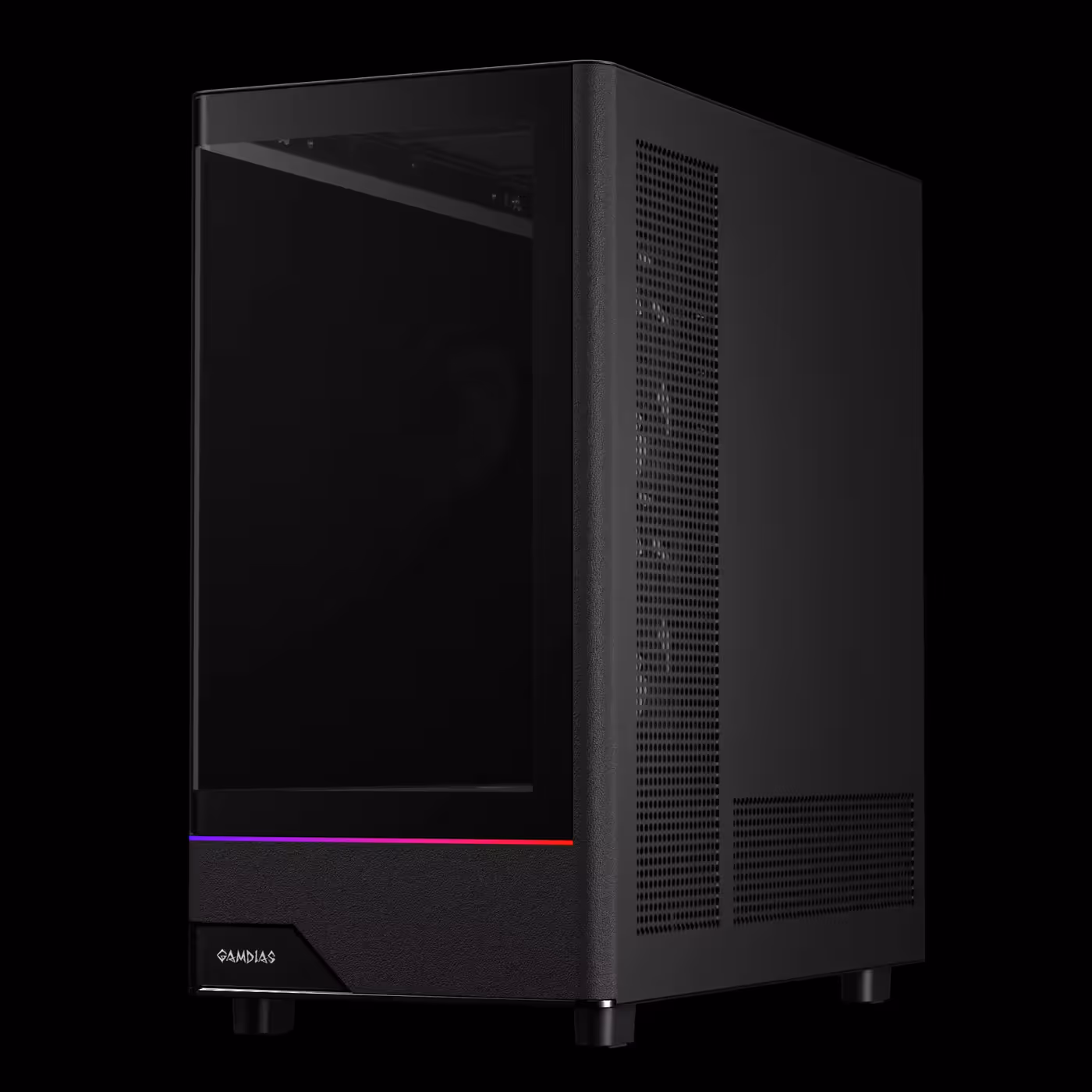

From outside, the right side panel is vented to feed the side fans, and the bottom of the case is vented as well. Magnetic dust filters sit on the top, bottom and side panels. That keeps dust out of each intake the fans draw from.
Vented Right Panel With Magnetic Filters
From outside, the right side panel is vented to feed the side fans, and the bottom of the case is vented as well. Magnetic dust filters sit on the top, bottom and side panels. That keeps dust out of each intake the fans draw from.
360mm Radiator Space On The Top Panel

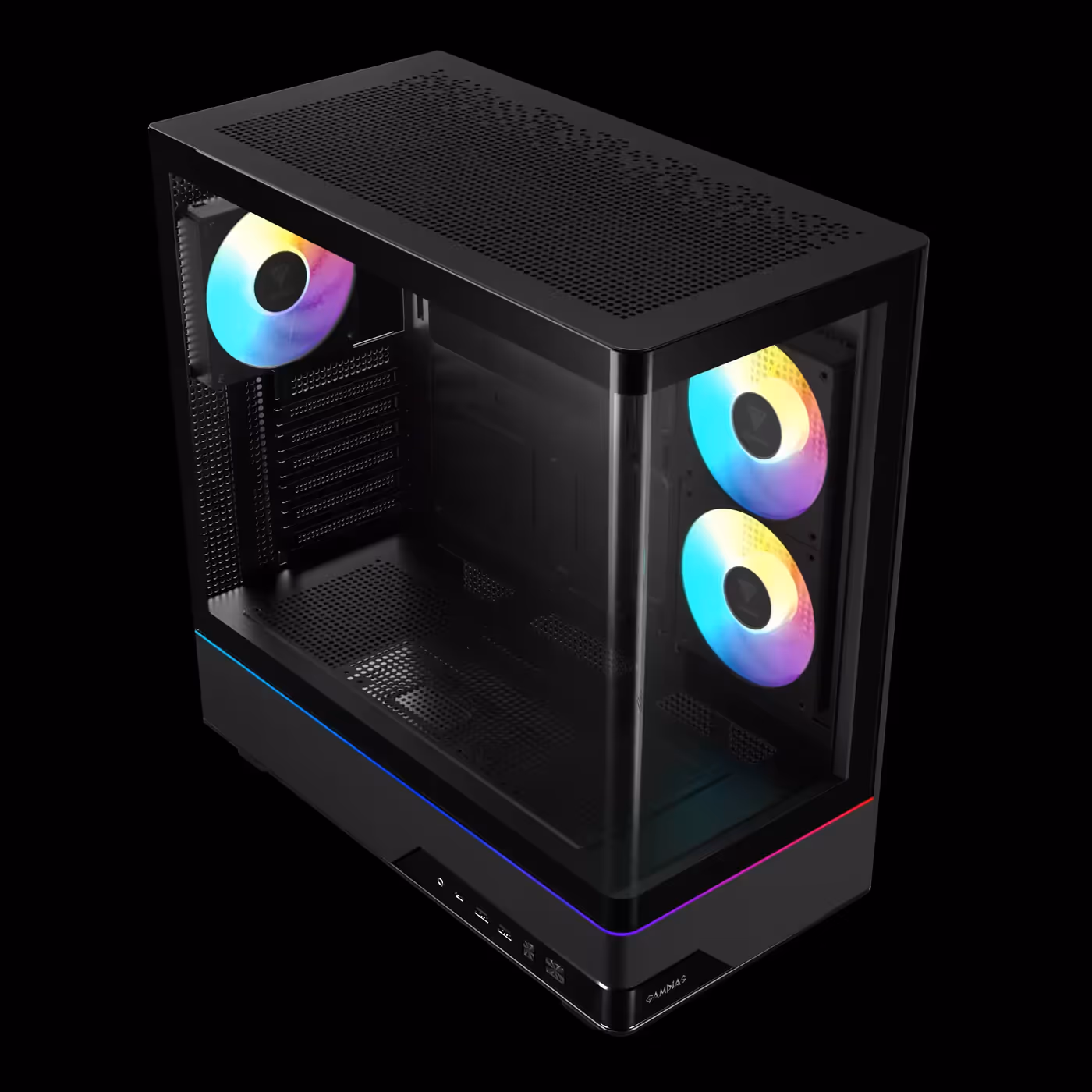

The perforated top takes three 120mm or two 140mm fans, or a 360mm or 280mm radiator for an AIO cooler. Counting the top, side, rear and bottom mounts, the case holds up to 9 fans. That leaves room for three more on top and three at the bottom beyond the fans that come installed.
360mm Radiator Space On The Top Panel
The perforated top takes three 120mm or two 140mm fans, or a 360mm or 280mm radiator for an AIO cooler. Counting the top, side, rear and bottom mounts, the case holds up to 9 fans. That leaves room for three more on top and three at the bottom beyond the fans that come installed.

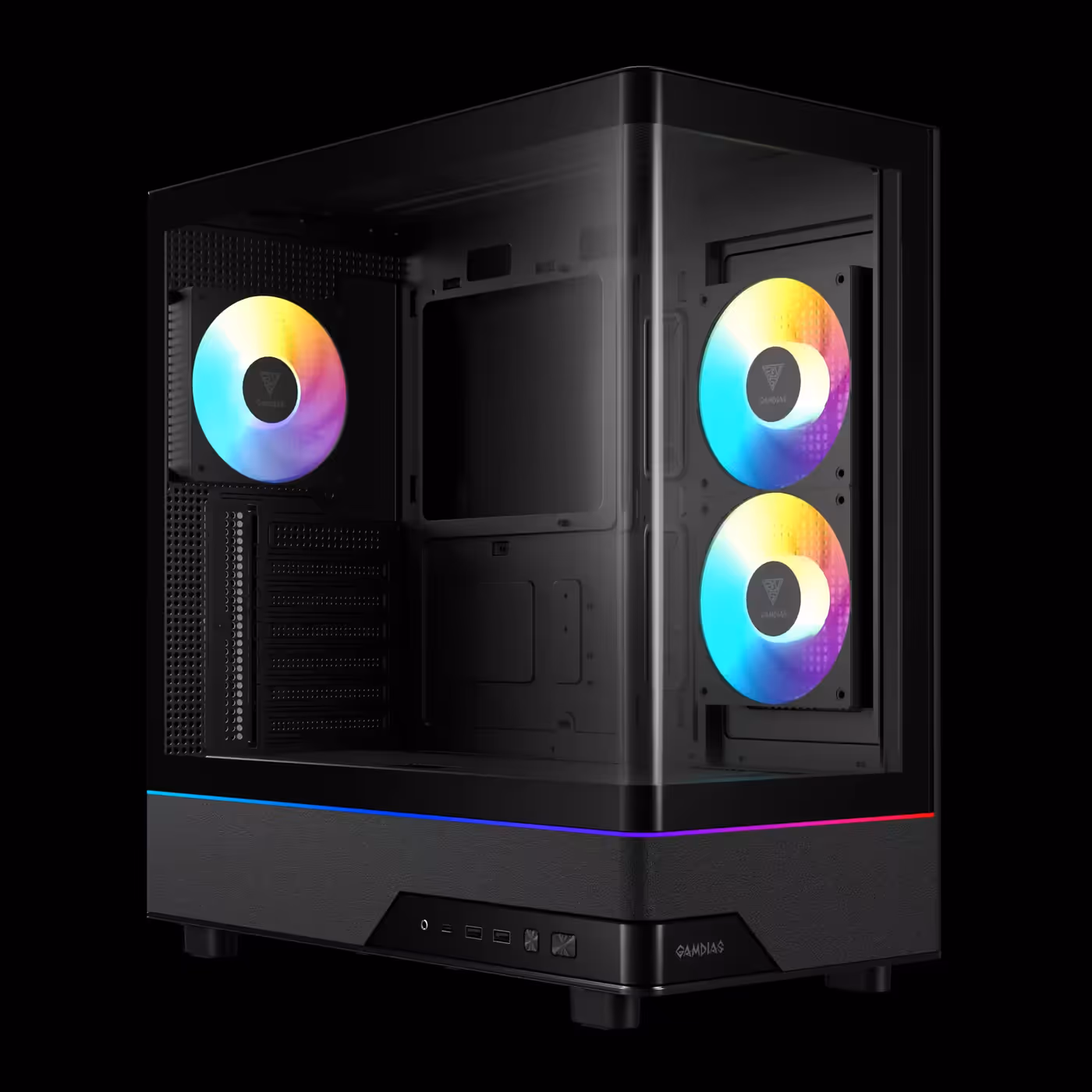

RGB Light Strips And Front Ports
Integrated RGB light strips come built in, with a choice of lighting modes; in this render one runs along the base under the glass. The fans and lighting sync through a 5V 3-pin addressable header, as no fan hub is included. The I/O carries one USB Type-C port, two USB 3.0 ports, HD audio and an LED control button.
RGB Light Strips And Front Ports
Integrated RGB light strips come built in, with a choice of lighting modes; in this render one runs along the base under the glass. The fans and lighting sync through a 5V 3-pin addressable header, as no fan hub is included. The I/O carries one USB Type-C port, two USB 3.0 ports, HD audio and an LED control button.

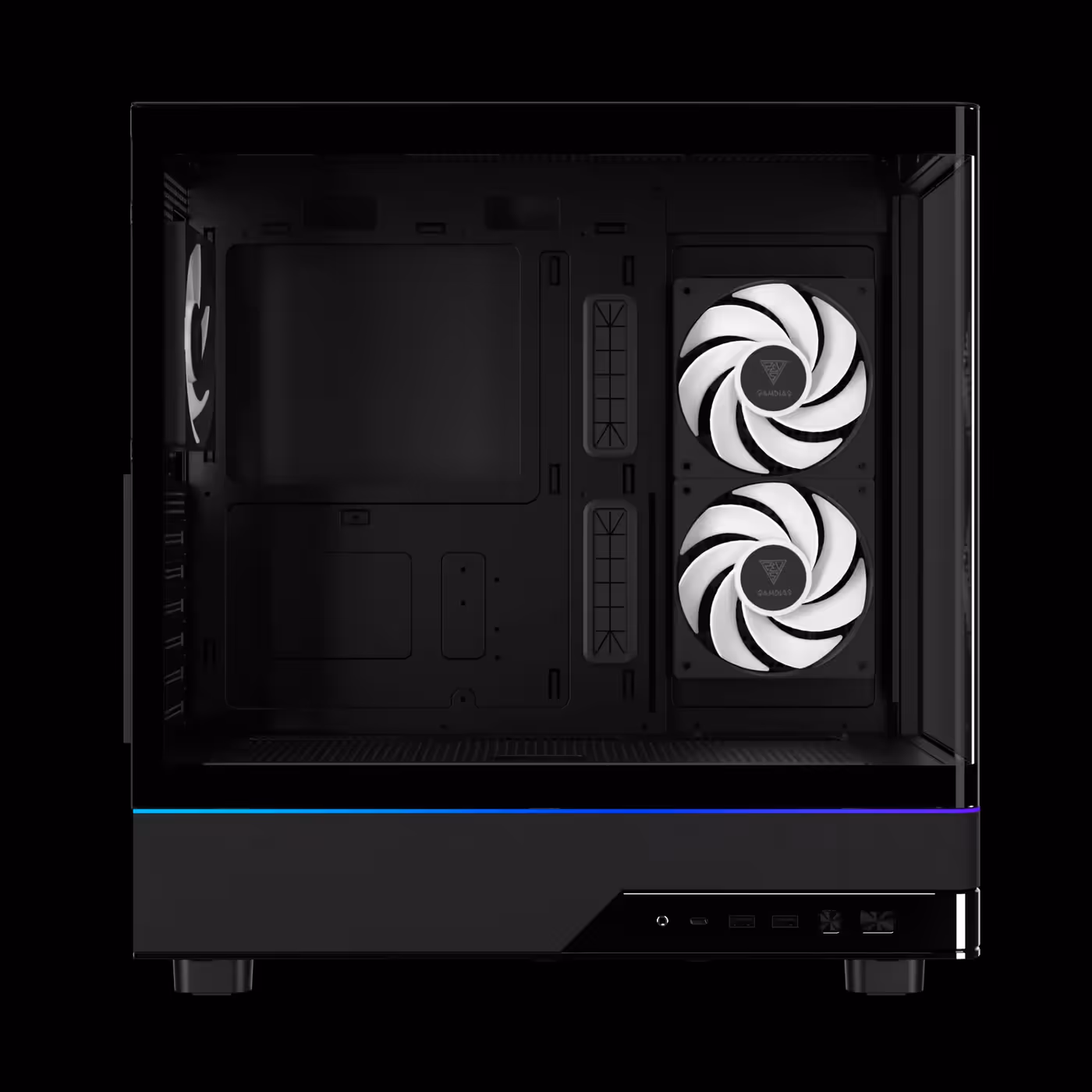

Room For 425mm Cards And 175mm Coolers
Through the left glass, the main chamber takes ATX, Micro-ATX and Mini-ITX boards. Graphics cards up to 425mm long fit, CPU air coolers can be up to 175mm tall, and power supplies up to 220mm long fit too. The HDD cage holds two 3.5-inch drives, or one 3.5-inch and two 2.5-inch drives.
Room For 425mm Cards And 175mm Coolers
Through the left glass, the main chamber takes ATX, Micro-ATX and Mini-ITX boards. Graphics cards up to 425mm long fit, CPU air coolers can be up to 175mm tall, and power supplies up to 220mm long fit too. The HDD cage holds two 3.5-inch drives, or one 3.5-inch and two 2.5-inch drives.

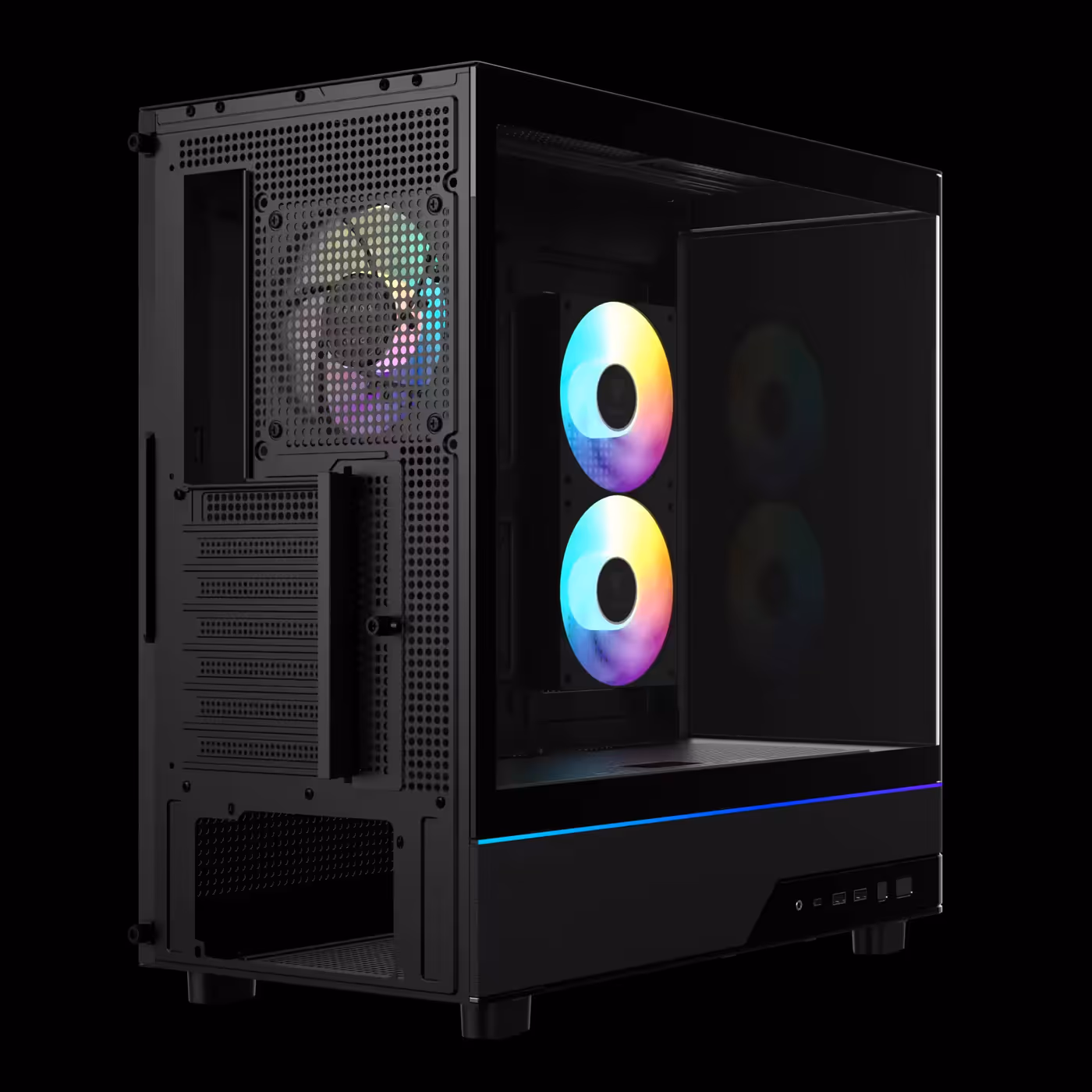

Seven Slots Below The Rear Fan
At the back, the rear NOTUS M1 fan sits above 7 expansion slots, and the power supply opening is at the bottom. The rear mount also accepts a 120mm or 140mm radiator, which gives a small AIO a second place to go if the top is used for fans.
Seven Slots Below The Rear Fan
At the back, the rear NOTUS M1 fan sits above 7 expansion slots, and the power supply opening is at the bottom. The rear mount also accepts a 120mm or 140mm radiator, which gives a small AIO a second place to go if the top is used for fans.
FAQ
Frequently Asked Questions
Everything you need to know about this product
Three 120mm NOTUS M1 PWM ARGB fans: two on the side and one at the rear. The case holds up to 9 fans, with room for 3 more on top and 3 at the bottom.
Yes, on top, which takes a 360mm or 280mm radiator. The rear takes a 140mm or 120mm radiator.
Graphics cards up to 425mm long fit. CPU air coolers up to 175mm tall and power supplies up to 220mm long fit as well.
The front is glass, so air comes in through vents in the bottom and the right side panel. The two 120mm side fans pull it in, and the PSU chamber is perforated so air can pass through it too.
This version has an L-shaped curved tempered glass panel that wraps the front and left side in one piece, with no corner pillar between them.
No. GAMDIAS lists no pre-installed fan hub for this model; the fans and lighting sync to a 5V 3-pin addressable header.
The HDD cage takes two 3.5-inch drives, or one 3.5-inch and two 2.5-inch drives, and there is one more 2.5-inch mount.
If you want a clean view of your build, yes: one curved glass panel covers the front and side, three ARGB fans and RGB light strips come installed, and it still fits a 425mm graphics card.
