Try the new builderGAMDIAS HELIOS E1-600 PRO 600W Power Supply
Aimed at office machines and entry-level gaming rigs, the GAMDIAS HELIOS E1-600 PRO supplies 600W through fixed cables and follows the ATX12V v2.4 standard. Its efficiency rating from GAMDIAS is 80 Plus Standard, at up to 80%. Five protections watch for over-voltage, under-voltage, over-power, short circuits and over-current, a 120mm fan handles cooling, and the AC input accepts 180-240V.
Aimed at office machines and entry-level gaming rigs, the GAMDIAS HELIOS E1-600 PRO supplies 600W through fixed cables and follows the ATX12V v2.4 standard. Its efficiency rating from GAMDIAS is 80 Plus Standard, at up to 80%. Five protections watch for over-voltage, under-voltage, over-power, short circuits and over-current, a 120mm fan handles cooling, and the AC input accepts 180-240V.

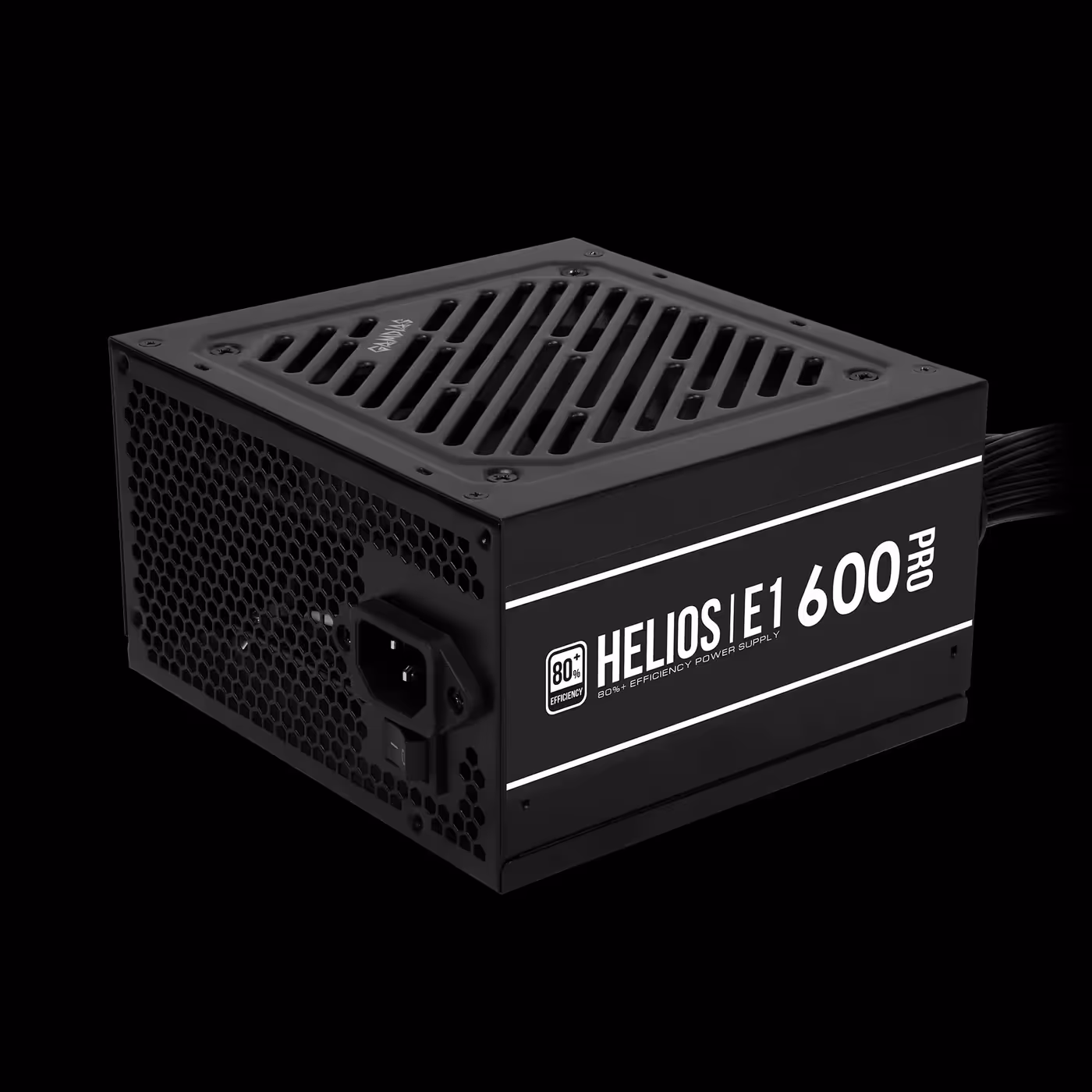

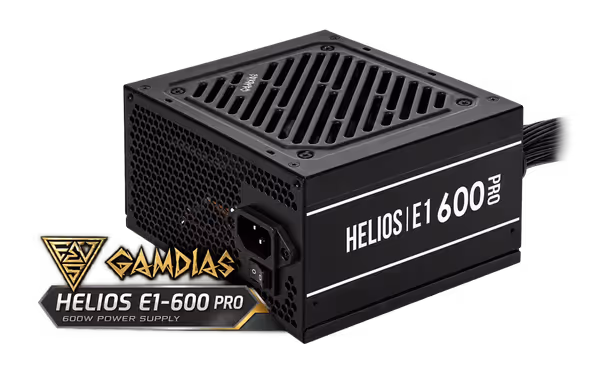

The E1-600 PRO measures 150 x 140 x 86mm, a standard ATX size. The black housing has a slotted fan grille on one face and the HELIOS E1 600 PRO name on the side, set between two white stripes, with the AC inlet at the back.
The E1-600 PRO measures 150 x 140 x 86mm, a standard ATX size. The black housing has a slotted fan grille on one face and the HELIOS E1 600 PRO name on the side, set between two white stripes, with the AC inlet at the back.

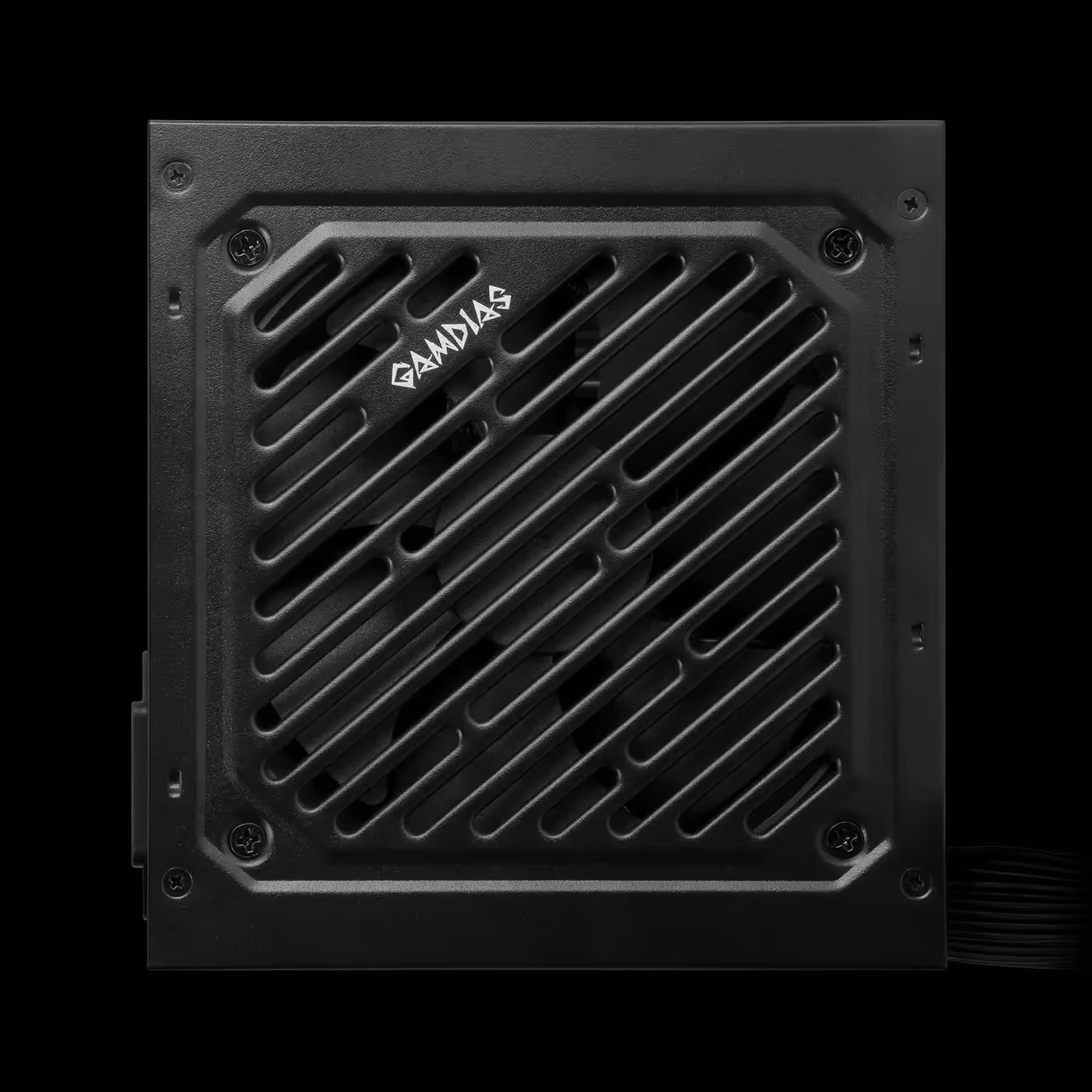

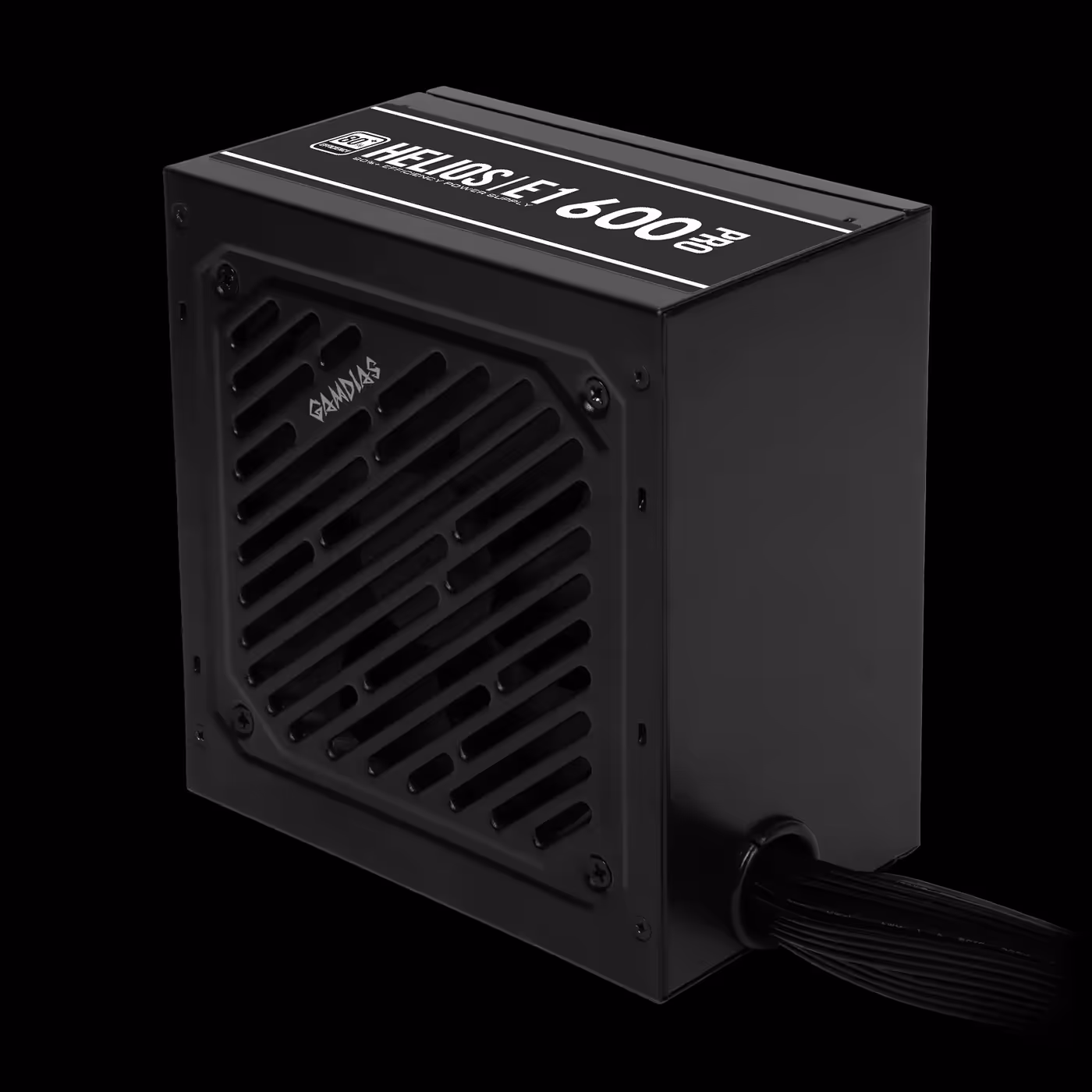

Behind the slotted grille sits a 120mm long-lifespan sleeve bearing fan. It reads temperature and load and adjusts its speed to match, so it turns slower when the PC is idle or doing light work. GAMDIAS lists no silent or fan-stop mode for this unit.
Behind the slotted grille sits a 120mm long-lifespan sleeve bearing fan. It reads temperature and load and adjusts its speed to match, so it turns slower when the PC is idle or doing light work. GAMDIAS lists no silent or fan-stop mode for this unit.

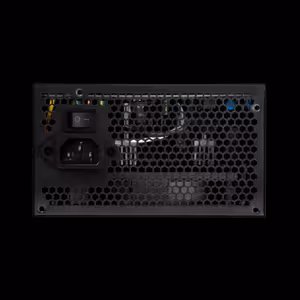

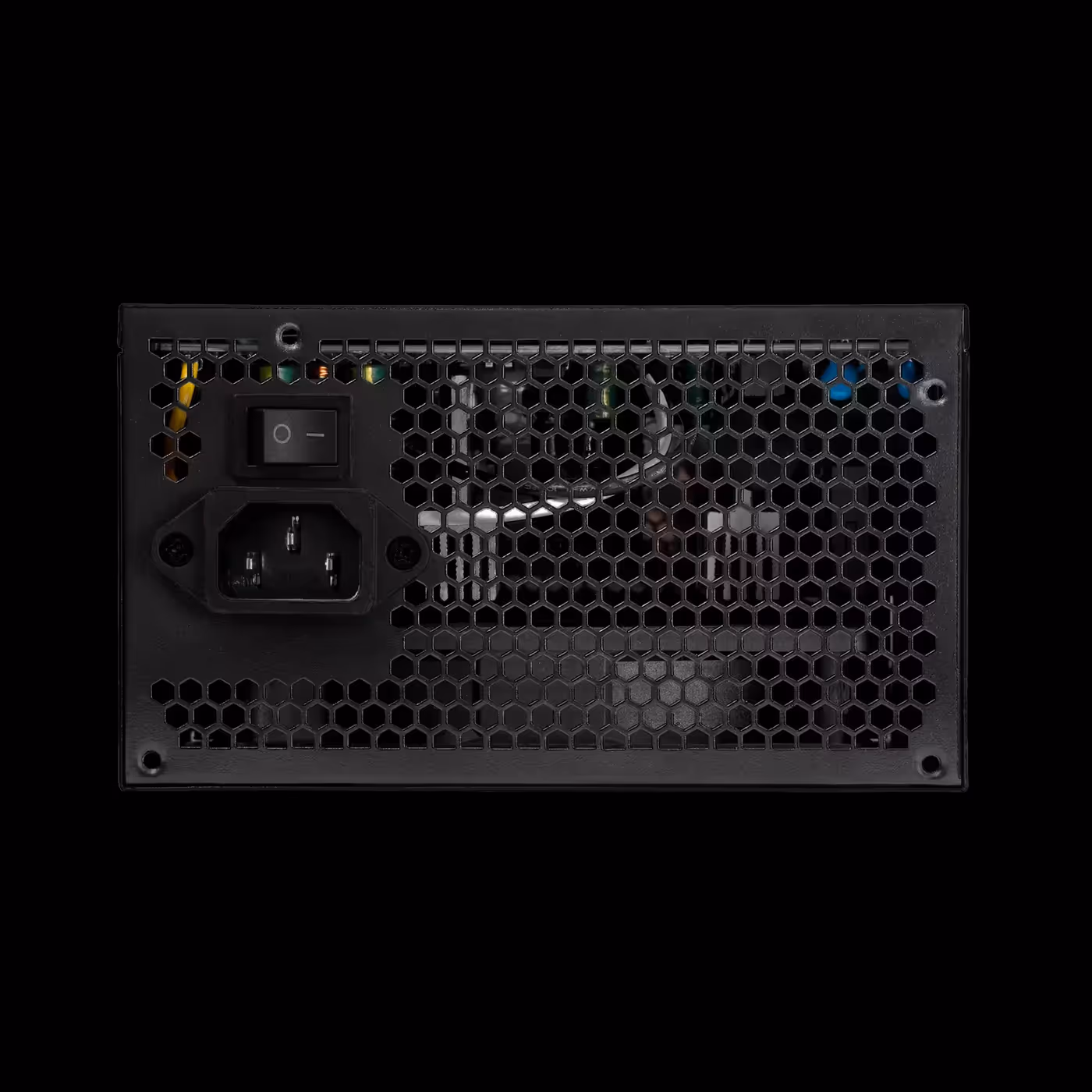

The rear panel holds the AC inlet and the power switch, set into a honeycomb vent. GAMDIAS lists an AC input of 180-240V at 9A and 47-63Hz, which covers South Africa's 230V, 50Hz supply. The unit is not made for 110-120V mains.
The rear panel holds the AC inlet and the power switch, set into a honeycomb vent. GAMDIAS lists an AC input of 180-240V at 9A and 47-63Hz, which covers South Africa's 230V, 50Hz supply. The unit is not made for 110-120V mains.

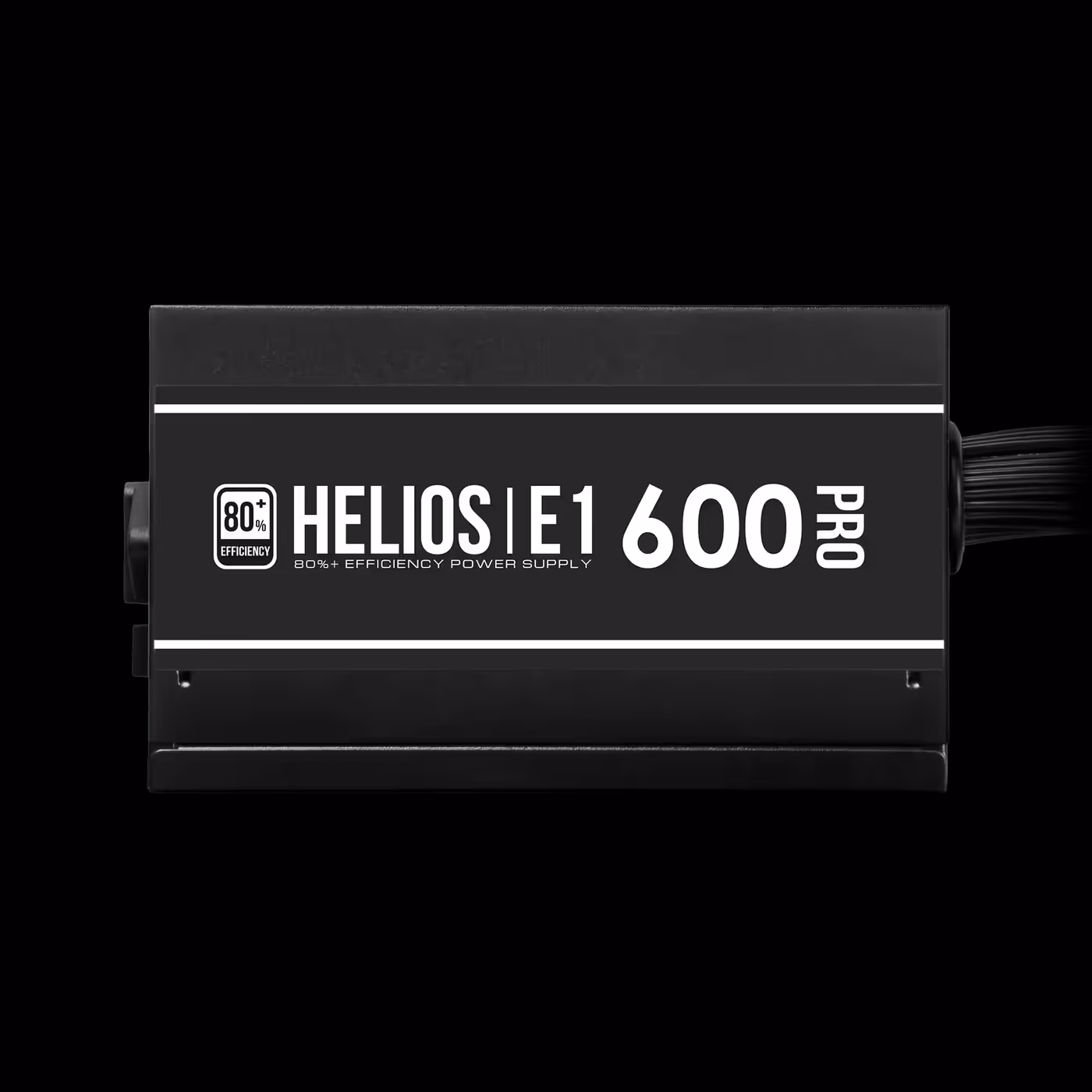

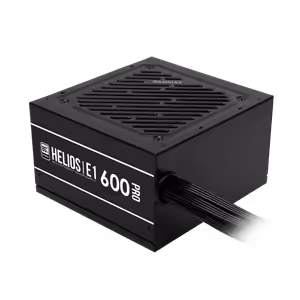

The side label carries the HELIOS E1 600 PRO name next to an efficiency badge. Its rating is 80 Plus Standard according to GAMDIAS, which quotes efficiency of up to 80%, the entry tier of the 80 Plus scale. The unit also works with the C6/C7 power-saving states of the CPU.
The side label carries the HELIOS E1 600 PRO name next to an efficiency badge. Its rating is 80 Plus Standard according to GAMDIAS, which quotes efficiency of up to 80%, the entry tier of the 80 Plus scale. The unit also works with the C6/C7 power-saving states of the CPU.

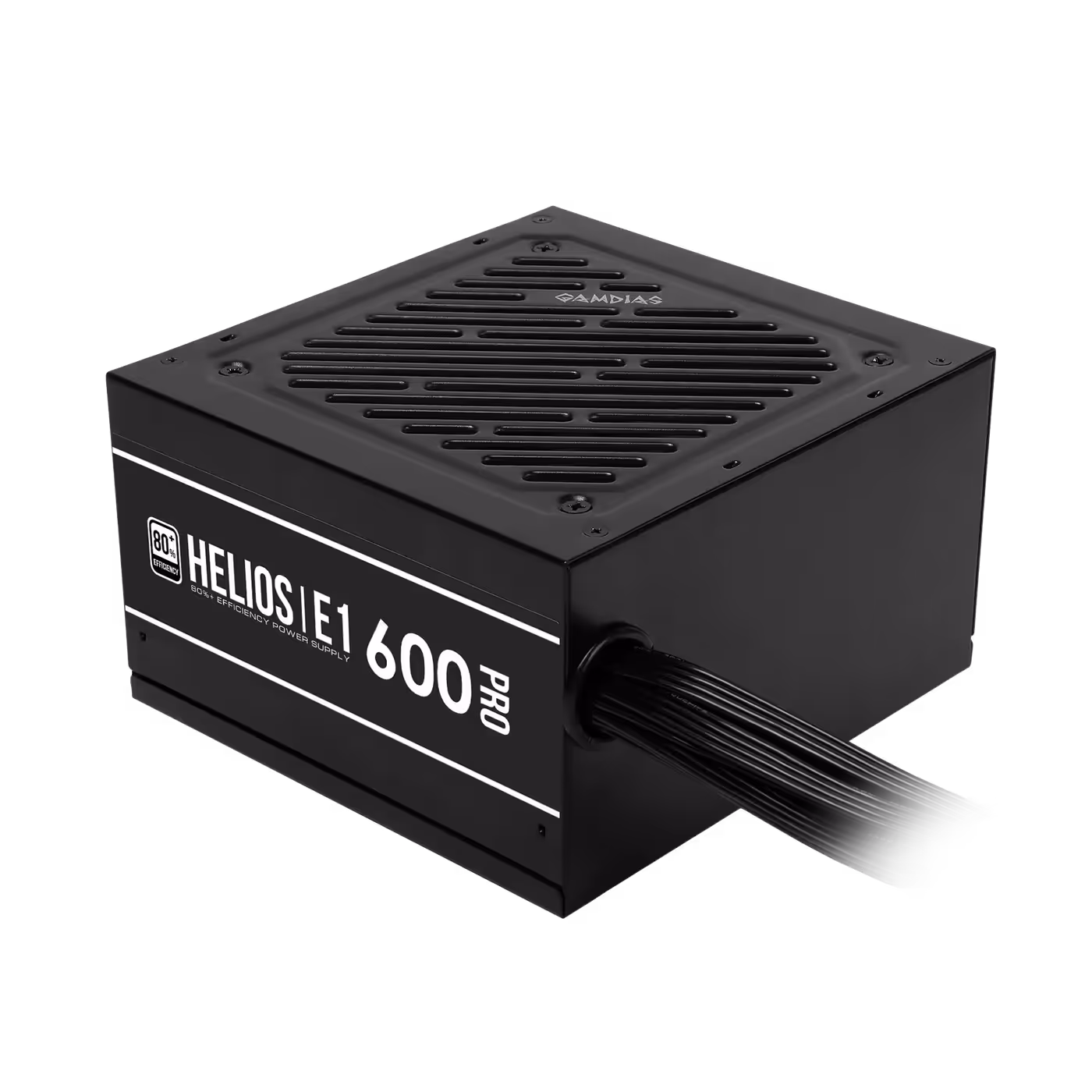

Every cable is fixed to the E1-600 PRO, as on any non-modular power supply, and leaves the housing as one bundle. The cables are flat, flexible and black, which makes them easier to route and leaves more room for airflow inside the case.
Every cable is fixed to the E1-600 PRO, as on any non-modular power supply, and leaves the housing as one bundle. The cables are flat, flexible and black, which makes them easier to route and leaves more room for airflow inside the case.

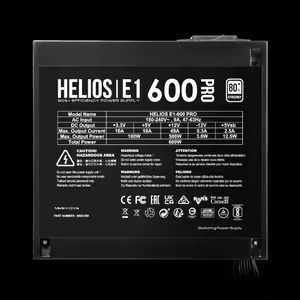

Of the 600W total, 588W is available on the +12V output, which carries up to 49A for the CPU and the graphics card. The +3.3V and +5V outputs are rated at 16A each and share 100W, and the +5Vsb standby output is rated at 2.5A.
Of the 600W total, 588W is available on the +12V output, which carries up to 49A for the CPU and the graphics card. The +3.3V and +5V outputs are rated at 16A each and share 100W, and the +5Vsb standby output is rated at 2.5A.
The cables carry one 20+4-pin motherboard connector, one 4+4-pin CPU connector, two 6+2-pin PCIe connectors, four SATA and two Molex. There is no native 12V-2x6 (16-pin) graphics card cable on this model, and every cable stays attached to the unit.
The cables carry one 20+4-pin motherboard connector, one 4+4-pin CPU connector, two 6+2-pin PCIe connectors, four SATA and two Molex. There is no native 12V-2x6 (16-pin) graphics card cable on this model, and every cable stays attached to the unit.
Everything you need to know about this product
600W suits an entry-level or mid-range build with one graphics card. Check your graphics card maker's recommended PSU wattage, and note the E1-600 PRO powers the card through two 6+2-pin PCIe connectors.
GAMDIAS rates it 80 Plus Standard, meeting up to 80% efficiency. That is the entry tier of 80 Plus; Bronze and Gold units turn less of the power they draw into heat.
Its 120mm sleeve bearing fan adjusts its speed to temperature and load, so it slows down at light loads. GAMDIAS lists no silent or fan-stop mode.
Over-voltage, under-voltage, over-power, short-circuit and over-current protection (OVP, UVP, OPP, SCP and OCP).
Yes. GAMDIAS lists an AC input of 180-240V at 47-63Hz, which covers South Africa's 230V, 50Hz supply. It is not made for 110-120V mains.
1x 20+4-pin motherboard, 1x 4+4-pin CPU, 2x 6+2-pin PCIe, 4x SATA and 2x Molex. The cables are fixed (non-modular) and there is no native 12V-2x6 (16-pin) graphics card cable.
Compared with the E1-600, the PRO raises the +12V rating from 40.5A (486W) to 49A (588W), adds over-current protection, uses flat cables and accepts 180-240V instead of 220-240V. It has four SATA connectors to the E1-600's five and no floppy connector.
For an office PC or an entry-level gaming build, it gives 600W, an 80 Plus Standard rating, five protections and flat cables in a standard ATX size. For a high-end graphics card or an ATX 3.1 build, step up to a Bronze or Gold ATX 3.1 unit.
