What is DirectX 12 Ultimate? — Four features. One badge. Every new PC game.

What DirectX 12 Ultimate actually is

DirectX 12 Ultimate isn't a new graphics API — it's a feature level inside DirectX 12. Microsoft introduced it in March 2020 to define a single hardware capability bar that PC GPUs and Xbox Series X|S would share. Hit the bar and the game engine can rely on those four features being available without writing fallbacks.

The four mandated capabilities are DXR 1.1 ray tracing, Variable Rate Shading, Mesh Shaders and Sampler Feedback. Internally these correspond to D3D_FEATURE_LEVEL_12_2. A GPU either has all four (badge eligible) or it doesn't — there's no partial credit.

For PC gamers in 2026, the badge is the difference between "this engine assumes modern hardware" and "this engine still ships compatibility paths for 2018 cards". The list of 2024-2026 AAA games that require at least Mesh Shaders to launch keeps growing.

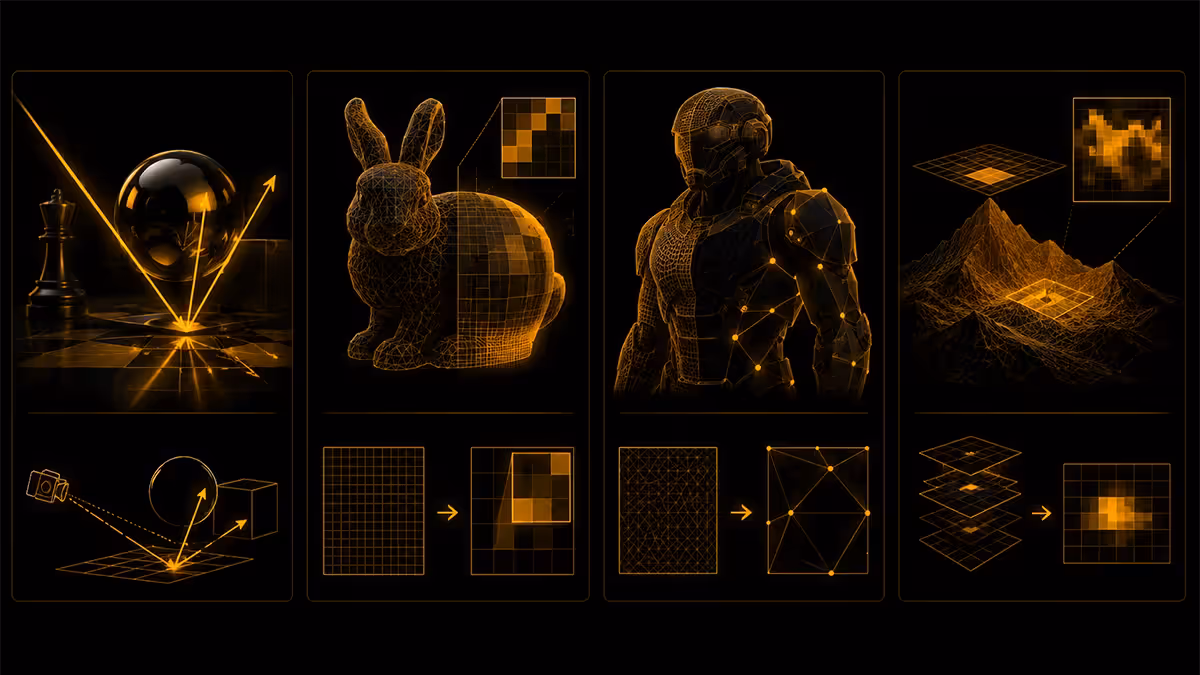

The four features, in plain language

DXR 1.1 — hardware ray tracing

DirectX Raytracing 1.1 is the API that lets games ask the GPU's dedicated RT cores to trace real-time light rays. The 1.1 revision (over the original DXR shipped with DX12 in 2018) added inline ray tracing — shaders can fire rays mid-pixel without invoking a separate raygen pipeline. The practical result: lower CPU overhead, cleaner code, hybrid effects (RT shadows + raster everything else) at playable frame rates on midrange cards.

Variable Rate Shading (VRS)

Variable Rate Shading lets the GPU shade pixels at different rates within the same frame. Tier 1 supports per-draw call rates; Tier 2 (the DX12 Ultimate requirement) supports per-tile rates from a screen-space image. Games tag low-detail regions — peripheral vision, motion-blurred areas, surfaces behind the HUD — and the GPU shades them at 2x2 or 4x4 pixel groups instead of per-pixel. Performance uplift in titles that implement Tier 2 well sits at 5-15% with no visible quality cost.

Mesh Shaders

Mesh Shaders replace the legacy vertex + hull + domain + geometry pipeline with a flexible compute-style approach. A mesh shader produces small "meshlets" (clusters of triangles) directly, with full programmable culling and LOD selection. Game engines like id Tech 8 (DOOM: The Dark Ages), the Northlight engine (Alan Wake 2) and Snowdrop (Star Wars Outlaws) require Mesh Shader hardware as a hard launch dependency. No fallback path. No GTX 1080. Period.

Sampler Feedback

Sampler Feedback lets a shader report back which texture mips and tiles were actually touched during rendering. The engine can then stream only what's needed — at the right detail — instead of guessing. Combined with DirectStorage and SSD-backed asset libraries, this is the technology behind 4K texture packs that don't blow VRAM. Forza Horizon 5, Microsoft Flight Simulator 2024 and Avatar: Frontiers of Pandora all lean on Sampler Feedback for their streaming budgets.

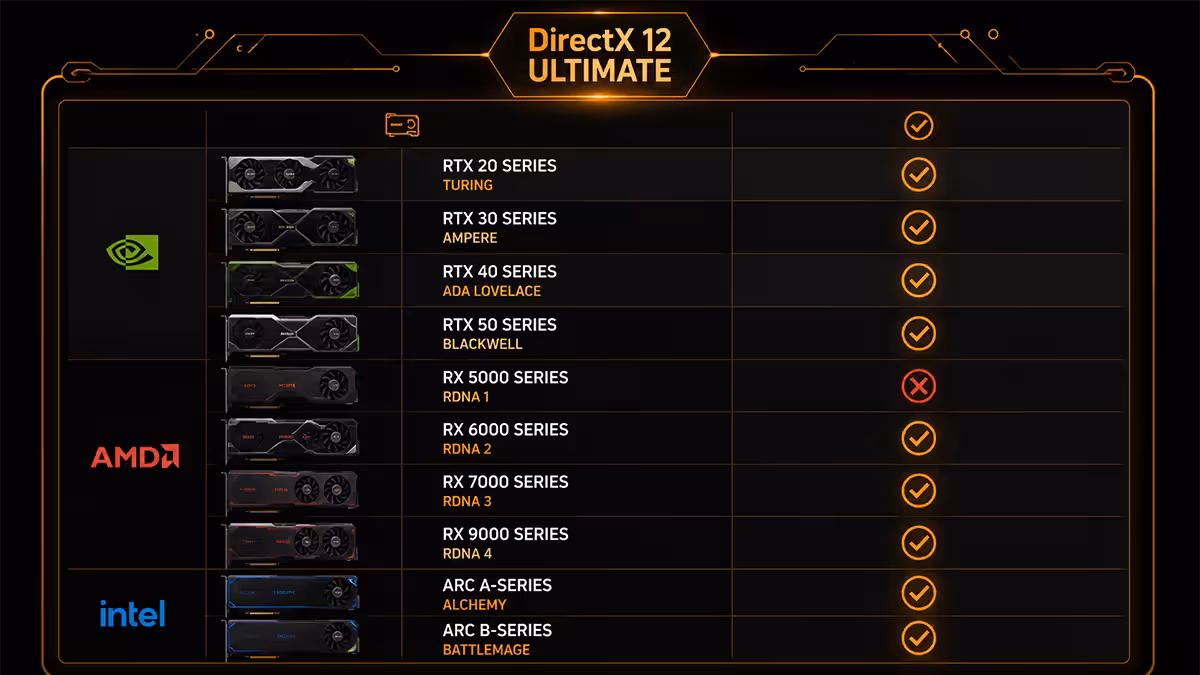

Which GPUs support DX12 Ultimate

The badge requires all four features in hardware. Here's how the GPU generations actually fall:

The big "no" list: GTX 10 series, GTX 16 series, RX 5000 series, anything older. These cards can still play DX12 games, but only titles that ship a compatibility fallback path. Increasingly, AAA studios don't bother.

Windows 10 vs Windows 11 — does it matter?

DirectX 12 Ultimate works on Windows 10 (build 2004 / 20H1 or later) and Windows 11. The driver model (WDDM 3.0+) ships on both. So functionally, your DX12U games run on both.

But Win11 has features layered on top that the same DX12U GPU benefits from:

• AutoHDR upscales SDR titles to HDR on capable displays. Win10 has it gated behind Game Pass; Win11 makes it a system setting.
• DirectStorage 1.2 GPU decompression ships better on Win11 — GPU-side BCPack decompression chains directly through the DX12 command list with less driver overhead.
• Improved DX12 multi-threaded command list scheduling in the Win11 kernel reduces stutters on multi-core CPUs.
• AutoSR and AutoSRX — Windows 11 24H2 AI-powered system-level upscaling (similar to NVIDIA DSR, but for any game).

Net effect: same GPU on Win11 will score 2-5% higher in DX12U benchmarks like 3DMark Speed Way than on Win10, with smoother frametime graphs. Not earth-shattering, but free perf is free perf.

How to verify your GPU is DX12 Ultimate

Three ways, ranked from quickest to most thorough:

1. dxdiag (60 seconds, built-in). Press Win+R, type dxdiag, hit Enter. Switch to the Display tab. Look for Feature Levels — if the highest listed is 12_2, you have DX12 Ultimate. If the highest is 12_1 or below, you don't.

2. GPU-Z Advanced tab. Free utility from TechPowerUp. The DirectX dropdown shows full feature support — DXR Tier, VRS Tier, Mesh Shader support and Sampler Feedback support as separate lines. Useful for verifying which DXR tier (1.0 vs 1.1) your card runs.

3. Windows Settings > Display > Advanced display. Win11 reports the GPU's DX12 Ultimate badge status directly on the display info card.

Console parity — the Xbox connection

DirectX 12 Ultimate was designed in lockstep with Xbox Series X|S hardware. The Series X GPU is RDNA 2 (same architecture family as RX 6000 desktop cards) and supports the identical feature level. Microsoft's pitch was simple: studios target one feature bar and ship the same engine to PC and Xbox with minimal changes.

The result is that any modern console-first AAA game ships PC with DX12U as the minimum. There's no business case to spend engineering hours writing a vertex-shader fallback for GTX 1060 owners when the same code wouldn't run on Xbox either.

PlayStation 5 uses its own proprietary low-level graphics API (GNM / GNMX), but Sony's RDNA 2 hardware exposes equivalent features (hardware ray tracing, primitive shaders rather than mesh shaders, similar shading rate control). Multi-platform PC ports usually map cleanly to DX12 Ultimate.

Vulkan as an alternative

Vulkan is the open cross-platform graphics API that competes with DX12. With the right extensions enabled, Vulkan covers nearly all DX12 Ultimate functionality:

• VK_KHR_ray_tracing_pipeline + VK_KHR_ray_query — DXR 1.1 equivalent
• VK_KHR_fragment_shading_rate — VRS equivalent
• VK_EXT_mesh_shader — Mesh Shaders
• VK_QCOM_image_processing + extensions — Sampler Feedback-style streaming

Games using Vulkan include DOOM Eternal, Red Dead Redemption 2, Baldur's Gate 3, Ghost of Tsushima PC and No Man's Sky. Vulkan works on Linux/Steam Deck, Android and macOS (via MoltenVK), while DX12 is Windows + Xbox only.

Key takeaways

1. DX12 Ultimate = feature level 12_2 — DXR 1.1, VRS Tier 2, Mesh Shaders and Sampler Feedback in hardware.
2. Supported by all RTX cards (20 series+), AMD RX 6000+ and Intel Arc. GTX 16, RX 5000 and older are excluded.
3. Works on Win10 (2004+) and Win11. Win11 gives you 2-5% extra perf from AutoHDR, DirectStorage 1.2 and better scheduling.
4. A growing list of 2024-2026 AAA games hard-require Mesh Shaders — Alan Wake 2, Indiana Jones, Star Wars Outlaws.
5. Verify your card with dxdiag, GPU-Z Advanced tab, or Win11 display settings. Look for "12_2".
