Which processors does the ROG Crosshair X870E Extreme support?

It uses the AMD AM5 socket and supports Ryzen 9000, 8000 and 7000 Series desktop processors.

What form factor is the ROG Crosshair X870E Extreme?

It is an E-ATX motherboard, so the chassis needs to be rated for E-ATX rather than standard ATX.

How many M.2 slots does the Crosshair X870E Extreme have?

There are 5 M.2 slots: two M.2 22110 at PCIe 5.0 x4, one M.2 2280 at PCIe 5.0 x4, and two M.2 22110 at PCIe 4.0 x4 provided by the ROG Q-DIMM.2 card.

How much memory does this board take?

Four DDR5 DIMM slots run in dual-channel mode up to a maximum of 256GB.

What power stages does the Crosshair X870E Extreme use?

The VRM runs 20 stages at 110A plus 2 at 110A and 2 at 80A, fed through DUAL PROCOOL II power connectors.

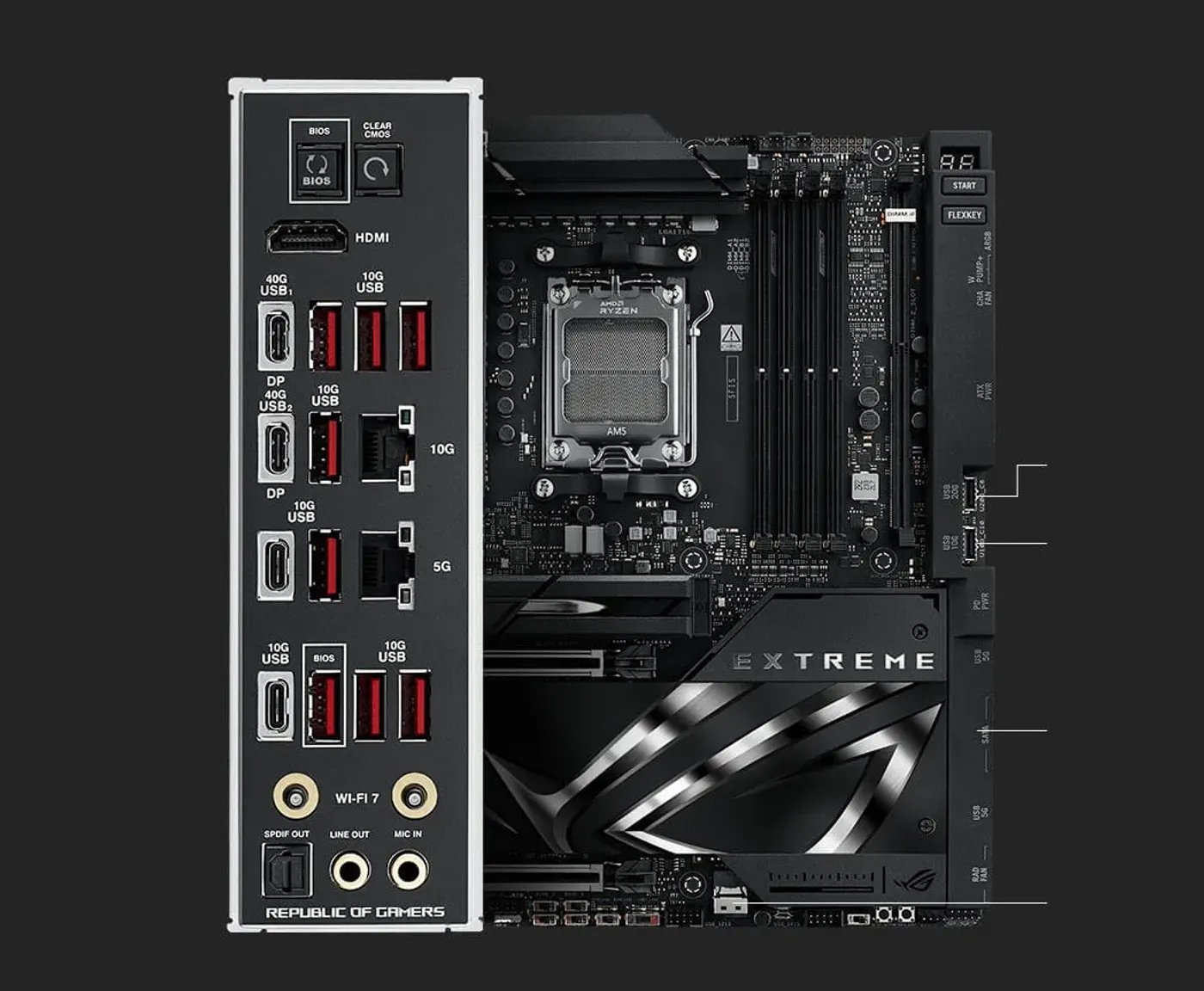

What Ethernet ports does this motherboard have?

It carries both a Marvell 10Gb Ethernet port and a Realtek 5Gb Ethernet port, alongside WiFi 7 wireless.

Does the Crosshair X870E Extreme have USB4?

Yes, it provides 2 USB4 ports running at 40Gbps, plus 10 USB 10Gbps ports made up of 2 Type-C and 8 Type-A.

What front-panel connectors are available?

There is a USB 20Gbps front-panel connector supporting QC4+ fast charging and a USB 10Gbps front-panel connector.

What storage interfaces are on this board besides M.2?

It has 4 SATA 6GB/s ports plus a SlimSAS connector that supports PCIe 4.0 x4 mode.

What is the 5-inch LCD used for?

The full-colour 5-inch LCD displays exclusive ROG animations, live system information or personalised images, all configured through Armoury Crate.

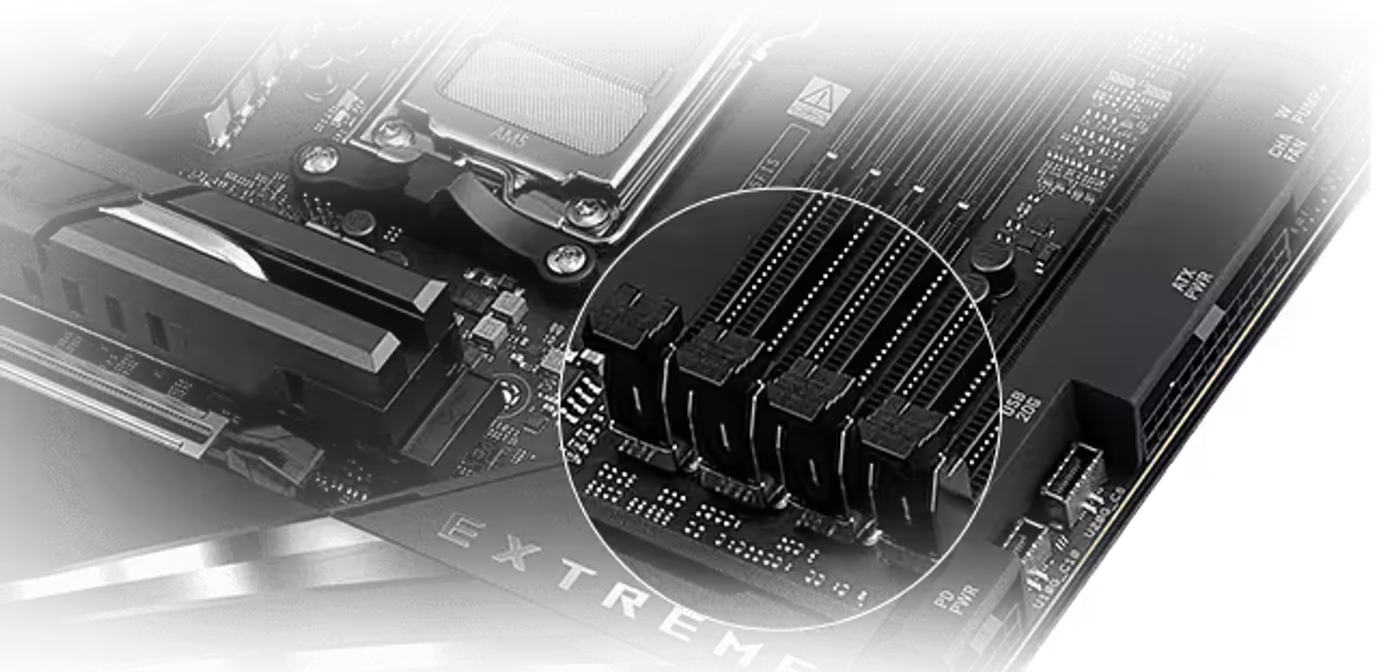

What is NitroPath DRAM technology?

NitroPath shortens the gold-finger pins and optimises signal pathways for frequency gains of up to 400 MT/s, and it increases DIMM slot retention force by 57%.

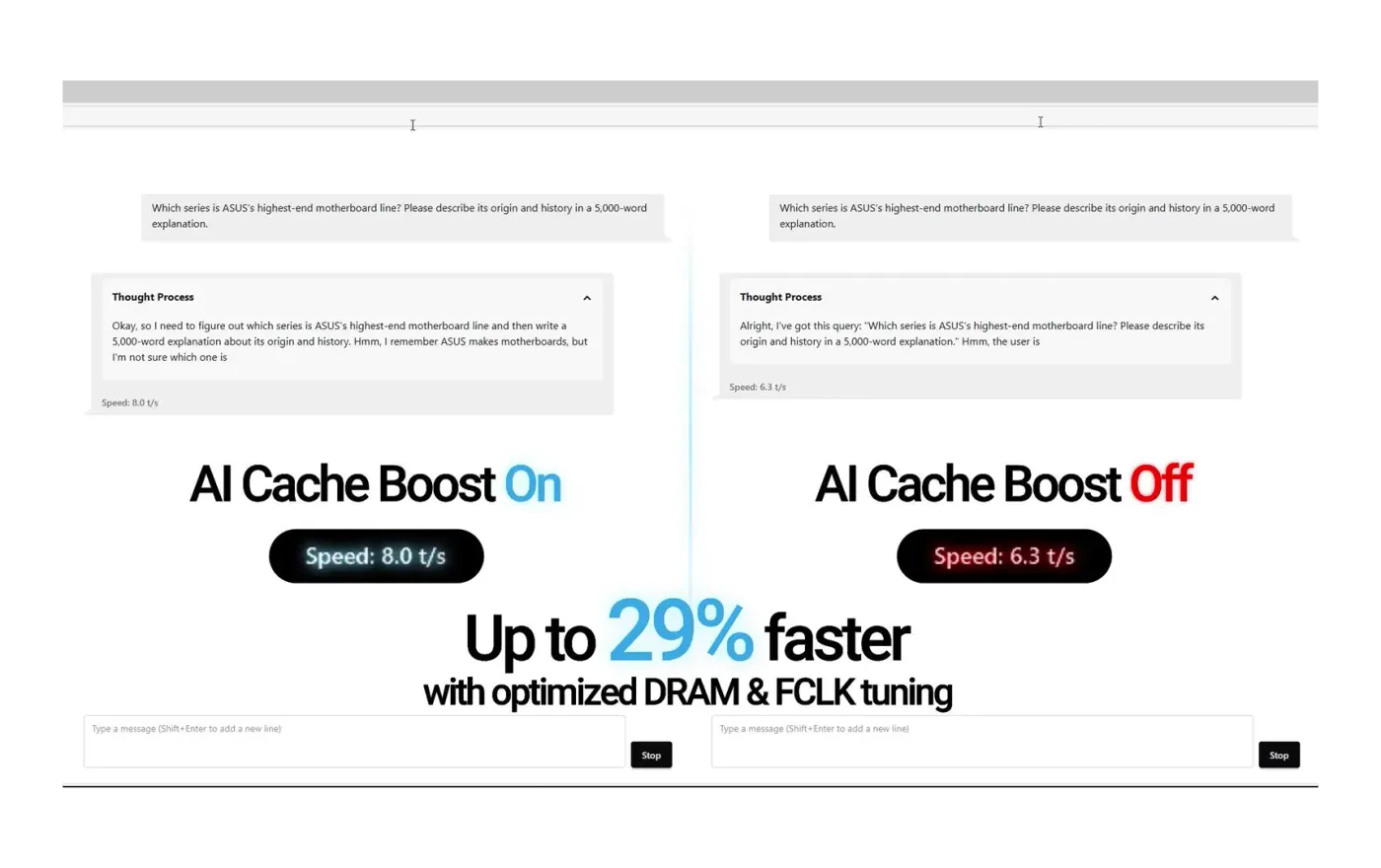

What does AI Cache Boost do?

AI Cache Boost is a BIOS setting for ASUS AMD 800 and 600 series boards with Ryzen 9000 Series CPUs that optimises CPU cache and memory pathways for up to 29% faster local LLM performance with high-speed memory tuning.
