mercusys-ms110gmp-10-port-gigabit-poe-switch
MERCUSYS MS110GMP 10-Port Gigabit PoE+ Switch / 8x Gigabit PoE+ Ports (30W Each, 111W Total) + 2x Gigabit Uplink Ports / Up to 250m Extend Mode / Priority & Isolation Modes / PoE Auto Recovery / Fanless Design / Plug & Play / MS110GMP
1 Year Local Warranty
Model No : Mercusys MS110GMP
Price Inc. Vat
R 999
Save R 100
ListR 1,099
999Change Quantity:
In Stock with Evetech
MERCUSYS MS110GMP 10-Port Gigabit PoE+ Switch, 8x PoE+
Ten Gigabit Ports, Eight Of Them PoE+

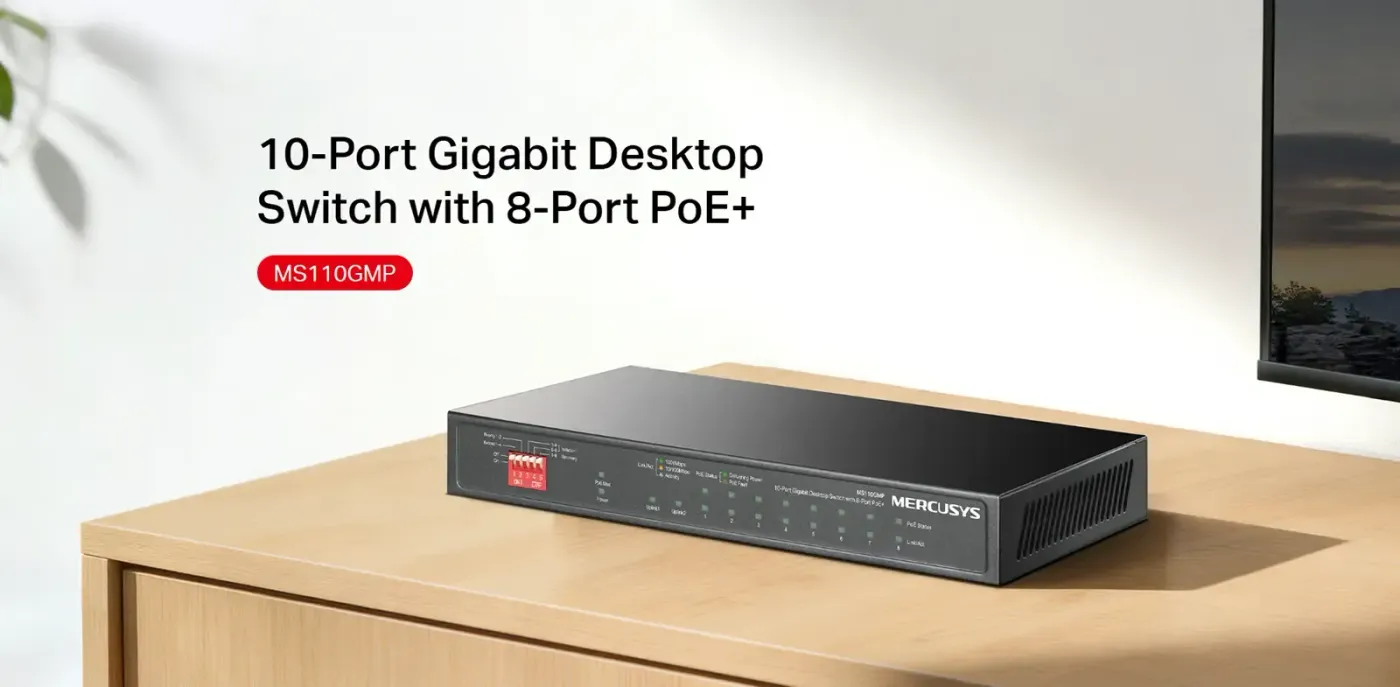

The MERCUSYS MS110GMP is a desktop switch with ten gigabit ports: eight 10/100/1000 Mbps PoE+ downlinks for powered devices, plus two 1000 Mbps RJ45 uplinks to carry aggregated traffic back to a router or a larger switch. It forwards using a store-and-forward engine with 20 Gbps of switching capacity, learns and ages MAC addresses by itself, and draws its power from an external 54V DC adapter.
Ten Gigabit Ports, Eight Of Them PoE+
The MERCUSYS MS110GMP is a desktop switch with ten gigabit ports: eight 10/100/1000 Mbps PoE+ downlinks for powered devices, plus two 1000 Mbps RJ45 uplinks to carry aggregated traffic back to a router or a larger switch. It forwards using a store-and-forward engine with 20 Gbps of switching capacity, learns and ages MAC addresses by itself, and draws its power from an external 54V DC adapter.

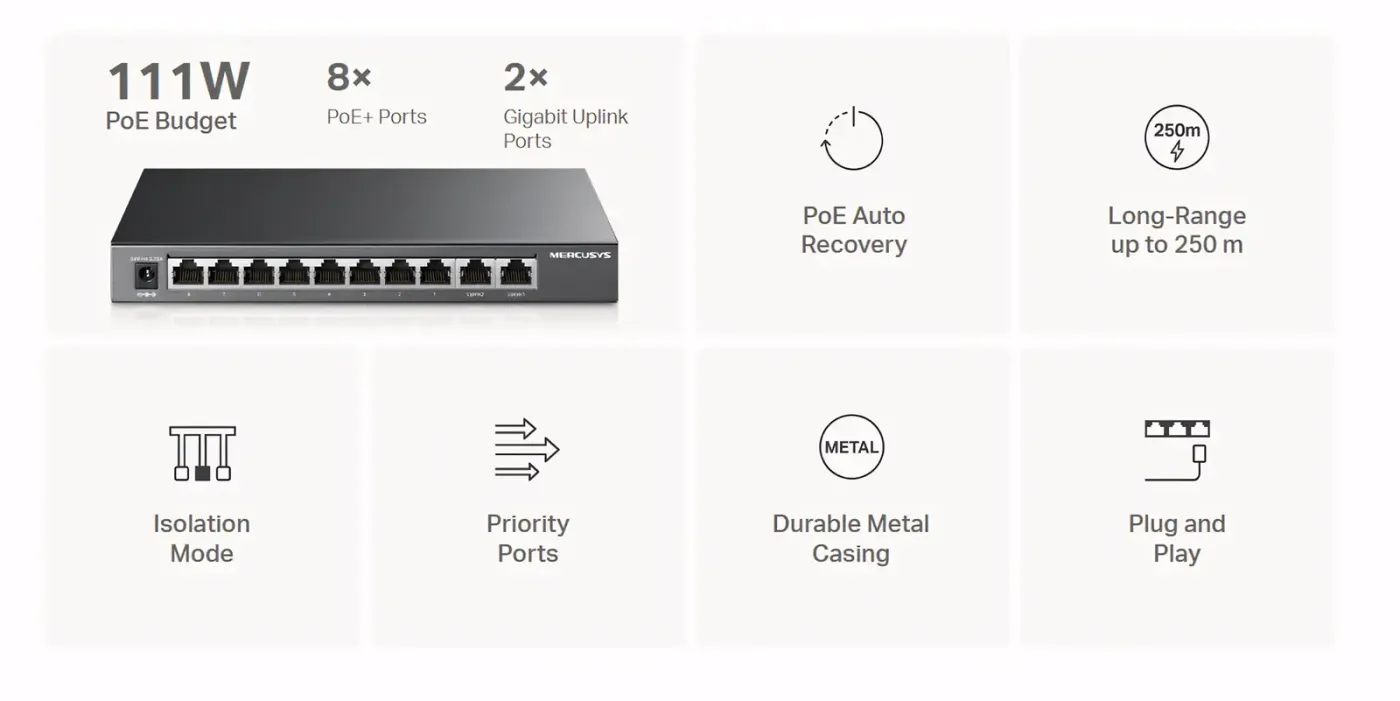

Compact Metal Unit With A Lock Slot
At 209 x 126 x 26 mm the switch sits easily on a shelf, in a cabinet or behind a monitor, and the shell carries a physical security lock slot for shared or public installations. Inside, a 4K MAC address table and 16 KB jumbo frame support keep larger transfers efficient, with IEEE 802.3x flow control on full-duplex links and backpressure on half-duplex ones.
Compact Metal Unit With A Lock Slot
At 209 x 126 x 26 mm the switch sits easily on a shelf, in a cabinet or behind a monitor, and the shell carries a physical security lock slot for shared or public installations. Inside, a 4K MAC address table and 16 KB jumbo frame support keep larger transfers efficient, with IEEE 802.3x flow control on full-duplex links and backpressure on half-duplex ones.
Eight Dedicated PoE+ Ports for Enhanced Networking

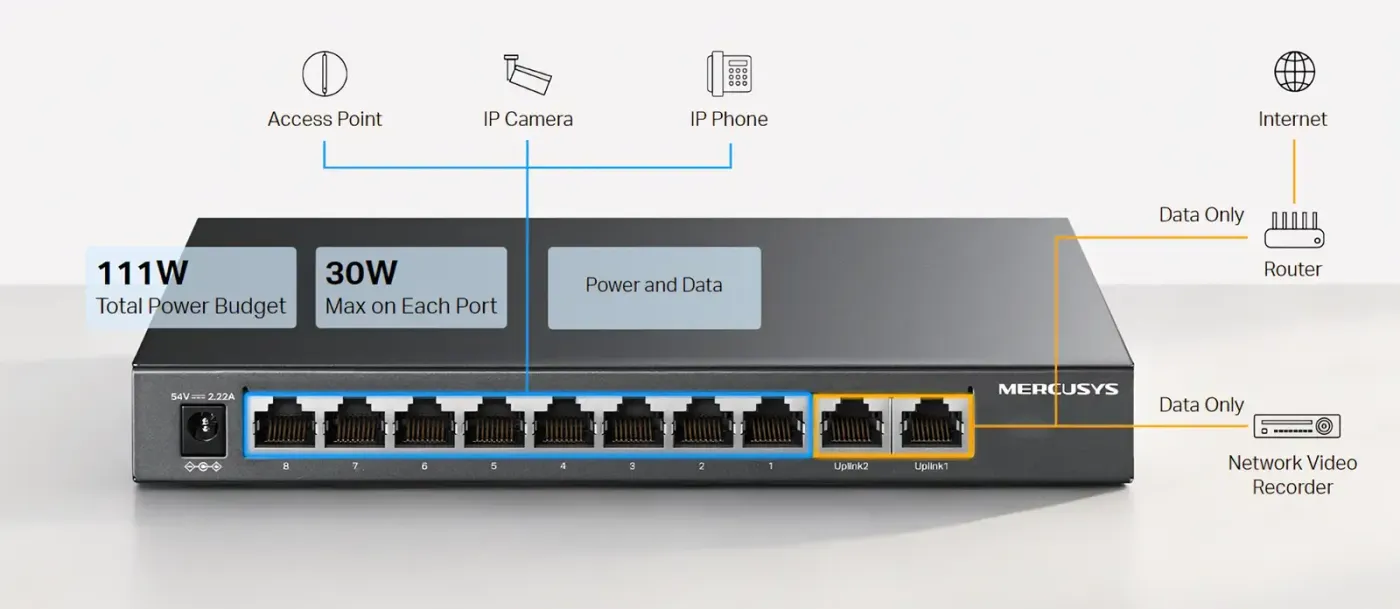

Fully compliant with 802.3af/at standards, each of the eight PoE+ ports delivers a power supply of up to 30W. With a substantial total power budget of 111W, the MS110GMP is ideally suited for diverse deployments including office spaces, dormitories, small businesses, and surveillance setups. It offers seamless compatibility with a wide range of hardware such as IP cameras, wireless access points, IP phones, computers, and network video recorders.
Eight Dedicated PoE+ Ports for Enhanced Networking
Fully compliant with 802.3af/at standards, each of the eight PoE+ ports delivers a power supply of up to 30W. With a substantial total power budget of 111W, the MS110GMP is ideally suited for diverse deployments including office spaces, dormitories, small businesses, and surveillance setups. It offers seamless compatibility with a wide range of hardware such as IP cameras, wireless access points, IP phones, computers, and network video recorders.

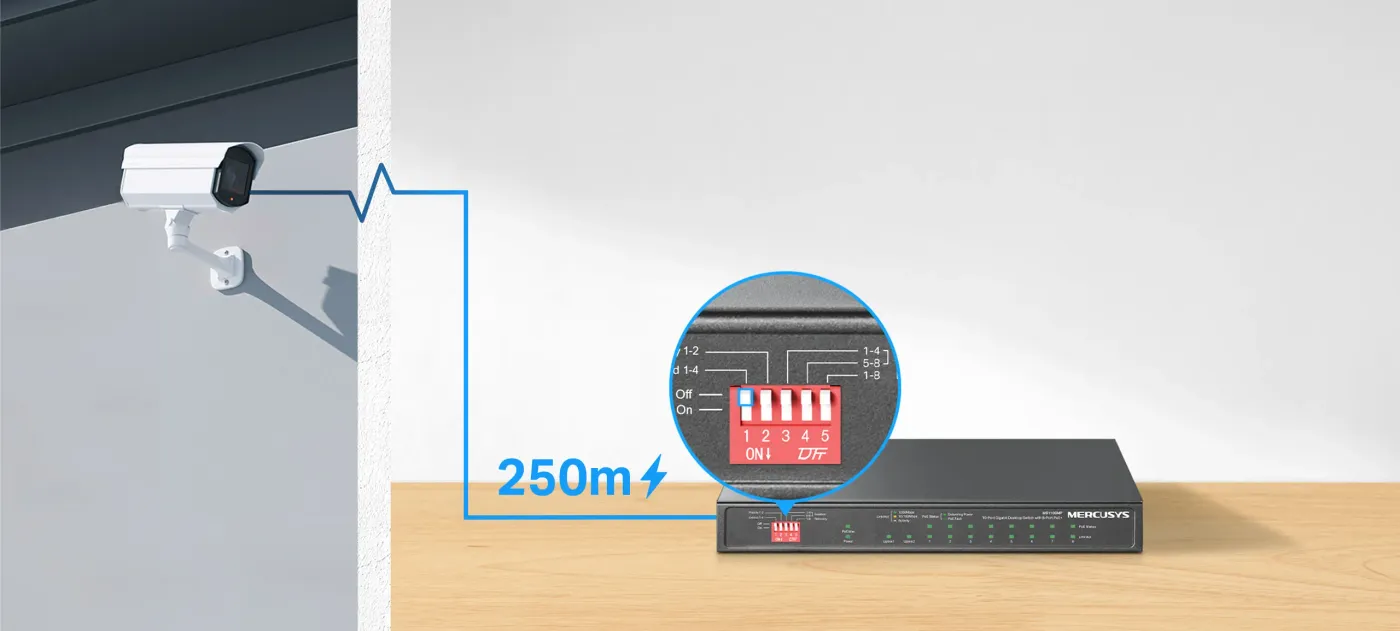

Extended PoE Reach up to 250 Meters
The specialized Extend Mode increases PoE transmission capabilities to distances of up to 250 m. The MS110GMP features 4 dedicated PoE+ ports, making it an ideal solution for deploying surveillance cameras across expansive areas where long-range connectivity is essential.
Extended PoE Reach up to 250 Meters
The specialized Extend Mode increases PoE transmission capabilities to distances of up to 250 m. The MS110GMP features 4 dedicated PoE+ ports, making it an ideal solution for deploying surveillance cameras across expansive areas where long-range connectivity is essential.
Enhanced Security through Traffic Separation

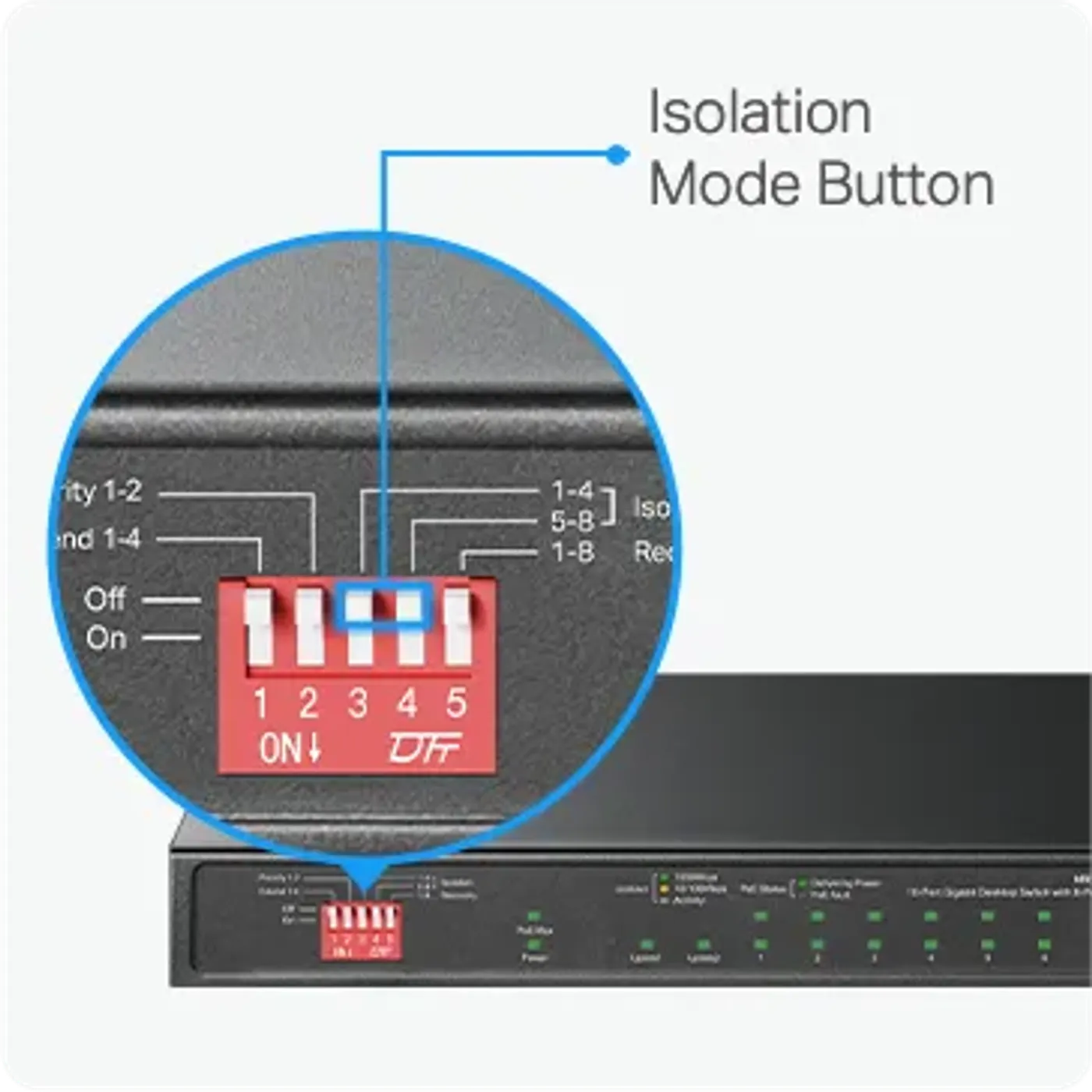

Utilizing Isolation Mode allows for easy traffic division between ports 1-4 and 5-8. This prevents unauthorized snooping or tampering while isolating broadcast storms to ensure significantly higher network security.
Enhanced Security through Traffic Separation
Utilizing Isolation Mode allows for easy traffic division between ports 1-4 and 5-8. This prevents unauthorized snooping or tampering while isolating broadcast storms to ensure significantly higher network security.

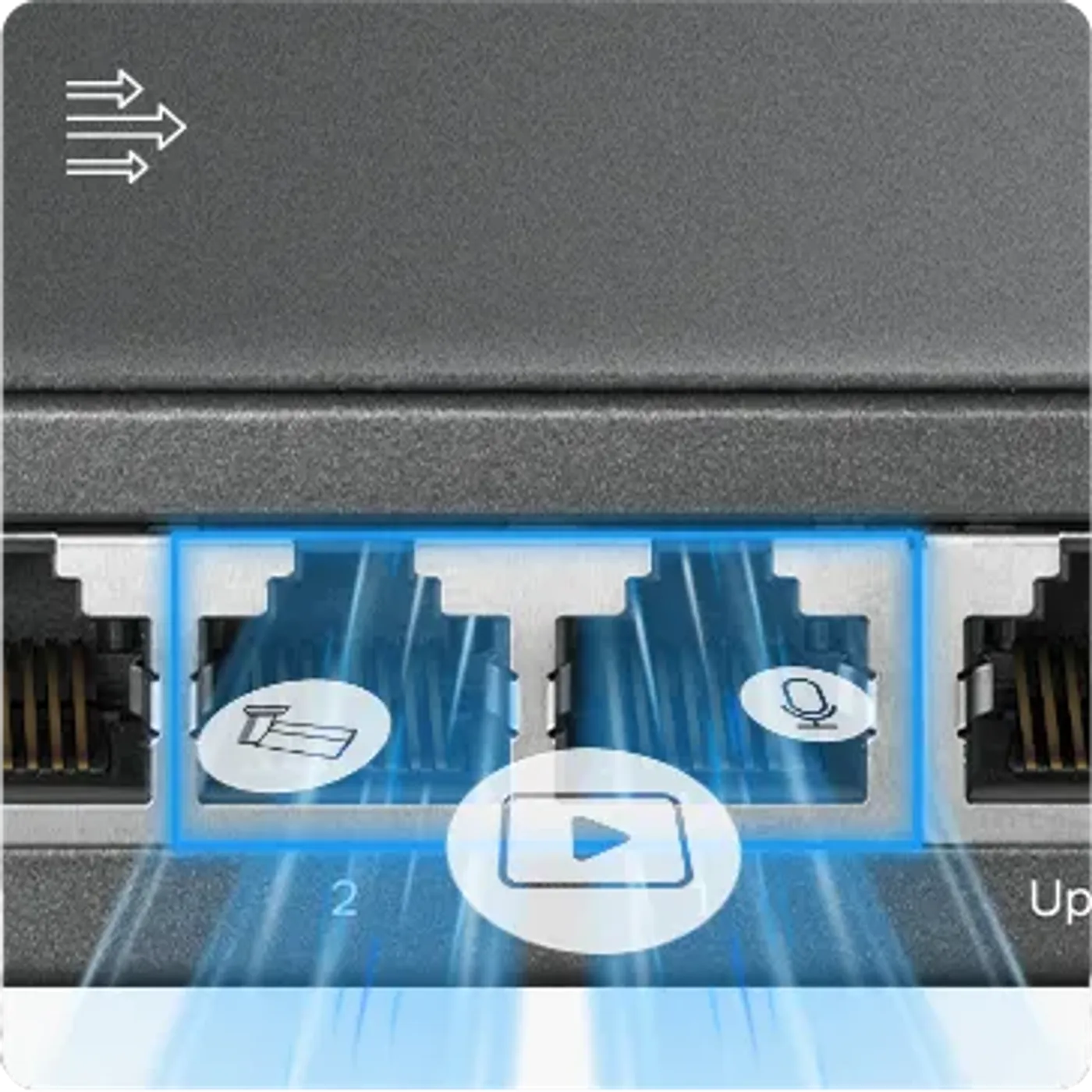

Optimized Port Prioritization
Assigning priority to data on specific ports guarantees high-quality performance for sensitive applications. This is particularly beneficial for maintaining the integrity of voice and video streams across the network.
Optimized Port Prioritization
Assigning priority to data on specific ports guarantees high-quality performance for sensitive applications. This is particularly beneficial for maintaining the integrity of voice and video streams across the network.
Intelligent PoE Auto Recovery

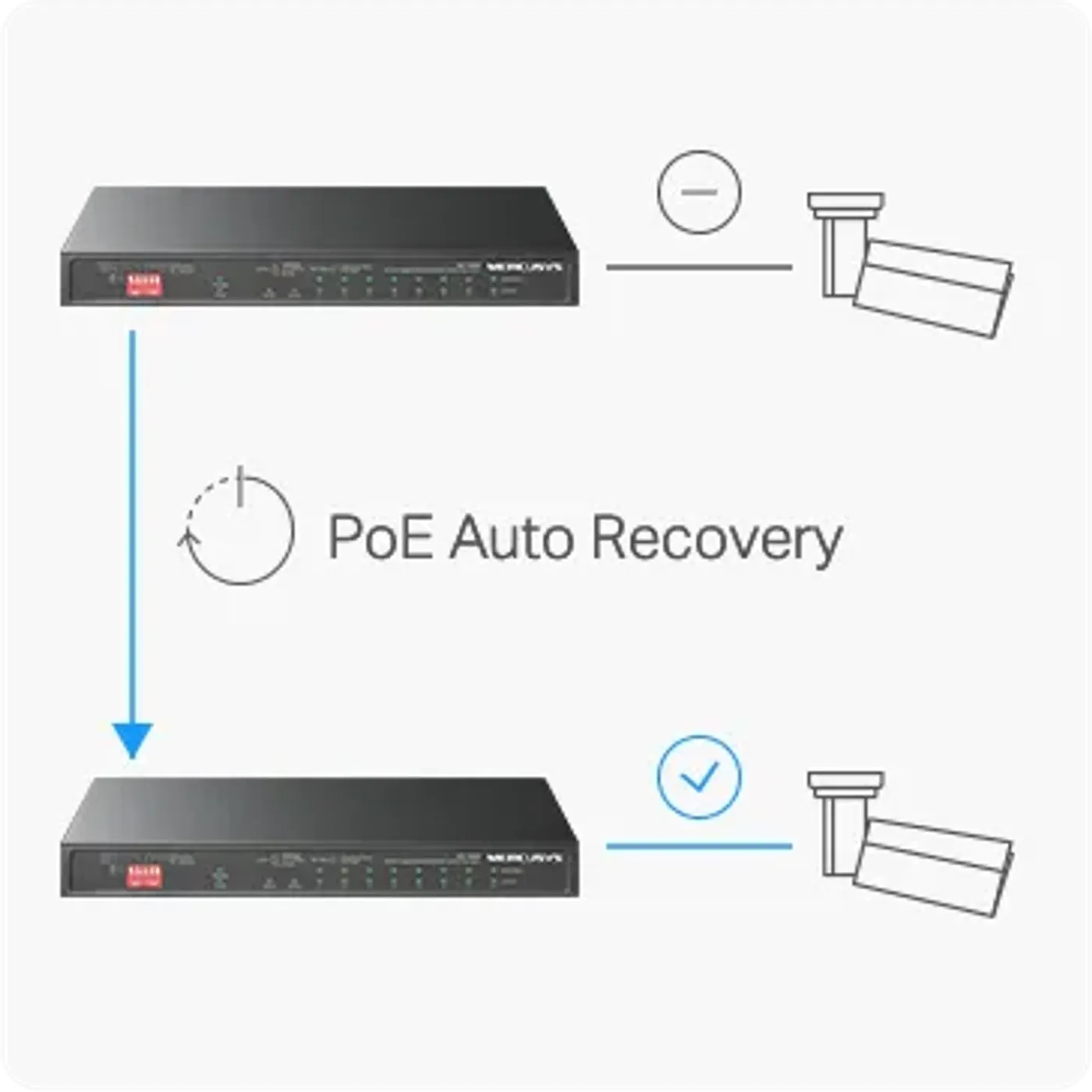

This switch features an automated recovery system that monitors connected devices. If a PoE-powered device stops transmitting data packets for a specific duration, the MS110GMP will automatically reboot the device to restore functionality.
Intelligent PoE Auto Recovery
This switch features an automated recovery system that monitors connected devices. If a PoE-powered device stops transmitting data packets for a specific duration, the MS110GMP will automatically reboot the device to restore functionality.

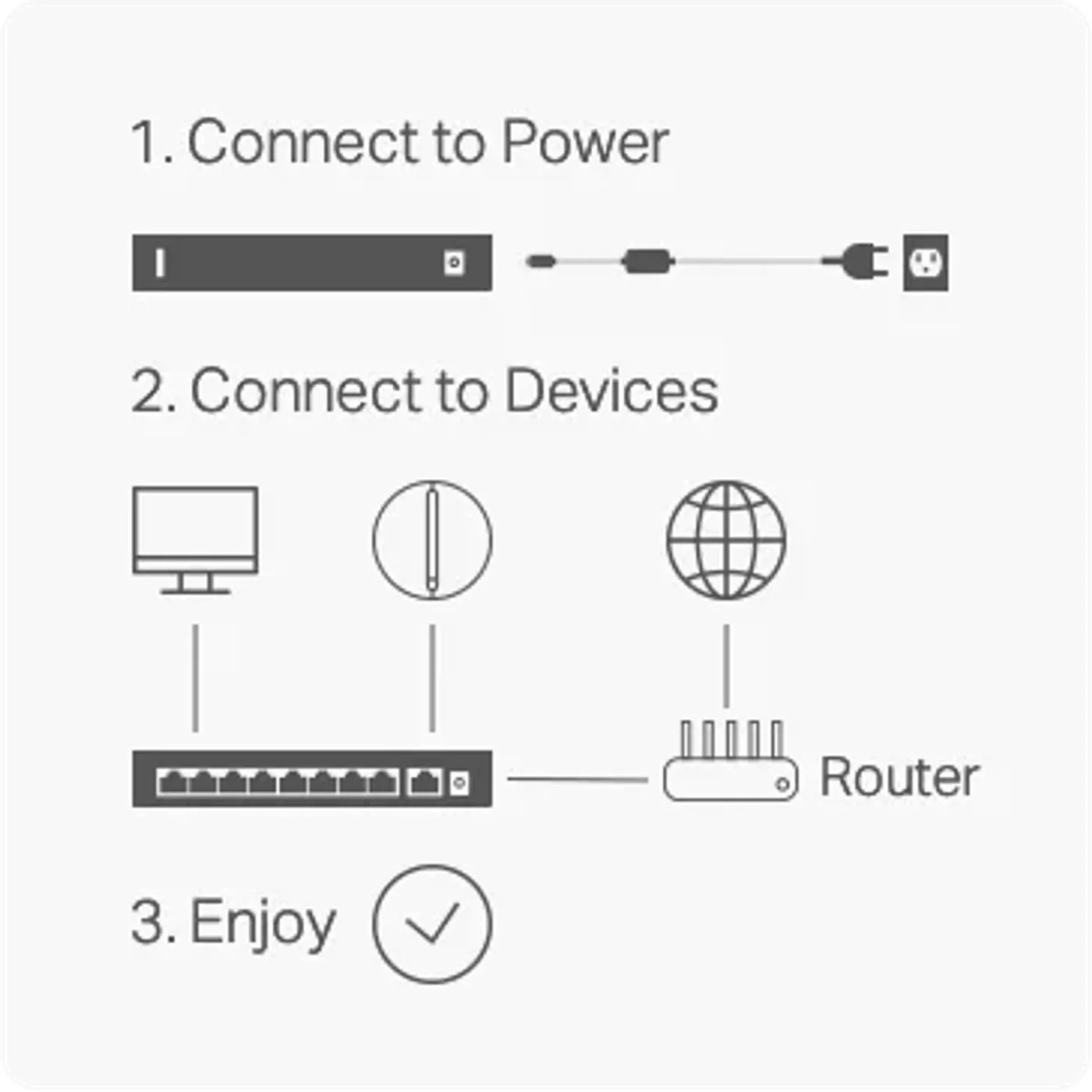

Seamless Plug and Play Setup
The MS110GMP is designed for immediate use with auto-negotiation (10/100/1000M) and automated MDI/MDIX support. It requires zero configuration, offering a simple setup process that saves both time and technical effort.
Seamless Plug and Play Setup
The MS110GMP is designed for immediate use with auto-negotiation (10/100/1000M) and automated MDI/MDIX support. It requires zero configuration, offering a simple setup process that saves both time and technical effort.
Robust Construction and Quiet Performance

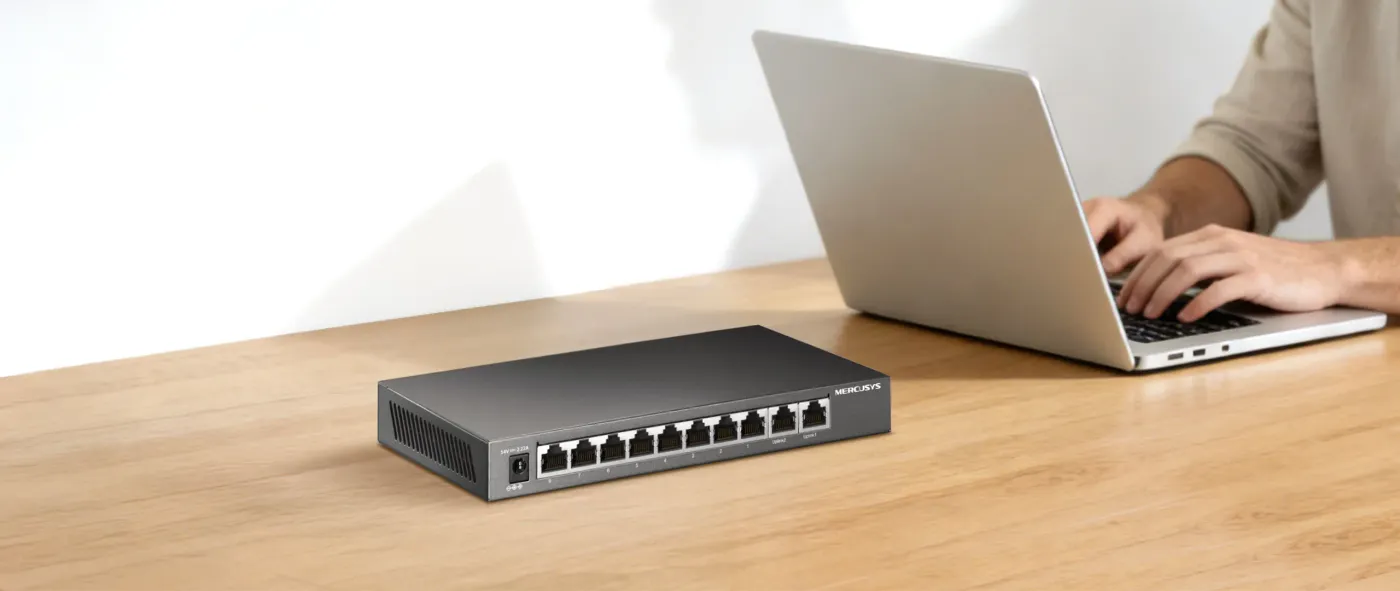

The MS110GMP features a rugged metal housing designed to ensure a lengthy operational lifespan for your network. Its fanless architecture not only minimizes energy consumption but also ensures completely silent operation. For maximum installation flexibility, this switch supports both desktop placement and wall-mount configurations to suit your specific environment.
Robust Construction and Quiet Performance
The MS110GMP features a rugged metal housing designed to ensure a lengthy operational lifespan for your network. Its fanless architecture not only minimizes energy consumption but also ensures completely silent operation. For maximum installation flexibility, this switch supports both desktop placement and wall-mount configurations to suit your specific environment.
FAQ
Frequently Asked Questions
Everything you need to know about this product
The MS110GMP is a 10-port Gigabit desktop switch, featuring 8 PoE+ ports and 2 additional Gigabit uplink ports for high-speed network connections.
The switch offers a total PoE power budget of 111W, with each of the 8 PoE+ ports capable of supplying up to 30W, supporting high-power devices like IP cameras and access points.
The MS110GMP complies with IEEE 802.3af/at standards, ensuring safe and standardized power delivery to compatible Powered Devices (PDs).
Yes, by enabling Long-Range or Extend Mode, the switch can transmit data and power up to 250 m, making it ideal for devices like IP cameras in large areas.
No, it is Plug and Play. The switch supports auto-negotiation for 10/100/1000M speeds and automatic MDI/MDIX, allowing immediate use without complex setup.
It includes PoE Auto Recovery to reboot unresponsive devices, Port Prioritization for latency-sensitive applications like voice and video, and intelligent power management to protect connected devices from surges.
Yes, Isolation Mode divides traffic between ports 1-4 and 5-8, preventing tampering, snooping, and containing broadcast storms for a more secure network environment.
No, the MS110GMP features a fanless design, ensuring silent operation while also reducing power consumption.
The switch uses a robust metal casing designed for long-term reliability and professional desktop networking environments.
The PoE+ ports support a variety of devices, including IP cameras, wireless access points, IP phones, PCs, and network video recorders (NVRs).
Yes, the MS110GMP can be placed on a desk or mounted on a wall, providing versatile installation options.
It reduces infrastructure costs by eliminating extra power cables, simplifies installation, and provides intelligent power protection, making it a convenient and reliable solution for modern networks.
