How many ports does the CUDY FS1010PG have?

It offers 8 Fast Ethernet PoE ports alongside 2 Gigabit uplink ports for the link back to your router or core switch.

How much power does each PoE port deliver?

Each PoE port supplies up to 30W under IEEE 802.3at and 802.3af, enough for access points, IP cameras, digital signage and most other PoE devices.

What is the total power budget of this 8-port switch?

The switch carries a 120W total PoE power budget shared across its eight powered ports.

Does the CUDY FS1010PG need an external power brick?

No, it has a built-in AC adapter and sits at a standard 1U height, so there is no separate power supply to find space for.

How does Watchdog auto-recovery work?

Watchdog monitors port activity and automatically reboots a PoE port when the connected device freezes and stops transmitting data for 5 minutes.

What does VLAN mode do on this switch?

When VLAN is active, downlink clients can only communicate with uplink devices, which helps prevent client-side hacking and stops sensitive data leaking between ports.

How far can the FS1010PG send data in Extend mode?

Extend mode reaches clients up to 250 metres away by limiting that port's speed to 10 Mbps.

What surge and ESD protection does this switch have?

It is rated at 6kV contact and 8kV air for ESD, with surge protection of 2kV differential and 4kV common mode on power and 4kV common mode on RJ45.

What is the CUDY 8-port PoE switch made from?

It uses a robust SPCC metal casing with Ethernet ports shielded in nickel-plated copper alloy for stable long-term operation.

Does this CUDY switch make any noise?

It uses a silent metal design with no fan, so it runs quietly enough to sit in an occupied room.

►Networking

►Wired Networking Best Sellers

►Wired Networking

►CUDY

►CUDY FS1010PG 8-Port PoE+ Switch

CUDY 8-Port PoE+ Switch / 8× Fast Ethernet PoE (802.3af/at) / 2× Gigabit Uplink Ports / 120W Power Budget / VLAN & 250m Extend Mode / Watchdog Auto-Recovery / Silent Metal Design / FS1010PG

Model No : Cudy FS1010PG

•

120W PoE+ Power Budget: Delivers up to 120W total to power multiple cameras and APs across eight PoE+ ports.

•

8× 802.3af/at PoE+ Ports: Provides standard PoE+ power to cameras, access points and VoIP devices for easy deployment.

•

2× Gigabit Uplink Ports: Dual 1GbE uplinks ensure high-speed backhaul and smooth integration into core network infrastructure.

•

250m Extend Mode: Extends PoE data and power transmission up to 250m for long-distance device placement without injectors.

•

Watchdog Auto-Recovery: Automatically reboots unresponsive PoE devices to maintain uptime for surveillance and Wi‑Fi equipment.

•

VLAN Support: VLAN capability segments traffic for improved security and performance in small-business networks.

•

Silent Metal Design: Fanless metal chassis provides silent, durable operation suitable for offices and retail environments.

Price Inc. Vat

R 529

Save R 270

List~~R 799~~

Change Quantity:

In Stock with Evetech

Description

Specs

Reviews

CUDY FS1010PG 8-Port PoE+ Switch with 120W

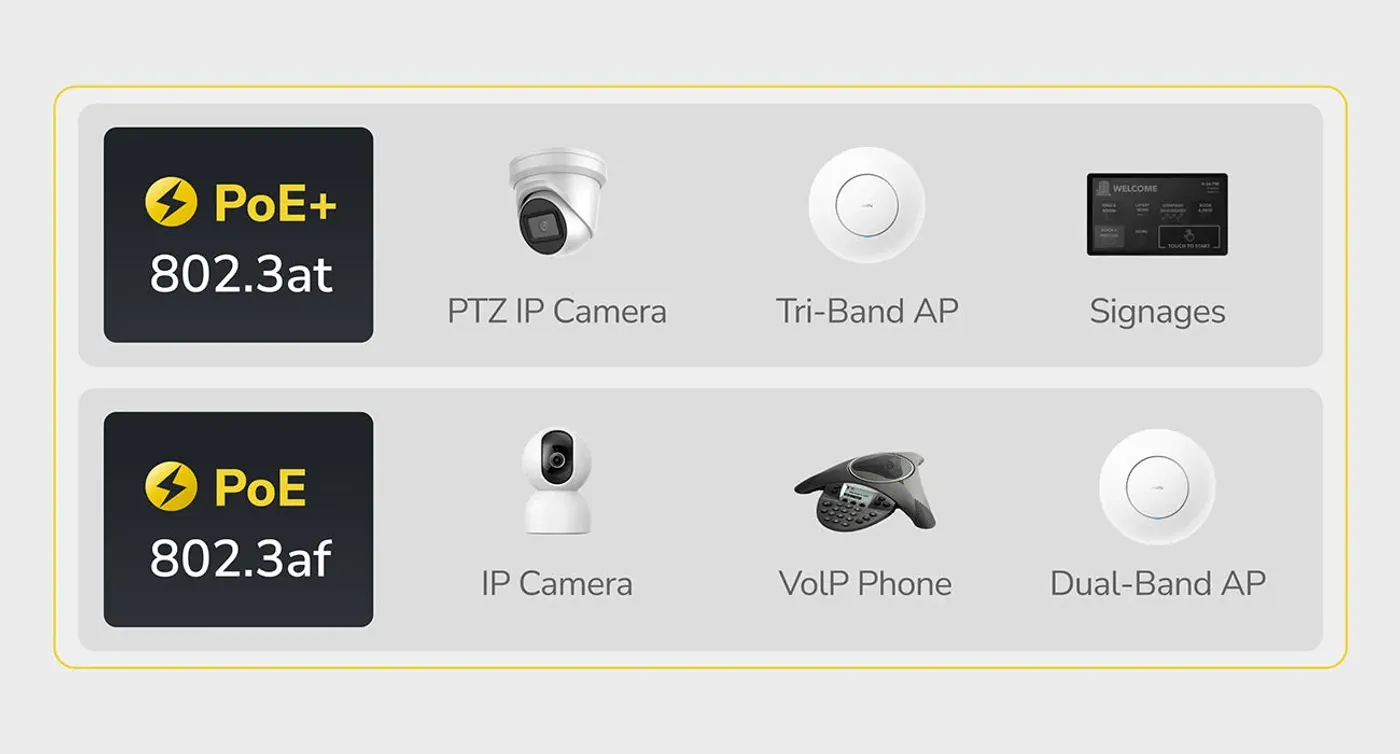

PoE switch showing ports supplying up to 30W per port

IEEE 802.3at/af — Up to 30W Per Port

Each PoE port supplies up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

IEEE 802.3at/af — Up to 30W Per Port

Each PoE port supplies up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

Watchdog feature monitoring ports and auto-rebooting after 5 minutes

PoE Auto Recovery with Watchdog

Enable the Watchdog function to monitor port activity; if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog automatically reboots the affected PoE port.

PoE Auto Recovery with Watchdog

Enable the Watchdog function to monitor port activity; if a connected device freezes and stops transmitting data for 5 minutes, the Watchdog automatically reboots the affected PoE port.

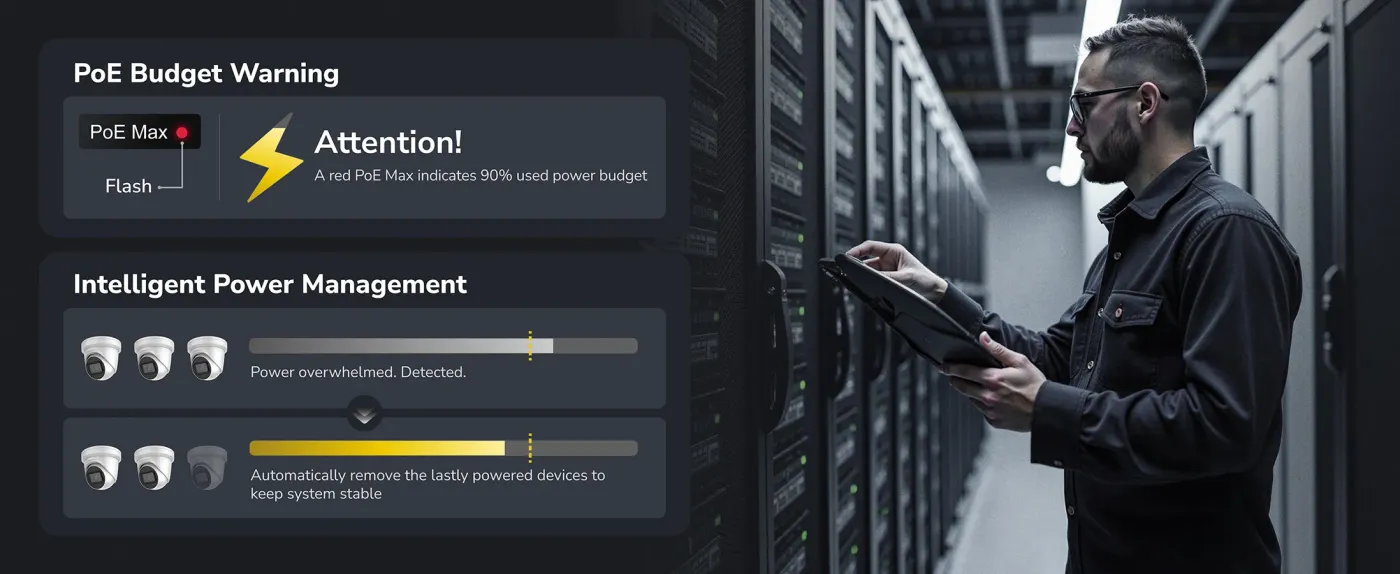

Graphic illustrating simplified PoE management for network devices

Streamlined PoE Management

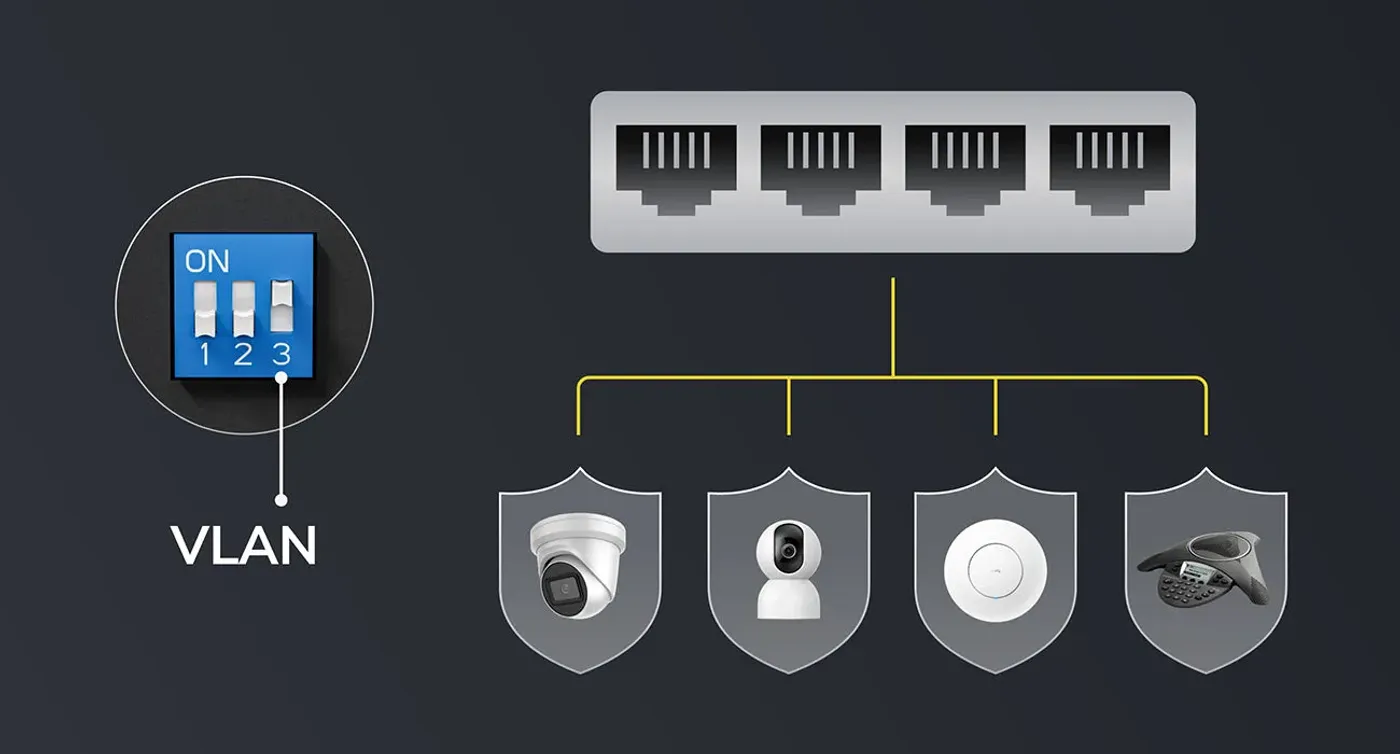

VLAN isolation protecting downlink clients from data leakage

VLAN Isolation for Safer Downlink Ports

Enable VLAN mode to prevent client-side hacking and stop sensitive data leakage; when VLAN is active, downlink clients can only communicate with uplink devices.

VLAN Isolation for Safer Downlink Ports

Enable VLAN mode to prevent client-side hacking and stop sensitive data leakage; when VLAN is active, downlink clients can only communicate with uplink devices.

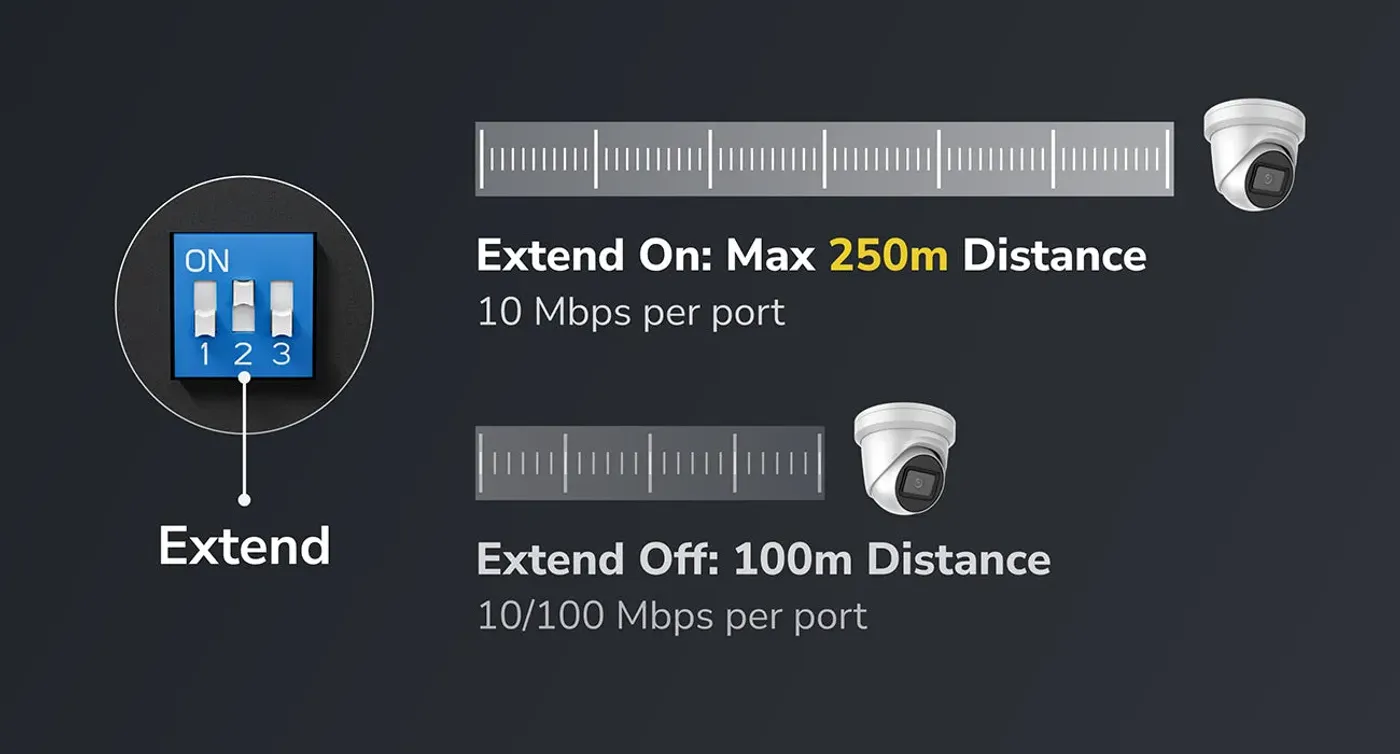

Switch in Extend mode supporting up to 250 meters at 10 Mbps

Extend Mode for 250 m Transmission

For long-distance networking, enable Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

Extend Mode for 250 m Transmission

For long-distance networking, enable Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.

EMC protection details showing ESD and surge ratings

Outstanding EMC for Robust System Reliability

Improves service reliability and reduces downtime caused by power surges and ESD. ESD: Contact 6kV; Air 8kV. Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV.

Outstanding EMC for Robust System Reliability

Improves service reliability and reduces downtime caused by power surges and ESD. ESD: Contact 6kV; Air 8kV. Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV.

Ethernet ports shielded with nickel-plated cooper alloy and SPCC casing

Shielded Ports and Solid Metal Casing

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

Shielded Ports and Solid Metal Casing

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

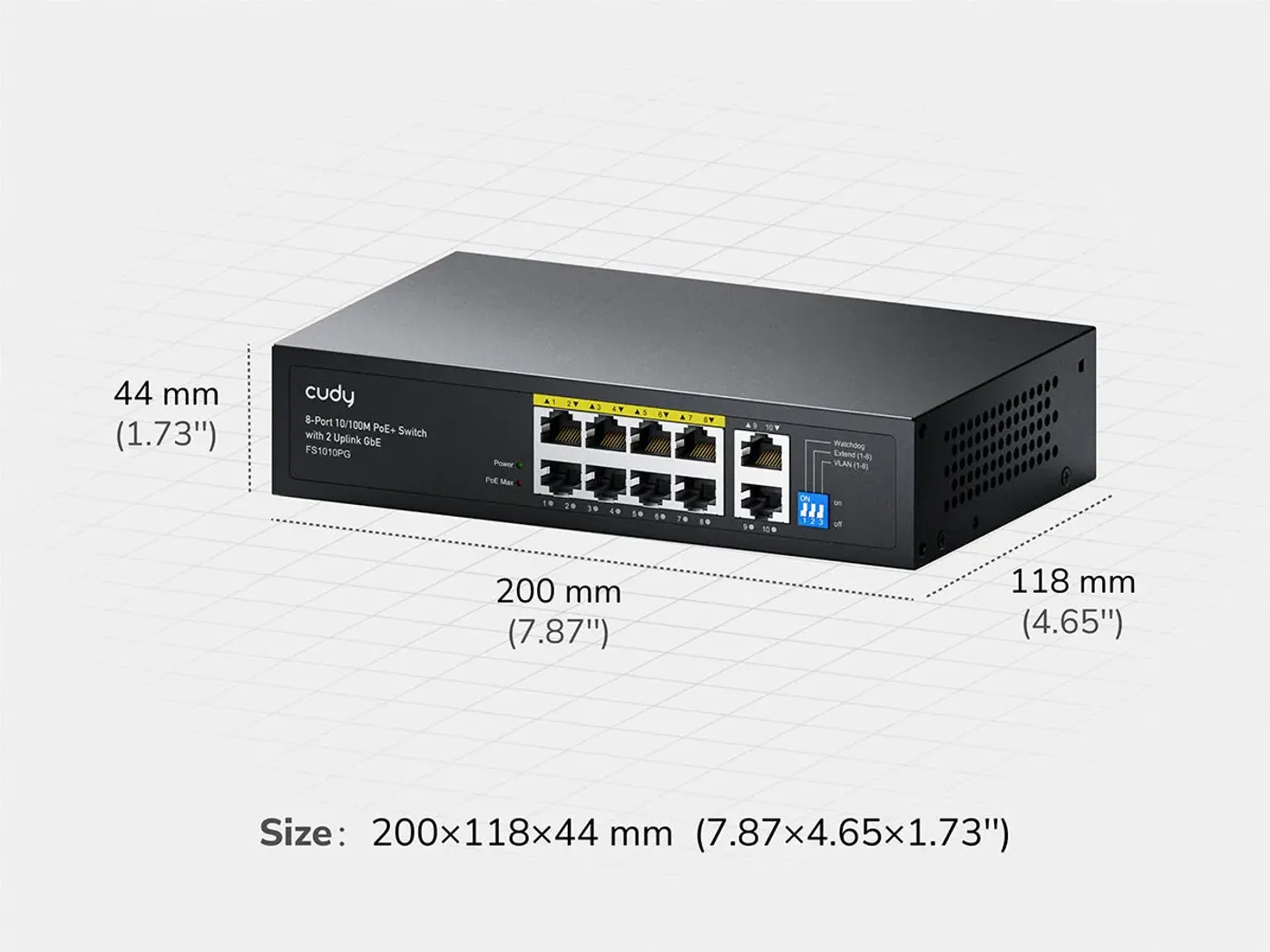

Product image highlighting built-in AC adapter and 1U height

Built-In AC Adapter and Standard 1U Height

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 1

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 2

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 3

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 4

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 5

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 6

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 7

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 8

CUDY FS1010PG 8-Port PoE+ Switch with 120W - image 9

Please Note: Product images are for illustrative purposes only and may differ from the actual product.
