MSI MPG Z890 Carbon Wi-Fi Intel Motherboard / ATX Form Factor / Supports Intel Core Ultra Processors (Series 2) / LGA 1851 CPU Socket / 4x DDR5 UDIMM Supporting up to 256GB / 911-7E17-001 / 911-7E17-001 / [+] MSI Intel Motherboard Z890 & B860 Game Pack Promotion + FREE DELIVERY !

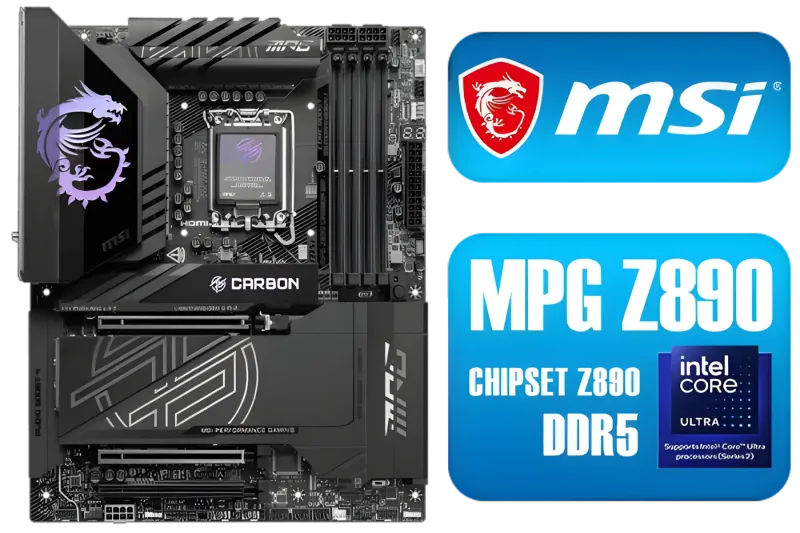

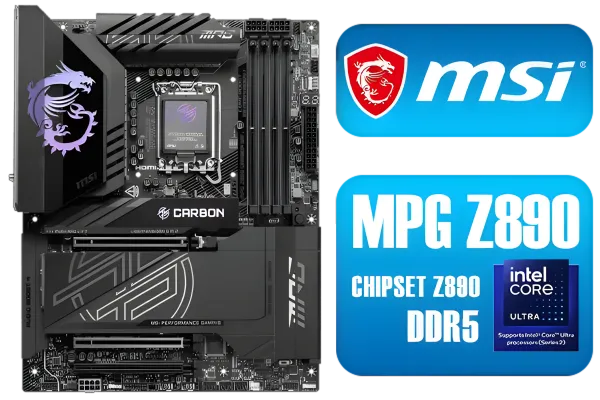

The MSI MPG Z890 Carbon Wi-Fi is an ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. Four DDR5 UDIMM slots take up to 256GB of memory, and Wi-Fi is built in so no separate wireless card is needed. It is built around a Direct 20+1+1+1 power design with Lightning Gen 5 PCIe and Thunderbolt connectivity.

The MPG Z890 Carbon Wi-Fi uses a carbon black colour scheme and patterned surfaces layered over Mystic Light RGB lighting to give it a distinct identity. Underneath that finish sit Killer 5G LAN and a Wi-Fi 7 solution, Thunderbolt 4, Supplemental PCIe Power and MSI's EZ DIY features.

This video demonstrates EZ M.2 installation. MSI's EZ M.2 Shield Frozr II and EZ M.2 CLIP II let you drop an SSD into the slot and press it down until the clip locks it in place. Removing it means flicking the clip outwards. The whole operation is done with one finger and no screwdriver.

This video covers the EZ PCIe Release mechanism, an easy-to-access physical button that frees any PCIe card with a single tap. Reaching behind a large graphics card to find the retention latch is one of the most awkward moments in a build, and a front-facing button removes it from the process entirely.

The Z890 Carbon takes Intel Core Ultra Series 2 processors on the LGA 1851 socket, which is the current Intel desktop platform rather than an older one carried forward. That makes the board a direct match for a new Core Ultra build, whether it is assembled from scratch or replacing an ageing system.

The board uses the standard ATX form factor, so it fits any chassis that lists ATX support without special mounting arrangements. A full-size layout is what leaves room for the expansion slots, the M.2 sockets and the heatsink coverage that a board at this level needs to spread across the PCB.

Memory runs across four DDR5 UDIMM slots to a maximum of 256GB, which covers a demanding gaming build several times over and moves into workstation territory for anyone handling large datasets or virtual machines. Four slots also mean capacity can be added later rather than requiring the original modules to be replaced.

Networking is handled by a Killer 5G LAN controller alongside a Wi-Fi 7 solution, with the wireless built into the board so no PCIe slot or USB adapter is consumed. Having both wired and current-generation wireless on the same board covers a desk that shifts between a cable and an access point.

The EZ Conn header, labelled JAF_2, connects MSI EZ series fans using a 7-pin plug or MSI liquid cooling using an 11-pin plug. If you are not using either, MSI supplies a 1-to-3 EZ Conn cable that splits the header into ARGB lighting, a system fan and a USB device instead.

Onboard EZ Debug LEDs indicate which subsystem is stopping a boot, so a machine that will not start becomes a matter of reading an indicator rather than removing components one at a time. On a first build that single feature often saves an entire evening of guesswork before the system comes up.

The EZ Digi-Debug LED displays a numeric error code for troubleshooting, giving a far more specific diagnosis than a lit indicator alone. Once the system is running, the same display doubles as a temperature monitor, so you can check thermals without opening software or fitting a separate readout to the case.

Power delivery uses a flagship Direct 20+1+1+1 phase design, built to sustain maximum performance rather than only reach it briefly. The number of phases determines how evenly current is shared, which is what keeps a high-end processor supplied through long, sustained loads instead of throttling back when the VRM heats up.

The board pairs dual power connectors with a 110A Smart Power Stage, which together give the headroom a high-end Core Ultra processor demands under full load. Two connectors split the current draw rather than forcing it all through one, and the 110A rating sets how much each stage can safely deliver.

OC Engine is a precision clock generator for extreme overclocking, allowing base clock frequencies to be adjusted independently of everything else on the board. Independent BCLK control is what lets an overclocker push past the limits of multiplier-only tuning while keeping the rest of the system stable and within safe boundaries.

The 4-pin, 8-pin and 24-pin power connectors all use a solid pin design. Solid pins carry 12V power to the CPU more stably than hollow ones, particularly when current is high, which is exactly the condition an overclocked processor creates. It is a small construction detail with a direct effect on delivery stability.

MSI's exclusive grounding structure for the power phases is a patented design that suppresses the electromagnetic interference those phases generate. It also conducts heat efficiently into the copper plane through the same grounding properties, so one structure addresses both electrical noise and thermal transfer rather than requiring two separate solutions.

Supplemental PCIe Power is included on the MPG Z890 Carbon Wi-Fi, providing additional power to the PCIe slots rather than relying solely on what the main connectors can route through them. On a board expected to carry a high-end graphics card and multiple expansion devices, that extra headroom is worth having.

Heatsink coverage and the board's overall cooling architecture keep the VRM, the chipset and the M.2 devices within their operating range under sustained load. Thermals are what decide whether a board holds its performance across a long session, since a component that overheats will reduce clocks rather than fail outright.

MSI MPG series boards support the current storage standards, so any ultra-fast drive can be connected without the board becoming the bottleneck. In practice that means games launch sooner and levels load faster, because the storage device is allowed to run at its rated speed rather than being held back by the interface.

The Lightning Gen 5 PCIe slot doubles the bandwidth of the previous generation, with a x16 interface reaching 128GB/s. That headroom matters less for today's graphics cards than for what comes next, and it is the specification that keeps a board relevant across more than one component upgrade cycle.

The PCIe 5.0 slot is built using Surface Mount Technology, which diminishes interference and electrical noise so the slot fully supports a PCI-E 5.0 signal. At Gen 5 speeds signal integrity becomes a real engineering constraint rather than a formality, and the mounting method is part of how the board meets it.

Steel Armor II reinforces the PCIe slot, with weight endurance increased by 21% over the previous generation while maintaining signal transmission quality. Modern graphics cards are heavy enough that slot reinforcement has stopped being optional, and a 21% improvement is measured against a standard that was already carrying substantial load.

Thunderbolt 4 is part of the MPG Z890 Carbon Wi-Fi's feature set, bringing high-speed peripherals, external drives and display output onto a single connector standard. For anyone working with large files or running an external display from a docking setup, Thunderbolt removes the need to spread those devices across separate ports.

The board is Thunderbolt 5 Ready, supporting up to 160 Gbps of total bandwidth transmission for the fastest current devices and drives. Note that the MSI Thunderbolt 5 card shown in MSI's material is for illustration only and is not included in the package, so that capability requires the card separately.

Thunderbolt 5 ports can drive multiple external 8K displays and deliver up to 27W of rapid power delivery charging to a connected device. Adaptive bandwidth allocation lets data, images and video move simultaneously without one stream starving another, which is what makes a single cable practical for a full workstation setup.

A Mystic Light Extension pin header controls additional RGB strips and other RGB peripherals directly from the board, so a separate RGB controller is not needed to expand a lighting setup. Keeping everything on one system means the strips run the same theme as the board rather than cycling independently of it.

A-RAINBOW V2 headers support 5V addressable RGB devices and are compatible with both ARGB Gen2 and Gen1 hardware, though Gen2 devices support seven RGB themes only. Separate headers support 12V RGB devices, so both the addressable and the older non-addressable standards can be driven from the same motherboard.

Ambient Link synchronises the board's lighting theme with compatible lighting devices elsewhere in the room, extending the effect beyond the chassis itself. Combined with the Mystic Light extension header and the addressable RGB support, it means the MPG Z890 Carbon Wi-Fi, product code 911-7E17-001, can act as the lighting controller for a whole setup.
