Try the new builderORICO CyberData Vault CF1000 12-Bay NAS
The ORICO CyberData Vault CF1000 is a 12-bay diskless NAS with ten SATA bays for 2.5-inch or 3.5-inch drives and two M.2 NVMe slots, for up to 256TB in total. It runs CyberData OS on an Intel Core i5-1240P with 12 cores and 16 threads and 32GB of DDR5, and it connects over two 10GbE ports, two 40Gbps USB4 ports, HDMI 2.1 and DisplayPort 1.4a. Drives are not included.
The ORICO CyberData Vault CF1000 is a 12-bay diskless NAS with ten SATA bays for 2.5-inch or 3.5-inch drives and two M.2 NVMe slots, for up to 256TB in total. It runs CyberData OS on an Intel Core i5-1240P with 12 cores and 16 threads and 32GB of DDR5, and it connects over two 10GbE ports, two 40Gbps USB4 ports, HDMI 2.1 and DisplayPort 1.4a. Drives are not included.

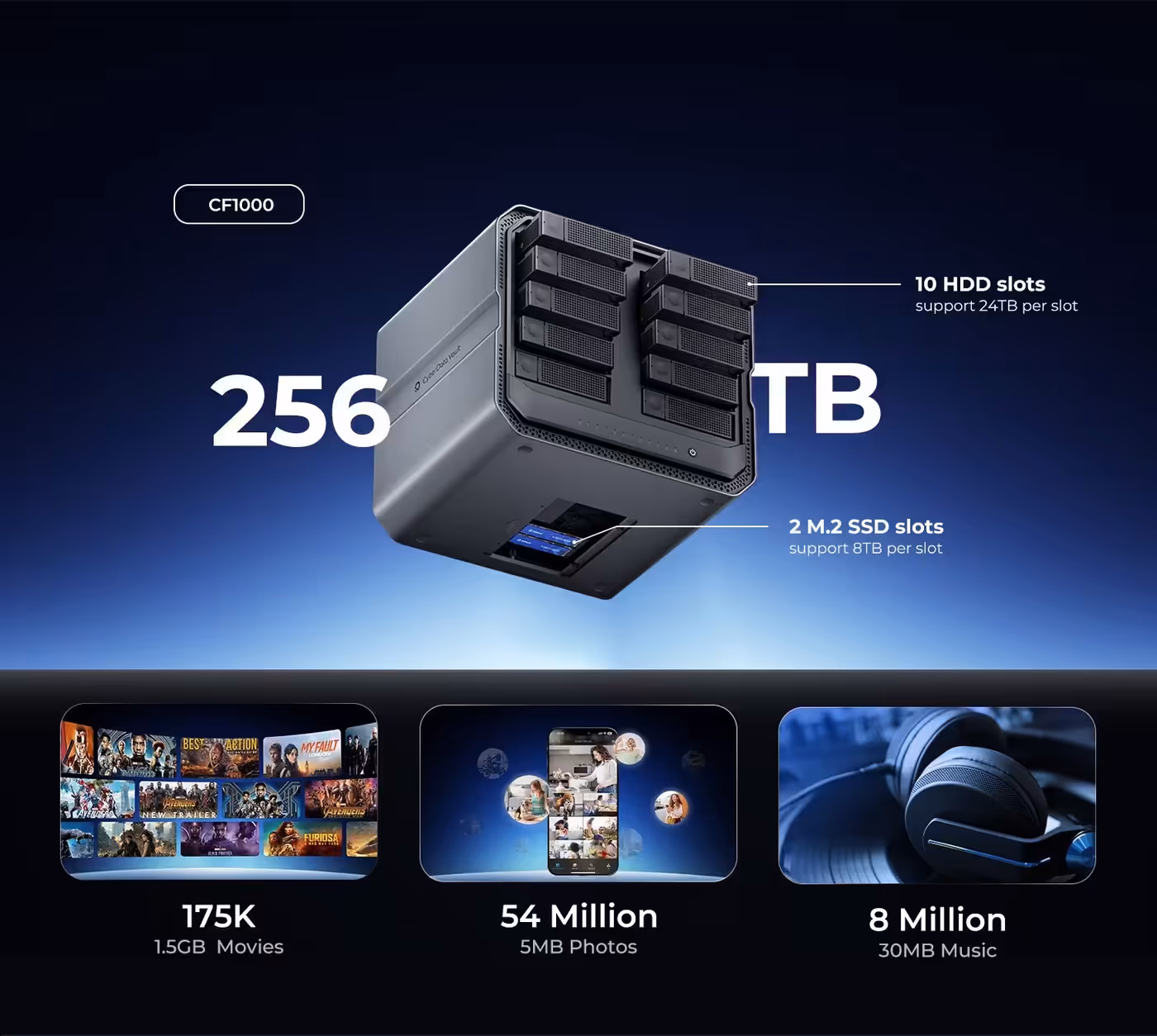

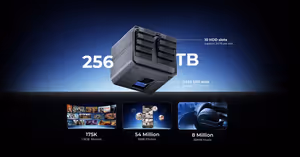

Ten SATA bays take 2.5-inch or 3.5-inch drives up to 24TB each, and two M.2 NVMe 2280 slots take SSDs up to 8TB each, for up to 256TB in one unit. Drives are not included.
Ten SATA bays take 2.5-inch or 3.5-inch drives up to 24TB each, and two M.2 NVMe 2280 slots take SSDs up to 8TB each, for up to 256TB in one unit. Drives are not included.
An Intel Core i5-1240P with 12 cores and 16 threads runs CyberData OS, with 32GB of DDR5 in two SO-DIMM slots that expand to 96GB and a 128GB system SSD.
An Intel Core i5-1240P with 12 cores and 16 threads runs CyberData OS, with 32GB of DDR5 in two SO-DIMM slots that expand to 96GB and a 128GB system SSD.

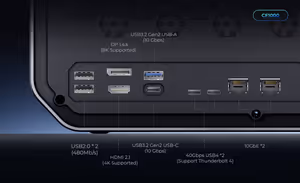

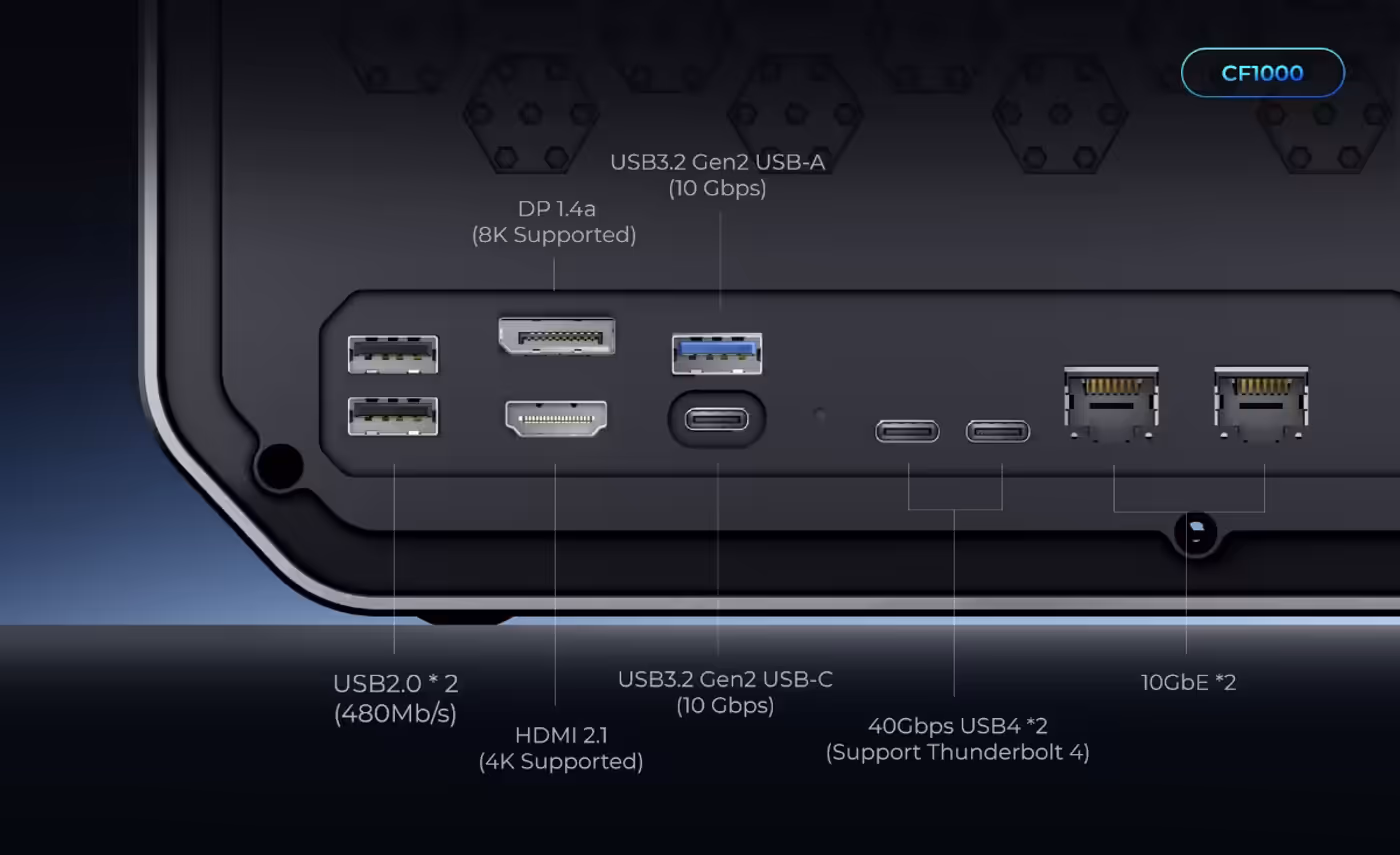

Two 10GbE ports, two 40Gbps USB4 ports compatible with Thunderbolt 4 and 3, USB 3.2 Gen 2 Type-A and Type-C, two USB 2.0 ports, HDMI 2.1 and DisplayPort 1.4a sit on the rear panel.
Two 10GbE ports, two 40Gbps USB4 ports compatible with Thunderbolt 4 and 3, USB 3.2 Gen 2 Type-A and Type-C, two USB 2.0 ports, HDMI 2.1 and DisplayPort 1.4a sit on the rear panel.

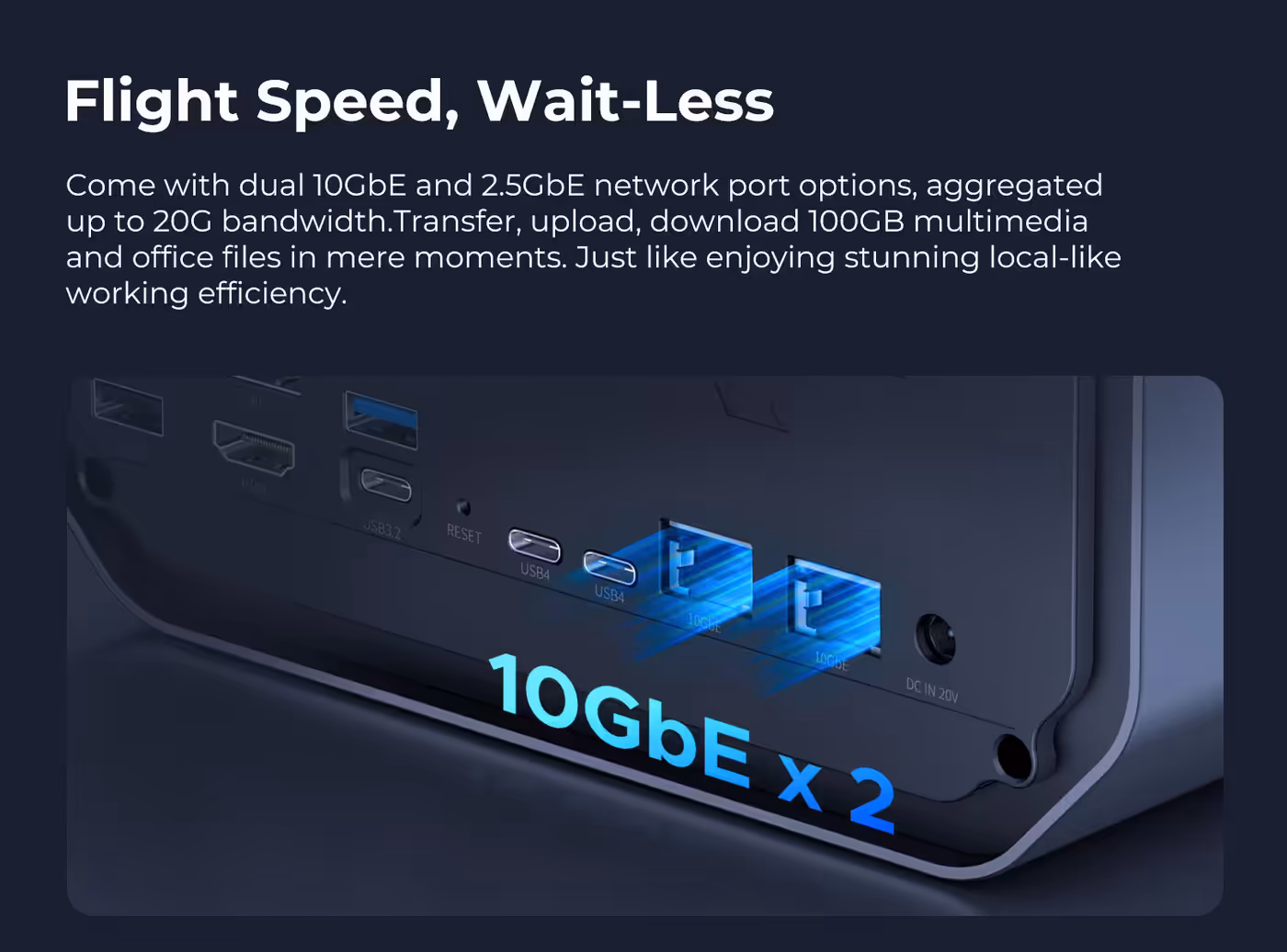

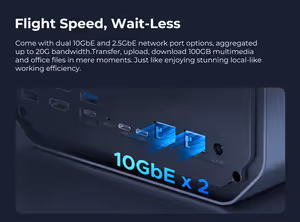

Both network ports run at 10GbE and can be aggregated to 20GbE, so several users can copy large files to and from the NAS at the same time.
Both network ports run at 10GbE and can be aggregated to 20GbE, so several users can copy large files to and from the NAS at the same time.

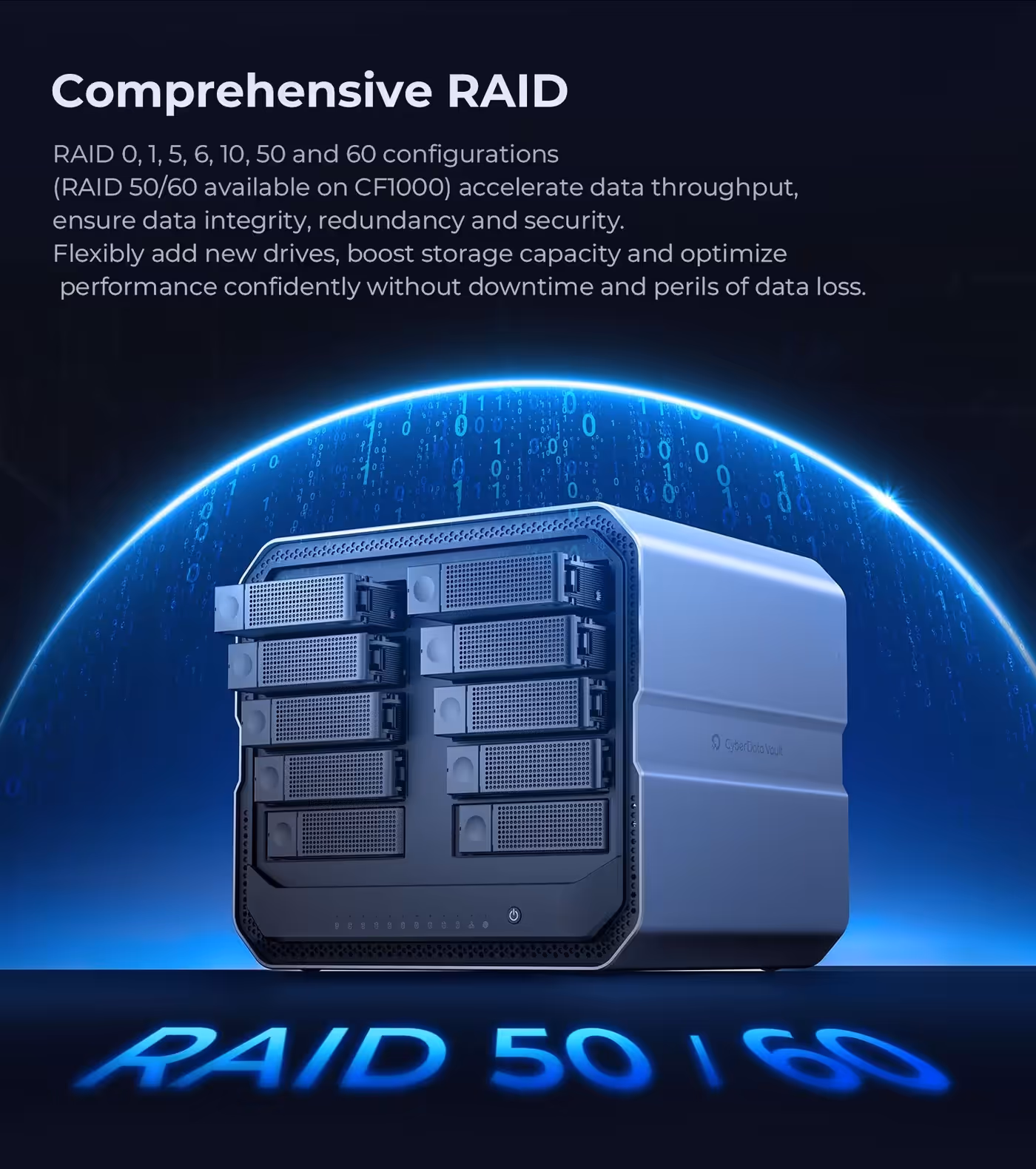

The CF1000 supports Basic, RAID 0, 1, 5, 6 and 10, plus RAID 50 and 60, which ORICO lists for the CF1000 in its CyberData range.
The CF1000 supports Basic, RAID 0, 1, 5, 6 and 10, plus RAID 50 and 60, which ORICO lists for the CF1000 in its CyberData range.
CyberData OS handles automatic backup and one-click snapshot recovery, and it runs virtual machines from the same box. ORICO lists the ZFS file system for data-integrity checks and snapshot management.
CyberData OS handles automatic backup and one-click snapshot recovery, and it runs virtual machines from the same box. ORICO lists the ZFS file system for data-integrity checks and snapshot management.

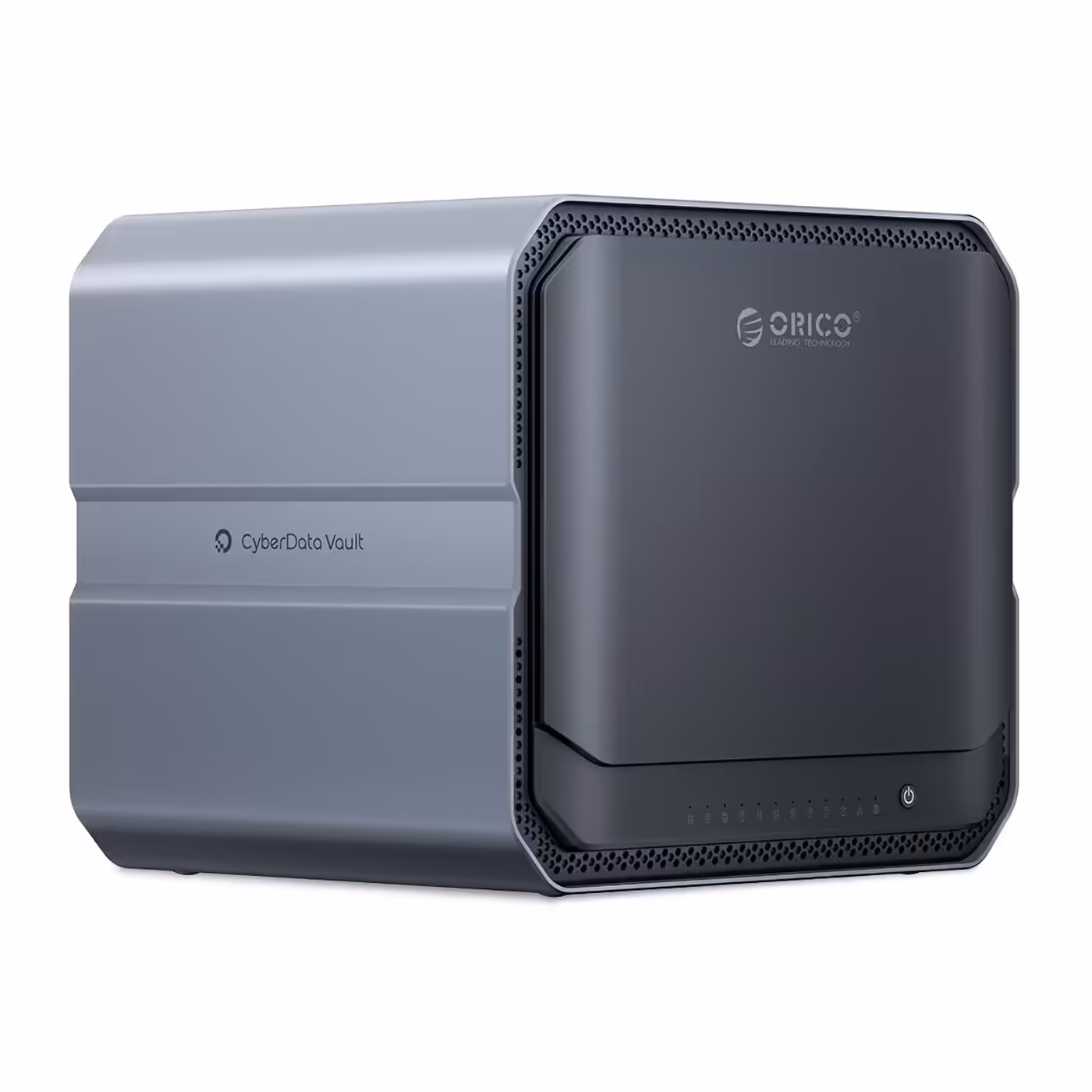

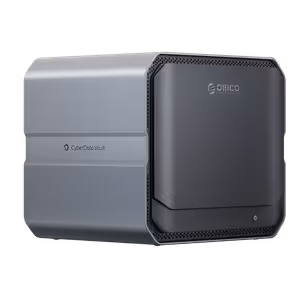

The grey cabinet measures 304 x 268 x 272mm. In the box ORICO lists the power adapter, two 10GbE network cables, a screwdriver, two screw packs and a user manual.
The grey cabinet measures 304 x 268 x 272mm. In the box ORICO lists the power adapter, two 10GbE network cables, a screwdriver, two screw packs and a user manual.
Everything you need to know about this product
Twelve: ten SATA bays for 2.5-inch or 3.5-inch drives and two M.2 NVMe 2280 slots. Drives are not included.
Up to 256TB: 24TB per SATA bay across ten bays, plus 8TB per M.2 NVMe slot.
An Intel Core i5-1240P with 12 cores and 16 threads, and 32GB of DDR5 in two SO-DIMM slots, expandable to 96GB.
It has two 10GbE ports, which can be aggregated for up to 20GbE.
Basic, RAID 0, 1, 5, 6, 10, 50 and 60. In ORICO's CyberData range, RAID 50 and 60 are listed for the CF1000.
Two 10GbE network ports, two 40Gbps USB4 ports compatible with Thunderbolt 4 and 3, one USB 3.2 Gen 2 Type-A, one USB 3.2 Gen 2 Type-C and two USB 2.0 ports, plus HDMI 2.1 and DisplayPort 1.4a outputs.
CyberData OS, ORICO's NAS system, installed on a 128GB system SSD. It supports automatic backup, one-click snapshot recovery and virtual machines.
If you need twelve drive bays, 10GbE networking and a Core i5 for virtual machines in one box, the CF1000 is the largest model in ORICO's CyberData range.
