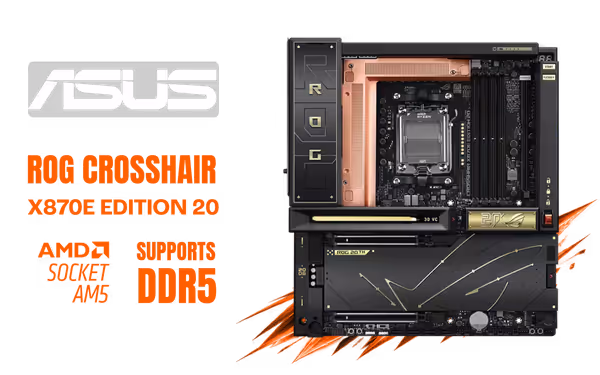

ASUS ROG Crosshair X870E Edition 20 Gaming Motherboard Socket AMD AM5 (E-ATX, DDR5 8600+MT/s, 24+2+2 Power Stages, 5 Onboard M.2, 2x PCIe 5.0 x16, Dual 10Gb Ethernet, WiFi 7, 2x USB4, Bundled ROG Ryujin 360 Edition 20 AIO) / 90MB1PD0-M0EAY0 + FREE DELIVERY !
2 Years Local Warranty
Model No : ASUS 90MB1PD0-M0EAY0
Price Inc. Vat
R 54,999
Save R 5,000
ListR 59,999
54999Free Delivery
Qty:
In Stock with Evetech
ASUS ROG Crosshair X870E Edition 20 AM5 Motherboard
ROG Crosshair X870E Edition 20
The ROG Crosshair X870E Edition 20 is ASUS's 20th-anniversary AM5 flagship, an E-ATX board at 12 x 10.9 inches for AMD Ryzen 9000, 8000 and 7000 series processors. Your case must list E-ATX support at that width, not just ATX.
ROG Crosshair X870E Edition 20
The ROG Crosshair X870E Edition 20 is ASUS's 20th-anniversary AM5 flagship, an E-ATX board at 12 x 10.9 inches for AMD Ryzen 9000, 8000 and 7000 series processors. Your case must list E-ATX support at that width, not just ATX.

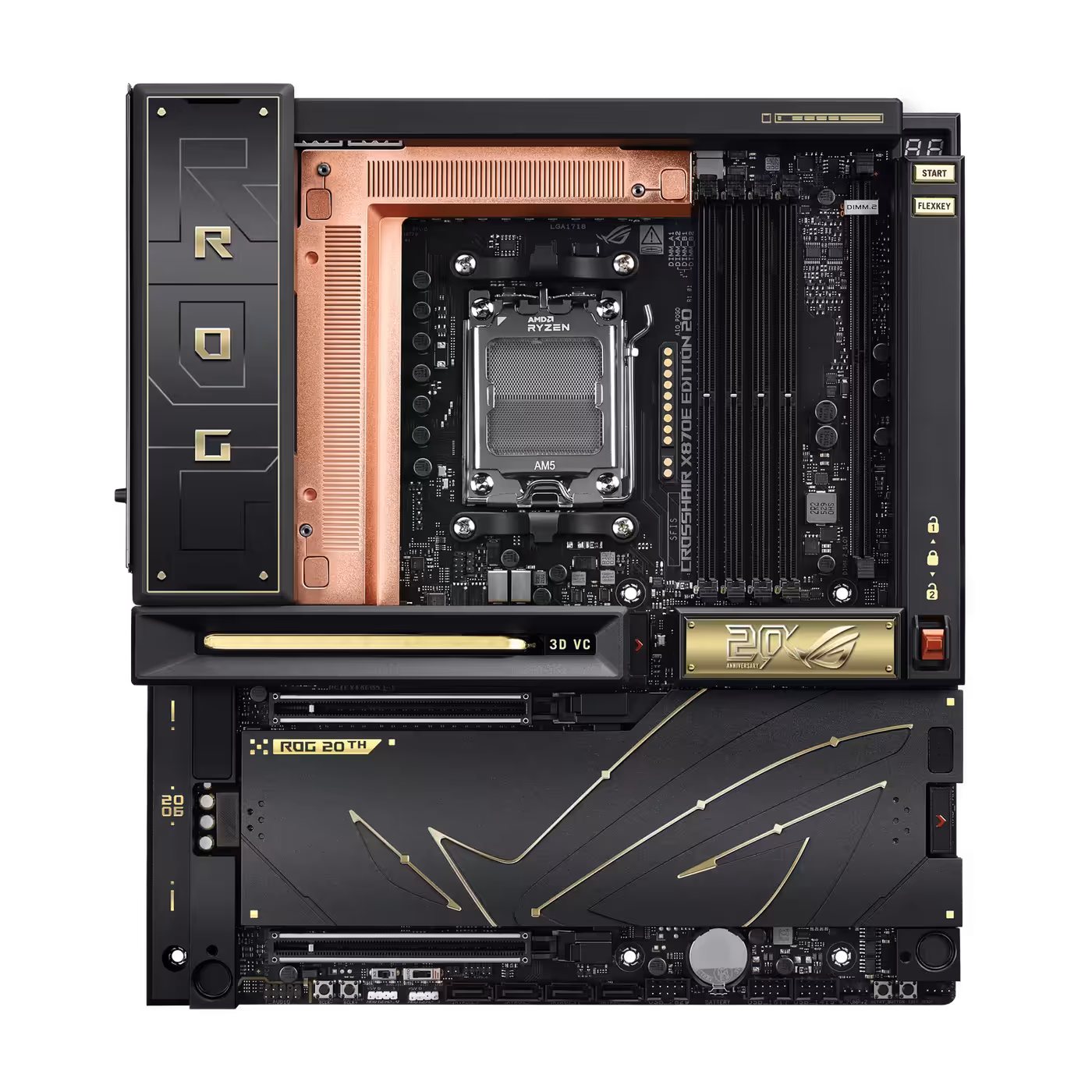

24+2+2 Power Stages
A teamed power solution rated 24 x 110A for VCORE, 2 x 110A for SoC and 2 x 80A for MISC sits under a full-copper VRM heatsink, feeding high-core-count Ryzen processors under sustained load.
24+2+2 Power Stages
A teamed power solution rated 24 x 110A for VCORE, 2 x 110A for SoC and 2 x 80A for MISC sits under a full-copper VRM heatsink, feeding high-core-count Ryzen processors under sustained load.

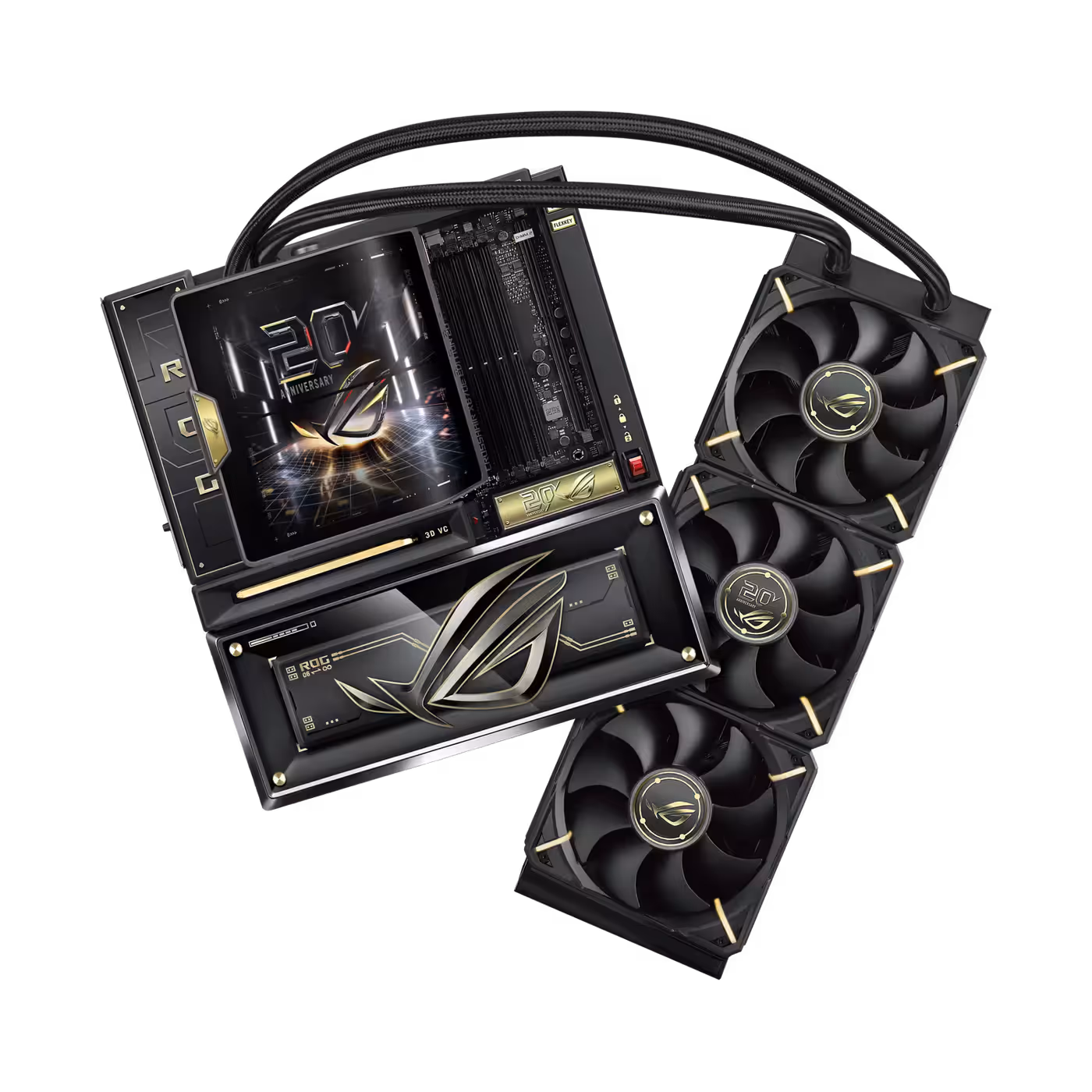

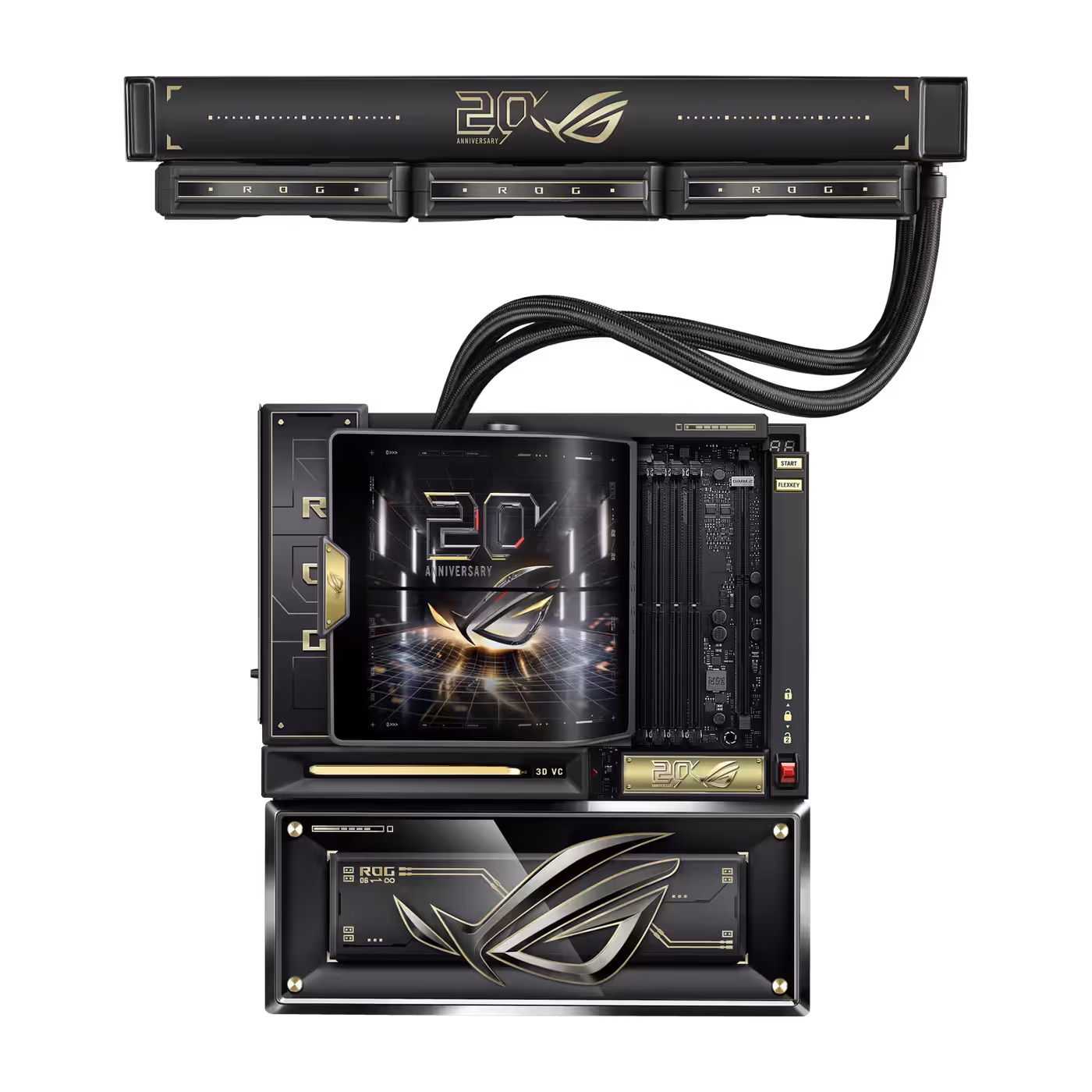

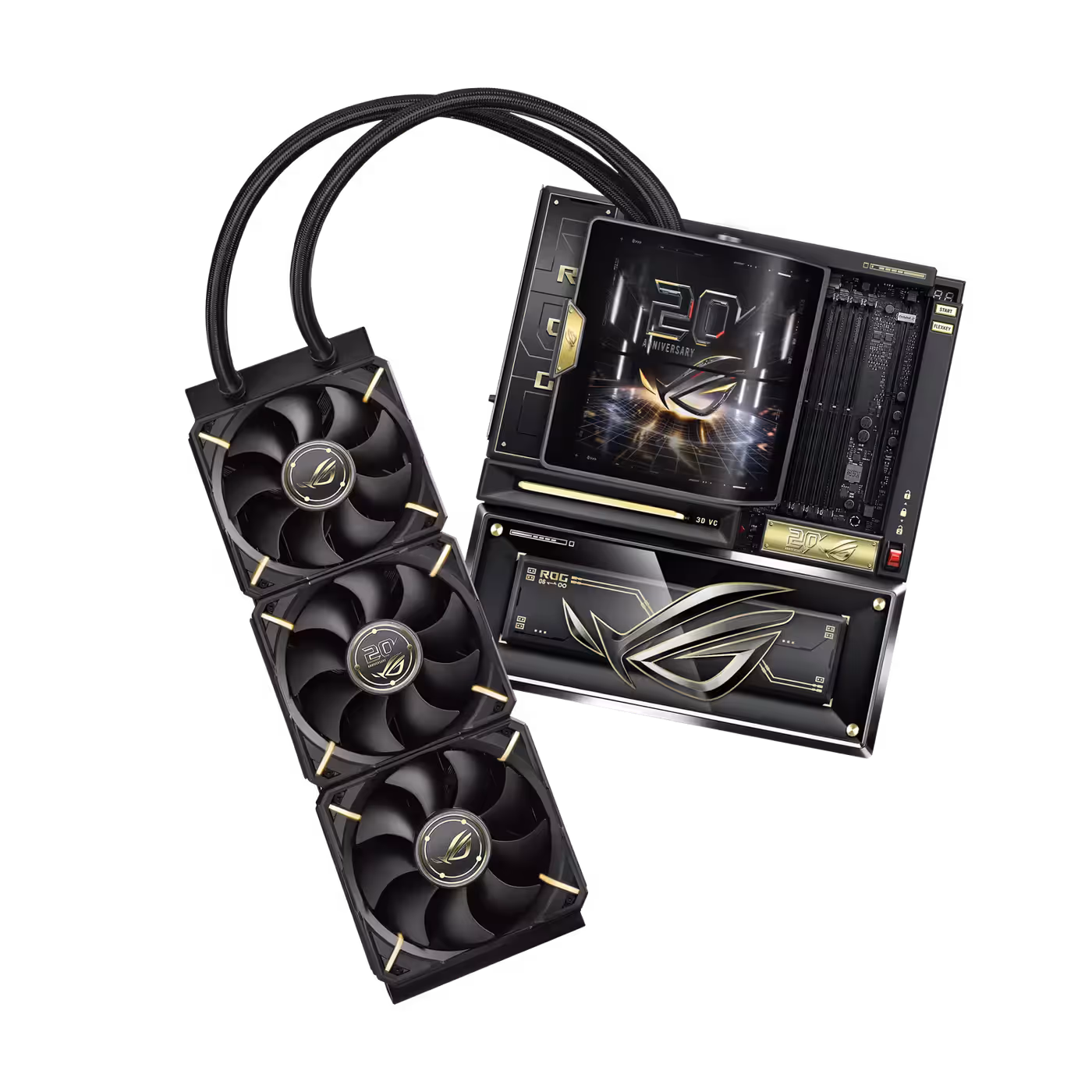

Bundled ROG Ryujin 360 Edition 20
The board ships with its own 360mm all-in-one liquid cooler. The Ryujin 360 Edition 20 uses an Asetek EMMA Gen10 V3RX pump and a 40mm-thick 20 FPI non-louvered radiator, with a swivel dual 6.67-inch curved AMOLED display and Display Sync-Up.
Bundled ROG Ryujin 360 Edition 20
The board ships with its own 360mm all-in-one liquid cooler. The Ryujin 360 Edition 20 uses an Asetek EMMA Gen10 V3RX pump and a 40mm-thick 20 FPI non-louvered radiator, with a swivel dual 6.67-inch curved AMOLED display and Display Sync-Up.
Up to Nine M.2 Slots
Five M.2 slots sit on the board and extend to nine in total using the bundled expansion cards. M.2_1 and M.2_2 run at PCIe 5.0 x4 with Ryzen 9000 and 7000 series processors, alongside four SATA 6Gb/s ports.
Up to Nine M.2 Slots
Five M.2 slots sit on the board and extend to nine in total using the bundled expansion cards. M.2_1 and M.2_2 run at PCIe 5.0 x4 with Ryzen 9000 and 7000 series processors, alongside four SATA 6Gb/s ports.

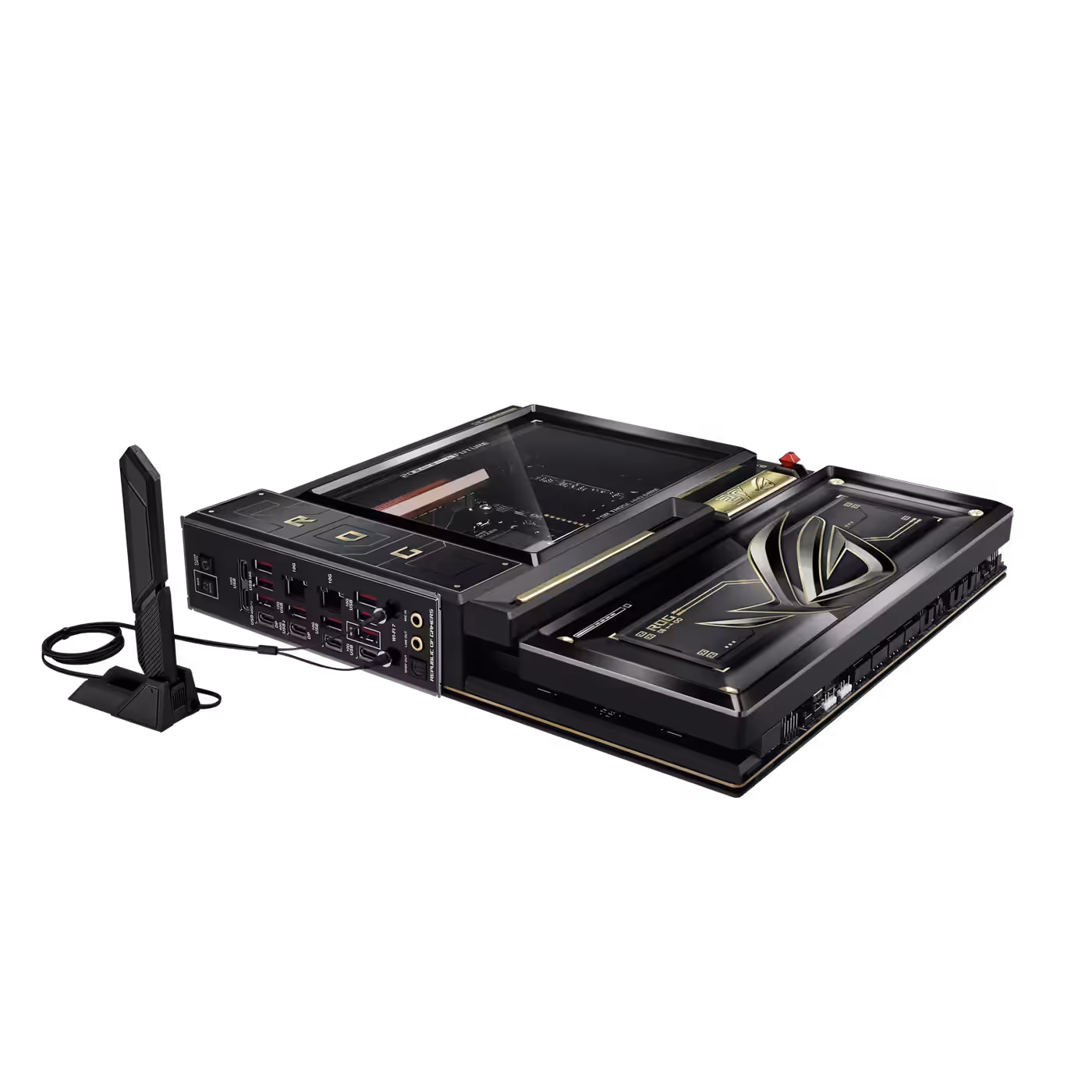

Dual 10Gb Ethernet and Wi-Fi 7
Two Realtek 10Gb Ethernet ports with ASUS LANGuard handle wired networking, and wireless is 2x2 Wi-Fi 7 on 2.4, 5 and 6GHz with 320MHz channels plus Bluetooth 5.4. The rear panel adds two USB4 40Gbps ports and twelve USB 10Gbps ports.
Dual 10Gb Ethernet and Wi-Fi 7
Two Realtek 10Gb Ethernet ports with ASUS LANGuard handle wired networking, and wireless is 2x2 Wi-Fi 7 on 2.4, 5 and 6GHz with 320MHz channels plus Bluetooth 5.4. The rear panel adds two USB4 40Gbps ports and twelve USB 10Gbps ports.
DDR5 to 256GB
Four DIMM slots take up to 256GB of DDR5. Overclocked speeds reach 8600+MT/s on Ryzen 9000, 9600+MT/s on Ryzen 8000 and 8000+MT/s on Ryzen 7000 series processors.
DDR5 to 256GB
Four DIMM slots take up to 256GB of DDR5. Overclocked speeds reach 8600+MT/s on Ryzen 9000, 9600+MT/s on Ryzen 8000 and 8000+MT/s on Ryzen 7000 series processors.
