Will a 9800X3D drop into a board I bought for a Ryzen 7000 chip?

Yes, the socket is the same and AMD supports the processor across the 600-series chipsets. The catch is firmware: update the board to a revision listed as supporting Zen 5 X3D parts while the old processor is still fitted, or use BIOS Flashback if the board has already been stripped.

Does a more expensive chipset give higher frame rates?

No. Two boards running the same processor, cooler and memory produce the same frames whether the chipset is B850 or X870E. The higher tier buys connectivity and expansion, so a price difference chased for performance reasons does more good in the graphics card or the cooler.

Can I overclock this processor, and does the board decide that?

This is the first X3D part with a fully unlocked multiplier, made practical by moving the cache die beneath the cores so heat reaches the cooler more directly. The board still gates it: B840 blocks processor overclocking outright and entry models restrict the tuning menus. Most owners get more from Precision Boost Overdrive and a negative curve offset than from a fixed multiplier anyway.

Is the 9800X3D still a sensible buy now that the 9850X3D exists?

The 9850X3D arrived in January 2026 with the same eight cores, the same cache arrangement and the same 120W rating, differing mainly in a boost ceiling of 5.6GHz against 5.2GHz for a single-digit percentage gain in games. Both take identical board support, so this decision does not change which motherboard you buy.

How can I check a board's firmware version before I buy it?

Manufacturers publish a processor support list for every board stating the minimum firmware revision for each chip, and many print a sticker on the box or a tag on the rear shroud showing the revision shipped. Where neither is available, choosing a model with Flashback removes the risk entirely.

Do I need PCIe 5.0 storage slots on this build?

Not for gaming. Gen5 drives shine in sustained large-file transfers and run hot enough to need the board's heatsink, while game load times differ little from a good Gen4 drive because the bottleneck sits in decompression rather than in the link. One Gen5 socket alongside several Gen4 sockets is the practical layout.

Does the motherboard affect which CPU cooler I can fit?

The socket retention frame and backplate arrive attached to the board, and AM5 kept the mounting hole spacing used by AM4, so a large number of older coolers fit with the correct bracket. What varies by model is clearance: tall regulator heatsinks and thick M.2 covers can foul a wide air cooler near the socket.

Is onboard Wi-Fi 7 worth paying extra for?

A wired connection still gives lower and steadier latency for competitive play, so treat wireless as convenience rather than upgrade. Wi-Fi 7 is standard on X870 boards and optional on B850, and where a board uses an M.2 E-key socket for the module, the card can often be added or replaced later. Confirm the antenna is included, because it is sometimes packed separately.

Do the board's display outputs work without a graphics card?

Yes. This processor includes a small integrated graphics block, so the rear HDMI or DisplayPort output drives a monitor for installing Windows, updating firmware or diagnosing a suspect graphics card. It is a diagnostic and desktop facility rather than something to play on.

How long will AM5 boards keep receiving new processors?

AMD has publicly committed to supporting the socket through 2027 and beyond, which is long by past standards and is the main practical argument for buying connectivity you will grow into. Firmware support for any specific board still depends on its manufacturer continuing to publish updates.

Best Motherboard for 9800X3D South Africa

►Home

►Specials

►Best Sellers

►AMD Motherboards

►

Best Motherboard for 9800X3D

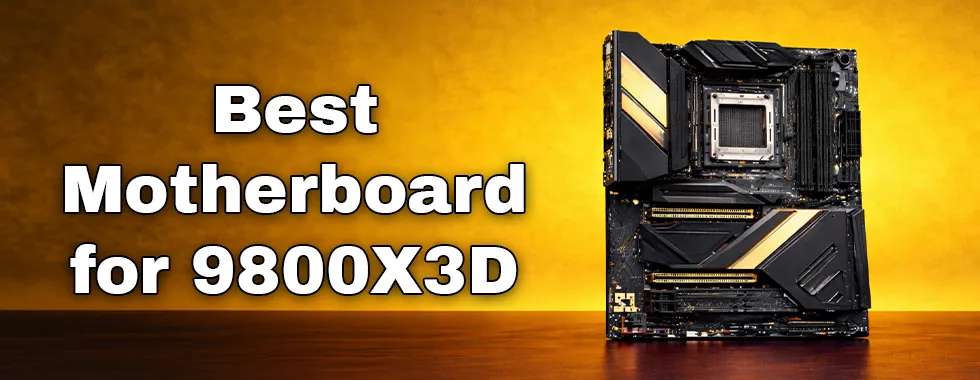

AM5 motherboard with the CPU socket open, ready for a Ryzen 7 9800X3D

What a 9800X3D Build Actually Asks of the Board

The Ryzen 7 9800X3D is an eight-core Zen 5 part with 96MB of L3, most of it on a cache die stacked underneath the cores rather than on top of them. Its rated 120W and package ceiling near 162W are modest next to a sixteen-core processor, so power delivery is rarely what separates one board from another here. Firmware revision, memory slot layout and how the board shares its PCIe lanes matter far more.

Every AM5 chipset from the entry tier upward will run this processor once the firmware knows about it. What the tiers change is USB4, whether PCIe 5.0 reaches the graphics slot, how much tuning the board will allow, and how many drives fit before something drops to half width. Evetech stocks AM5 boards at Limeroc Business Park in Centurion, with delivery to the major centres in one to three business days and three to five for regional addresses.
